Legrand 2097TRI radiant 20A Tamper-Resistant Self-Test GFCI Duplex Outlet, Ivory
Available in stock (120)
About this item
About this item
- Amperage: Rated for 20A, suitable for larger appliances and commercial settings.
- GFCI Protection: Self-tests every 3 seconds to ensure ground fault protection.
- Tamper-Resistant: Features patented shutter system to prevent foreign object insertion.
- NEMA Configuration: NEMA 5-20R, compatible with standard plugs.
- Construction: High-impact resistant thermoplastic for durability.
We process payments securely and do not store credit card information.
Description
Description
Legrand radiant Duplex Outlet — Ivory & GFCI Protection
The Legrand 2097TRI is an ivory, tamper-resistant duplex outlet featuring 20A capacity and GFCI protection. This outlet is designed for both residential and commercial applications, meeting NEMA 5-20R standards. It includes a self-testing mechanism that checks for ground faults every three seconds, ensuring continuous safety. The tamper-resistant design prevents the insertion of foreign objects, enhancing safety in homes with children.
Key Features
- Voltage: Compatible with standard voltage requirements for residential and commercial use.
- Amperage: 20A capacity supports larger appliances.
- NEMA Configuration: NEMA 5-20R for standard plug compatibility.
- Tamper-Resistant: Yes, features patented shutter system for safety.
- Weather-Resistant: No, designed for indoor use.
- Grade: Spec-Grade for commercial installations.
- Dimensions: 1.73 in. width, 4.20 in. height, 1.03 in. depth.
- Certifications: cULus, UL Listed, FSUL compliant.
- Self-Test GFCI: Conducts automatic self-test every 3 seconds.
- SafeLock Protection: Disconnects power if protection is compromised.
- Short Circuit Rating: 10kA for enhanced safety.
- Mounting Type: Box mount for secure installation.

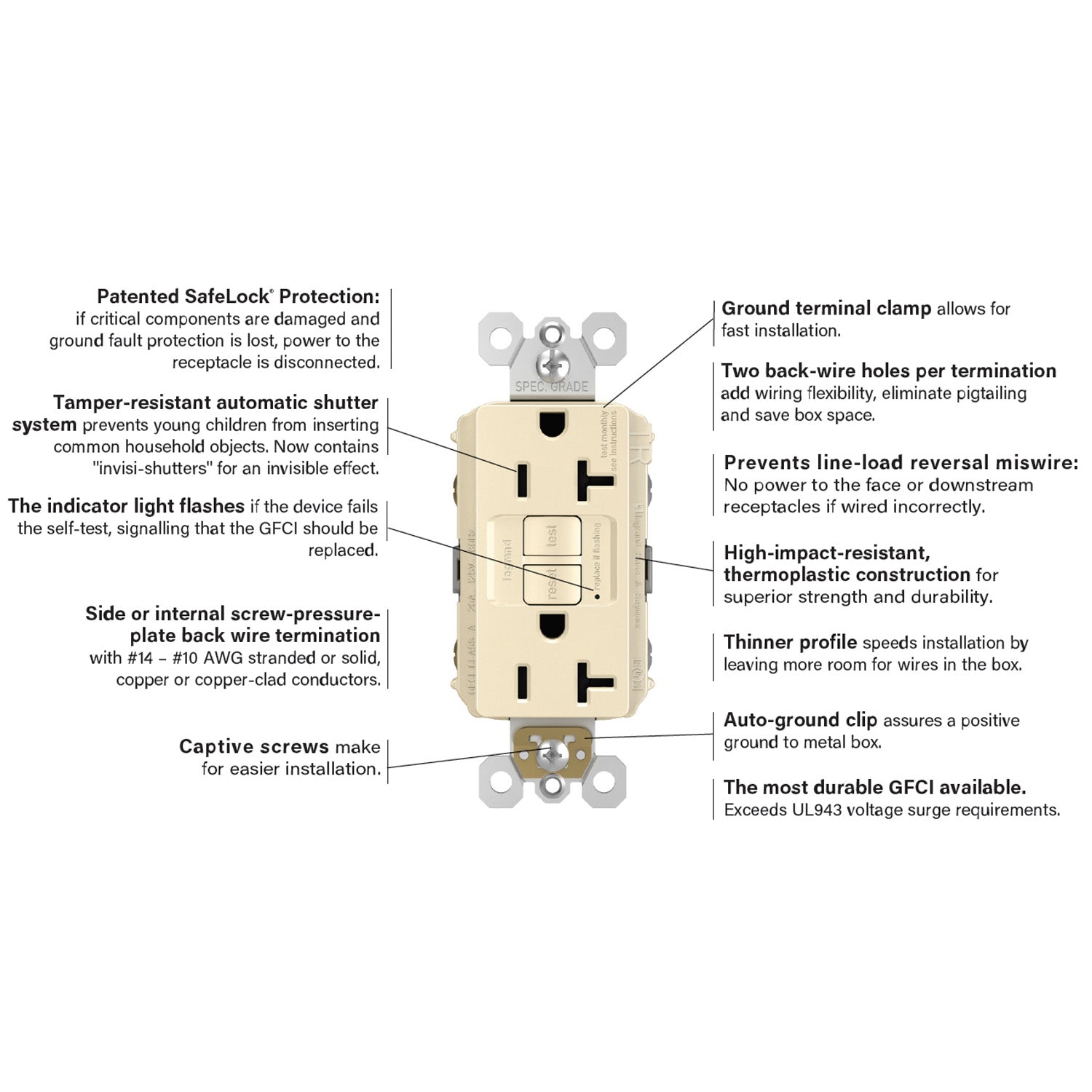

Construction & Interface
This outlet features a decorator-style interface with a matte ivory finish, constructed from high-impact resistant thermoplastic for durability. The wallplate is sold separately, allowing for customization with screwless options from the radiant Collection.
Safety & Ground Fault Protection
Equipped with a self-testing GFCI mechanism, this outlet ensures continuous protection against ground faults. The SafeLock feature disconnects power if the GFCI protection is compromised, while the tamper-resistant shutters prevent accidental insertion of foreign objects.

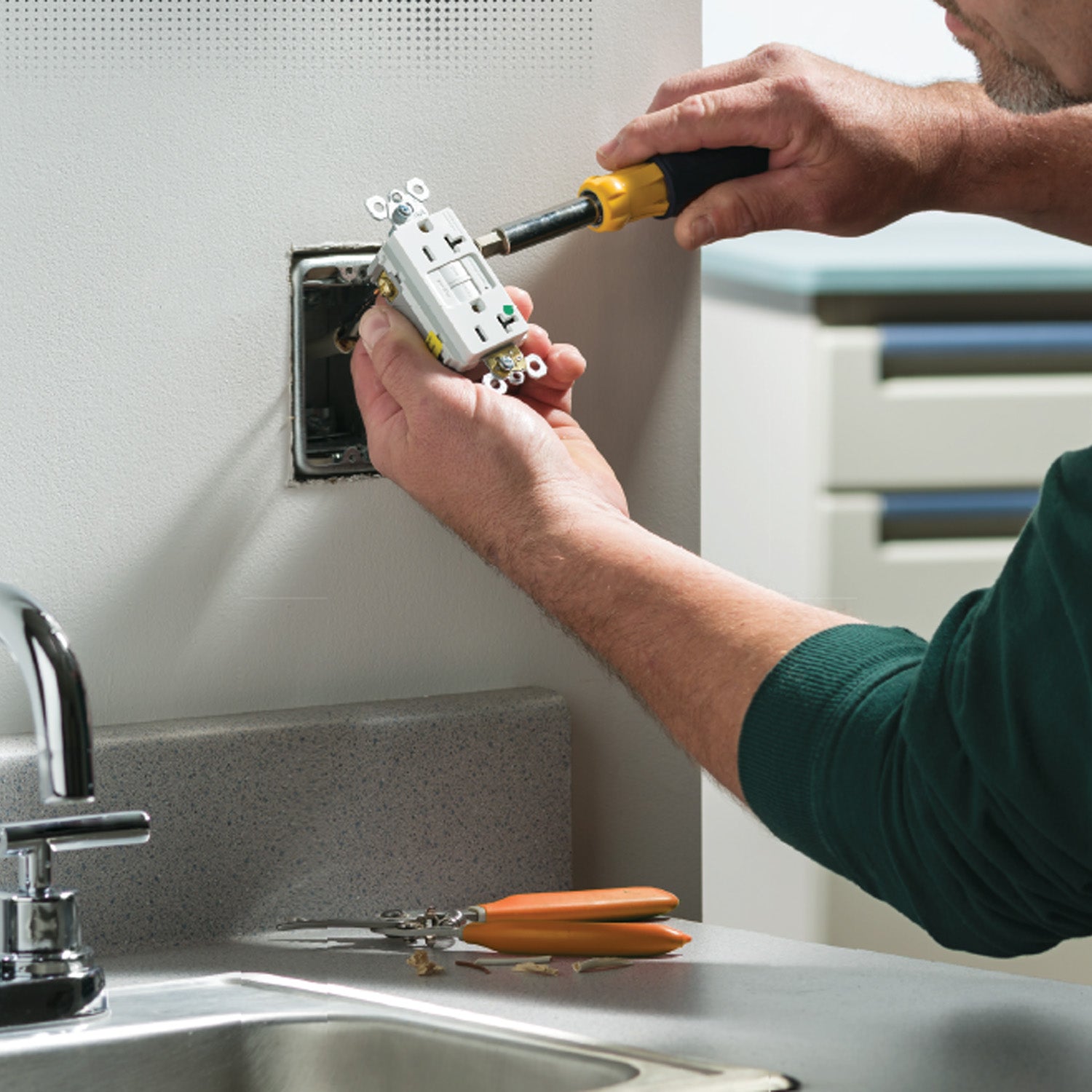

Wiring & Installation
Designed for easy installation, this outlet supports both back and side wiring methods, accommodating wire sizes from #14 to #10 AWG. It includes a robust mounting strap for secure attachment to electrical boxes.
Specifications
Specifications
Dimensions
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Does the Legrand 2097TRI outlet include a wallplate?
Does the Legrand 2097TRI outlet include a wallplate?
Is the Legrand 2097TRI outlet tamper-resistant?
Is the Legrand 2097TRI outlet tamper-resistant?
What is the NEMA configuration of the Legrand 2097TRI outlet?
What is the NEMA configuration of the Legrand 2097TRI outlet?
How often does the GFCI self-test occur in the Legrand 2097TRI?
How often does the GFCI self-test occur in the Legrand 2097TRI?
What wiring methods are supported by the Legrand 2097TRI outlet?
What wiring methods are supported by the Legrand 2097TRI outlet?
