Legrand radiant GFCI Duplex Outlet — Graphite & Self-Test

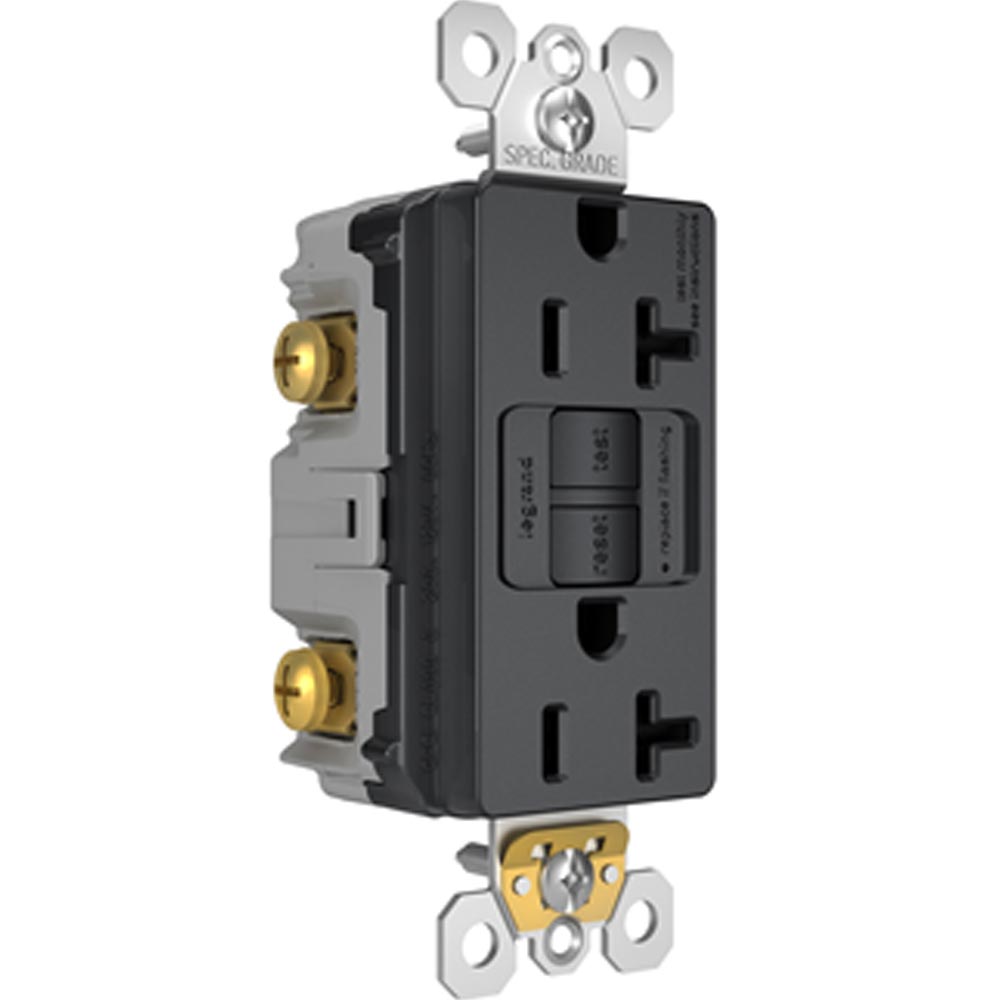

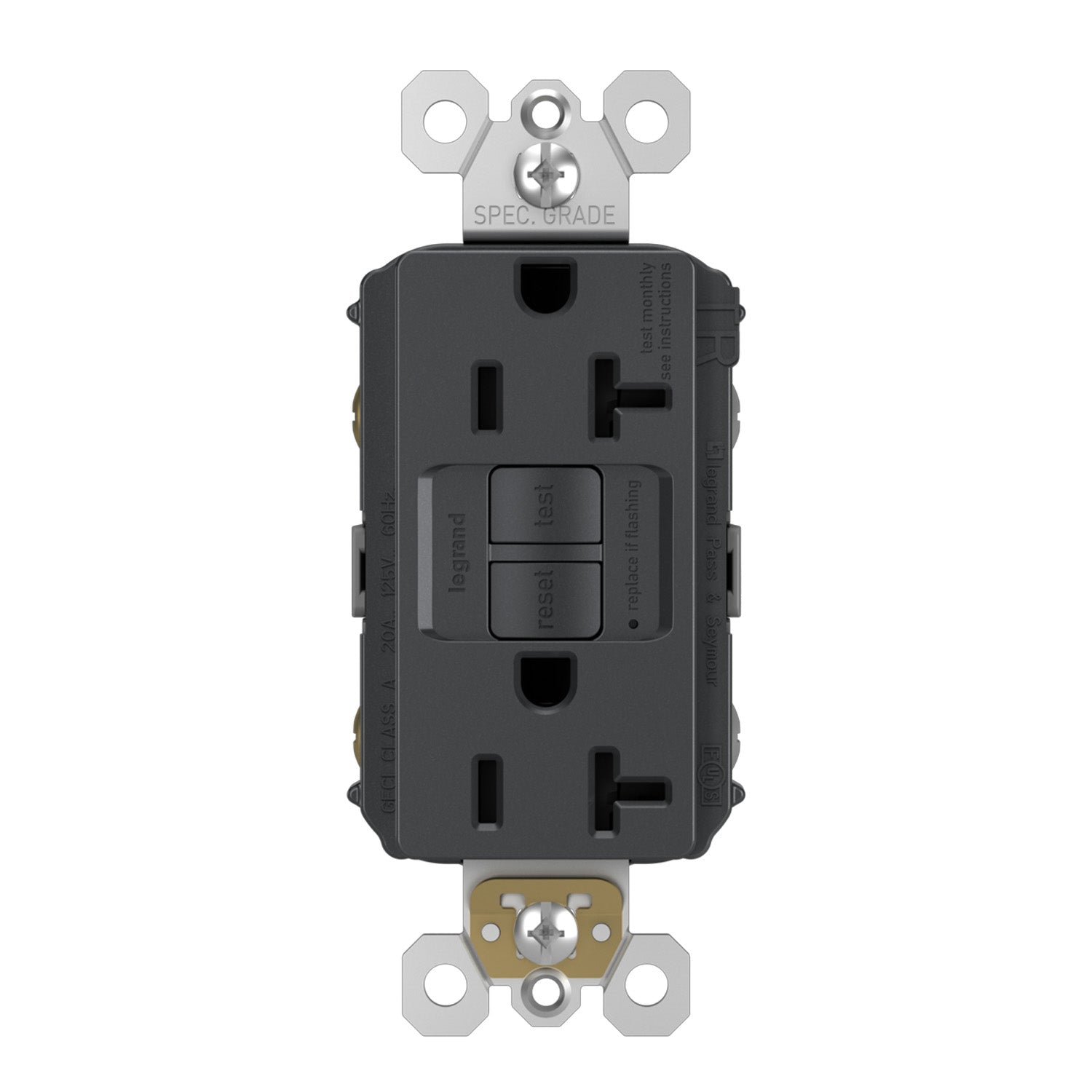

The Legrand 2097TRGCC4 is a 20A GFCI Duplex Outlet in a sleek Graphite finish. This outlet features a NEMA 5-20R configuration and is Tamper-Resistant, making it ideal for both residential and commercial applications. It includes a self-testing mechanism that ensures continuous ground fault protection.

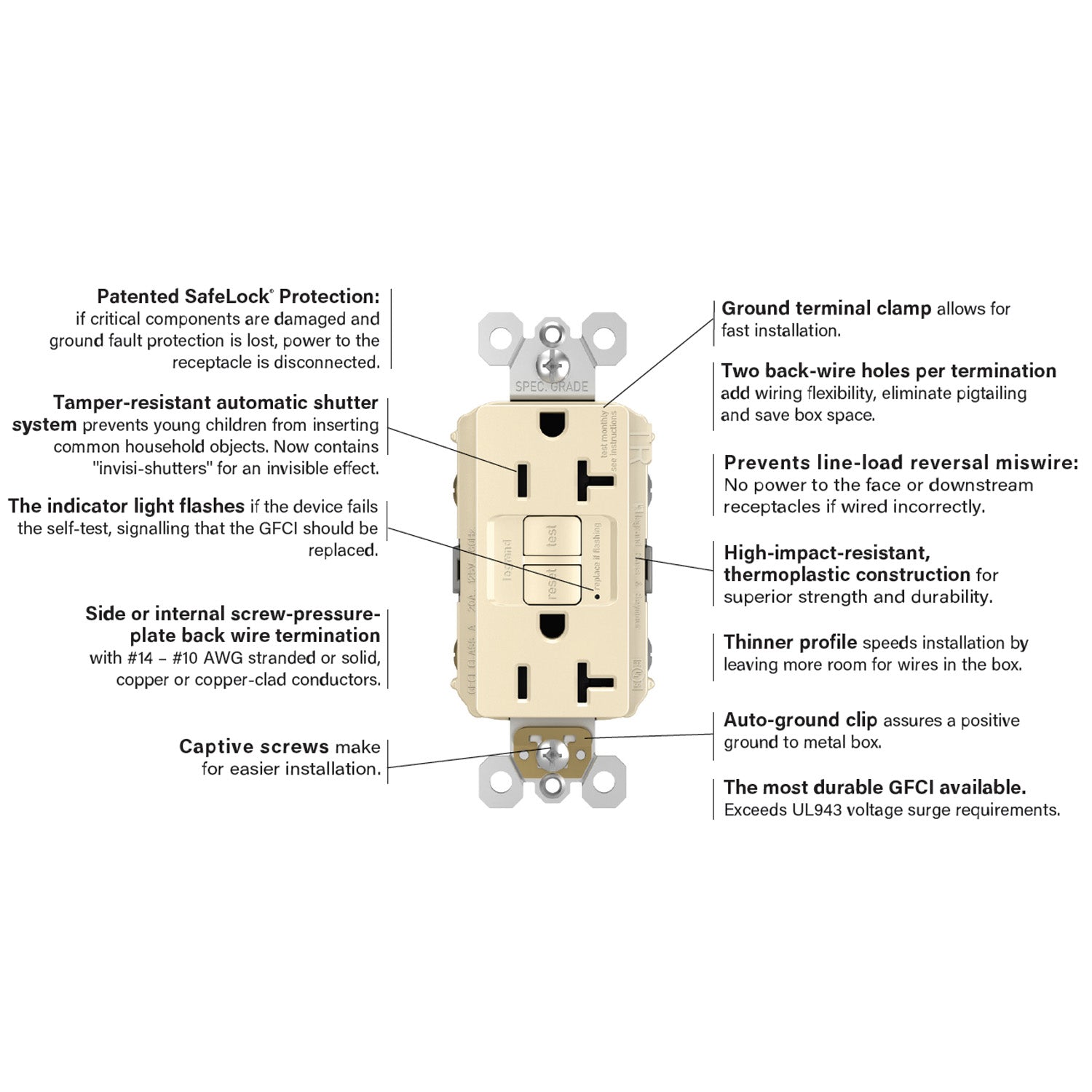

Key Features

• Voltage: Compatible with standard residential and commercial voltage levels.
• Amperage: 20A capacity for high-demand appliances.
• NEMA Configuration: 5-20R for secure and reliable connections.
• Tamper-Resistant: Yes, with patented shutter system for safety.
• Weather-Resistant: No, designed for indoor use only.
• Grade: Spec-Grade for commercial installations.
• Dimensions: 1.73 in. width x 4.20 in. height x 1.03 in. depth.
• Certifications: Meets UL 94 V2 standards for safety.
• Self-Test: Automatic self-test every 3 seconds to ensure functionality.
• SafeLock Protection: Disconnects power if critical components are damaged.
• Short Circuit Rating: 10kA for enhanced safety.

Construction & Interface

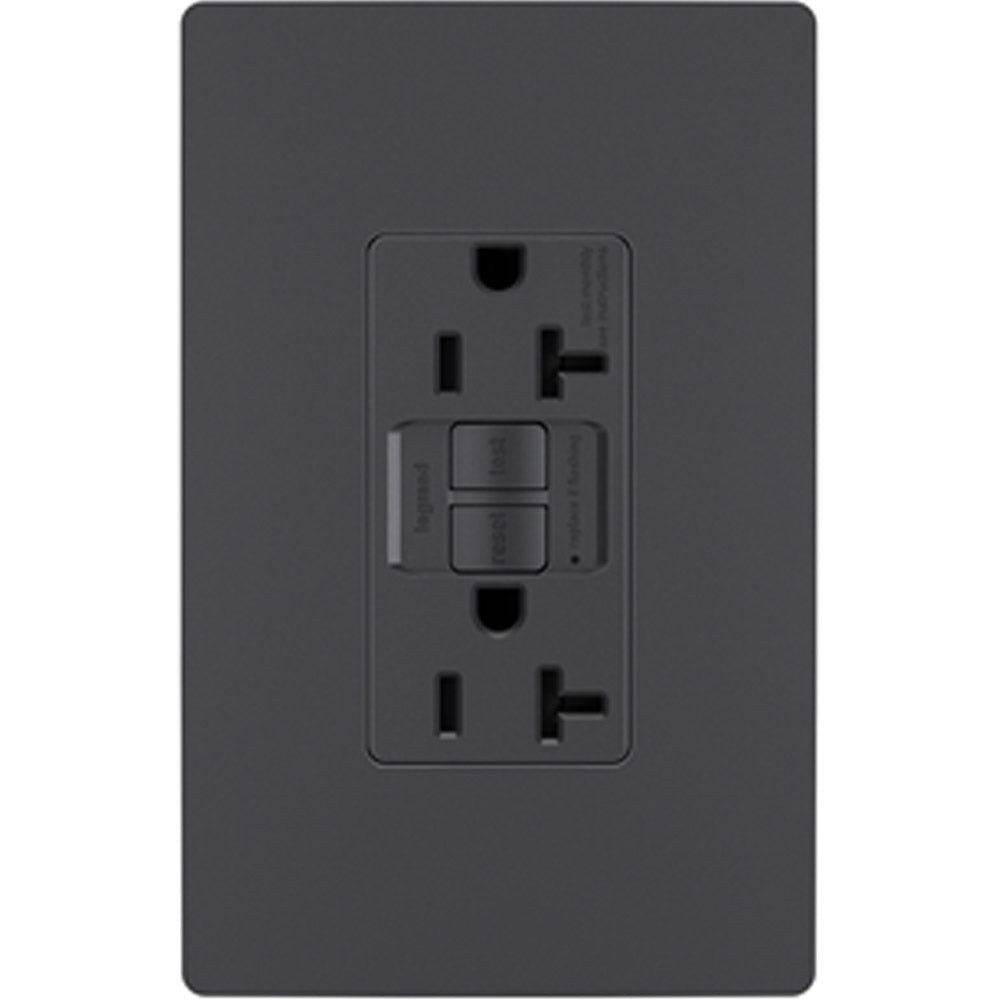

This outlet features a decorator-style interface and is constructed from high-impact resistant thermoplastic. The wallplate is sold separately, allowing customization with screwless options from the radiant Collection.

Safety & Ground Fault Protection

Equipped with a self-testing GFCI mechanism, this outlet provides reliable protection against ground faults. The Tamper-Resistant shutters enhance safety by preventing foreign object insertion.

Wiring & Installation

Designed for easy installation, this outlet supports back and side wiring methods. It accommodates wire sizes from #14 to #10 AWG and includes a robust mounting strap for secure attachment.
