Legrand 2097TR radiant 20A Tamper-Resistant Self-Test GFCI Duplex Outlet, Brown
Available in stock (103)
About this item
About this item
- Amperage: Rated for 20A, suitable for larger appliances and commercial settings.
- GFCI Protection: Provides ground fault protection, meeting NEC requirements.
- Self-Test Feature: Automatically tests every 3 seconds for reliable protection.
- Tamper-Resistant: Features patented shutter system to prevent improper insertion.
- Construction: Made from high-impact resistant thermoplastic for durability.
We process payments securely and do not store credit card information.
Description
Description
Legrand radiant Duplex Outlet — Brown & Self-Test GFCI

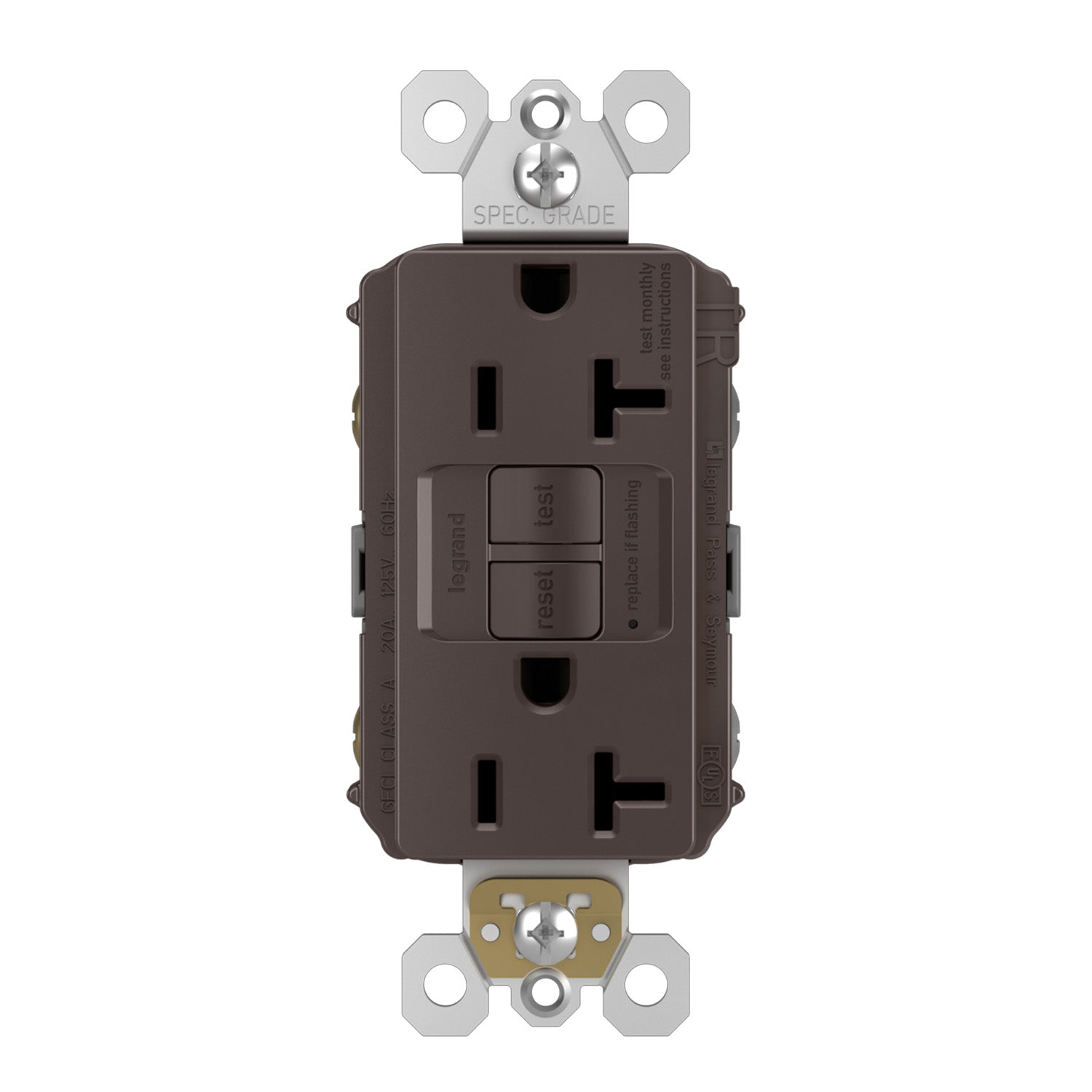

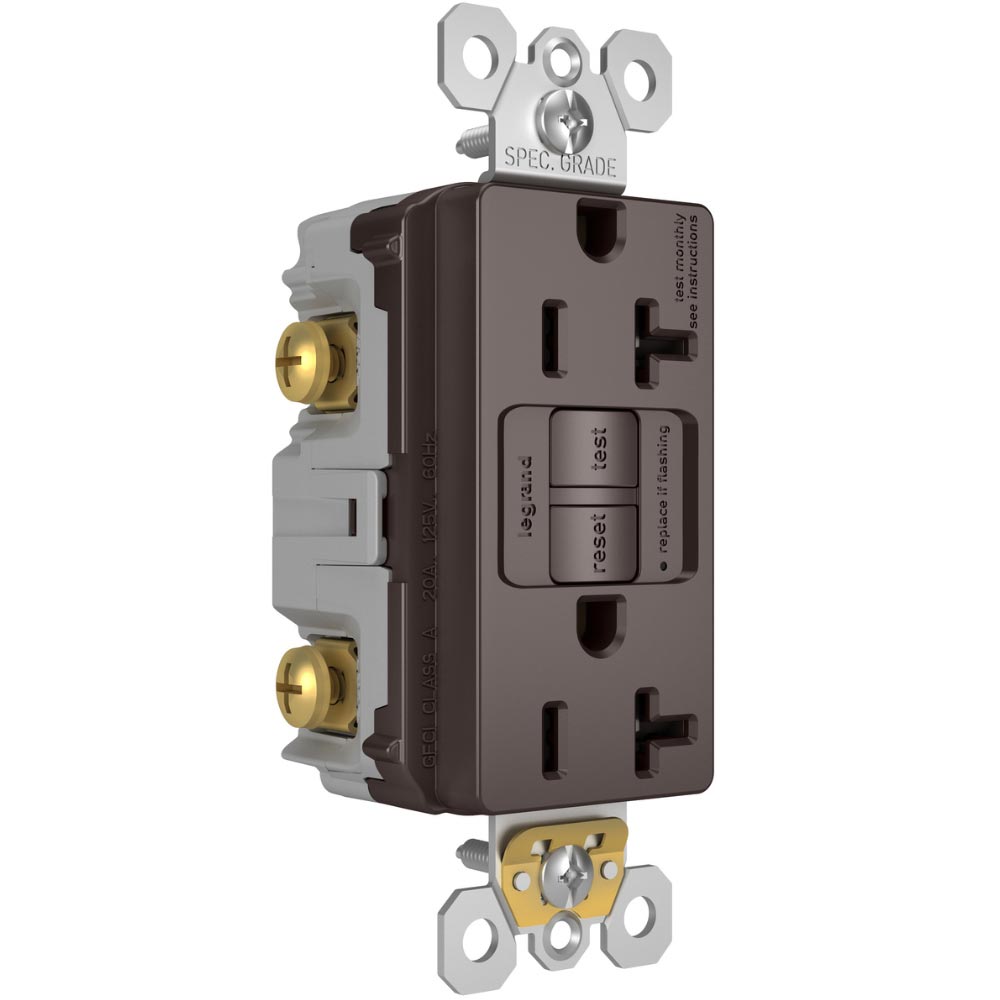

The Legrand 2097TR is a 20A Tamper-Resistant Self-Test GFCI Duplex Outlet in a Brown finish. This outlet is designed to provide ground fault protection and is ideal for commercial and residential applications. It features a NEMA 5-20R configuration and is equipped with a patented tamper-resistant shutter system for enhanced safety.
Key Features
- Voltage: Compatible with standard voltage requirements.
- Amperage: 20A rating for high-demand applications.
- NEMA Configuration: NEMA 5-20R for secure connections.
- Tamper-Resistant: Yes, with patented shutter system for safety.
- Weather-Resistant: No, designed for indoor use.
- Grade: Spec-Grade for commercial installations.
- Dimensions: 1.73 in. width, 4.20 in. height, 1.03 in. depth.
- Certifications: cULus Listed for safety compliance.

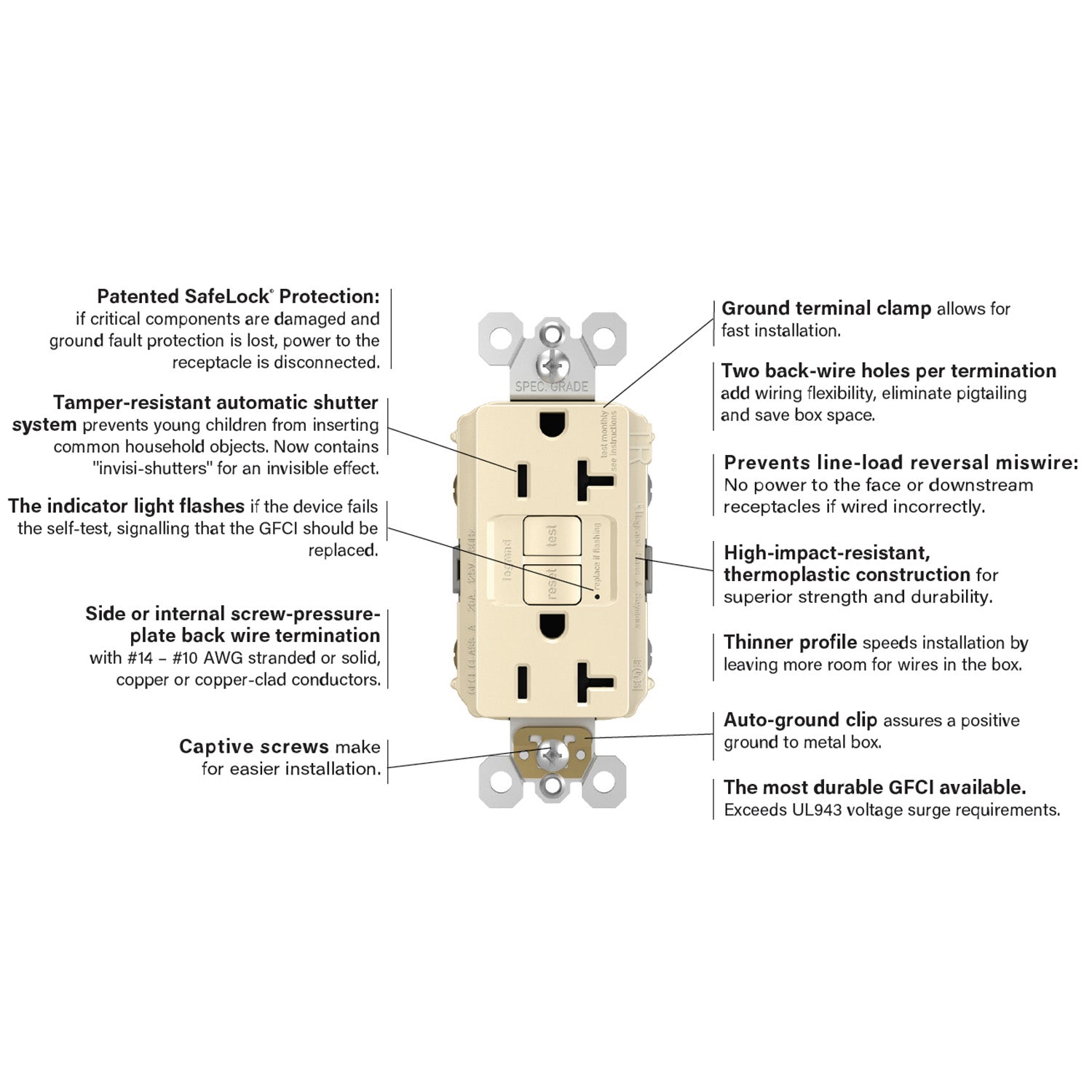

- Self-Test GFCI: Conducts automatic self-tests every 3 seconds.
- SafeLock Protection: Disconnects power if critical components are damaged.
- Short Circuit Rating: 10kA for enhanced safety.
- Feed-Thru Capacity: 20 Amp for downstream protection.
Construction & Interface

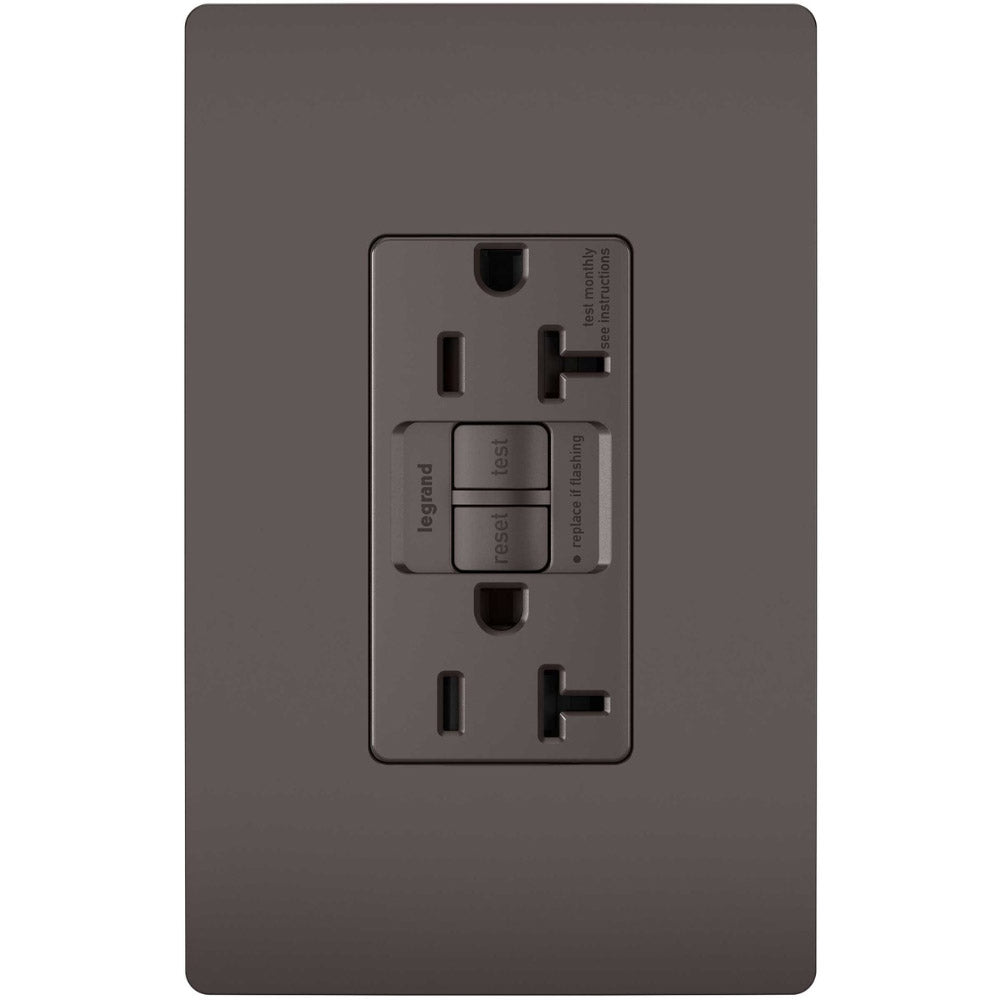

This outlet features a decorator-style interface with a matte brown finish. It is constructed from high-impact resistant thermoplastic for durability. Please note, the wallplate is sold separately.
Safety & Ground Fault Protection
The Legrand 2097TR offers robust safety features, including a self-testing GFCI mechanism that automatically tests every 3 seconds. The tamper-resistant shutters provide additional safety by preventing the insertion of foreign objects.
Wiring & Installation
Designed for easy installation, this outlet supports both back and side wiring methods. It accepts wire gauges from #14 to #10 AWG and includes a grounding terminal for secure connections. The mounting strap is designed for box installation.
