Legrand radiant Duplex Outlet — Black & GFCI Self-Test

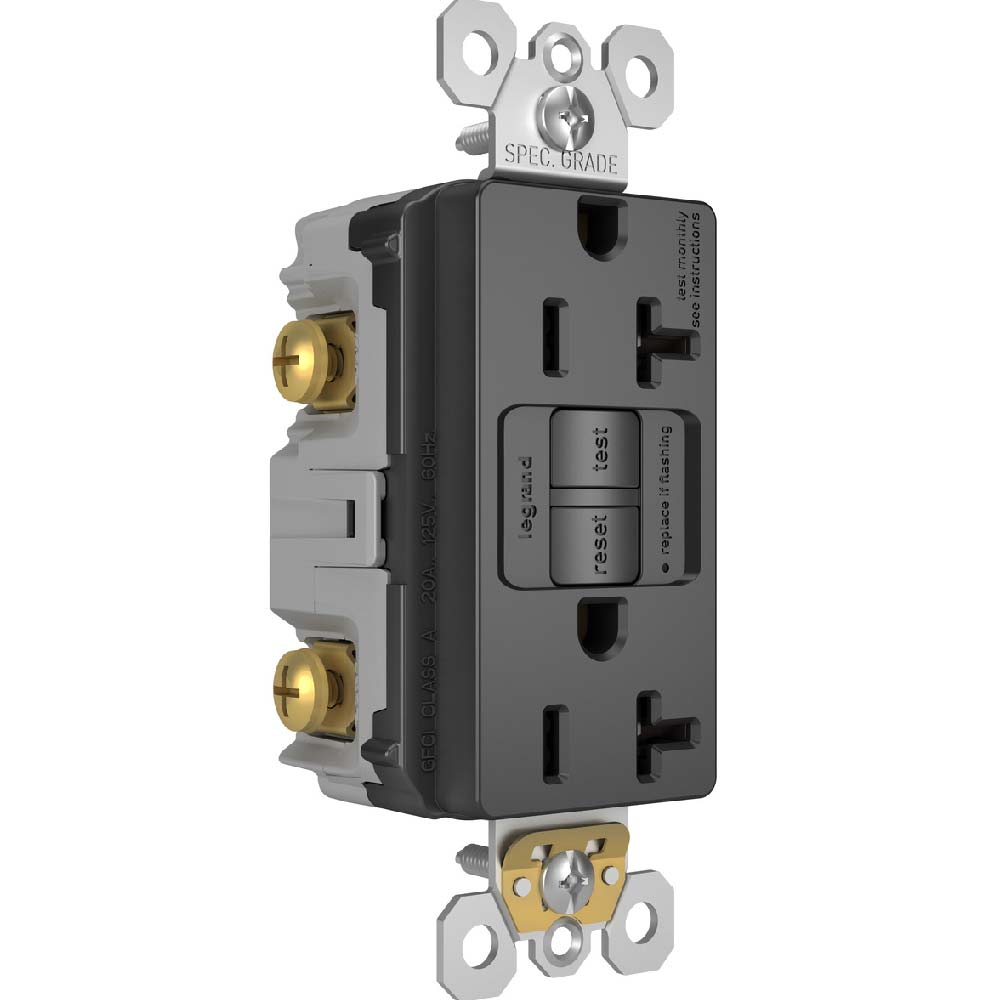

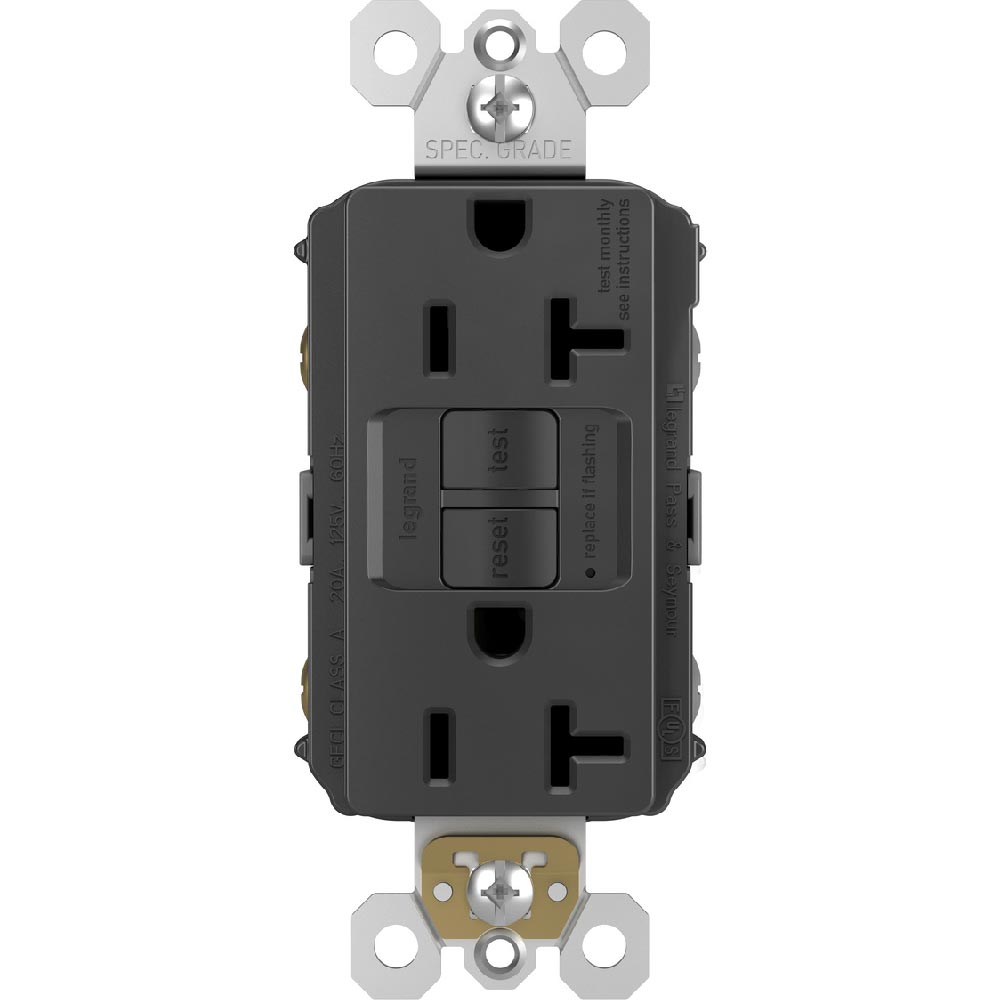

The Legrand 2097BK is a 20A GFCI Self-Test Duplex Outlet in a sleek black finish. This outlet features a NEMA 5-20R configuration and is designed for both commercial and residential applications. It offers ground fault protection and conducts an automatic self-test every three seconds to ensure safety and reliability.

Key Features

• Amperage: 20A, ideal for larger appliances and specific regional requirements.
• Voltage: Compatible with standard voltage requirements.
• NEMA Configuration: NEMA 5-20R, suitable for a variety of applications.
• Tamper-Resistant: No, this model does not include tamper-resistant features.
• Weather-Resistant: No, designed for indoor use only.
• Grade: Spec-Grade, engineered for commercial installations.
• Dimensions: 1.73 in. width x 4.20 in. height x 1.03 in. depth.
• Certifications: cULus Listed for safety and performance.
• Self-Test: Automatic self-testing every 3 seconds for continuous protection.
• SafeLock Protection: Disconnects power if protection is compromised.

Construction & Interface

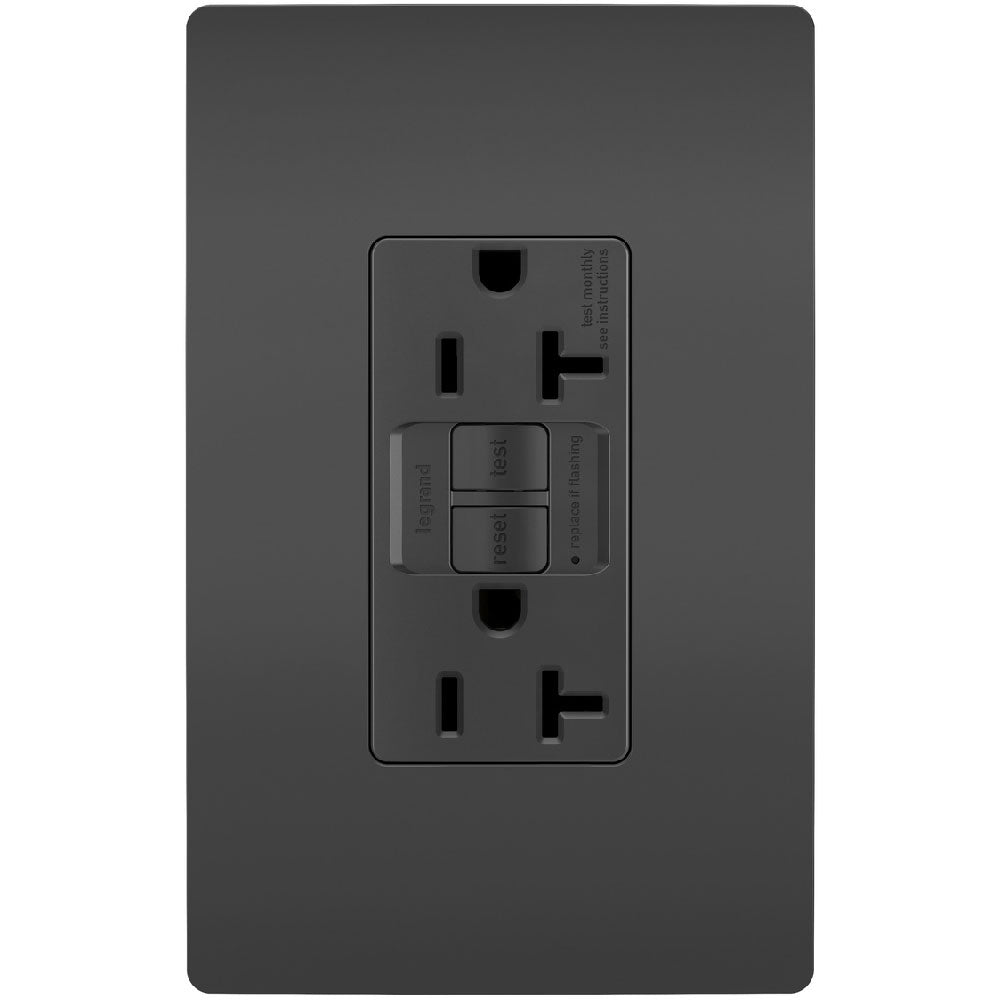

This outlet features a decorator-style interface and is constructed from high-impact resistant thermoplastic. The wallplate is sold separately, allowing for customization with screwless options from the radiant Collection.

Safety & Ground Fault Protection

The GFCI outlet provides essential ground fault protection, automatically testing itself every three seconds. The SafeLock feature ensures that power is disconnected if the outlet's protection is compromised, enhancing safety.

Wiring & Installation

Designed for ease of installation, this outlet supports feed-thru wiring configurations and can replace standard receptacles in as little as 10 minutes. It accommodates #14 to #10 AWG wire and features a robust mounting strap for secure installation.
