Legrand radiant Duplex Outlet — Gray & GFCI USB

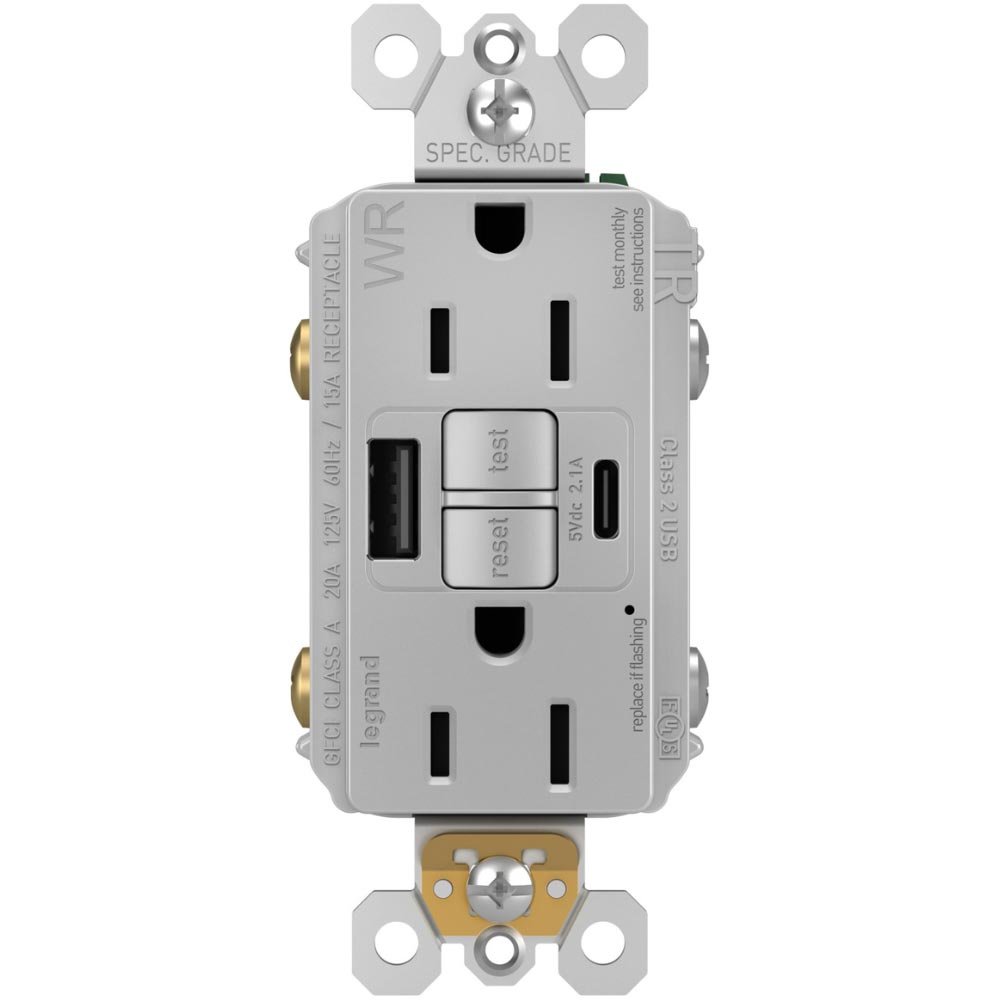

The Legrand 1597TRWRUSBACGRY is a gray duplex outlet featuring 15A capacity, NEMA 5-15R configuration, and tamper-resistant and weather-resistant properties. It includes a GFCI self-test mechanism and USB Type-A/C ports for convenient charging.

Key Features

• Voltage: Supports standard voltage for residential and commercial use.
• Amperage: 15A rating ensures compatibility with various electrical devices.
• NEMA Configuration: NEMA 5-15R for secure and reliable connections.
• Tamper-Resistant: Incorporates an 'invisi-shutter' system for child safety.

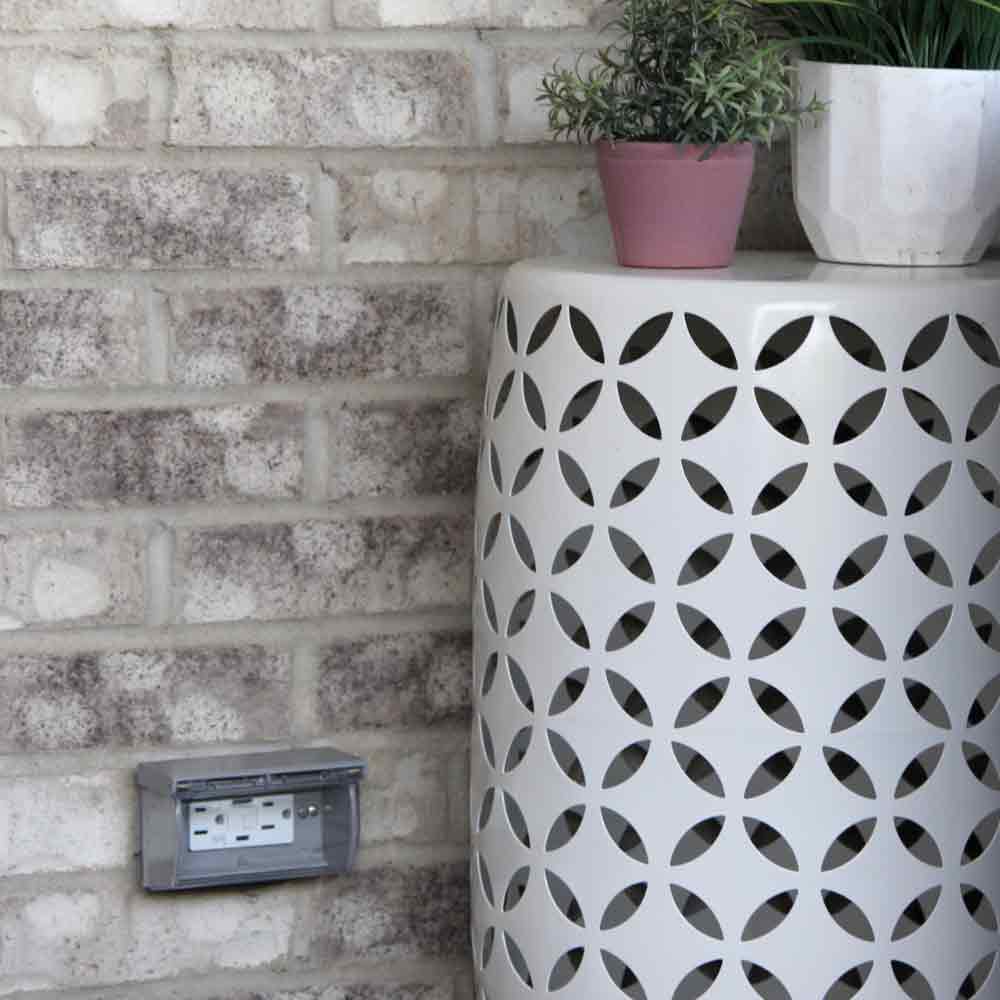

• Weather-Resistant: Suitable for outdoor installations in compliance with NEC requirements.
• Grade: Suitable for both residential and commercial applications.
• Dimensions: Measures 1.73 in. width, 4.20 in. height, and 1.03 in. depth.
• Certifications: CSA and cULus listed for safety and performance.
• GFCI Protection: Self-tests every three seconds for continuous safety.

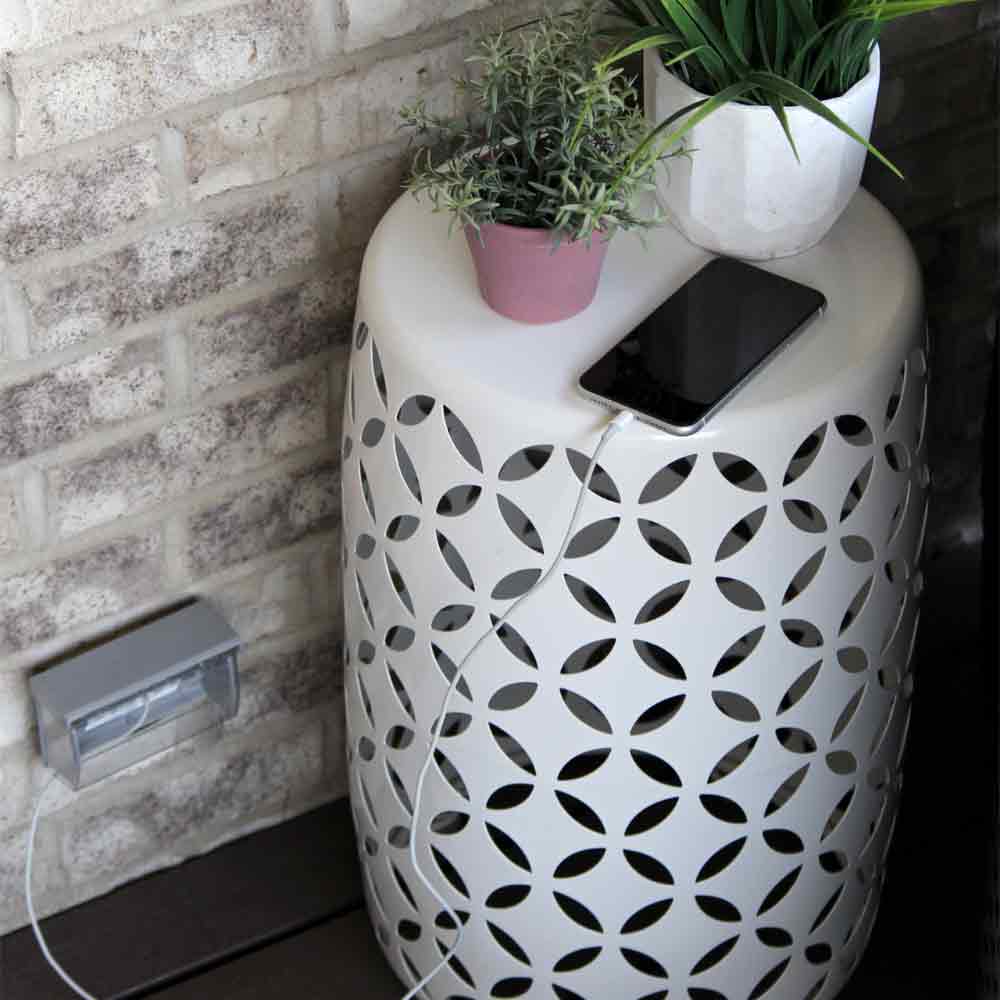

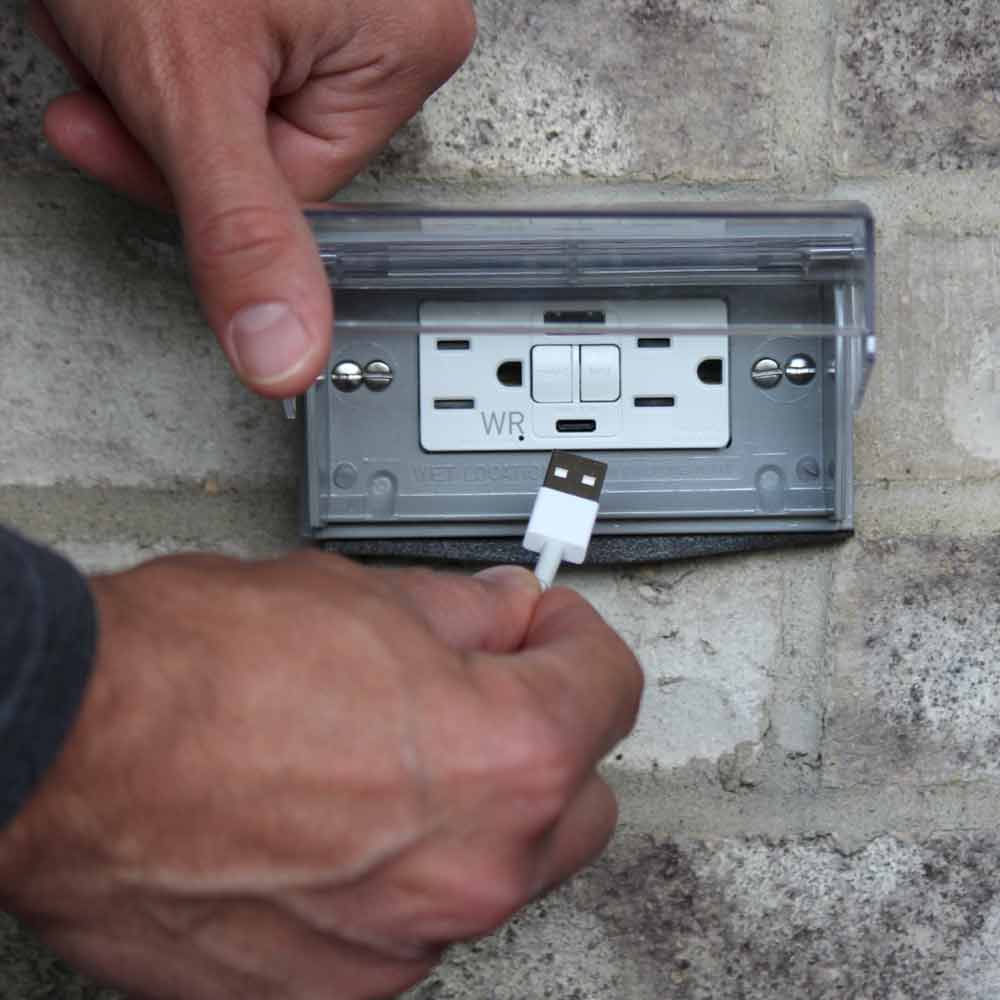

• USB Ports: Features USB Type-A and Type-C with 2.0A shared capacity.
• SafeLock Protection: Disconnects power if critical components are damaged.
• LED Indicator: Red LED signals test failure for easy troubleshooting.

Construction & Interface

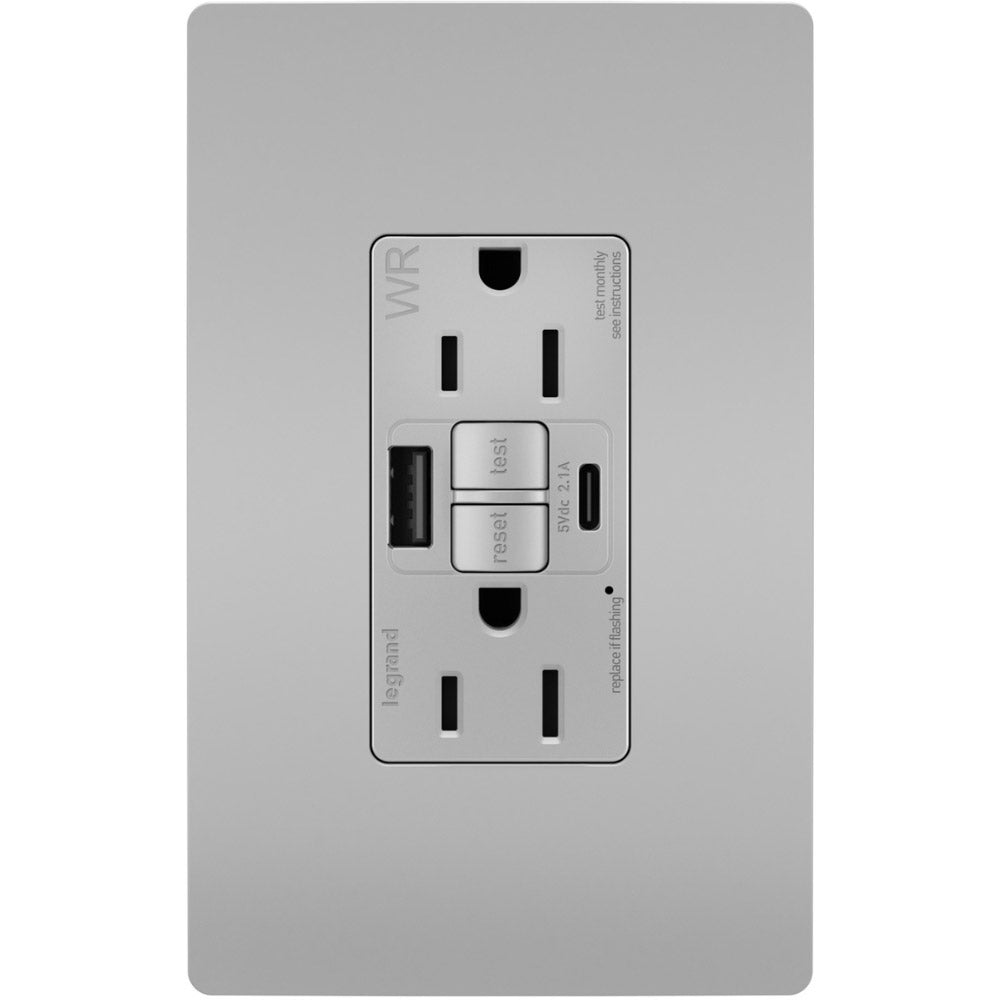

This outlet features a decorator-style interface with impact-resistant materials and a matte gray finish. The wallplate is sold separately.

Safety & Ground Fault Protection

Equipped with a GFCI self-test function and SafeLock protection, this outlet ensures continuous safety by disconnecting power if necessary. The tamper-resistant design adds an extra layer of protection.

Wiring & Installation

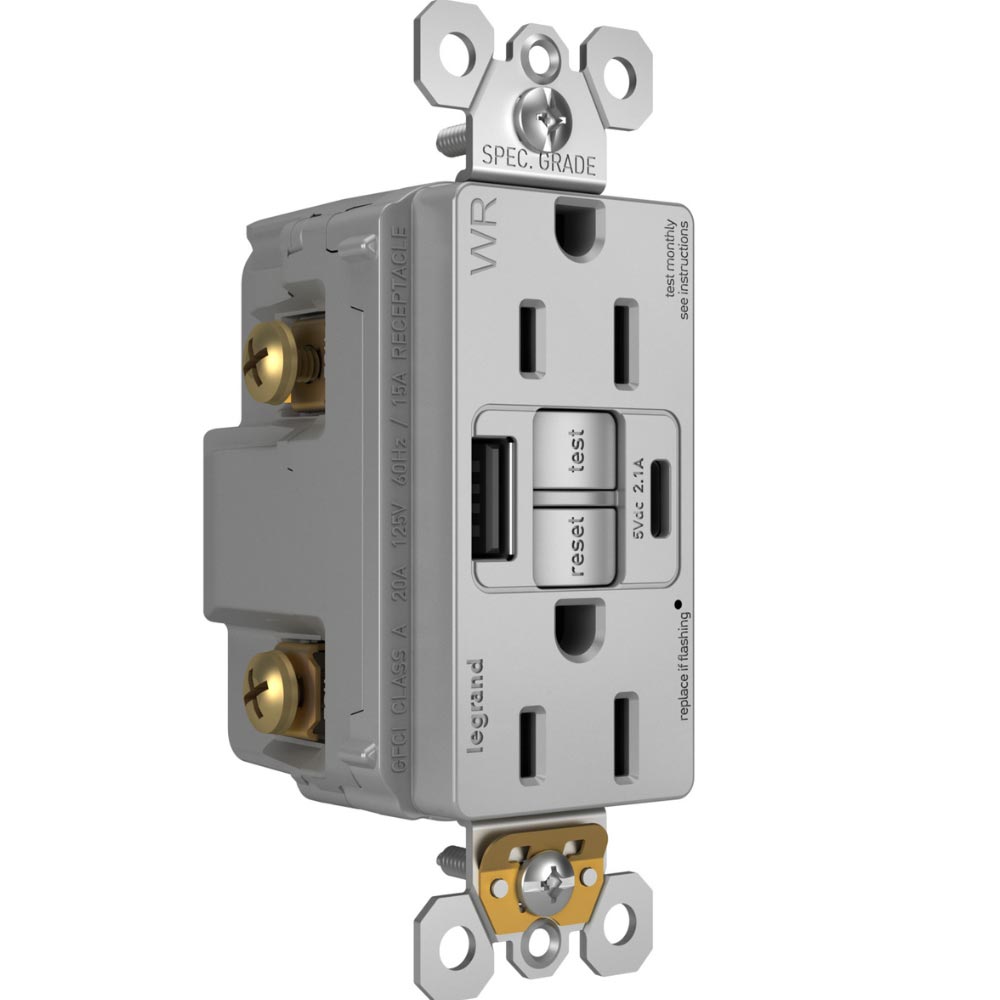

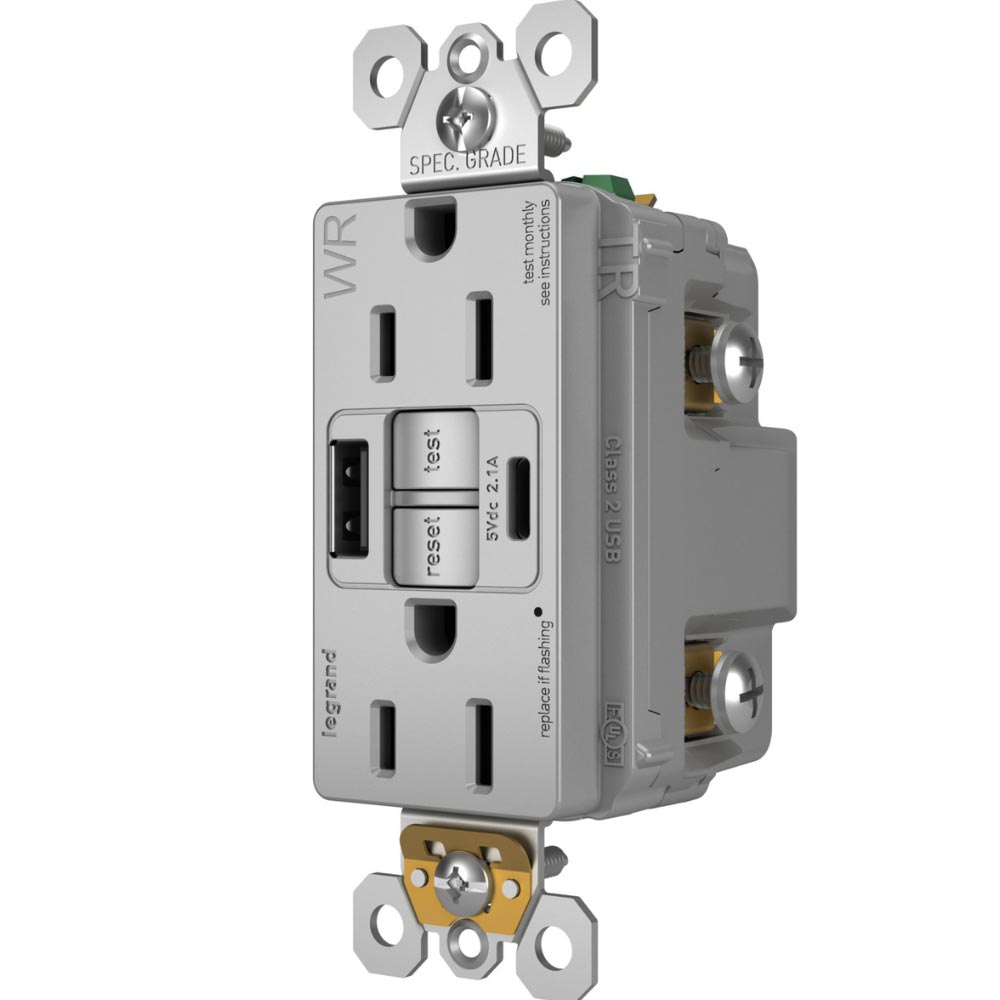

Designed for easy installation with a side wire cavity, it supports back and side wiring methods and accommodates #14 to #10 AWG wire. The mounting strap is robust for secure installation.
