Legrand radiant GFCI Duplex Outlet — Brown & Tamper-Resistant

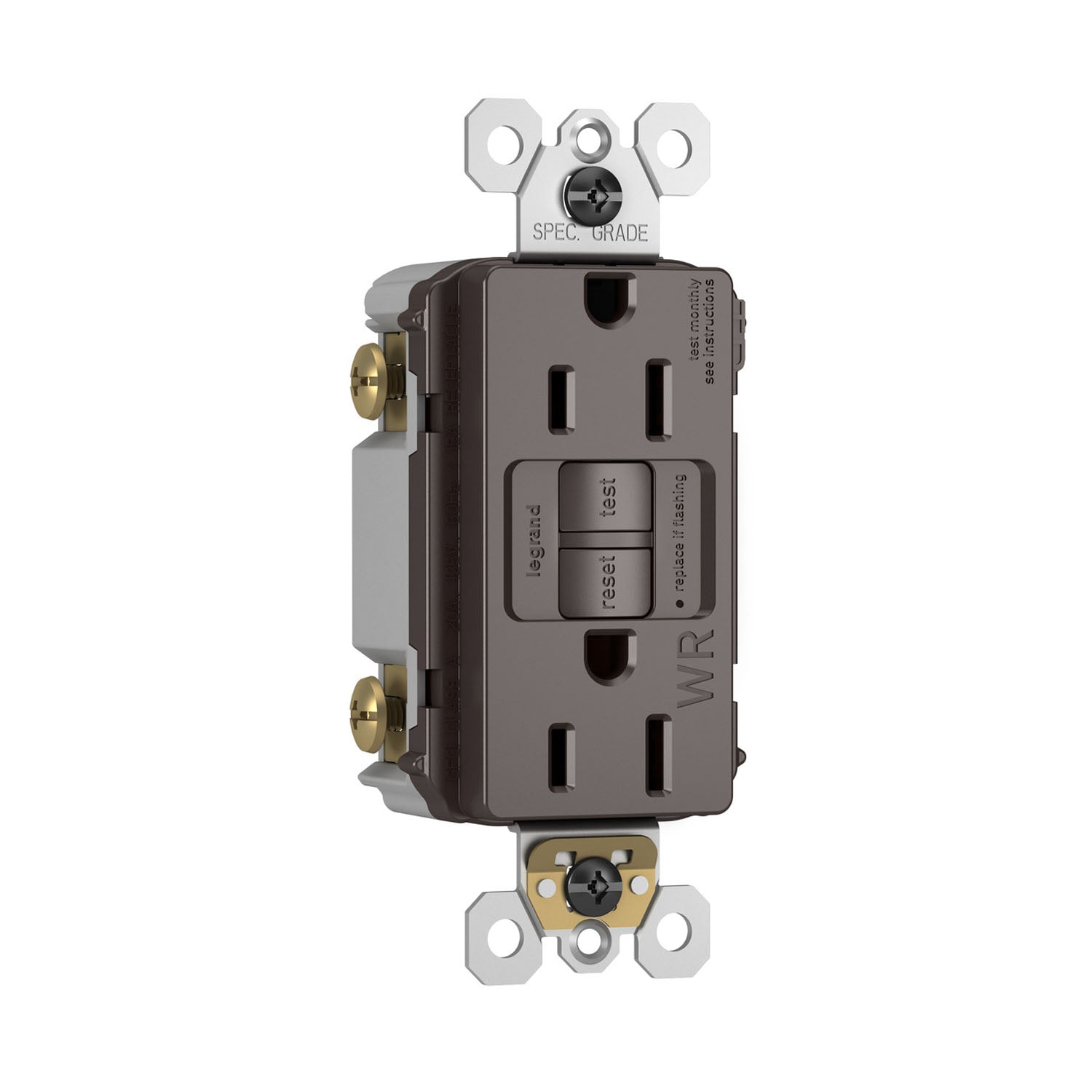

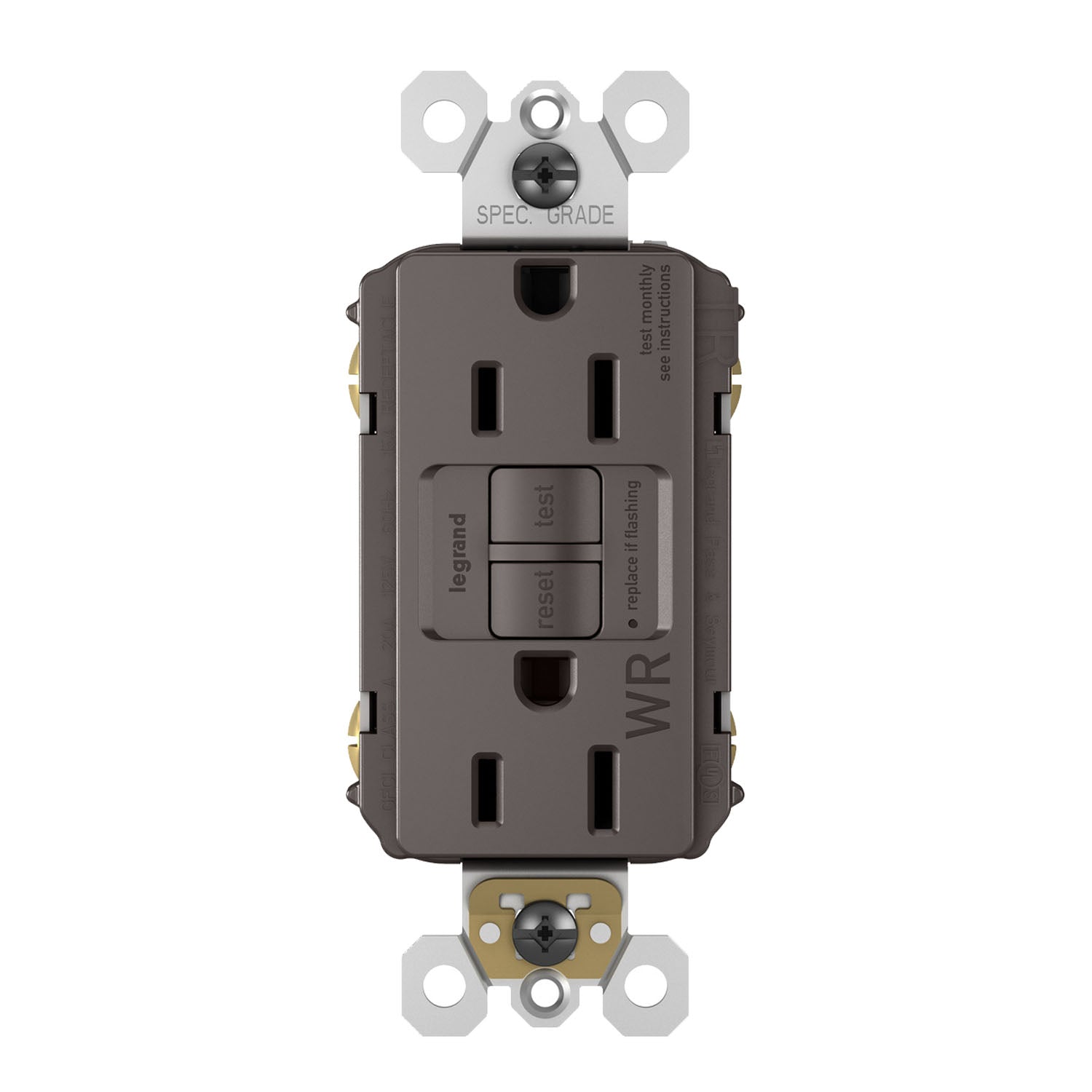

The Legrand 1597TRWR is a 15A GFCI Duplex Outlet in a Brown finish, featuring Tamper-Resistant and Weather-Resistant properties. It is designed for outdoor use, providing reliable protection against ground faults with its NEMA 5-15R configuration.

Key Features

• Voltage: Compatible with standard voltage requirements for residential and commercial use.
• Amperage: Supports up to 15A for efficient power distribution.
• NEMA Configuration: NEMA 5-15R for standard plug compatibility.
• Tamper-Resistant: Yes, includes safety shutters to prevent accidental insertion.
• Weather-Resistant: Yes, suitable for outdoor environments.
• Grade: Spec-Grade for commercial installations.
• Dimensions: 1.73 in. width x 4.2 in. height x 1.03 in. depth.
• Certifications: cULus Listed for safety and performance.
• Self-Testing: Conducts automatic self-tests every three seconds.
• SafeLock Protection: Disconnects power if critical components are damaged.
• Material: High-impact resistant thermoplastic construction.
• Warranty: 1-Year Limited Warranty.

Construction & Interface

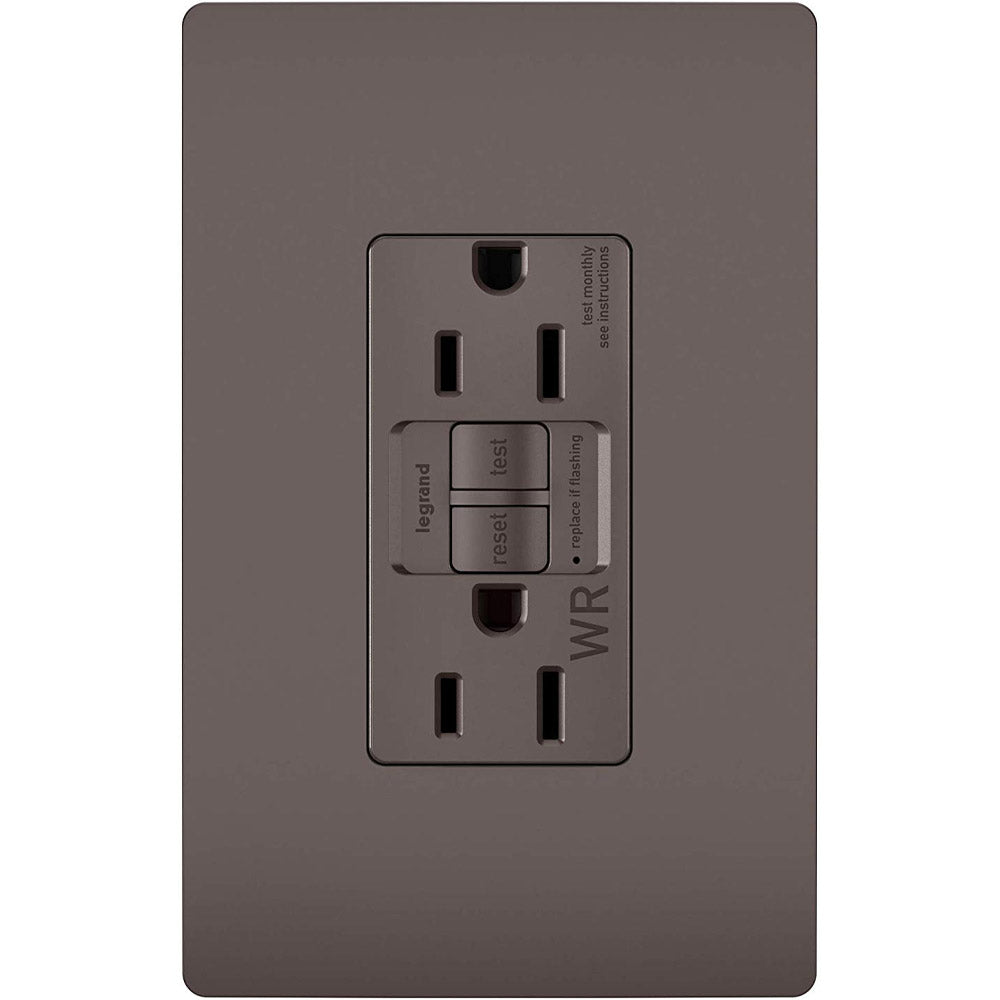

This outlet features a decorator-style interface with a matte brown finish, constructed from high-impact resistant thermoplastic. The wallplate is sold separately.

Safety & Ground Fault Protection

Equipped with GFCI protection, this outlet automatically self-tests every three seconds to ensure safety. It includes SafeLock Protection, disconnecting power if protection is compromised.

Wiring & Installation

Designed for easy installation, this outlet supports back and side wiring methods, accommodating #14 to #10 AWG wire. It features a robust mounting strap for secure attachment.
