Legrand radiant GFCI USB Duplex Outlet — White & Tamper-Resistant

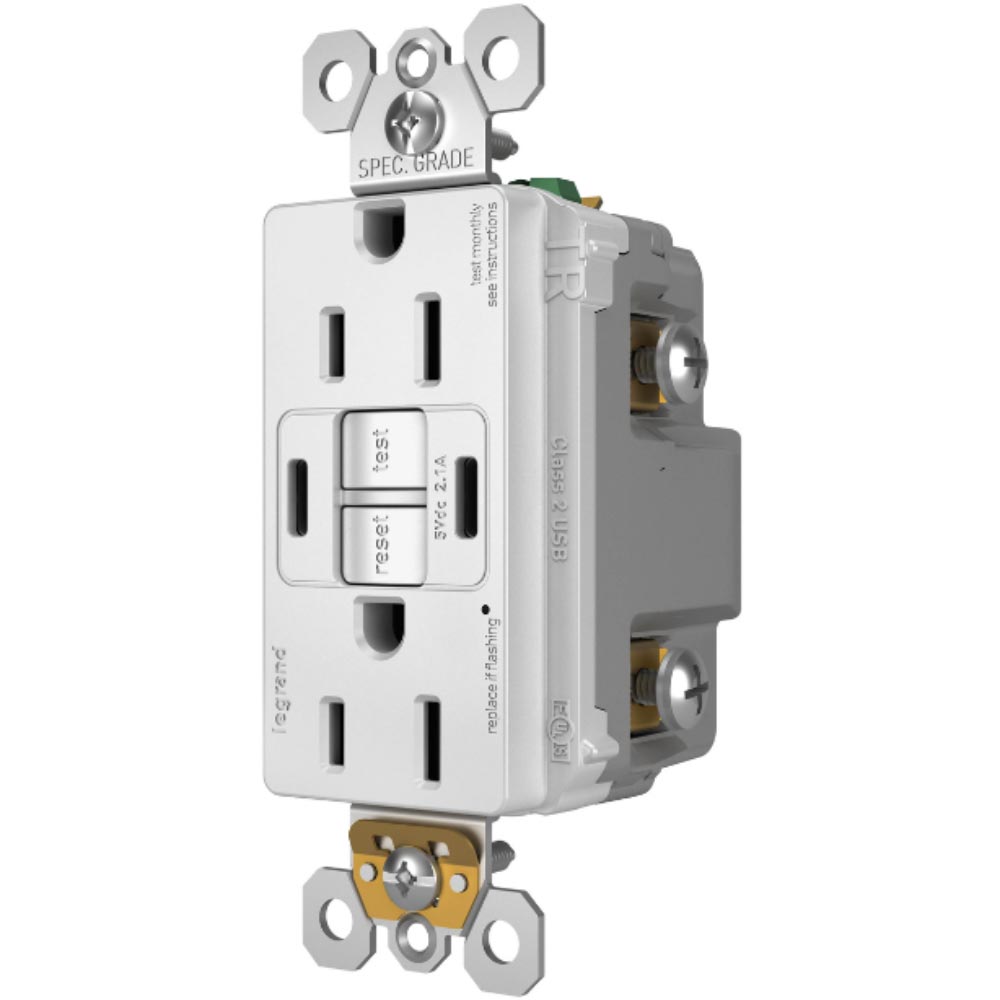

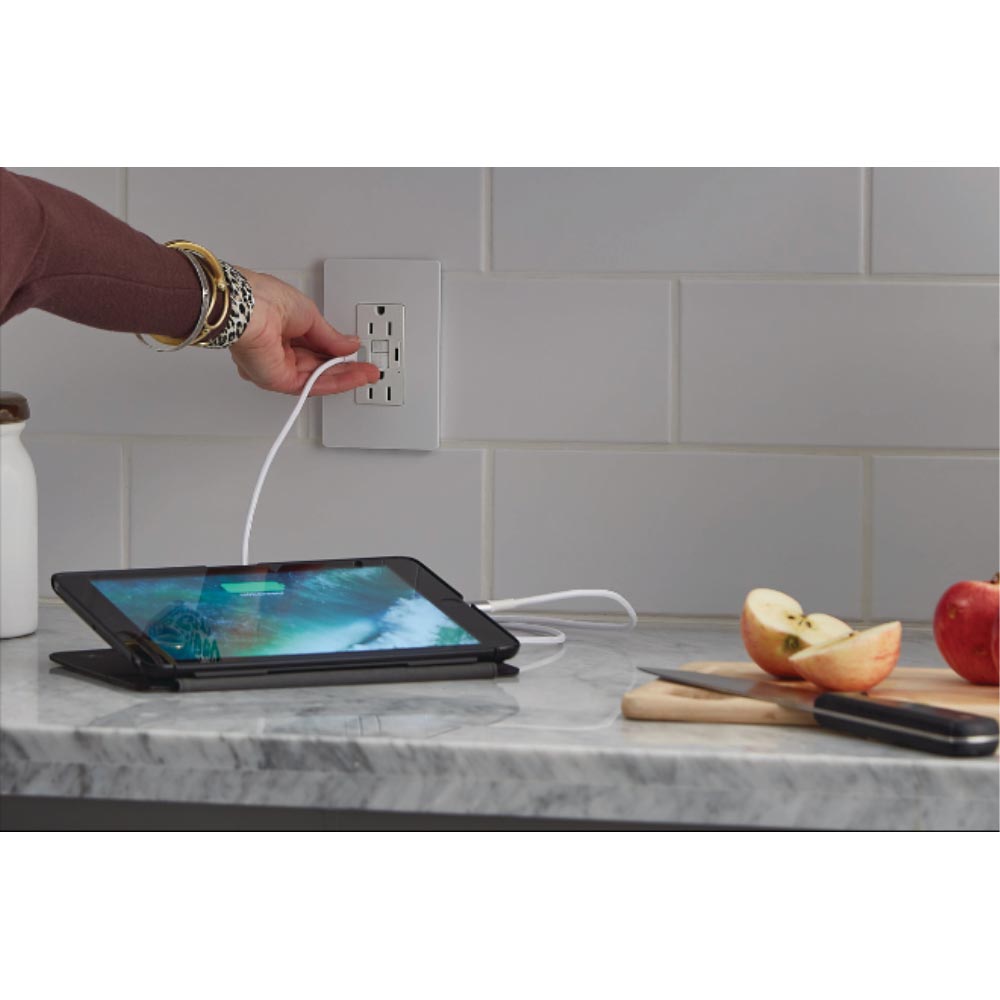

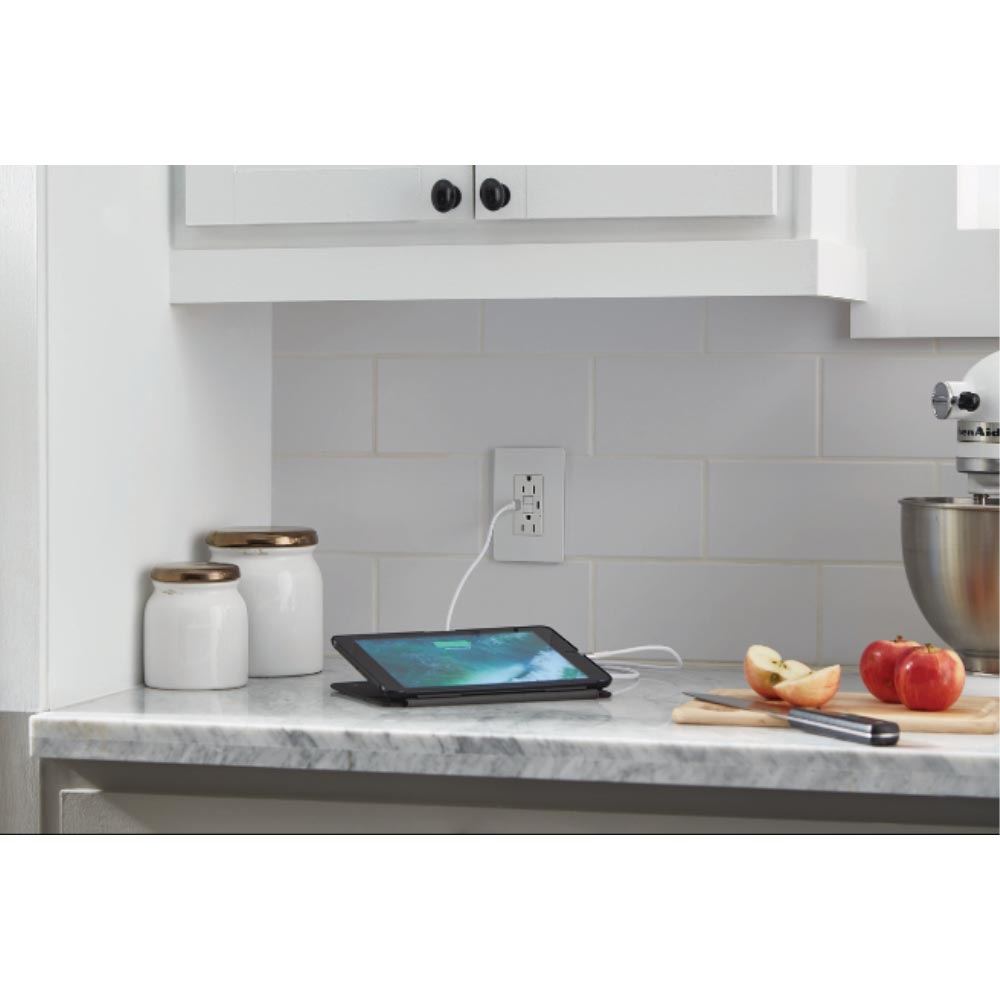

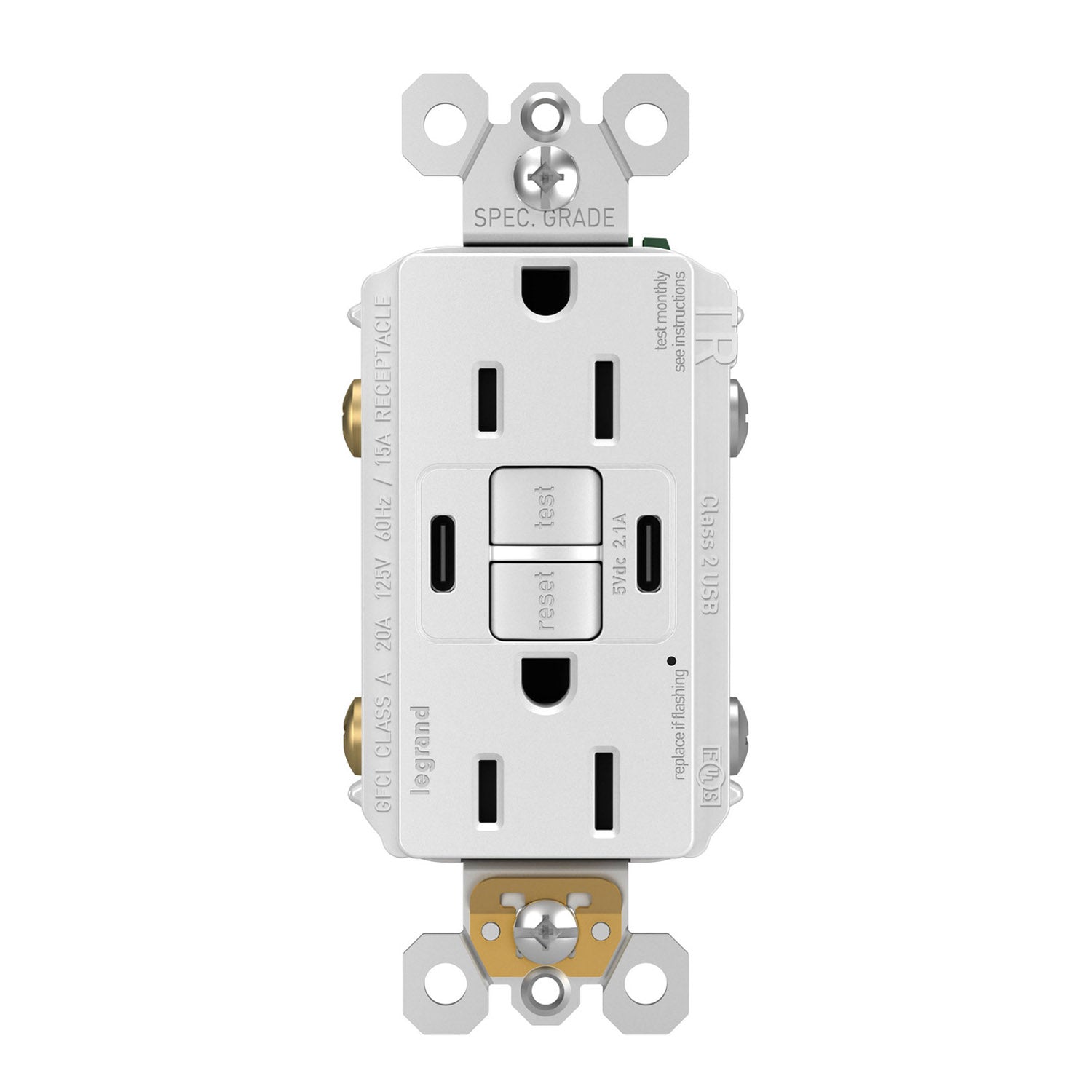

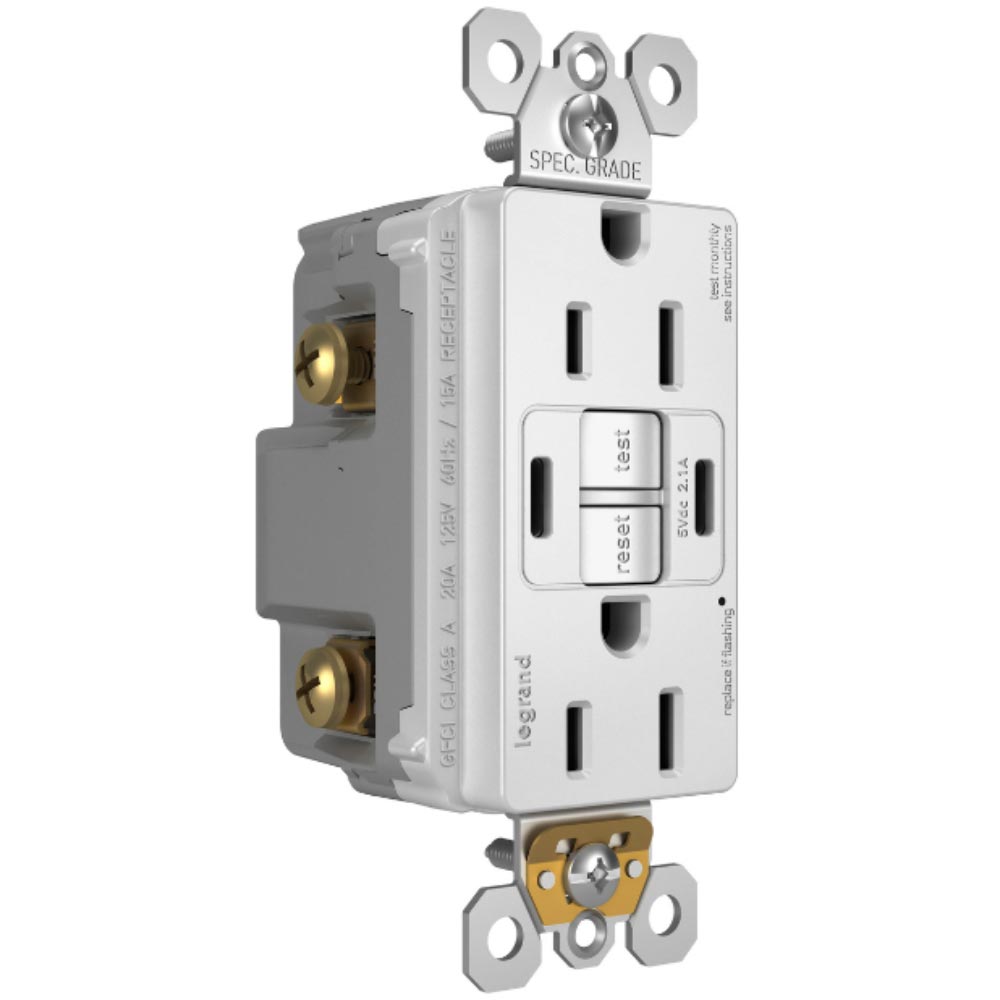

The Legrand 1597TRUSBCCW is a white GFCI USB duplex outlet from the radiant Collection. It features 15A amperage, NEMA 5-15R configuration, and is Tamper-Resistant. This outlet combines ground fault protection with USB Type-C charging capabilities, making it ideal for modern connectivity in kitchens, bathrooms, and other areas requiring GFCI protection.

Key Features

• Voltage: Compatible with standard 120V electrical systems.
• Amperage: Supports 15A for typical residential and commercial use.
• NEMA Configuration: NEMA 5-15R for standard duplex receptacle compatibility.
• Tamper-Resistant: Meets NEC requirements with invisi-shutter system for safety.
• USB Ports: Includes two USB Type-C ports with 2.0A shared charging capacity.
• GFCI Protection: Self-testing every three seconds with SafeLock feature for enhanced safety.
• Indicator Light: Red LED signals test failure or issues for easy troubleshooting.
• Dimensions: Measures 1.73 in. width, 4.20 in. height, and 1.03 in. depth.
• Certifications: CSA and cULus listed for quality assurance.
• Warranty: Backed by a 1-year limited warranty.

Construction & Interface

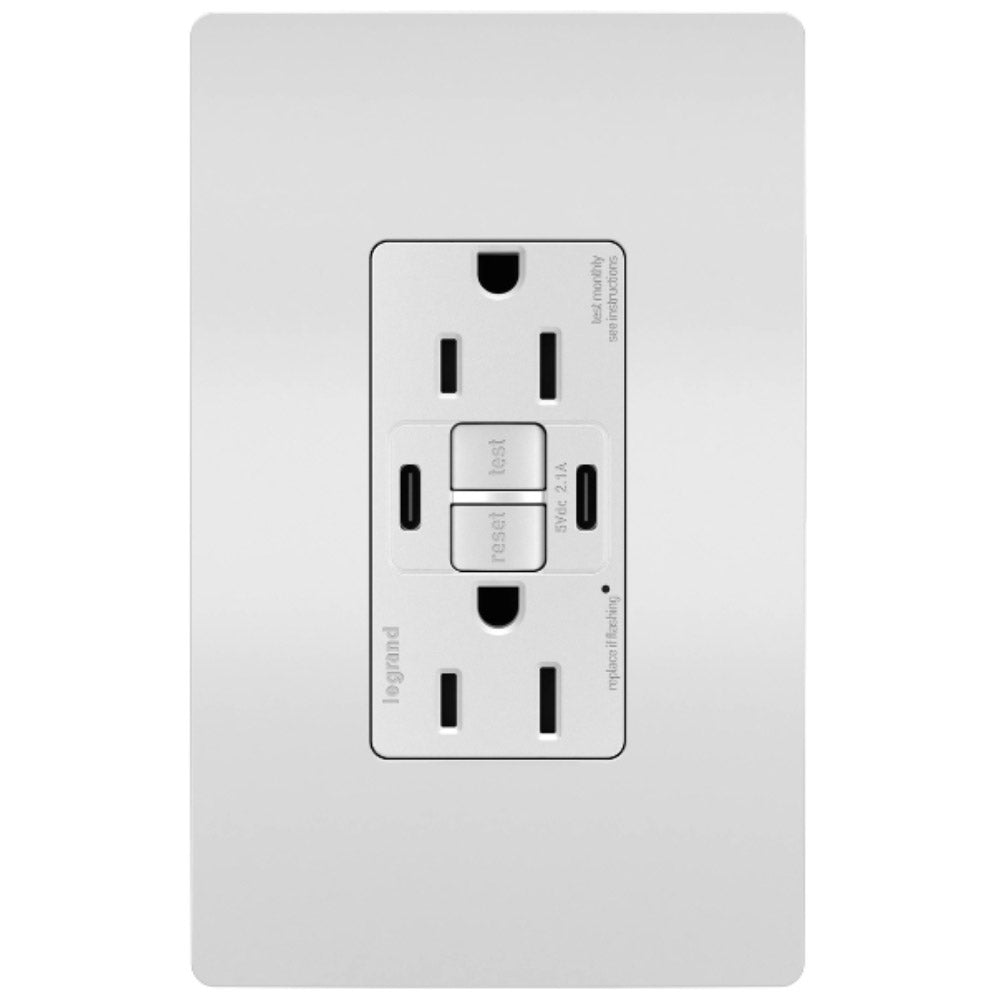

This outlet features a matte white finish and is designed for use with screwless wall plates from the radiant Collection, sold separately. It is constructed for durability and ease of use, with a standard duplex interface.

Safety & Ground Fault Protection

Equipped with a self-testing GFCI mechanism, this outlet ensures continuous ground fault protection. The SafeLock feature disconnects power if critical components are damaged, and the red LED indicator provides clear alerts for any issues.

Wiring & Installation

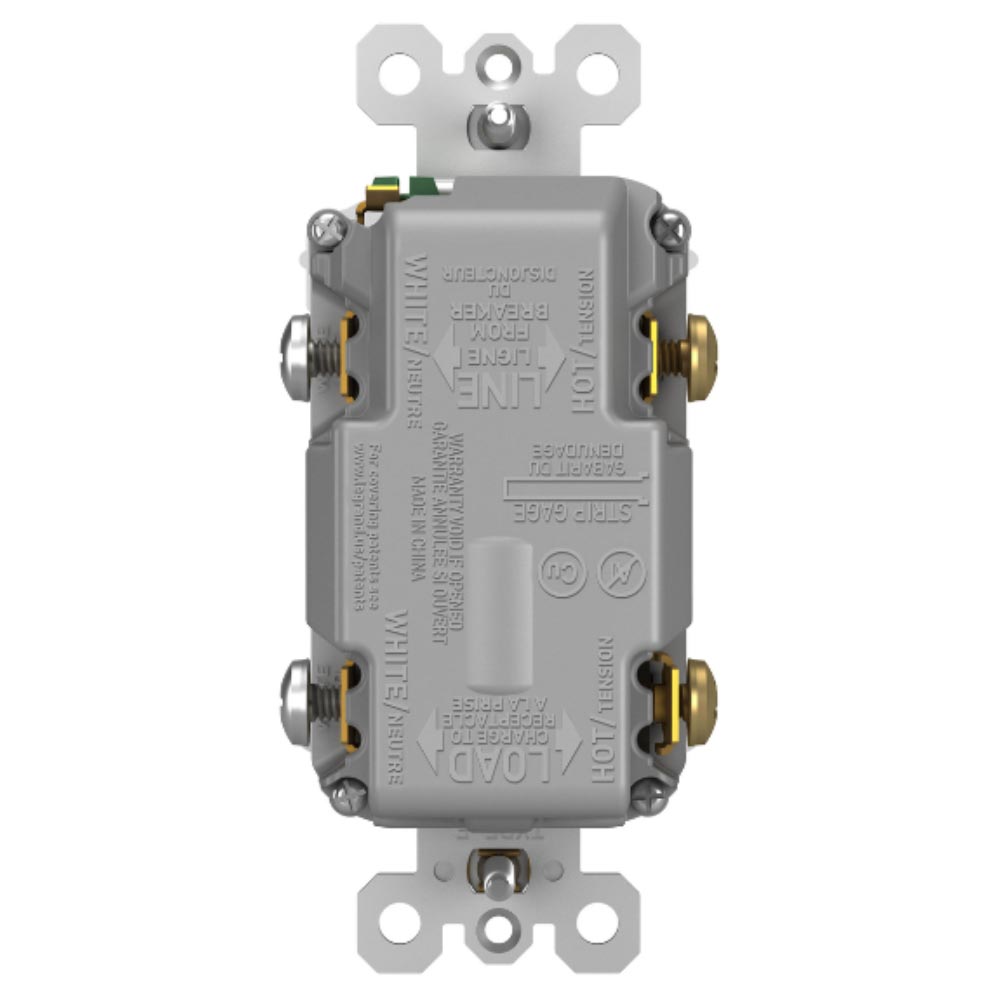

Designed for easy installation, this outlet supports both back and side wiring methods. It accepts #14 to #10 AWG wire and includes a robust mounting strap for secure attachment.
