Legrand radiant Duplex Receptacle — Light Almond & USB Charging

The Legrand 1597TRUSBACLA is a Light Almond duplex receptacle that combines a 15A Tamper-Resistant GFCI outlet with USB Type A/C charging capabilities. This innovative outlet provides ground fault protection and modern connectivity, making it ideal for kitchens, bathrooms, and other areas requiring safety and convenience. The receptacle features a NEMA 5-15R configuration and is designed for indoor use.

Key Features

• Voltage: Compatible with standard residential voltage requirements.
• Amperage: Rated at 15A for reliable power delivery.
• NEMA Configuration: NEMA 5-15R for standard duplex outlet applications.
• Tamper-Resistant: Yes, features an 'invisi-shutter' system for child safety.
• Weather-Resistant: No, designed for indoor use only.
• Grade: Suitable for both residential and commercial applications.
• Dimensions: Measures 1.73 in. width, 4.20 in. height, and 1.03 in. depth.
• Certifications: CSA and cULus listed for safety and performance.
• USB Ports: Includes two USB Type-A ports with a shared 2.0A capacity.
• Self-Test GFCI: Conducts self-tests every three seconds for continuous protection.
• LED Indicator: Red LED signals test failure for easy troubleshooting.
• SafeLock Protection: Disconnects power if critical components are damaged.

Construction & Interface

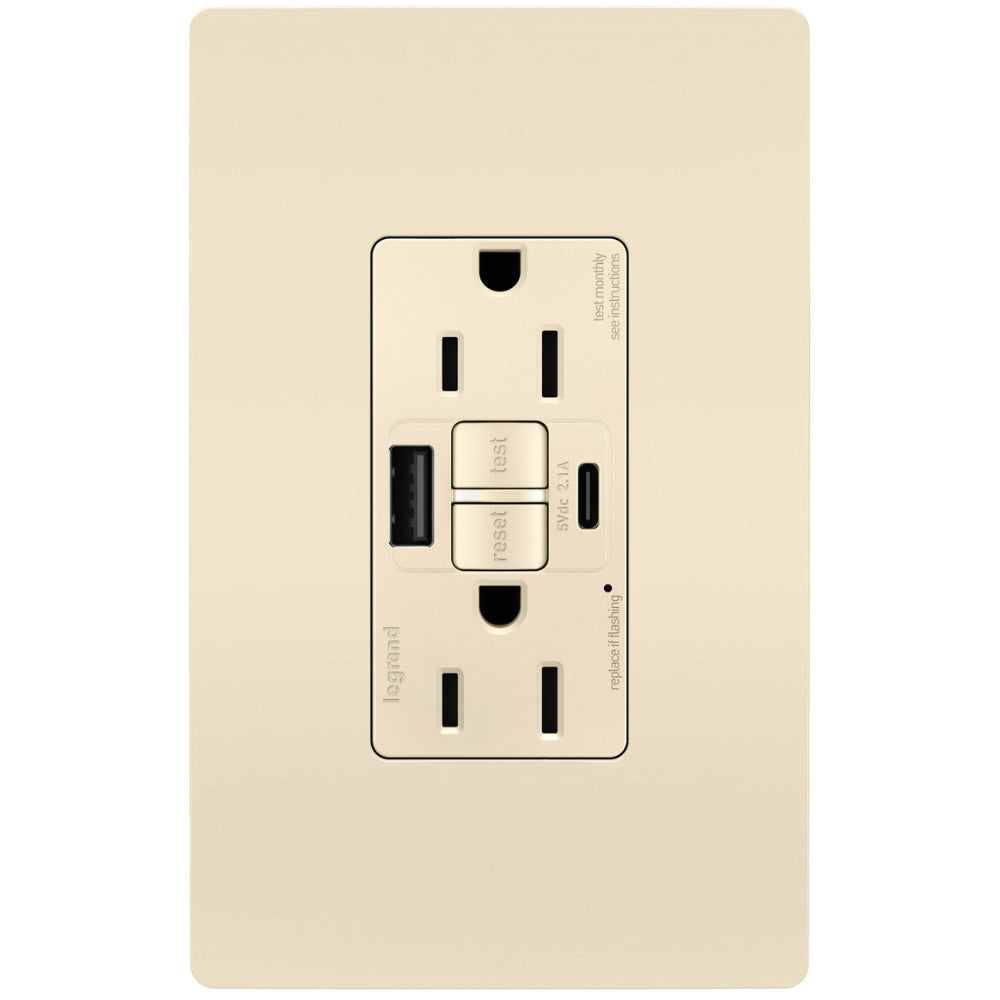

The outlet features a decorator-style interface with a matte Light Almond finish. It is constructed from impact-resistant materials for durability. Note that the wallplate is sold separately and is designed to complement the sleek, screwless design of the radiant Collection.

Safety & Ground Fault Protection

This receptacle offers advanced safety features, including a self-testing GFCI mechanism that checks for ground faults every three seconds. The patented 'invisi-shutter' system ensures tamper-resistance, making it safe for use in homes with children.

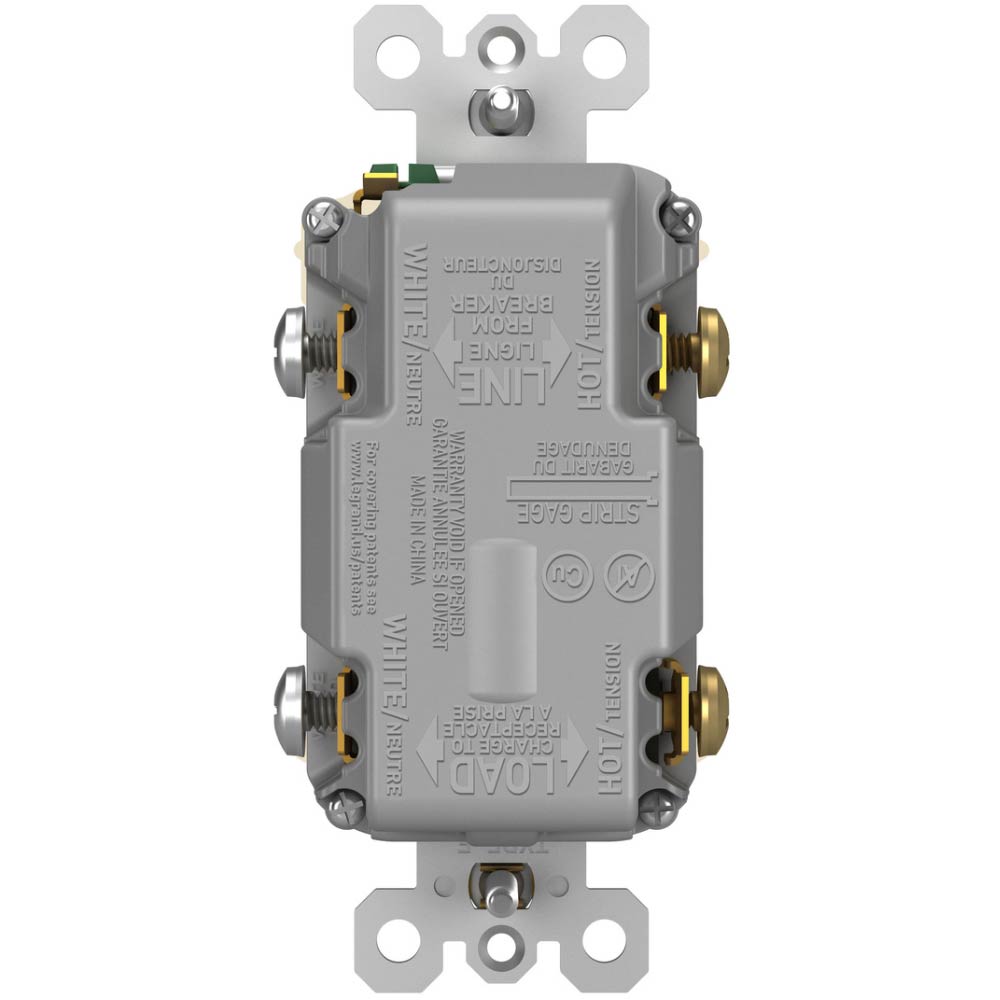

Wiring & Installation

The Legrand 1597TRUSBACLA supports both back and side wiring methods, accommodating wire gauges from #14 to #10 AWG. It includes a grounding screw and is designed for easy installation with a box mounting type.
