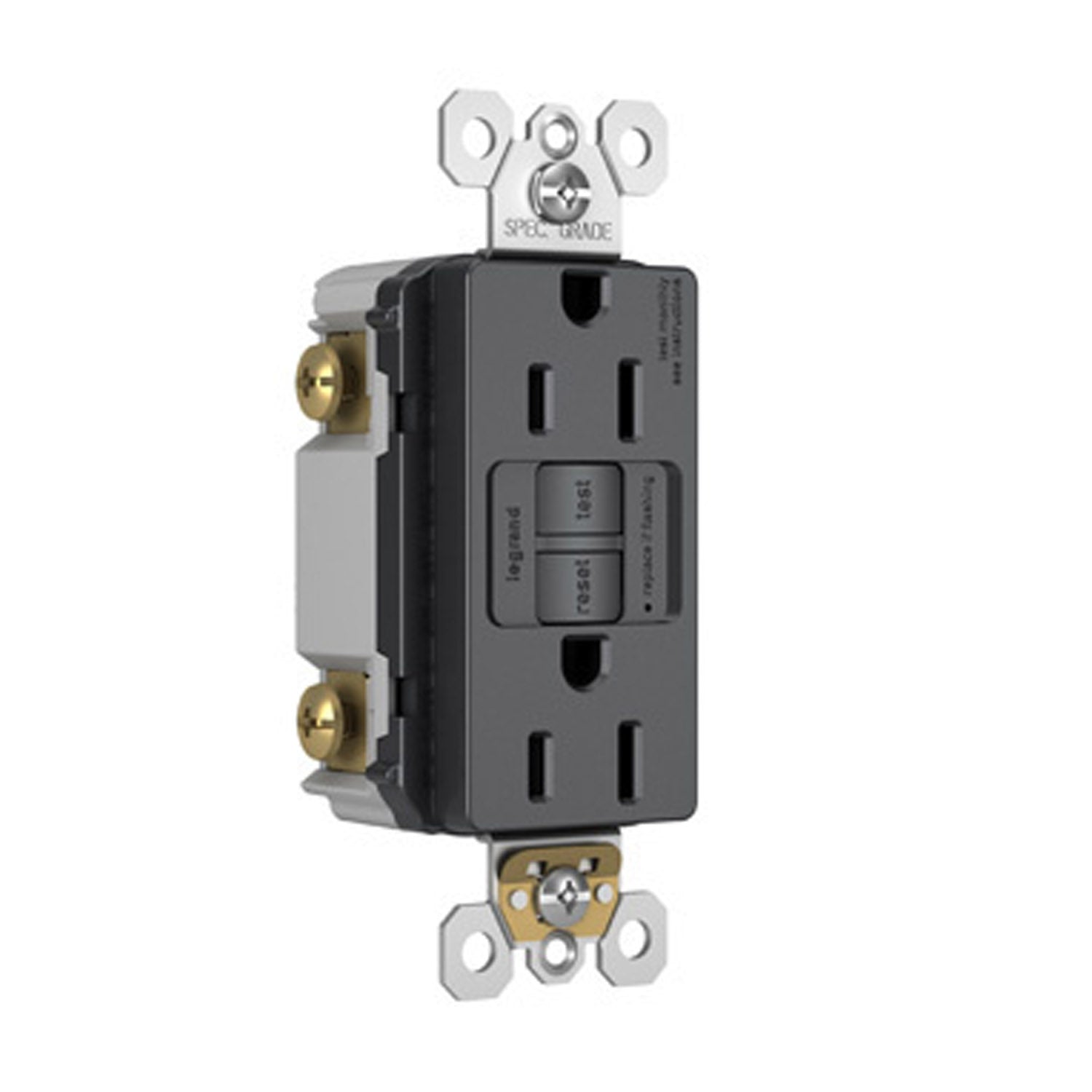

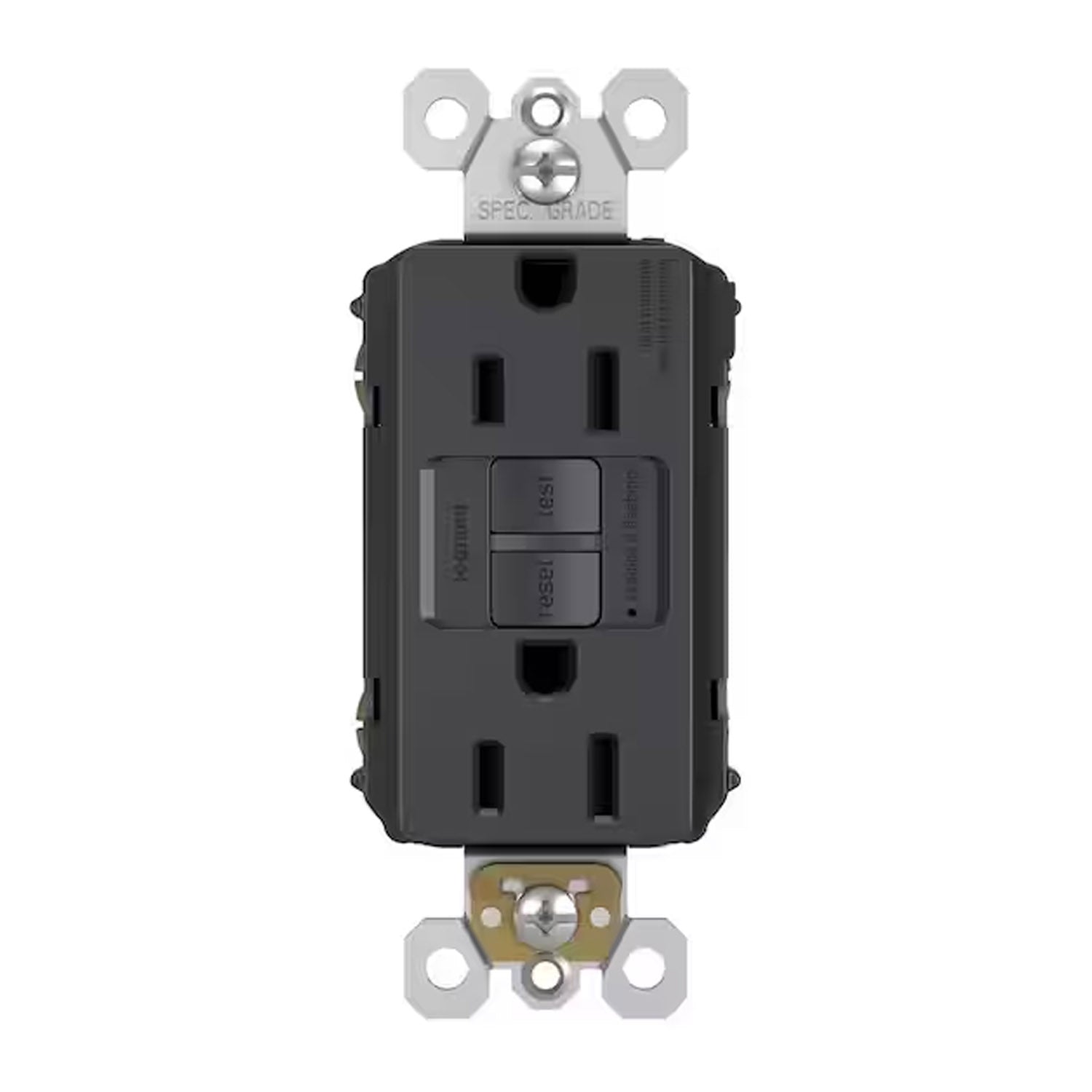

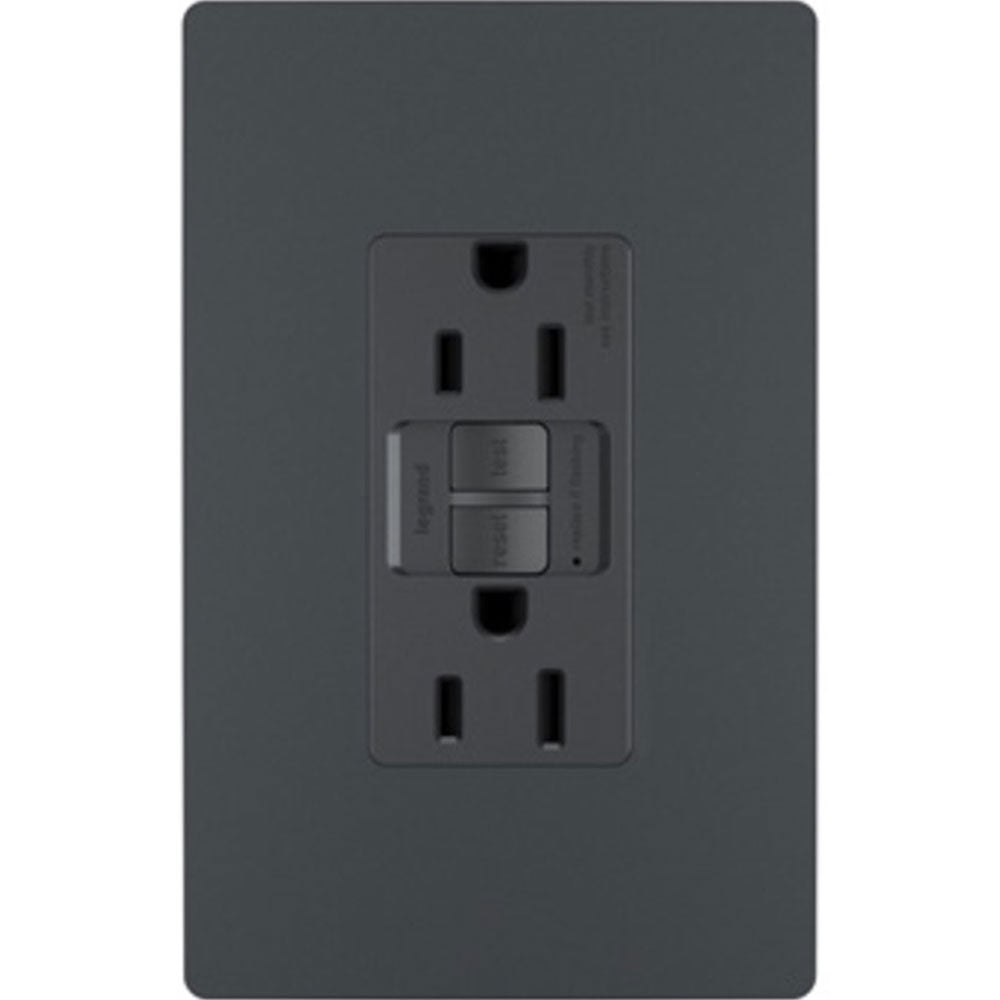

Legrand radiant GFCI Duplex Outlet — Graphite & Self-Test

The Legrand 1597TRGCC4 is a 15A GFCI Duplex Outlet in a sleek Graphite finish. This outlet features self-testing capabilities and is tamper-resistant, ensuring safety and compliance with NEMA 5-15R standards. Designed for both residential and commercial use, it offers reliable protection against ground faults.

Key Features

• Voltage: Compatible with standard voltage requirements.
• Amperage: Supports 15A current for various applications.
• NEMA Configuration: NEMA 5-15R for standard duplex outlets.
• Tamper-Resistant: Yes, includes safety shutters to prevent accidental insertion.
• Weather-Resistant: No, designed for indoor use only.
• Grade: Suitable for both residential and commercial installations.

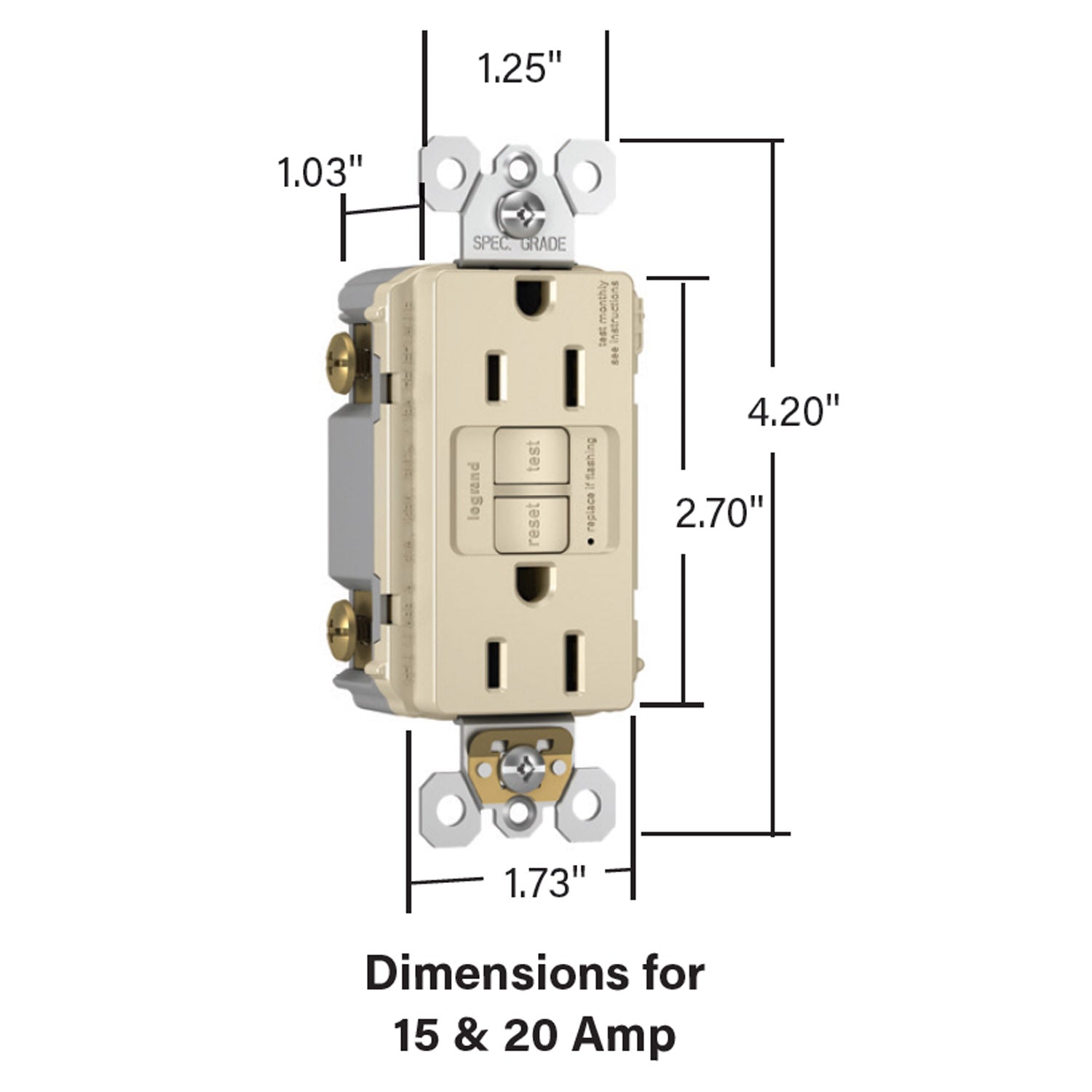

• Dimensions: Measures 1.73 in. width, 4.20 in. height, and 1.03 in. depth.
• Certifications: cULus Listed for safety and performance.
• Self-Test: Automatic self-testing every 3 seconds with indicator light for status.
• SafeLock Protection: Disconnects power if critical components are damaged.
• Construction: Made from durable, high-impact resistant thermoplastic.

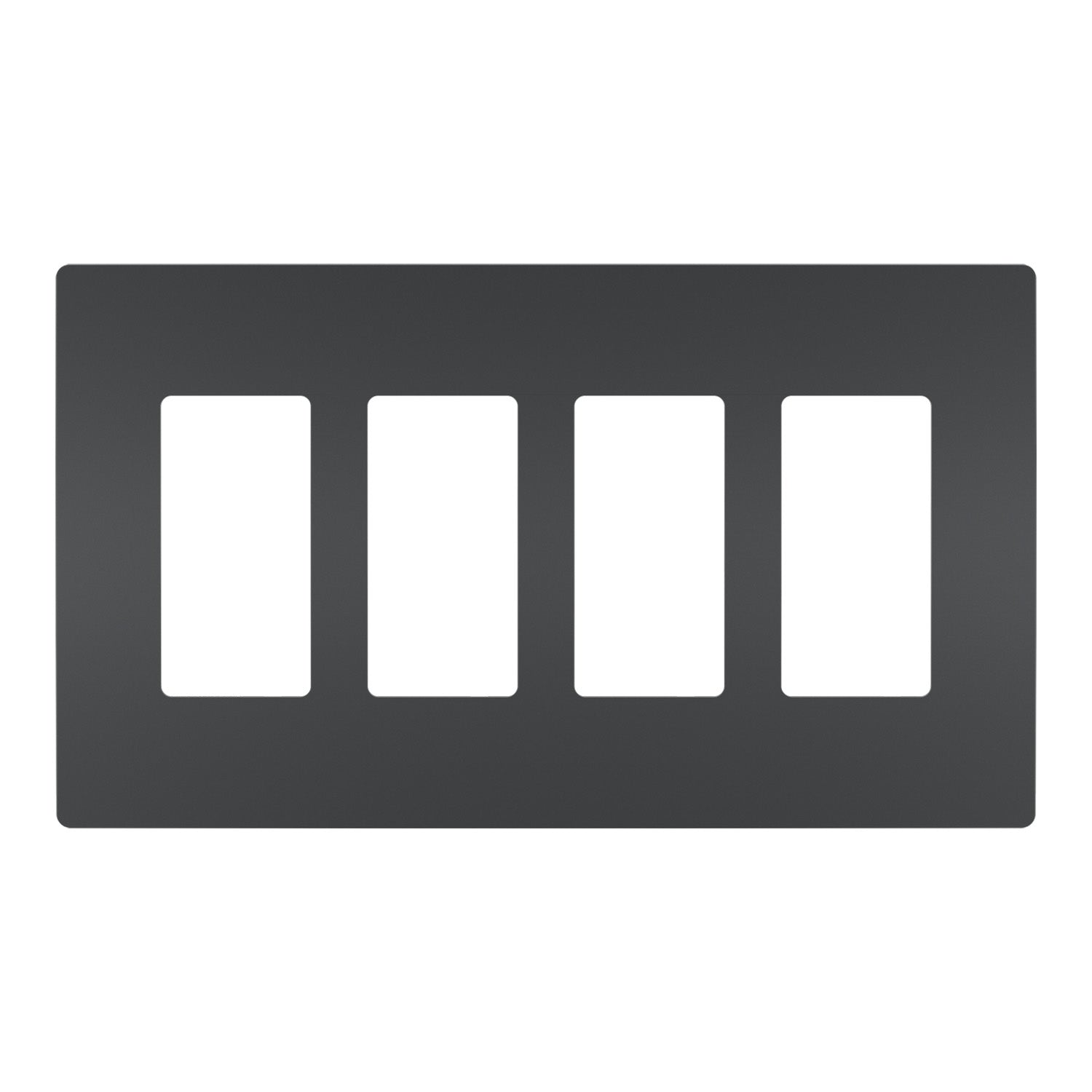

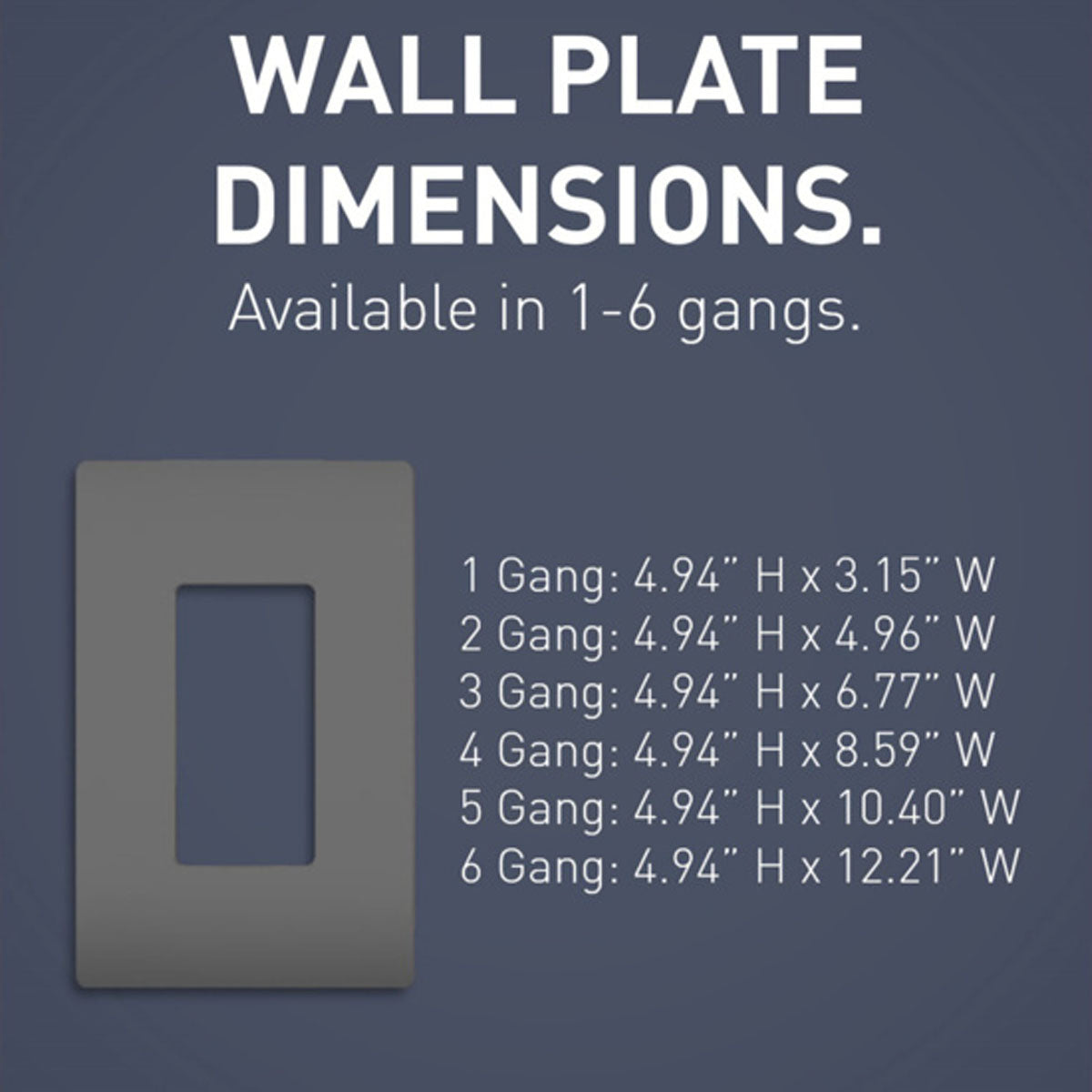

• Wallplate: Compatible with screwless wall plates from the radiant Collection, sold separately.

Construction & Interface

This outlet features a decorator-style interface with a high-impact resistant thermoplastic construction. The graphite finish complements modern decor. Note that the wallplate is sold separately.

Safety & Ground Fault Protection

Equipped with a patented tamper-resistant shutter system, this outlet prevents improper insertion of foreign objects. The self-test feature ensures continuous protection by conducting automatic tests every 3 seconds, with an indicator light signaling any issues.

Wiring & Installation

Designed for easy installation, this outlet supports both back and side wiring methods. It accepts wire gauges from #14 to #10 AWG and includes a grounding screw for secure connections. The mounting strap is designed for box installations.
