Legrand radiant Duplex Outlet — White & Self-Test GFCI

The Legrand 1597TRAPLW is a white, 15A Tamper-Resistant Self-Test GFCI Duplex Outlet from the radiant Collection. This outlet is designed for dedicated use with large appliances, providing superior ground-fault protection and minimizing nuisance tripping. It features a NEMA 5-15R configuration and is rated for 1875W at 120V.

Key Features

• Voltage: Operates at 120V, suitable for residential and commercial applications.
• Amperage: Supports 15A, ideal for heavy-duty appliance use.
• NEMA Configuration: NEMA 5-15R, ensuring compatibility with standard plugs.
• Tamper-Resistant: Includes patented shutter system for child safety.
• GFCI Protection: Equipped with SafeLock feature to disconnect power if protection is compromised.
• Self-Testing: Conducts automatic self-tests every 3 seconds for reliable operation.
• Finish: Matte white finish for a sleek appearance.
• Dimensions: Measures 1.73 in. width, 4.20 in. height, and 1.03 in. depth.
• Certifications: RoHS and cULus listed for safety compliance.
• Warranty: Backed by a 1-year warranty from the date of sale.

Construction & Interface

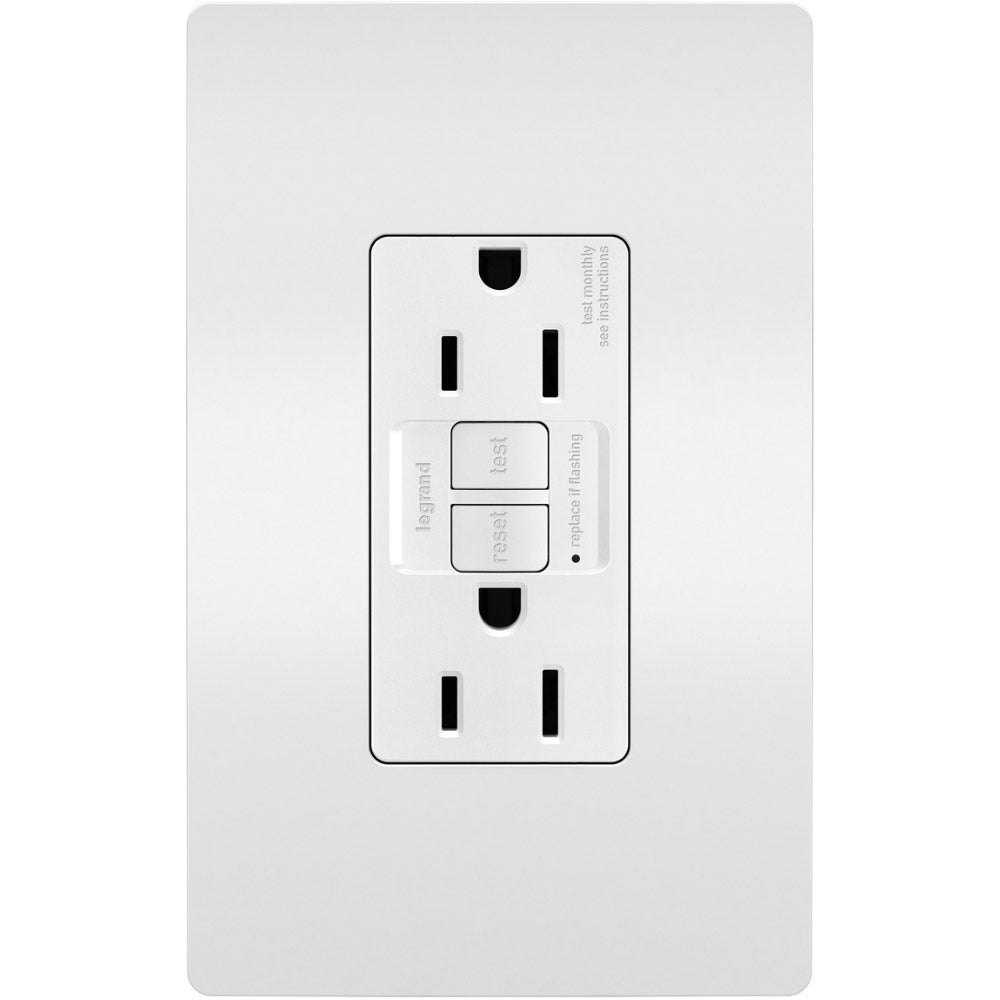

This outlet features a decorator-style interface with a matte white finish, designed to complement modern interiors. The wallplate is sold separately, allowing for customization with screwless options from the radiant Collection.

Safety & Ground Fault Protection

The outlet provides robust GFCI protection with a self-testing mechanism that ensures continuous safety. The SafeLock feature disconnects power if critical components are damaged, preventing shock hazards.

Wiring & Installation

Installation is straightforward with support for back and side wiring. It accepts wire gauges from #14 to #10 AWG and includes a grounding screw for secure connections. The mounting strap design facilitates easy installation.
