Legrand 1597TR radiant 15A Self-Test Tamper-Resistant Duplex GFCI Receptacle, Brown
Available in stock (77)
About this item
About this item
- Electrical Ratings: Rated 15 A, 125 V, NEMA 5-15R for electrical configuration matching.
- Ground-Fault Protection: GFCI protection helps protect against shock caused by ground faults, with a reset button on the device.
- Automatic Self-Test: The device self-tests every three seconds to check ground-fault protection.
- Tamper-Resistant Design: A shutter system helps prevent improper insertion of foreign objects into the receptacle.
- Device Grade: Specification Grade construction identifies the manufacturer-rated product class for specification.
Description
Description

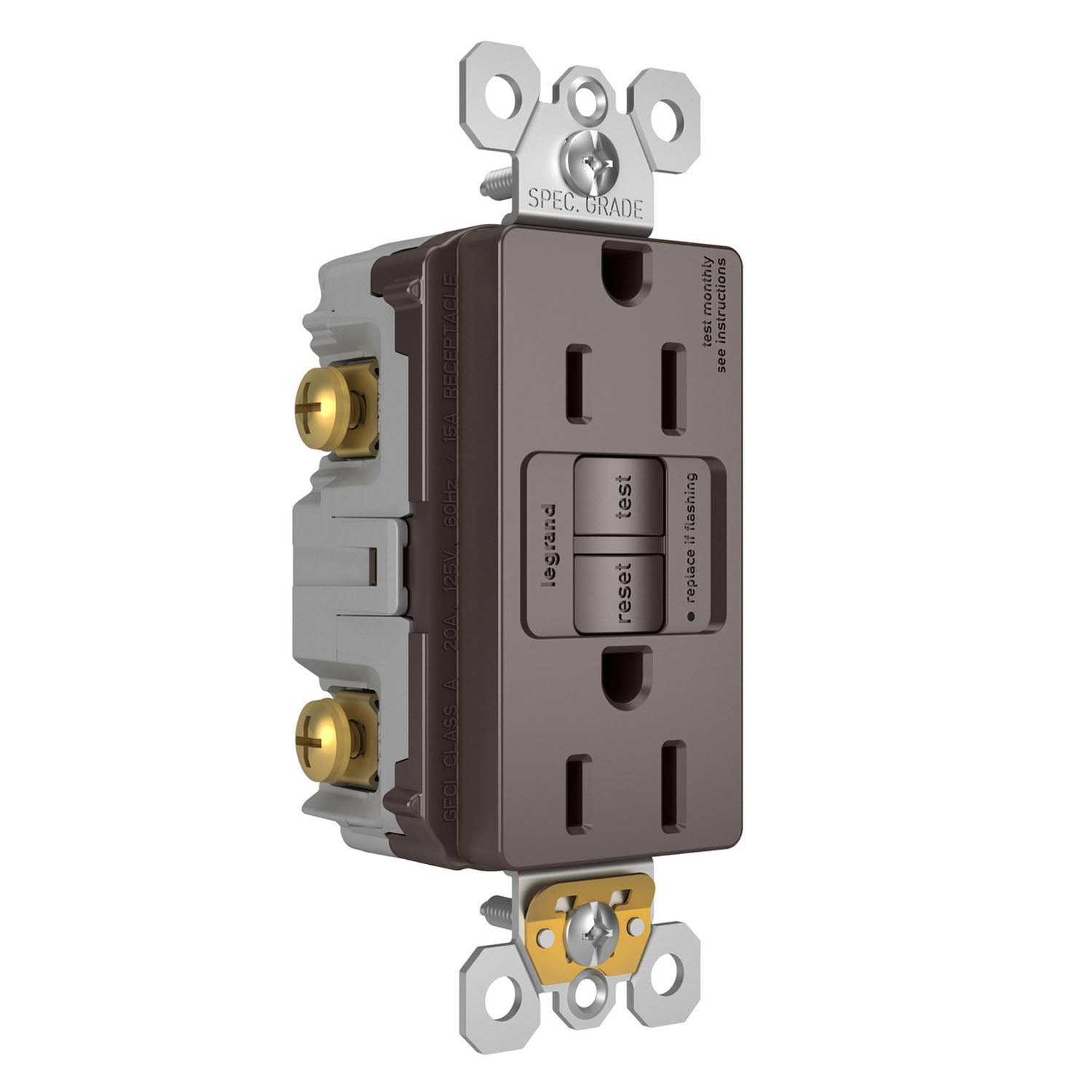

Legrand radiant Tamper-Resistant Duplex GFCI Receptacle — Brown & 15 A
1597TR is a brown duplex GFCI receptacle rated 15 A, 125 V, NEMA 5-15R. It provides ground-fault protection.
Key Features
- Electrical Ratings: Rated 15 A, 125 V, NEMA 5-15R for electrical configuration matching.
- Ground-Fault Protection: GFCI protection helps protect against shock caused by ground faults, with a reset button on the device.
- Automatic Self-Test: The device self-tests every three seconds to check ground-fault protection.
- Tamper-Resistant Design: A shutter system helps prevent improper insertion of foreign objects into the receptacle.
- Device Grade: Specification Grade construction identifies the manufacturer-rated product class for specification.

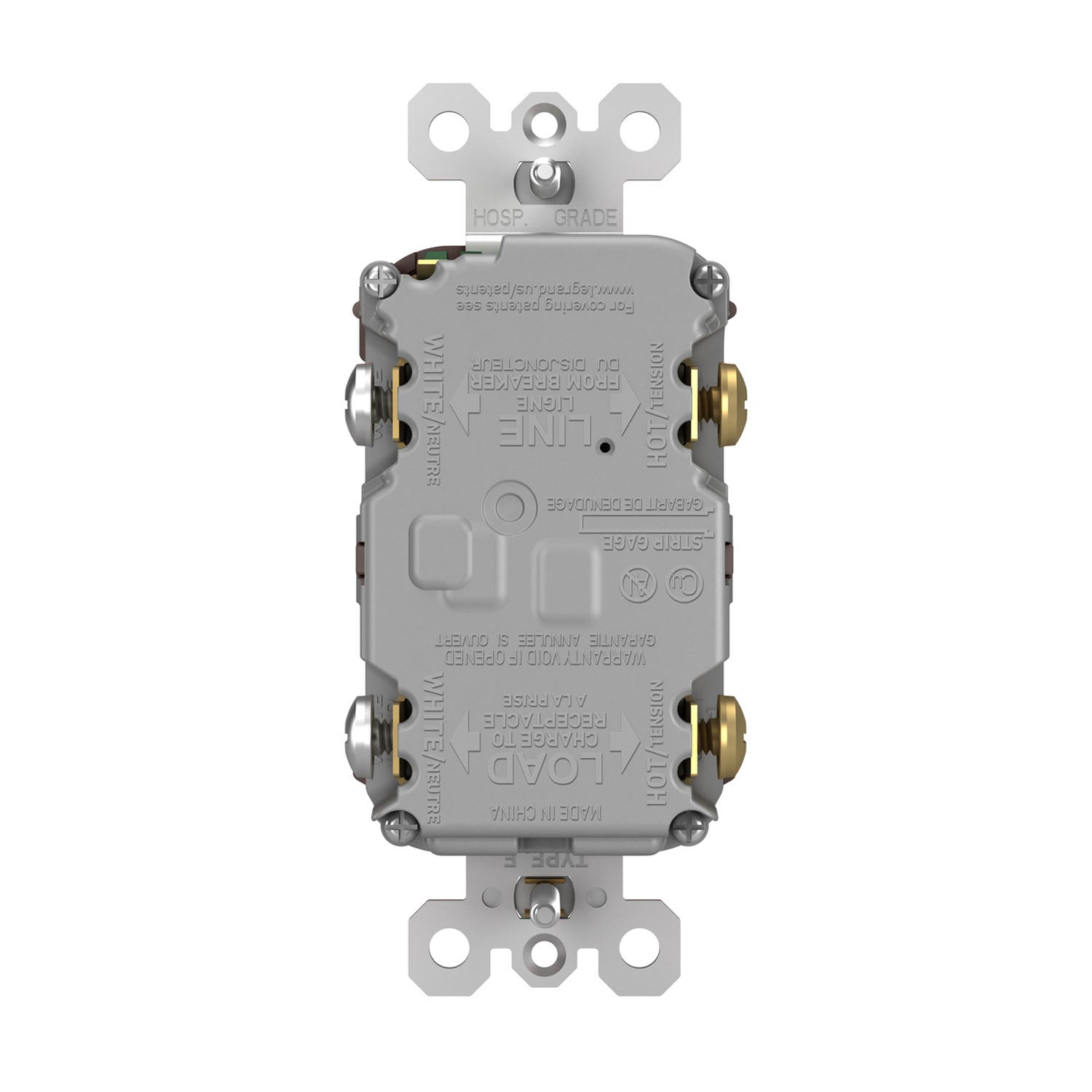

- Wiring Interface: The wiring interface uses back and side connections with internal pressure plates, screw terminals.
- Conductor Size: The documented terminal accommodation is #14 AWG - #10 AWG; follow the manufacturer instructions for conductor selection.
- Listing: A cULus listing is documented for this model.

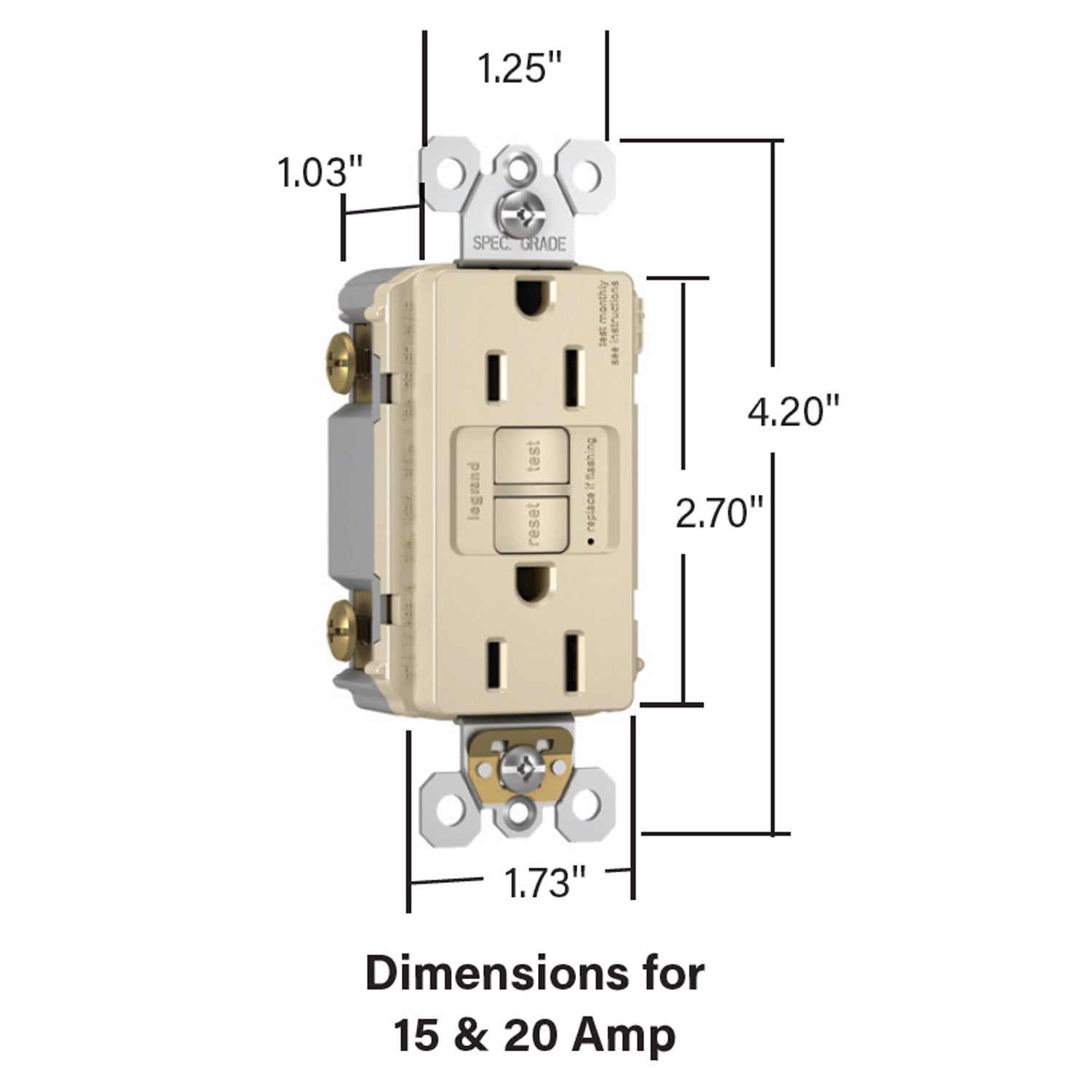

- Dimensions: 1.73 in. W x 4.2 in. H x 1.13 in. D.
Construction & Interface

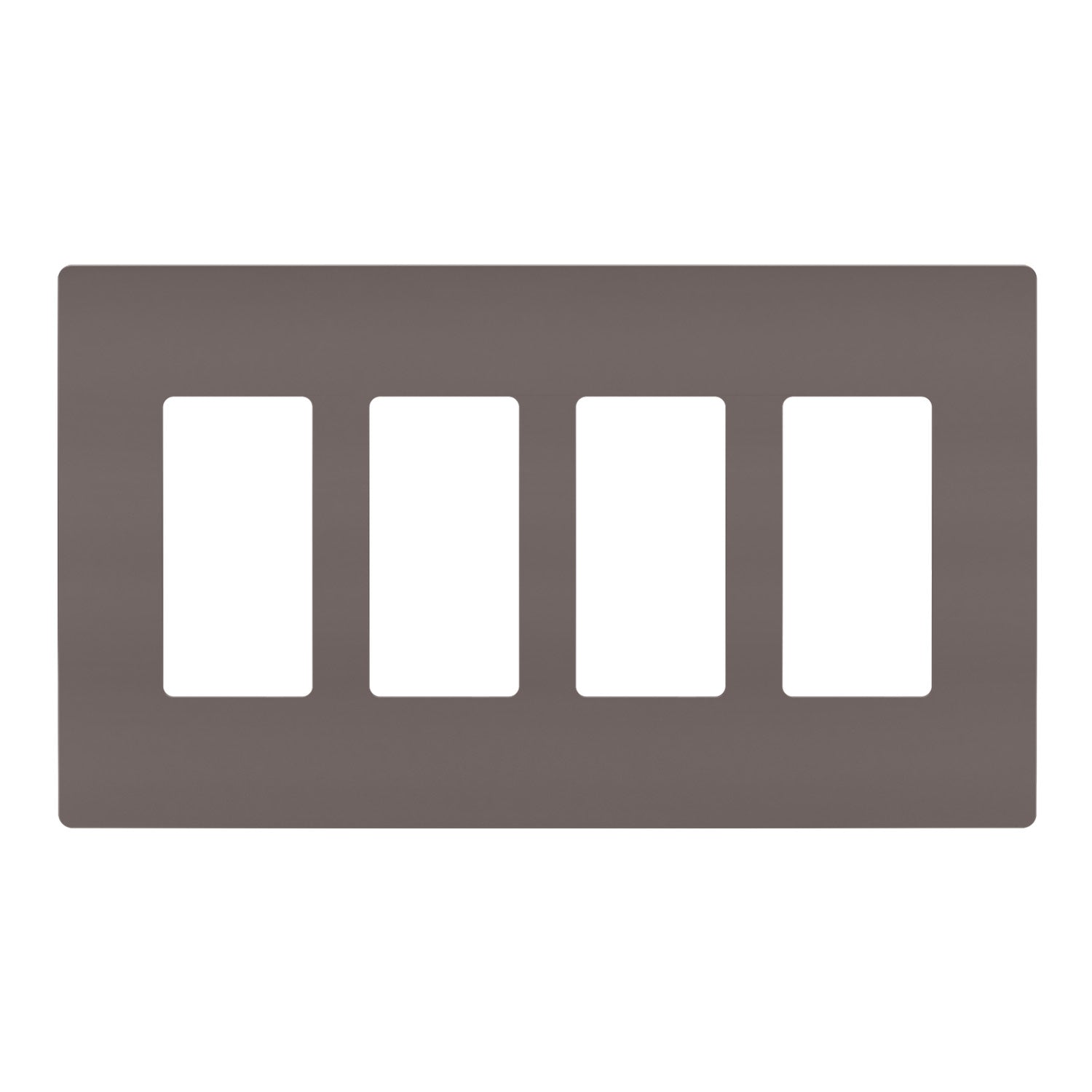

Brown satin finish. Construction: high-impact-resistant thermoplastic. Wallplate included.
Safety & Ground-Fault Protection
GFCI protection includes SafeLock power disconnection if critical components fail. Feed-through wiring can extend ground-fault protection downstream.
Wiring & Installation
Terminations: internal pressure plates, screw terminals. Connection location: back and side. Wire size: #14 AWG - #10 AWG. Consult manufacturer installation instructions.
Specifications
Specifications
Dimensions
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
