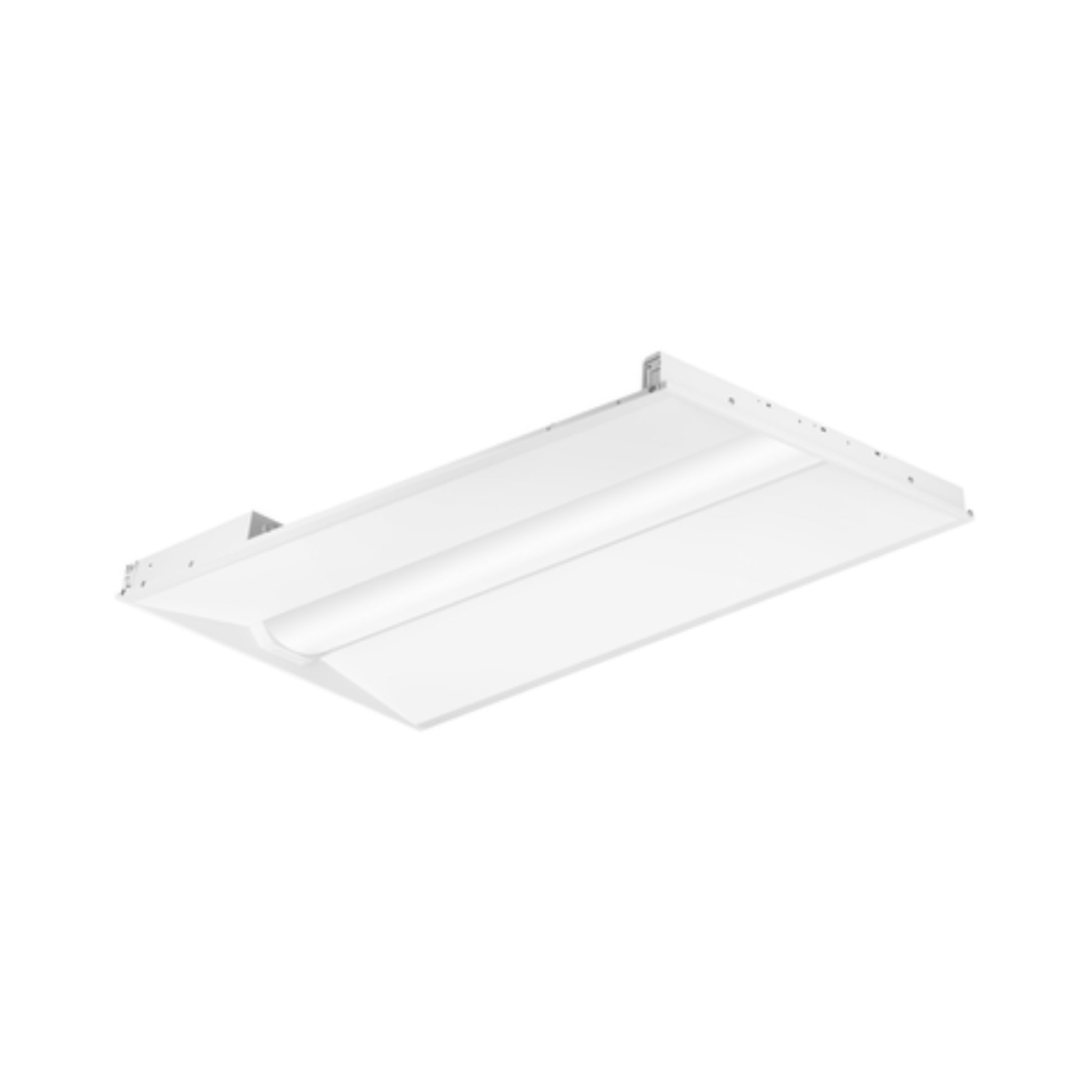

LEDVANCE Sylvania Volume 6A Dual Selectable Volumetric Troffer — 20–69W Selectable — White

The LEDVANCE Sylvania Volume 6A is a family of recessed LED volumetric troffers available in 2×2 and 2×4 sizes, with standard and high-output wattage configurations and optional integrated emergency battery backup. Across all models, wattage is field-selectable and color temperature is field-selectable between 3500K, 4000K, and 5000K — both adjustable without tools before or after installation. All models support 0–10V dimming with 12V Aux output, operate on 120–347V, are cULus Listed (Damp Rated), DLC 5.1 Listed, and carry a 5-year warranty backed by the NLB Trusted Warranty Program. Compatible with field-installable PIR motion/daylight sensors and LEDVANCE LINK™ Bluetooth mesh wireless controls.

Key Features

• Dual Selectable Wattage: Field-adjustable wattage without tools — wattage steps vary by model (see table below).
• Selectable CCT: Field-adjustable between 3500K, 4000K, and 5000K across all models — one SKU covers warm-to-daylight tuning.
• Optional Emergency Battery Backup: EMBB variants (62828, 62829, 62830) include integrated battery backup providing 1,000 lumens for a minimum of 90 minutes during a power outage.
• CRI: >80 across all models, wattage steps, and CCT settings.
• 0–10V Dimming: Flicker-free 0–10V dimming with 12V Aux output standard across all models.
• Wide Voltage Range: 120–347V — compatible with standard U.S. and Canadian electrical systems.
• 2.5kV Surge Protection: Built-in surge protection across all models.
• Field-Installable PIR Sensor: Compatible with Sylvania PIR Motion/Daylight Sensor (62711, sold separately).
• LEDVANCE LINK™ Compatible: Supports field-installable Bluetooth mesh wireless controls via LEDVANCE LINK Controller (62631) or Powerpack (62632 + ceiling sensor 62633), sold separately.
• UL Damp Rated: Suitable for damp location commercial installations.
• T-Grid Compatible: Fits standard 15/16″ and 9/16″ T-grid ceiling systems.
• DLC 5.1 Listed: All models qualify for utility rebate programs.
• Rated Life: L70 150,000 hours.
• Warranty: 5-year limited warranty — NLB Trusted Warranty Program.

Model Selection

Detailed Lumen Output

2×2 — 62533 / 62828

2×4 Standard — 62534 / 62829

2×4 High Output — 62535 / 62830

Smart & Control Features

All models support 0–10V dimming with 12V Aux output. Compatible with the field-installable Sylvania PIR Motion/Daylight Sensor (62711, sold separately) — default settings: Detection Area 100%, Hold Time 5 min, Daylight Threshold 50 Lux, Stand-by Period 30 min, Stand-by Dimming 30%. Adjustable via optional remote 65305.

Also compatible with LEDVANCE LINK™ Bluetooth mesh wireless controls: install the LINK Controller (62631) or Powerpack (62632 + ceiling sensor 62633) inside the fixture driver box or ½″ knockout for smartphone app or wireless wall switch (62636) control.

Electrical

Voltage: 120–347V across all models. Dimming: 0–10V with 12V Aux output. Surge protection: 2.5kV. Power factor: >90%. THD: <20%. UL Damp Rated. Operating temperature: −20°C to +40°C (−4°F to +104°F). Mercury-free.

Construction

Housing: Steel volumetric troffer housing with architectural-grade fit and finish for standard commercial grid ceilings. EMBB variants include integrated emergency battery backup module.

Finish: White.

T-Grid Compatibility: Fits standard 15/16″ and 9/16″ T-grid ceiling systems.

Installation & Mounting

Standard Mounting: Recessed installation into standard 2×2 or 2×4 T-grid ceiling systems — fits 15/16″ and 9/16″ T-bar profiles.

Accessories (Sold Separately):

• PIR Motion/Daylight Sensor: 62711 (VOLUME/PIR/MOTIONDAYSENSOR1)
• Sensor Remote: 65305 (STRIP2A/REMOTE)
• LEDVANCE LINK Bluetooth Controller: 62631 (POWERACKOUT/2.5AUNV/BLE)
• LEDVANCE LINK Powerpack: 62632 (POWERADAPTSENSOROUT/12V/UNV)
• LEDVANCE LINK Ceiling Sensor: 62633 (SENSORCEILING/PIR12V/BLE)
• LEDVANCE LINK Wall Switch: 62636 (WALLSWITCH5KEYBLE)
• Surface Mount Kits: 62782 SMK6A/14/WH (1×4) · 62783 SMK6A/24/WH (2×4) · 62784 SMK6A/22/WH (2×2)
• Flange Kits: 62785 FK6A/14G/WH (1×4) · 62786 FK6A/24G/WH (2×4) · 62787 FK6A/22G/WH (2×2)

Certifications & Rebates

• cULus Listed — Damp Rated
• DLC 5.1 Listed — all models qualify for utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search by model number for your selected SKU.
• FCC Compliant
• RoHS Compliant

Typical Applications

• Corporate offices and open-plan workspaces — dual selectable wattage and CCT allow post-installation tuning to match task requirements and occupancy patterns
• Corridors, stairwells, and exit paths — EMBB variants provide 1,000 lm emergency output for 90+ minutes for code-compliant egress lighting
• Healthcare facilities and exam rooms — CRI >80 and selectable CCT support accurate color rendering for clinical tasks
• Schools and university buildings — selectable wattage and CCT support different learning environments from a single SKU
• Government and institutional buildings — 120–347V and DLC 5.1 support U.S. and Canadian installations with rebate eligibility
• Retail and hospitality spaces — volumetric design and selectable CCT deliver even, glare-controlled illumination suited to customer-facing environments

What’s Included

• LEDVANCE Sylvania Volume 6A LED volumetric troffer fixture — White (size and configuration per selected variant)
• Mounting hardware for recessed T-grid installation
