LEDVANCE Sylvania 66507 Panel with Snap In Sensor 2x2 Backlit LED Flat Panel — 22W — 3500K/4000K/5000K — White
Available in stock (100)
About this item
About this item
- Selectable Power & Output: Switch between 22W, 16W, and 11W settings delivering up to 3,000 lumens to replace up to 2-lamp 32W FO32 (56W system) fluorescent fixtures with up to 80% energy savings.
- 2x2 Backlit & Snap-In Sensor Port: Low-profile 1.6-inch 2x2 backlit panel provides shadow-free illumination and includes a front 3.5mm audio-jack port for snap-in PIR sensors (sold separately).
- 3-CCT Color Selectable: Field-adjustable 3500K, 4000K, and 5000K color temperature switch allows on-site tuning for offices, schools, hospitality, and commercial spaces.
- 0-10V Dimming & LLLC Control Ready: Operates on 120-277VAC with 0-10V dimming and supports stand-alone or Silvair Bluetooth Mesh 3.5mm PIR/daylight sensors (sold separately).
- DLC Premium & TAA Compliant: DLC Premium Listed (LLLC pending), TAA Compliant, and cETLus Damp Location rated, backed by a 50,000-hour L70 life and a 5-year NLB Trusted warranty.
Description
Description
LEDVANCE Sylvania 66507 Panel with Snap In Sensor 2x2 Backlit LED Flat Panel — 11W/16W/22W Selectable — 3500K/4000K/5000K — White
The LEDVANCE Sylvania PANELF022UNVD8SC722WHSS (Item 66507) is a commercial Value Class 2x2 Backlit LED Flat Panel engineered to deliver up to 3,000 lumens with field-adjustable 11W/16W/22W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on 120–277VAC electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient replacement for legacy 2-lamp 28W FO28 and 2-lamp 32W FO32 fluorescent fixtures with up to 80% energy savings. Built with a cETLus Damp Location rating, it is qualified for commercial utility rebates under DLC Premium standards (with DLC LLLC qualification pending) and features a front-accessible 3.5mm audio-jack sensor receptacle for adding snap-in PIR and daylight controls.
Key Features
- Selectable Wattage: 11W / 16W / 22W — field-adjustable via onboard selector switch
- Wattage Equivalency: Replaces legacy 2 x 28W FO28 (49W) and 2 x 32W FO32 (56W) fluorescent fixtures for 55% to 80% energy savings
- Maximum Lumen Output: 3,000 lm at 22W (2,250 lm at 16W / 1,500 lm at 11W)
- Peak Efficacy: Up to 141 lm/W (136 lm/W at 11W and 22W) for high-efficiency commercial operation
- CRI: >80 color rendering across all settings
- Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch
- Lens & Optics: Backlit optical technology offering even lighting distribution without shadowing
- Dimming: 0–10V continuous dimming standard
- Voltage: Universal 120–277VAC constant current driver
- Location Rating: cETLus Listed for damp locations
- Operating Temperature: -4°F (-20°C) to +104°F (+40°C) ambient range
- Certifications: DLC Premium Listed (LLLC pending), cETLus Listed, TAA Compliant, FCC, RoHS
- Rated Life: 50,000 hours (L70)
- Warranty: 5-year limited warranty — LEDVANCE Sylvania (NLB Trusted Warranty Program)
- Form Factor & Design: Low-profile 1.6" backlit 2x2 panel with front 3.5mm classic audio-jack sensor receptacle
Performance & Light Output
| Wattage | Total Lumens | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 11W | 1,500 lm | 136 lm/W | FO28 2x28W (49W — 77% Savings) / FO32 2x32W (56W — 80% Savings) |
| 16W | 2,250 lm | 141 lm/W | FO28 2x28W (49W — 67% Savings) / FO32 2x32W (56W — 71% Savings) |
| 22W | 3,000 lm | 136 lm/W | FO28 2x28W (49W — 55% Savings) / FO32 2x32W (56W — 60% Savings) |
CRI >80 across all configurations. Rated life 50,000 hours (L70). Equipped with a multi-wattage selectable driver (field-adjustable lumen output / variable power settings) and field-adjustable CCT (color temperature selectable / tunable white / switchable Kelvin 3500K/4000K/5000K).
Smart & Control Features

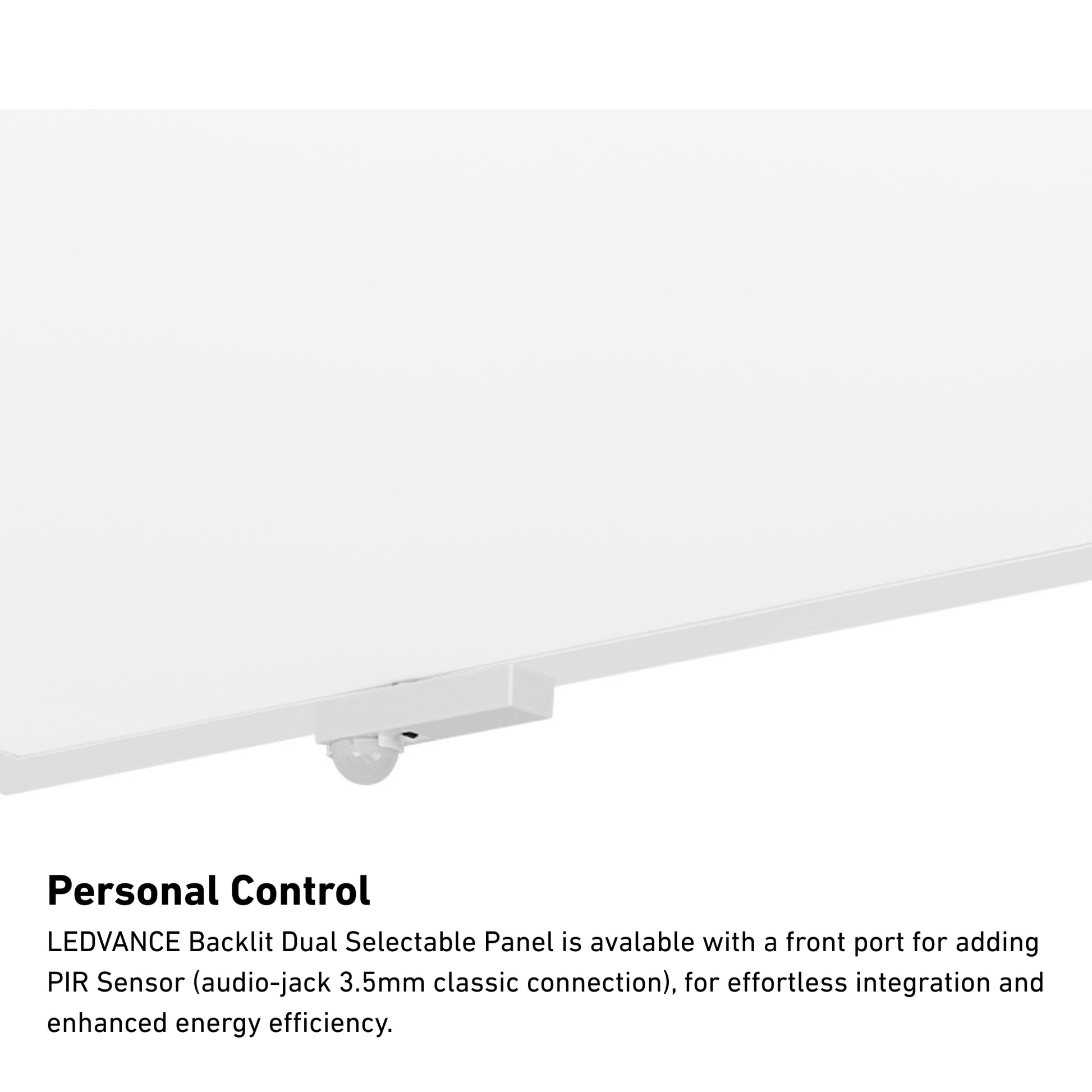

The PANELF022UNVD8SC722WHSS features an integral front-accessible 3.5mm audio-jack sensor receptacle supporting modular Luminaire Level Lighting Controls (LLLC) and building automation:
- 0–10V Continuous Dimming (Standard): Validated for compatibility with commercial 0–10V wall dimmers including Leviton (DS710, IP710), Lutron (NTSTV-DV, NFTV, DVTV-WH), and Legrand (H4FBL3PW).
- DLC NLC & Silvair Bluetooth Mesh (Accessory): Compatible with the Silvair 3.5mm Audio Jack PIR Sensor 75934 (SENSA12PIR3.5DSR) (12V, 12ft mounting height, sold separately) enabling Bluetooth connectivity, energy monitoring, high-end trim, daylight sensing, vacancy/occupancy sensing, and personal control.
Compatible plug-and-play stand-alone sensors include 66593 (HIBAYPIRSENSOR3.5PIN) (stand-alone PIR and daylight sensor with 3.5mm snap-in audio-jack base, max 13ft mounting height; default settings: 100% power, 100% detection area, 5-second hold time, 10% standby dimming, 0-second standby period, daylight function disabled) — sold separately. Field adjustments to non-default stand-alone sensor settings can be managed using the optional handheld programming remote control (catalog # 66592 / HIBAYSENSORG2REMOTE, sold separately).
Electrical
Powered by a constant current driver operating on 120–277VAC input with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Includes standard 0–10V dimming leads and a front 3.5mm low-voltage sensor port.

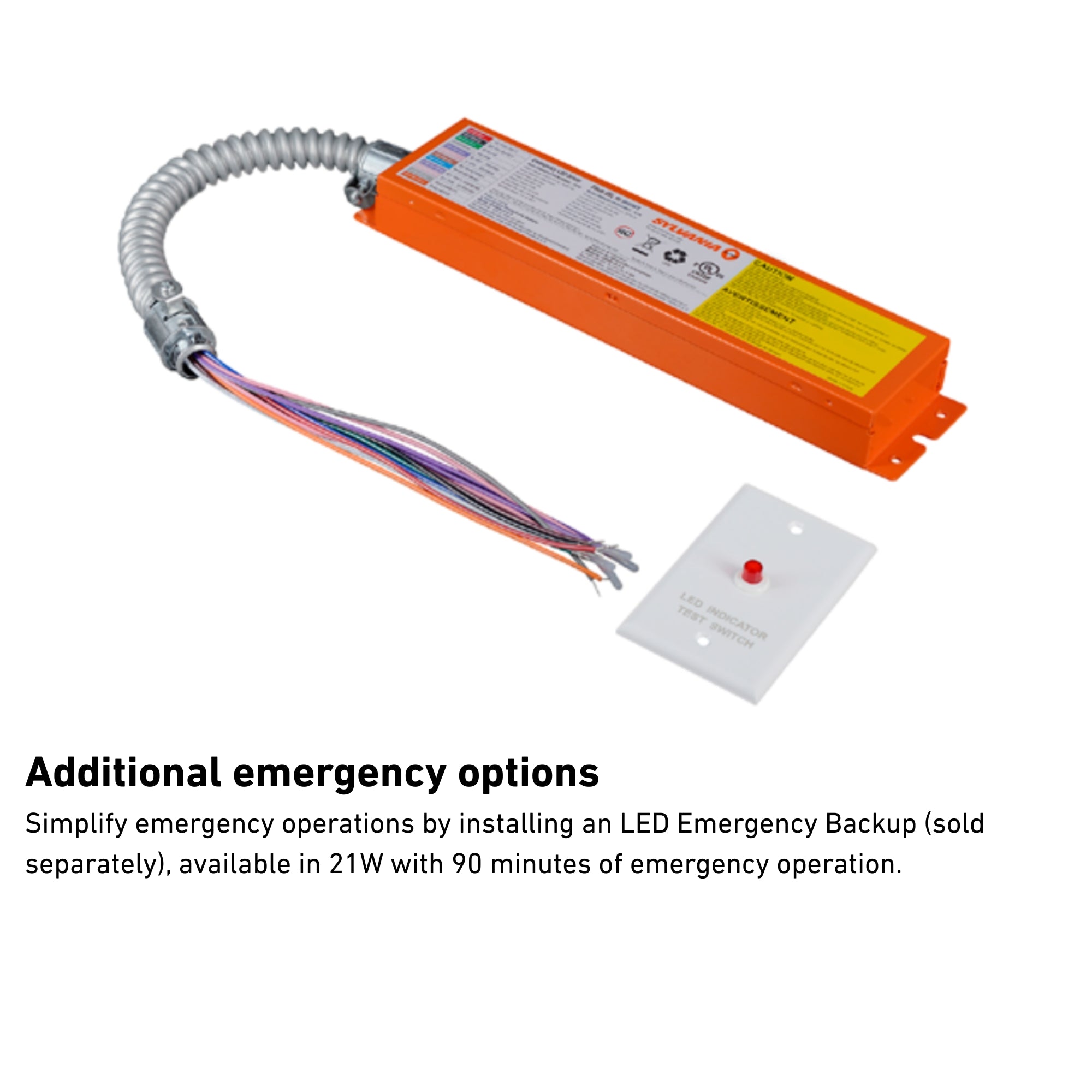

Emergency Battery Backup: Compatible with the field-installable 21W LiFePO4 emergency battery backup 75740 (EMBB2A21WUNVDIMD) (0–10V dimming, 90-minute runtime, suitable for Type-B, Type-C, and luminaire products, sold separately).

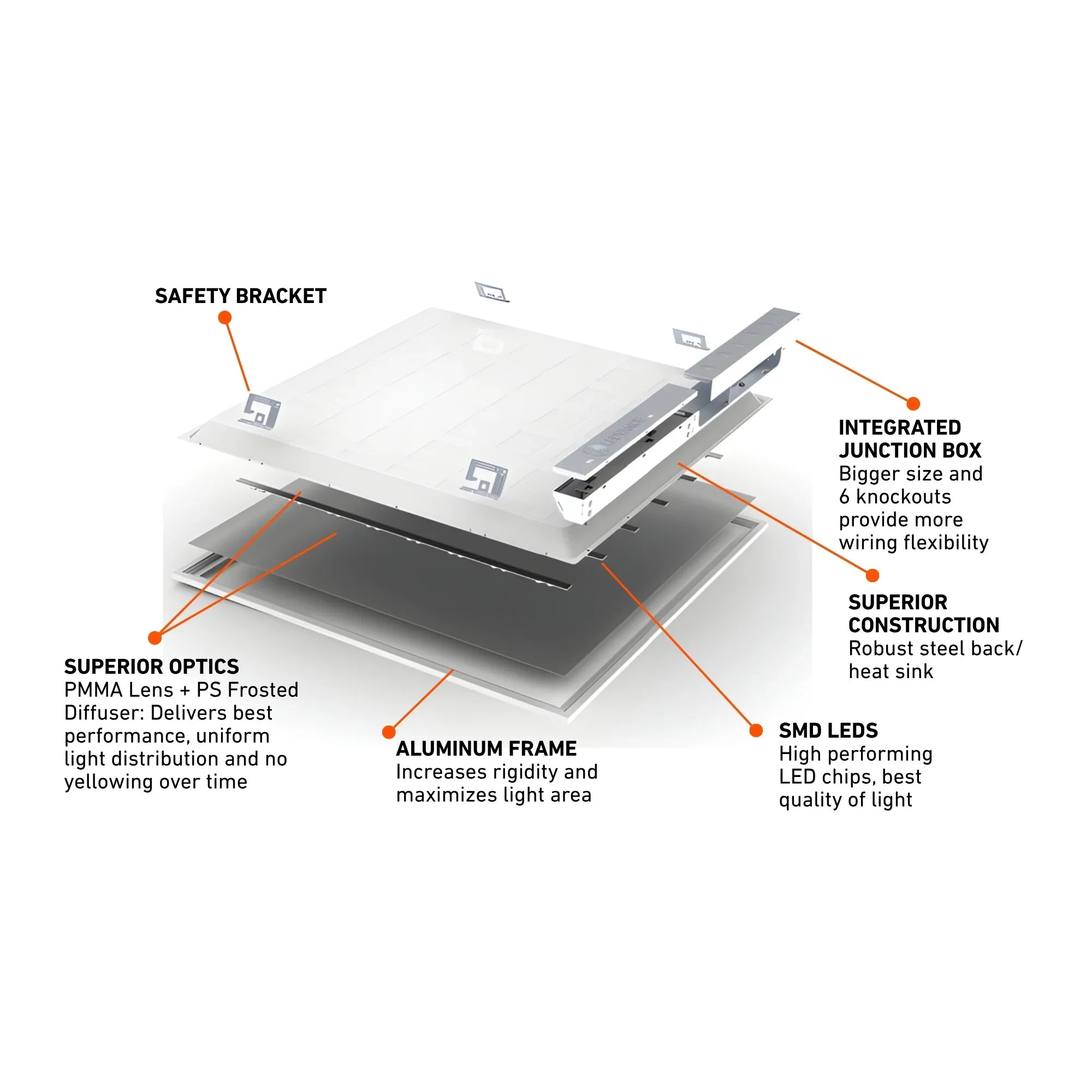

Construction
Housing & Build: Backlit 2x2 luminaire housing engineered with an integrated front 3.5mm audio-jack sensor receptacle for tool-free sensor installation.
Location & Environmental Rating: cETLus Listed for indoor damp locations.
Operating Temperature: Operating ambient temperature range of -4°F (-20°C) to +104°F (+40°C).
Lens & Optics: Backlit diffuser lens providing even light distribution across the ceiling plane without shadowing.
Finish: White finish.
Dimensions: 23.7" L × 23.7" W × 1.6" H (603mm × 603mm × 41mm).
Installation & Mounting
Standard Mounting: Designed for recessed T-grid ceiling installation; also supports surface, recessed flange, or suspended mounting using optional kits.
Accessories (Sold Separately):
- Surface, Flange & Suspension Kits: 62064 (SMKIT3A/22/WH — 2x2 Extruded Aluminum Surface Mount Kit, white finish), 60458 (FK1A22GWH — 2x2 Flange Kit), and 62067 (SPKIT3A — Suspension Kit for Backlit Panels)
- Sensors & Programming Remote: 66593 (HIBAYPIRSENSOR3.5PIN — 3.5mm snap-in PIR & daylight sensor, max 13ft mounting height), 75934 (SENSA12PIR3.5DSR — Silvair 3.5mm Audio Jack 12V PIR Sensor, 12ft height), and 66592 (HIBAYSENSORG2REMOTE — G2 programming remote)
- Emergency Battery Backup: 75740 (EMBB2A21WUNVDIMD — 21W LiFePO4 90-minute field-installable emergency battery)
Certifications & Rebates
- DLC Premium Listed: Qualifies for maximum utility rebate incentives (and LLLC Luminaire Level Lighting Controls pending). To confirm rebate eligibility with your local utility provider, visit designlights.org and search Model Number PANELF022UNVD8SC722WHSS (Item 66507).
- cETLus Listed: Certified for damp locations.
- TAA Compliant: Meets Trade Agreements Act requirements for federal, municipal, and government procurement.
- FCC Compliant: Meets FCC electromagnetic interference requirements.
- RoHS Compliant: Engineered free of restricted hazardous substances.
- NLB Trusted: Verified 5-year warranty under the National Lighting Bureau Trusted Warranty Program.

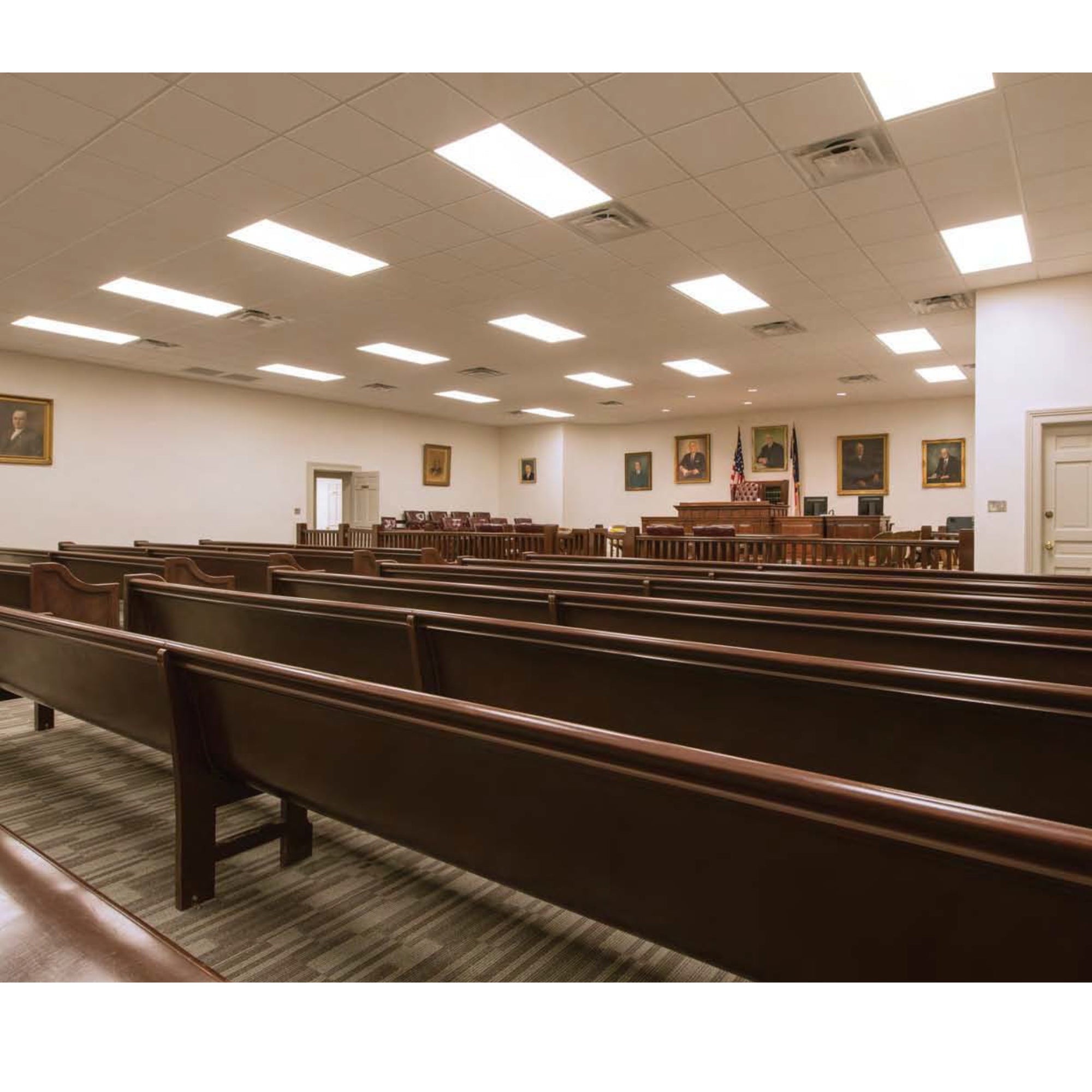

Typical Applications

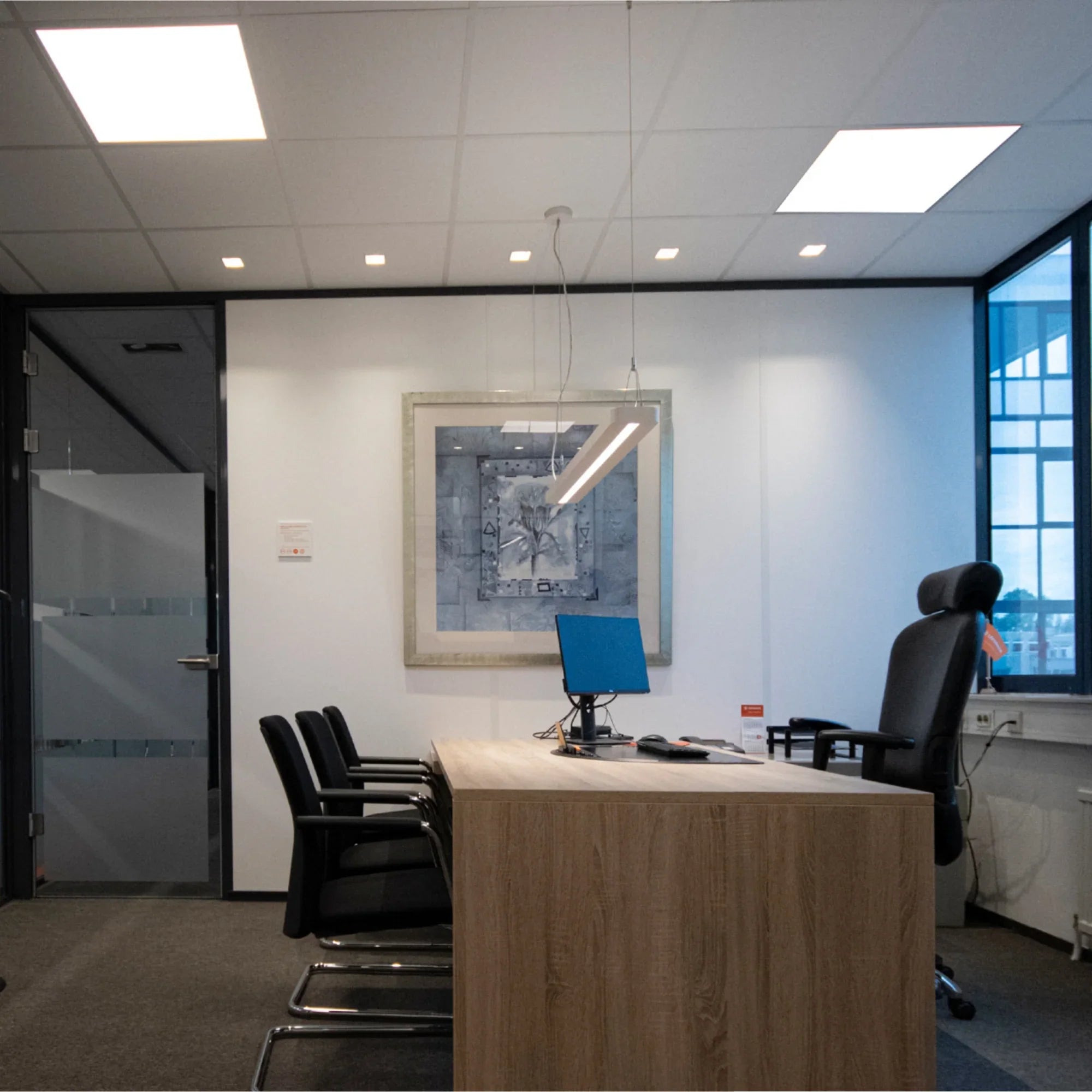

- Commercial & Government Offices — TAA compliance, DLC Premium efficiency, and front snap-in 3.5mm sensor capability simplify energy-code-compliant 2x2 office upgrades.
- Schools & Classrooms — Field-selectable 11W/16W/22W output (1,500–3,000 lm) replaces 2-lamp T8 troffers with up to 80% energy savings.
- Hospitality Lobbies & Corridors — Smooth 0–10V dimming compatible with Lutron, Leviton, and Legrand dimmers pairs with optional plug-in PIR occupancy sensors (sold separately).
- Retail Boutiques & Reception Areas — Compact 2x2 (23.7" × 23.7" × 1.6") backlit architecture delivers uniform, shadow-free illumination.
- Automated Smart Buildings — Supports Silvair Bluetooth Mesh 3.5mm PIR sensors (75934, sold separately) for LLLC daylight harvesting, high-end trim, and energy monitoring.
What's Included
- LEDVANCE Sylvania PANELF022UNVD8SC722WHSS (Item 66507) 2x2 Backlit Dual Selectable LED Flat Panel with Snap-In Sensor Port — White
- Installation and operation manual
