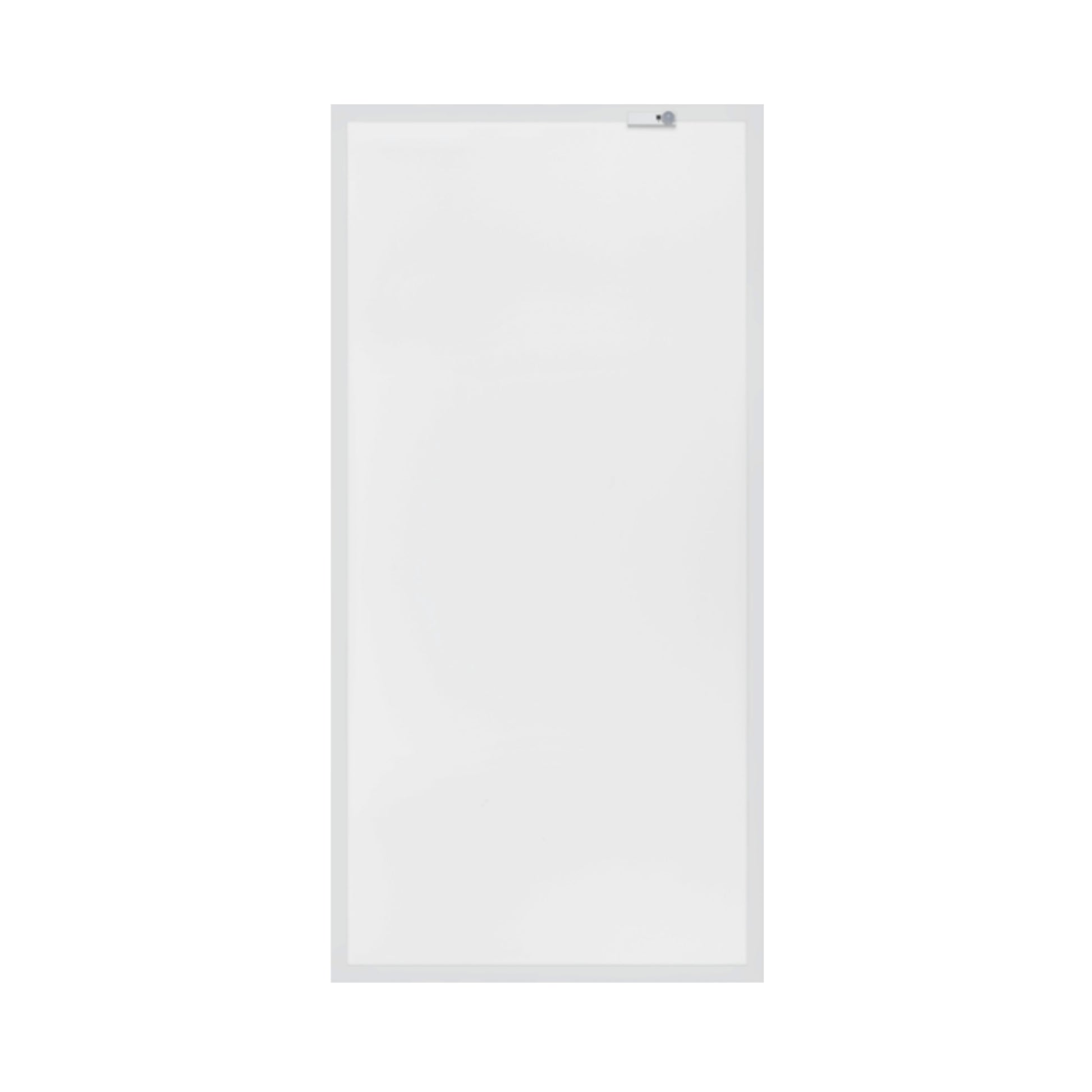

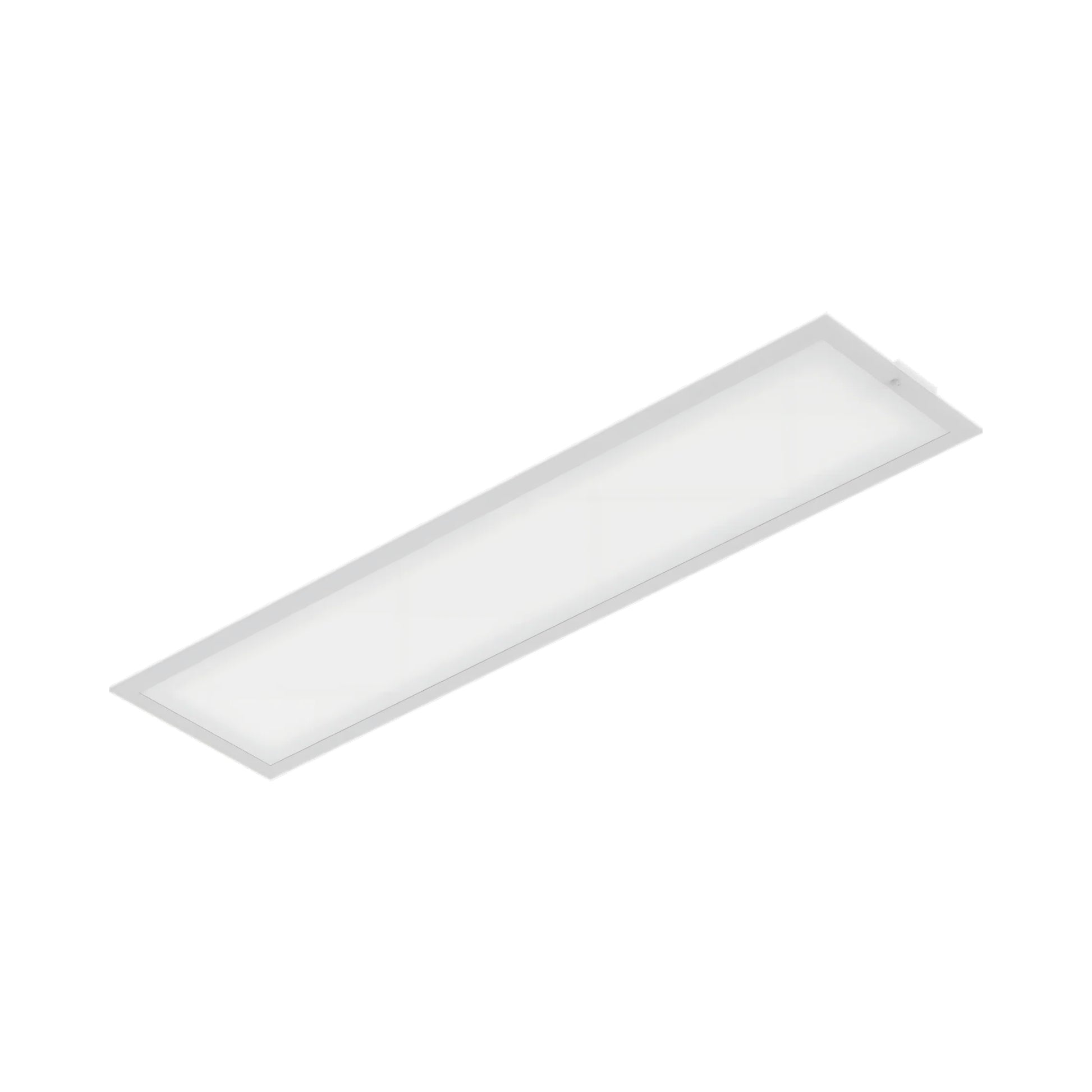

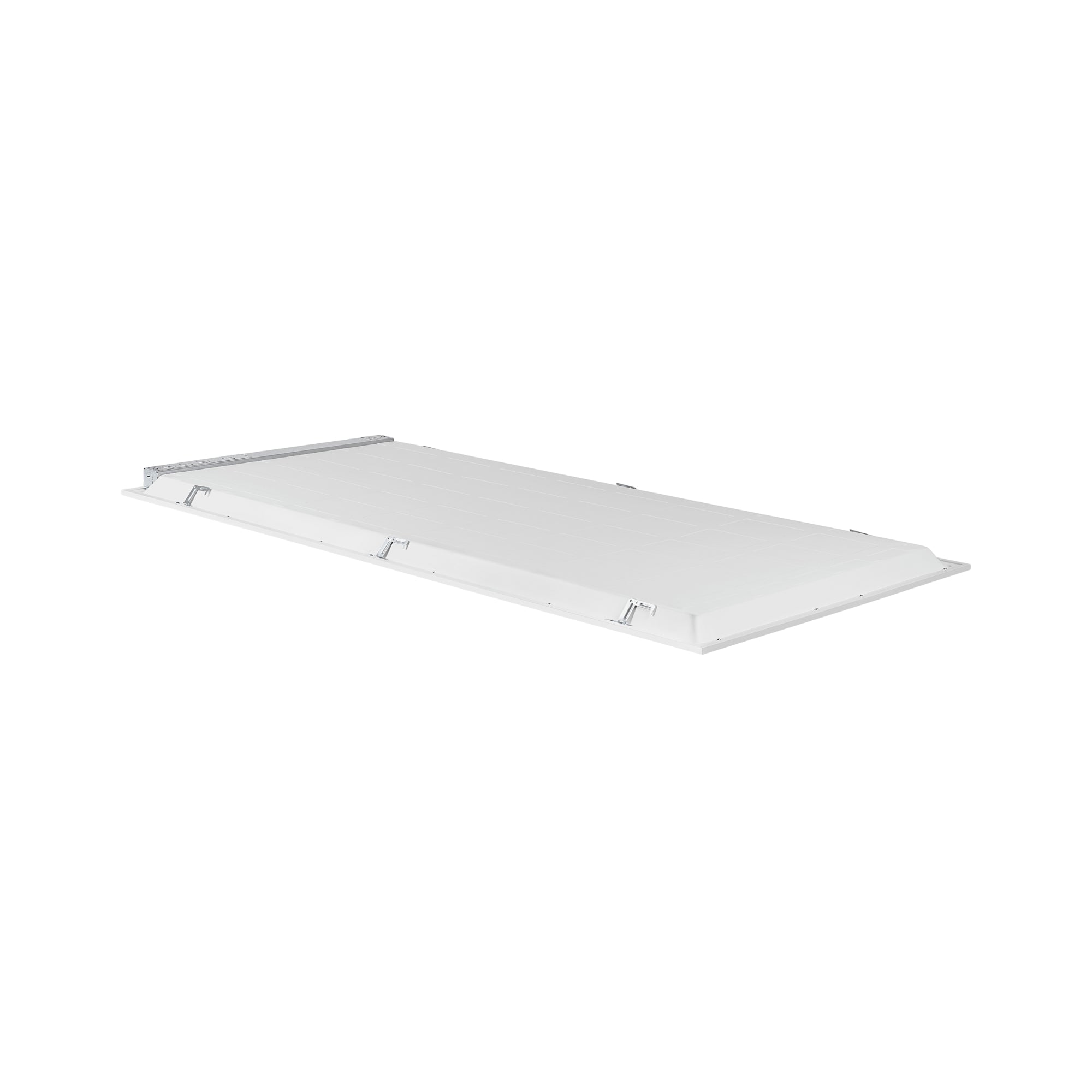

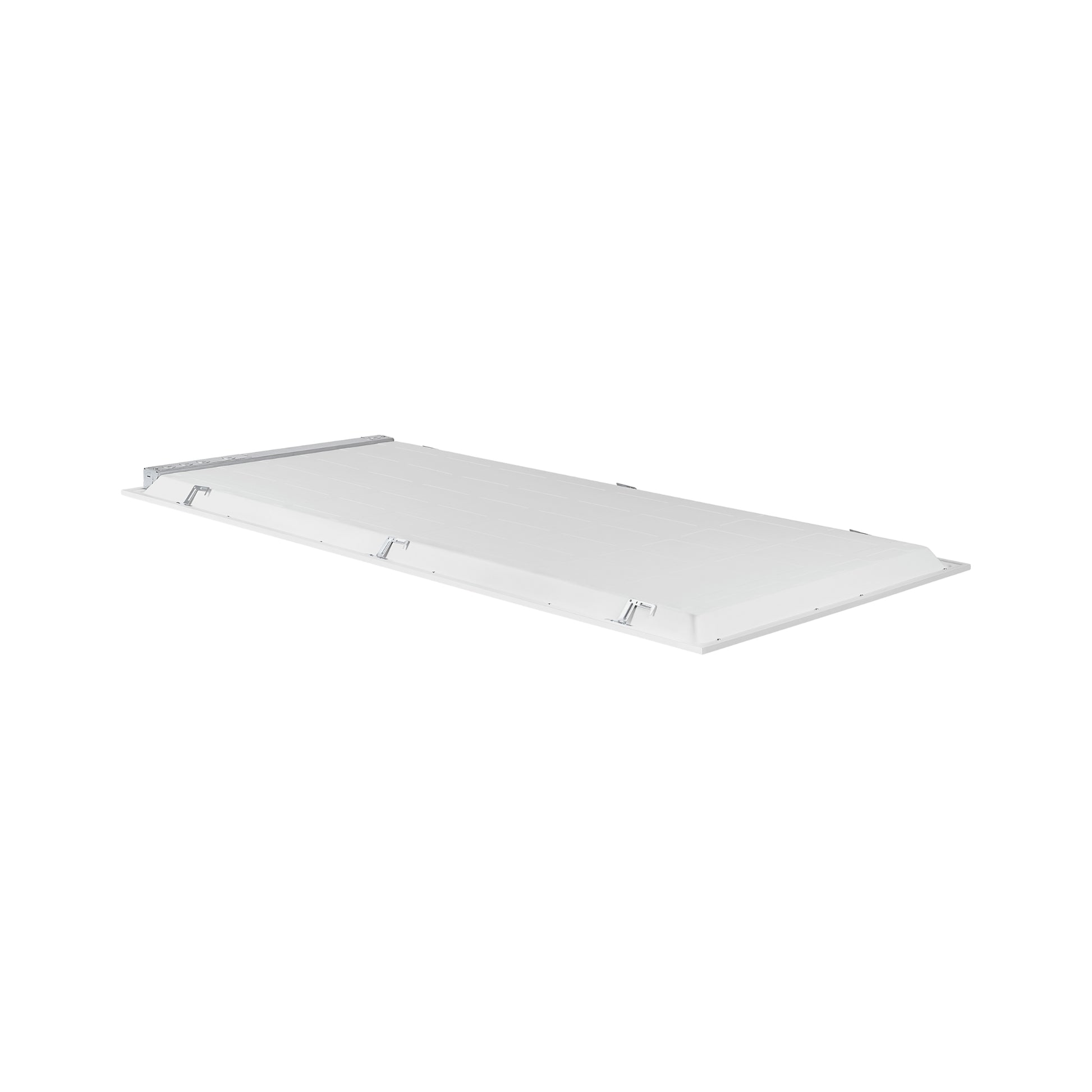

LEDVANCE Sylvania 66506 Backlit Dual Selectable LED Panel — 11/16/22W Selectable — 3500K/4000K/5000K — White

The LEDVANCE Sylvania PANEL022UNVD8SC714WHSS backlit LED panel delivers up to 3,000 lm with selectable 11W, 16W, or 22W output, selectable 3500K, 4000K, or 5000K color temperature, 120–277VAC input, and 0–10V dimming. It is cETLus Listed and rated for damp locations, with RoHS, FCC, DLC Premium, and TAA Compliant markings. The specification sheet does not state an IP rating. Its comparison data lists a 2×28 fluorescent system for the 1×4 panel.

Key Features

• Selectable Wattage: 11W, 16W, or 22W; the switch access method is not stated on the specification sheet.
• Wattage Equivalency: Comparison data lists a 2×28 fluorescent system; MH equivalency is not stated.
• Maximum Lumen Output: Up to 3,000 lm.
• Peak Efficacy: An lm/W value is not stated on the specification sheet.
• CRI: Greater than 80.
• Selectable CCT: 3500K, 4000K, or 5000K; the switch access method is not stated on the specification sheet.
• Lens & Optics: Backlit technology provides even light distribution without shadowing.
• Dimming: 0–10V dimming.
• Input Voltage: 120–277VAC; driver class is not stated on the specification sheet.
• Location Rating: Damp-location rated; an IP rating is not stated on the specification sheet.
• Operating Temperature: −4°F to 104°F (−20°C to +40°C).
• Certifications: cETLus Listed, RoHS compliant, FCC compliant, DLC Premium, and TAA Compliant.
• Rated Life: 50,000 hours at L70; the testing standard reference is not stated.
• Warranty: 5-year NLB Trusted Warranty Program.

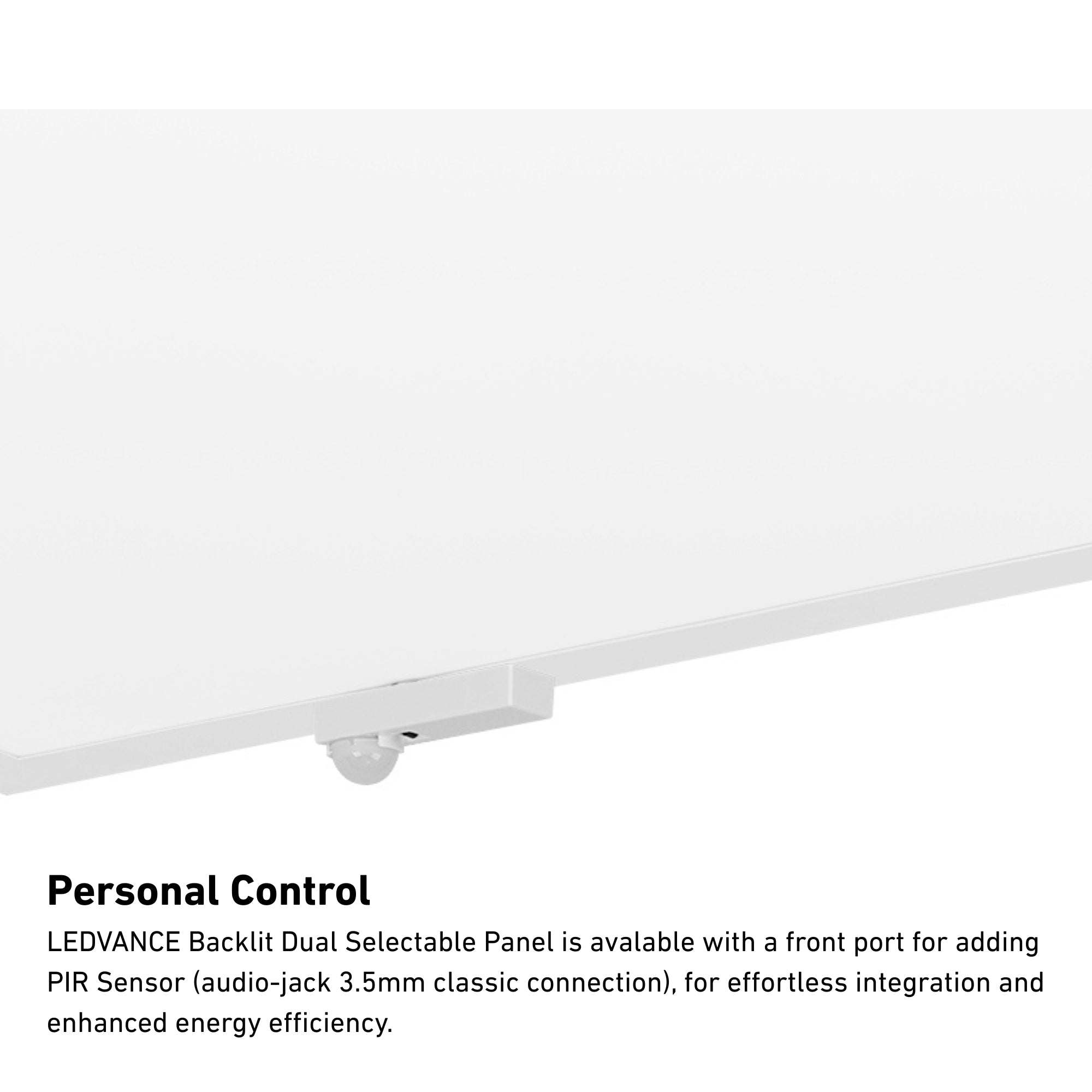

• Sensor Receptacle: Front 3.5mm audio-jack port for compatible PIR and daylight sensors.

Performance & Light Output

At 11W, the panel delivers 1,500 lm. At 16W, it delivers 2,250 lm. At 22W, it delivers 3,000 lm. CRI is >80 across the listed configurations, and rated life is 50,000 hours (L70). The comparison data reports energy savings of 77%, 67%, and 55% versus the listed 2×28 fluorescent system at 11W, 16W, and 22W, respectively.

Smart & Control Features

The panel includes a front 3.5mm audio-jack port for compatible PIR and daylight sensor accessories.

• PIR and Daylight Sensor: Item 66593, HIBAYPIRSENSOR3.5PIN, standalone sensor with a 3.5mm snap-in audio-jack base; maximum mounting height 13 ft.
• Sensor Remote: Item 66592, HIBAYSENSORG2REMOTE, programming remote for compatible sensors.
• SILVAIR PIR Sensor: Item 75934, SENSA12PIR3.5DSR, 3.5mm audio-jack PIR sensor with 12V and 12 ft specifications.

The sensors and programming remote are sold separately.

Electrical

The panel operates at 120–277VAC with 0–10V dimming, power factor greater than 0.9, and THD less than 20%. The specification sheet also identifies RoHS compliance.

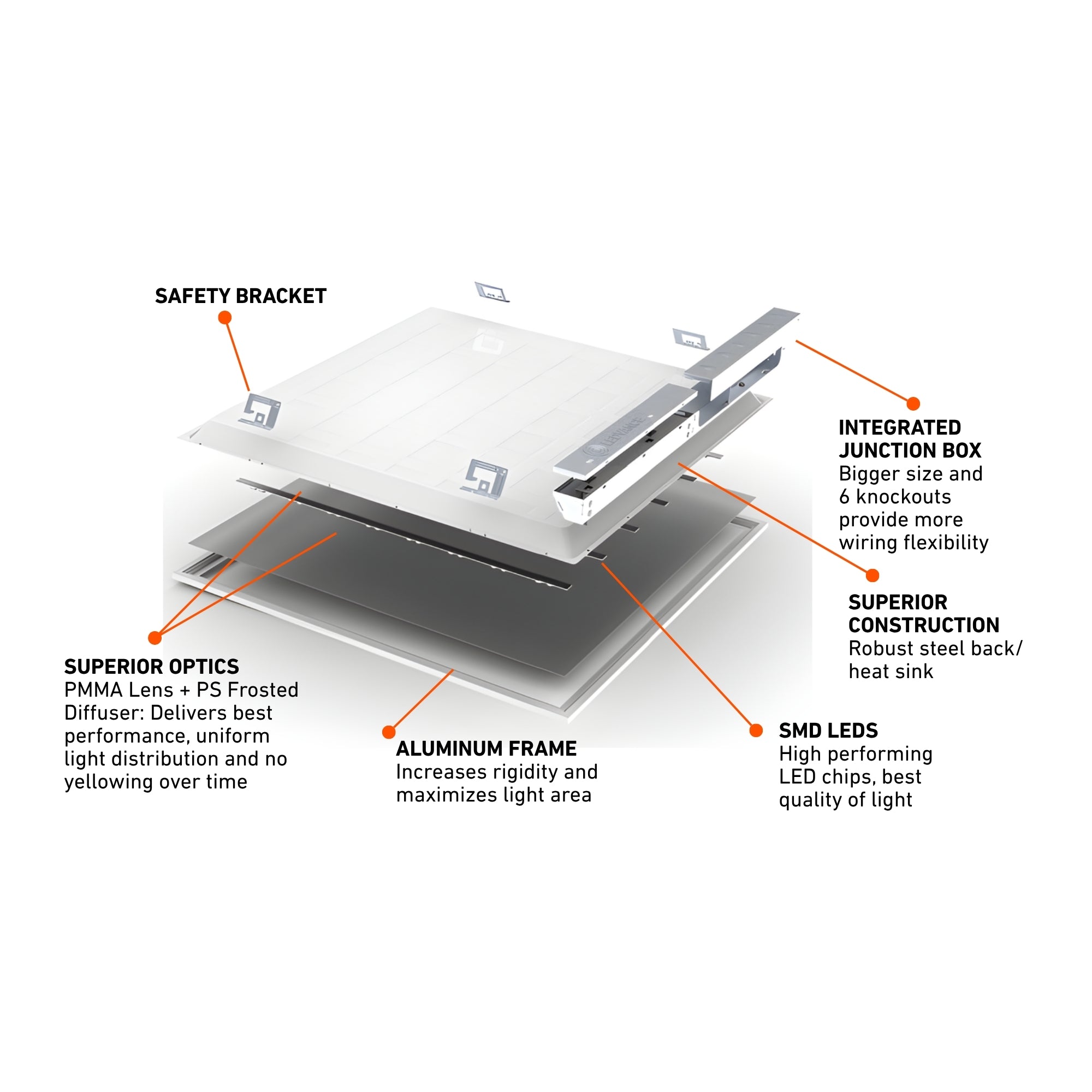

Construction

Housing & Thermal: Housing material: aluminum or steel.

Lens & Optics: Backlit technology provides even light distribution without shadowing.

Finish: White.

Environmental & Safety: Damp-location rated, cETLus Listed, RoHS compliant, and FCC compliant. Operating temperature is −4°F to +104°F (−20°C to +40°C). The specification sheet does not state an IP rating.

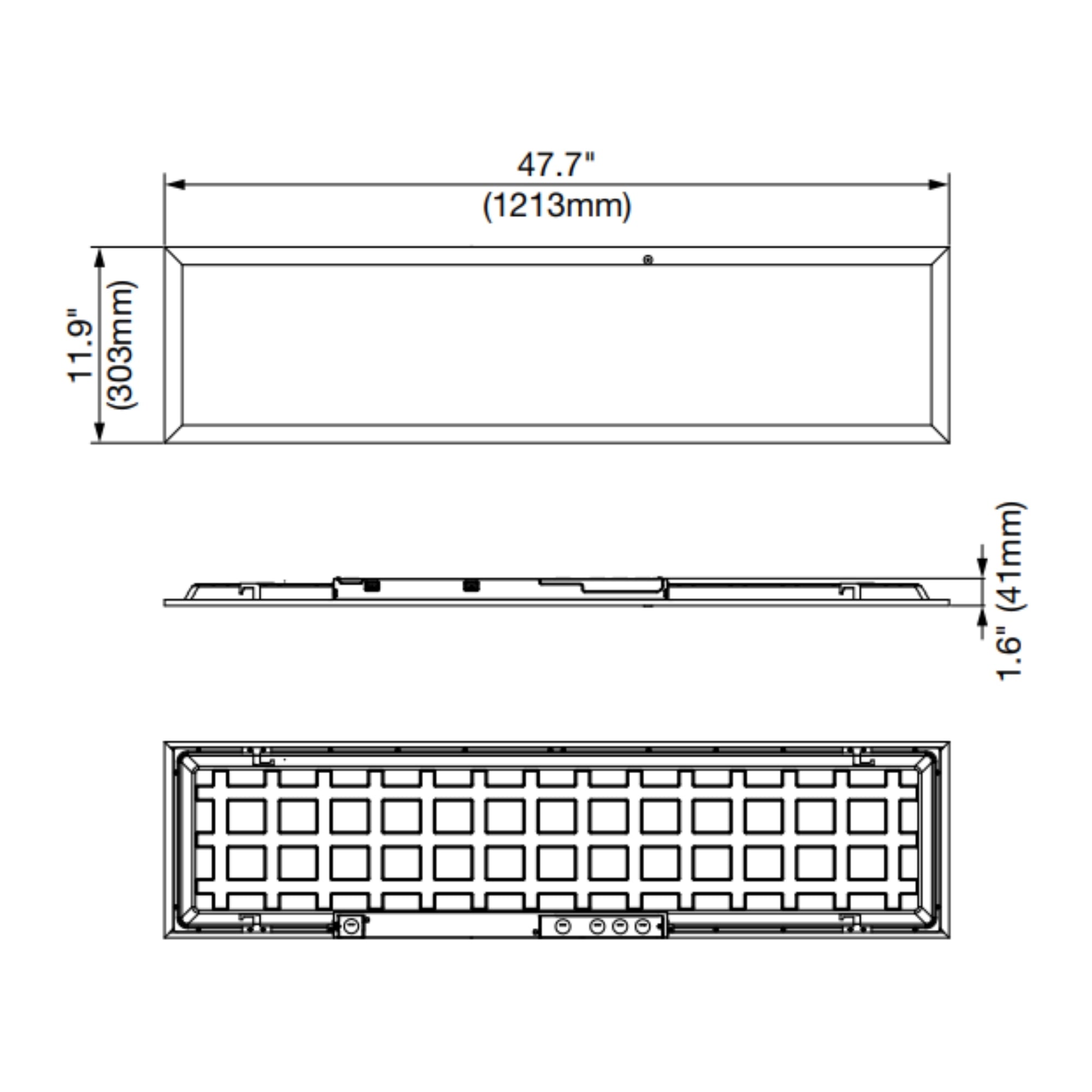

Dimensions & Weight: 47.7 in L × 11.9 in W × 1.6 in H (1213 × 303 × 41 mm). Weight is not stated on the specification sheet.

Installation & Mounting

Mounting Options: Surface mounting, suspension mounting, and flange mounting kits are listed for the panel.

Wiring: 0–10V dimming is supported. The specification sheet does not state cable lengths or wire gauge.

Accessories (Sold Separately):

• Sensor Accessories: 66593 HIBAYPIRSENSOR3.5PIN, standalone PIR and daylight sensor; 66592 HIBAYSENSORG2REMOTE, programming remote; 75934 SENSA12PIR3.5DSR, SILVAIR audio-jack PIR sensor.

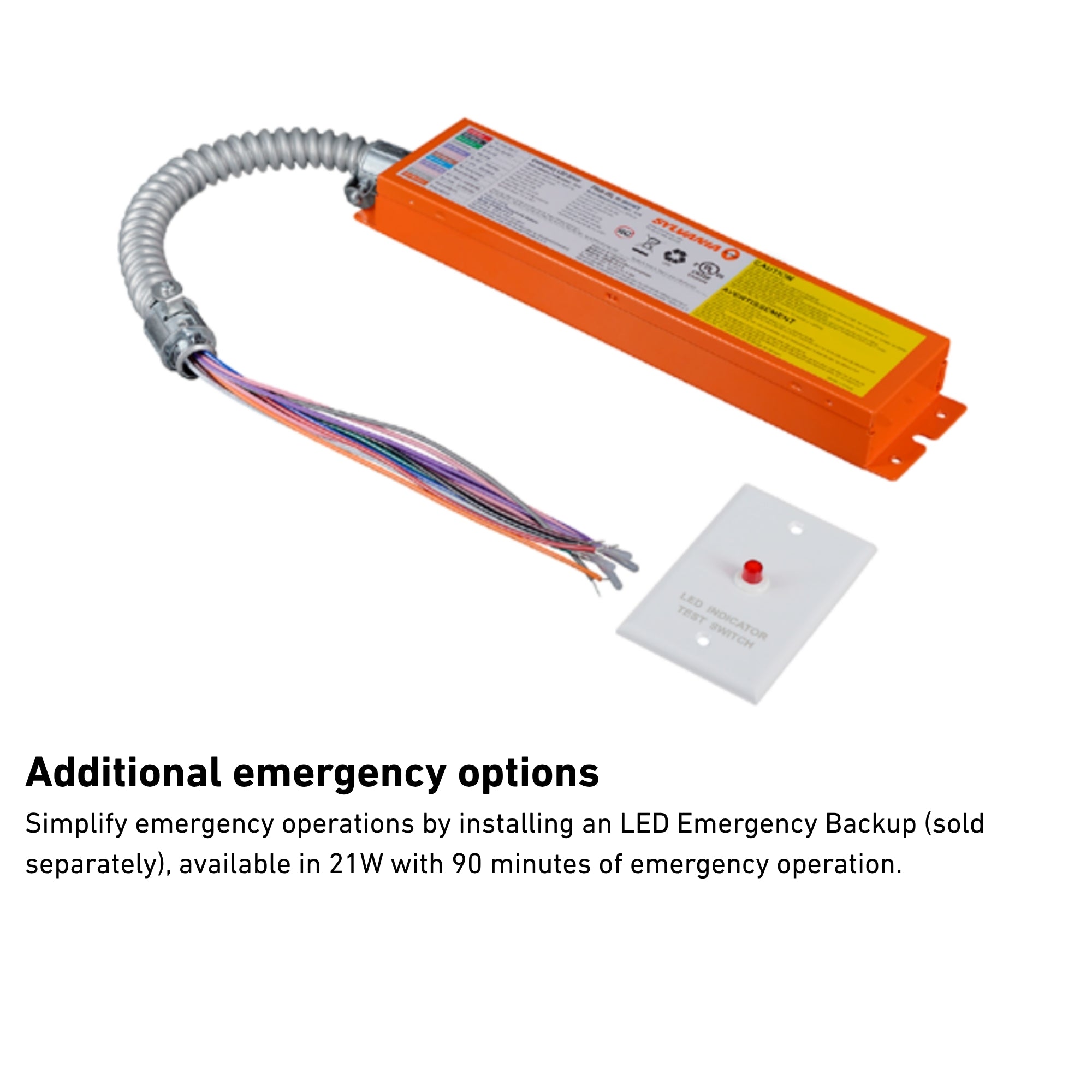

• Emergency Battery: 75740 EMBB2A21WUNVDIMD, field-installable 21W 0–10V dimmable LiFePO4 battery with 90-minute backup.
• Surface Mount Kit: 62066 SMKIT3A/14/WH, white surface-mount kit for 1×4 backlit panels.
• Suspension Kit: 62067 SPKIT3A, suspension kit for backlit panels.
• Flange Kit: 60457 FK1A14GWH, flange kit for 1×4 panels.

Certifications & Rebates

• cETLus Listed: Damp-location rated.
• DLC Premium: Listed under catalog number PANEL022UNVD8SC714WHSS. To verify rebate eligibility with your utility provider, visit designlights.org and search catalog number PANEL022UNVD8SC714WHSS.
• TAA Compliant: TAA compliance is stated on the specification sheet.
• RoHS Compliant: RoHS compliance is stated on the specification sheet.
• FCC Compliant: FCC compliance is stated on the specification sheet.
• Damp Rating: Damp rating is stated on the specification sheet.

Typical Applications

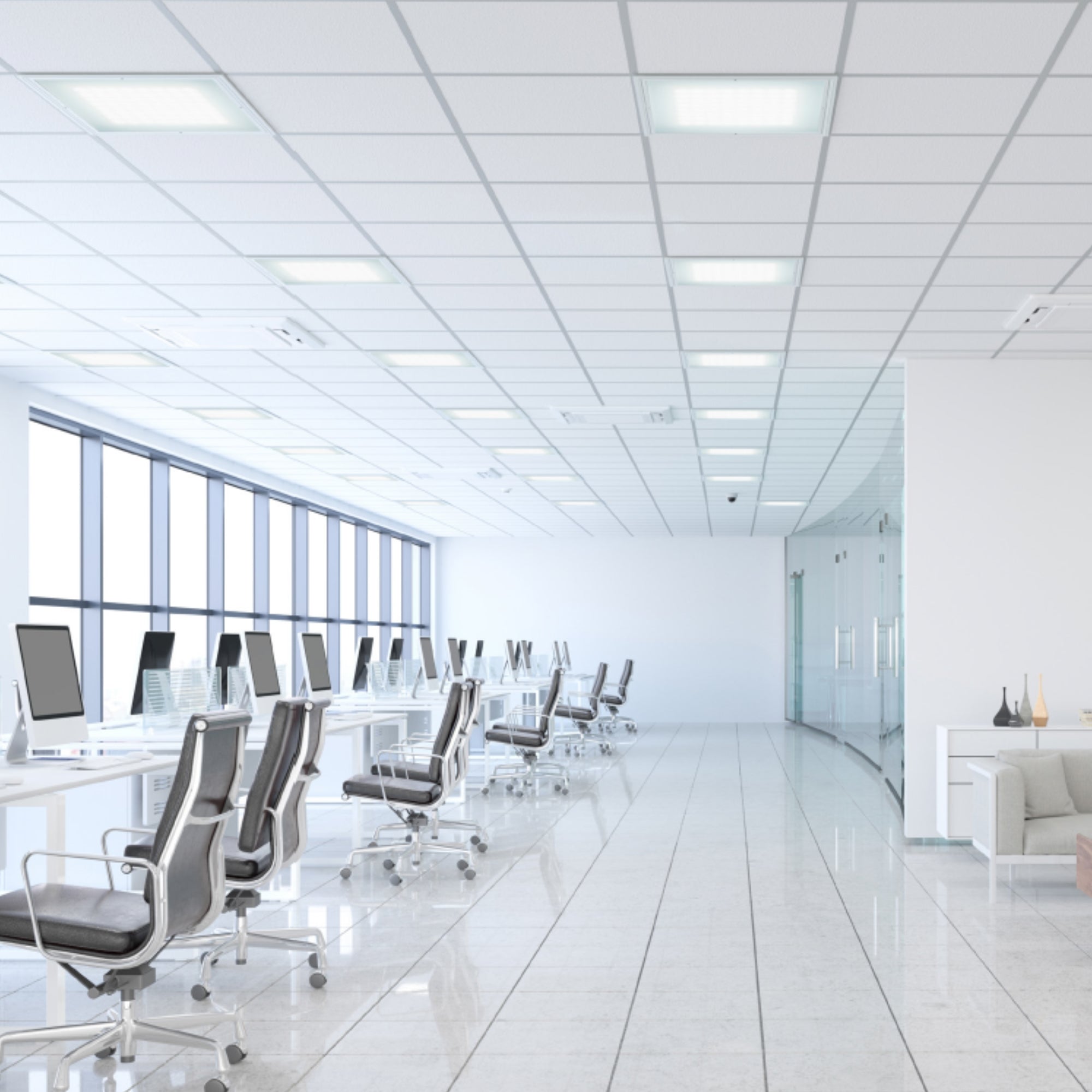

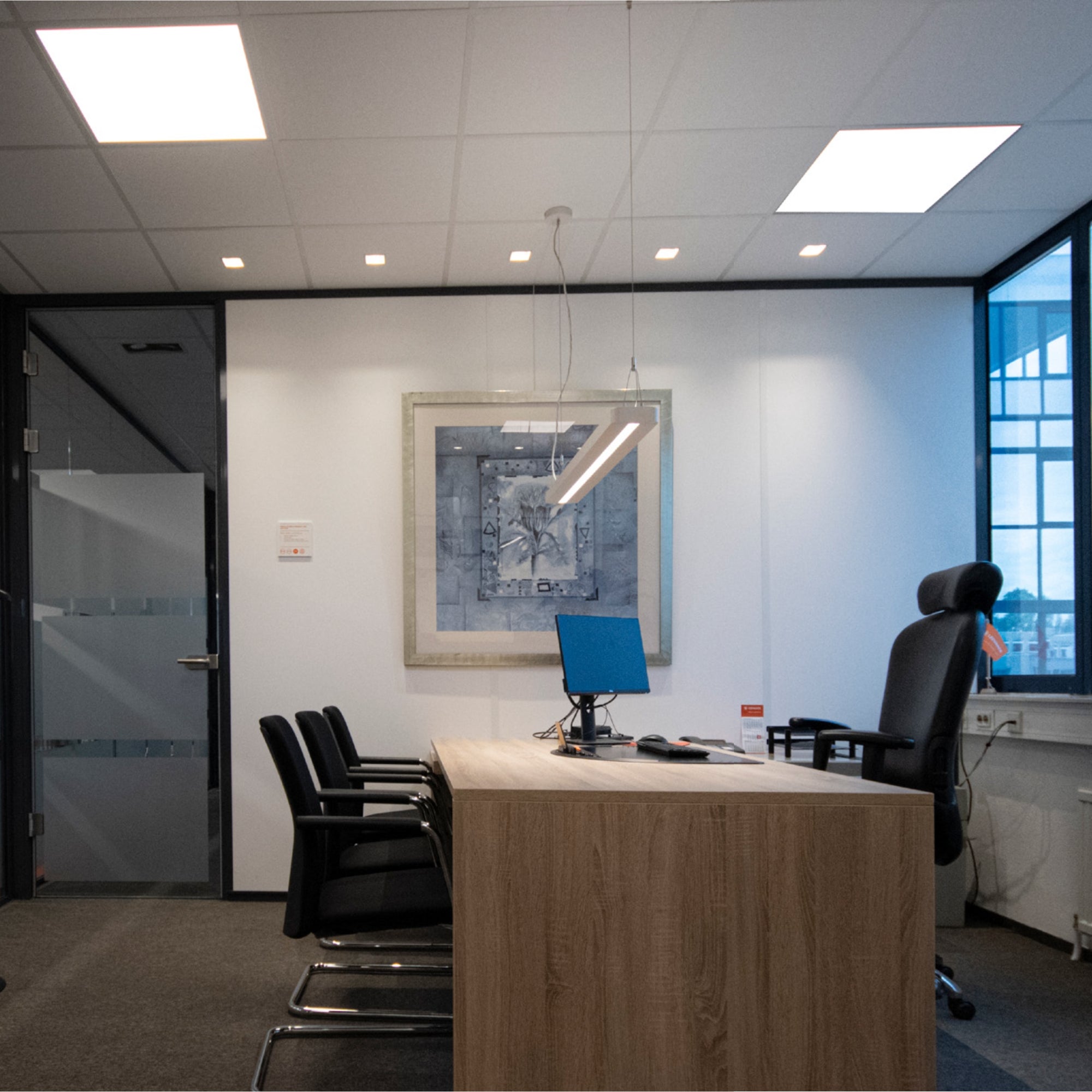

• Offices — selectable 3500K, 4000K, or 5000K light colors support different interior lighting selections.
• Schools — backlit technology provides even light distribution without shadowing.
• Hospitality spaces — 0–10V dimming supports compatible lighting controls.
• Commercial interiors — selectable 11W, 16W, or 22W output supports different light-output requirements in a 1×4 panel format.

What's Included

• LEDVANCE Sylvania PANEL022UNVD8SC714WHSS 1×4 backlit LED panel — White
