LEDVANCE Sylvania 62962 Dual Selectable T-FIT LED Panel Bars — 2×4 — 35/40/45W Selectable — 3500K/4000K/5000K — White

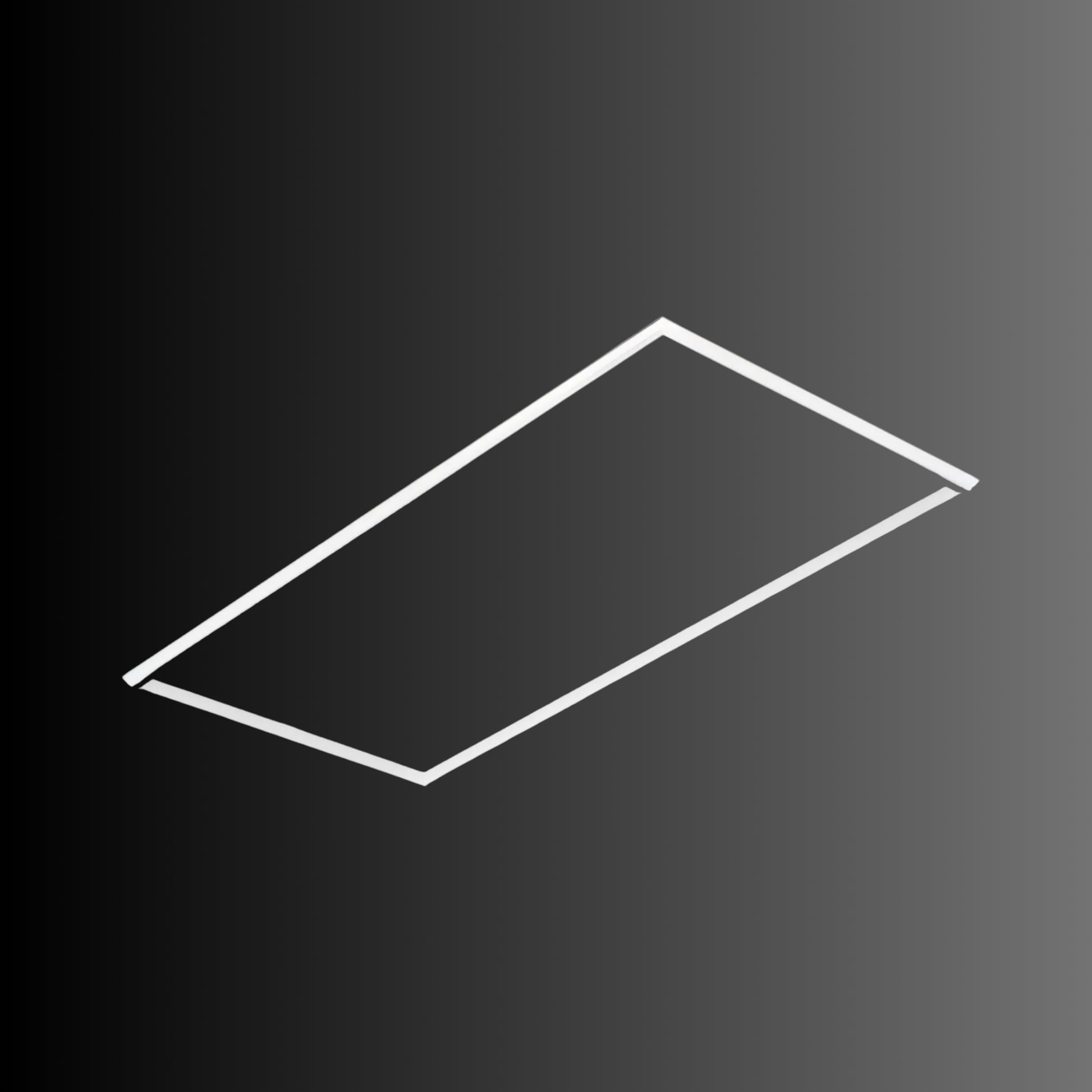

The LEDVANCE Sylvania 62962 (ordering abbreviation: PANELBAR1AS/45UNHD8SC7/24WH) is a 2×4 T-FIT LED panel bars troffer — an innovative four-bar frame system that installs directly into existing T-grid ceilings, maintaining or replacing the existing ceiling tile. Wattage is field-selectable between 35W, 40W, and 45W; color temperature is field-selectable between 3500K, 4000K, and 5000K — both adjustable via switches on the driver. Maximum output is 4,950 lumens at 45W with up to 110 lm/W peak efficacy. The fixture supports 0–10V dimming, operates on 120–347V, is cETLus Listed for IC and damp locations, DLC 5.1 Listed, and TAA Compliant, with a 5-year limited warranty backed by the NLB Trusted Warranty Program. Replaces 2×28W T8 (49W system) with up to 59% energy savings at 20W equivalent — and 3×32W T8 (75W system) with up to 60% energy savings at 30W equivalent.

Key Features

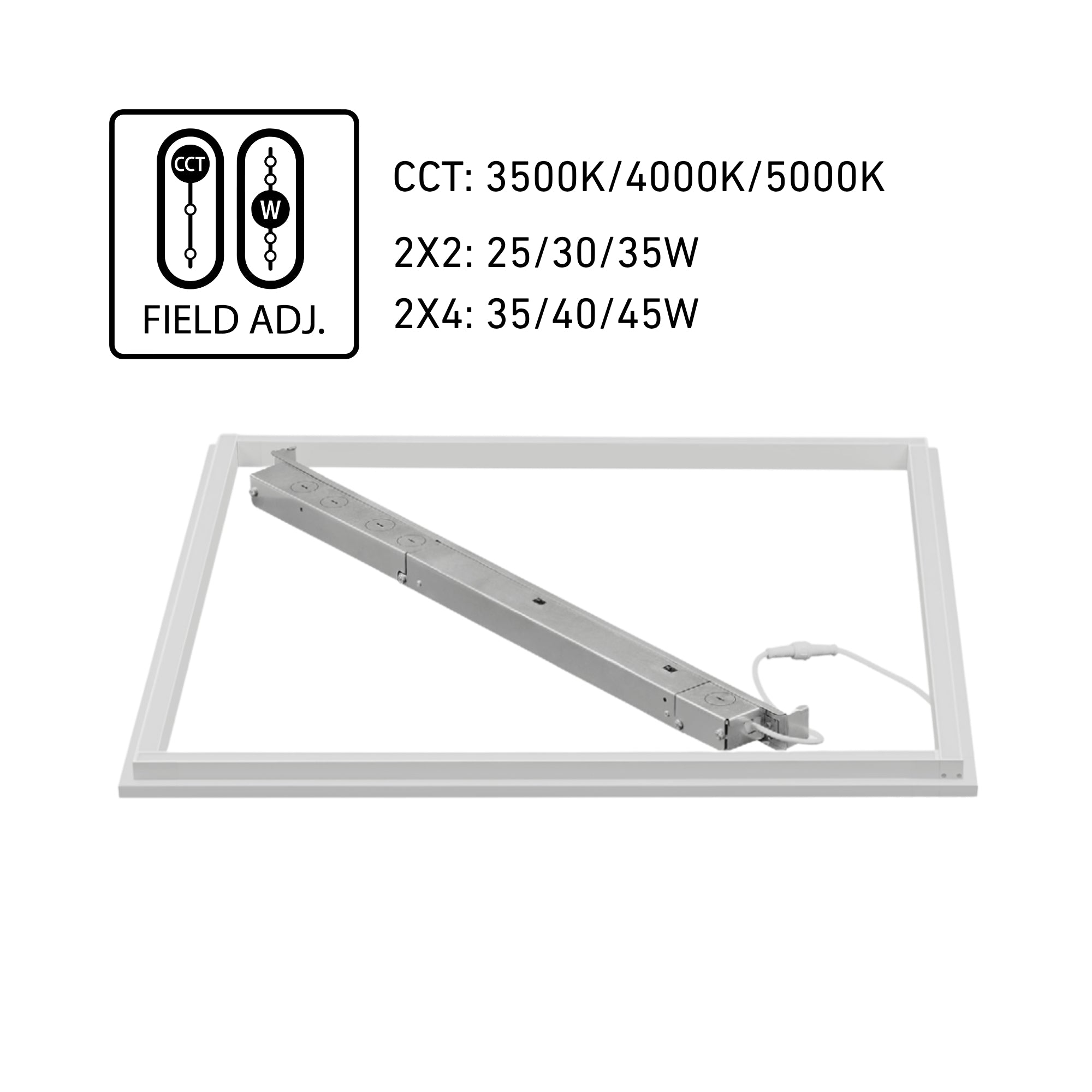

• Dual Selectable Wattage: Field-selectable between 35W, 40W, and 45W via switches on the driver — no rewiring required.
• Wattage Equivalency: Replaces 2×28W T8 (49W system) with up to 59% energy savings; replaces 2×32W T8 (56W system) with up to 29% energy savings; replaces 3×28W T8 (58W system) with up to 14% energy savings; replaces 3×32W T8 (75W system) with up to 60% energy savings.
• Maximum Lumen Output: Up to 4,950 lumens at 45W.
• Peak Efficacy: Up to 110 lm/W.
• CRI: >80.
• Selectable CCT: Field-selectable between 3500K, 4000K, and 5000K via switches on the driver — no tools required.
• Lens & Optics: Open frame bar design — light distributed directly from LED bars into the ceiling grid opening; existing or replacement ceiling tile serves as reflective backdrop.
• Dimming: 0–10V continuous dimming. Compatible dimmer required, sold separately.
• Voltage: 120–347V universal voltage driver — covers U.S. and Canadian electrical systems.
• Location Rating: cETLus Listed for IC (insulated ceiling) and damp locations.
• Operating Temperature: −20°C to +40°C (−4°F to +104°F).

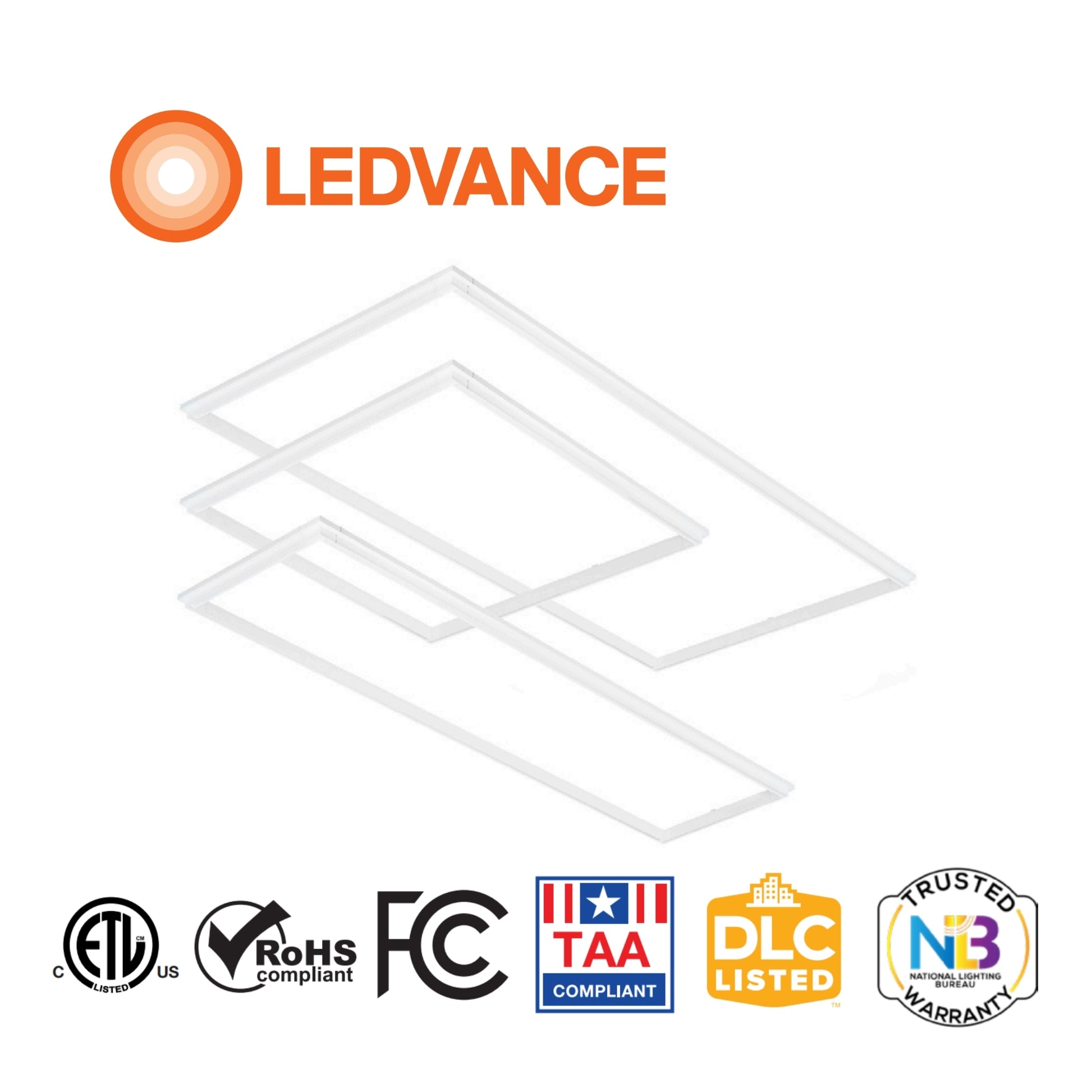

• Certifications: cETLus Listed (IC and damp) — DLC 5.1 Listed — TAA Compliant — FCC — RoHS.
• Rated Life: L70 50,000 hours.
• Warranty: 5-year limited warranty — NLB Trusted Warranty Program.
• Earthquake Clip Compatible: Compatible with Cooper B-line BA-SFC and Nvent Caddy SFCLT CF after-market earthquake clips.

Performance & Light Output

At 35W, the 62962 delivers 3,950 lumens, replacing a 2×28W T8 system (49W) with up to 29% energy savings. At 40W, output reaches 4,450 lumens, replacing a 2×32W T8 system (56W) with up to 29% energy savings. At maximum 45W, output is 4,950 lumens, replacing a 3×32W T8 system (75W) with up to 60% energy savings. All wattage settings support 3500K, 4000K, and 5000K selectable CCT. CRI: >80. Peak efficacy: 110 lm/W. L70 rated life: 50,000 hours. Power factor: >0.9. THD: <20%.

Smart & Control Features

The 62962 supports 0–10V continuous dimming via the onboard driver. A compatible 0–10V dimmer is required, sold separately.

Electrical

Input voltage: 120–347V. Dimming: 0–10V. Power factor: >0.9. THD: <20%. Operating temperature: −20°C to +40°C (−4°F to +104°F). Mercury-free.

Construction

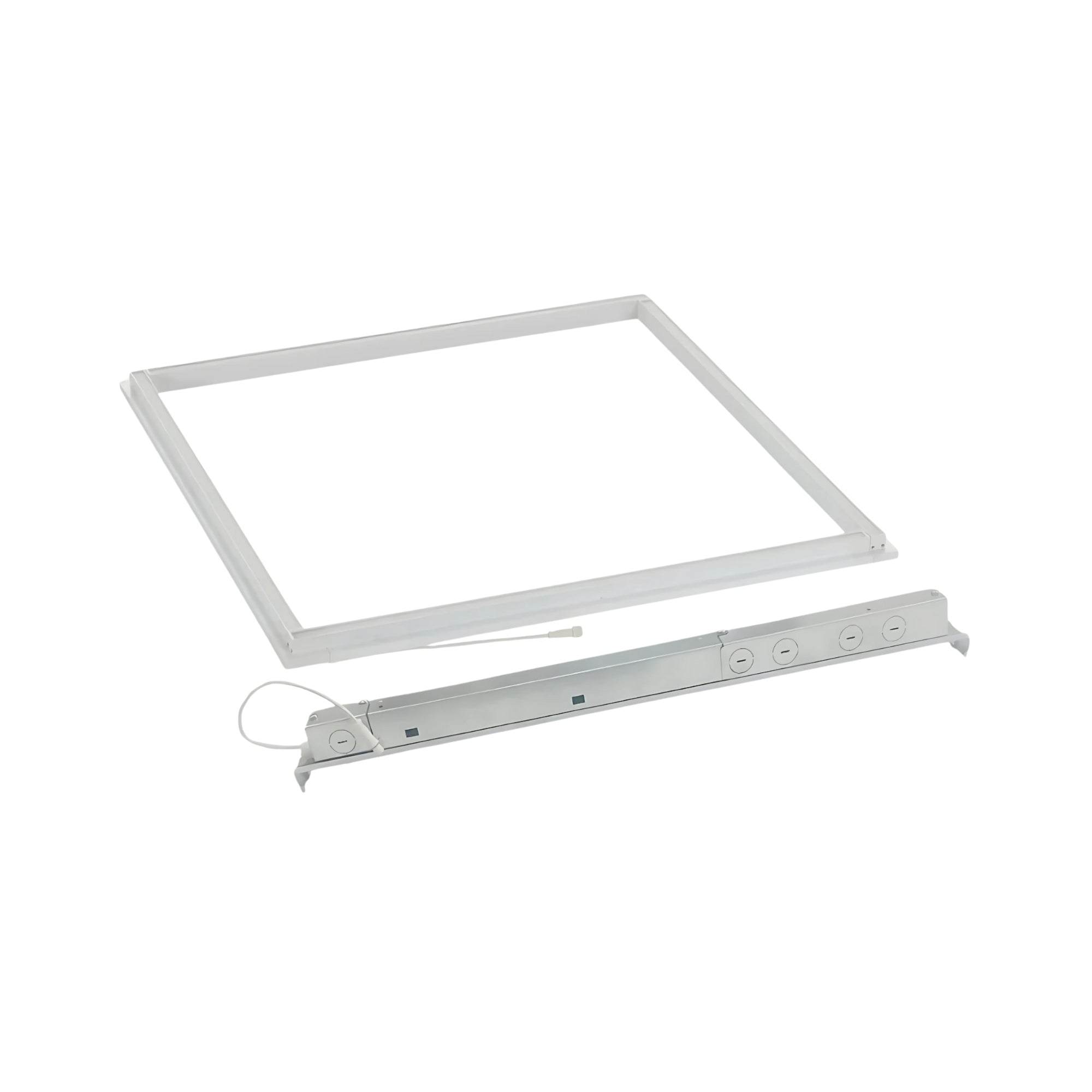

Housing & Thermal: Four-bar LED panel frame system. Low-profile 0.944″ (24mm) depth — maintains ceiling plane flush with T-grid.

Lens & Optics: Open frame bar design — light is distributed directly from the LED bars into the ceiling grid opening, maintaining or using the existing ceiling tile as a reflective backdrop.

Finish: White.

Environmental & Safety: cETLus Listed for IC and damp locations. Compatible with Cooper B-line BA-SFC and Nvent Caddy SFCLT CF earthquake clips. Operating temperature −20°C to +40°C. Mercury-free.

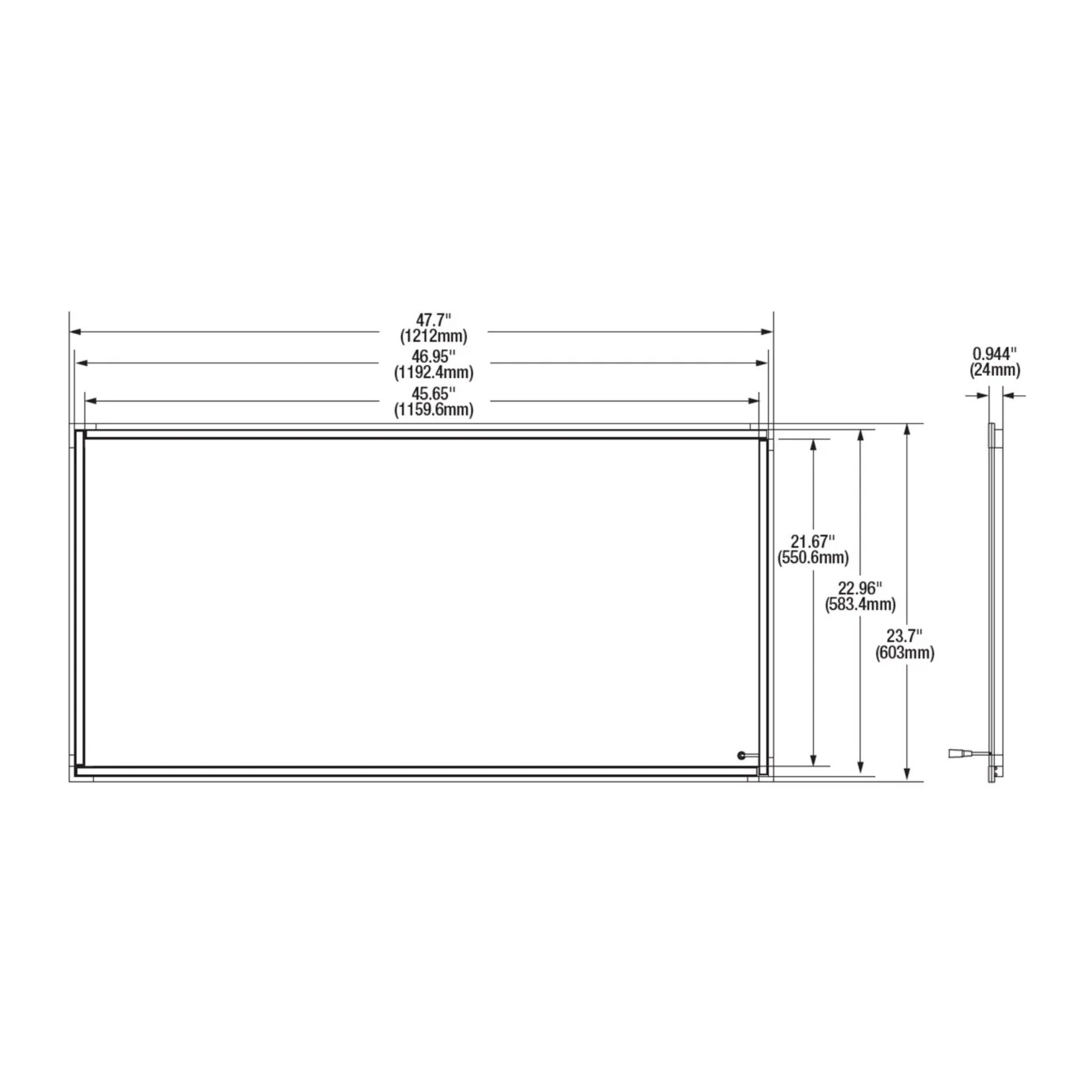

Dimensions: 47.7″ L × 23.7″ W × 0.944″ H (1212 × 603 × 24mm).

Installation & Mounting

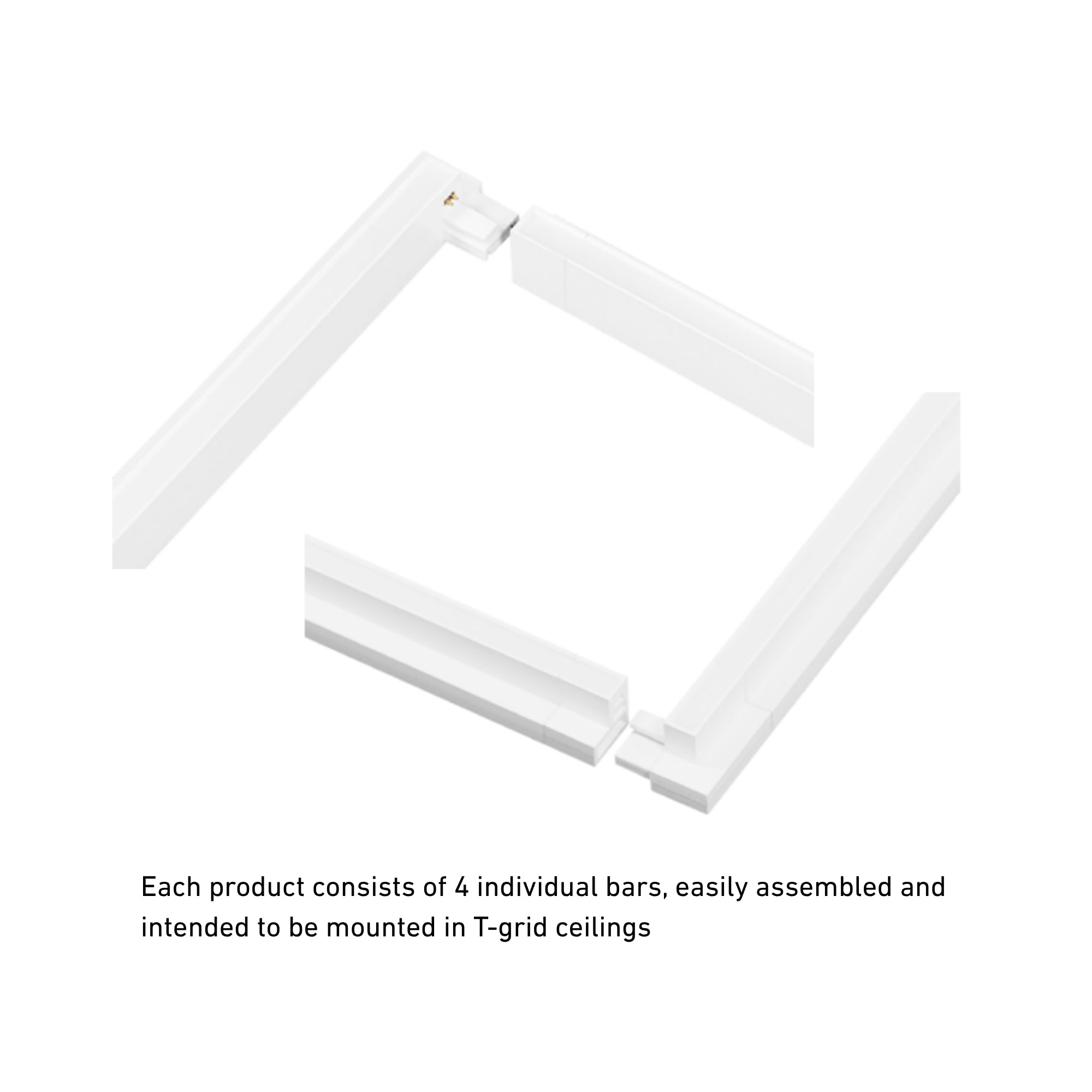

Standard Mounting: Four bars click together and mount directly into standard 2×4 T-grid ceiling systems. Maintains the existing ceiling tile or accepts a decorative replacement tile (sold separately). No tools required for bar assembly.

Accessories (Sold Separately):

• 2×4 Replacement Tile: 63052 (PANELBAR1APLATE2X4) — decorative ceiling tile for use in place of existing tile; sold in units of 2

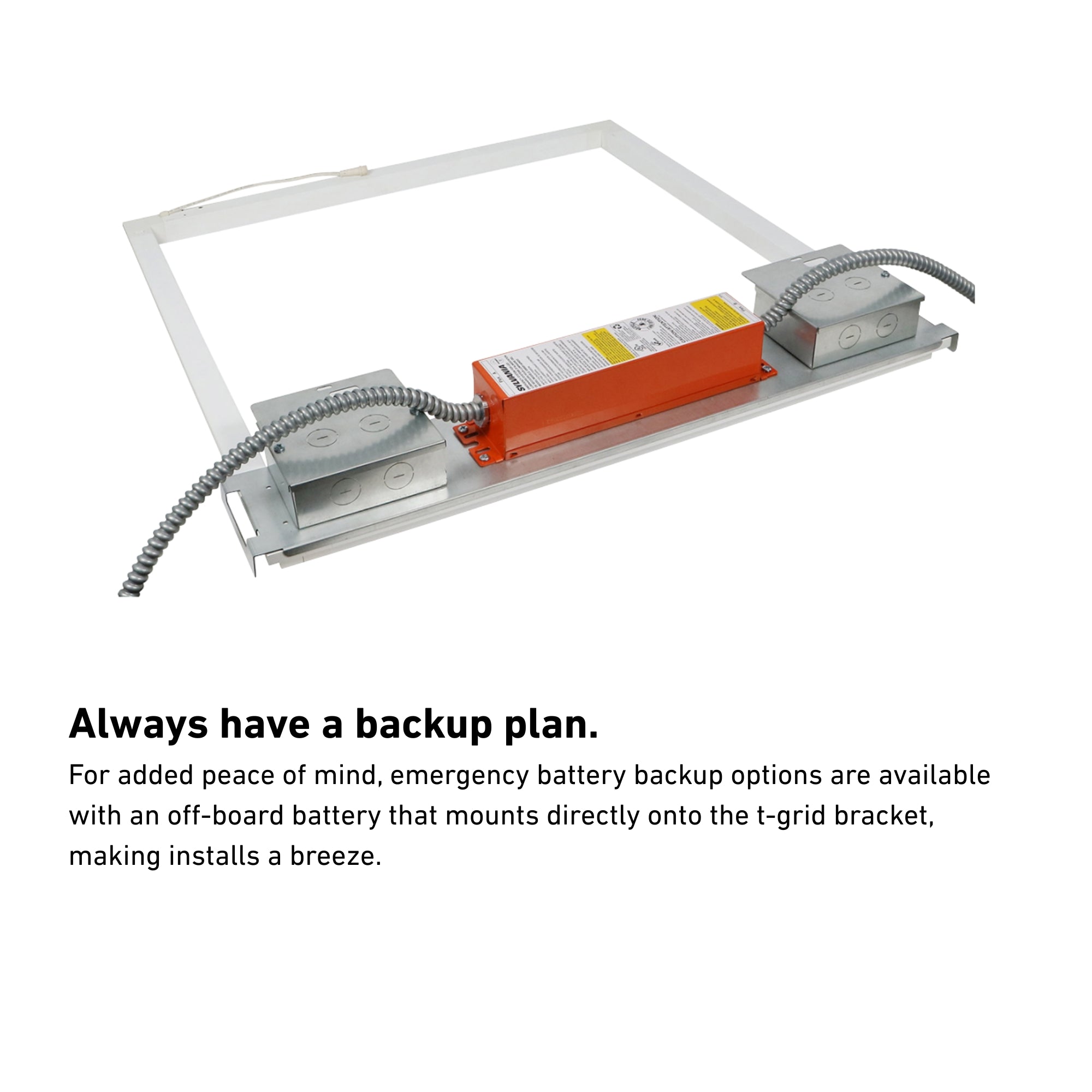

• Emergency Battery Backup Unit: 60888 (EMBB1A8WDC) — field-installable, provides illumination for at least 90 minutes; sold individually
• EMBB Metal Bridge: 63217 (PANELBAR1AEMBBBBRACKET) — metal bridge for installing emergency battery backup unit; compatible with all sizes; sold individually

Certifications & Rebates

• cETLus Listed — IC Rated and Damp Rated
• DLC 5.1 Listed — qualifies for utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search by item number 62962.
• TAA Compliant — eligible for U.S. government and GSA procurement.
• FCC Compliant
• RoHS Compliant

Typical Applications

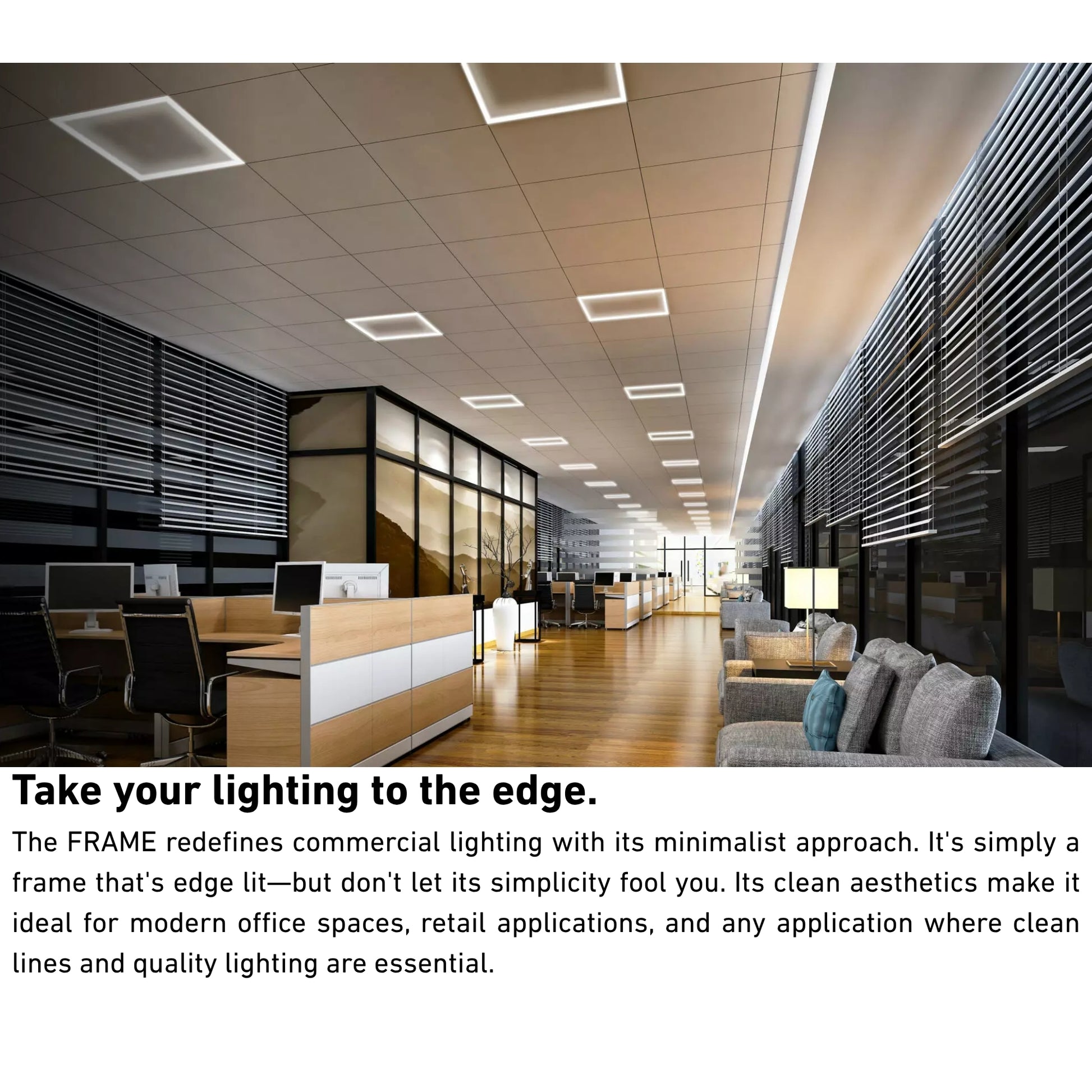

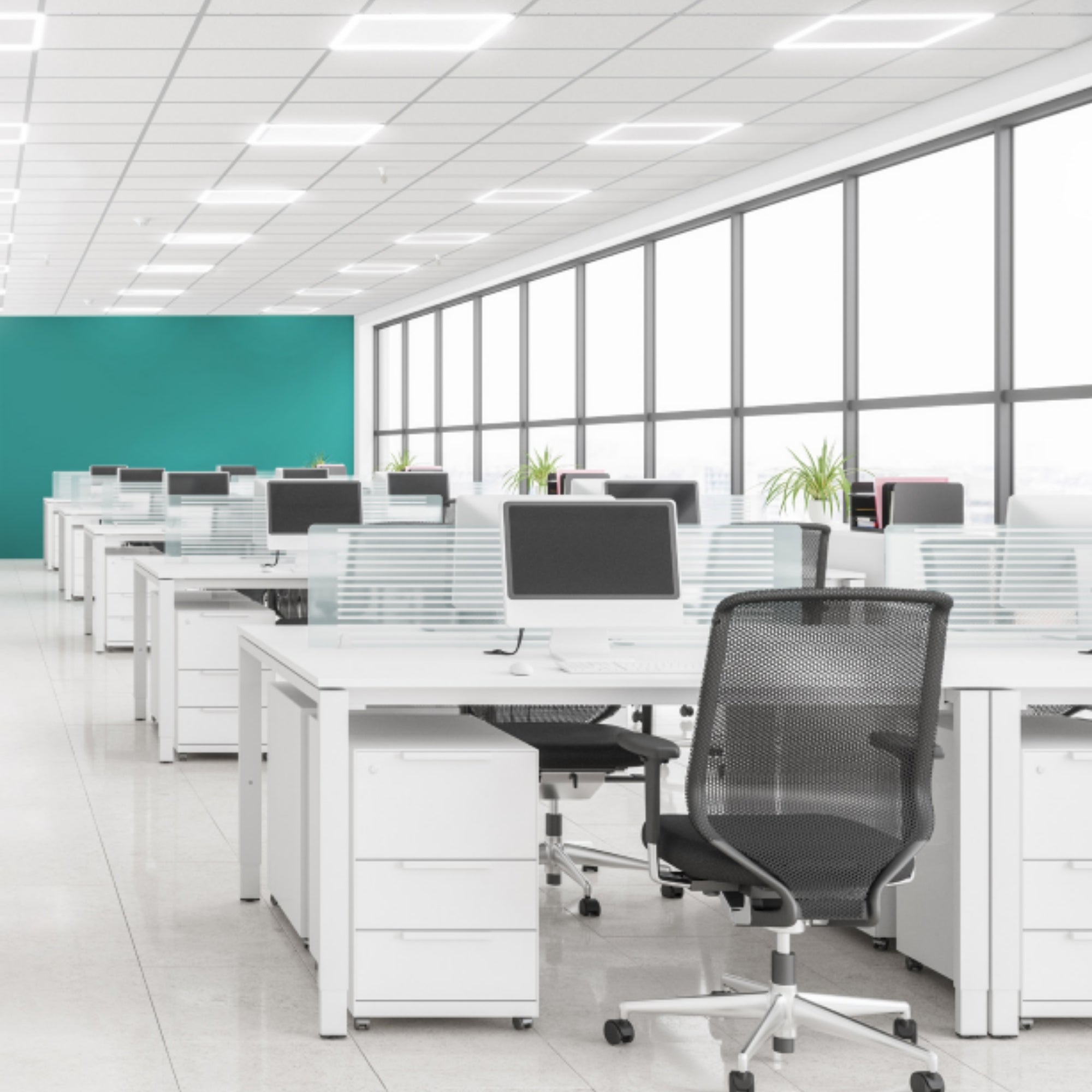

• Corporate offices and conference rooms — T-FIT four-bar system installs into existing T-grid without removing ceiling tile, minimizing disruption during retrofit
• Restaurants and retail spaces — selectable CCT between 3500K, 4000K, and 5000K allows tuning to match brand ambiance without re-ordering
• Educational facilities — selectable wattage and CCT support varied classroom lighting needs; 120–347V driver covers both U.S. and Canadian electrical systems
• Healthcare and institutional spaces — IC and damp rated with TAA compliance for qualifying government and GSA procurement
• Seismic zones — compatible with Cooper B-line BA-SFC and Nvent Caddy SFCLT CF earthquake clips for code-compliant installations
• Fluorescent retrofit projects — replaces 2×28W T8 and 3×32W T8 systems with up to 60% energy savings at minimum wattage setting

What’s Included

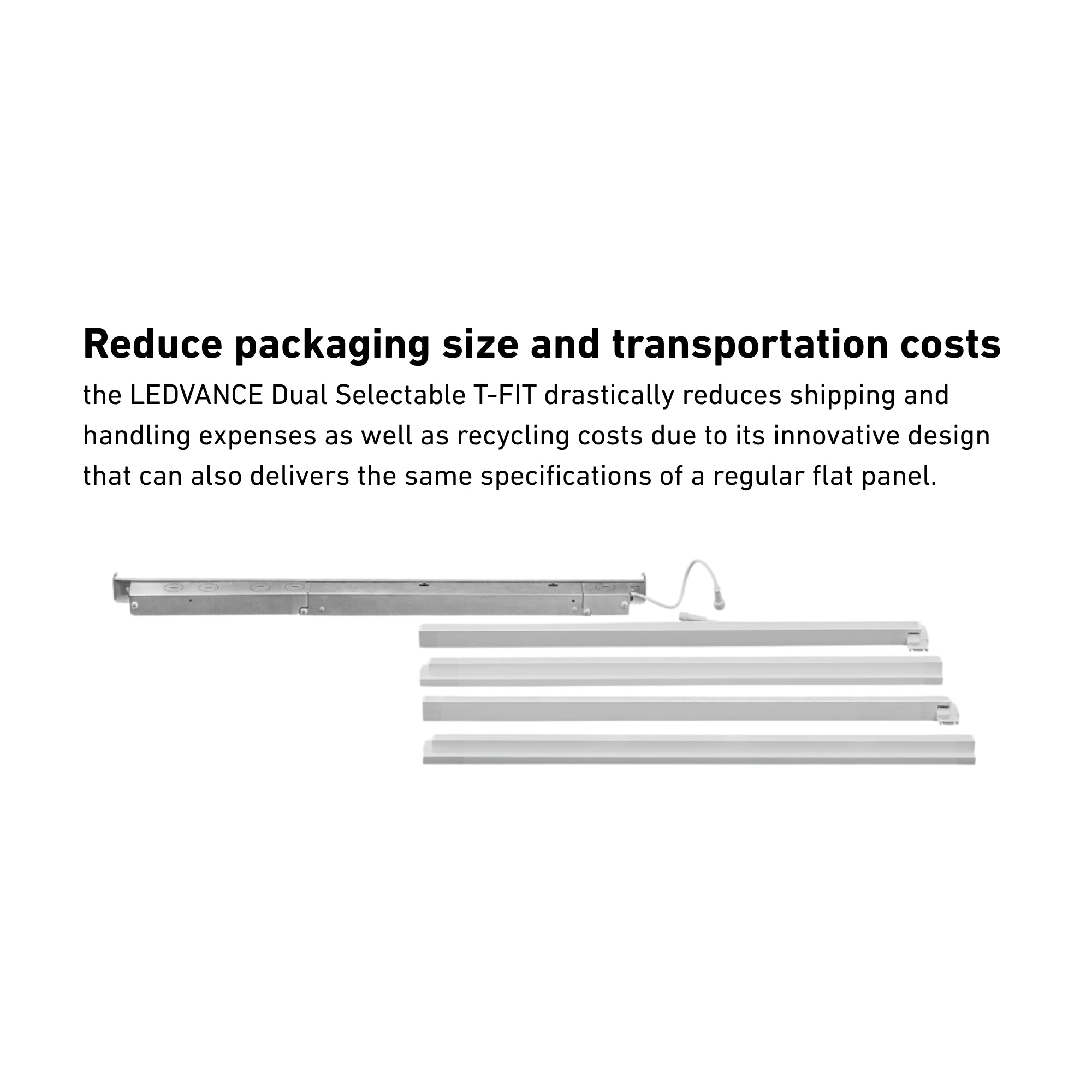

• LEDVANCE Sylvania 62962 Dual Selectable T-FIT LED Panel Bars fixture — 2×4 — White (4 individual bars)
