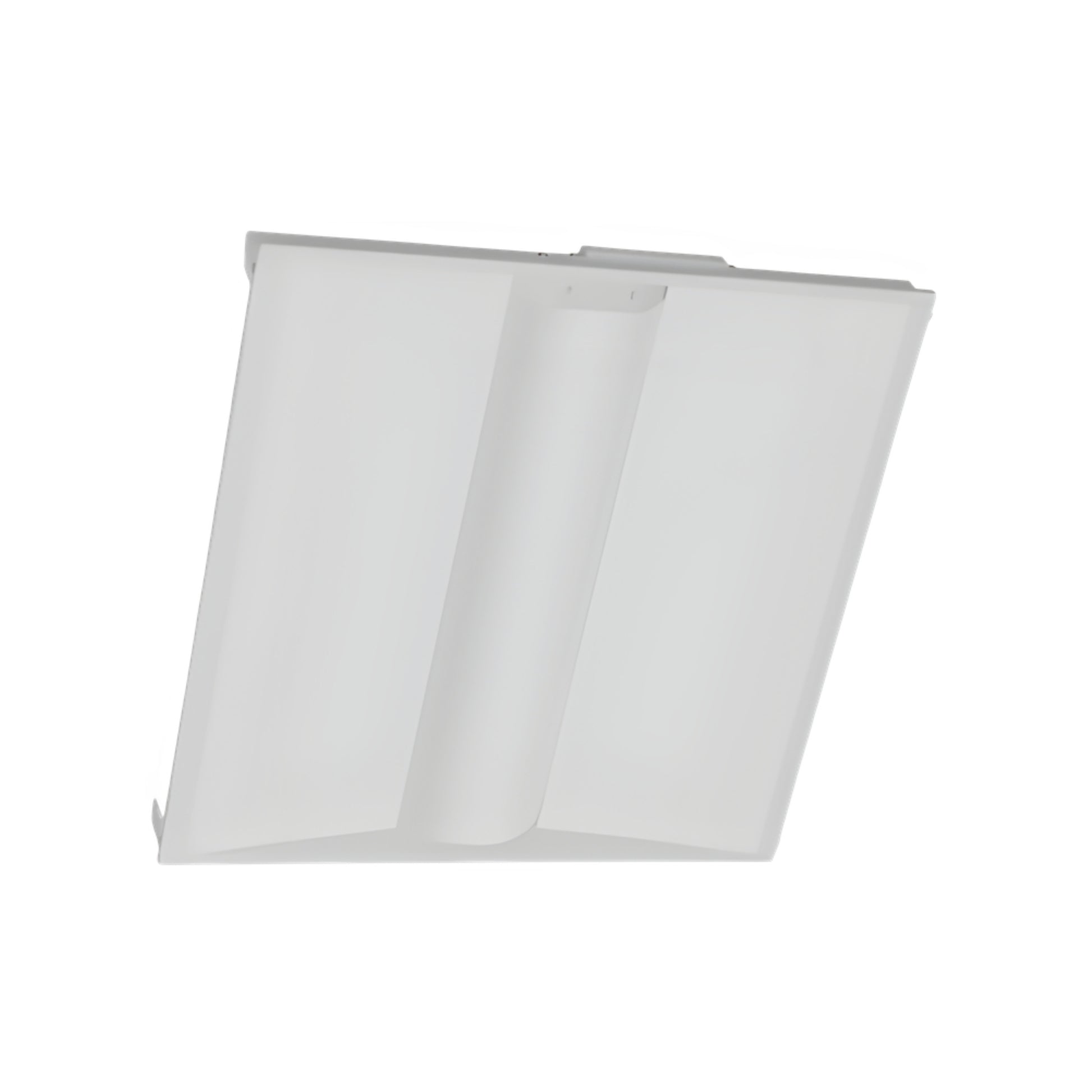

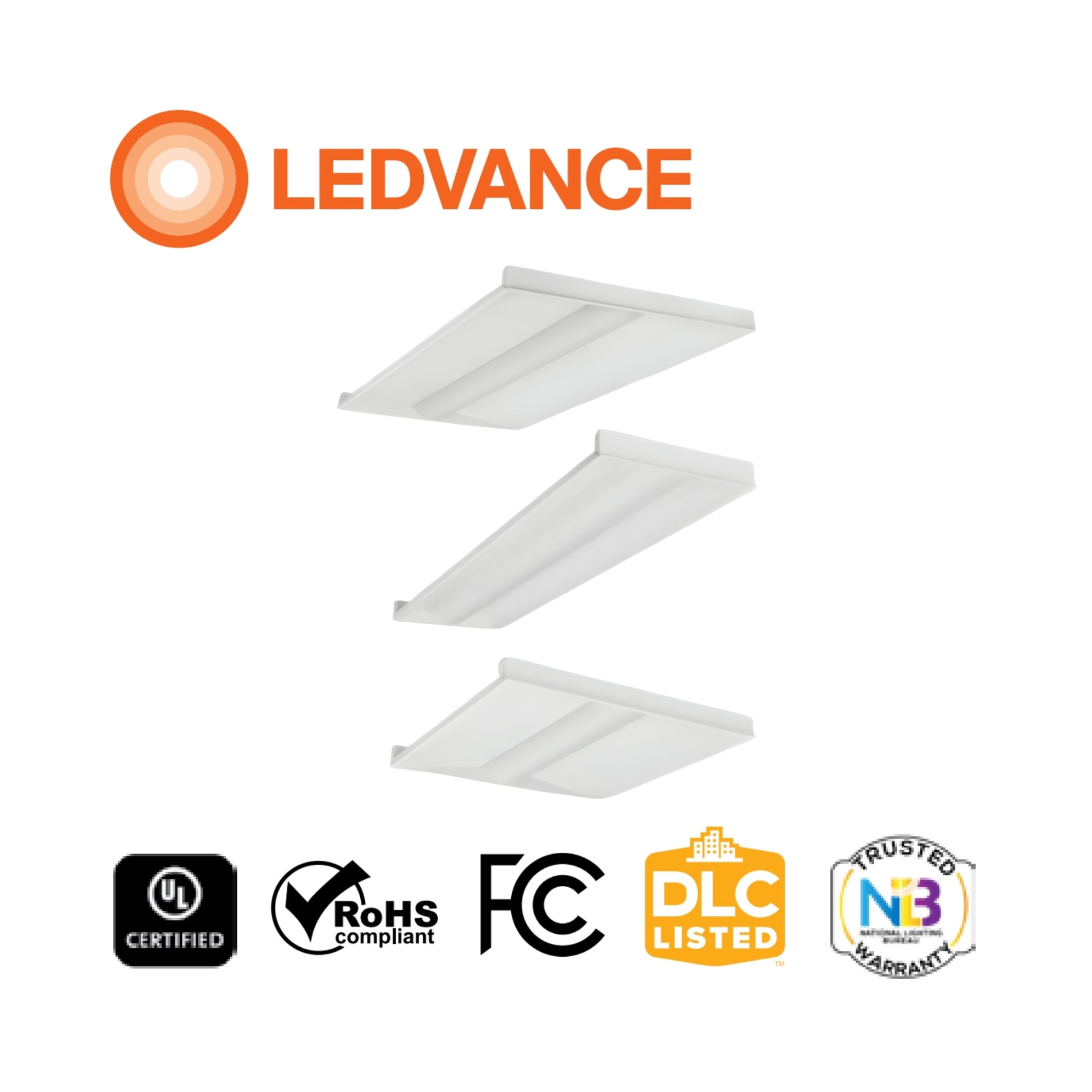

LEDVANCE Sylvania 62828 Volume 6A Dual Selectable Volumetric Troffer — 2×2 — 20/24/28/32W Selectable — Emergency Battery Backup — White

The LEDVANCE Sylvania 62828 is a 2×2 recessed LED volumetric troffer from the Volume 6A Generation 6A series with integrated emergency battery backup (EMBB), designed for commercial and institutional grid ceiling applications where code-compliant emergency egress lighting is required. Wattage is field-selectable between 20W, 24W, 28W, and 32W, and color temperature is field-selectable between 3500K, 4000K, and 5000K — both adjustable without tools. At maximum output, the fixture delivers 4,000 lumens at 125 lm/W. The integrated EMBB provides 1,000 lumens for a minimum of 90 minutes during a power outage. It supports 0–10V dimming with 12V Aux output, operates on 120–347V, is cULus Listed (Damp Rated), DLC 5.1 Listed, and carries a 5-year warranty backed by the NLB Trusted Warranty Program.

Key Features

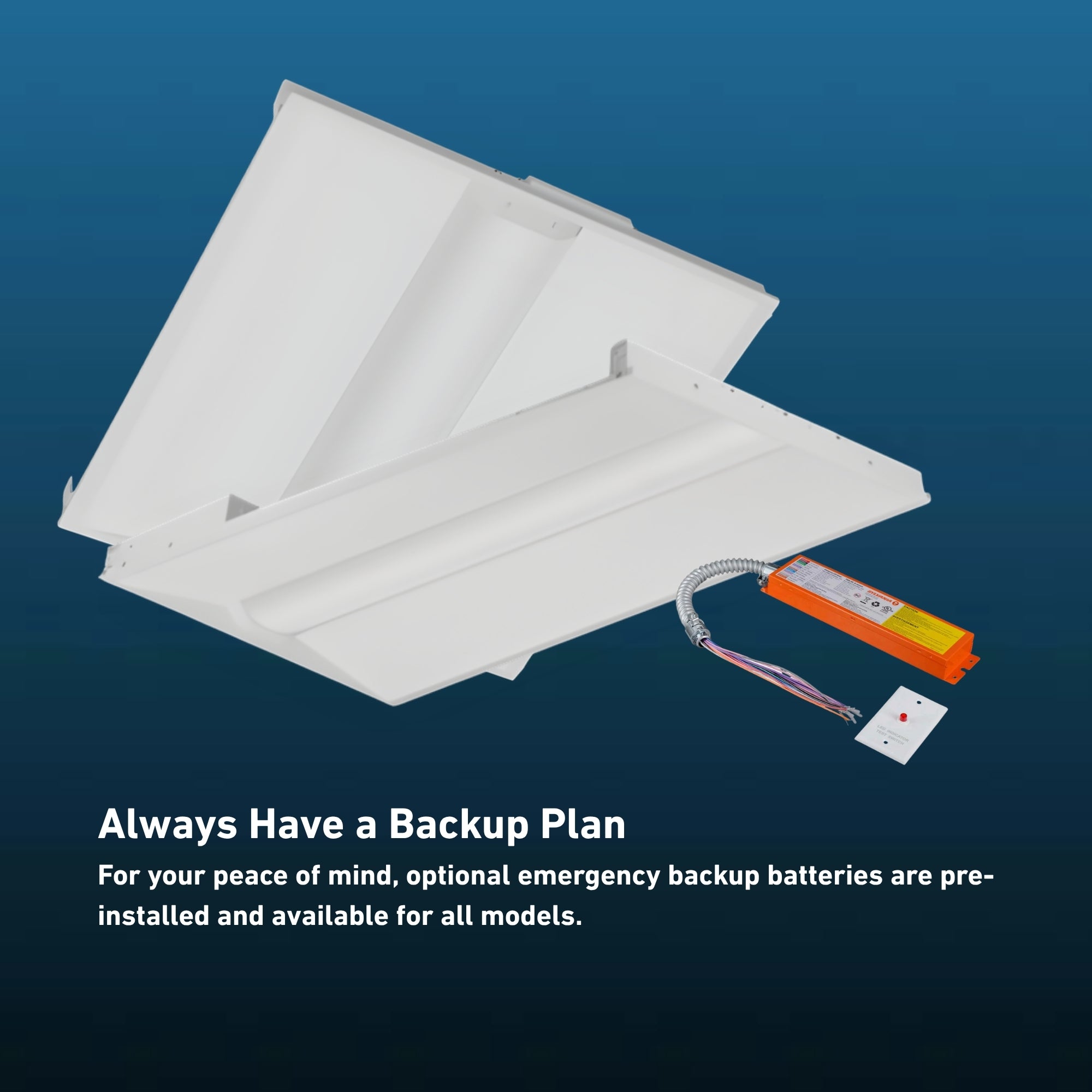

• Integrated Emergency Battery Backup: Built-in EMBB provides 1,000 lumens for a minimum of 90 minutes during a power outage — no separate emergency fixture or remote battery pack required.

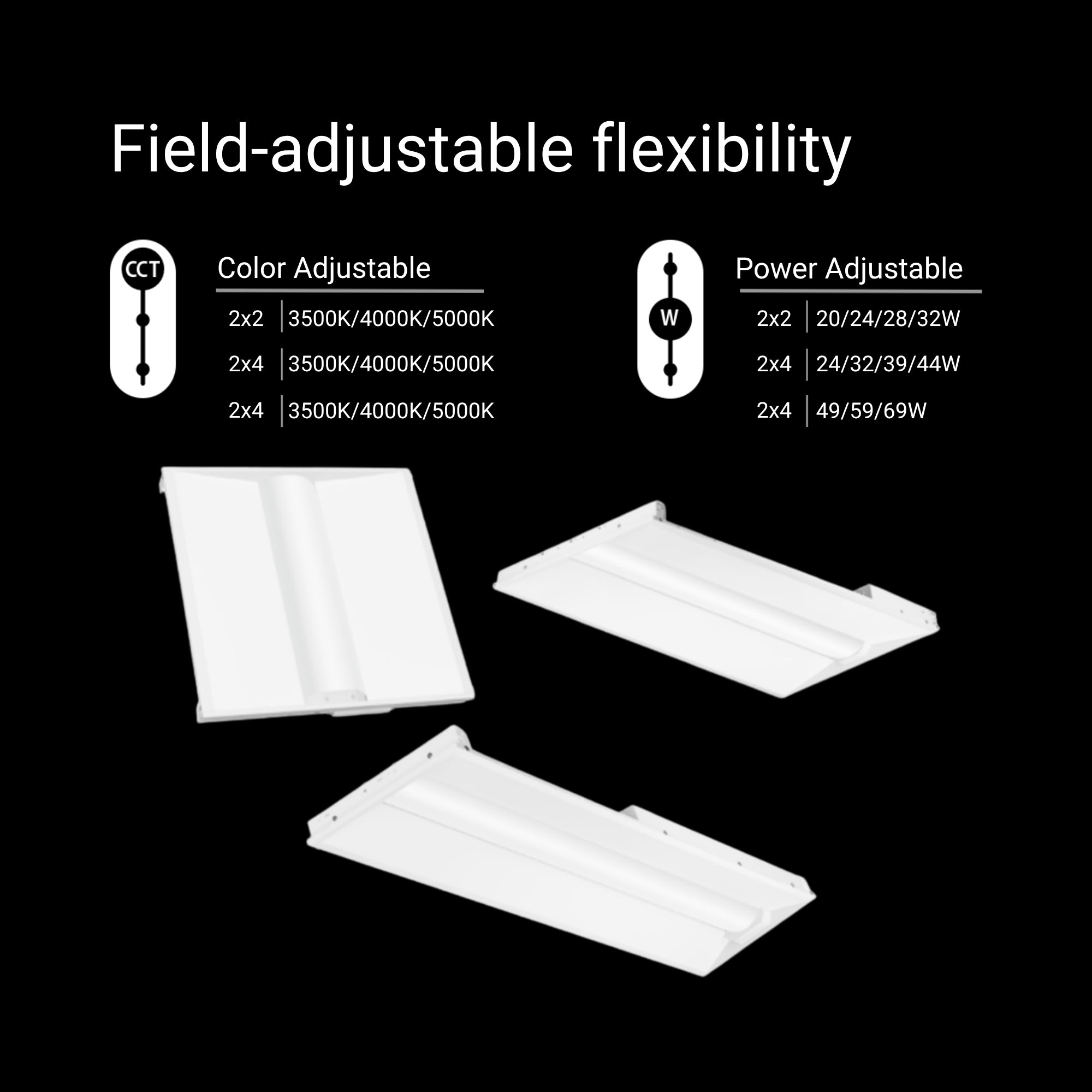

• Dual Selectable Wattage: Field-adjustable between 20W, 24W, 28W, and 32W — right-size output for any space without re-ordering.
• Selectable CCT: Field-adjustable between 3500K, 4000K, and 5000K — one SKU covers warm-to-daylight tuning.
• Maximum Lumen Output: Up to 4,000 lm at 32W — 125 lm/W efficacy across all wattage steps.
• CRI: >80 across all wattage and CCT settings.
• 0–10V Dimming: Flicker-free 0–10V dimming with 12V Aux output. Compatible dimmer required, sold separately.
• Wide Voltage Range: 120–347V — compatible with standard U.S. and Canadian electrical systems.
• 2.5kV Surge Protection: Built-in surge protection for long-term reliability.
• Field-Installable PIR Sensor: Compatible with Sylvania PIR Motion/Daylight Sensor (62711, sold separately).
• LEDVANCE LINK™ Compatible: Supports field-installable Bluetooth mesh wireless controls via LEDVANCE LINK Controller (62631) or Powerpack (62632 + ceiling sensor 62633), sold separately.
• UL Damp Rated: Suitable for damp location commercial installations.
• T-Grid Compatible: Fits standard 15/16″ and 9/16″ T-grid ceiling systems.
• DLC 5.1 Listed: Qualifies for utility rebate programs.
• Rated Life: L70 150,000 hours.
• Warranty: 5-year limited warranty — NLB Trusted Warranty Program.

Performance & Light Output

Emergency Mode: 1,000 lm for a minimum of 90 minutes. CRI >80. Power factor >90%. THD <20%.

Smart & Control Features

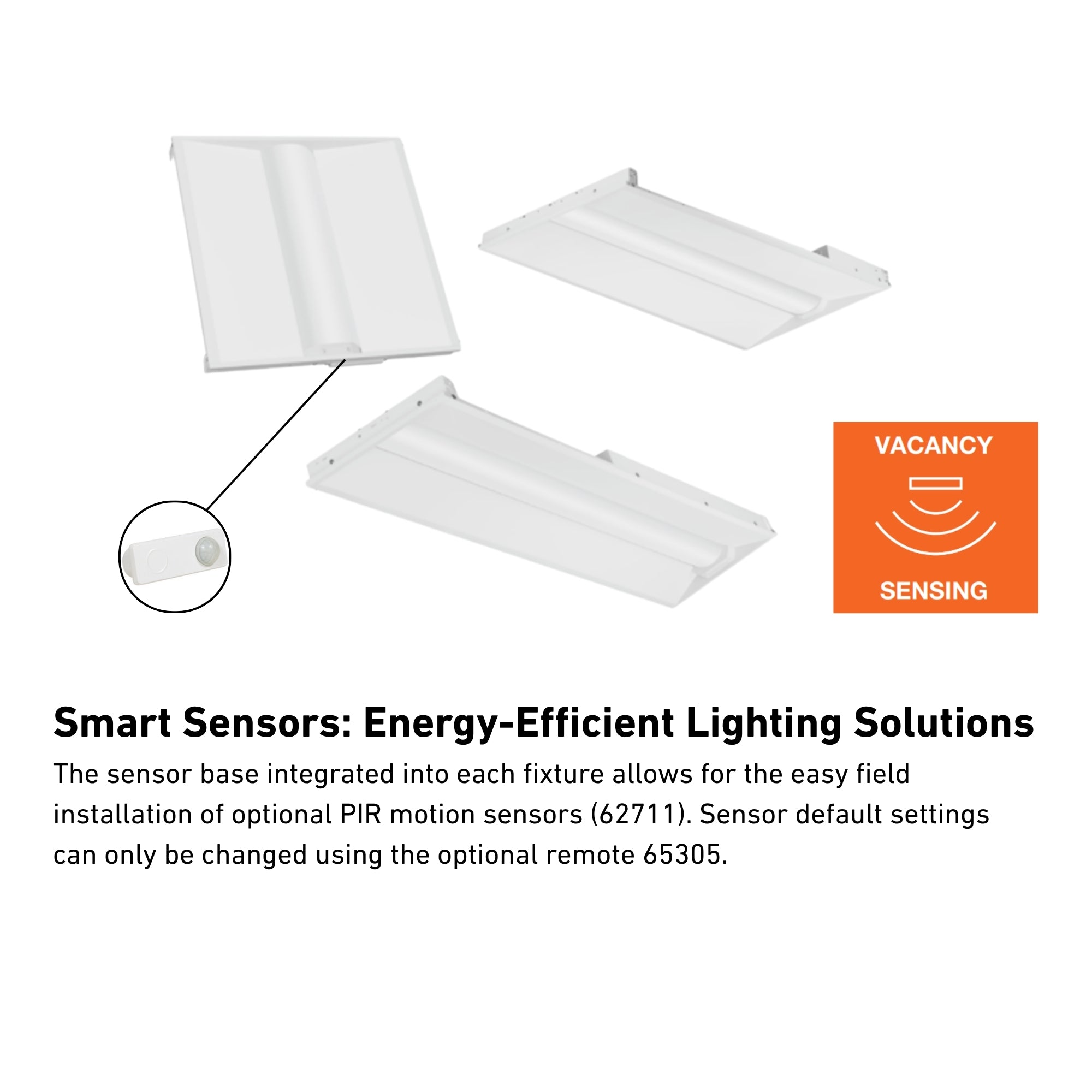

The 62828 supports 0–10V dimming with 12V Aux output and is compatible with the field-installable Sylvania PIR Motion/Daylight Sensor (62711, sold separately). Default sensor settings: Detection Area 100%, Hold Time 5 min, Daylight Threshold 50 Lux, Stand-by Period 30 min, Stand-by Dimming 30%. Adjustable via optional remote 65305.

Also compatible with LEDVANCE LINK™ Bluetooth mesh: install the LINK Controller (62631) or Powerpack (62632 + ceiling sensor 62633) inside the fixture driver box or ½″ knockout for smartphone app or wireless wall switch (62636) control.

Electrical

Voltage: 120–347V. Dimming: 0–10V with 12V Aux output. Surge protection: 2.5kV. Power factor: >90%. THD: <20%. UL Damp Rated. Operating temperature: −20°C to +40°C (−4°F to +104°F). Mercury-free.

Construction

Housing: Steel volumetric troffer housing with integrated emergency battery backup module.

Finish: White.

T-Grid Compatibility: Fits standard 15/16″ and 9/16″ T-grid ceiling systems.

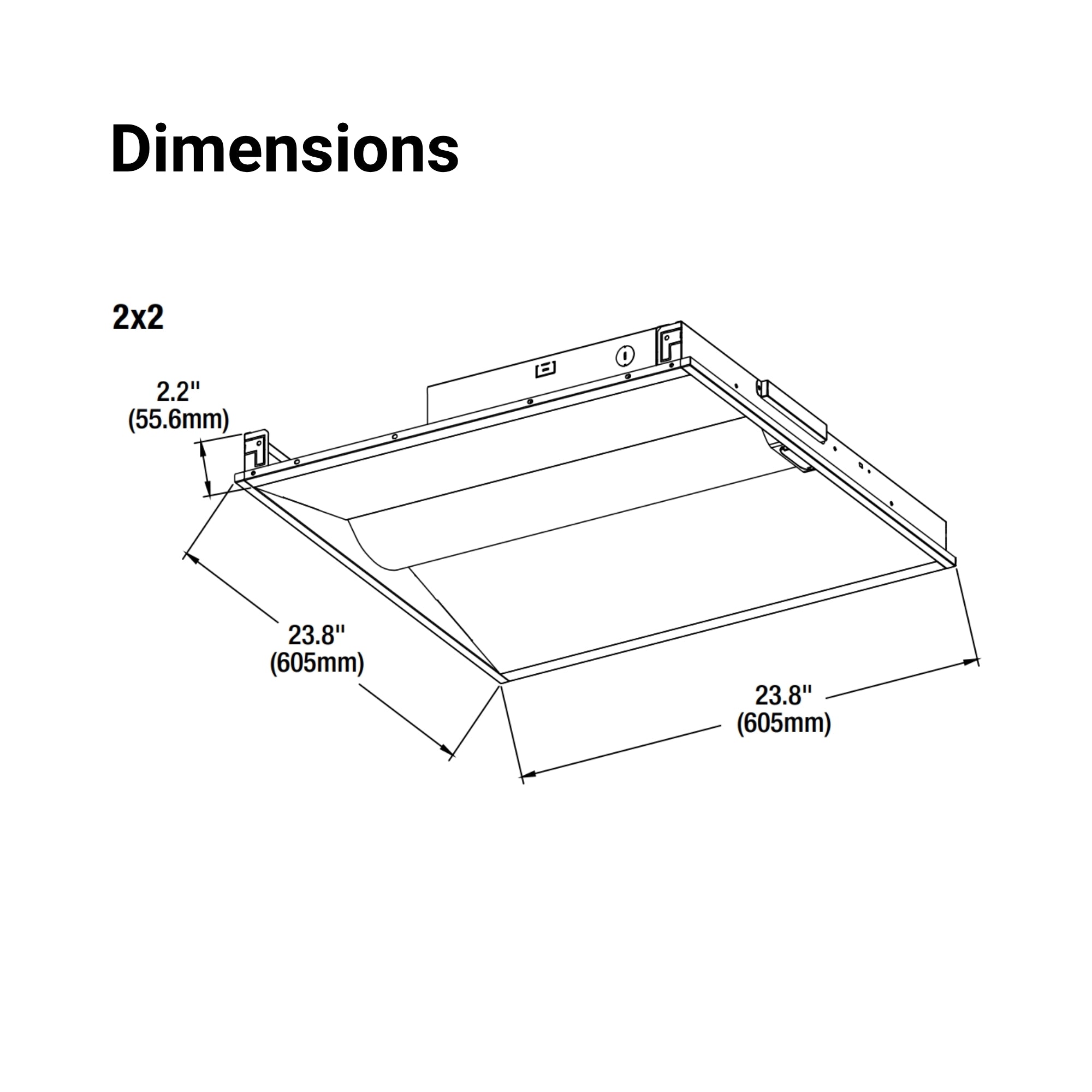

Dimensions: 23.8″ L × 23.8″ W × 2.2″ H.

Installation & Mounting

Standard Mounting: Recessed installation into standard 2×2 T-grid ceiling systems — fits 15/16″ and 9/16″ T-bar profiles.

Accessories (Sold Separately):

• PIR Motion/Daylight Sensor: 62711 (VOLUME/PIR/MOTIONDAYSENSOR1)
• Sensor Remote: 65305 (STRIP2A/REMOTE)
• LEDVANCE LINK Bluetooth Controller: 62631 (POWERACKOUT/2.5AUNV/BLE)
• LEDVANCE LINK Powerpack: 62632 (POWERADAPTSENSOROUT/12V/UNV)
• LEDVANCE LINK Ceiling Sensor: 62633 (SENSORCEILING/PIR12V/BLE)
• LEDVANCE LINK Wall Switch: 62636 (WALLSWITCH5KEYBLE)

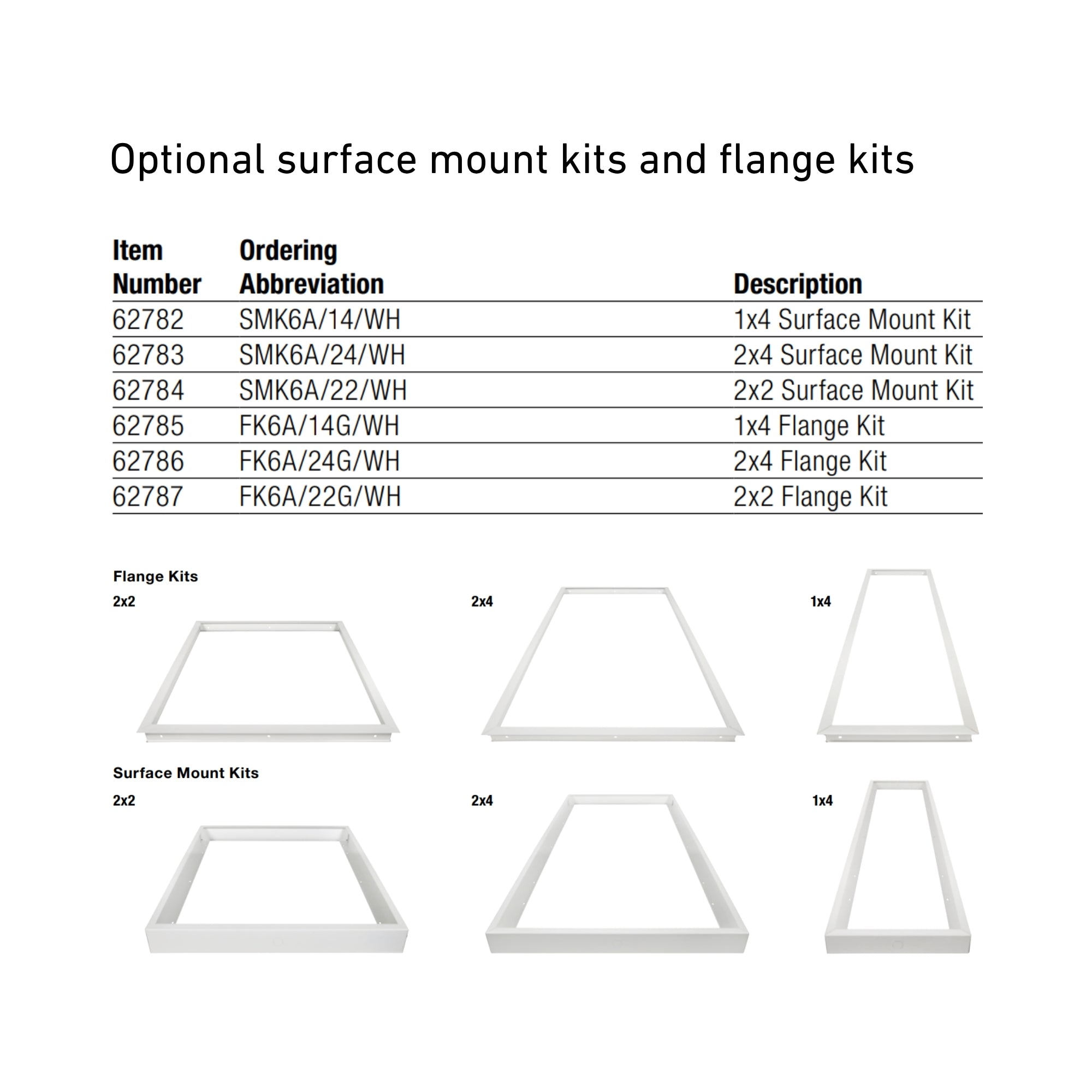

• 2×2 Surface Mount Kit: 62784 (SMK6A/22/WH)
• 2×2 Flange Kit: 62787 (FK6A/22G/WH)

Certifications & Rebates

• cULus Listed — Damp Rated
• DLC 5.1 Listed — qualifies for utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search by model number 62828.
• FCC Compliant
• RoHS Compliant

Typical Applications

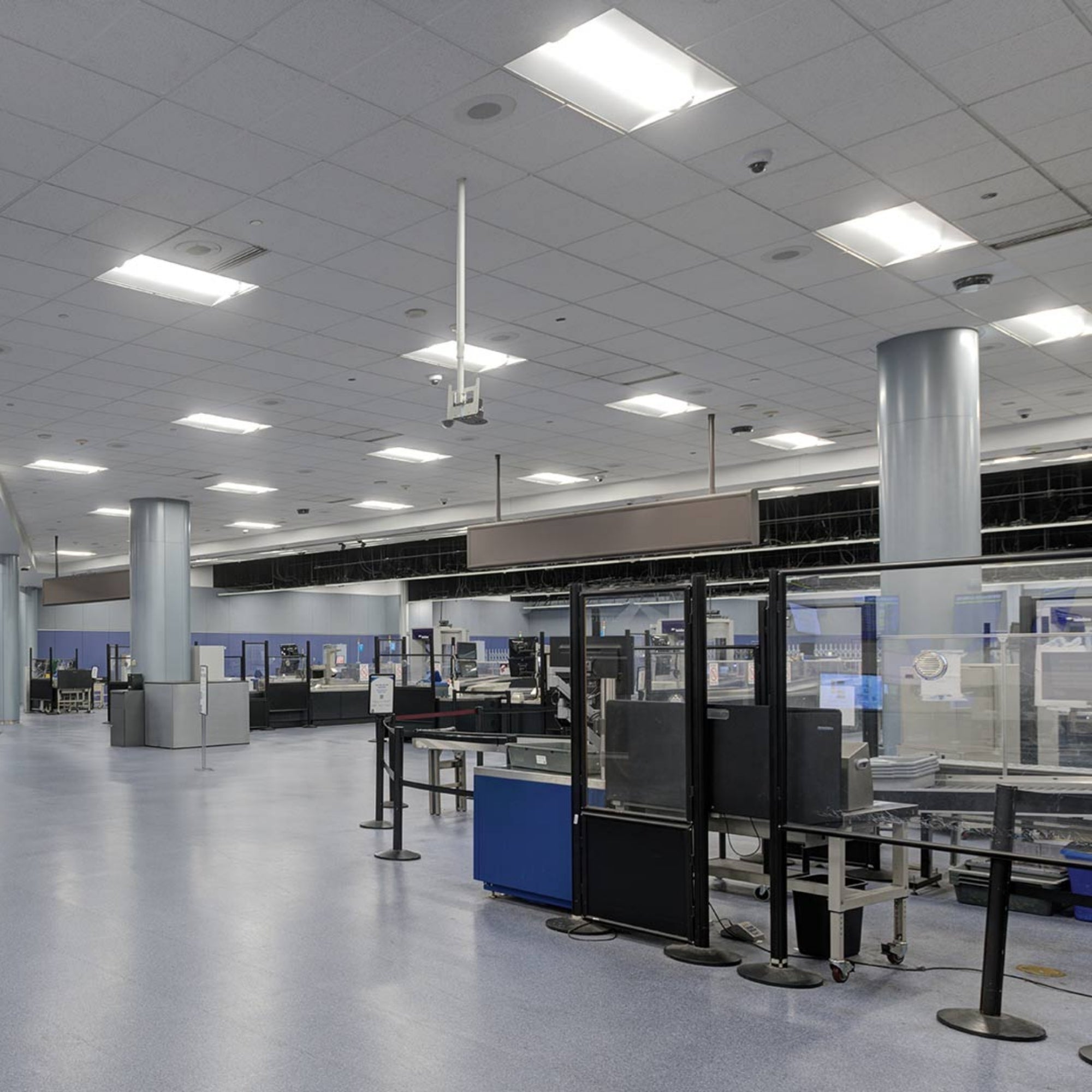

• Offices and commercial spaces requiring code-compliant emergency egress lighting — integrated EMBB eliminates the need for a separate emergency fixture in the same ceiling grid location
• Corridors, stairwells, and exit paths — 1,000 lm emergency output for 90+ minutes meets typical egress illumination requirements
• Healthcare facilities — CRI >80, selectable CCT, and integrated battery backup support clinical environments where continuous illumination is critical
• Schools and university buildings — dual selectable wattage and CCT allow post-installation tuning across different room types from a single SKU
• Government and institutional buildings — 120–347V and DLC 5.1 support U.S. and Canadian installations with rebate eligibility

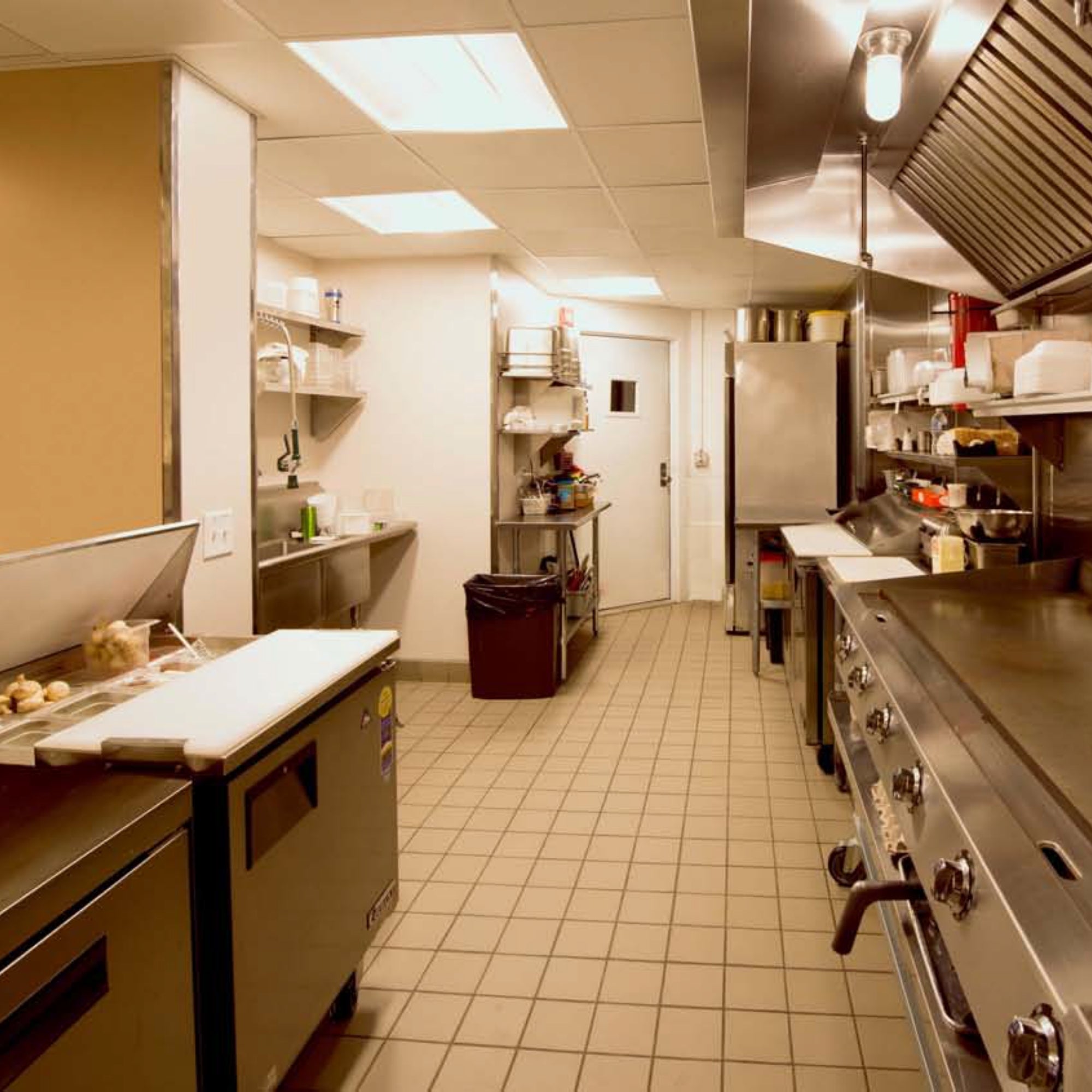

• Retail and hospitality spaces — volumetric design and selectable CCT deliver even, glare-controlled illumination with built-in life-safety compliance

What’s Included

• LEDVANCE Sylvania 62828 Volume 6A LED volumetric troffer fixture with integrated emergency battery backup — 2×2 — White
• Mounting hardware for recessed T-grid installation
