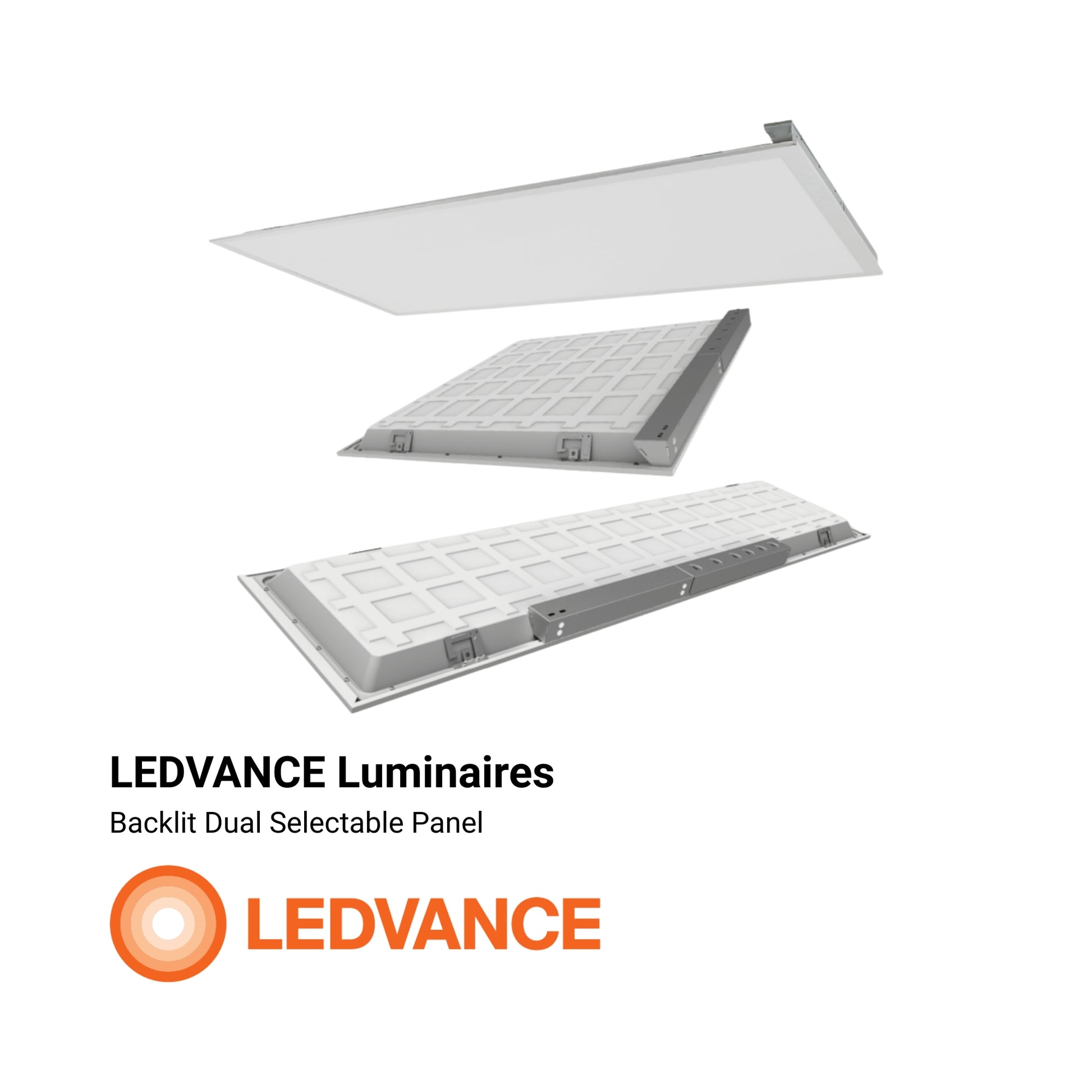

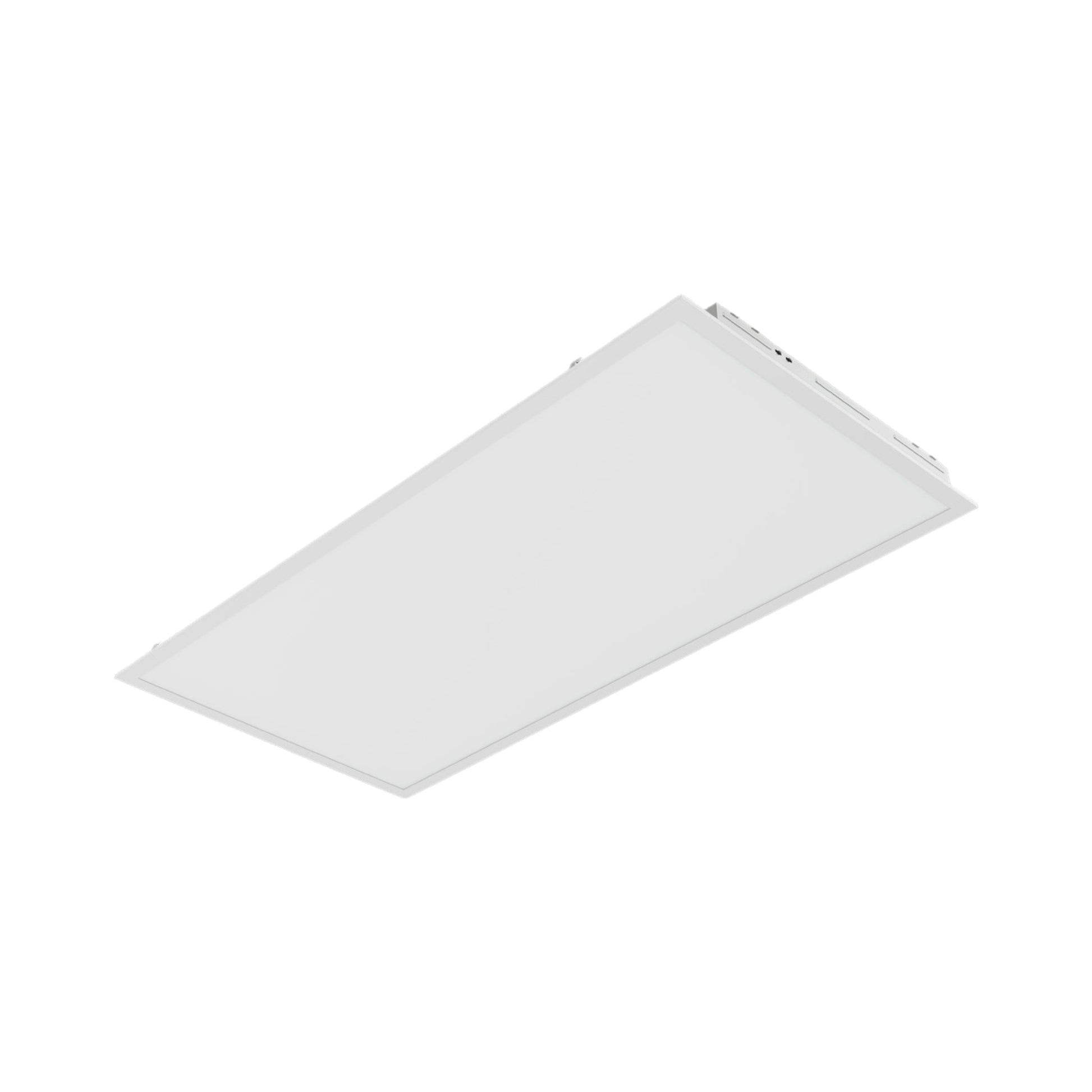

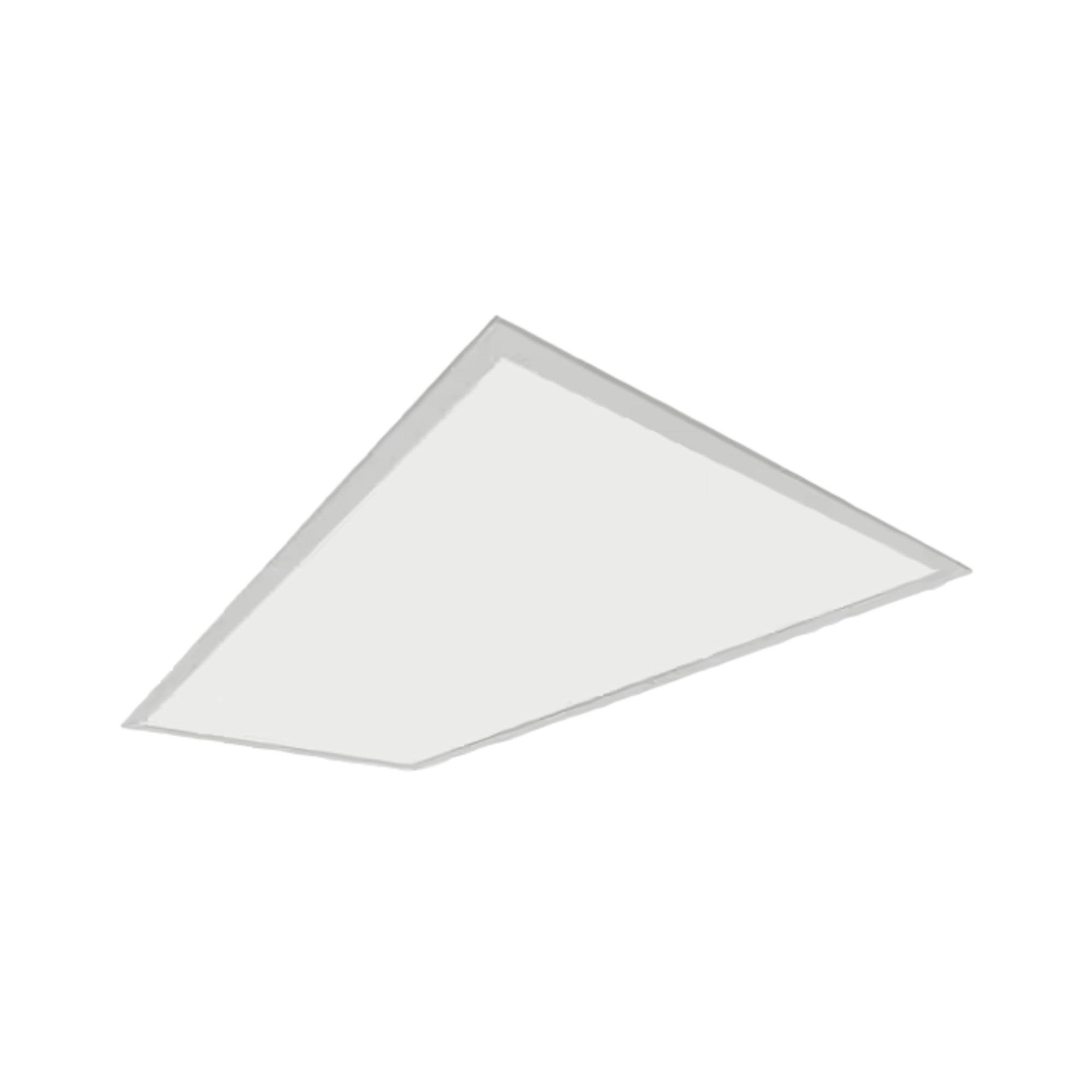

LEDVANCE Sylvania 65898 PANELF3B Backlit 2×4 LED Panel — 30/35/45W Selectable — 3500K/4000K/5000K — White

The LEDVANCE Sylvania 65898, MPN PANELF3BS045UNVD8SC724GWH/TAA, is a value-class backlit 2×4 LED panel with field-selectable 30W / 35W / 45W output and 3500K/4000K/5000K CCT. It operates on 120–277V AC with 0–10V dimming, delivers up to 5,511 lm in the supplied IES data, and is cETLus Listed, IC rated, damp rated, DLC Listed, and TAA Compliant. The backlit design provides even illumination without shadowing, and the fixture carries a 5-year warranty backed by the NLB Trusted Warranty Program.

Key Features

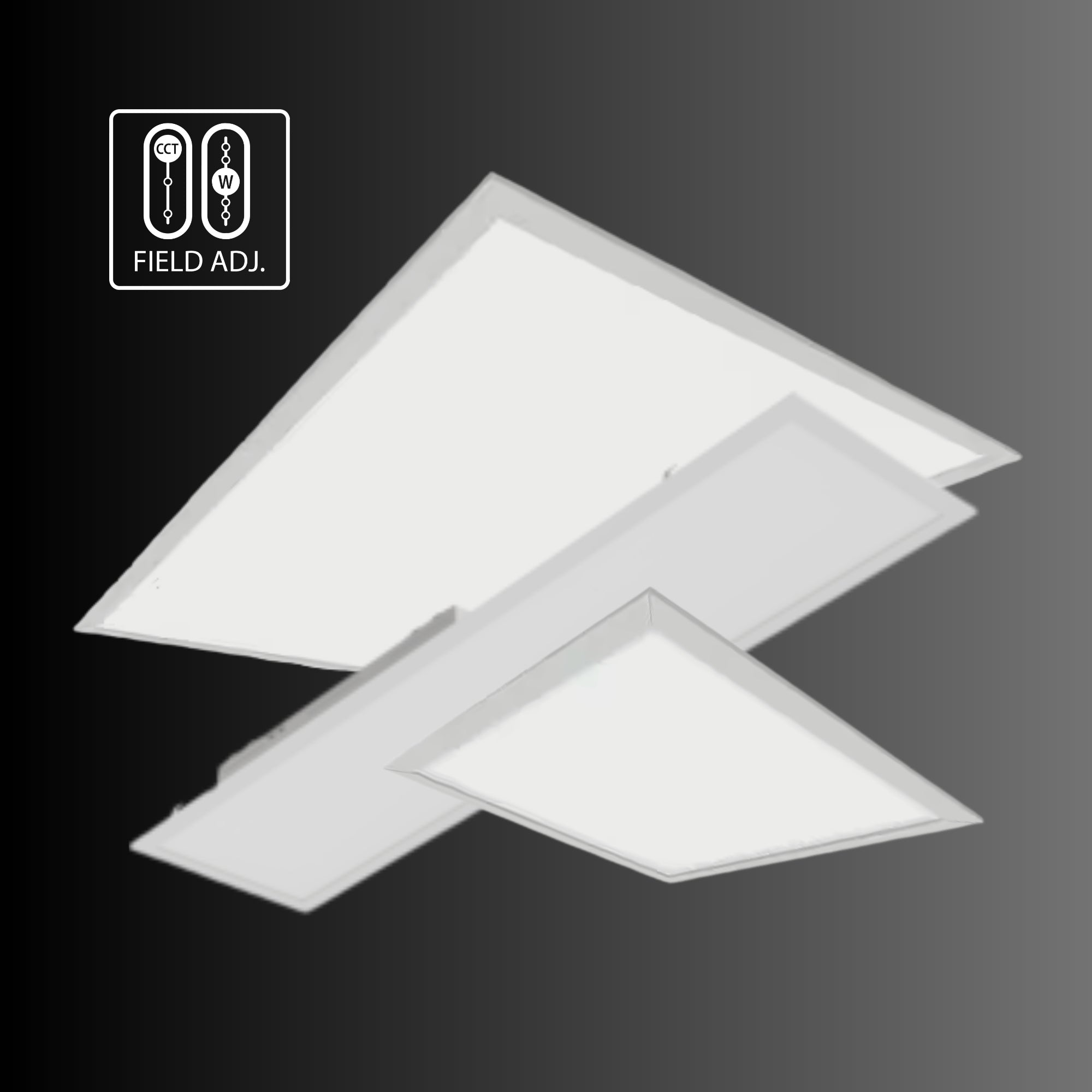

• Selectable Wattage: Field-selectable 30W / 35W / 45W output.
• Maximum Lumen Output: Ordering information lists 3,300 / 3,850 / 5,000 lm; associated IES data reports up to 5,511 lm at 45W.
• Peak Efficacy: Up to 138 lm/W in the supplied photometric data.
• CRI: 80.
• Selectable CCT: Field-selectable 3500K / 4000K / 5000K.

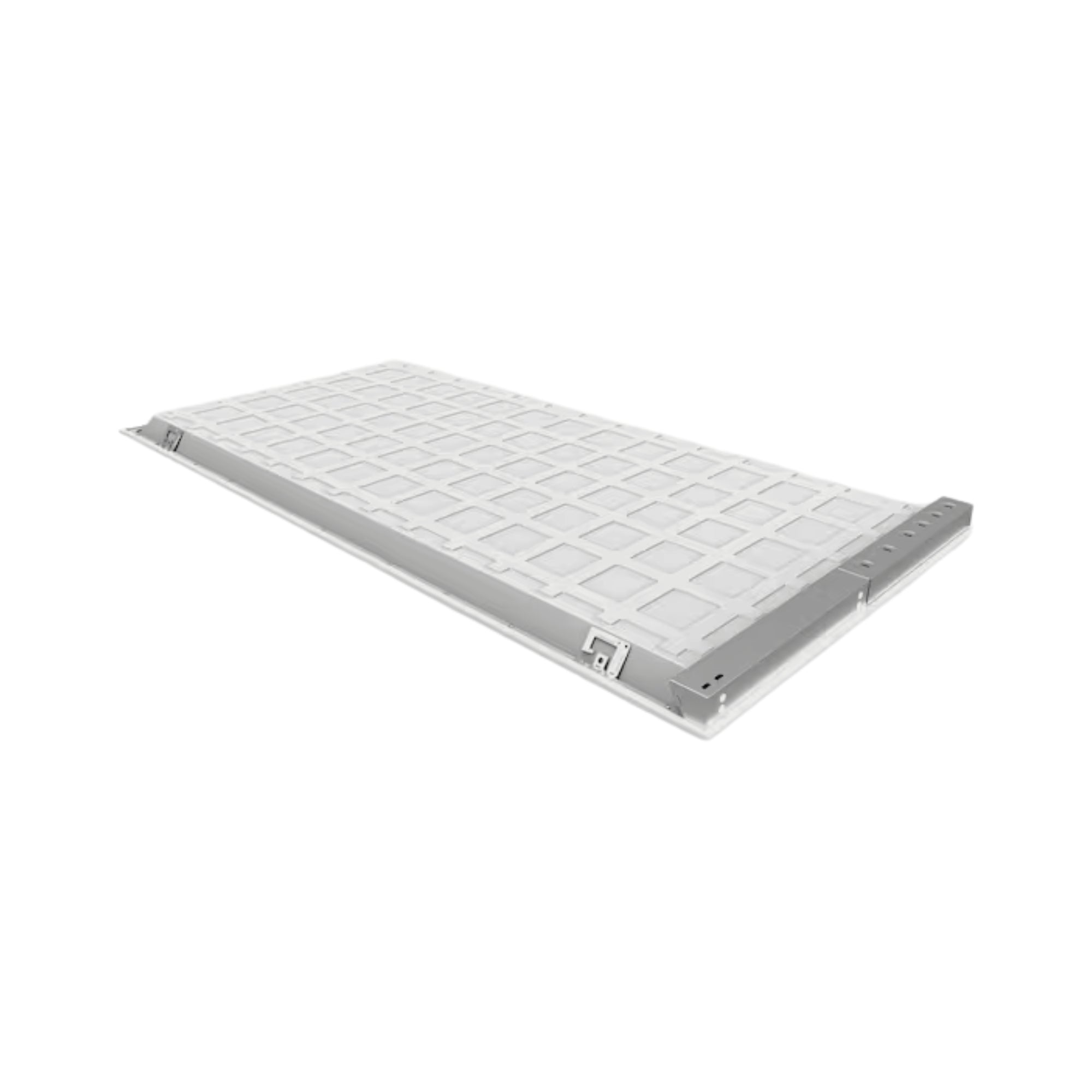

• Lens and Optics: Backlit technology provides even light distribution without shadowing; PMMA lenses do not yellow over time.
• Dimming: Standard 0–10V dimming.
• Voltage: 120–277V AC.

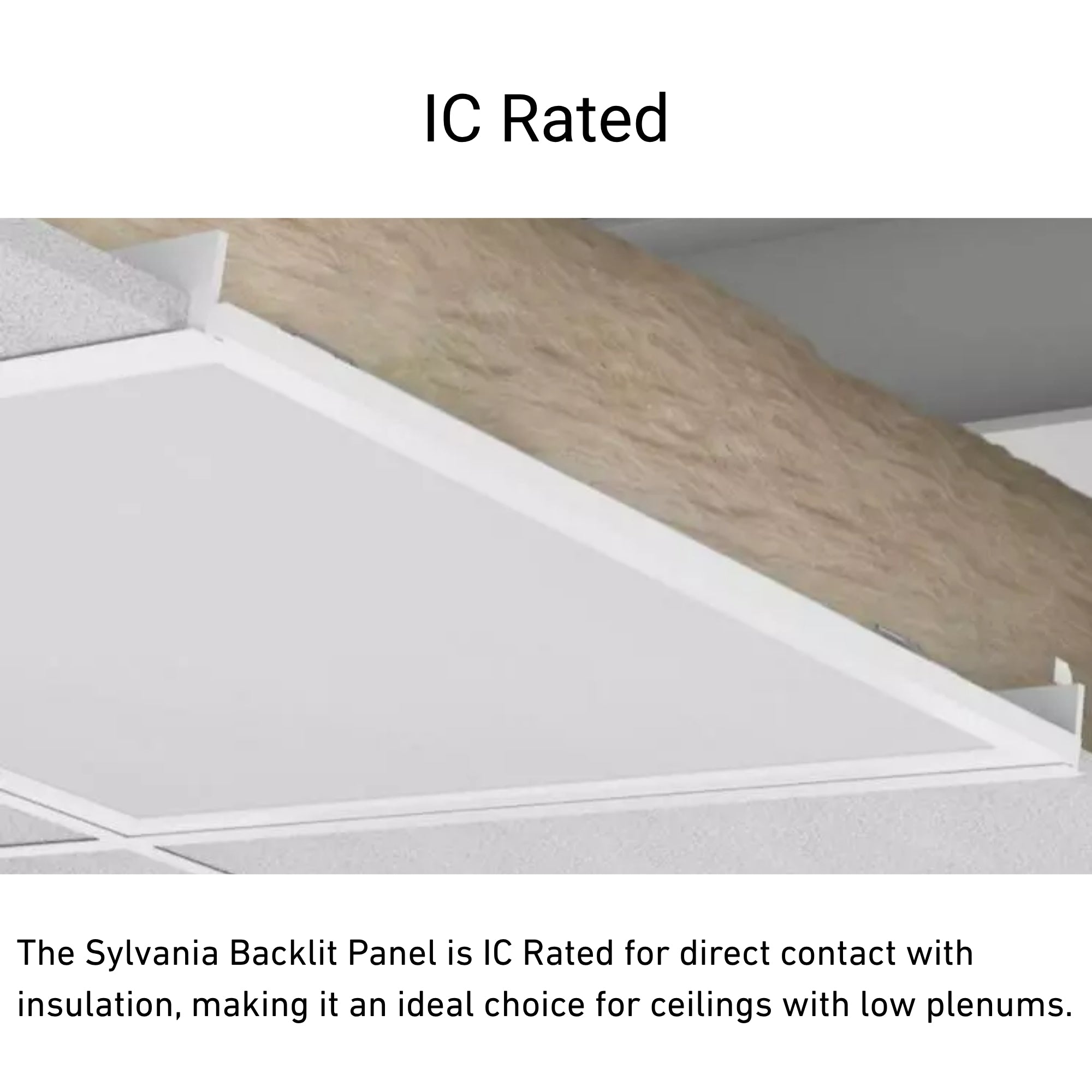

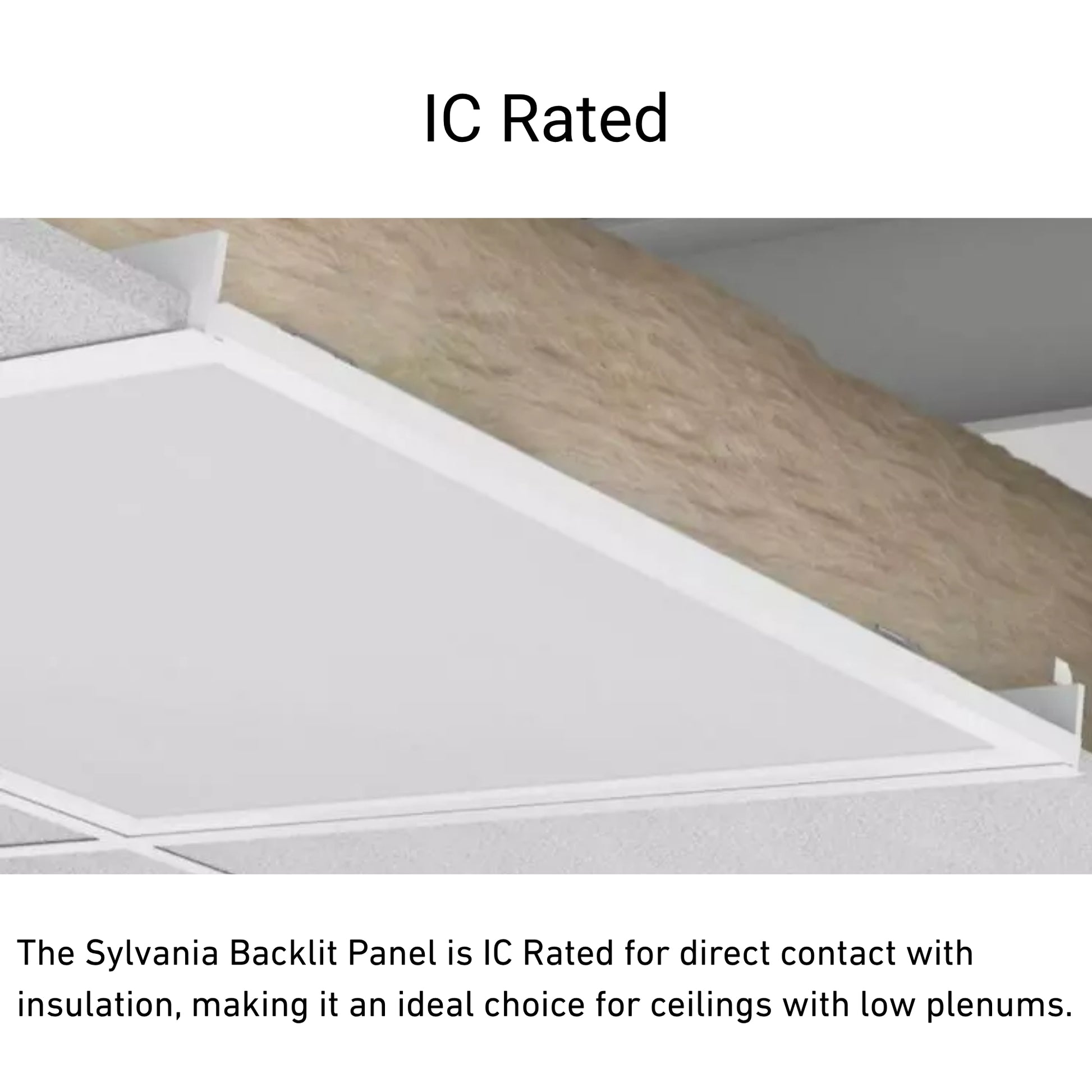

• Location and Ceiling Rating: cETLus Listed, IC rated, and damp rated.
• Operating Temperature: -20°C to +45°C (-4°F to +113°F).

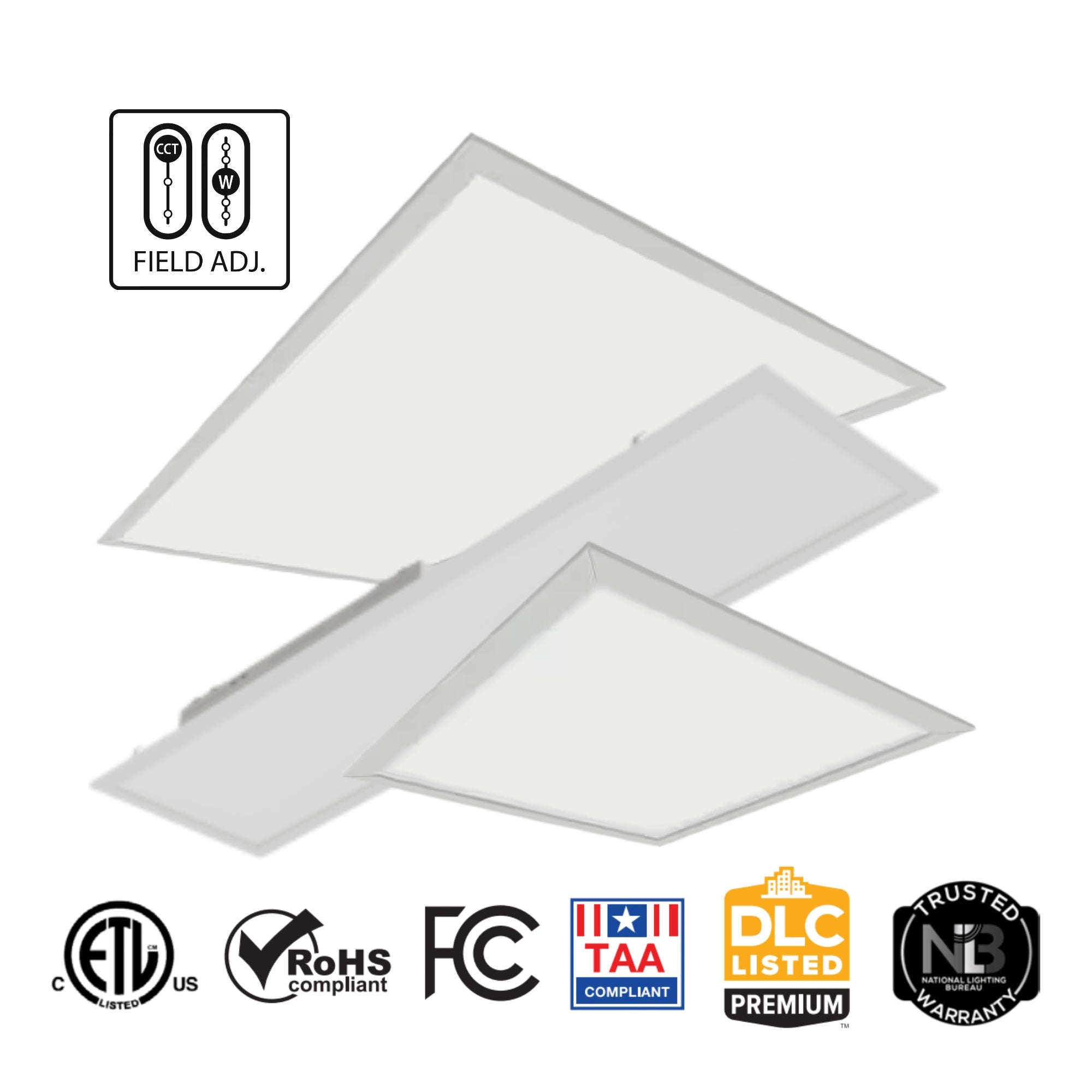

• Certifications: cETLus, DLC Listed, TAA Compliant, FCC, and RoHS.
• Energy Savings: The supplied wattage comparison lists savings up to 64% versus traditional fluorescent systems.
• Rated Life: 50,000 hours (L70).
• Warranty: 5 years through the NLB Trusted Warranty Program.

Performance & Light Output

At the 30W setting, the ordering information lists 3,300 lm at a nominal 110 lm/W.

At the 35W setting, the supplied IES data reports 4,180 lm at 3500K, 4,400 lm at 4000K, and 4,250 lm at 5000K. The corresponding efficacy values are 127 lm/W, 137 lm/W, and 129 lm/W.

At the 45W setting, the supplied IES data reports 5,350 lm at 3500K, 5,500 lm at 4000K, and 5,511 lm at 5000K. The corresponding efficacy values are 127 lm/W, 134 lm/W, and 131 lm/W. The ordering information lists 5,000 lm as the 45W total fixture output for item 65898. All configurations are CRI 80.

The supplied wattage comparison lists energy savings up to 64% versus traditional fluorescent systems. Rated life is 50,000 hours (L70).

Smart & Control Features

The panel supports 0–10V dimming. The supplied compatibility list includes the following dimmers:

• Leviton DS710 and IP710
• Lutron NTSTV-DV, NFTV, and DVTV-WH
• Legrand H4FBL3PW

Electrical

The panel operates on 120–277V AC with 0–10V dimming, power factor greater than 0.9, and THD less than 20%. It is FCC and RoHS compliant.

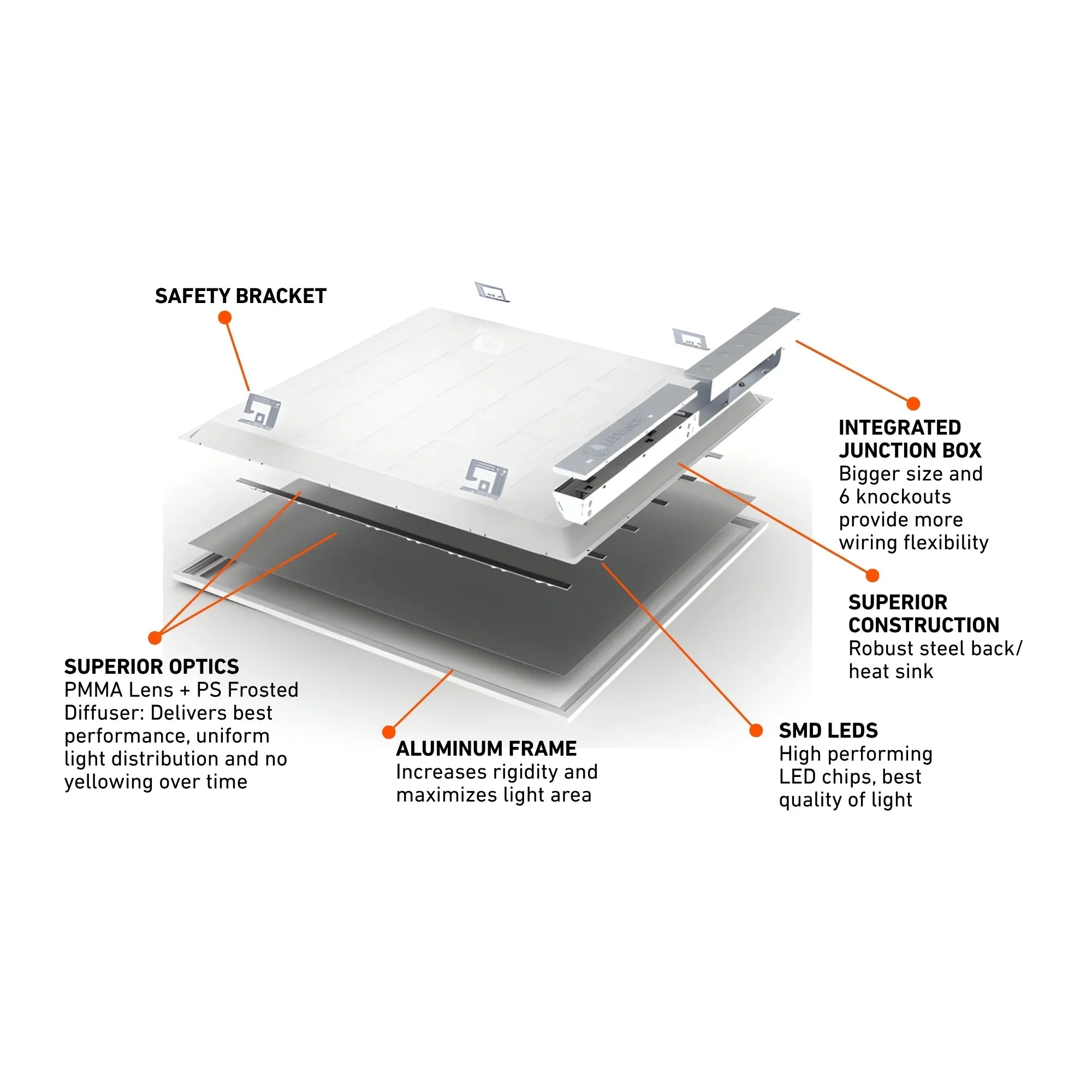

Construction

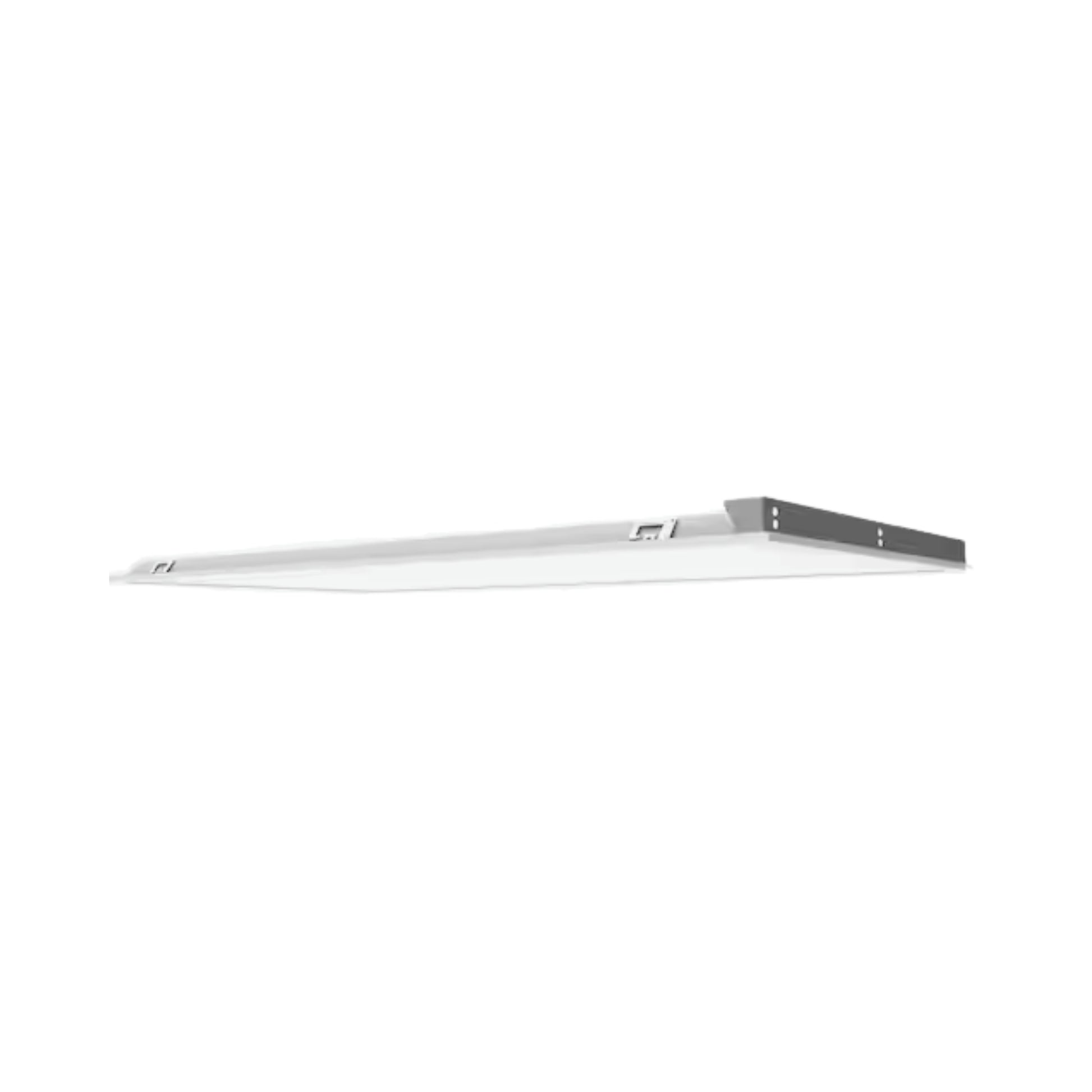

Housing & Thermal: Low-profile backlit panel housing with an operating range of -20°C to +45°C (-4°F to +113°F).

Material: Aluminum and steel.

Lens & Optics: PMMA lens with backlit light distribution designed to provide even illumination without shadowing.

Finish: White.

Environmental & Safety: cETLus Listed, IC rated, and damp rated.

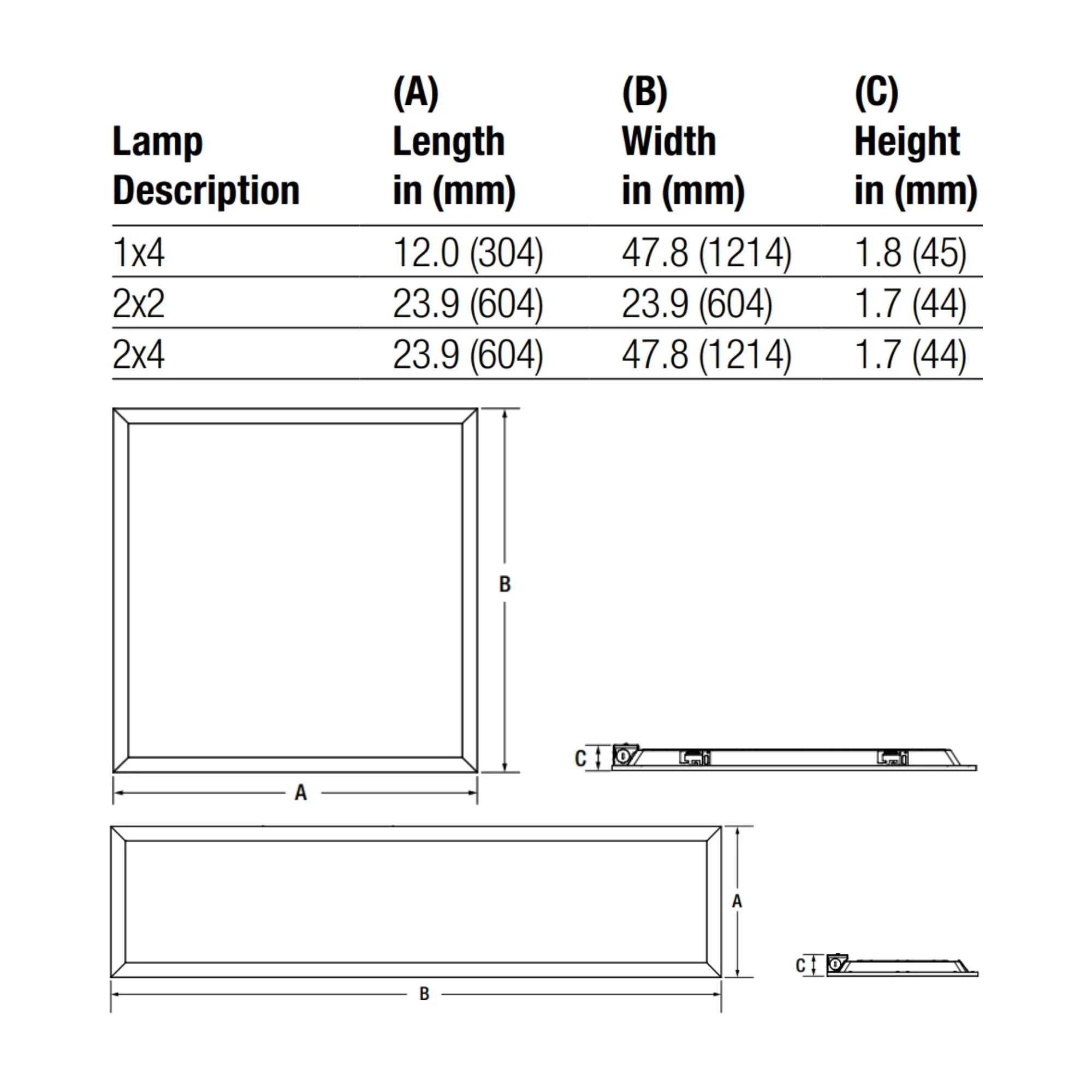

Dimensions: 23.9 in. L × 47.8 in. W × 1.7 in. H.

Installation & Mounting

Standard Mounting: Recessed installation into standard 2×4 T-grid ceiling systems.

Wiring: 120–277V input with 0–10V dimming.

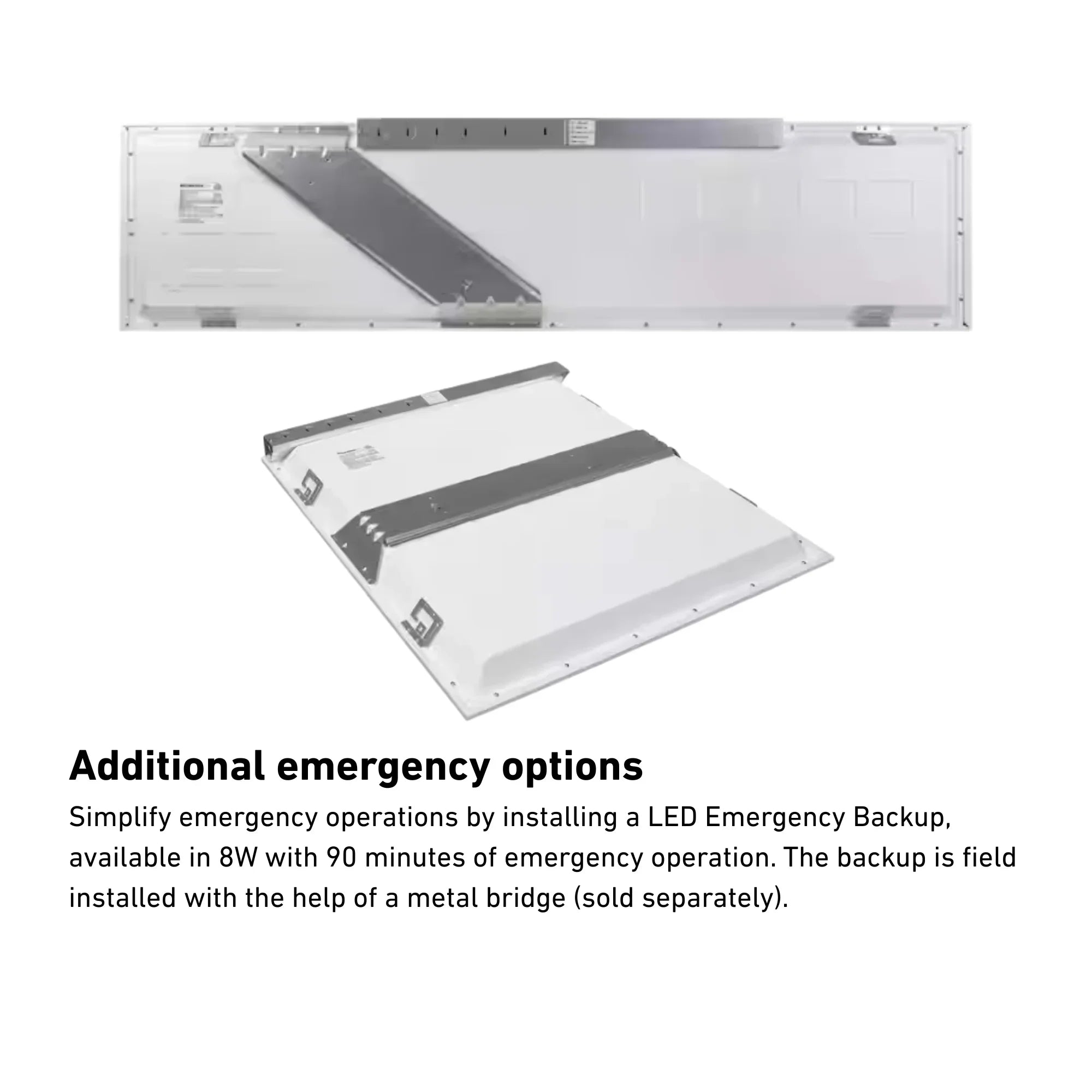

Emergency Battery Backup: Optional field-installable backup activates when normal power fails, providing a minimum of 790 lm, 850 lm nominal, for at least 90 minutes. The 2×4 installation uses bridge kit 61682.

Accessories:

• 62367 — Field-installable emergency battery backup unit
• 60888 — Field-installable emergency battery backup unit
• 61682 — Metal bridge kit for emergency battery backup on 2×2 and 2×4 panels
• 62065 — Surface mount kit for 2×4 panels, extruded aluminum, white finish
• 62067 — Suspension kit for backlit panels
• 60459 — Flange kit for 2×4 panels

Certifications & Compliance

• cETLus Listed: Certified for the supplied fixture specifications.
• IC and Damp Rated: Suitable for insulated ceiling and damp-location installations.
• DLC Listed: Listed for utility rebate opportunities.
• TAA Compliant: Suitable for qualifying U.S. government and GSA procurement.
• FCC and RoHS: Compliant.

Typical Applications

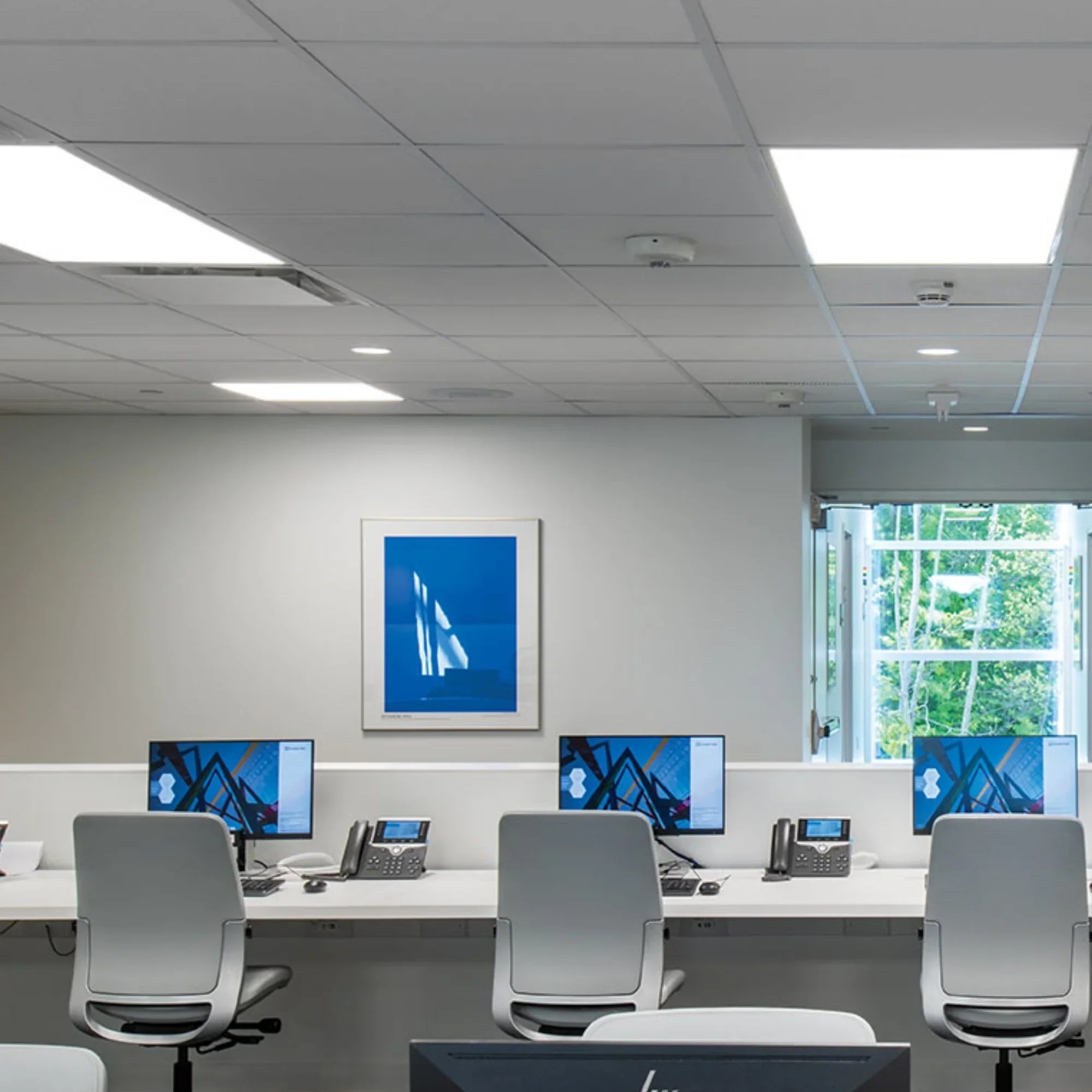

• Corporate offices and open-plan workspaces — selectable wattage and CCT support adaptable general lighting in 2×4 grid bays.
• Classrooms and educational facilities — selectable CCT and up to 5,511 lm support varied room lighting requirements.

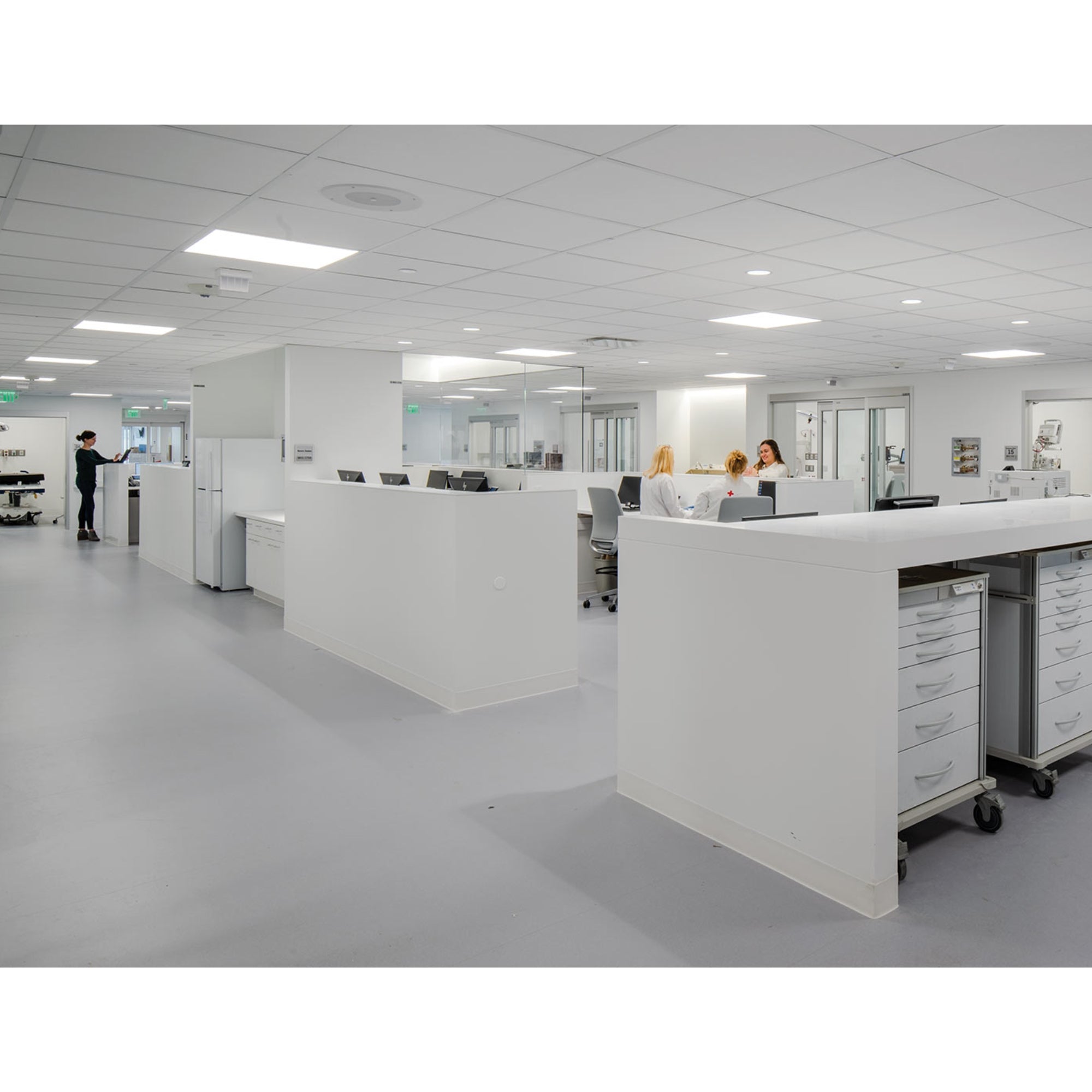

• Healthcare and clinical spaces — CRI 80 and selectable CCT support adaptable visual environments.
• Government and institutional buildings — TAA Compliant for qualifying U.S. government and GSA procurement.

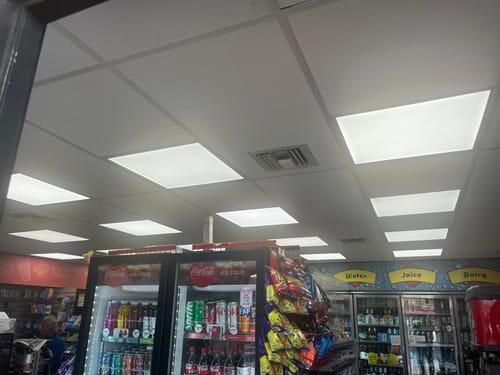

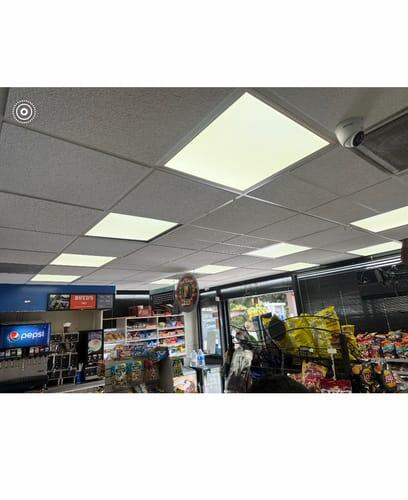

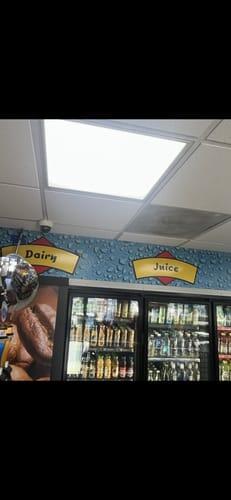

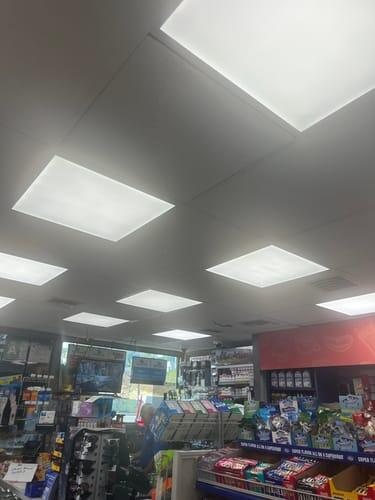

• Retail and hospitality interiors — backlit optics provide even illumination without shadowing.
• Corridors and common areas — optional emergency battery backup supports emergency lighting requirements.

What's Included

• LEDVANCE Sylvania 65898 PANELF3B backlit 2×4 LED panel — White
