Sylvania 4ft Magnetic LED Retrofit Kit | 1-Bar + 20W Driver | 2080/2720/3200 lm | 120-347V
Available in stock (100)
About this item
About this item
- Single-Bar Starter Bundle: One 4ft magnetic strip + a matched 20W driver shipped together — no separate driver sourcing or compatibility guesswork.
- Field-Selectable Output: System delivers 2080, 2720, or 3200 lm (w/o lens) at 13/17/20W — select at install to match fixture layout and target light level. DLC 5.1 listed for utility rebates.
- 3 CCT Options at Install: Choose 3500K, 4000K, or 5000K — warm, neutral, or cool white — without swapping hardware.
- Universal Voltage + Sensor-Ready: 120-347V input covers standard through high-voltage commercial circuits. Built-in 12Vdc aux output supports wired/wireless sensors (sold separately).
- Magnetic, Tool-Free Retrofit: Snaps into existing 4ft fluorescent fixture channels in minutes. 5-year limited warranty covers both driver and bar.
We process payments securely and do not store credit card information.
Description
Description

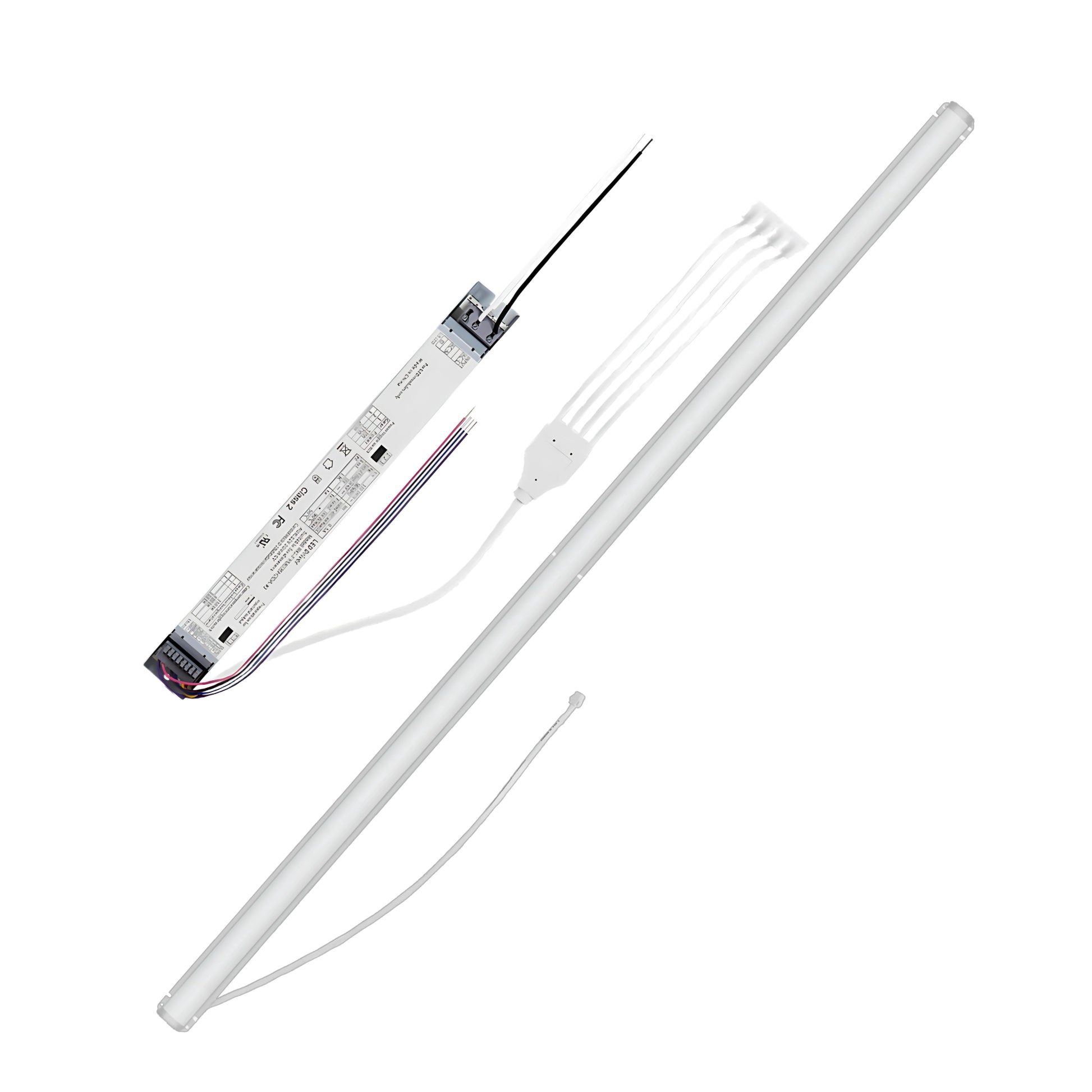

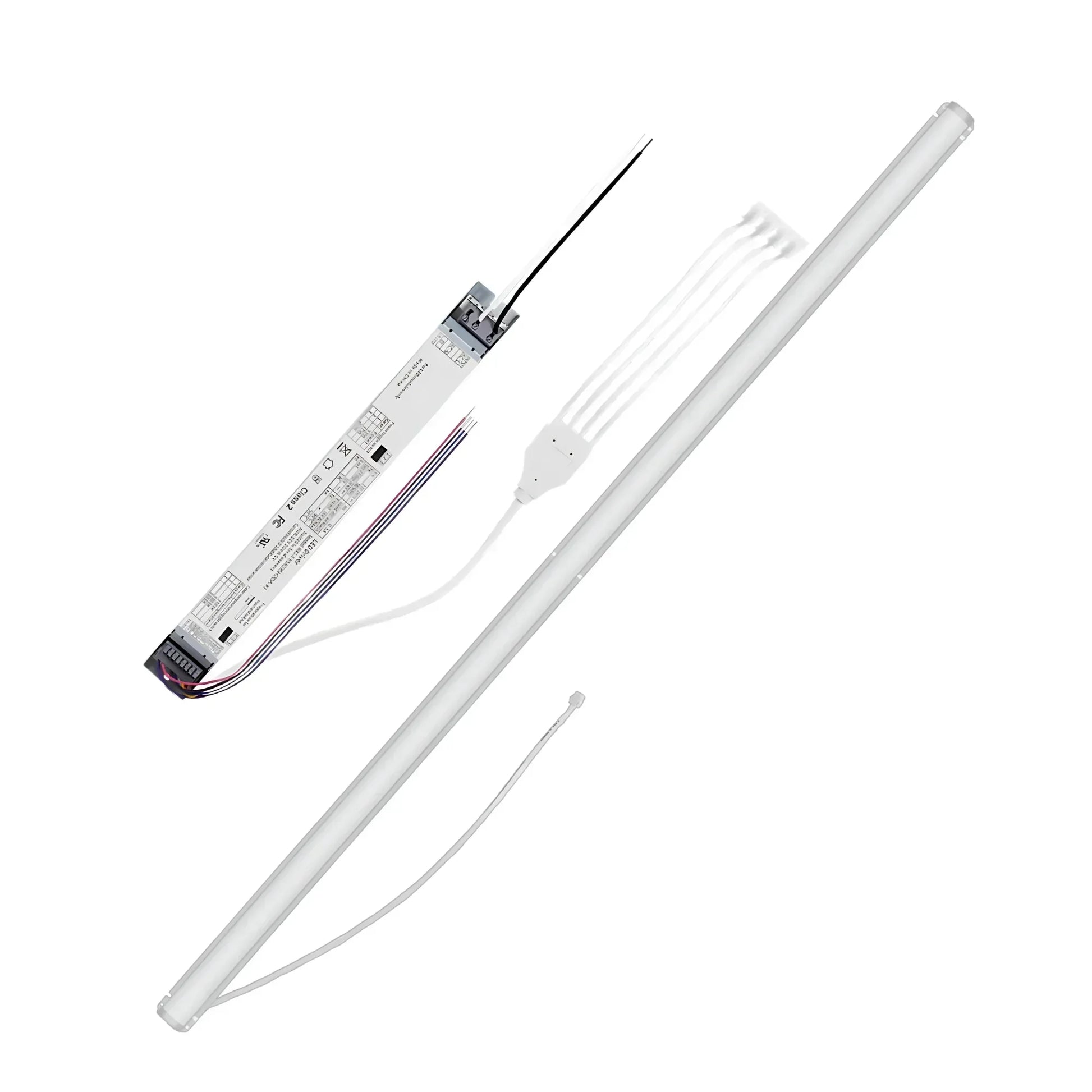

Sylvania LEDMAGBAR/L48FPDIM8SC7 × 1 + LEDvr-MAGBAR13UNH10-20WDIM — 2080/2720/3200 lm | 4ft 1-Bar Bundle | 120-347V
One Sylvania 4ft magnetic LED bar strip paired with the matched 20W universal driver — a pre-validated single-bar system that retrofits existing fluorescent fixtures with no ballast dependency. Field-select wattage (13/17/20W system) and CCT (3500K, 4000K, or 5000K) at install. Magnetic adhesion plus screw-secure mounting installs in minutes. 12Vdc auxiliary output on the driver supports wired or wireless sensors and controls. DLC 5.1 Standard/Premium listed for utility rebate eligibility.
Key Features
- Strip Wattage: 20W max per bar (1-bar system: 13/17/20W selectable)
- Lumens (w/o lens): 2080 / 2720 / 3200 lm (system, selectable)
- Lumens (w/ lens): 1820 / 2380 / 2800 lm (system, selectable)
- Efficacy: 160 LPW (w/o lens) | 140 LPW (w/ lens)
- CCT: 3500K / 4000K / 5000K (selectable)
- CRI: >80
- Lens: Frosted plastic | Beam angle: 120°
- Voltage: 120-347V universal (driver)
- Dimming: 0-10V, 20–100%
- Driver: LEDvr-MAGBAR13UNH10-20WDIM (Item 75908) — supports 1 to 3 bars
- Power Factor: >0.9 | THD: <20%
- 12Vdc Aux: Yes — supports wired/wireless sensors and controls
- Compatible Controls: LEDVANCE EMBB (61097)
- Location Rating: Damp (cETLus listed)
- Certifications: DLC 5.1 Standard/Premium*, cETLus, FCC, RoHS, TAA
- Rated Life: 65,000 hours (L70)
- Operating Temp: -40°F to +104°F (-40°C to +40°C)
- Strip Length: 48 inches (4ft)
- Warranty: 5-year limited (driver + magnetic bar) — ledvanceus.com/warranty | NLB Trusted Warranty Program
💡 Rebate Eligible — DLC 5.1 Standard/Premium* listing qualifies this system for utility rebate programs in most U.S. states. Check your local utility's rebate database before purchasing. *Depends on primary use category.
Typical Applications
- Office and commercial ceiling retrofits
- Education and institutional corridors
- Retail display and back-of-house areas
- Warehouses and storage facilities
- Light industrial and workshop environments
Performance & Light Output
This 1-bar system driven by the 20W driver delivers 2080 lm (13W), 2720 lm (17W), or 3200 lm (20W) without lens — or 1820 / 2380 / 2800 lm through the frosted plastic lens. Efficacy reaches 160 LPW (w/o lens) and 140 LPW (w/ lens). CRI >80. Rated L70 life of 65,000 hours. Instant-on with stable lamp-to-lamp color and no UV emission. Replaces 4ft 32W T8 systems running 55W traditional — significant energy savings at equivalent output.
Electrical & Controls
Universal 120-347V input (50/60Hz). The 20W driver (LEDvr-MAGBAR13UNH10-20WDIM) supports 1 to 3 magnetic bar connections, system input power 13/17/20W selectable. 0-10V dimming from 20–100%. Power factor >0.9, THD <20%. Built-in 12Vdc auxiliary output enables easy integration of wired or wireless controls and sensors. Compatible with LEDVANCE EMBB (61097) controls ecosystem.
Construction & Durability
Aluminum substrate for superior heat dissipation and long-term thermal performance. Frosted plastic lens produces a 120° beam angle for wide, even distribution. Magnetic adhesion allows fast tool-free placement into existing 4ft fluorescent fixture channels; screw-securing available for permanent installation. Operating temperature range: -40°F to +104°F (-40°C to +40°C).
Installation & Mounting
Magnetic strip snaps directly into existing 4ft fluorescent fixture housing — no ballast, no drilling required. Driver mounts inside fixture body with 1–3 bar connection ports. Recommended for retrofit applications where the fixture housing is retained. Sensors, wireless controls, and mounting accessories sold separately.
What's Included
- 1× Sylvania LEDMAGBAR/L48FPDIM8SC7 (Item 42348) — 4ft magnetic LED bar strip
- 1× LEDvr-MAGBAR13UNH10-20WDIM (Item 75908) — 20W universal LED driver
