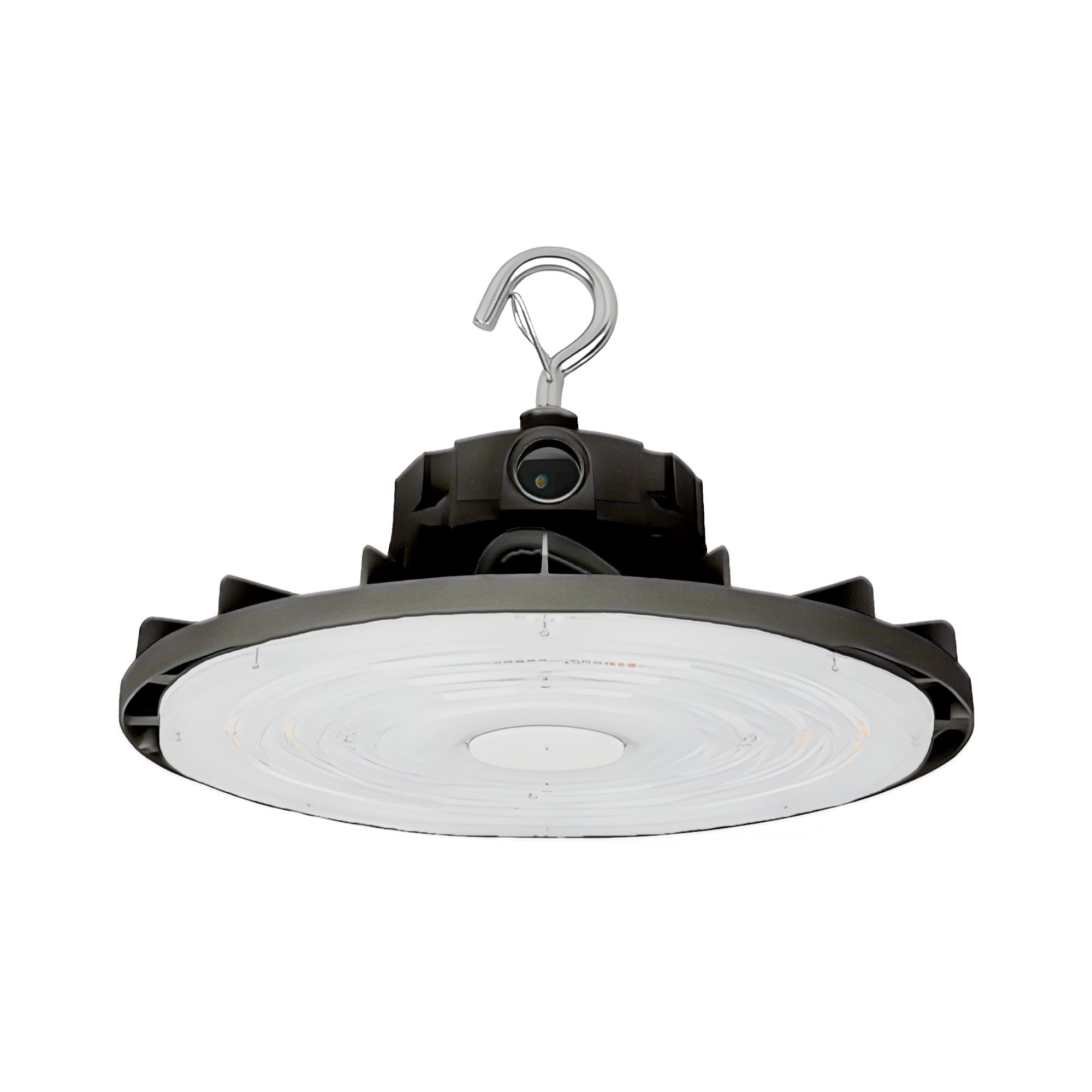

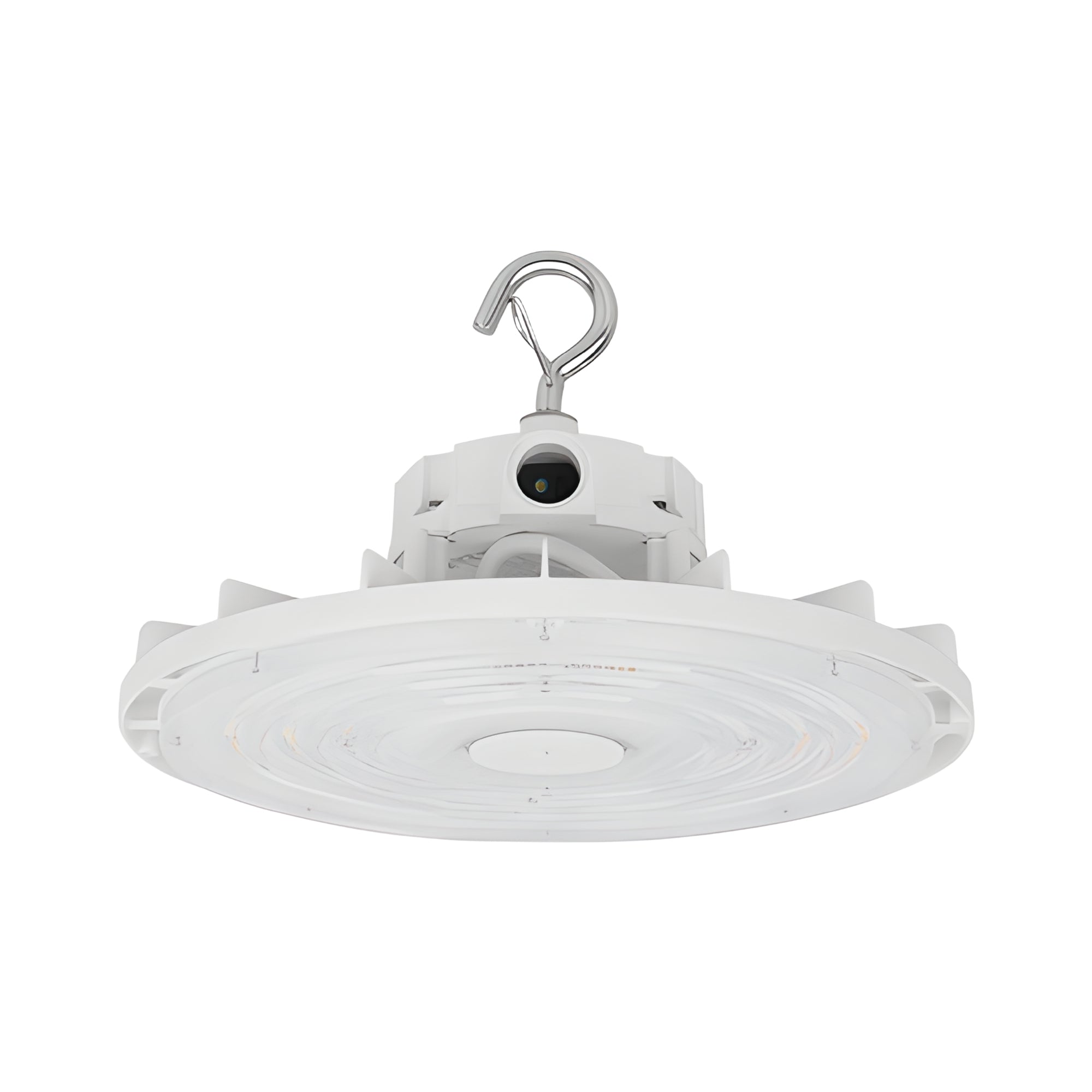

LEDVANCE OPTI-SELECT UFO LED High Bay — 60W through 300W | White or Black

The LEDVANCE OPTI-SELECT UFO High Bay is the industry’s first UFO high bay with three independent field-selectable axes: wattage, CCT, and beam angle — all adjustable on-site with no tools, no rewiring, and no additional accessories. One fixture family covers five wattage tiers from 60W to 300W and delivers 9,000 to 45,000 lumens at up to 150 lm/W peak efficacy. Available in White and Black finishes.

OPTI-SELECT: Three Adjustable Axes

• Selectable Wattage: Five tiers across the product family — 60/80/100W (Items 66486 / 66491) · 100/120/150W (Items 66487 / 66492) · 100/150/200W (Items 66488 / 66493) · 150/200/240W (Items 66489 / 66494) · 200/240/300W (Items 66490 / 66495)
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable on every model
• Selectable Beam Angle: 60° (narrow/aisle) · 90° (general) · 105° (wide flood) — field-adjustable on every model via built-in optics switch, no lens accessories required

Full Family Overview

CRI >80 across all models. Rated life 100,000 hours L70. CCT selection does not affect lumen output at the same wattage.

Shared Specifications — All Models

• Voltage: 120–347V, 50/60Hz — constant current driver
• Dimming: 0-10V standard
• Surge Protection: 6kV
• Power Factor: >90% · THD: <20%
• Location Rating: UL Listed for wet locations
• IP Rating: IP65 (dust-tight / water-resistant)
• Impact Rating: IK08
• NSF Listed: Suitable for food processing and food service environments
• Operating Temperature: -40°F to 122°F (-40°C to 50°C); with EMBB: 32°F to 113°F (0°C to 45°C)
• Certifications: cULus, DLC 5.1 Premium, NSF, RoHS, FCC, IK08, NEMA 4A
• Rated Life: 100,000 hours L70
• Warranty: 5-year (NLB Trusted Warranty Program)
• Finishes: White · Black

Body Size Reference

• Small body — max 100/150/200W (Items 66486–88, 66491–93): 12.20 in dia × 5.01 in H · 5.4 lbs
• Large body — max 240/300W (Items 66489–90, 66494–95): 15.36 in dia × 5.13 in H · 7.1 lbs

Optics & Distribution

Every OPTI-SELECT fixture includes a built-in optics switch with three beam positions — no tools, no lens swaps, no rewiring:

• 60° — Narrow: Aisle and rack applications; maximizes intensity directly below the fixture for high footcandle targets in narrow geometries
• 90° — General: Standard open-area distribution; balanced horizontal and vertical spread for uniform floor illumination
• 105° — Wide Flood: Maximum horizontal spread for lower mounting heights or large open floor areas where broad coverage from fewer fixtures is the priority

Optional polycarbonate refractor and bottom lens accessories available for further beam shaping (sold separately; specify small or large body size when ordering).

Smart & Control Features

Every OPTI-SELECT fixture ships with a pre-wired sensor base — screw in an optional sensor in seconds, no wiring required. Two control platforms supported:

• Standard sensors (0-10V): Model 65622 / 62664 motion/daylight sensor · Model 65623 sensor with remote — default settings: 100% detection area, 10-min hold time, 50 Lux daylight threshold, 60-min standby, 30% standby dim level
• LEDVANCE LINK™ Bluetooth® Mesh: Model 62634 sensor+controller · Model 62630 BLE controller · Model 63652 adapter (required for 3-pin socket) · Model 62636 5-button wall controller — app or wall controller, up to 40 ft ceiling height

Optional Accessories (Sold Separately)

• Polycarbonate Refractor: Small body (Items 66486–88, 66491–93) · Large body (Items 66489–90, 66494–95)
• Polycarbonate Bottom Lens for Refractor: Small body · Large body
• U-Bracket Installation Kit: All models
• Pendant Mounting Bracket: All models
• Sensors: 65622 / 62664 motion/daylight · 65623 sensor remote
• Emergency Battery Backup: Model 61062 W/Remote (90 min runtime) · Model 61089
• Junction Box: Model 63882
• LEDVANCE LINK™: 63652 adapter · 62630 BLE controller · 62634 BLE sensor+controller · 62636 5-button wall switch

Certifications & Rebates

All OPTI-SELECT models are cULus Listed for wet locations, DLC 5.1 Premium listed (maximum utility rebate tier), NSF listed, and RoHS / FCC / IK08 / NEMA 4A compliant. To verify rebate eligibility, visit designlights.org and search the catalog number for your specific item number and finish.

Typical Applications

• Warehouse aisles: 60° beam concentrates output for narrow aisle footcandle targets; select the wattage tier to match mounting height and aisle width
• Open warehouse / distribution center floors: 105° wide flood maximizes horizontal spread at lower mounting heights with fewer fixtures
• Food processing & food service: NSF listed + IP65 + IK08 meet hygiene, washdown, and impact requirements
• Manufacturing & assembly: Field wattage selection right-sizes output to task area without rewiring or fixture replacement
• Large gymnasiums & recreation centers: 0-10V dimming enables daytime/evening output adjustment; Items 66490 / 66495 (300W max, 45,000 lm) cover large open floor plates
• Cold storage: -40°F cold start rated on all models
• Facilities replacing 200W–1000W HID: 60–300W LED replaces 200W–1000W MH / HPS across the full wattage range

What’s Included (Each Fixture)

• LEDVANCE OPTI-SELECT UFO LED high bay (White or Black)
• Pre-installed hook
• 6-foot power cable
• 3-foot dimming cable
• Pre-wired sensor base (sensor sold separately)
