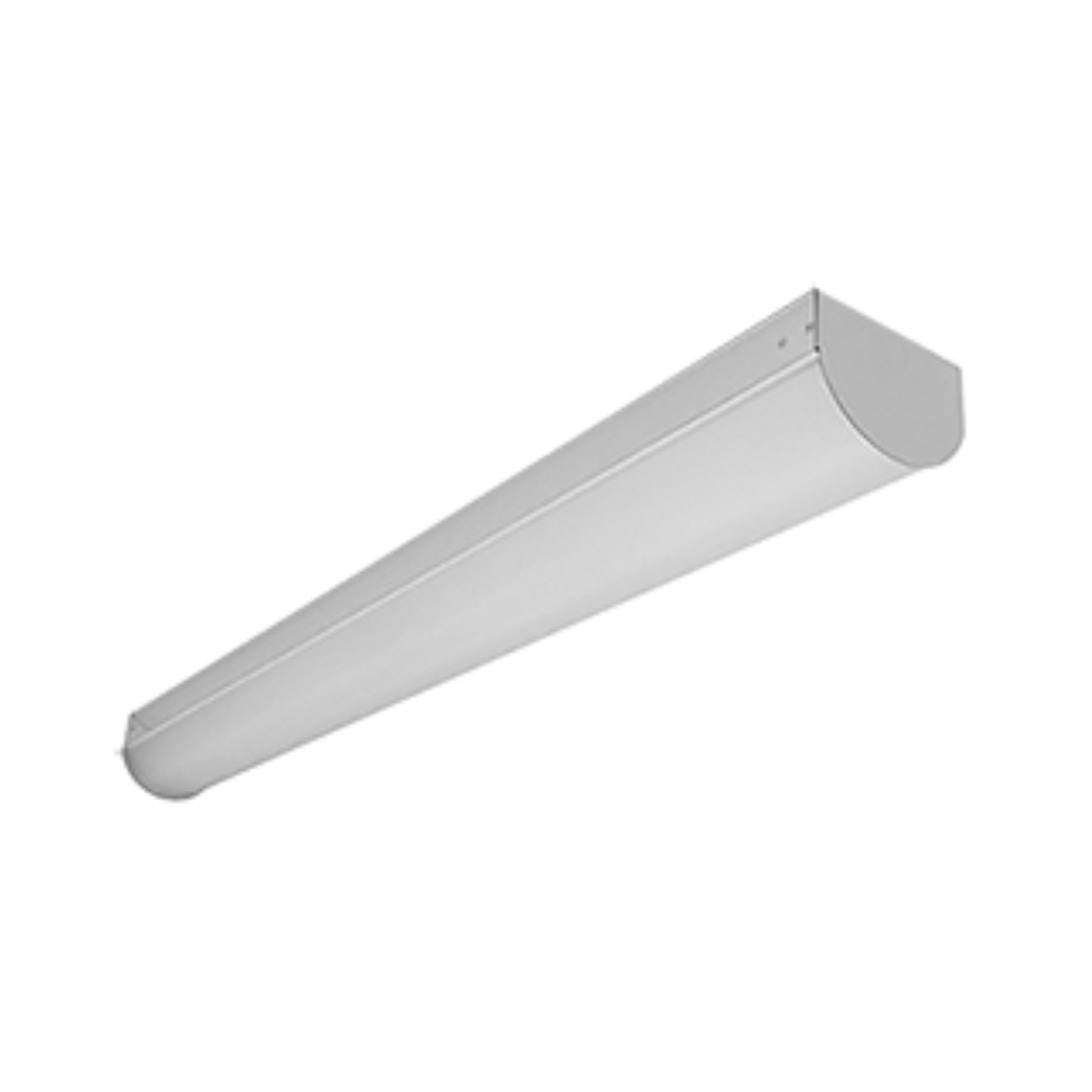

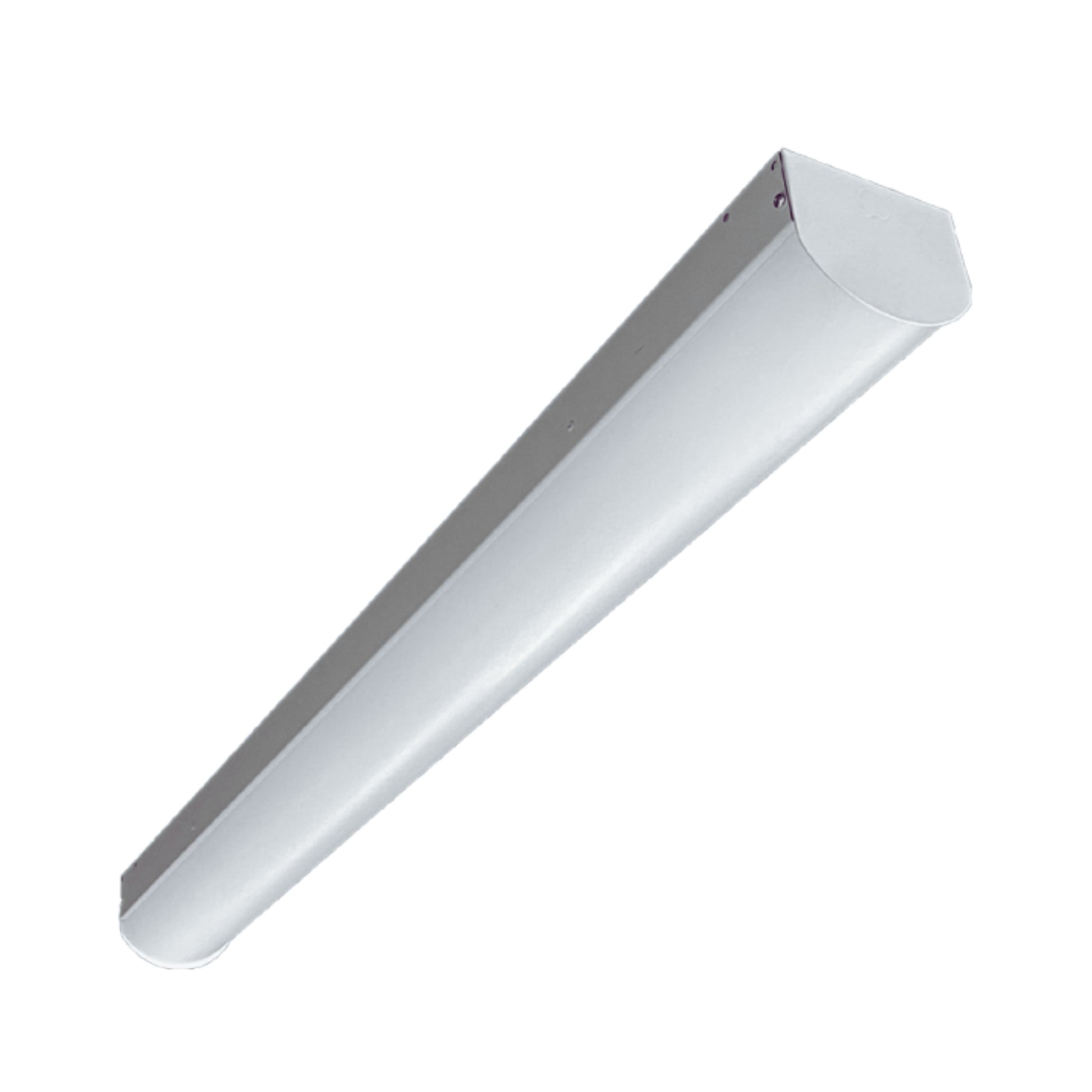

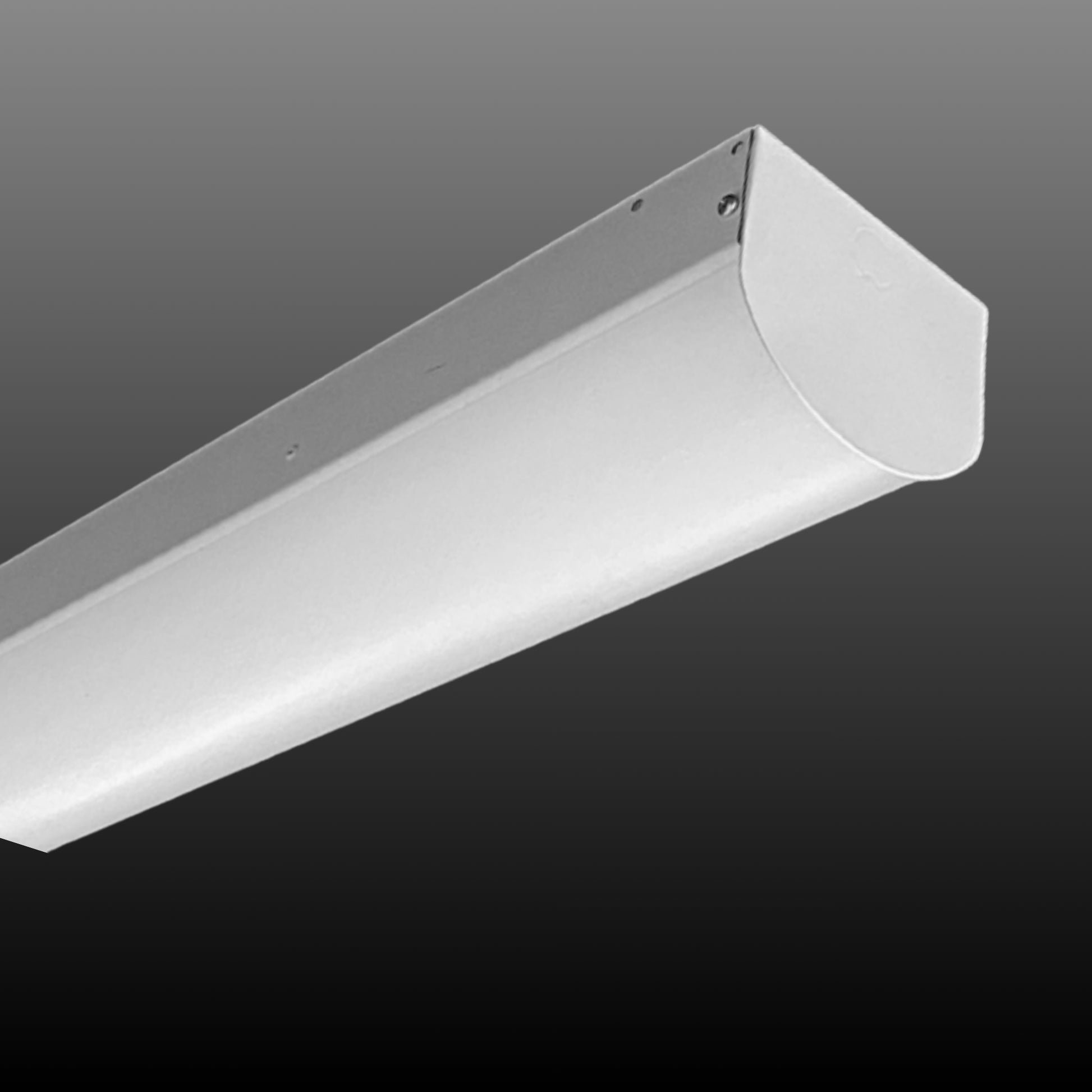

LA Lighting STW200 5" Wide LED Strip Light — 4ft/8ft — 4000K/5000K Options — White

The LA Lighting STW200 family includes four white LED strip light configurations: STW200-4-4L-DRDM-UNV-1/840, STW200-4-4L-DRDM-UNV-1/850, STW200-8-8L-DRDM-UNV-1/840, and STW200-8-8L-DRDM-UNV-1/850. Choose a nominal 4ft, 4,000 lm package or 8ft, 8,000 lm package, each in fixed 4000K or 5000K. The 4000K 4ft model delivers 3,782 lm at 25.5W; the 4000K 8ft model delivers 7,582 lm at 50.9W. Standard 120–277V operation and 0–10V dimming support commercial lighting layouts. The fixtures are UL listed for the USA and Canada and suitable for damp locations, with a frosted white acrylic lens and steel housing.

Key Features

• 4000K System Wattage: 25.5W for the standard 4ft model and 50.9W for the standard 8ft model.
• Fluorescent Replacement: At 4000K, the 4ft model replaces two F32T8 or one F54T5HO lamp; the 8ft model replaces four F32T8 or two F54T5HO lamps.
• Delivered Light Output: 3,782 lm for the 4000K 4ft model and 7,582 lm for the 4000K 8ft model.
• 4000K Efficacy: 148.5 lm/W for the 4ft model and 148.8 lm/W for the 8ft model.
• Color Rendering: 80+ CRI.
• Fixed Color Temperature: Choose 4000K or 5000K when ordering either nominal length.
• Frosted Lens: White acrylic lens.
• Standard Dimming: 0–10V dimmable driver.
• Input Voltage: 120–277V.
• Damp-Location Suitability: Suitable for damp locations.
• 4000K Ambient Range: −4°F (−20°C) to 95°F (35°C) for the listed standard 4ft and 8ft system-data configurations.
• Listings & Compliance: UL listed for the USA and Canada; made in the USA and BABA/BAA compliant.
• Service Life: Tested at 50,000 hours, L70.
• Standard Warranty: 5-year limited warranty.
• Steel Construction: 22-gauge cold-rolled steel housing with screw-fastened end plates.

Performance & Light Output

Performance below applies to the standard 4000K configurations at 120V input. Nominal lumen packages identify ordering options and are distinct from delivered fixture lumens.

The corresponding fixed 5000K ordering options are STW200-4-4L-DRDM-UNV-1/850 and STW200-8-8L-DRDM-UNV-1/850. Color quality is 80+ CRI, with service life tested at 50,000 hours, L70. Actual performance may differ with the installation environment and application.

Electrical

The standard DRDM driver supports 120–277V input and 0–10V dimming. Power factor is ≥0.9, and total harmonic distortion is ≤20%.

Construction

Housing: The housing is formed from 22-gauge cold-rolled steel. End plates are fastened with sheet metal screws for rigidity.

Lens & Optics: Frosted white acrylic lens.

Finish: Baked white polyester housing finish with a minimum reflectance of 86%. End plates feature a baked white powder-coated finish, painted after fabrication.

Environmental Suitability: Suitable for damp locations. The standard 4000K 4ft and 8ft system-data configurations have an ambient range of −4°F (−20°C) to 95°F (35°C).

Installation & Mounting

Mounting Options: Surface, suspended, and wall-mounted configurations are supported.

Accessories Sold Separately:

• Y-toggle cable suspension: YTCS10, sold separately; standard 10ft cable, with two sets required per fixture.
• Cable suspension: CS10, sold separately; cable set without V-hook, with standard 10ft cable and two sets required per fixture.
• V-hook cable suspension: V4CS10, sold separately; cable set with V4-hook and standard 10ft cable, with two sets required per fixture.
• V-hook: V4, sold separately; two required per luminaire.
• Angled mounting bracket: 45MB, sold separately; 45° wall or ceiling mounting, with two brackets required per 4ft or 8ft luminaire. Mounting holes must be drilled in the luminaire back; mounting hardware is not provided with the bracket.
• Chain mount coupling: CMC-XXW200, sold separately; lift-up tabs accommodate V-hooks for chain mounting.

Certifications & Rebates

• UL Listing: Listed for the USA and Canada; suitable for damp locations.
• California Title 24: Supports California Title 24 compliance.
• Manufacturing: Made in the USA.
• Procurement Compliance: BABA/BAA compliant.

Typical Applications

• Retail Spaces: Standard 0–10V dimming supports adjustable light levels.

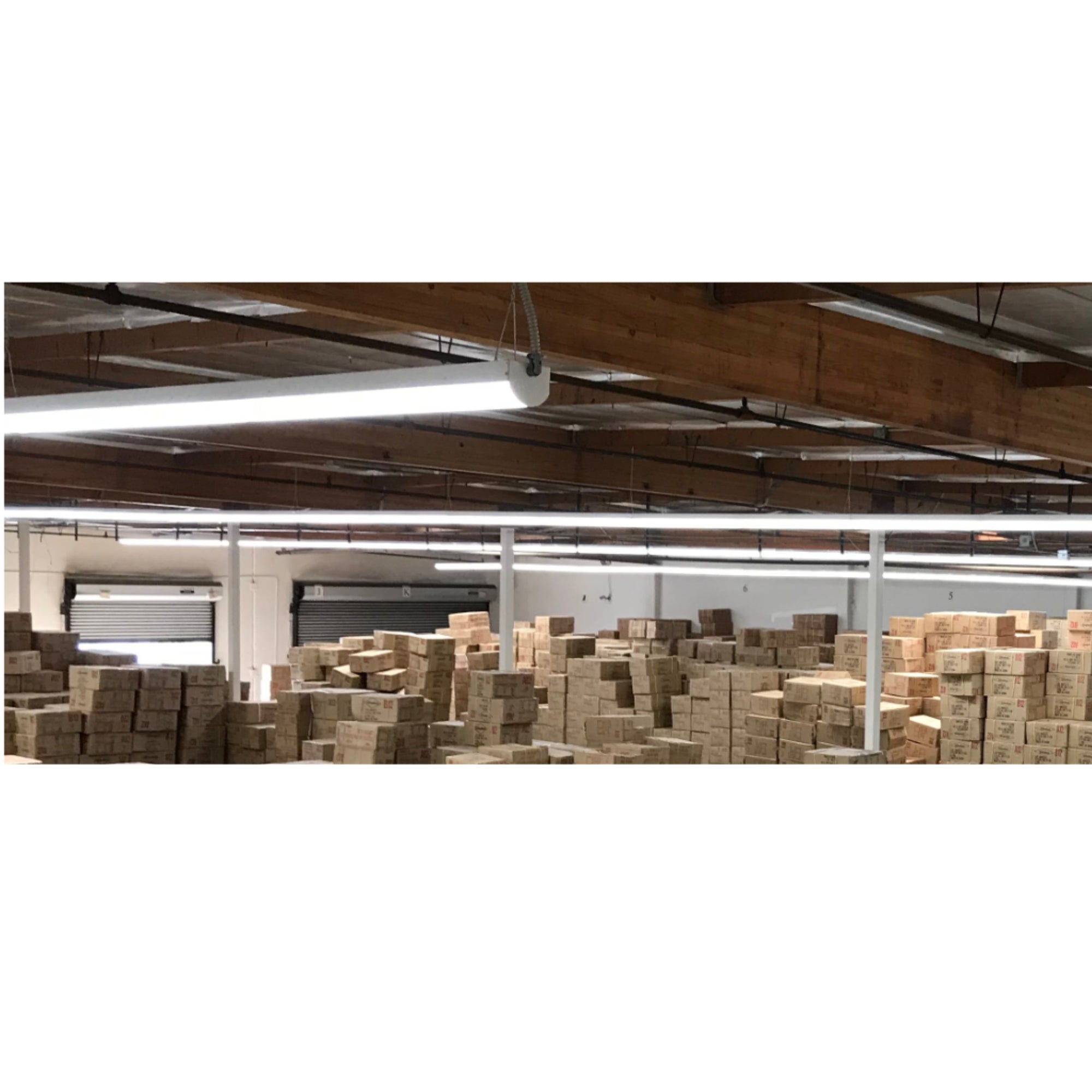

• Warehouse Aisles: The 4000K 8ft model delivers 7,582 lm from a linear strip fixture.
• Offices: Fixed 4000K and 5000K options allow color temperature to be specified when ordering.
• Corridors and Stairwells: Surface, suspended, and wall mounting accommodate different fixture layouts.
• Assembly Lines: The 22-gauge steel housing provides rigid fixture construction.

What's Included

• One LA Lighting white STW200 LED strip light in the selected configuration: STW200-4-4L-DRDM-UNV-1/840, STW200-4-4L-DRDM-UNV-1/850, STW200-8-8L-DRDM-UNV-1/840, or STW200-8-8L-DRDM-UNV-1/850.
