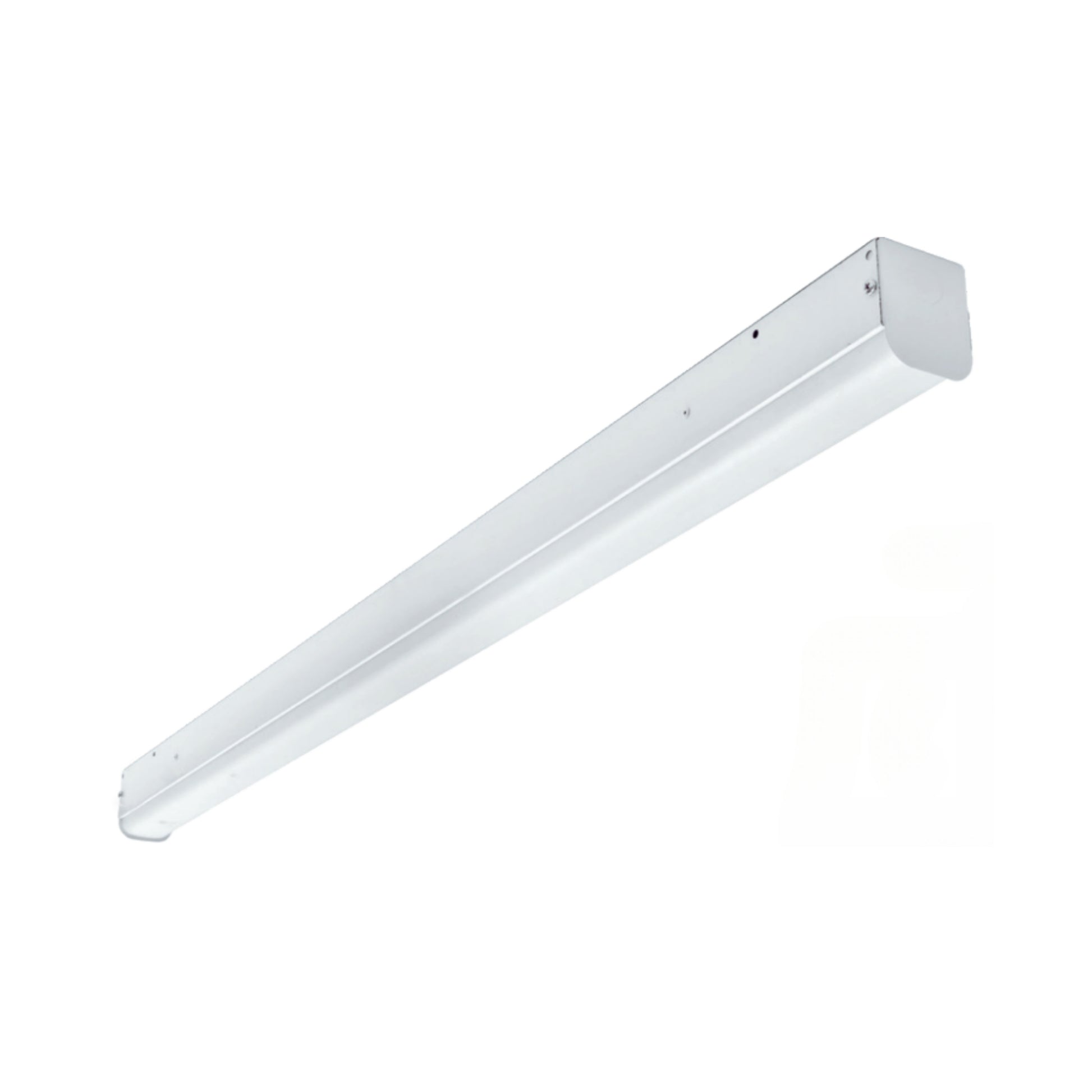

LA Lighting STW100 2¼" Wide LED Strip Light — 4ft/8ft — 4000K/5000K Options — White

The LA Lighting STW100 LED strip light family offers nominal 4ft fixtures in 2,000 lm and 4,000 lm packages, plus nominal 8ft fixtures in 4,000 lm and 8,000 lm packages. Each package is available in fixed 4000K or 5000K. Full ordering models are STW100-2-4L-FRWA-DRDM-UNV-1/840, STW100-2-4L-FRWA-DRDM-UNV-1/850, STW100-4-4L-FRWA-DRDM-UNV-1/840, STW100-4-4L-FRWA-DRDM-UNV-1/850, STW100-4-8L-FRWA-DRDM-UNV-1/840, STW100-4-8L-FRWA-DRDM-UNV-1/850, STW100-8-8L-FRWA-DRDM-UNV-1/840, and STW100-8-8L-FRWA-DRDM-UNV-1/850. The 4000K configurations deliver up to 6,833 lm, with individual system wattages of 12.4W, 25.5W, 24.9W, and 50.9W. Standard 120–277V operation and 0–10V dimming accompany a UL listing for the USA and Canada and damp-location suitability. End caps may serve as couplings for seamless surface-row mounting.

Key Features

• 4000K System Wattage: The 4ft 2,000 lm package operates at 12.4W; the 4ft 4,000 lm package at 25.5W; the 8ft 4,000 lm package at 24.9W; and the 8ft 8,000 lm package at 50.9W.
• Fluorescent Replacement: At 4000K, replacement options range from one F32T8 lamp for the 4ft 2,000 lm package to four F32T8 or two F54T5HO lamps for the 8ft 8,000 lm package.
• Delivered Output: The four 4000K packages deliver 1,695 lm, 3,327 lm, 3,482 lm, and 6,833 lm respectively.
• 4000K Efficacy: Respective efficacy values are 136.3 lm/W, 130.6 lm/W, 139.9 lm/W, and 134.1 lm/W.
• Color Rendering: 80+ CRI.
• Fixed Color Temperature: Choose 4000K or 5000K when ordering each size and nominal lumen package.
• Lens: Frosted white acrylic.
• Dimming: Standard 0–10V dimmable driver.
• Input Power: 120–277V, 50–60Hz.
• Location Suitability: Suitable for damp locations.
• 4000K Ambient Range: −4°F (−20°C) to 95°F (35°C) for the four standard 4000K system-data configurations.
• Listings & Compliance: UL listed for the USA and Canada, made in the USA, and BAA/BABA compliant.
• Service Life: Tested at 50,000 hours, L70.
• Warranty: Standard 5-year limited warranty.
• Continuous Surface Rows: End caps may be used as couplings for seamless row mounting on surfaces.

Performance & Light Output

These performance values apply to the standard FRWA 4000K configurations at 120V input. Nominal lumen packages are ordering designations, distinct from delivered lumens.

Each package is also offered in fixed 5000K with the 1/850 ordering suffix. Color rendering is 80+ CRI, and service life is tested at 50,000 hours, L70. Actual performance may differ with the installation environment and application.

Electrical

The standard DRDM driver operates on 120–277V, 50–60Hz input. Power factor is ≥0.9, total harmonic distortion is ≤20%, and standard dimming is 0–10V.

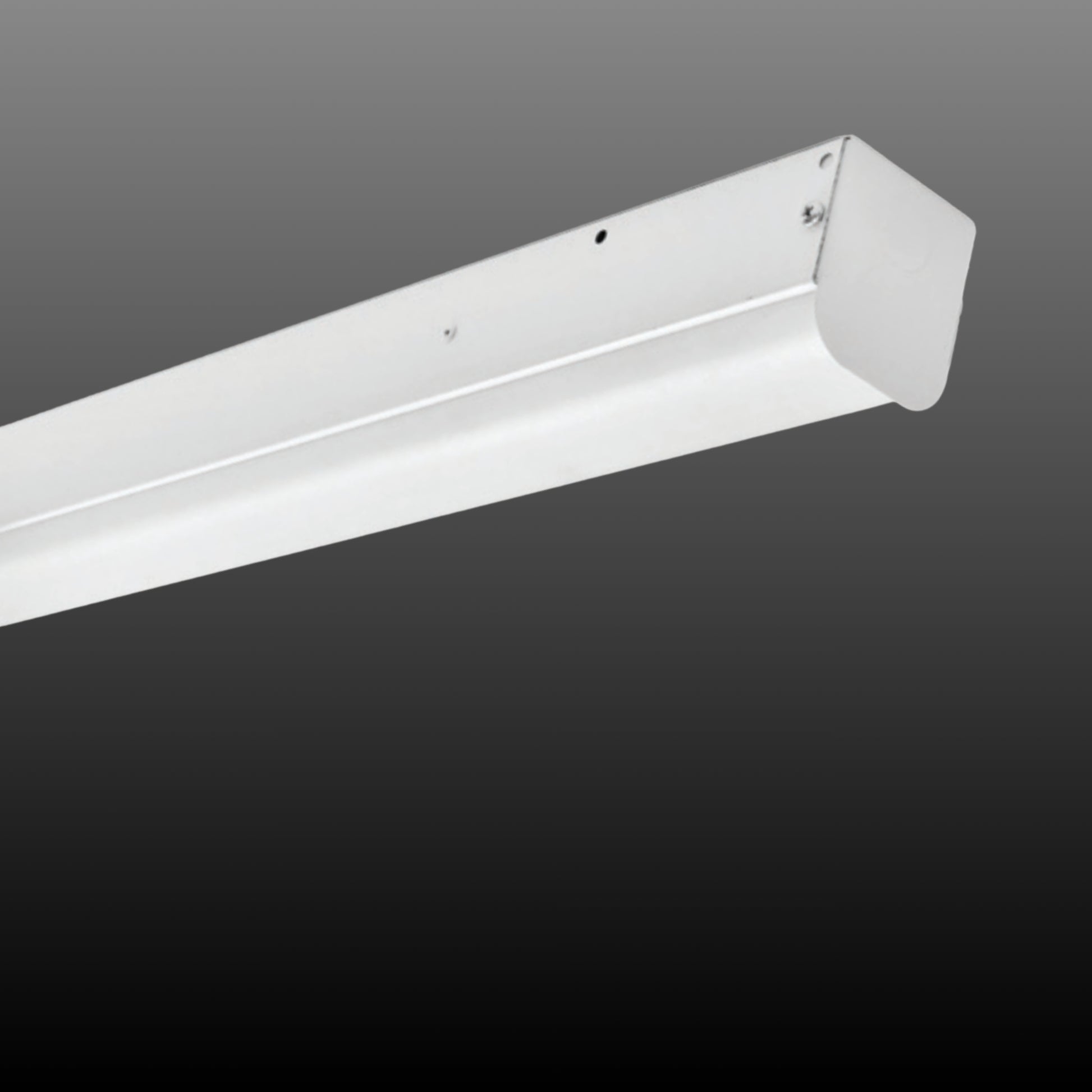

Construction

Housing: The 22-gauge cold-rolled steel housing has end plates fastened with sheet metal screws for rigidity.

Lens & Optics: Frosted white acrylic lens.

Finish: Baked white polyester housing finish with minimum reflectance of 86%. End plates are painted after fabrication with a baked white powder-coated finish.

Environmental Suitability: Suitable for damp locations. The four standard 4000K system-data configurations have an ambient operating range of −4°F (−20°C) to 95°F (35°C).

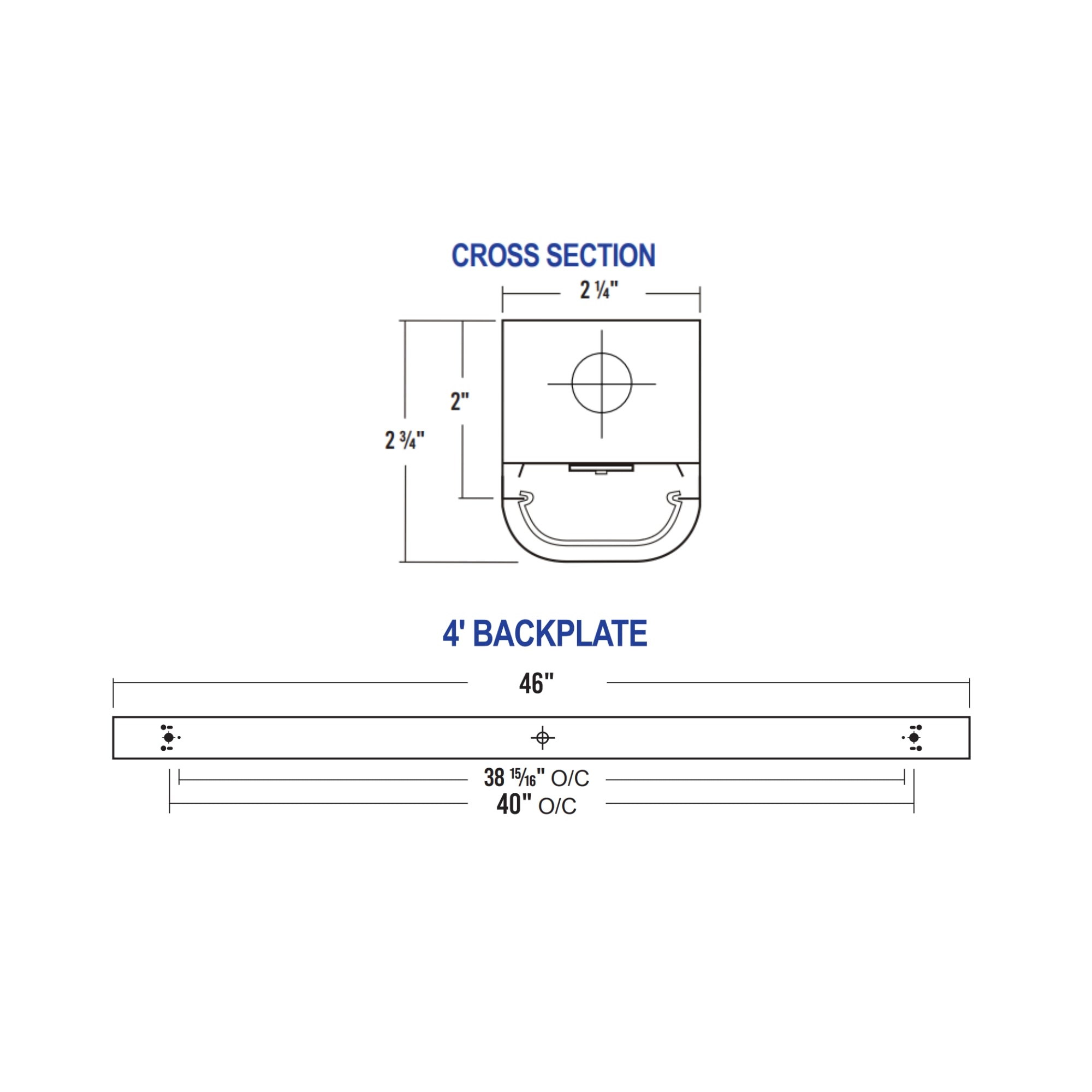

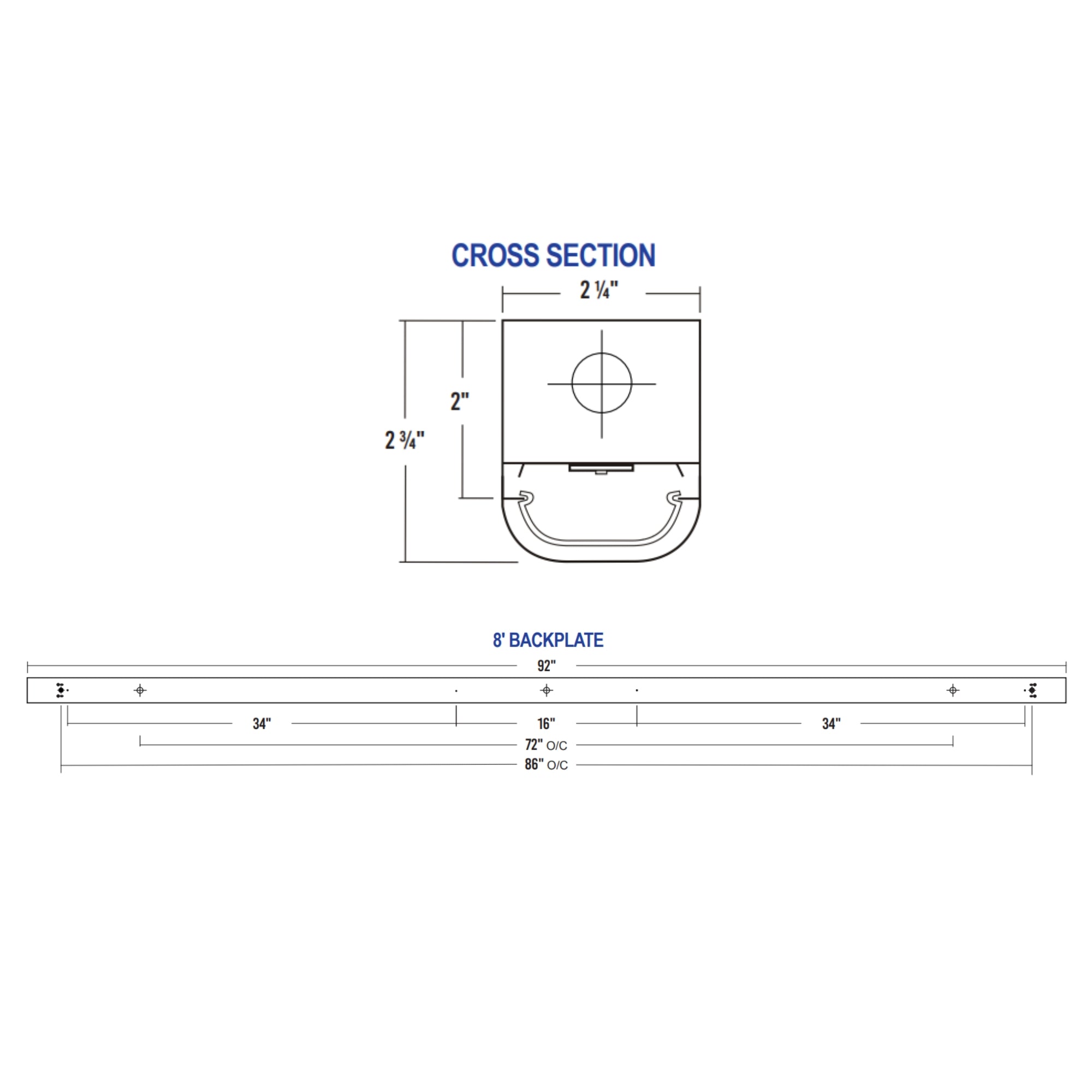

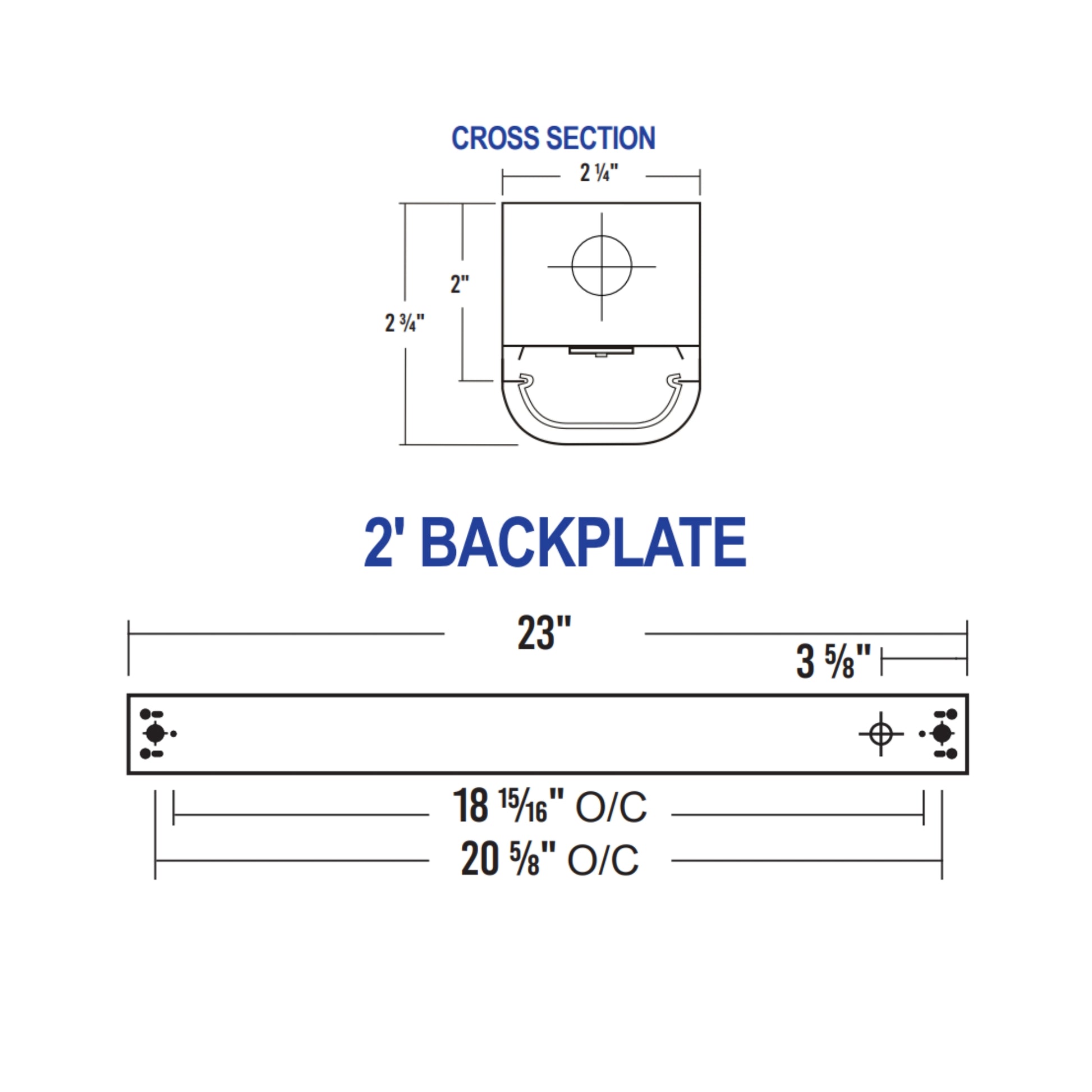

Installation & Mounting

Mounting Options: Surface-mounted or suspended installation.

Continuous Row Mounting: End caps may be used as couplings for seamless row mounting on surfaces.

Accessories Sold Separately:

• Y-toggle cable suspension: YTCS10, sold separately; standard 10ft cable, with two sets required per fixture.
• Cable suspension: CS10, sold separately; cable set without V-hook, with standard 10ft cable and two sets required per fixture.
• V-hook cable suspension: V4CS10, sold separately; cable set with V4-hook, standard 10ft cable, and two sets required per fixture.
• Chain mount coupling: CMC-STW100, sold separately; for 4ft and 8ft STW100 fixtures only, with lift-up tabs for V-hooks when chain mounted and a baked white enamel finish.
• Canopy cable suspension: 433B, sold separately; canopy and cable without a power cord, with 48-inch or 96-inch cable options.
• Feed-in canopy suspension: 444F, sold separately; canopy with straight power cord, with 48-inch or 96-inch cable options.
• Branch wiring: PIW1 or PIW2, sold separately; one- or two-circuit plug-in branch wiring through the fixture channel, with 12-gauge wire and optional LV low-voltage control wiring.

Certifications & Rebates

• UL Listing: Listed for the USA and Canada; suitable for damp locations.
• California Title 24: Supports California Title 24 compliance.
• Manufacturing: Made in the USA.
• Procurement Compliance: BAA/BABA compliant.

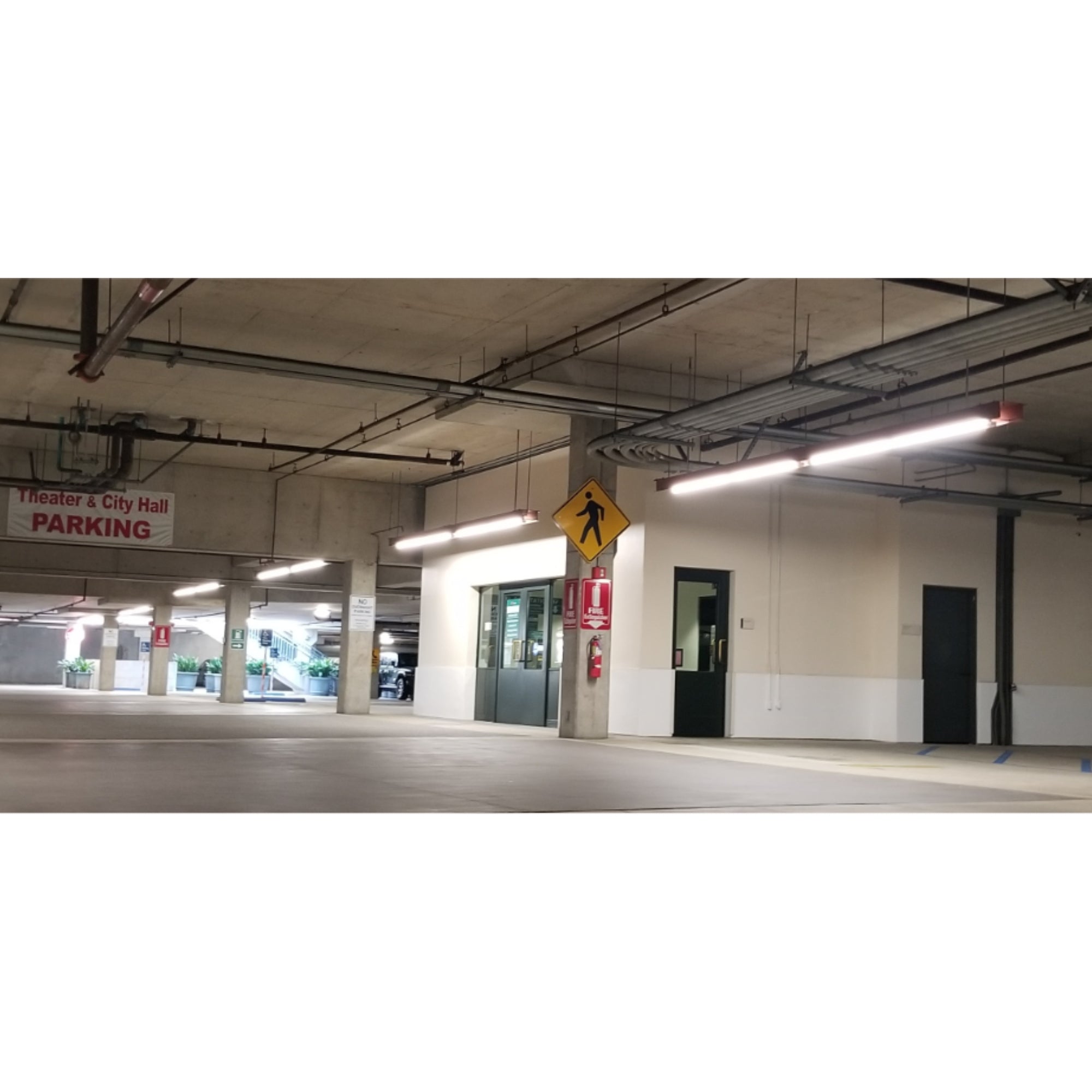

Typical Applications

• Retail Aisles: End-cap couplings support seamless surface-mounted rows.
• Warehouses: The 4000K 8ft 8,000 lm package delivers 6,833 lm.
• Offices: Standard 0–10V dimming allows adjustment of light levels.
• Corridors and Stairwells: The narrow 2¼-inch strip format accommodates linear lighting layouts.
• Assembly Lines: Surface or suspended mounting supports different installation layouts.

What's Included

• One LA Lighting white STW100 LED strip light in the selected full ordering configuration: STW100-2-4L-FRWA-DRDM-UNV-1/840, STW100-2-4L-FRWA-DRDM-UNV-1/850, STW100-4-4L-FRWA-DRDM-UNV-1/840, STW100-4-4L-FRWA-DRDM-UNV-1/850, STW100-4-8L-FRWA-DRDM-UNV-1/840, STW100-4-8L-FRWA-DRDM-UNV-1/850, STW100-8-8L-FRWA-DRDM-UNV-1/840, or STW100-8-8L-FRWA-DRDM-UNV-1/850.
