LA Lighting CIT200 LED Vapor Tight Fixture 4,000–8,000 Lumens 120–277V 4000K/5000K 0–10V Dimming
In stock
About this item
About this item
- Industrial Lumen Packages: Available in 4,000 or 8,000 lumen configurations for utility and industrial lighting.
- Universal Voltage Operation: Designed for 120–277V electrical systems with standard 0-10V dimming.
- Washdown-Rated Enclosure: IP65, IP66, IP67 and NEMA 4X protection against moisture, dust, and corrosive environments.
- Fully Gasketed Construction: Fiberglass housing with poured-in-place polyurethane gasket forms a sealed luminaire.
- Flexible Installation: Stainless steel mounting tabs support chain, cable, or V-hook suspension.
We process payments securely and do not store credit card information.
Description
Description

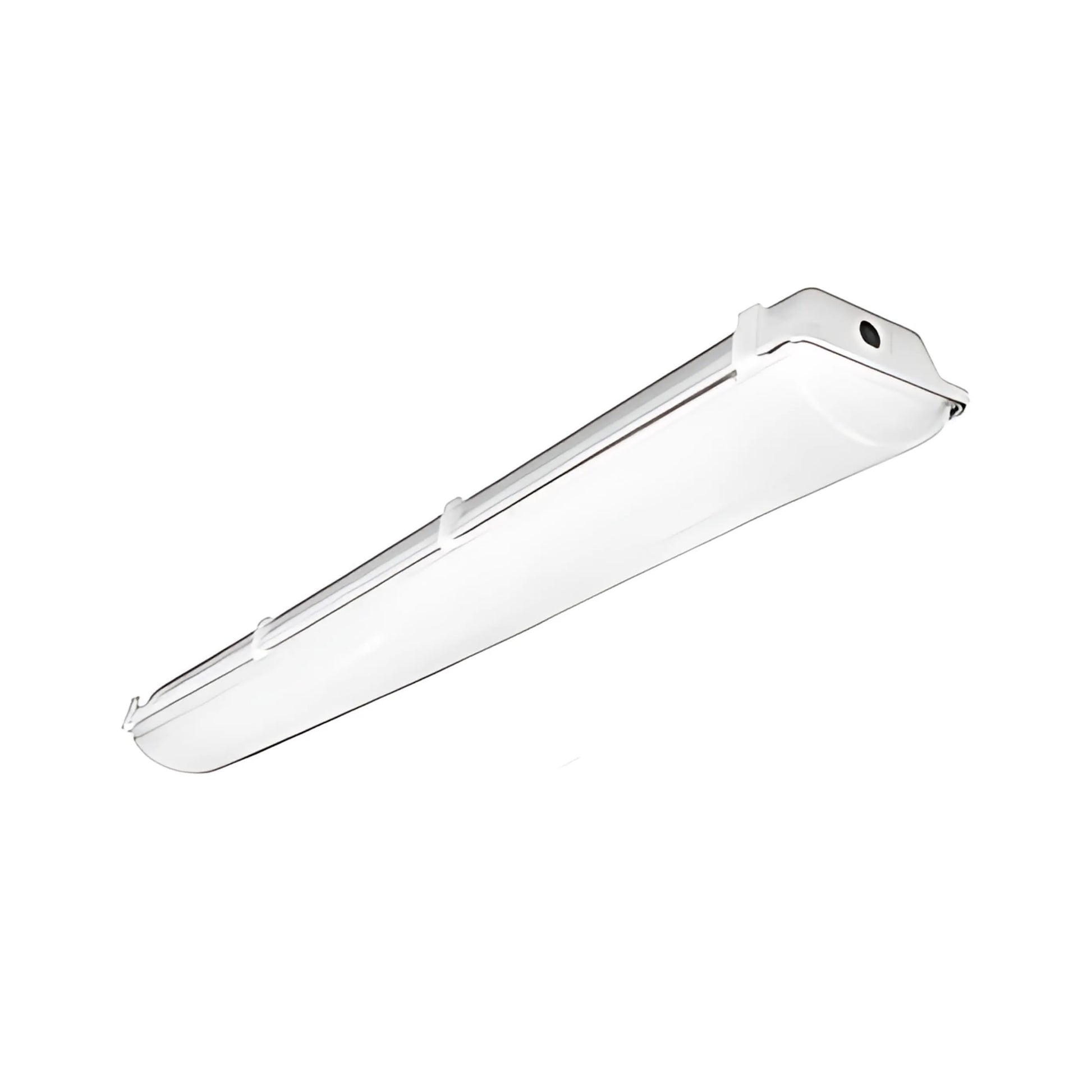

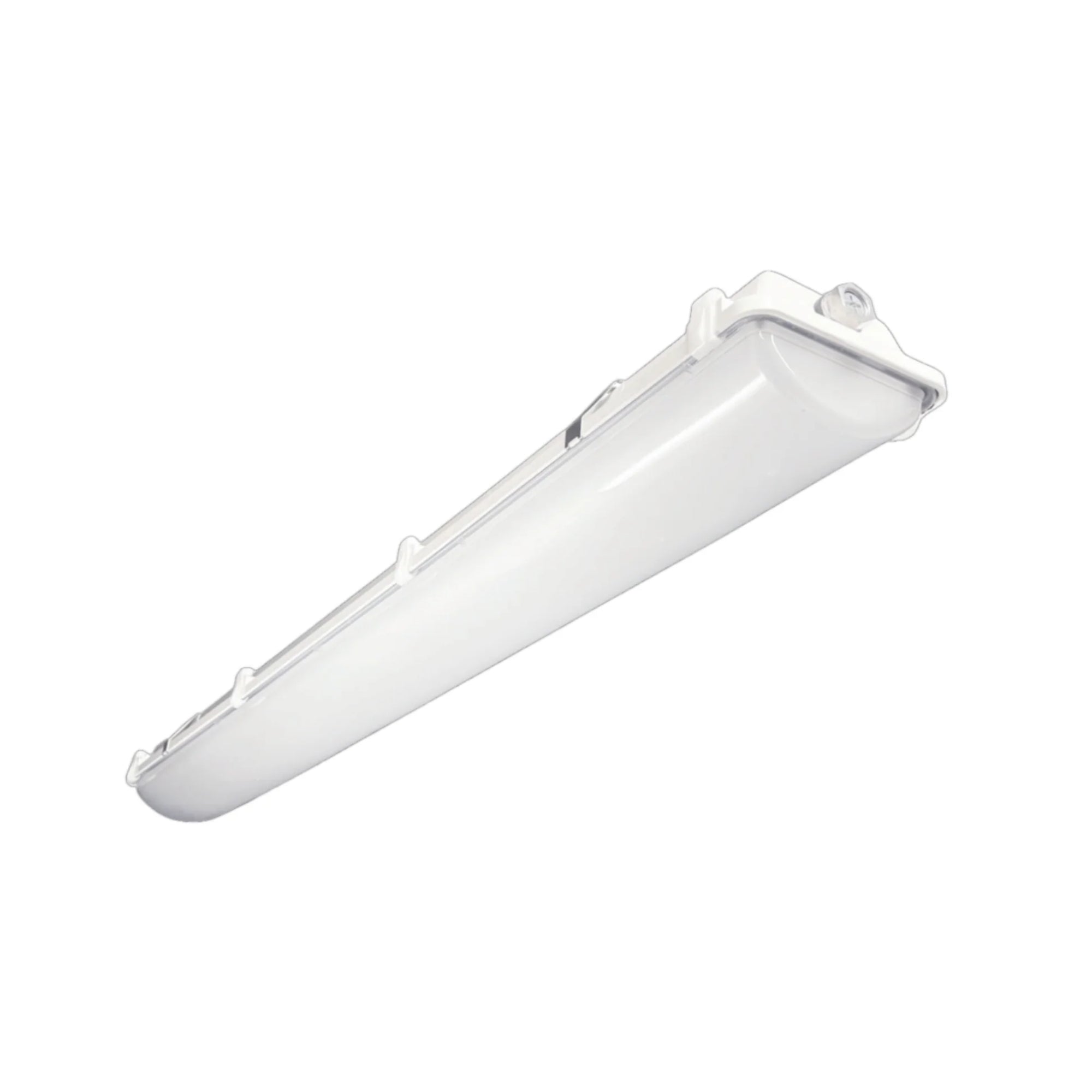

LA Lighting CIT200 Series LED Vapor Tight Fixture — Fully Gasketed Industrial Luminaire
The LA Lighting CIT200 series is a fully enclosed LED vapor tight fixture designed for industrial and washdown environments where moisture, dust, and contaminants require sealed lighting equipment. The series provides lumen packages of 4,000 or 8,000 lumens with color temperatures of 4000K or 5000K. Each fixture operates on a universal 120–277V driver with standard 0–10V dimming for integration with commercial lighting control systems.
The fixture uses a corrosion-resistant fiberglass housing with stainless steel latches and a poured-in-place polyurethane gasket that creates a sealed luminaire. The enclosure carries IP65, IP66, IP67, and NEMA 4X ratings, making it suitable for wet locations, washdown areas, and harsh industrial facilities. A frosted acrylic lens distributes light evenly while protecting internal components.
Available Configurations
- CIT200-4-4L-DRFA-WL-DRDM-UNV-1/840 – 4,000 lumens, 4000K, standard ambient version
- CIT200-4-4L-DRFA-WL-DRDM-UNV-1/850 – 4,000 lumens, 5000K, standard ambient version
- CIT200-8-8L-DRFA-WL-DRDM-UNV-1/840HT – 8,000 lumens, 4000K, high-ambient temperature version
- CIT200-8-8L-DRFA-WL-DRDM-UNV-1/850HT – 8,000 lumens, 5000K, high-ambient temperature version
These configurations allow specifiers to select the appropriate lumen package and color temperature while maintaining the same sealed vapor-tight housing and washdown-rated performance across the CIT200 platform.
Key Features
- Lumen Packages: 4,000 or 8,000 lumens
- Color Temperatures: 4000K or 5000K
- Voltage: 120–277V universal input
- Dimming: 0–10V dimming driver standard
- Environmental Ratings: IP65, IP66, IP67 and NEMA 4X
- Housing: Fiberglass enclosure with stainless steel latches
- Lens: Impact-resistant frosted acrylic lens
- Gasket: Poured-in-place polyurethane sealing system
- Rated Life: L70 >50,000 hours
- Compliance: UL listed for wet location installations
Typical Applications
- Food processing facilities
- Cold storage warehouses
- Industrial manufacturing plants
- Car wash and washdown areas
- Agricultural buildings
- Dusty or corrosive environments
Performance & Light Output
High-efficiency LEDs deliver uniform illumination with lumen packages up to 8,000 lumens. Multiple output options allow designers to match lighting levels to corridor, industrial, or utility applications while maintaining long LED system life.
Electrical & Controls
The fixture operates on 120–277V input and includes a standard 0–10V dimming driver for integration with commercial lighting control systems. Additional options such as motion sensors, emergency battery packs, and control-ready drivers may be configured depending on project requirements.
Construction & Durability
The fiberglass housing resists corrosion and chemical exposure while stainless steel latches secure the lens assembly. The poured polyurethane gasket forms a sealed enclosure that protects internal LED components from moisture, dust, and washdown conditions.
Installation & Mounting
Integrated stainless steel mounting tabs support installation using V-hooks, chain suspension, cable suspension systems, or ceiling mount hangers depending on project requirements.
Included
- The Selected CIT200 vapor tight fixture
- Stainless steel mounting tabs
- Fully gasketed lens and housing assembly
Specifications
Specifications

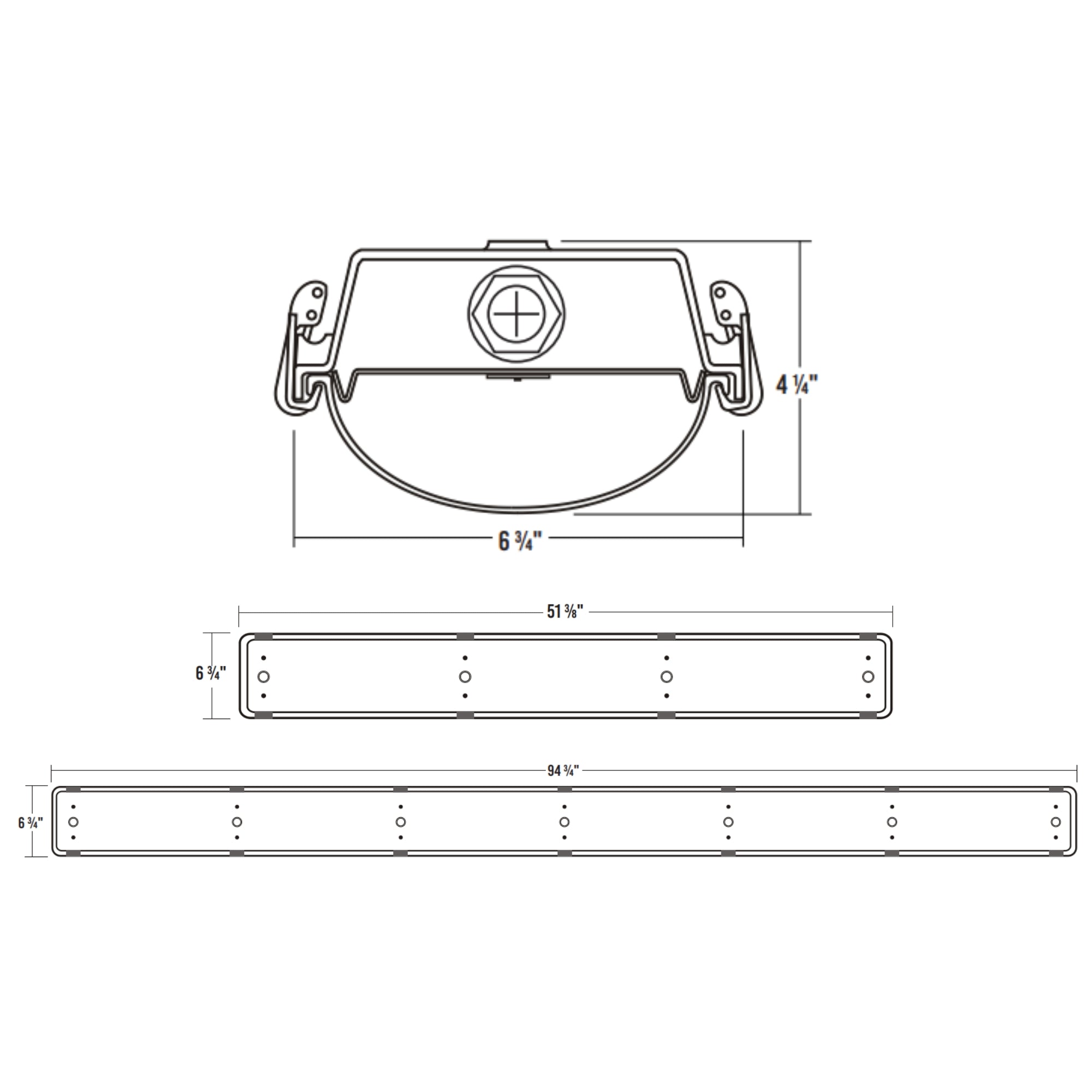

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the difference between "vapor tight" and "vapor proof"?
What is the difference between "vapor tight" and "vapor proof"?
These terms are often used interchangeably. "Vapor tight" is the more technically accurate term, as it implies the fixture is sealed against moisture vapor. "Vapor proof" is a common industry term that means the same thing—it's built to resist water, dust, and vapor.
What does the IP rating mean?
What does the IP rating mean?
IP stands for "Ingress Protection," which is a universal rating system that classifies how well a fixture is sealed against intruders like dust (solids) and moisture (liquids). The rating is given as two numbers:
The first number (0-6) rates protection against solids (like dust).
The second number (0-8) rates protection against liquids (like water). The higher the number, the better the protection. Most LED vapor tight fixtures are rated IP65 or higher, which means they are completely 'dust-tight' (6) and protected against water jets from any direction (5).
Can these fixtures be used in a car wash?
Can these fixtures be used in a car wash?
Yes, absolutely. An IP65 or higher-rated vapor tight light fixture is the standard, required light for car washes and other high-pressure washdown applications due to its ability to withstand constant water spray and cleaning agents.
Are these fixtures dimmable?
Are these fixtures dimmable?
Many models are. If you need to adjust brightness, look for fixtures specified as "0-10V Dimmable." This requires a compatible 0-10V low-voltage dimmer switch.
Are these fixtures good for cold-storage or freezers?
Are these fixtures good for cold-storage or freezers?
Yes. Because LEDs are "instant-on" and not affected by cold, vapor tight led fixtures are the ideal choice for walk-in freezers, coolers, and cold storage facilities.
