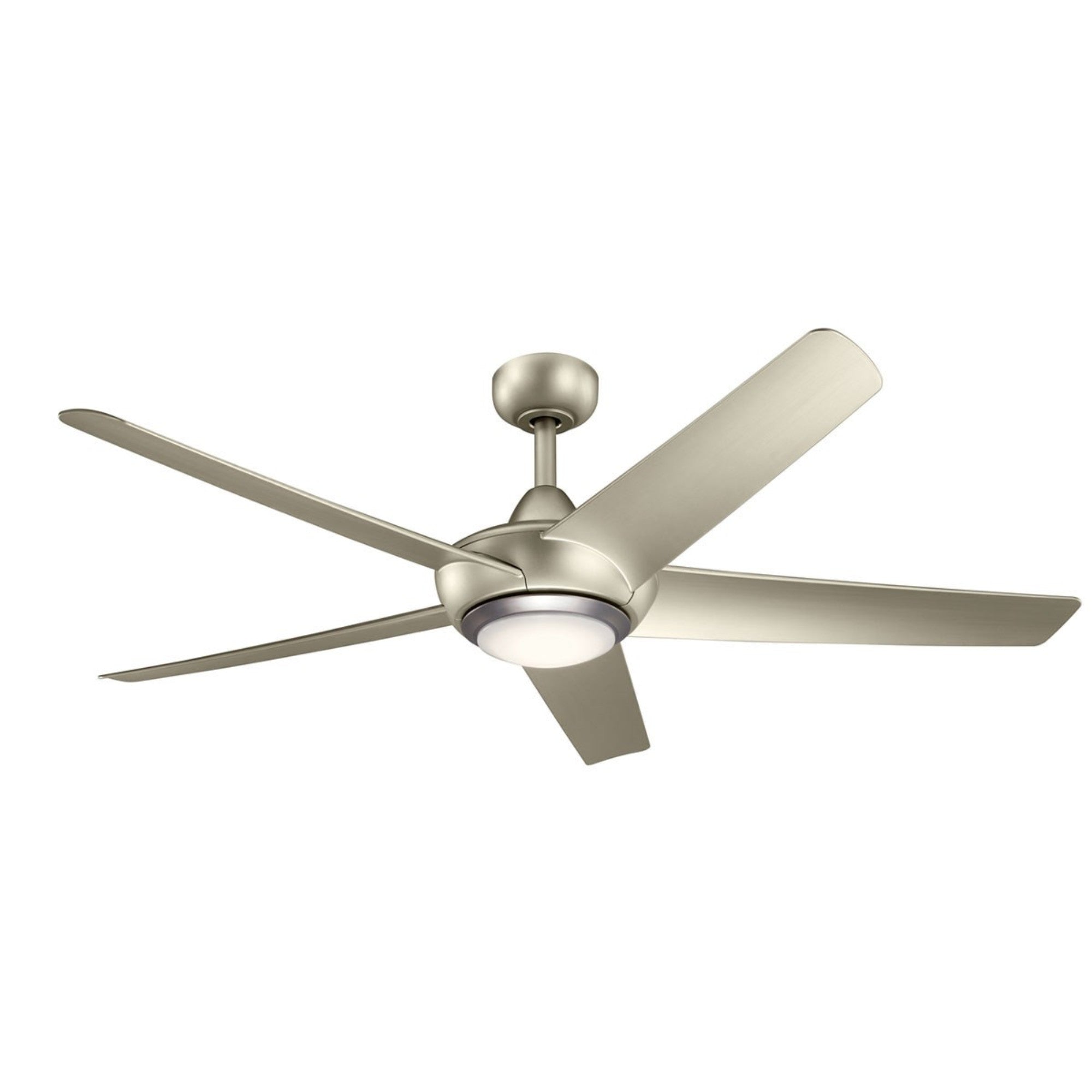

The Kichler Kapono, model 330089NI, has a 52 in blade span and five blades, powered by an AC motor delivering 5,620 CFM at 77 CFM/W. Its integrated LED provides 1,400 lumens at 3000K, and its Dry Rated design is for indoor use.

Key Features

• Blade Span: 52 in with five blades.
• Blade Design: Five non-reversible ABS blades in Brushed Nickel with a 12° pitch.
• Motor: 172 mm x 20 mm AC induction motor, 137 RPM at high speed and 0.61 amps.
• High-Speed Airflow: 5,620 CFM.
• Airflow Efficiency: 77 CFM/W at high speed.
• Total Wattage: 90W combined, 73W fan and 17W LED.
• Integrated LED: Dimmable 17W light with 1,400 lumens, 3000K, and 90 CRI.
• Location Rating: Dry rated and cETLus listed for indoor use only.
• Included Control: Three-speed CoolTouch handheld control with three forward speeds, motor off, manual reverse, and full-range light dimming.
• Sloped Ceilings: Supports a mounting slope up to 18°.
• Included Downrod: 6 in downrod with 1 in outside diameter.

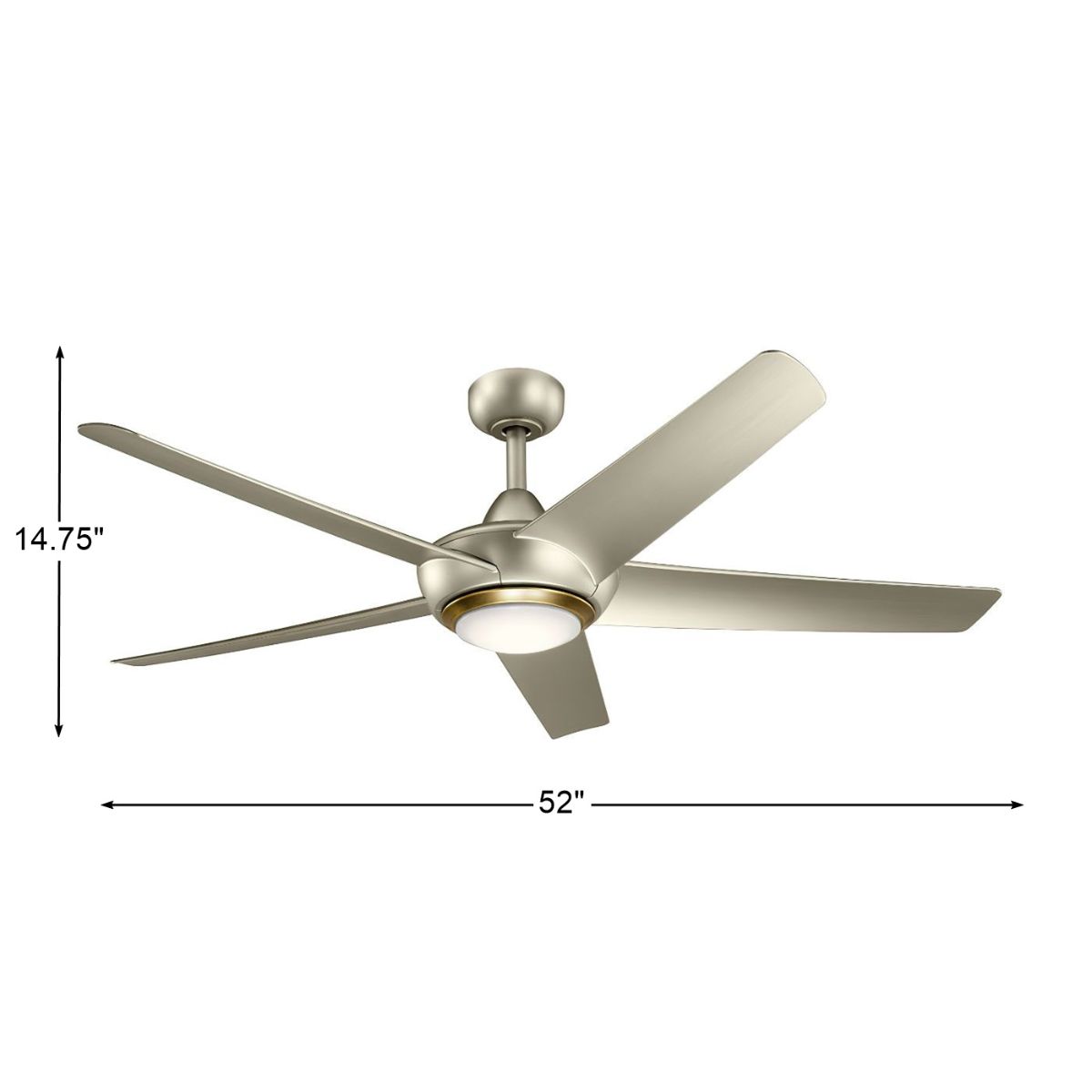

• Dimensions: 14.75 in overall height, 10.5 in blade drop, 10.5 in housing width, and 5.25 in canopy width and depth by 2.13 in height; 78 in lead wire.

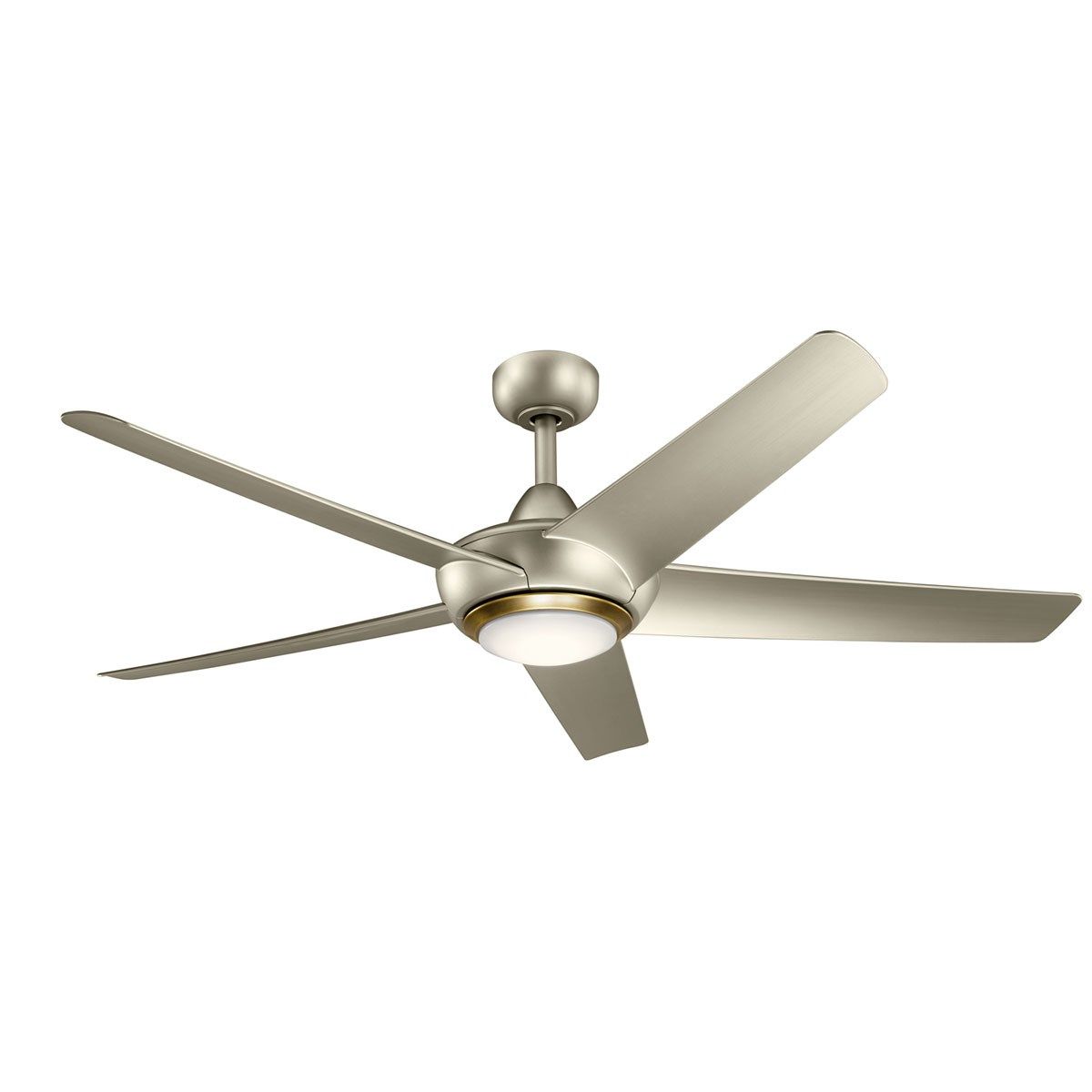

• Interchangeable Trim Rings: Four included finishes: Black, White, Brushed Nickel, and Natural Brass.

Advanced Control Features

The included CoolTouch handheld control offers 16 frequency options, three forward speeds, motor off, manual reverse, and light on/off with full-range dimming. Optional limited-function controls sold separately are the 370125 3-Speed AC Motor Handheld Remote Control Transmitter and the 370145 3-Speed AC Motor Wall Control Transmitter.

Construction & Design

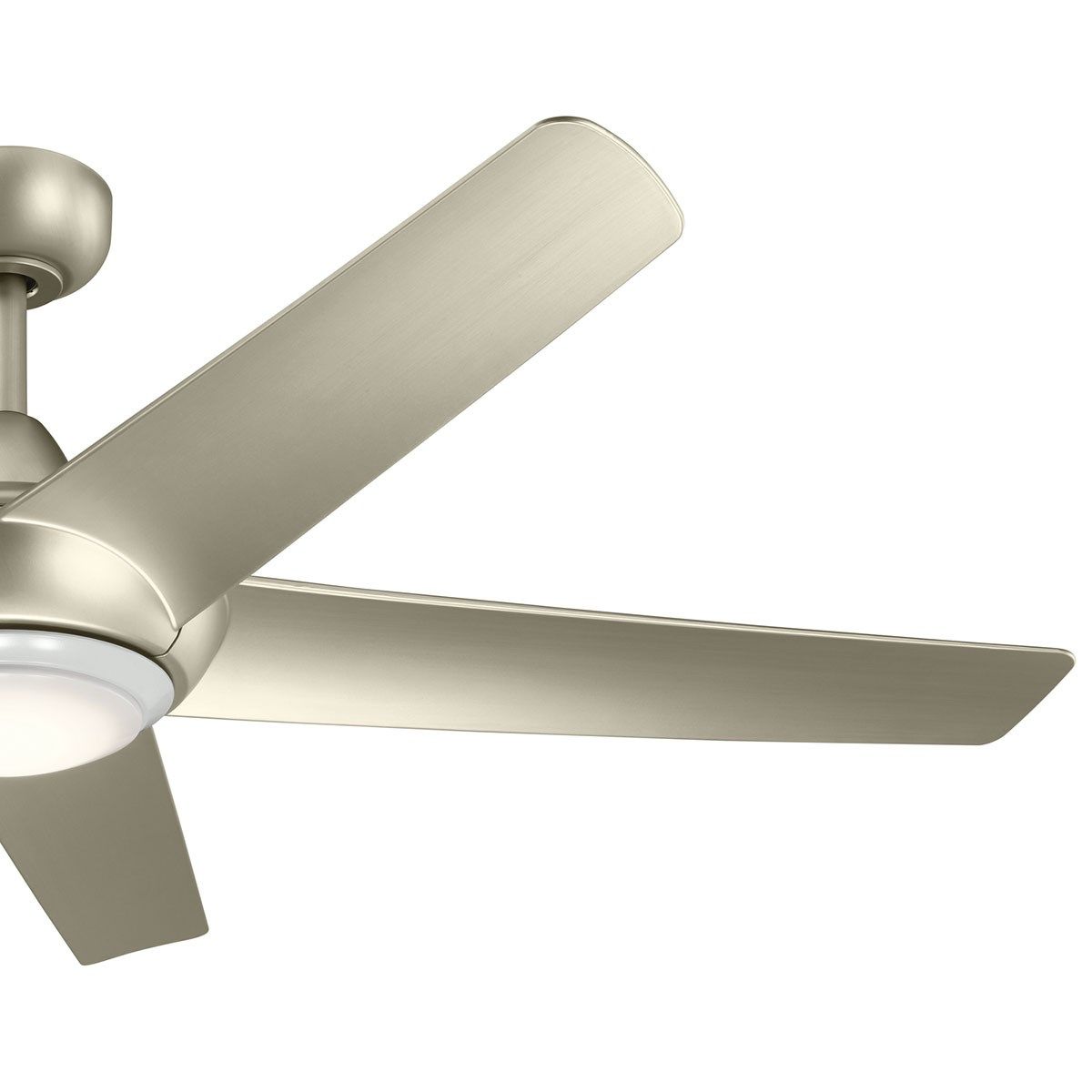

The steel motor housing has a Brushed Nickel finish and measures 10.5 in wide. Five non-reversible ABS blades in Brushed Nickel have a 12° pitch. The integrated LED has a frosted white polycarbonate diffuser, and the canopy measures 5.25 in wide and deep by 2.13 in high. Four included trim rings in Black, White, Brushed Nickel, and Natural Brass allow mixed-finish styling. The streamlined design has a contemporary profile.

Light Output & Performance

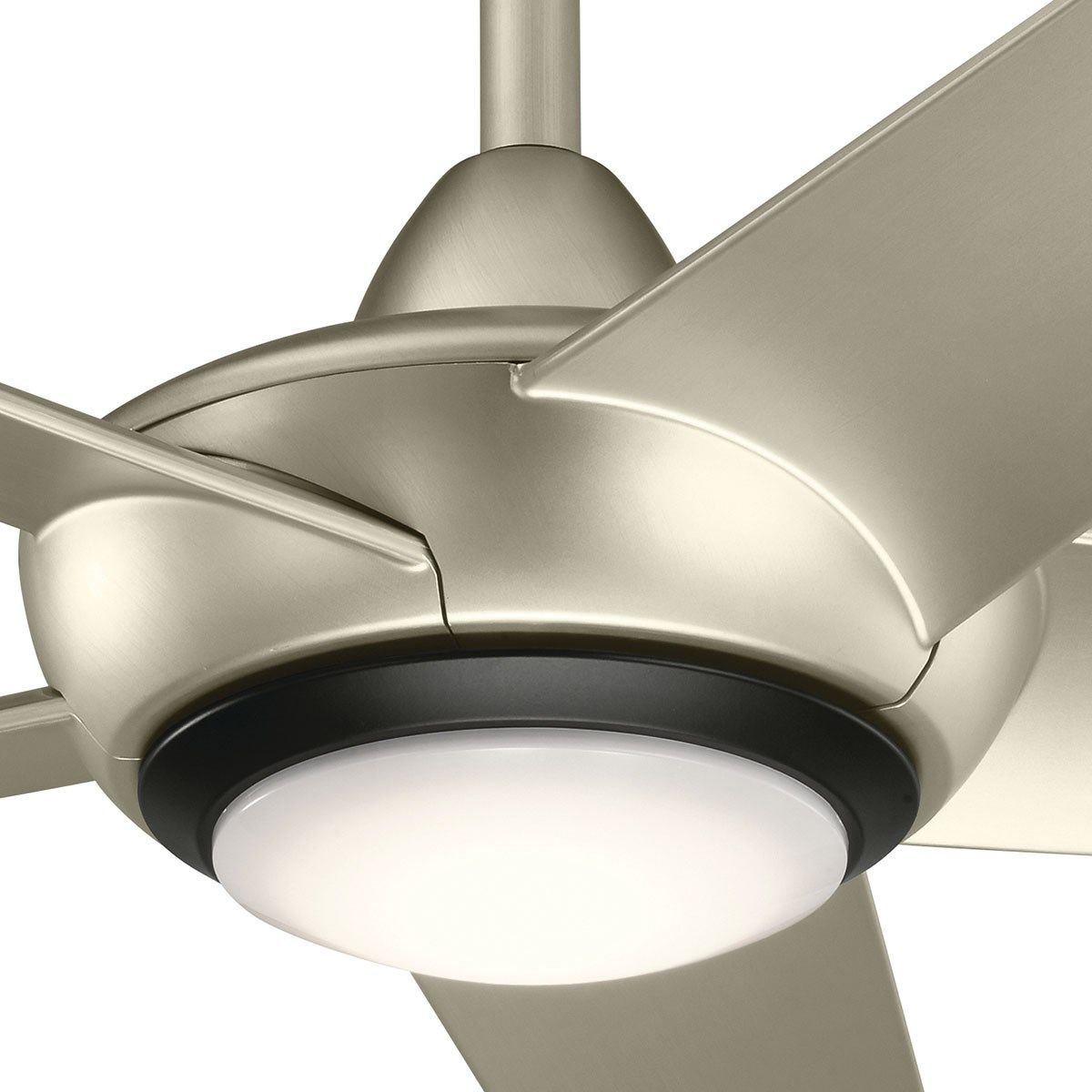

The integrated dimmable 17W LED provides 1,400 lumens at 3000K with 90 CRI and a frosted white polycarbonate diffuser. High-speed airflow is 5,620 CFM at 77 CFM/W.

Electrical & Installation

Operates on 120V and draws 90W total, combining 73W for the fan and 17W for the LED. The AC motor is reversible. Includes a 6 in downrod; the maximum mounting slope is 18°. The canopy measures 5.25 in wide and deep by 2.13 in high, and the lead wire is 78 in. Maintain at least 7 ft between the floor and the fan blades.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Kapono ceiling fan with Brushed Nickel finish and five matching ABS blades
• Integrated 17W LED light with frosted white polycarbonate diffuser
• Three-speed CoolTouch handheld control and battery
• 6 in downrod
• Four interchangeable trim rings in Black, White, Brushed Nickel, and Natural Brass
• Mounting Hardware
