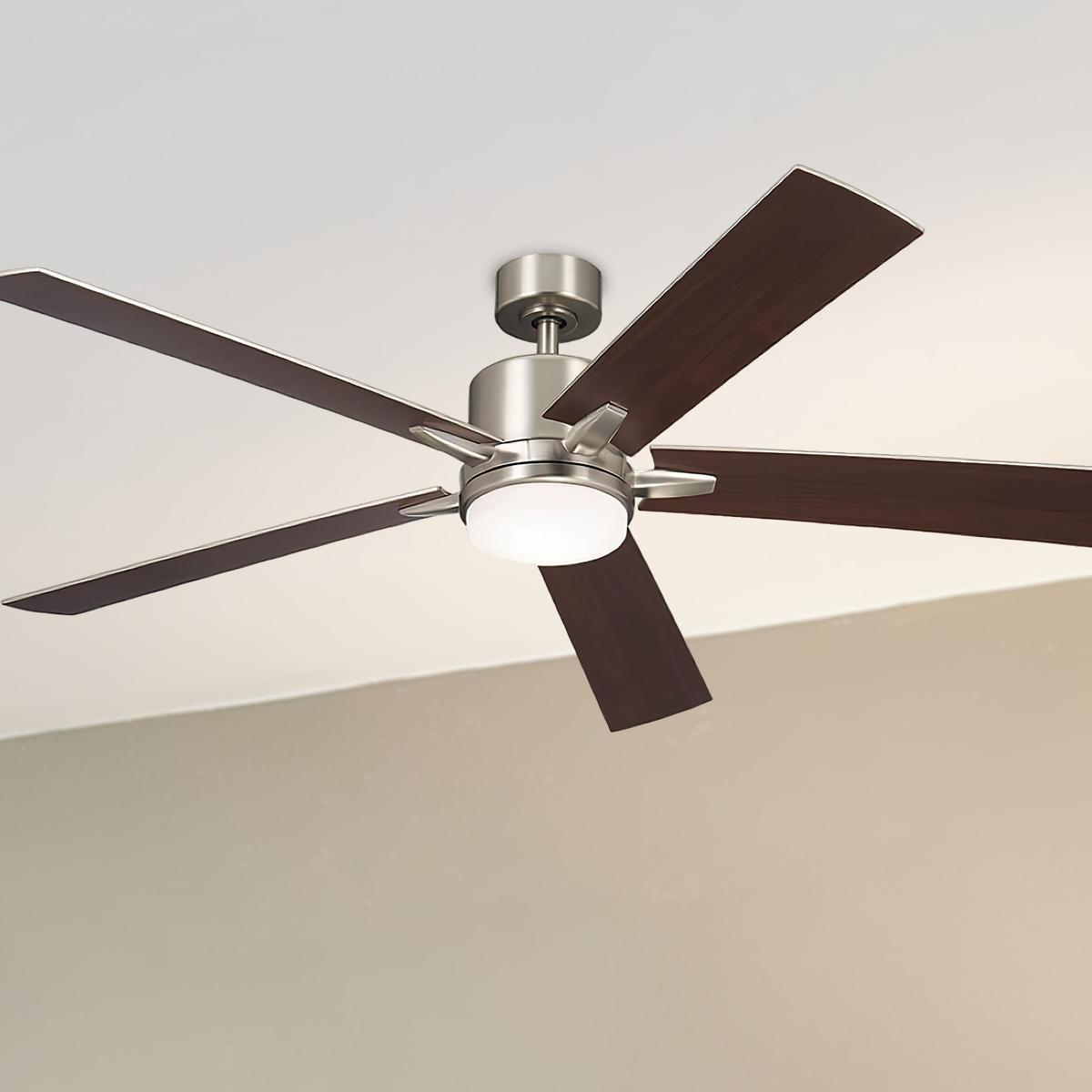

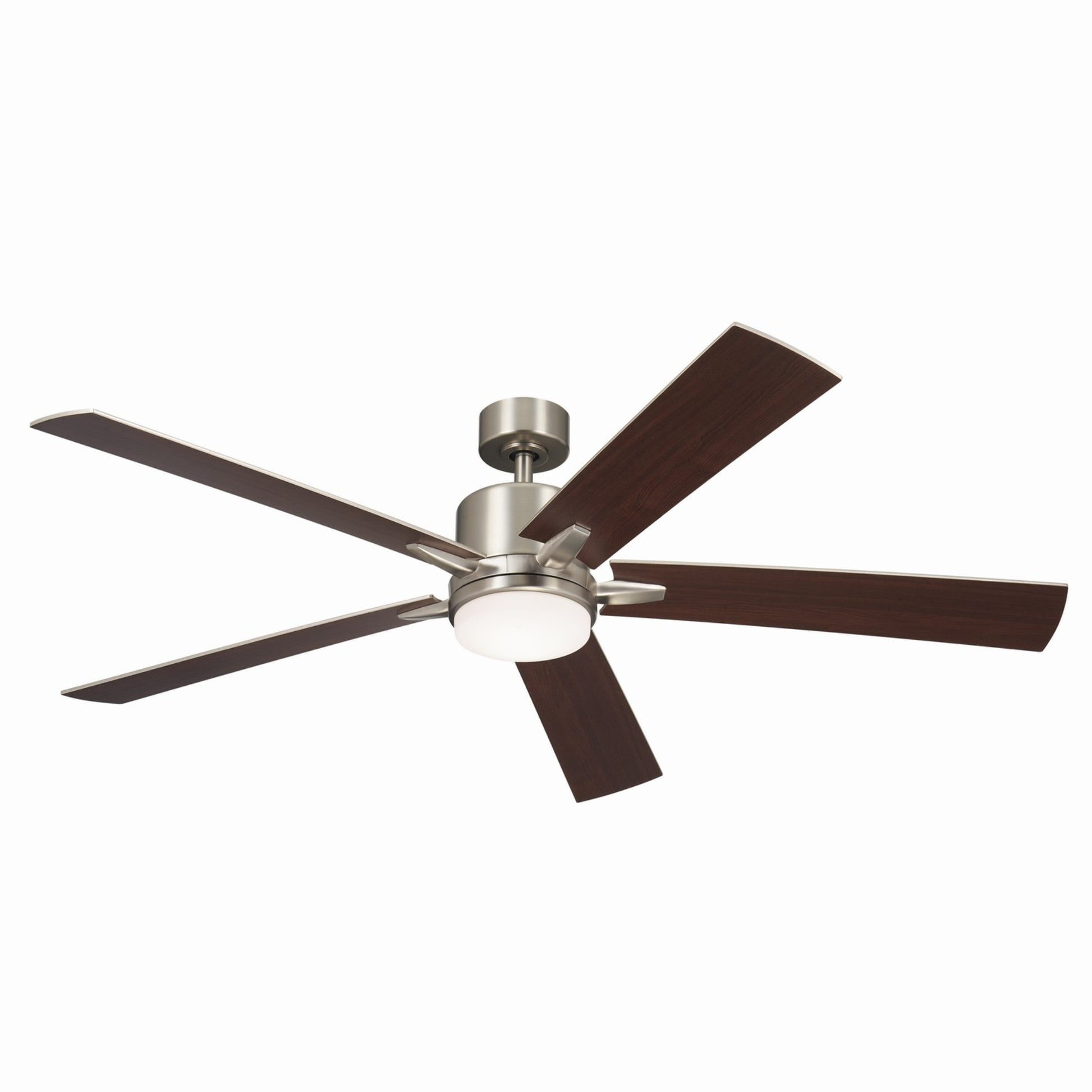

The Kichler Lucian Elite XL, model 330060NI, pairs a 60 in span and five reversible wood blades with an AC induction motor delivering 5,849 CFM at 68 CFM/W. Its integrated LED provides 1,600 lumens at 3000K. This Dry Rated fan is intended for indoor use.

Key Features

• Blade Span: 60 in with five reversible wood blades.

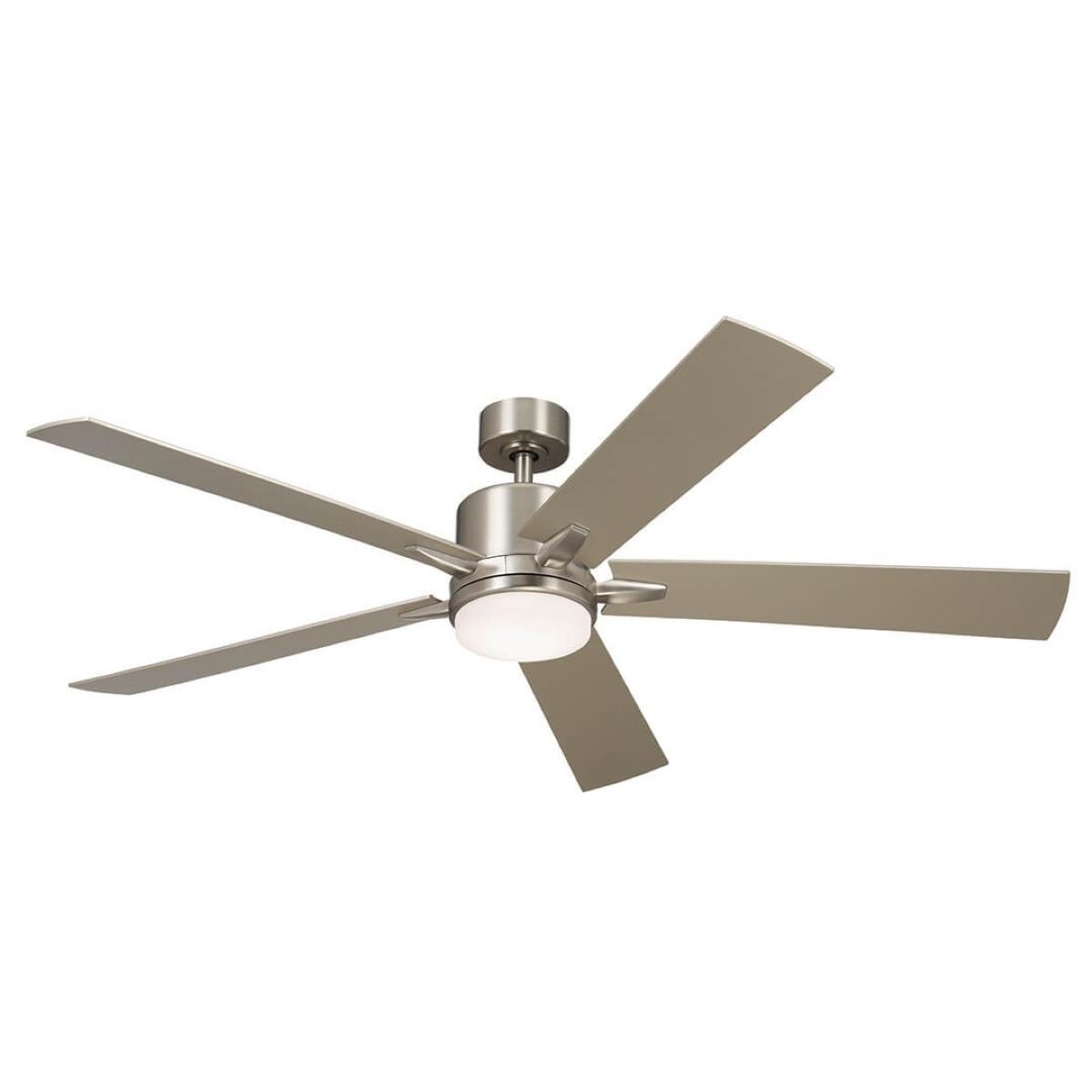

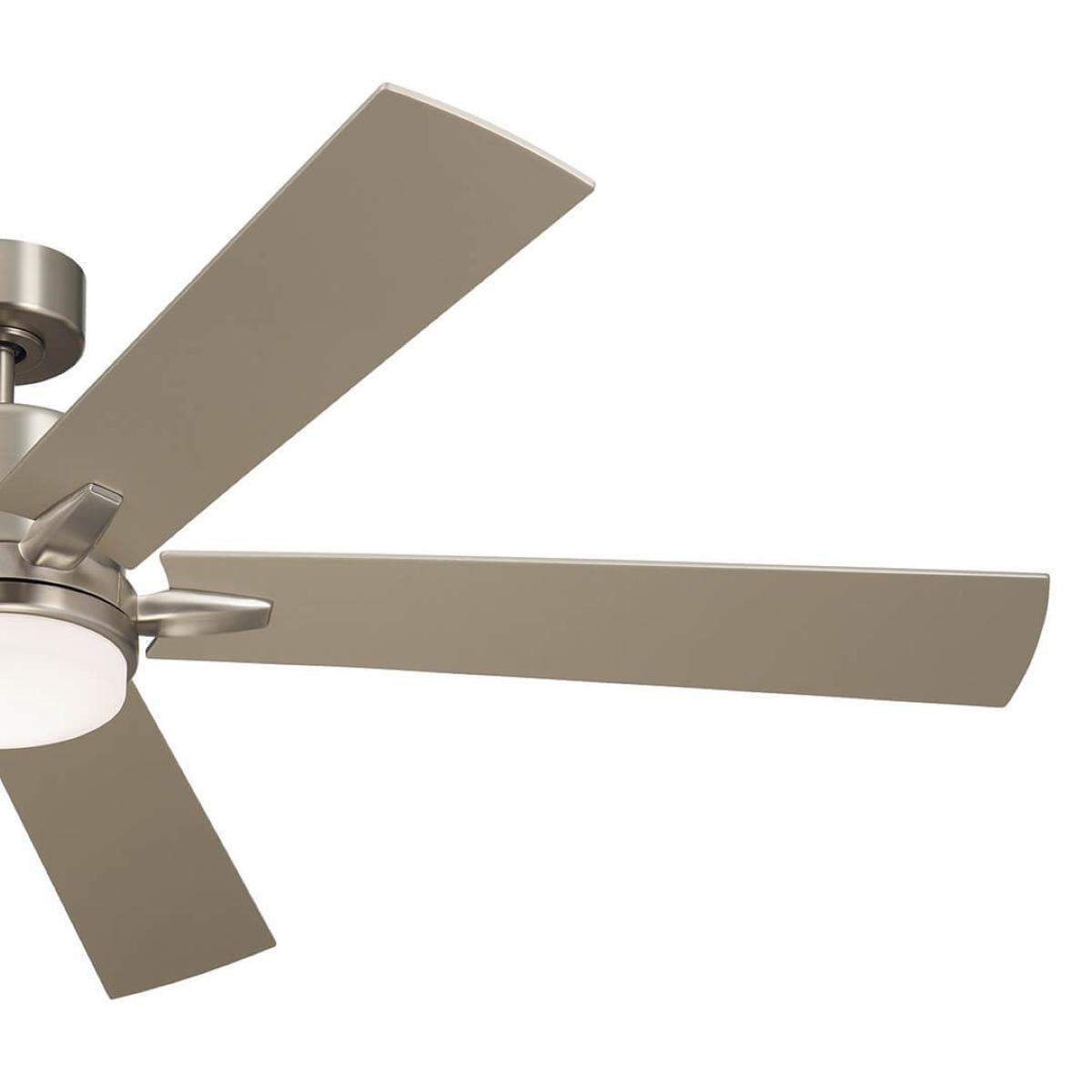

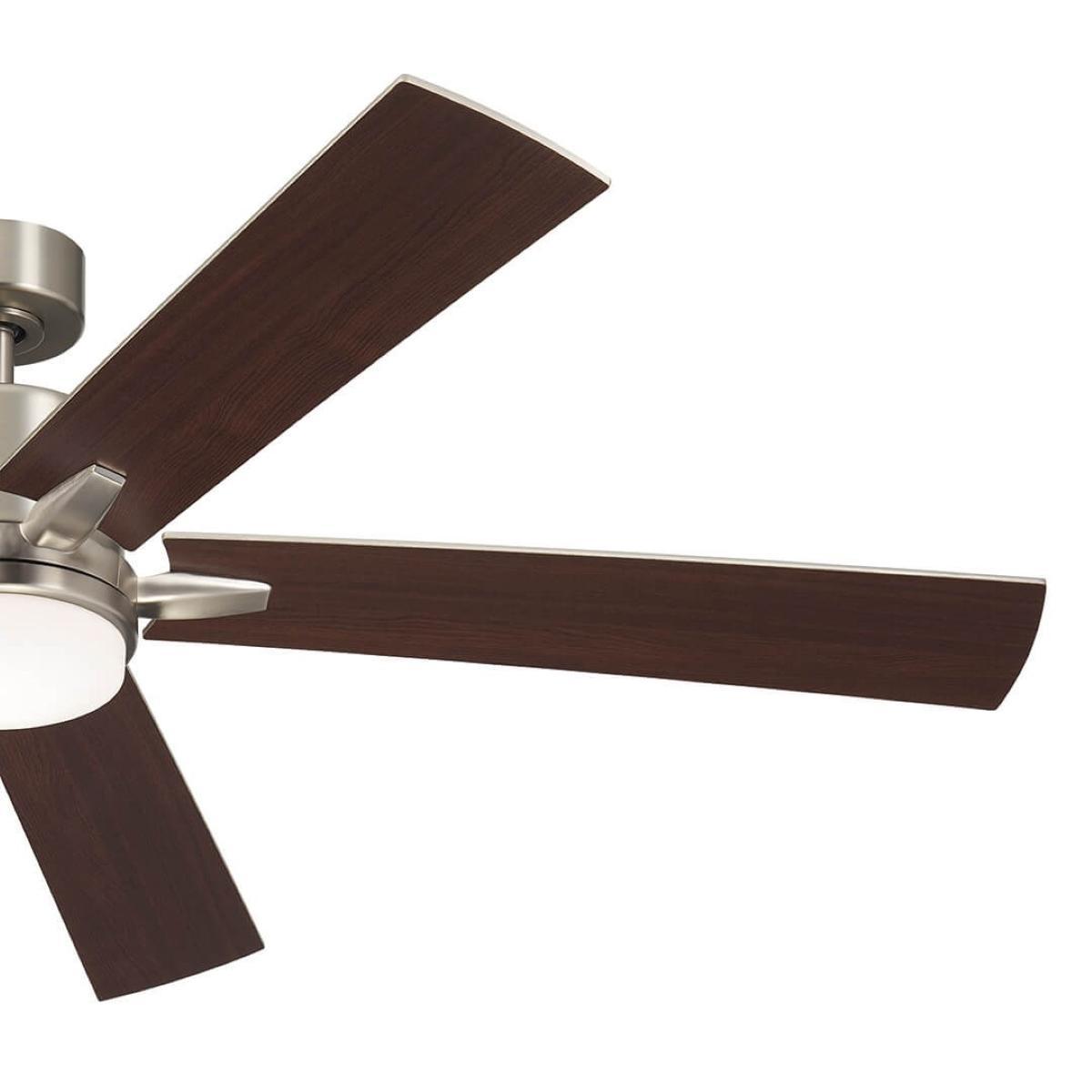

• Blade Design: Reversible blades offer Walnut and Silver finishes with a 14° pitch.
• Motor: 172 mm x 20 mm AC induction motor reaches 128 RPM on high and draws 0.74 amps.
• Airflow: 5,849 CFM at high speed and 68 CFM/W.
• Power: 85W fan draw plus 17W for the integrated LED.
• Integrated LED: Dimmable 17W light provides 1,600 lumens, 80 CRI, and 3000K.
• Location Rating: Dry Rated and cULus listed for indoor use.
• Included Control: Three-speed limited-function wall control with manual reverse and full-range light dimming.
• Optional Controls: 370125 handheld remote and 370145 wall control are sold separately.
• Mounting: Includes a 4 in downrod; standard mounting supports a maximum 18° slope. Not adaptable for low ceilings.

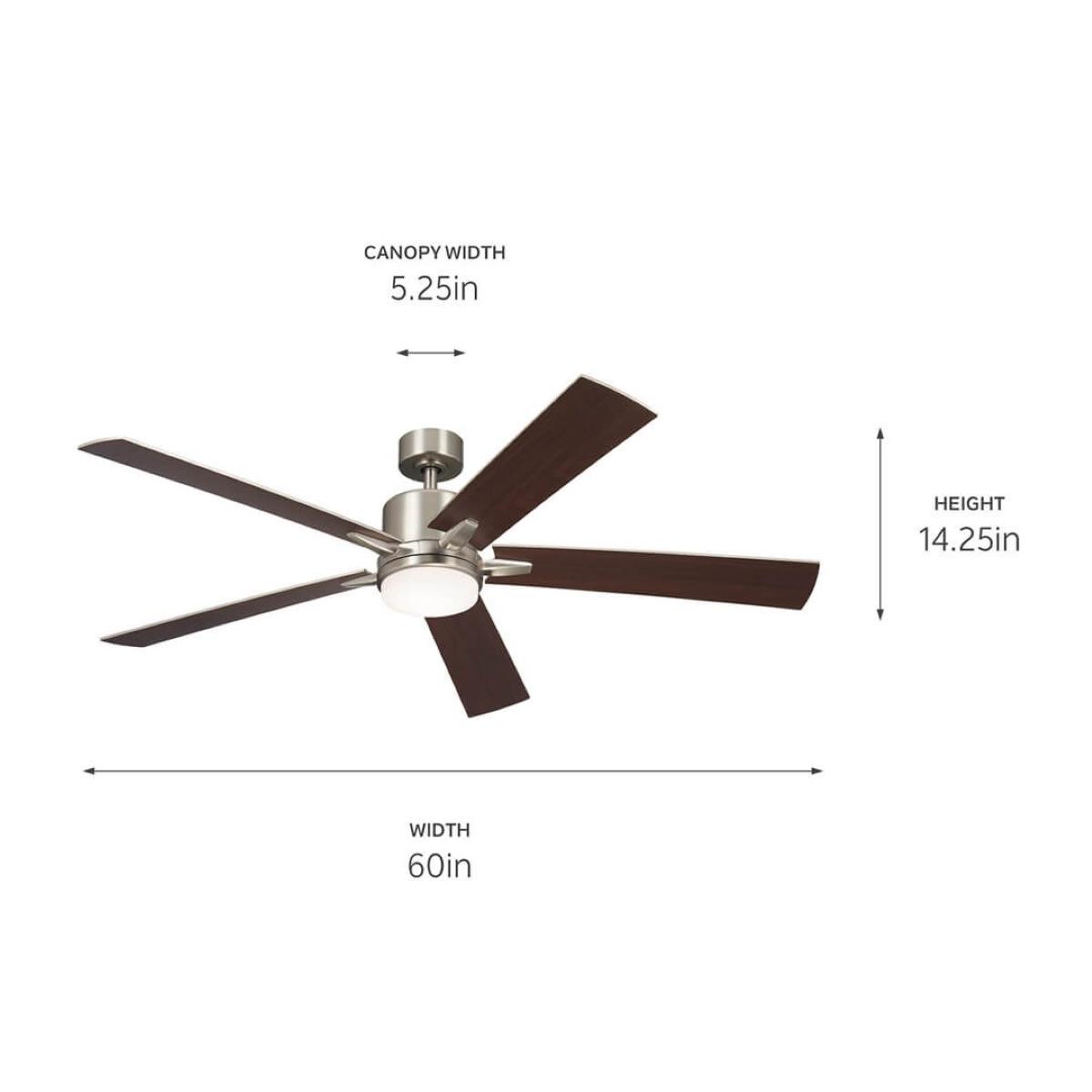

• Dimensions: 14.25 in fixture drop, 9.75 in blade drop, 7.5 in housing width, 5.25 in canopy width and depth by 2.25 in high, and 78 in lead wire.

Advanced Control Features

The included three-speed wall control offers three forward speeds, motor off, manual reverse, and full-range light dimming, with 16 frequency options. Optional controls sold separately are the 370125 3-Speed AC Motor Handheld Remote Control Transmitter, Limited Function and the 370145 3-Speed AC Motor Wall Control Transmitter, Limited Function.

Construction & Design

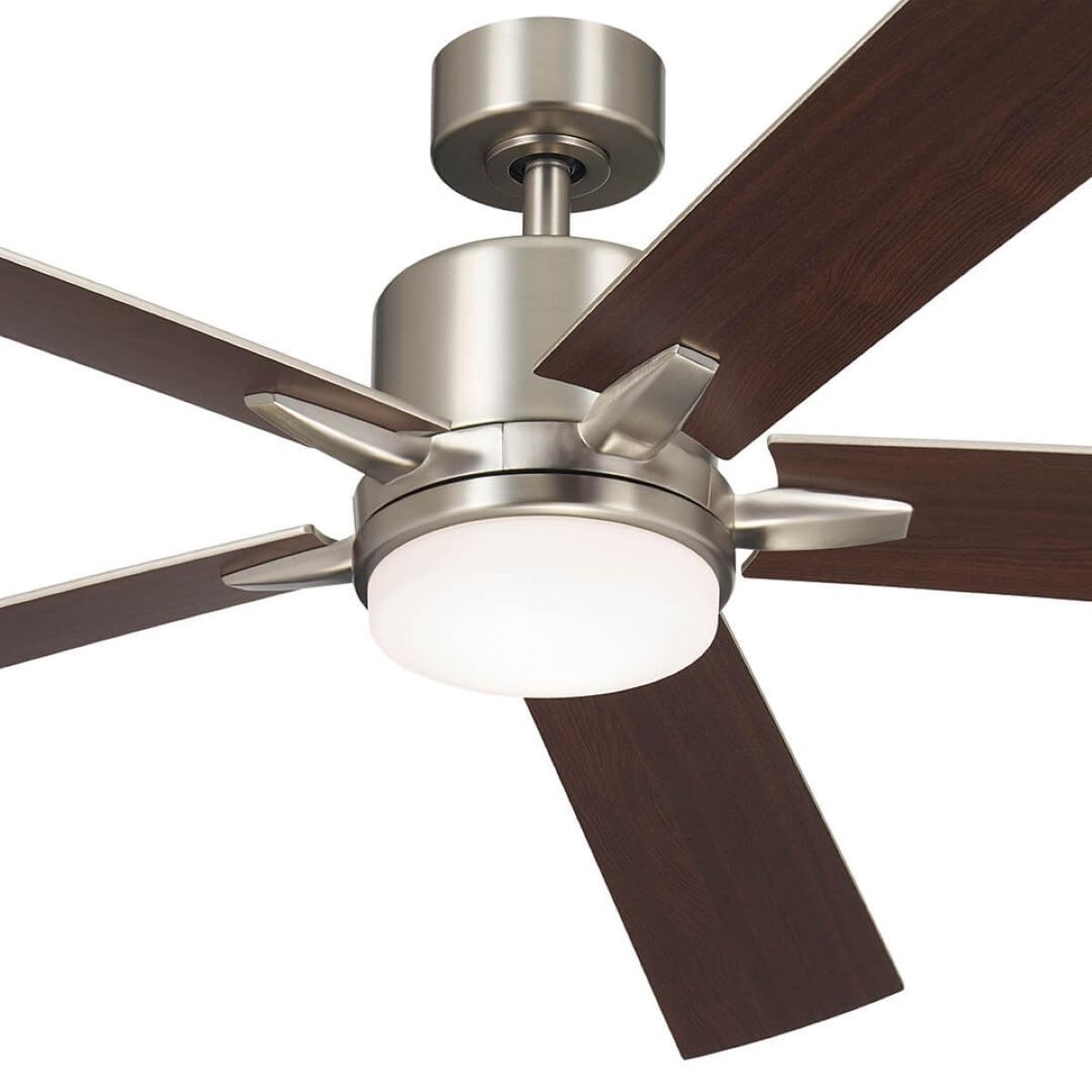

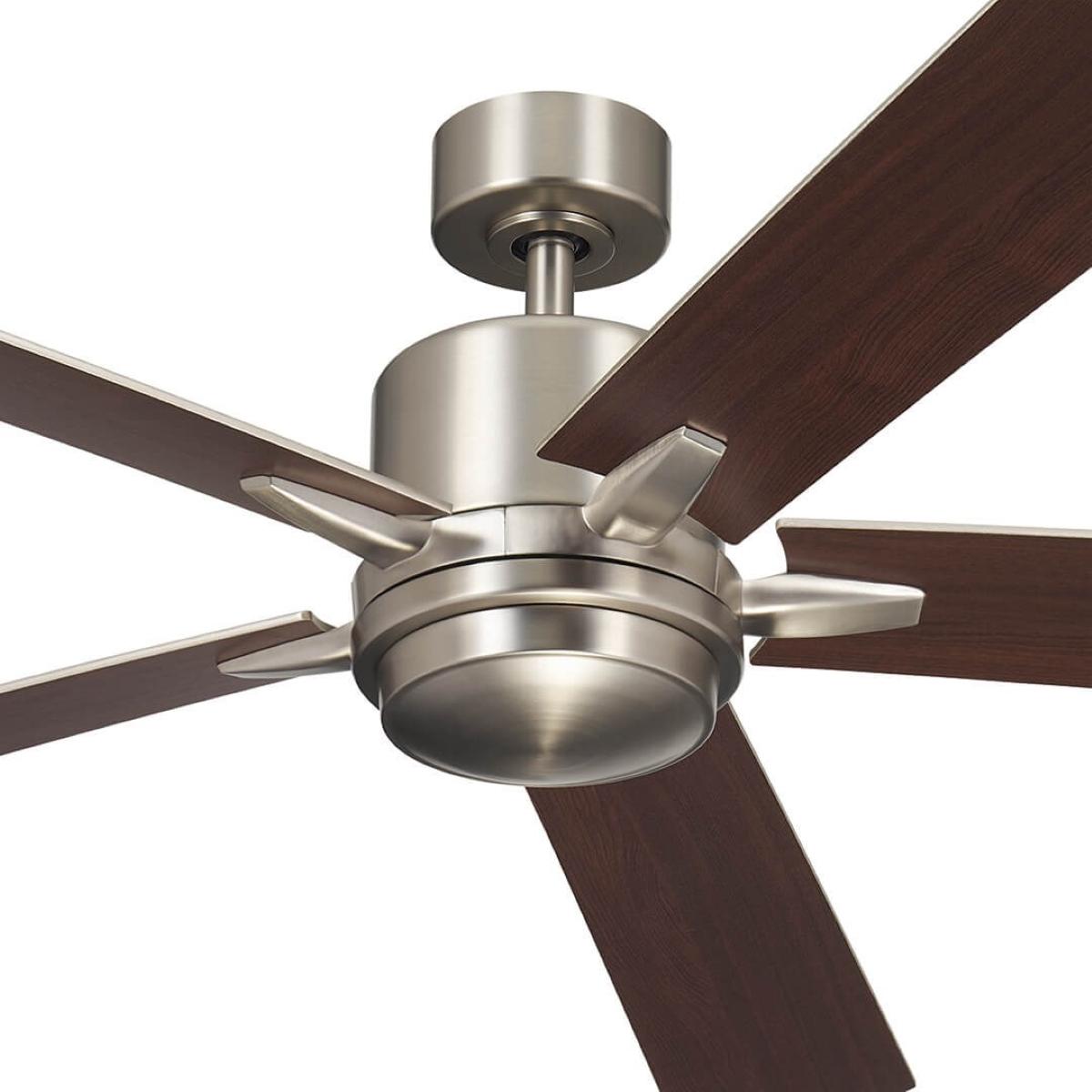

The steel motor housing has a Brushed Nickel finish and measures 7.5 in wide. Five reversible wood blades have Walnut and Silver finishes and a 14° pitch. The integrated LED uses an etched cased opal diffuser. The canopy measures 5.25 in wide and deep by 2.25 in high. The reversible blade design lets you choose a Walnut or Silver appearance against the Brushed Nickel housing.

Light Output & Performance

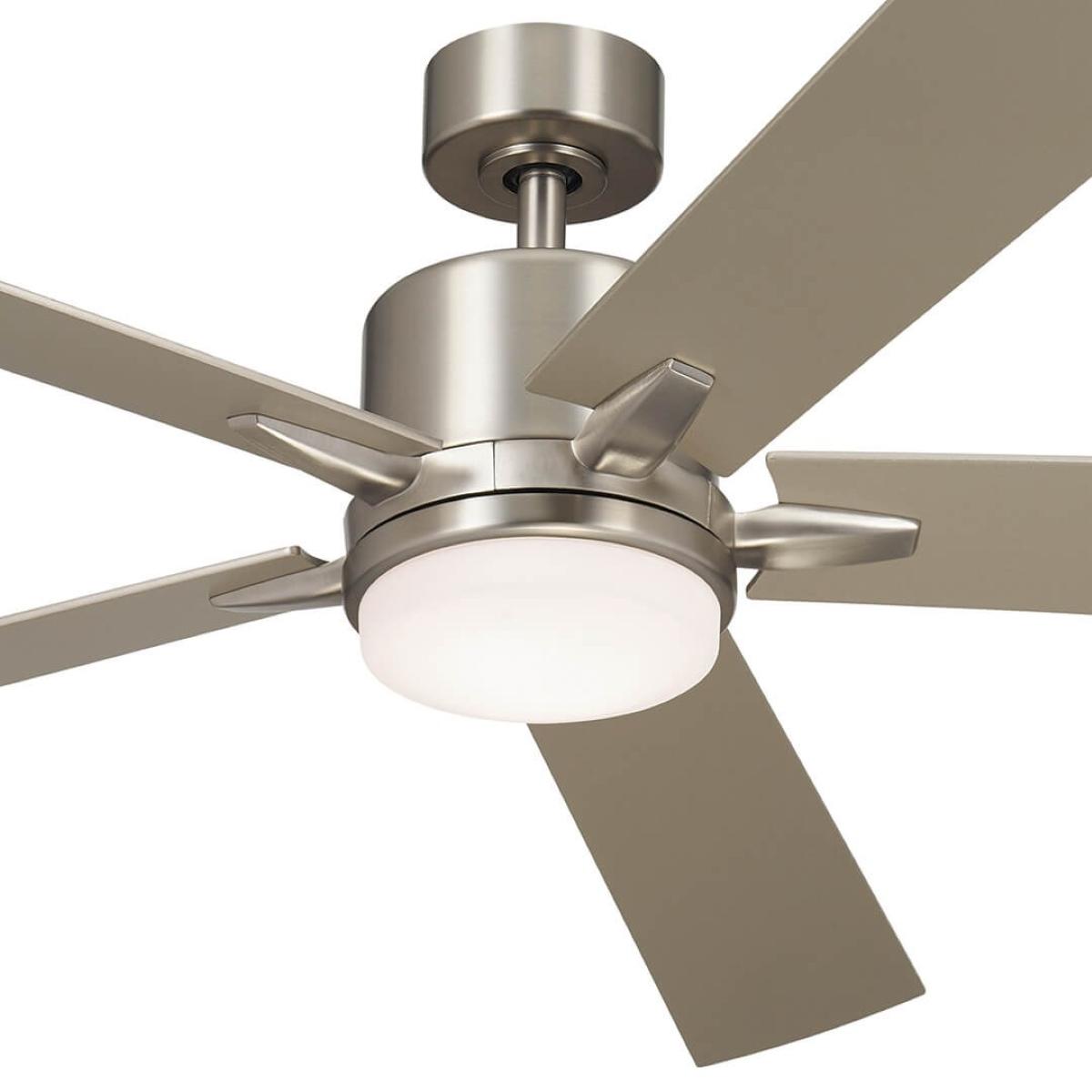

The integrated dimmable 17W LED provides 1,600 lumens at 3000K with 80 CRI through an etched cased opal diffuser. Full-range light dimming is available from the included wall control. High-speed airflow is 5,849 CFM at 68 CFM/W.

Electrical & Installation

Operates at 120V and draws 102W total, combining 85W for the fan and 17W for the LED. The AC motor is reversible. Includes a 4 in downrod and supports standard ceiling slopes up to 18°. It is not adaptable for low ceilings. The optional Kichler 337005 60 Degree Slope Adapter supports installations over 20° and up to 60°. The canopy measures 5.25 in wide and deep by 2.25 in high, and the lead wire is 78 in.

Suggested Downrod by Ceiling Height

Ships with a 4 in downrod.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Lucian Elite XL ceiling fan with Brushed Nickel housing and five reversible wood blades
• Integrated 17W LED light with etched cased opal diffuser
• Three-speed limited-function wall control
• 4 in downrod

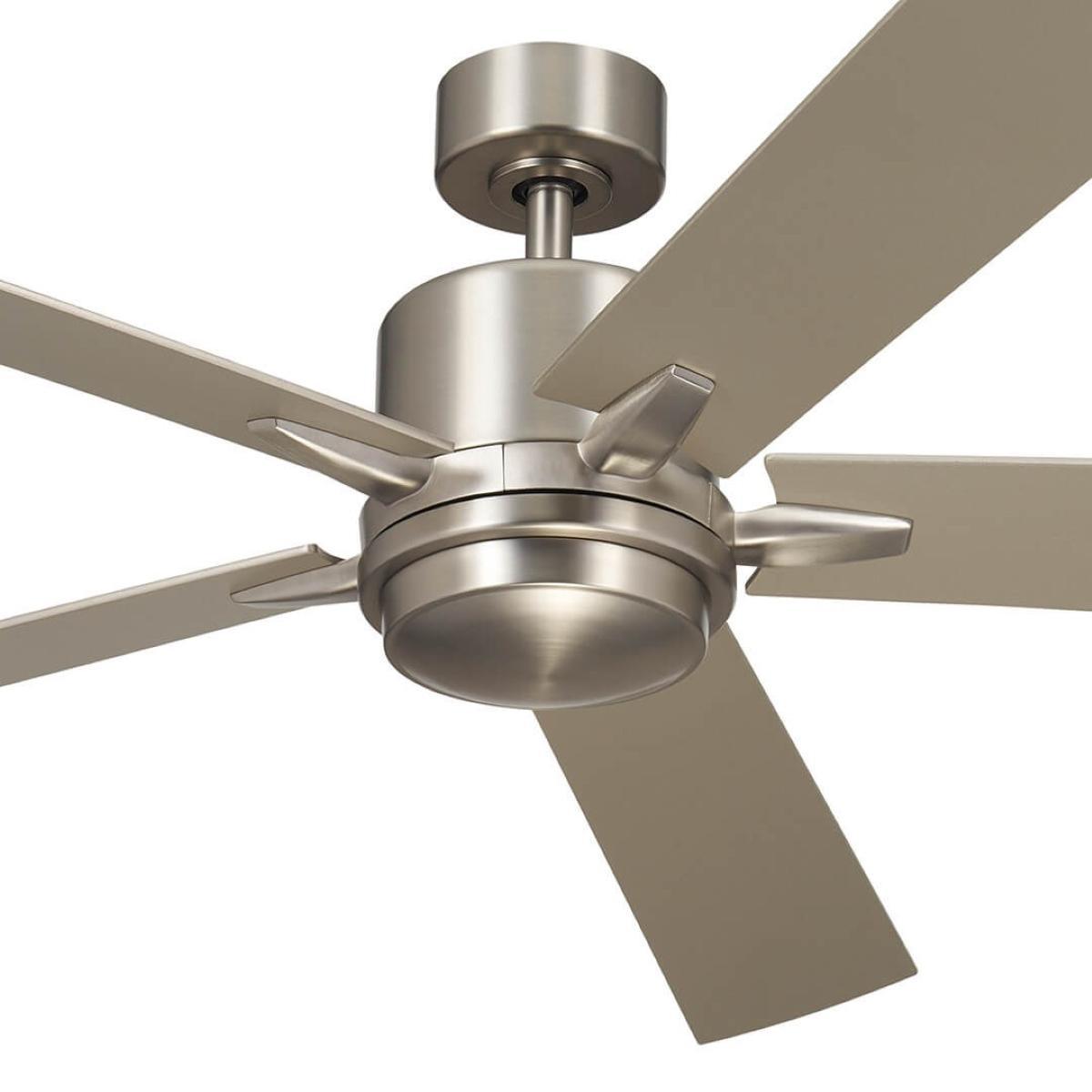

• Metal fixture cap for non-light use
• Mounting Hardware
