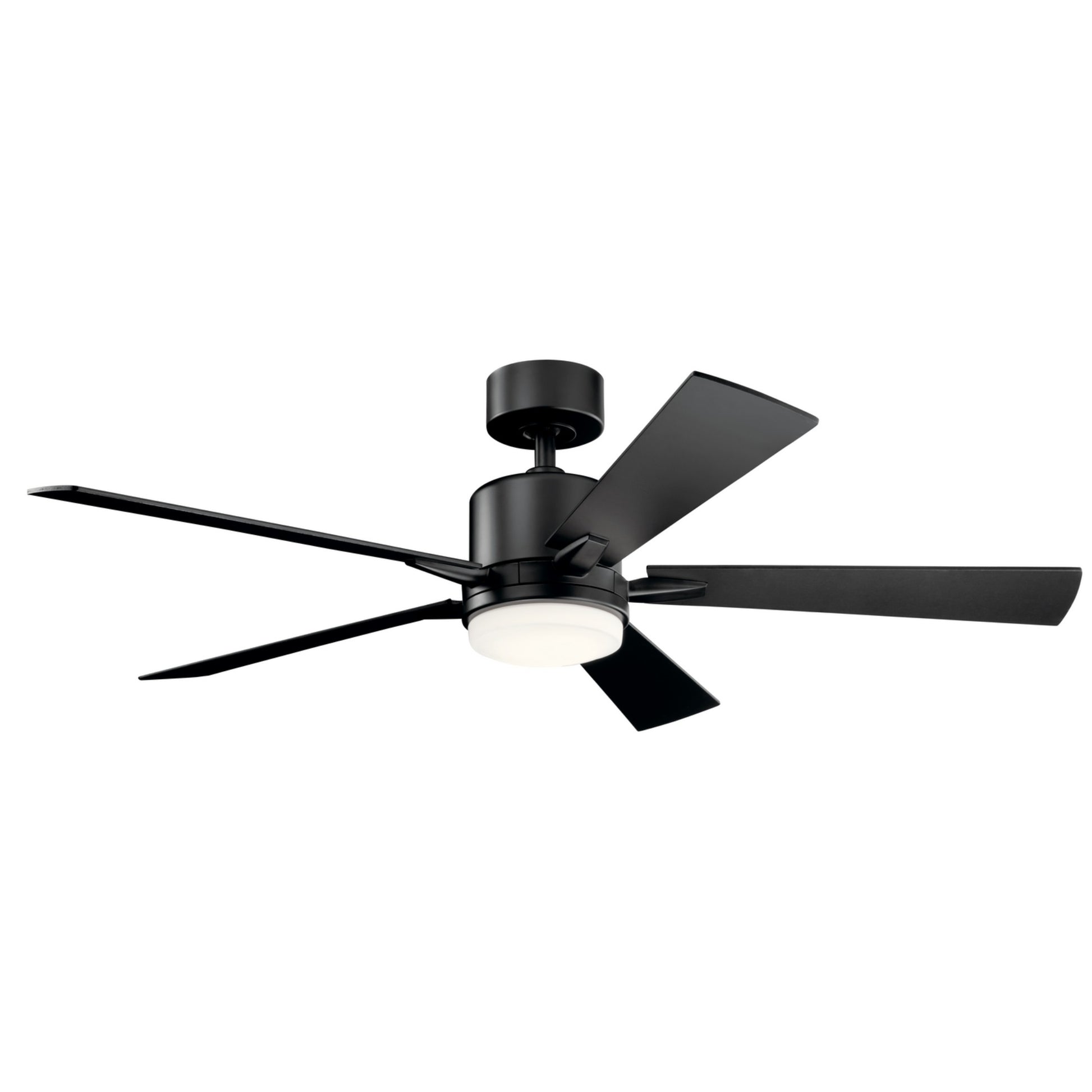

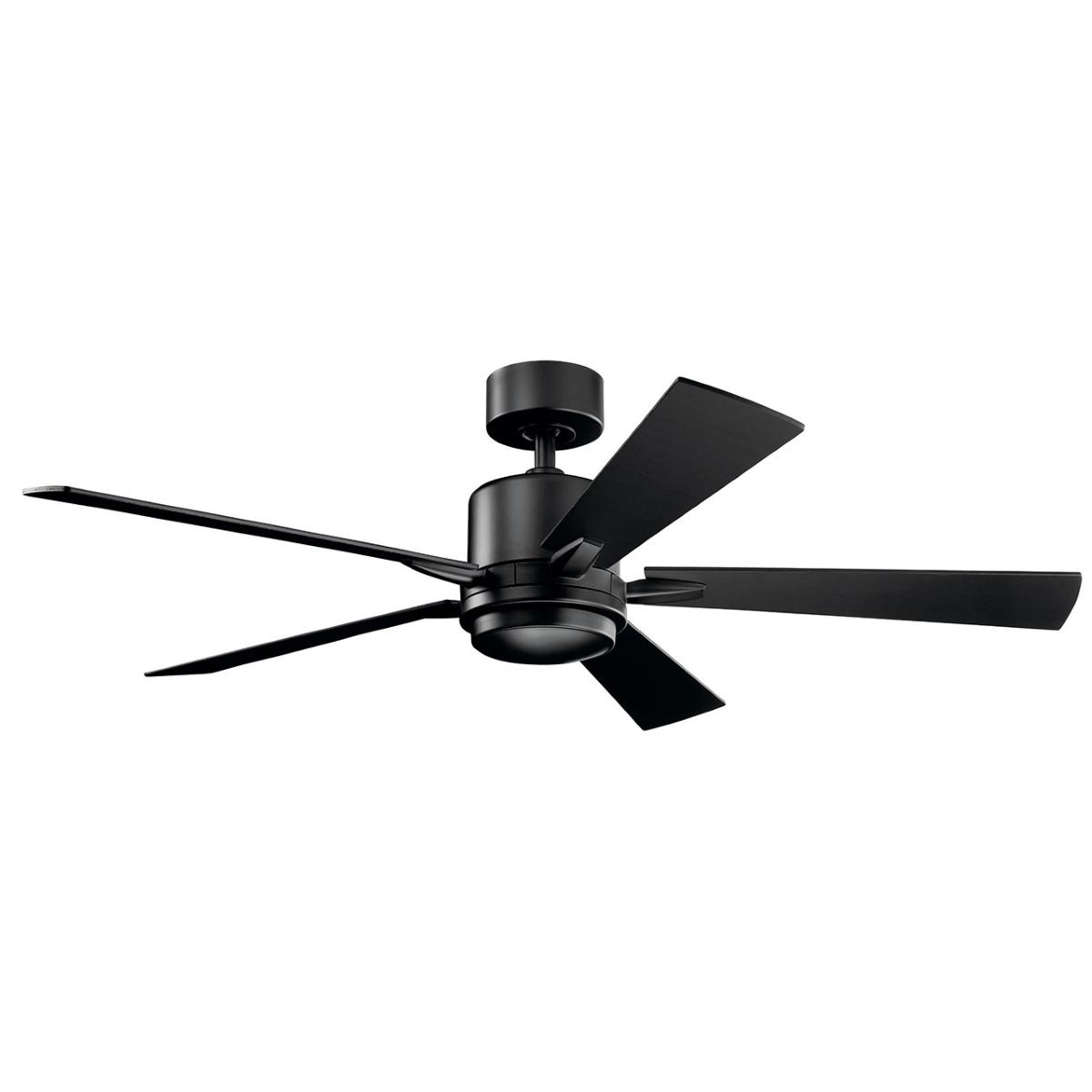

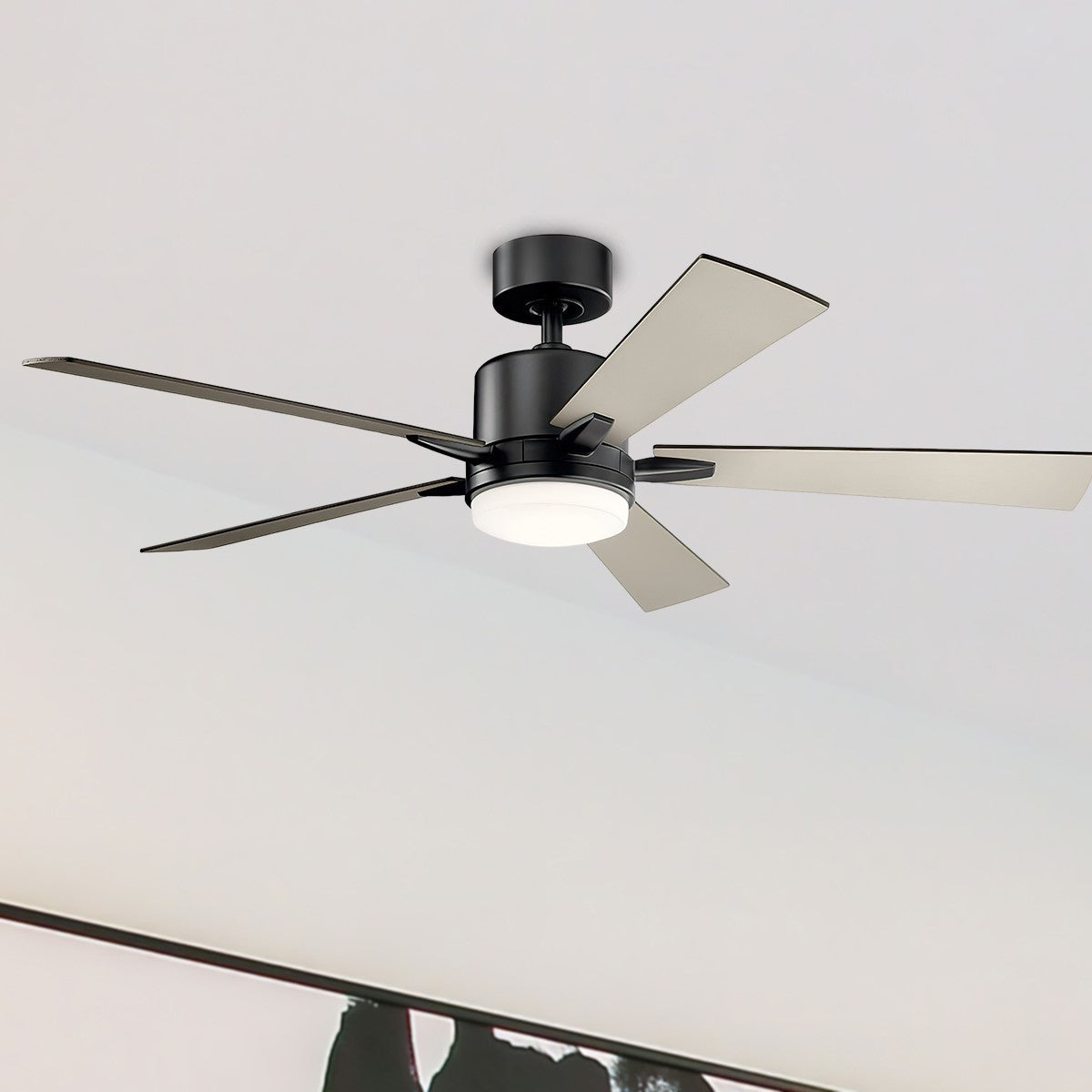

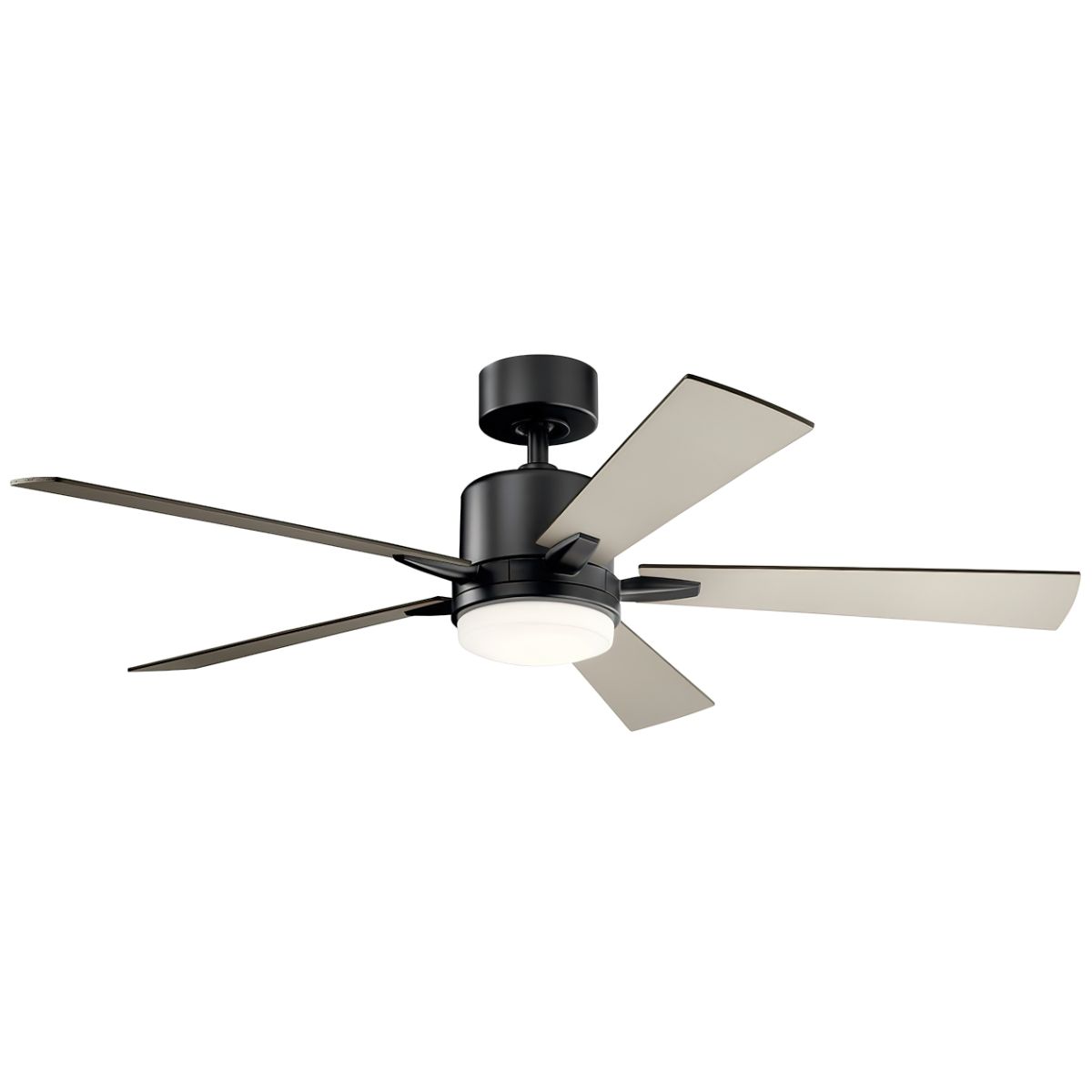

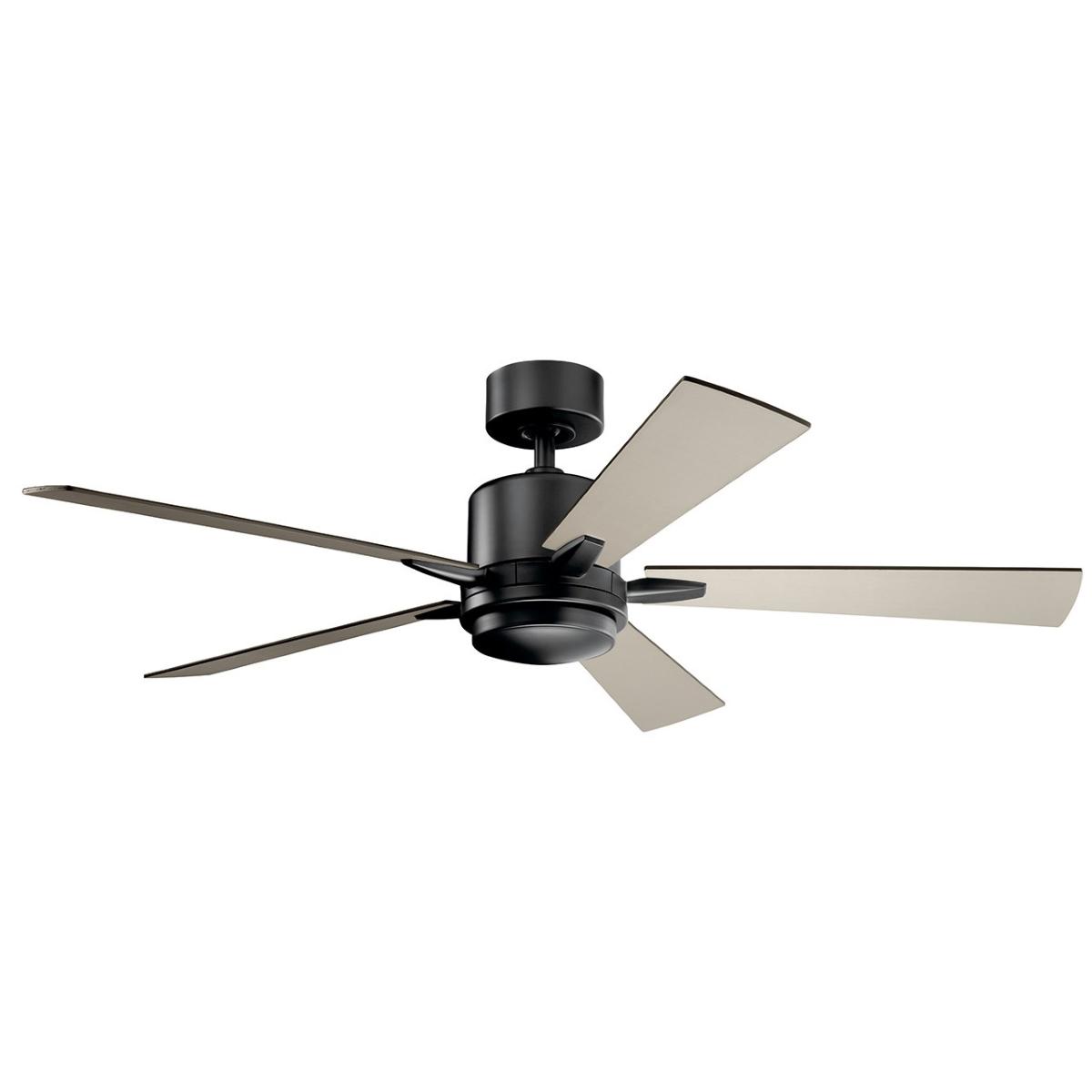

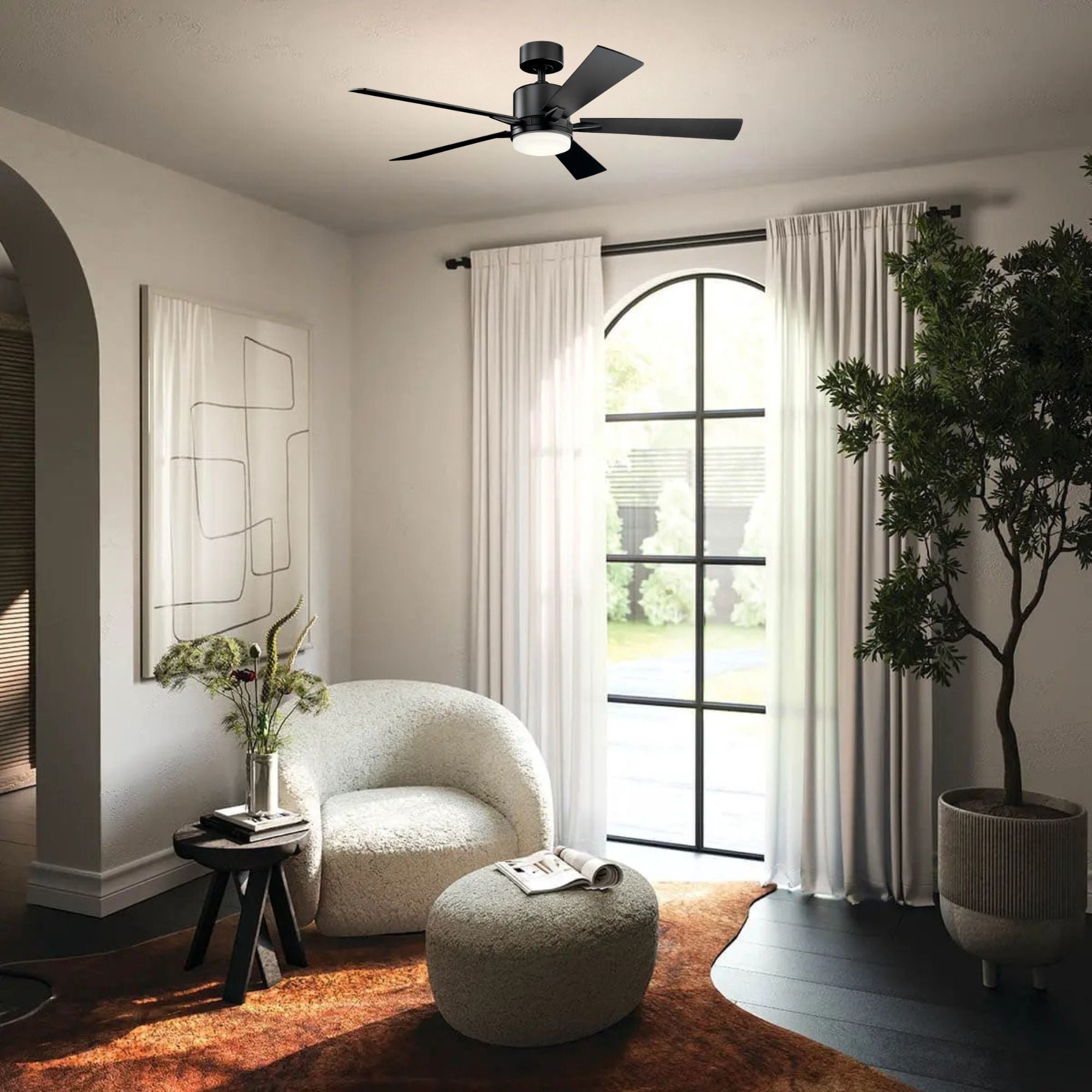

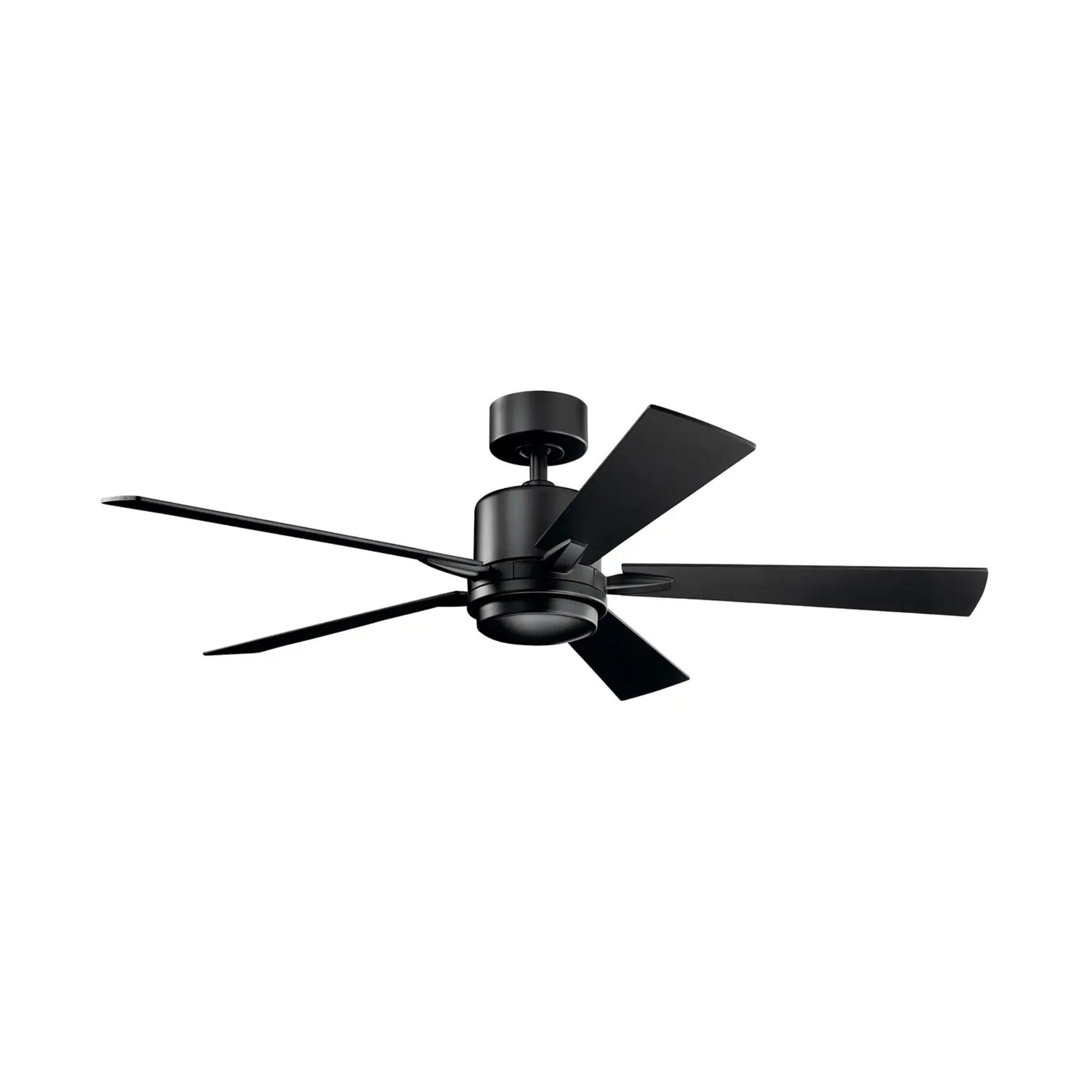

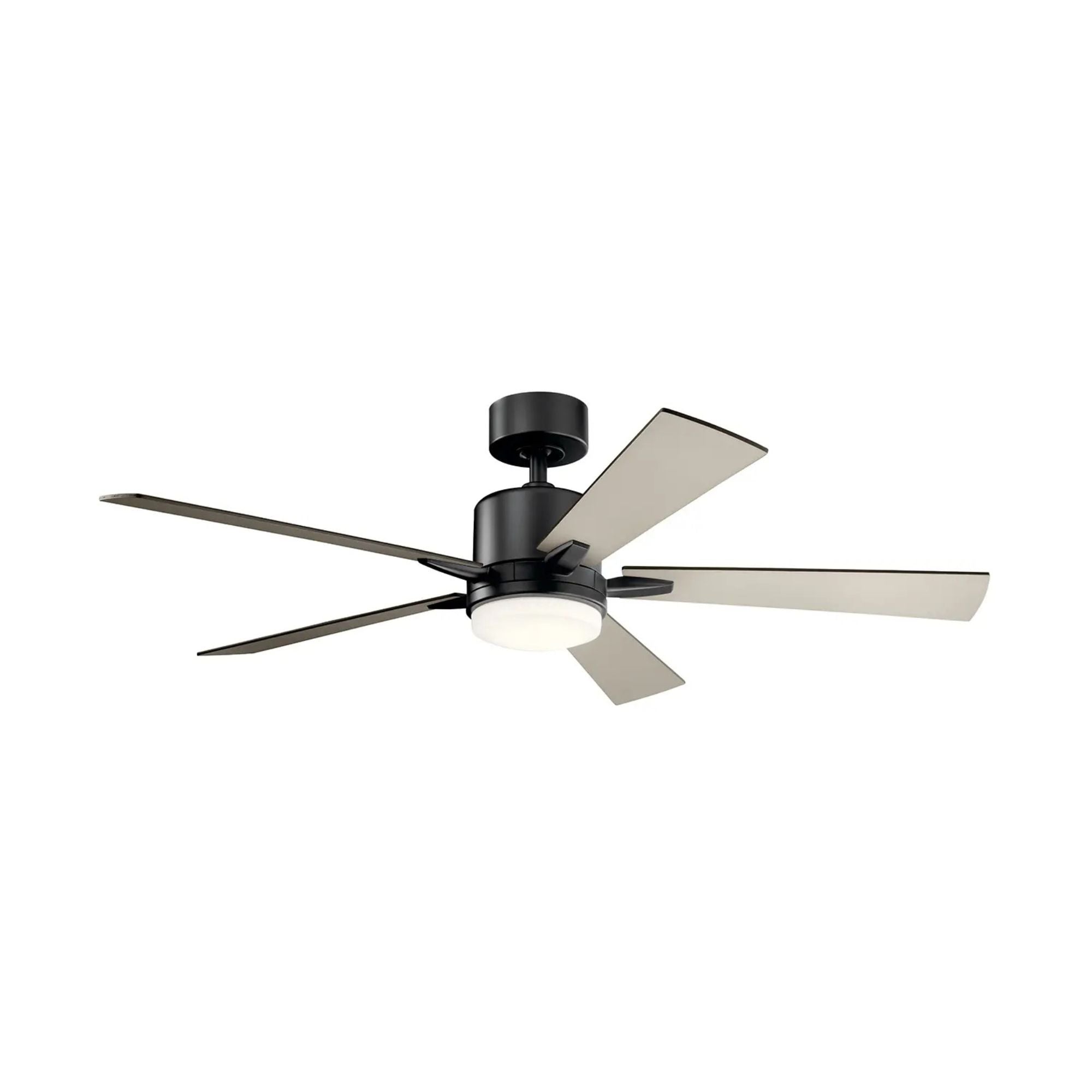

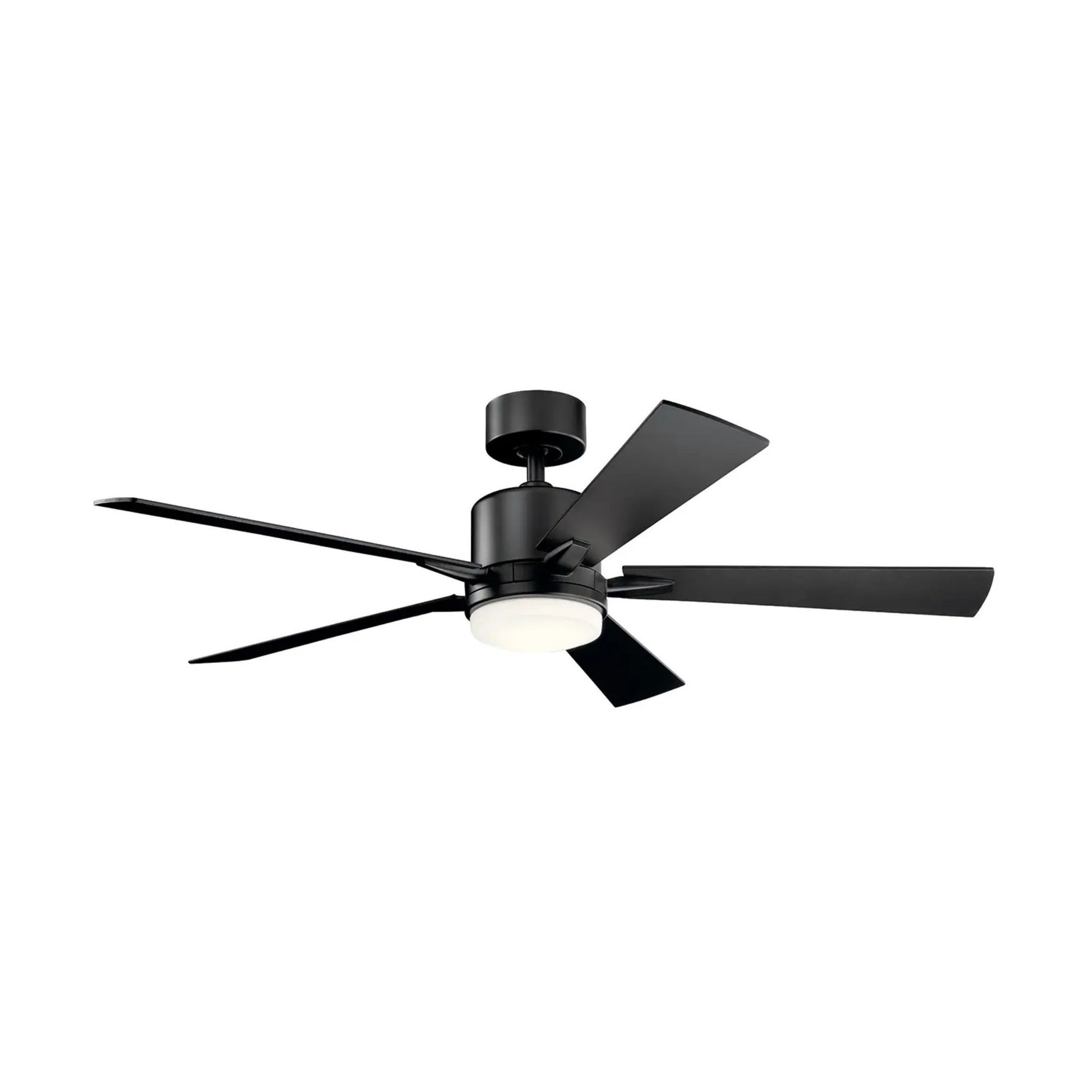

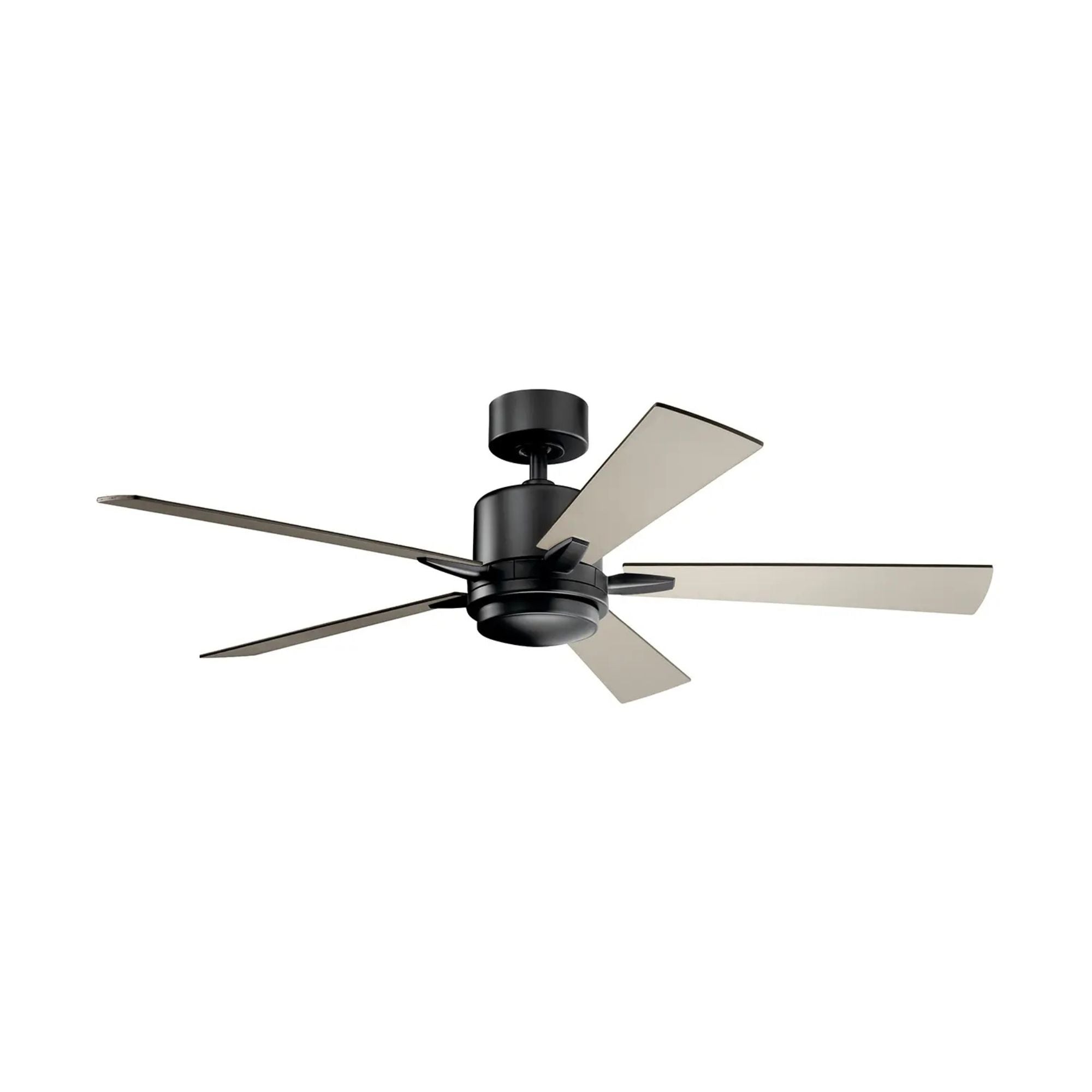

The Kichler Lucian Elite, model 330000SBK, pairs a 52 in span and five reversible wood blades with an AC induction motor delivering 5,356 CFM at 75 CFM/W. Its integrated LED provides 1,600 lumens at 3000K. This Dry Rated fan is intended for indoor use.

Key Features

• Blade Span: 52 in with five reversible wood blades.

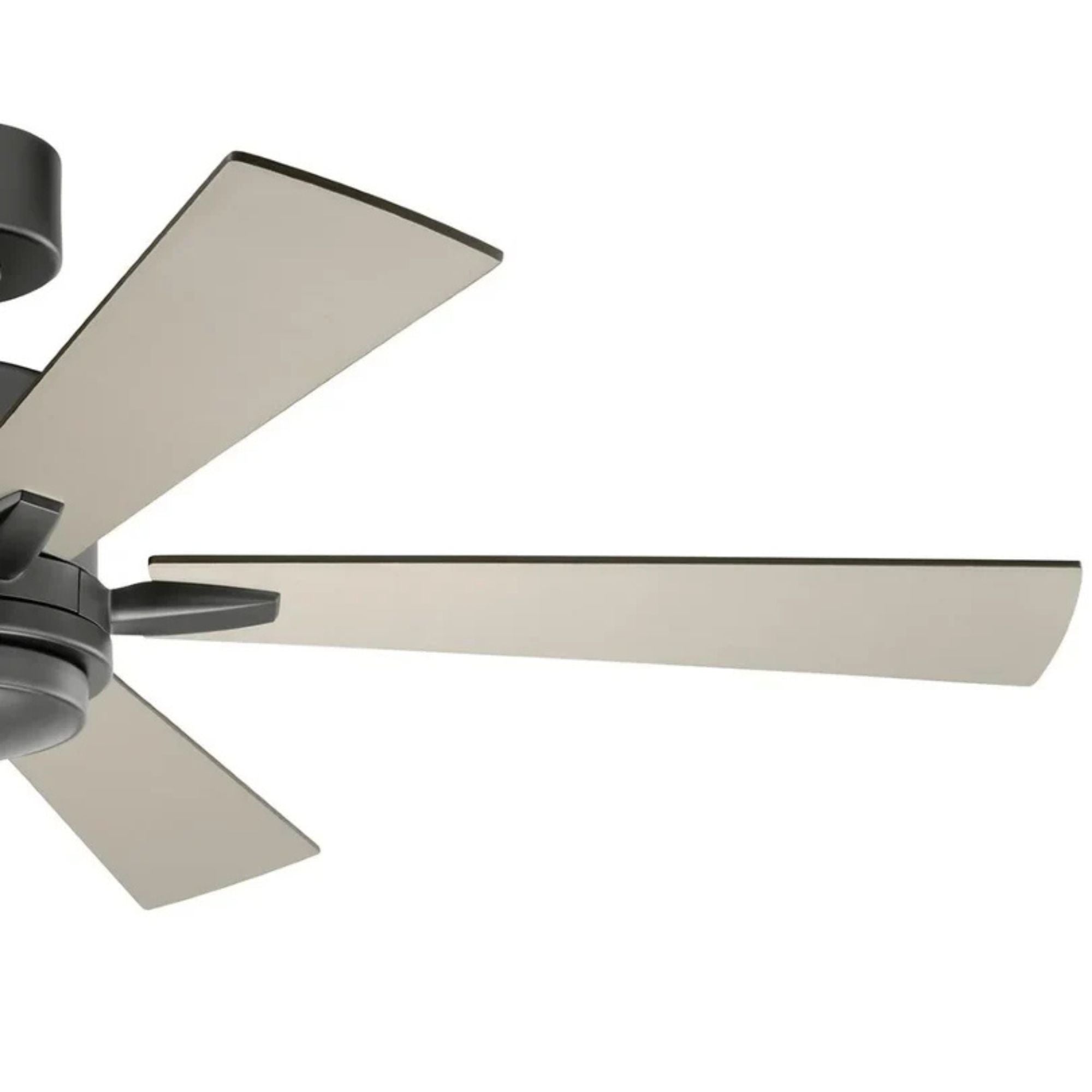

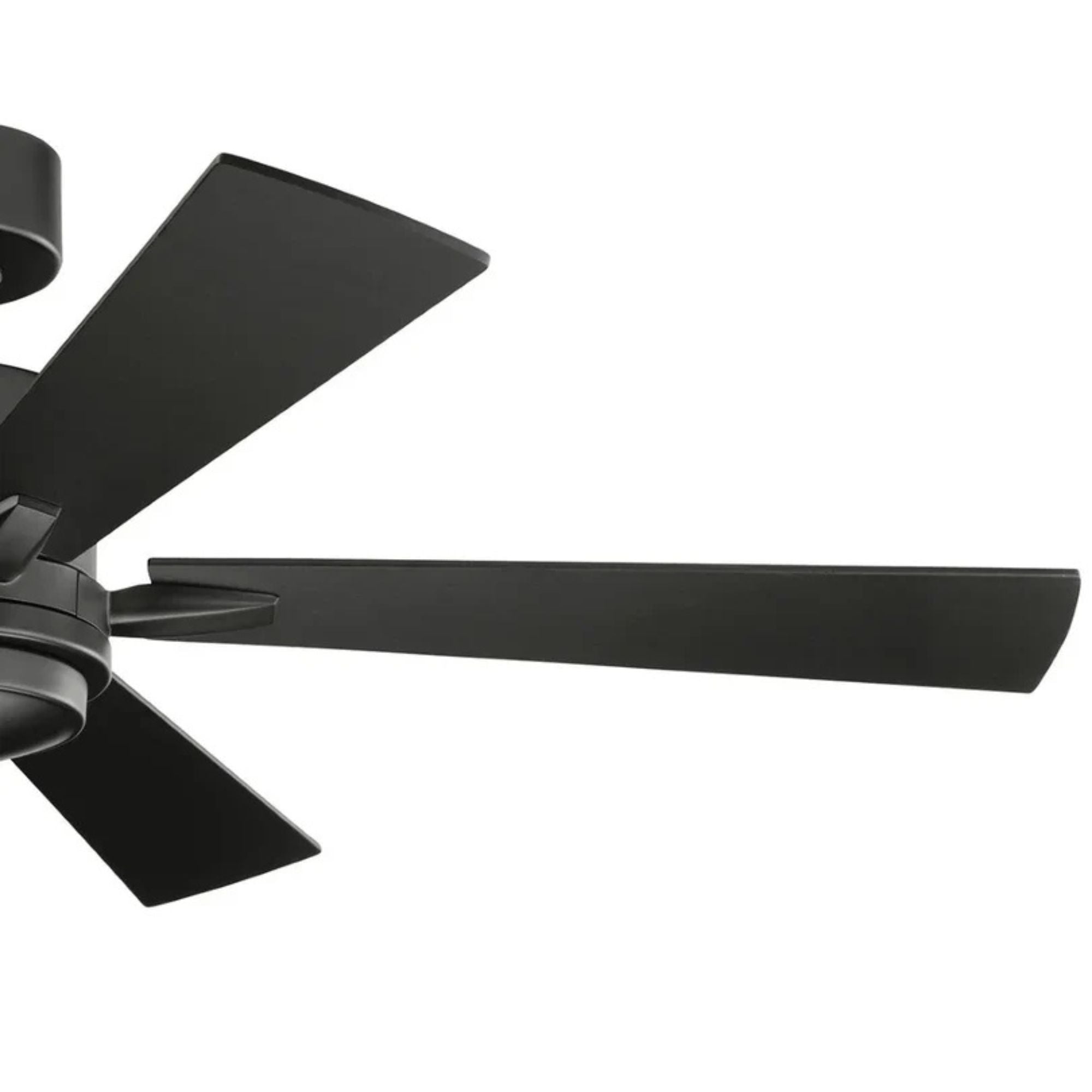

• Blade Design: Reversible blades offer Silver and Black finishes with a 14° pitch.
• Motor: 172 mm x 20 mm AC induction motor reaches 155 RPM on high and draws 0.6 amps.
• Airflow: 5,356 CFM at high speed and 75 CFM/W.
• Power: 72W fan draw plus 17W for the integrated LED.
• Integrated LED: Dimmable 17W light provides 1,600 lumens, 80 CRI, 3000K, and a 40,000-hour rated life.
• Location Rating: Dry Rated for indoor use.
• Included Control: Three-speed limited-function wall control with manual reverse and full-range light dimming.
• Optional Controls: 370125 handheld remote and 370145 wall control are sold separately.
• Mounting: Includes a 4 in downrod; standard mounting supports a maximum 18° slope.

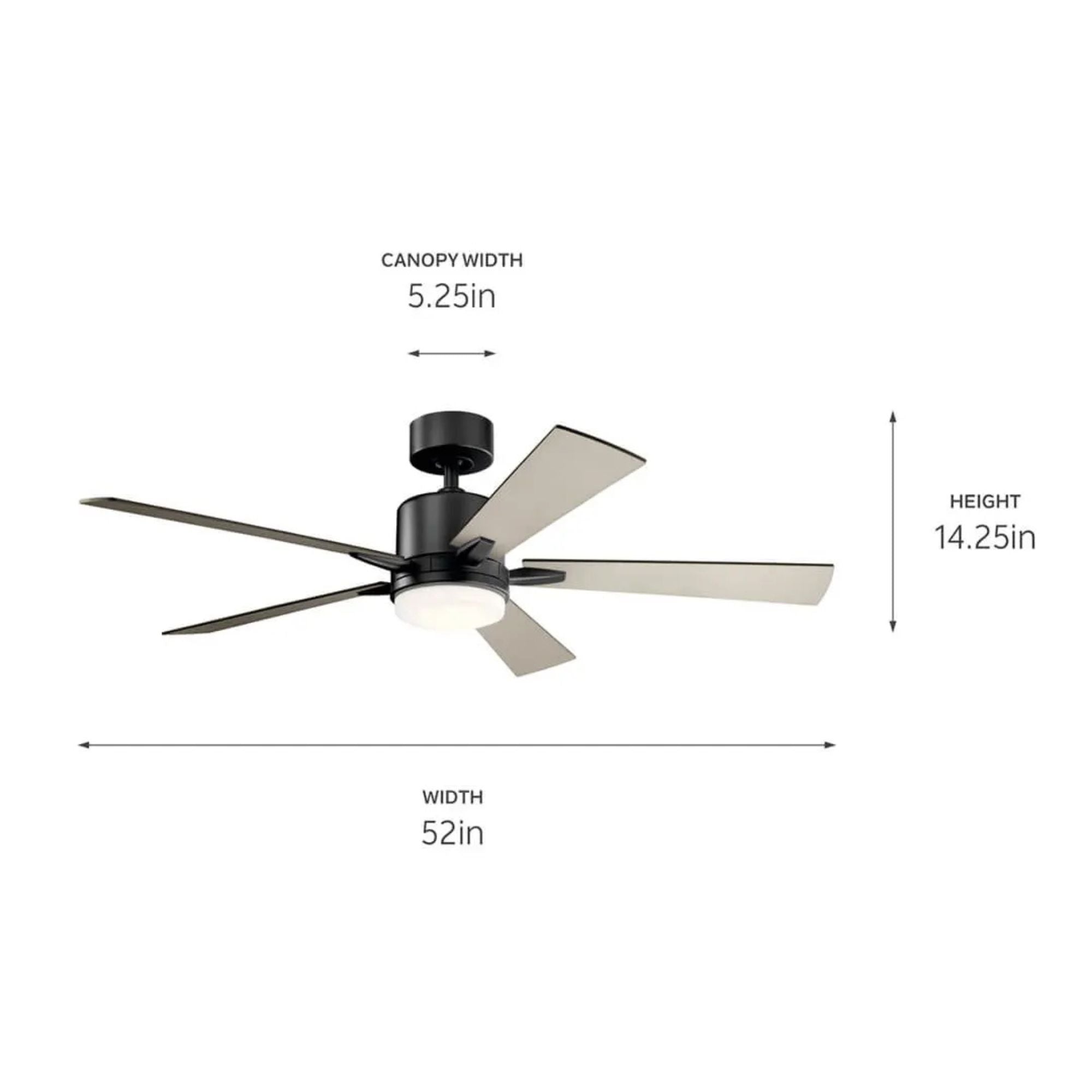

• Dimensions: 14.25 in overall height, 9.75 in blade drop, 7.5 in housing width, 5.25 in canopy diameter by 2.25 in high, and 78 in lead wire.

Advanced Control Features

The included three-speed wall control offers three forward speeds, motor off, manual reverse, and full-range light dimming, with 16 frequency options. Optional controls sold separately are the 370125 3-Speed AC Motor Handheld Remote Control Transmitter, Limited Function and the 370145 3-Speed AC Motor Wall Control Transmitter, Limited Function.

Construction & Design

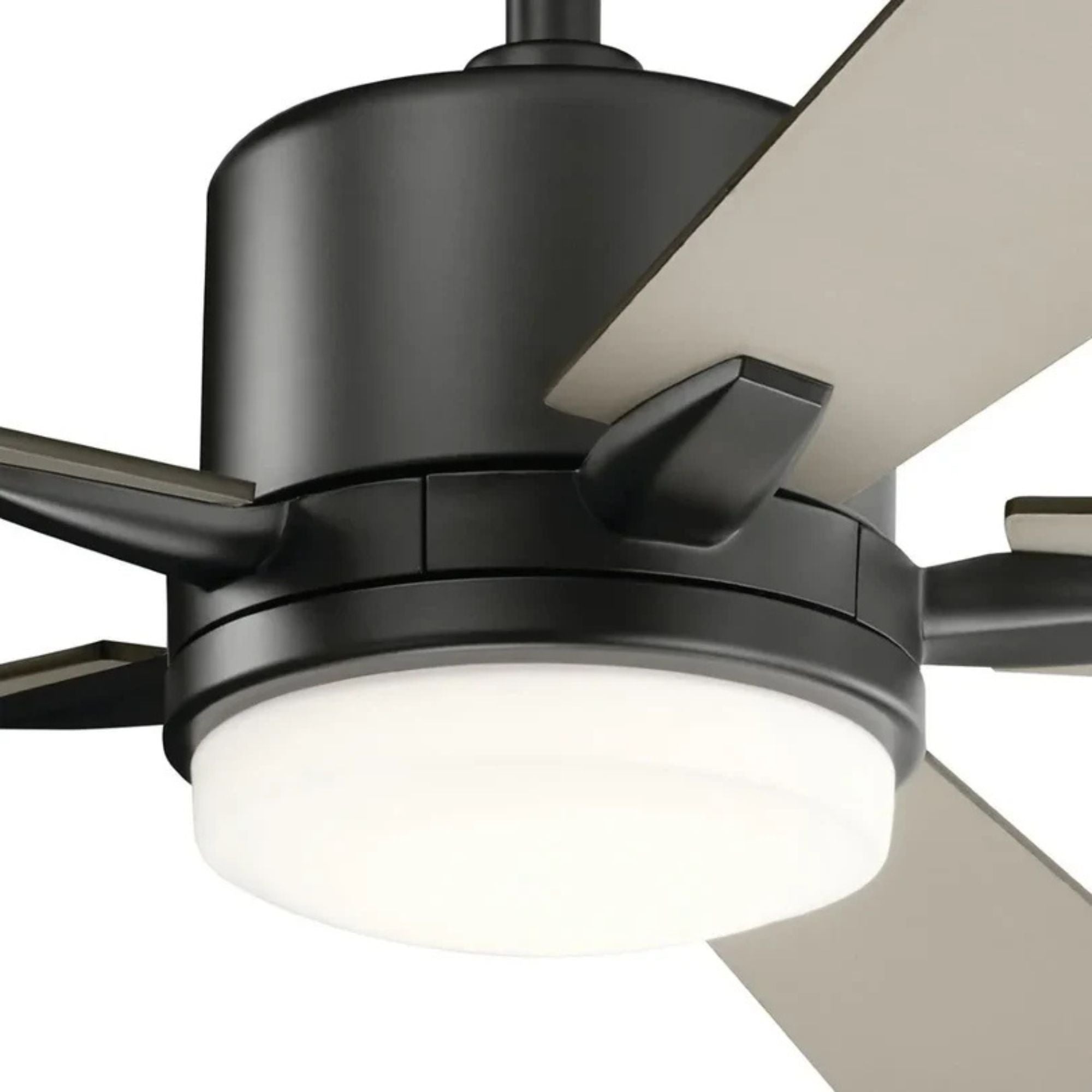

The steel motor housing has a Satin Black finish and measures 7.5 in wide. Five reversible wood blades have Silver and Black finishes and a 14° pitch. The integrated LED uses an etched cased opal diffuser. The canopy measures 5.25 in in diameter by 2.25 in high. Its transitional profile pairs the black housing with reversible Silver and Black blades.

Light Output & Performance

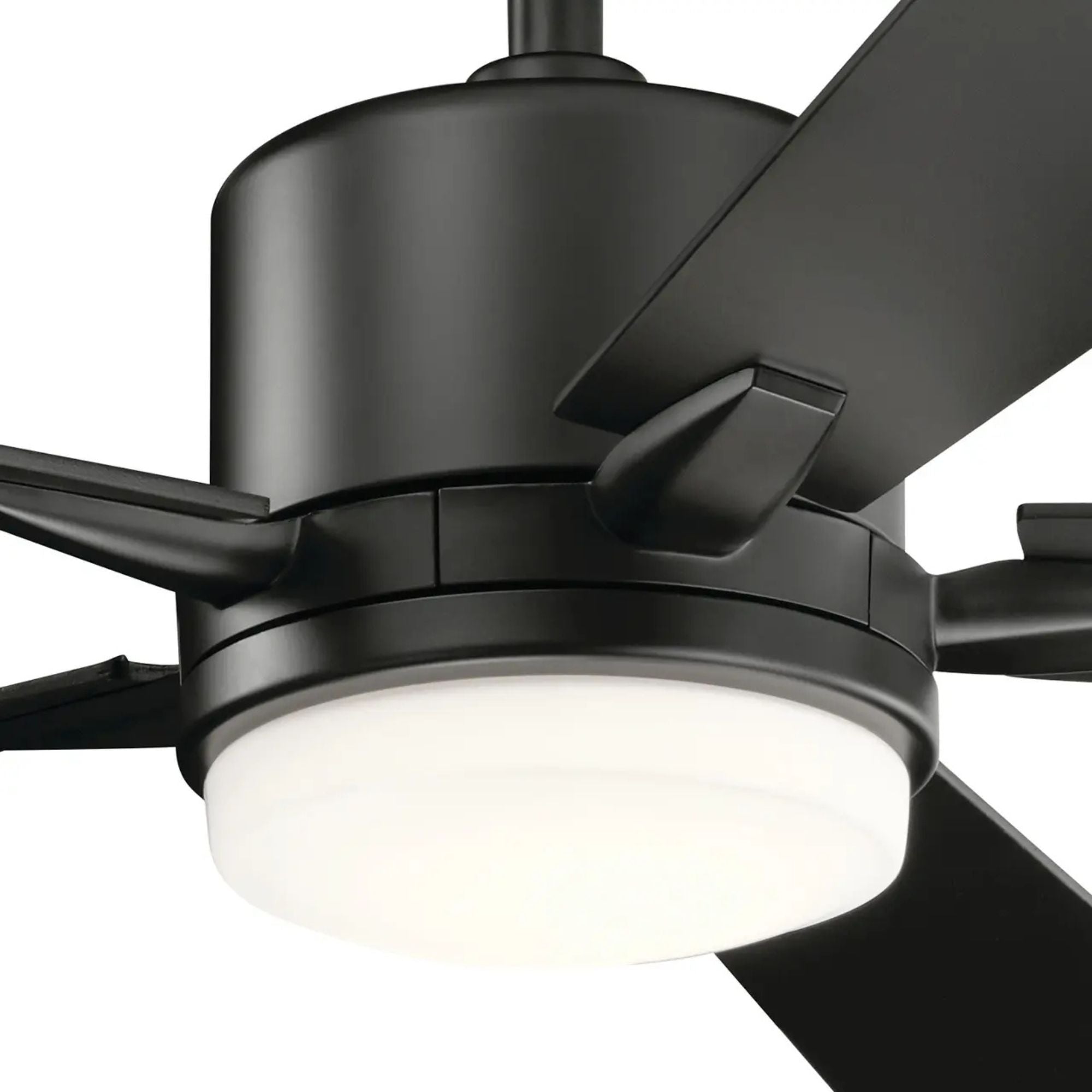

The integrated dimmable 17W LED provides 1,600 lumens at 3000K with 80 CRI and a 40,000-hour rated life through an etched cased opal diffuser. Full-range light dimming is available from the included wall control. High-speed airflow is 5,356 CFM at 75 CFM/W.

Electrical & Installation

Operates at 120V and draws 89W total, combining 72W for the fan and 17W for the LED. The AC motor is reversible. Includes a 4 in downrod and supports standard ceiling slopes up to 18°. The optional Kichler 337005 60 Degree Slope Adapter supports installations over 20° and up to 60°. The canopy measures 5.25 in in diameter by 2.25 in high, and the lead wire is 78 in.

Suggested Downrod by Ceiling Height

Ships with a 4 in downrod.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Lucian Elite ceiling fan with Satin Black housing and five reversible wood blades
• Integrated 17W LED light with etched cased opal diffuser
• Three-speed limited-function wall control
• 4 in downrod
• Mounting Hardware
• Installation instructions
