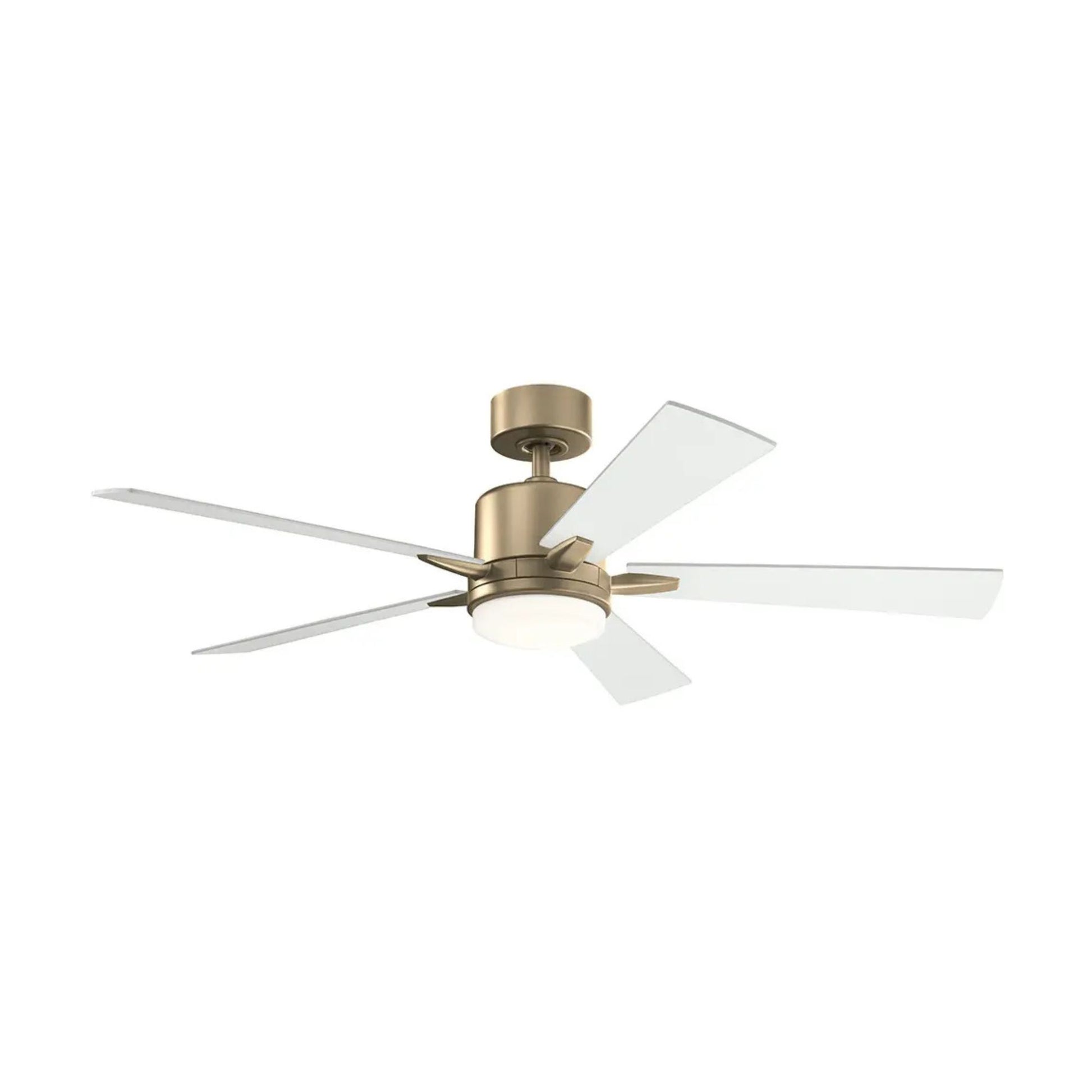

The Kichler Lucian Elite, model 330000CPZ, has a 52 in span and five wood blades, powered by an AC motor delivering 5,356 CFM at 75 CFM/W. Its integrated LED provides 1,600 lumens at 3000K. This Dry Rated fan is intended for indoor use.

Key Features

• Blade Span: 52 in with five wood blades.
• Blade Design: Five non-reversible wood blades in Matte White with a 14° pitch.
• Motor: 172 mm x 20 mm AC induction motor, 155 RPM on high and 0.6 amps.
• Airflow: 5,356 CFM at high speed and 75 CFM/W.
• Power: 72W fan draw plus 17W for the integrated LED.
• Integrated LED: Dimmable 17W light delivers 1,600 lumens, 80 CRI, and 3000K.
• Location Rating: Dry Rated and cULus listed for indoor use.
• Included Control: Three-speed limited-function wall control with motor off, manual reverse, and full-range light dimming.
• Optional Controls: 370125 handheld remote and 370145 wall control are sold separately.
• Mounting: Downrod mount with included 4 in downrod; maximum stem tilt is 18°.

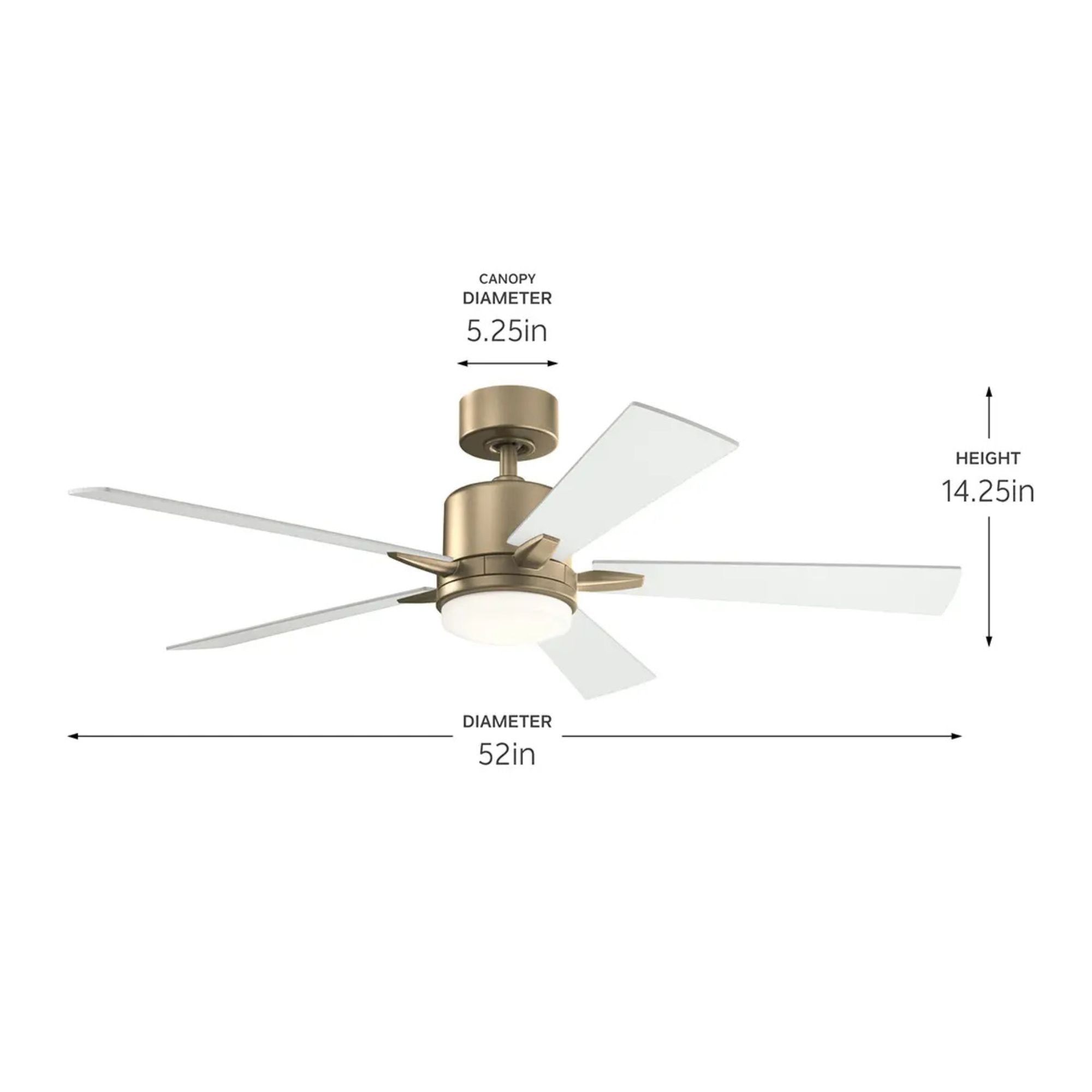

• Dimensions: 14.25 in overall height, 9.75 in blade drop, 7.5 in housing width, 5.25 in canopy width and depth by 2.25 in high, and 78 in lead wire.

Advanced Control Features

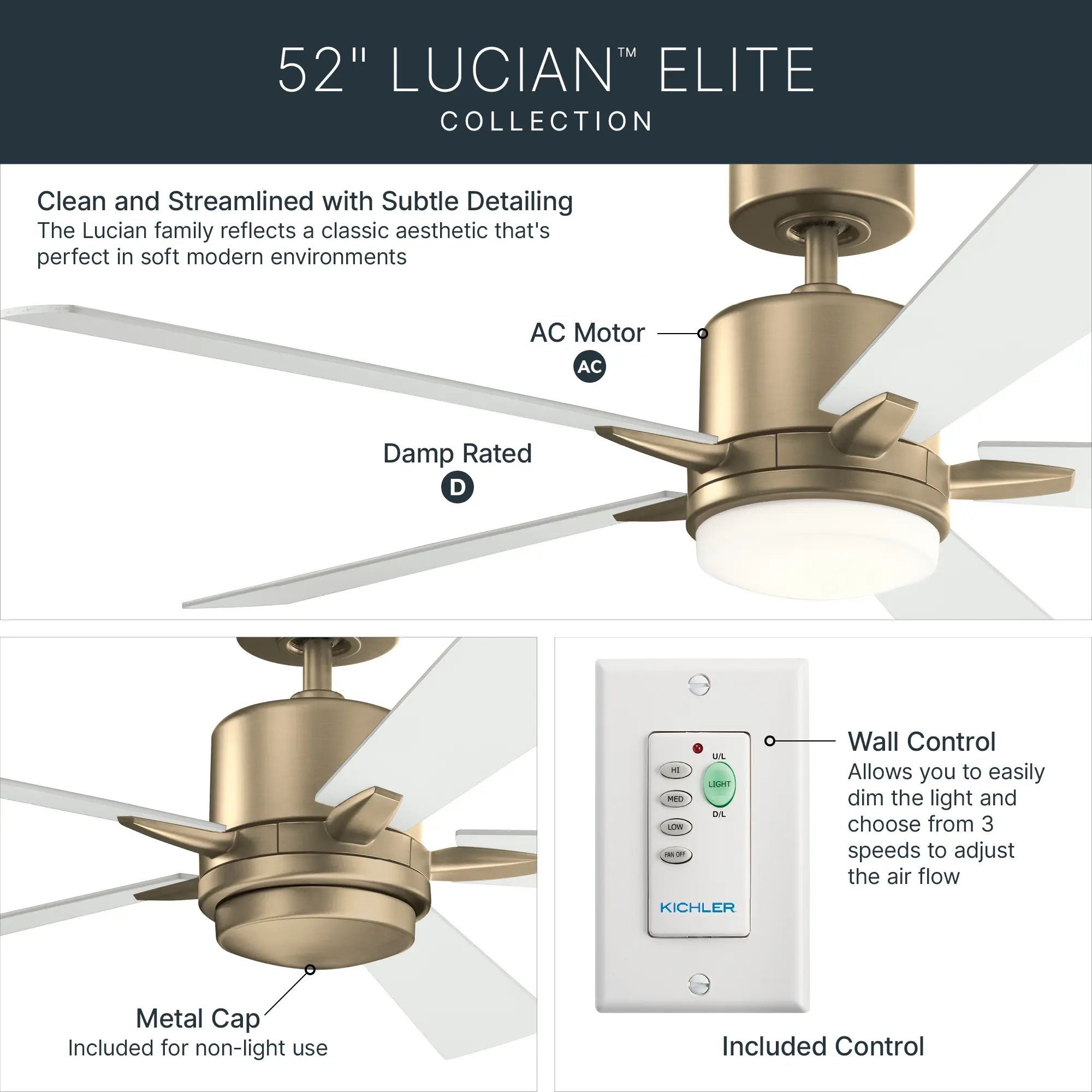

The included three-speed wall control offers three forward speeds, motor off, manual reverse, and light on/off with full-range dimming. It has 16 frequency options. Optional controls sold separately are the 370125 3-Speed AC Motor Handheld Remote Control Transmitter, Limited Function and the 370145 3-Speed AC Motor Wall Control Transmitter, Limited Function.

Construction & Design

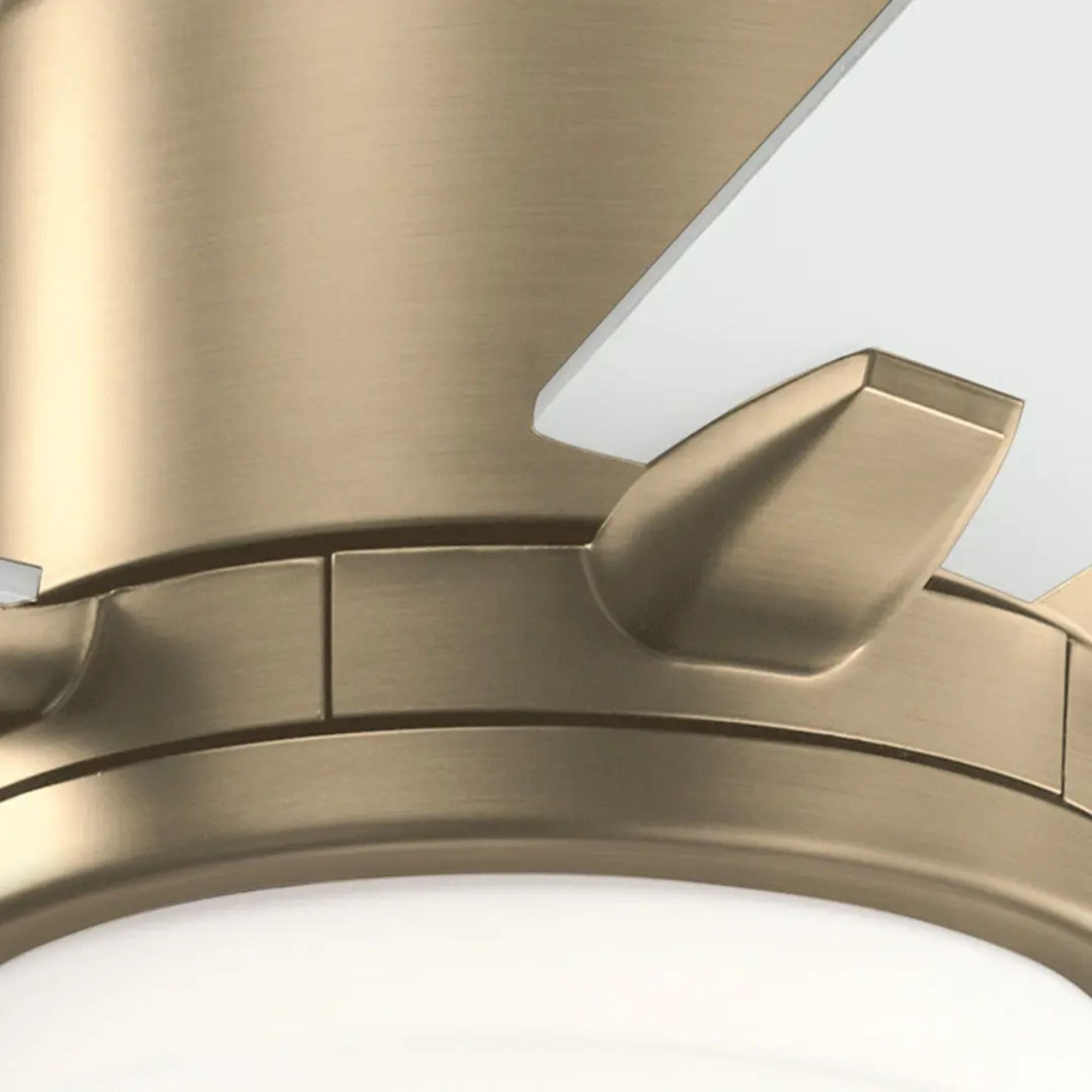

The steel motor housing has a Champagne Bronze finish and measures 7.5 in wide. Five non-reversible wood blades in Matte White have a 14° pitch. The integrated LED has an etched cased opal diffuser. The canopy measures 5.25 in wide and deep by 2.25 in high. The contrasting bronze housing and light-colored blades create a clean, modern profile.

Light Output & Performance

The integrated dimmable 17W LED delivers 1,600 lumens at 3000K with 80 CRI through an etched cased opal diffuser. Full-range light dimming is controlled from the included wall control. High-speed airflow is 5,356 CFM at 75 CFM/W.

Electrical & Installation

Operates at 120V and draws 89W total, combining 72W for the fan and 17W for the LED. The AC motor is reversible. Includes a 4 in downrod; maximum stem tilt is 18°. The optional Kichler 60 Degree Slope Adapter 337005 supports installations over 20° and up to 60°. The canopy measures 5.25 in wide and deep by 2.25 in high, and the lead wire is 78 in.

Suggested Downrod by Ceiling Height

Ships with a 4 in downrod.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Lucian Elite ceiling fan with Champagne Bronze housing and five Matte White wood blades
• Integrated 17W LED light with etched cased opal diffuser
• Three-speed limited-function wall control
• 4 in downrod

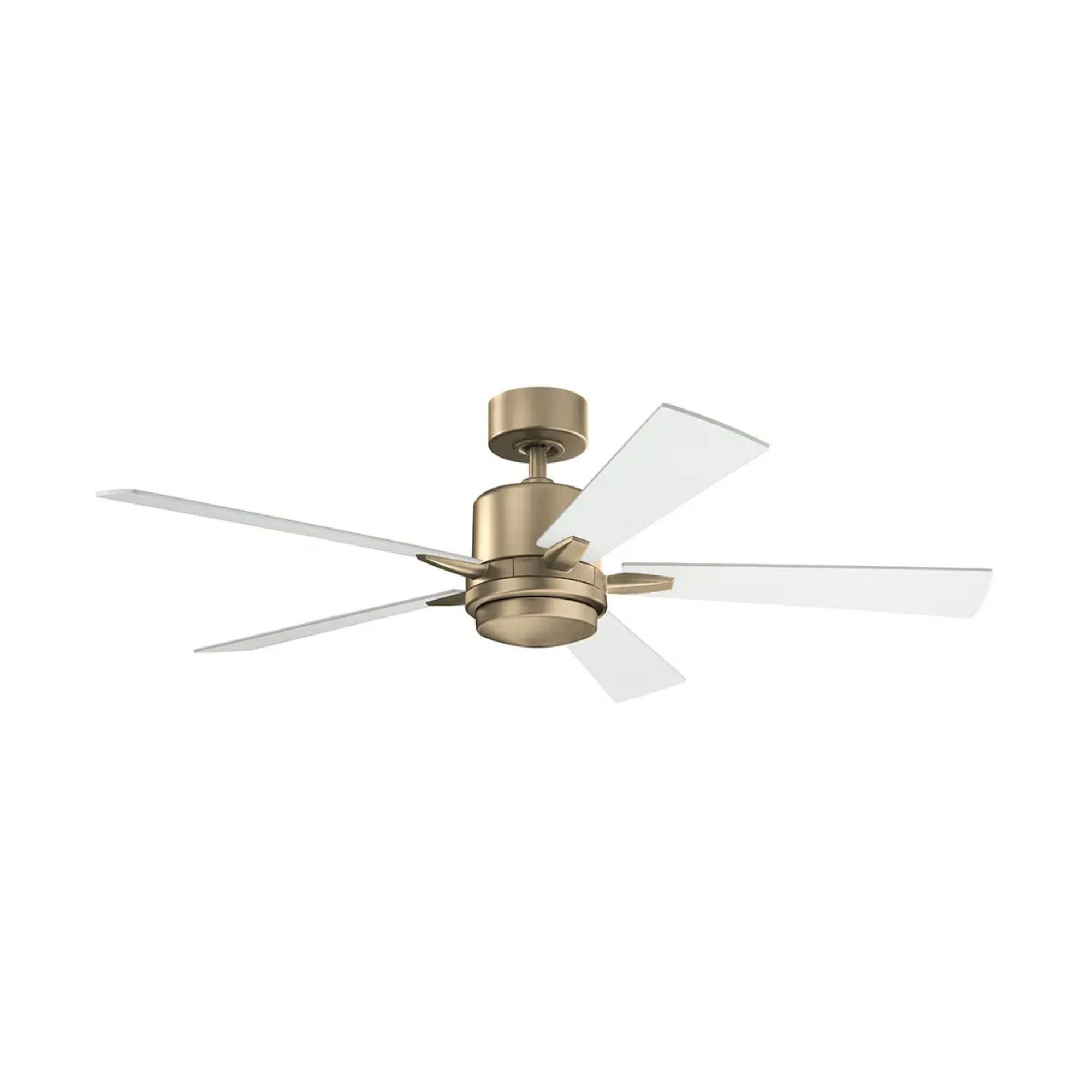

• Metal fixture cap for non-light use
• Mounting Hardware
