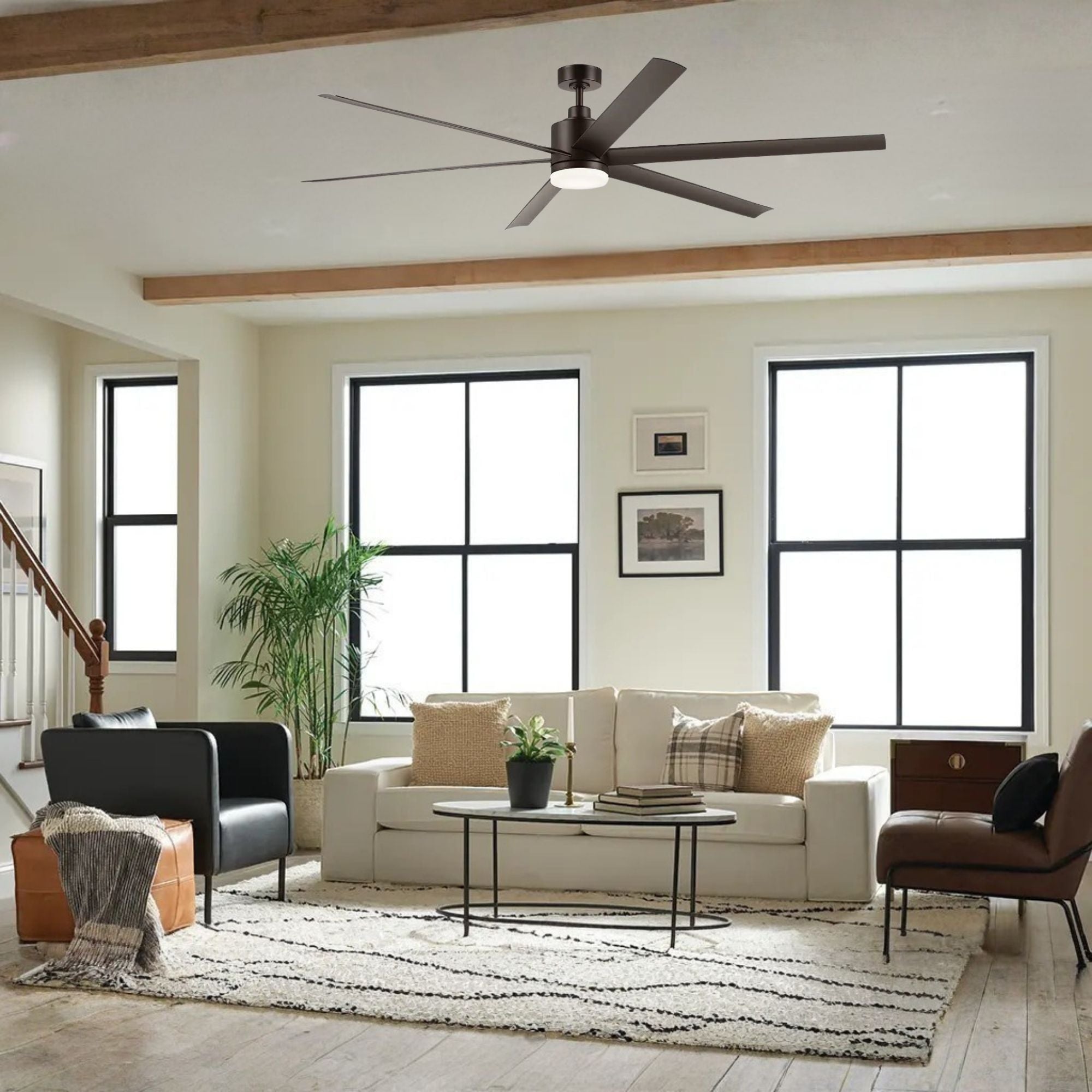

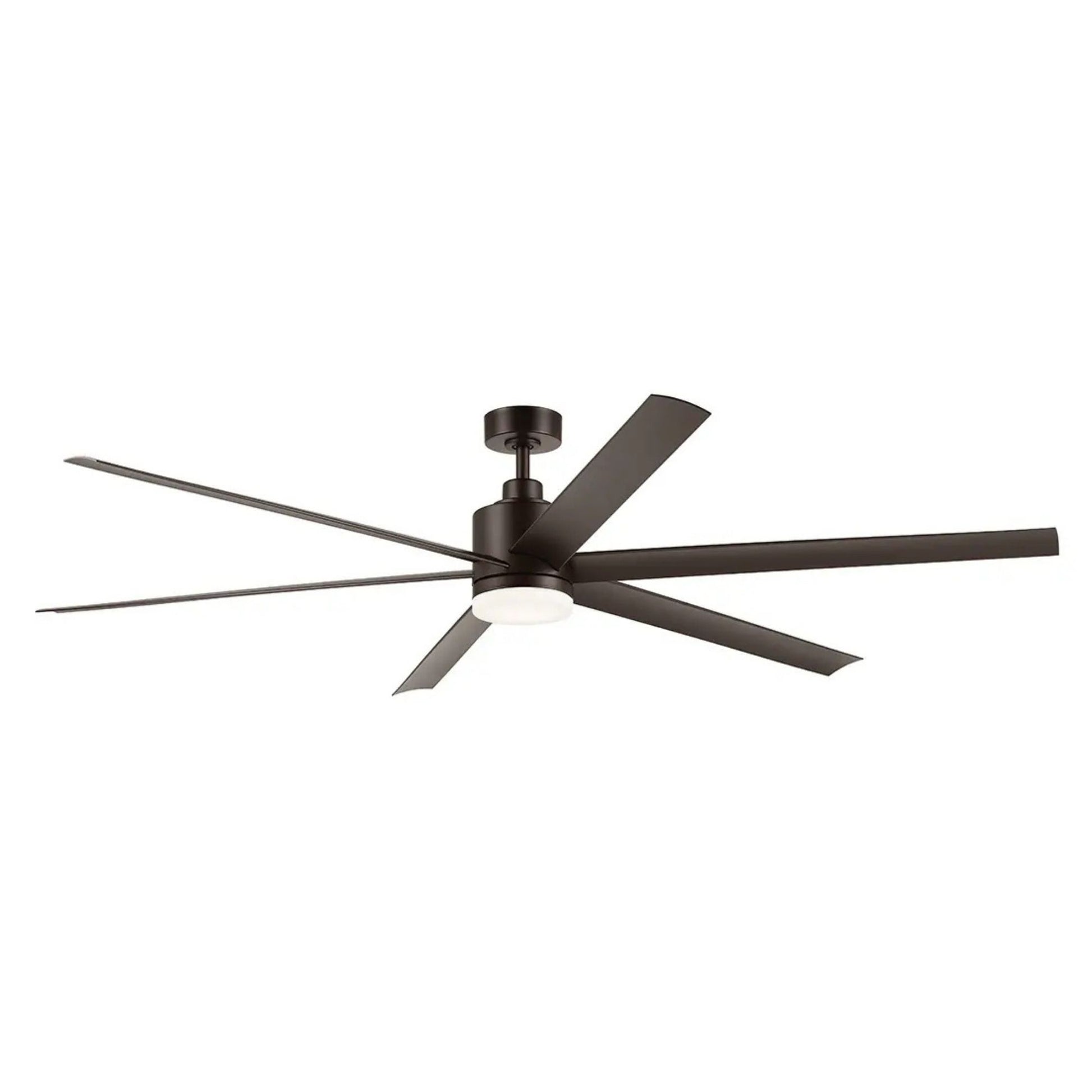

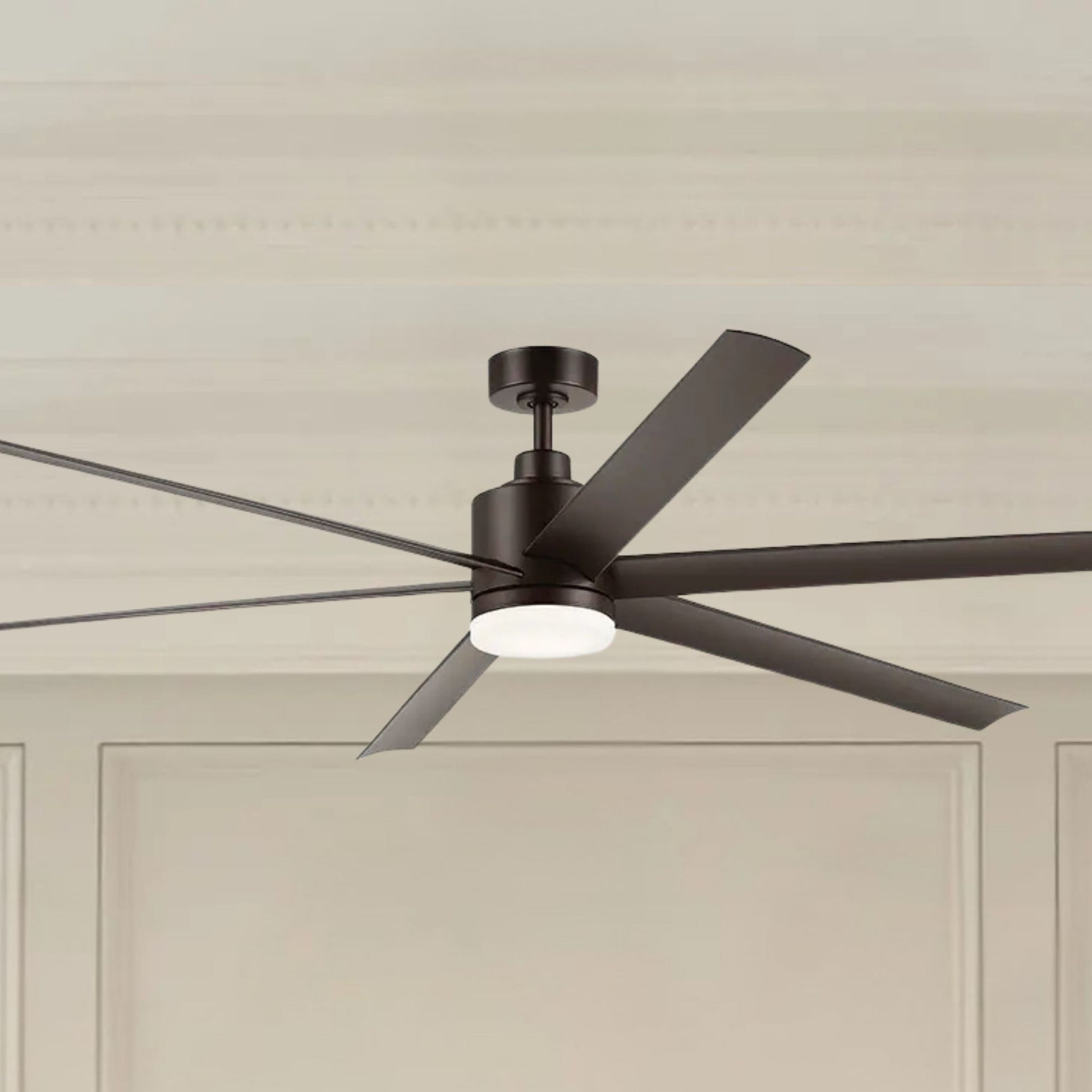

The Kichler Loa, model 310780SNB, pairs an 80 in span with six blades and a DC motor. It delivers 8,609 CFM at 245 CFM/W. Its integrated LED provides 1,600 lumens with selectable 3000K or 5000K CCT. Its Wet Rated construction suits indoor and outdoor installations.

Key Features

• Blade Span: 80 in across six blades.

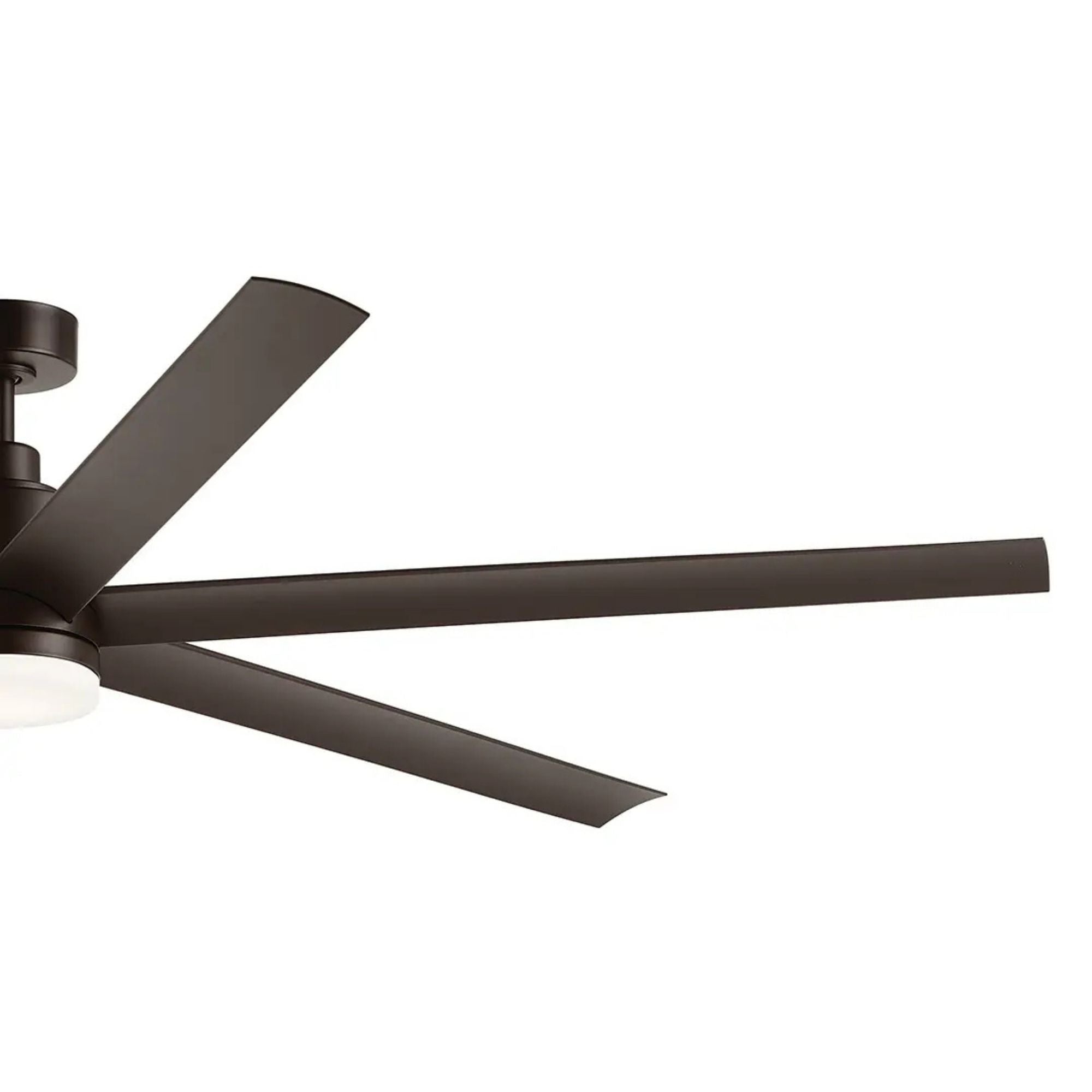

• Blade Design: Six non-reversible ABS blades in Satin Natural Bronze with a 12° pitch.
• Motor: 153 mm diameter x 16 mm DC brushless motor, 88 RPM on high.
• Airflow: 8,609 CFM at high speed and 245 CFM/W.
• Power: 35.2W motor draw and 0.47 amps at high speed.
• Integrated LED: 37W, 1,600 lumens, 90 CRI, and selectable 3000K or 5000K CCT.
• Lighting: Dimmable LED with satin etched cased opal glass and 40,000-hour rated life.
• Location Rating: Wet Rated and cETLus listed for wet locations.
• Included Control: 65K full-function six-speed handheld control with reverse, motor off, and full-range light dimming.
• Mounting: Downrod mount with included 4.5 in downrod; 15° mounting slope pitch.

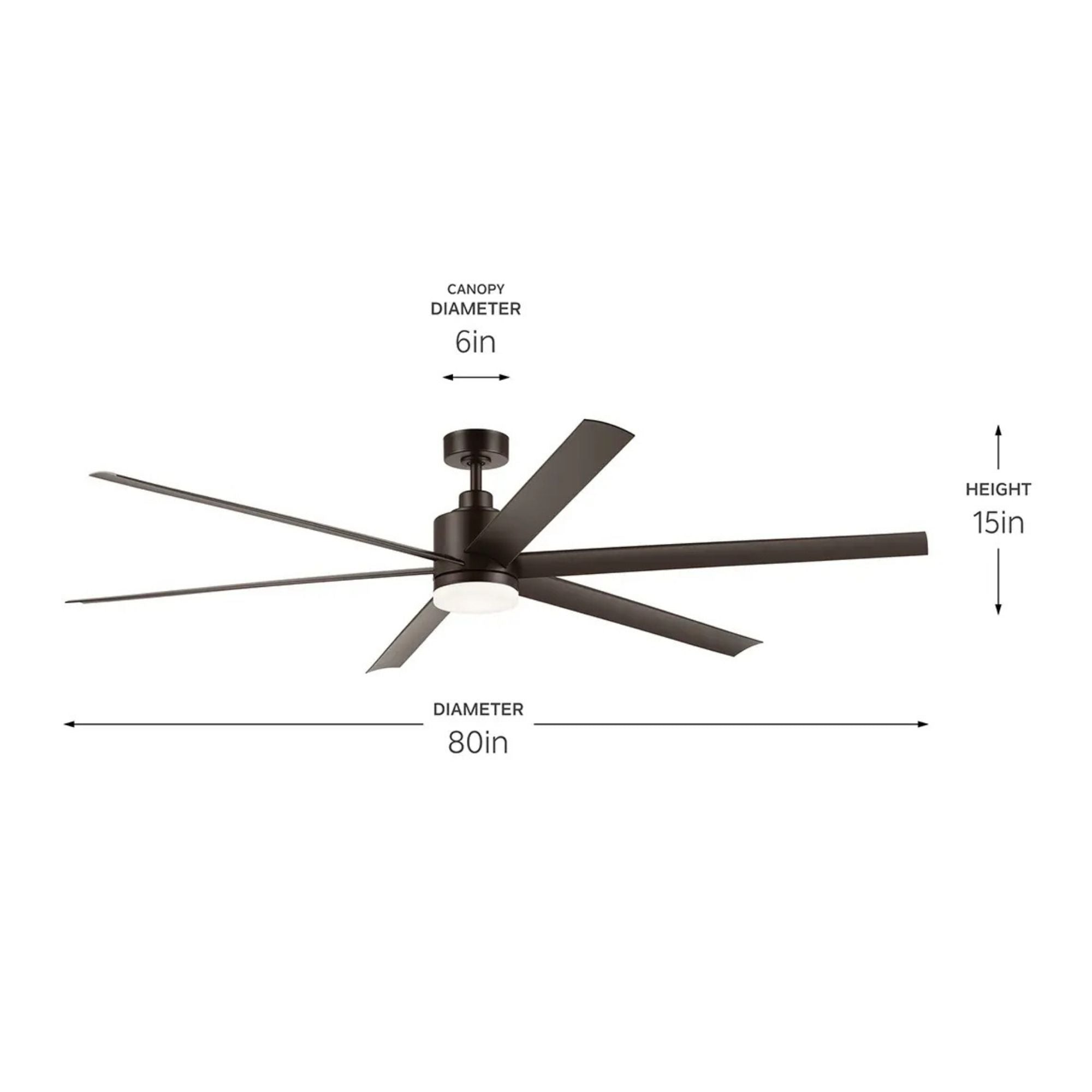

• Dimensions: 15 in overall drop, 11 in blade drop, 7.75 in housing width, 6 in canopy diameter by 2 in high, and 78 in lead wire.

Advanced Control Features

The included 65K handheld control provides six forward speeds, reverse, and motor off. It also controls the light on/off and provides full-range light dimming.

Construction & Design

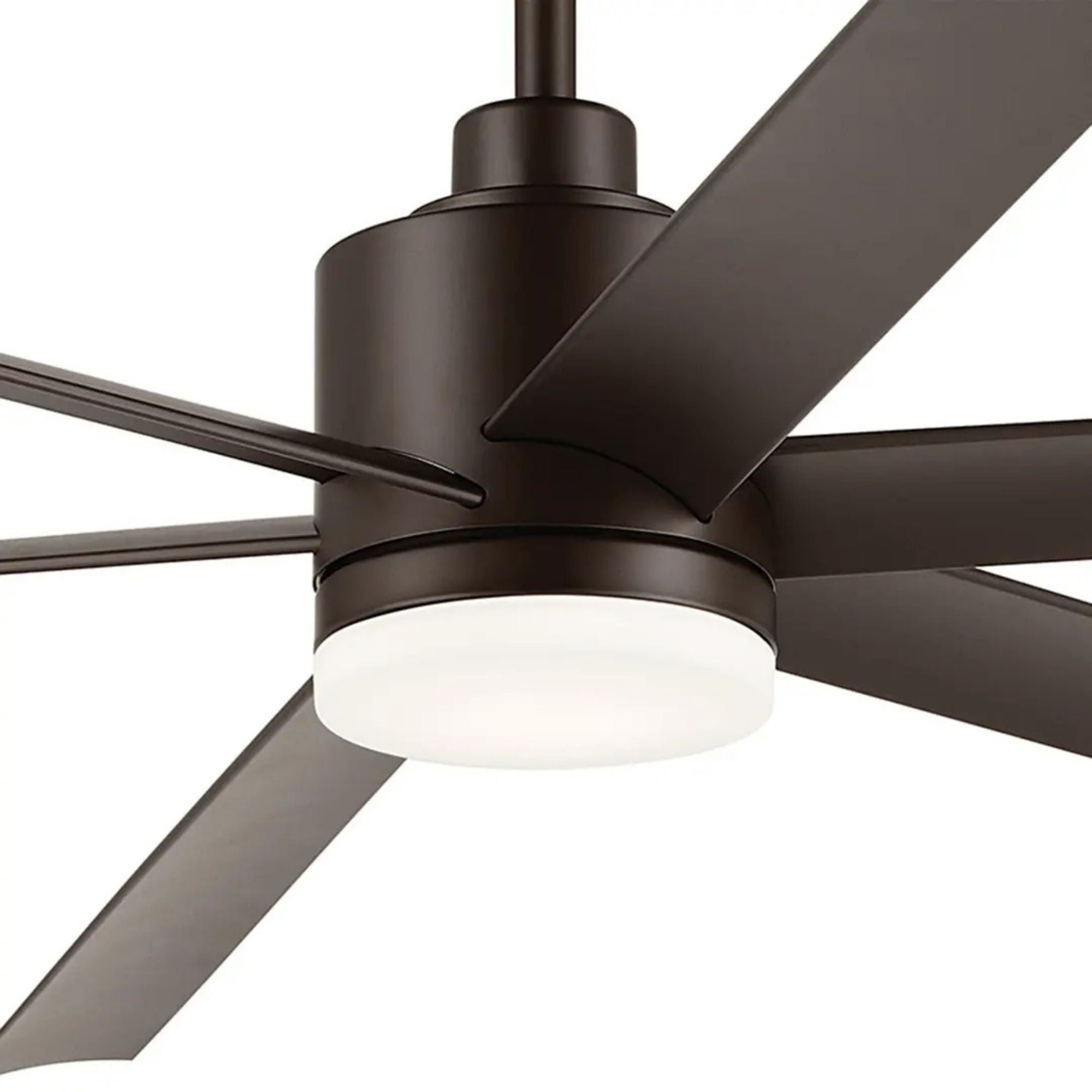

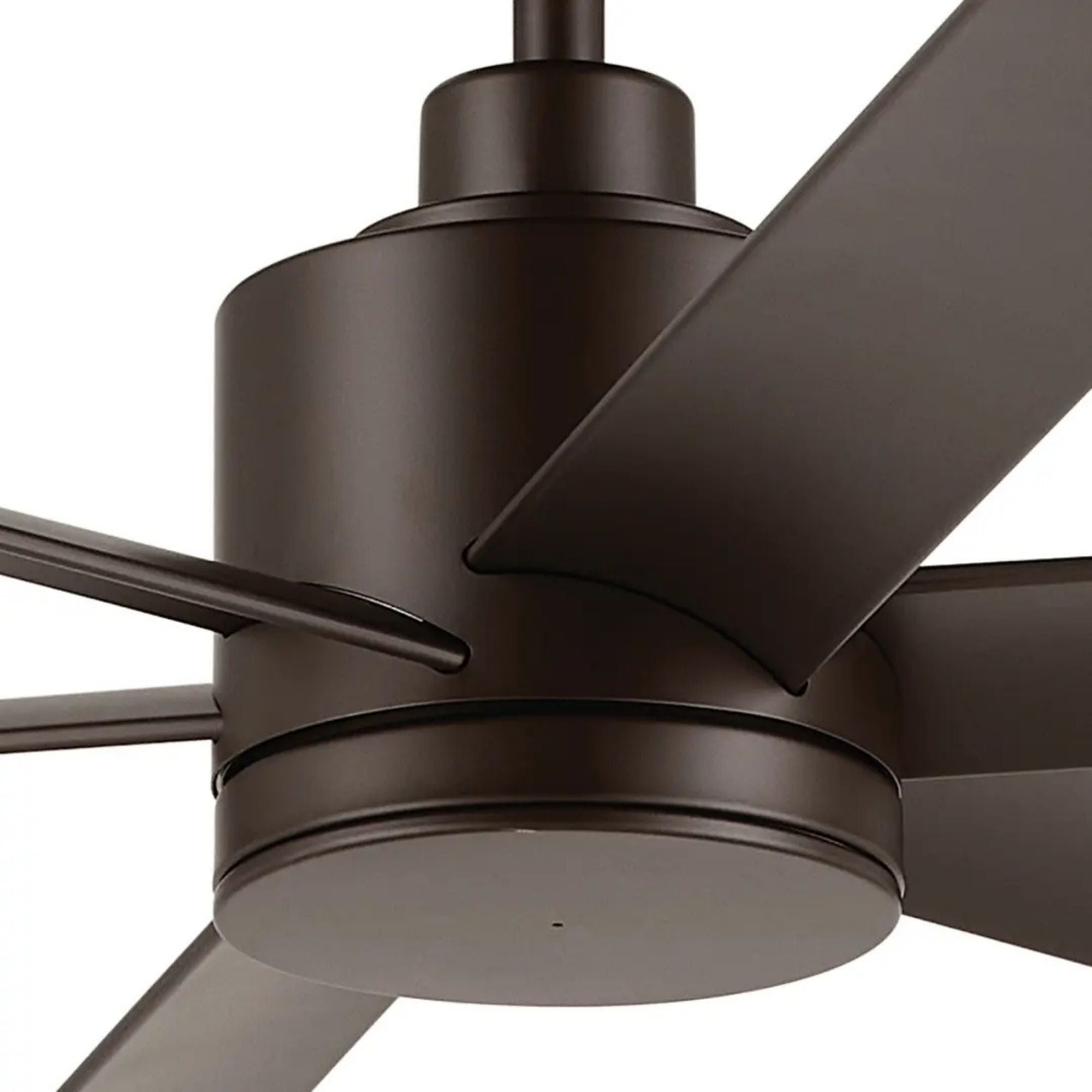

The steel motor housing has a Satin Natural Bronze finish and measures 7.75 in wide. Six non-reversible ABS blades in Satin Natural Bronze have a 12° pitch. The integrated LED uses a satin etched cased opal glass diffuser. The canopy measures 6 in in diameter and 2 in high. The matching bronze finish and six-blade profile create a clean, modern look for indoor or outdoor spaces.

Light Output & Performance

The integrated dimmable 37W LED delivers 1,600 lumens with 90 CRI and selectable 3000K or 5000K CCT. It has a satin etched cased opal glass diffuser and a 40,000-hour rated life. The included remote provides full-range light dimming. High-speed airflow is 8,609 CFM at 245 CFM/W.

Electrical & Installation

Operates at 120V and draws 72.2W total, combining 35.2W for the fan and 37W for the LED. The DC motor is reversible. Includes a 4.5 in downrod; the standard mounting slope pitch is 15°. The optional Kichler 60 Degree Slope Adapter 337005 supports installations over 20° and up to 60°. The canopy is 6 in in diameter and 2 in high, and the lead wire is 78 in.

Suggested Downrod by Ceiling Height

Ships with a 4.5 in downrod.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Loa ceiling fan with Satin Natural Bronze housing and six Satin Natural Bronze ABS blades
• Integrated 37W LED light with satin etched cased opal glass diffuser
• 65K six-speed full-function DC handheld control system
• 4.5 in downrod
• Metal fixture cap for non-light use
• Mounting Hardware
