Kichler Mylo 70 in Indoor Outdoor LED Ceiling Fan DC Anvil Iron Honey Maple

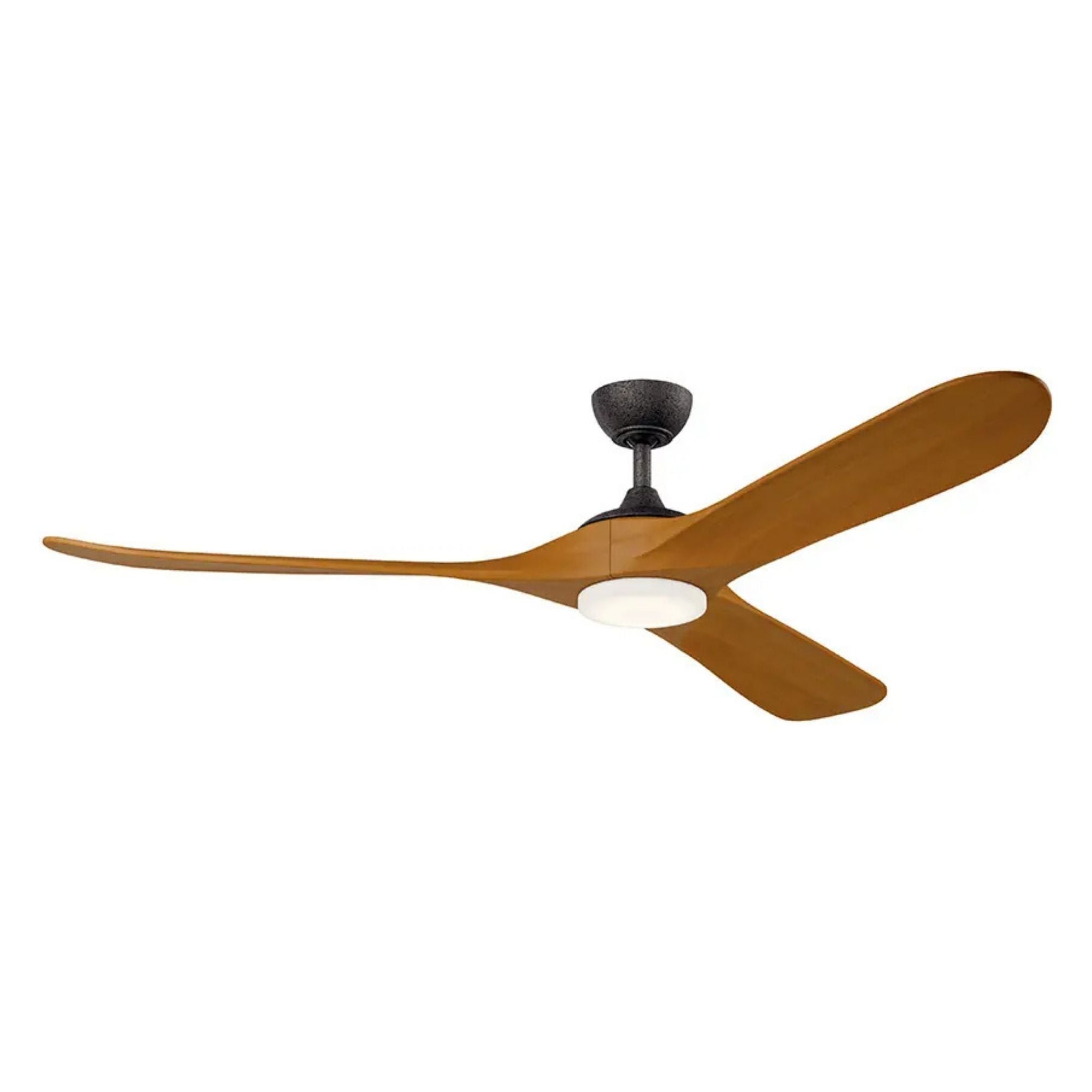

The Kichler Mylo 310570AVI combines a 70 in blade span, three Honey Maple solid wood blades, and an Anvil Iron housing with a reversible DC brushless motor. High-speed performance reaches 10,034 CFM with 349 CFM/W efficiency. The dimmable integrated LED delivers 1,600 lumens at 3000K, with selectable 3000K or 5000K lighting. Damp Rated construction suits indoor and covered outdoor spaces, and the included six-speed handheld remote controls airflow and lighting.

Key Features

• Blade Span: 70 in sweep with three solid wood blades.
• Blade Finish: Honey Maple, non-reversible blades.
• Blade Pitch: 13°.
• DC Motor: 135 mm brushless motor, 124 RPM and 0.42A on high.
• High-Speed Airflow: 10,034 CFM.
• Airflow Efficiency: 349 CFM/W on high.
• Motor Power: 28.8W on high, excluding lighting.
• Location Rating: cETLus Listed Damp for indoor and covered outdoor use.
• Integrated LED: 31.6W, 1,600 lumens, 90 CRI, selectable 3000K/5000K, dimmable, and 40,000-hour rated life.
• Included Control: Six-speed 65K DC handheld full-function remote.
• Mounting: Standard slope support up to 22°; not low-ceiling adaptable.
• Downrod: Includes an 8 in downrod with 1 in outside diameter.

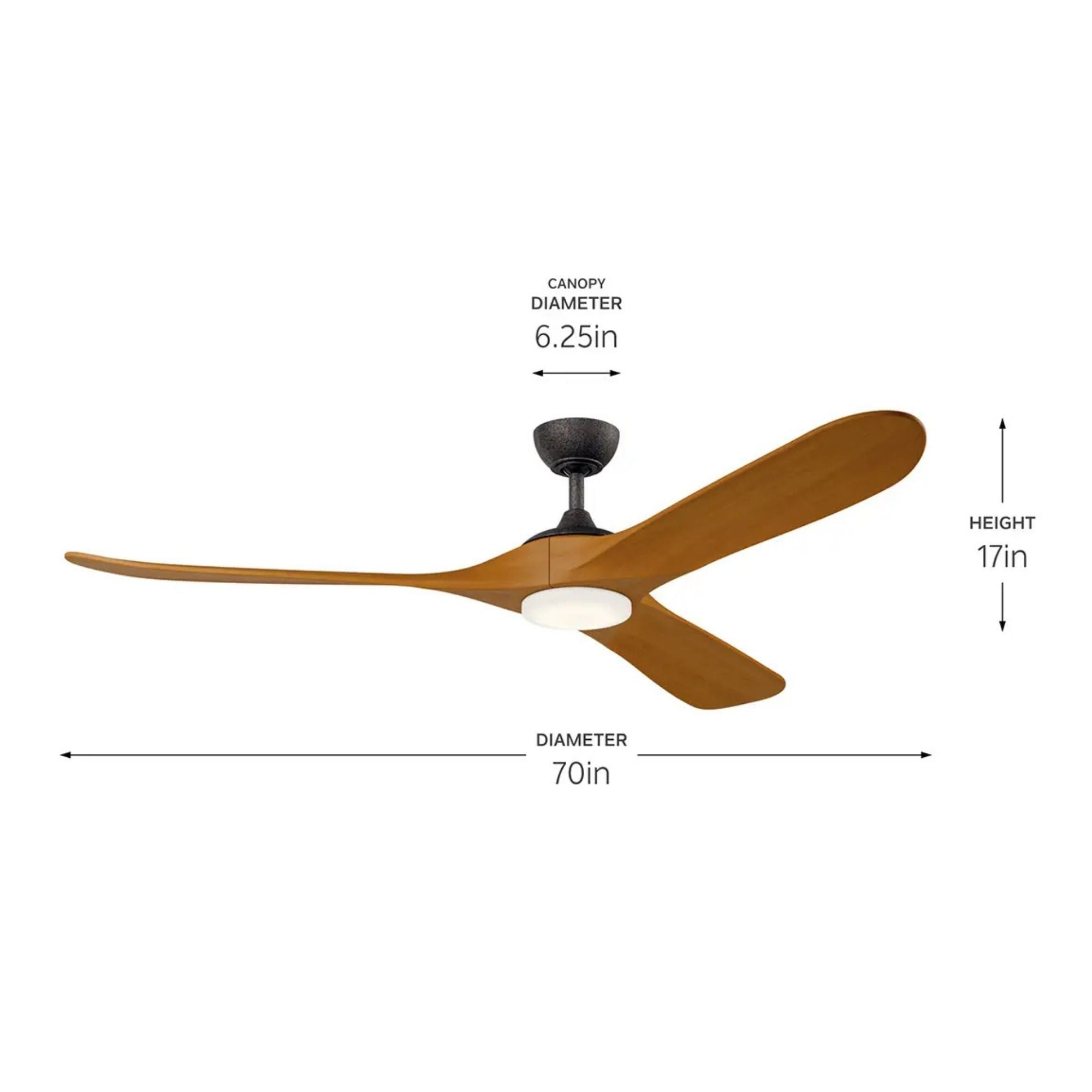

• Dimensions: 17 in fixture drop, 9.75 in blade drop, 7.75 in housing width, and 6.25 in canopy width.

Advanced Control Features

The included 65K six-speed DC CoolTouch Full Function handheld remote provides six forward speeds, reverse, motor off, and light on/off with full-range dimming. Do not connect more than two fans on one circuit.

Construction & Design

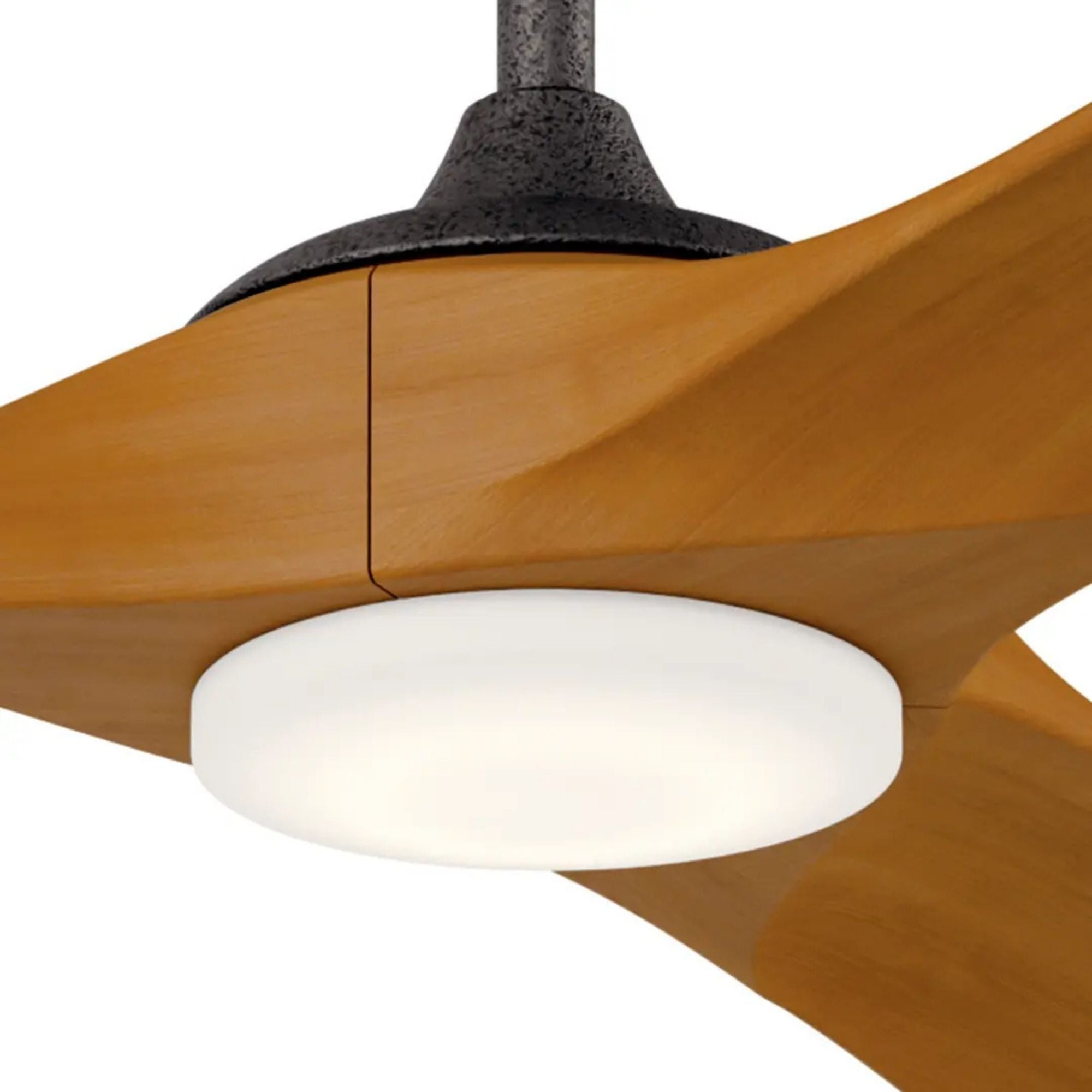

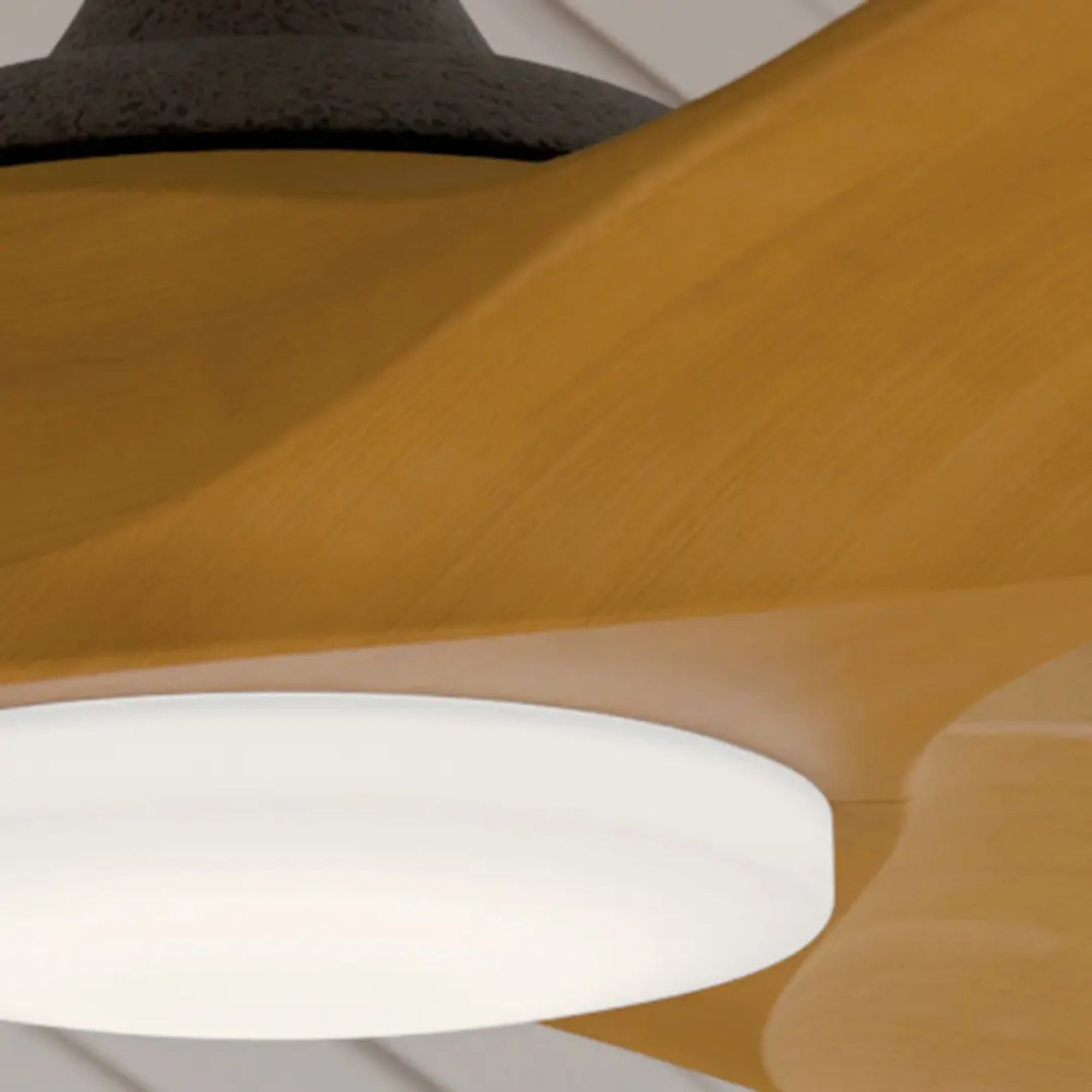

The steel housing has an Anvil Iron finish, paired with three solid wood blades finished in Honey Maple. The non-reversible blades have a 13° pitch. Satin etched cased opal glass covers the integrated LED. Housing width is 7.75 in; the canopy measures 6.25 in wide × 3 in high.

Light Output & Performance

The integrated 31.6W LED delivers 1,600 lumens at 3000K, with selectable 3000K or 5000K CCT, 90 CRI, full-range dimming, and a 40,000-hour rated life. The supplied sheet lists 74.5 lumens per watt delivered efficacy at 3000K. An included metal fixture cap allows fan-only use. High-speed airflow is 10,034 CFM with 349 CFM/W motor efficiency.

Electrical & Installation

Operates at 120V with a reversible DC motor. Motor power is 28.8W on high and LED power is 31.6W, totaling 60.4W. Includes an 8 in downrod with 1 in outside diameter. Standard mounting supports ceiling slopes up to 22°; a slope ceiling kit is not included. Canopy dimensions are 6.25 in wide × 3 in high, and lead-wire length is 78 in. Fixture drop with the included downrod and light is 17 in, and blade drop is 9.75 in.

Suggested Downrod by Ceiling Height

Ships with an 8 in downrod. For different room size options consider these downrods available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Mylo fan with Anvil Iron housing and three Honey Maple solid wood blades
• Integrated LED with satin etched cased opal glass
• Metal fixture cap for fan-only use
• 65K six-speed DC CoolTouch Full Function handheld remote and battery
• 8 in downrod
• Mounting Hardware
