Kichler Mylo 60 in Indoor Outdoor LED Ceiling Fan DC Satin Black Aged Walnut

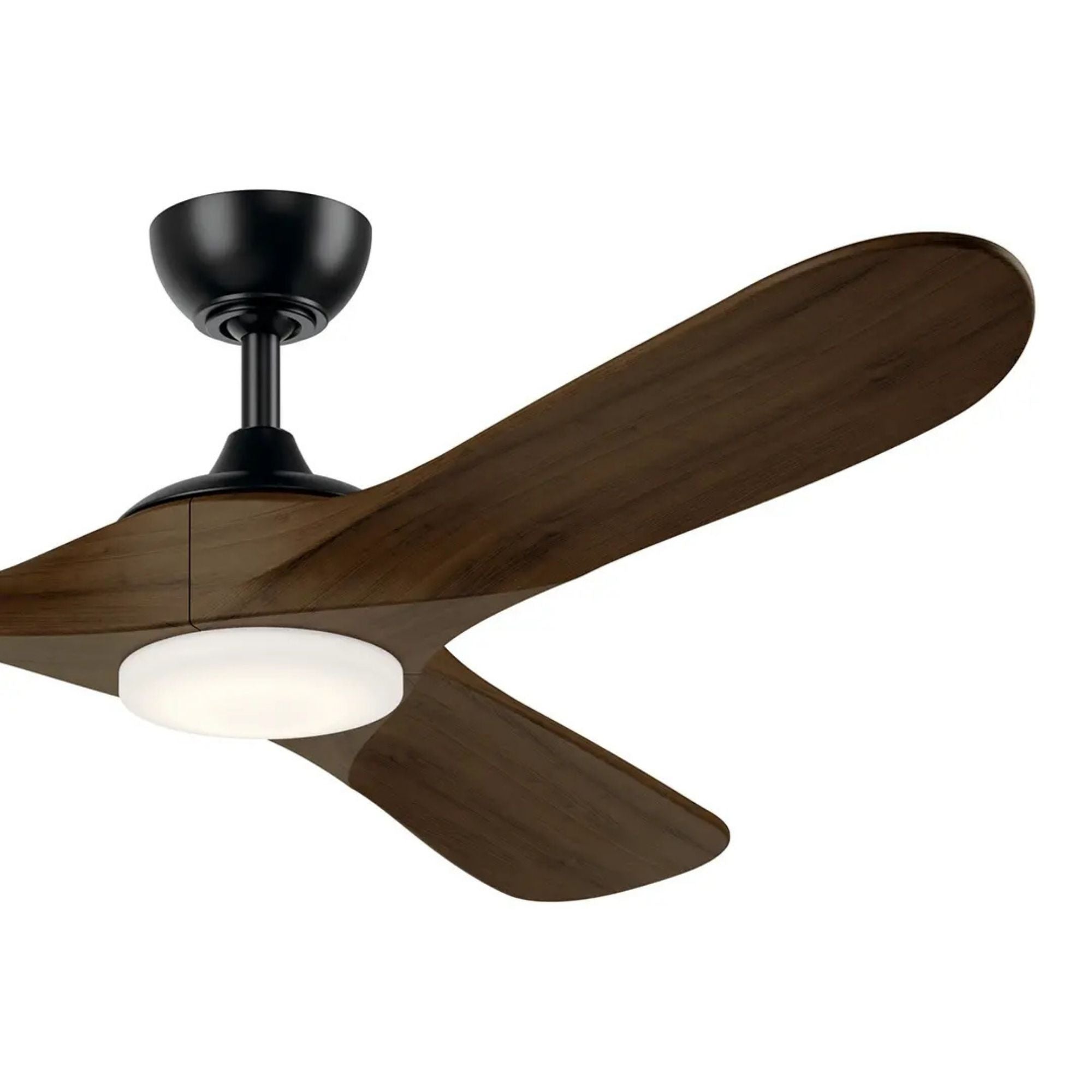

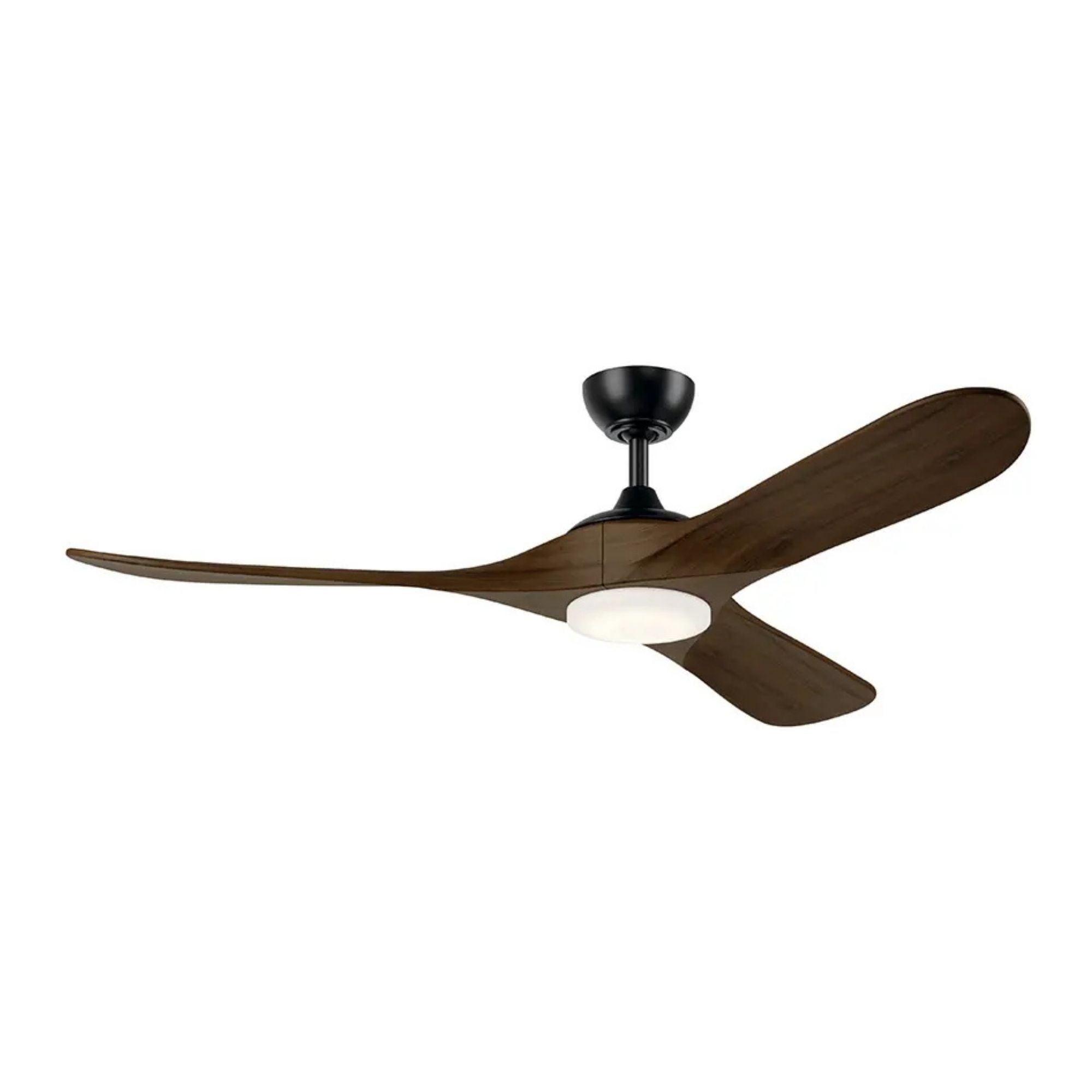

The Kichler Mylo, model 310560SBK, pairs a 60 in blade span with three solid wood blades and a DC brushless motor. It delivers 7,548 CFM at high speed with 308 CFM/W efficiency. Its integrated LED produces 1,600 lumens at 3000K, with selectable 3000K or 5000K CCT. The fan is Damp Rated for indoor and covered outdoor spaces.

Key Features

• Blade Span: 60 in sweep with three solid wood blades.
• Blade Finish: Aged Walnut blades are non-reversible.
• Blade Pitch: 13° for the three-blade design.
• DC Motor: 135 mm diameter brushless motor reaches 153 RPM on high and draws 0.36A.
• High-Speed Airflow: Delivers 7,548 CFM on high.
• Airflow Efficiency: Provides 308 CFM/W.
• Motor Power: Uses 24.5W on high, excluding the LED.
• Damp Rating: cETLus Listed Damp for indoor and covered outdoor settings.
• Integrated LED: 26.5W, 1,600 lumens, 90 CRI, selectable 3000K/5000K CCT, dimmable, and rated for 40,000 hours.
• Included Control: Six-speed DC CoolTouch Full Function handheld control with reverse, motor off, and full-range light dimming.
• Slope Compatibility: Standard mounting supports up to 22°. Optional 337005 Kichler 60 Degree Slope Adapter is sold separately for compatible slopes over 20° and up to 60°. Low-ceiling mounting is not supported.
• Included Downrod: 4.5 in downrod, 1 in outside diameter.

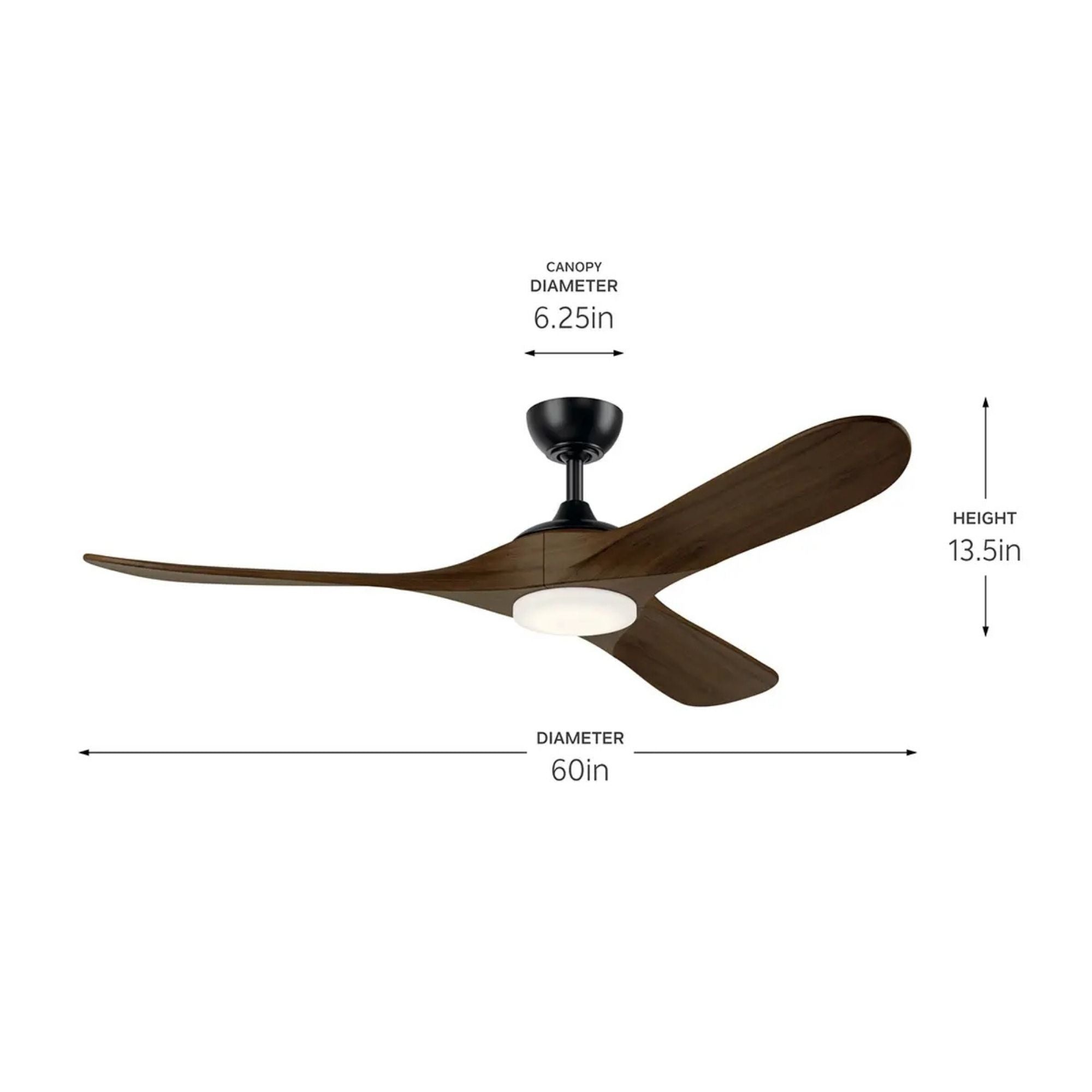

• Installation Dimensions: Fixture drop is 13.5 in and blade drop is 9.75 in. Housing is 7.75 in wide; canopy is 6.25 in wide × 3 in high; lead wire is 78 in.

Advanced Control Features

The included 65K six-speed DC CoolTouch Full Function handheld remote provides six forward speeds, reverse, motor off, light on/off, and full-range light dimming. Do not connect more than two fans on one circuit.

Construction & Design

The steel motor housing is finished in Satin Black and paired with three non-reversible solid wood blades in a distinct Aged Walnut finish, each with a 13° pitch. The housing is 7.75 in wide, and the canopy measures 6.25 in wide × 3 in high. Satin etched cased opal glass covers the integrated LED, while the sculptural three-blade profile pairs dark metal with warm wood grain for a contemporary look.

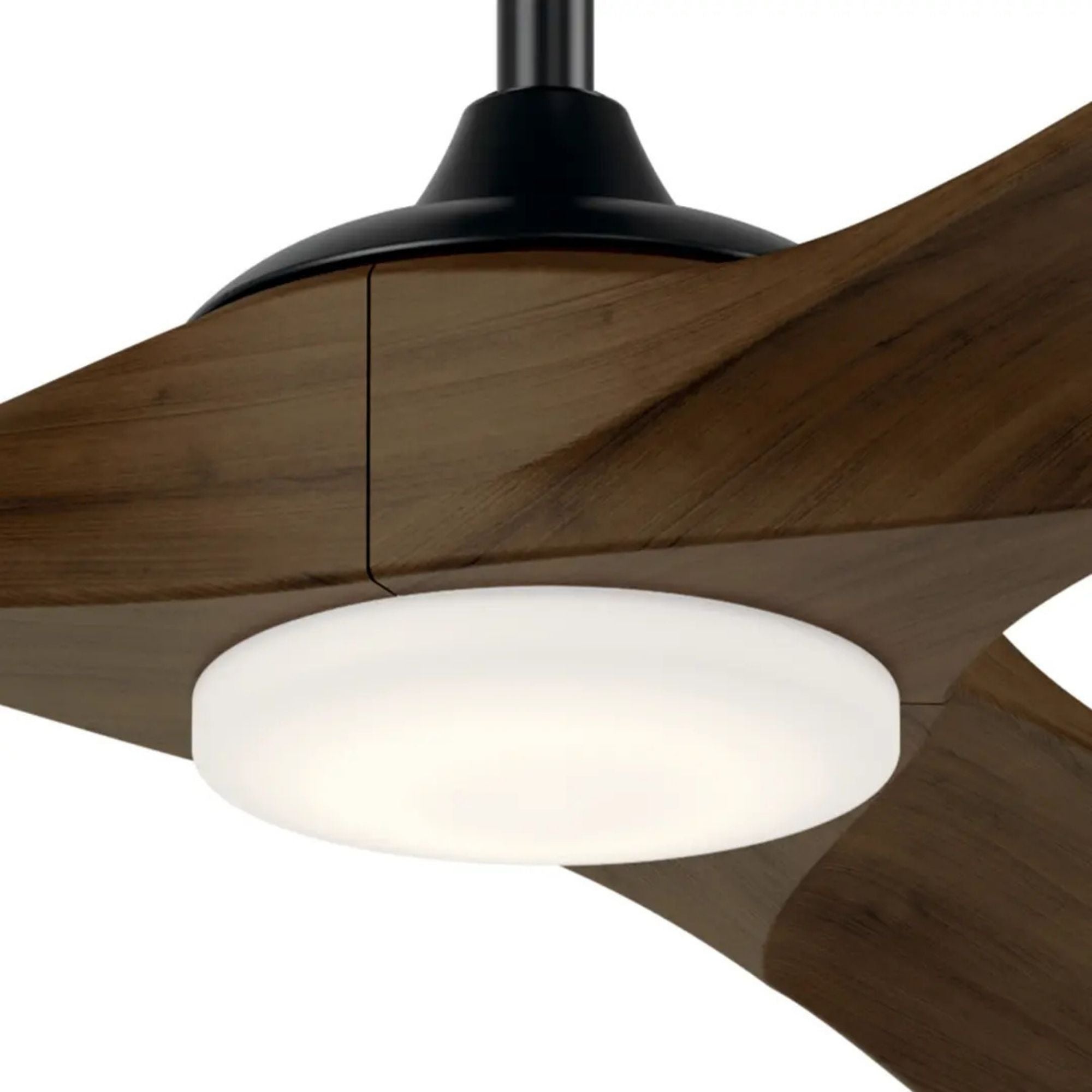

Light Output & Performance

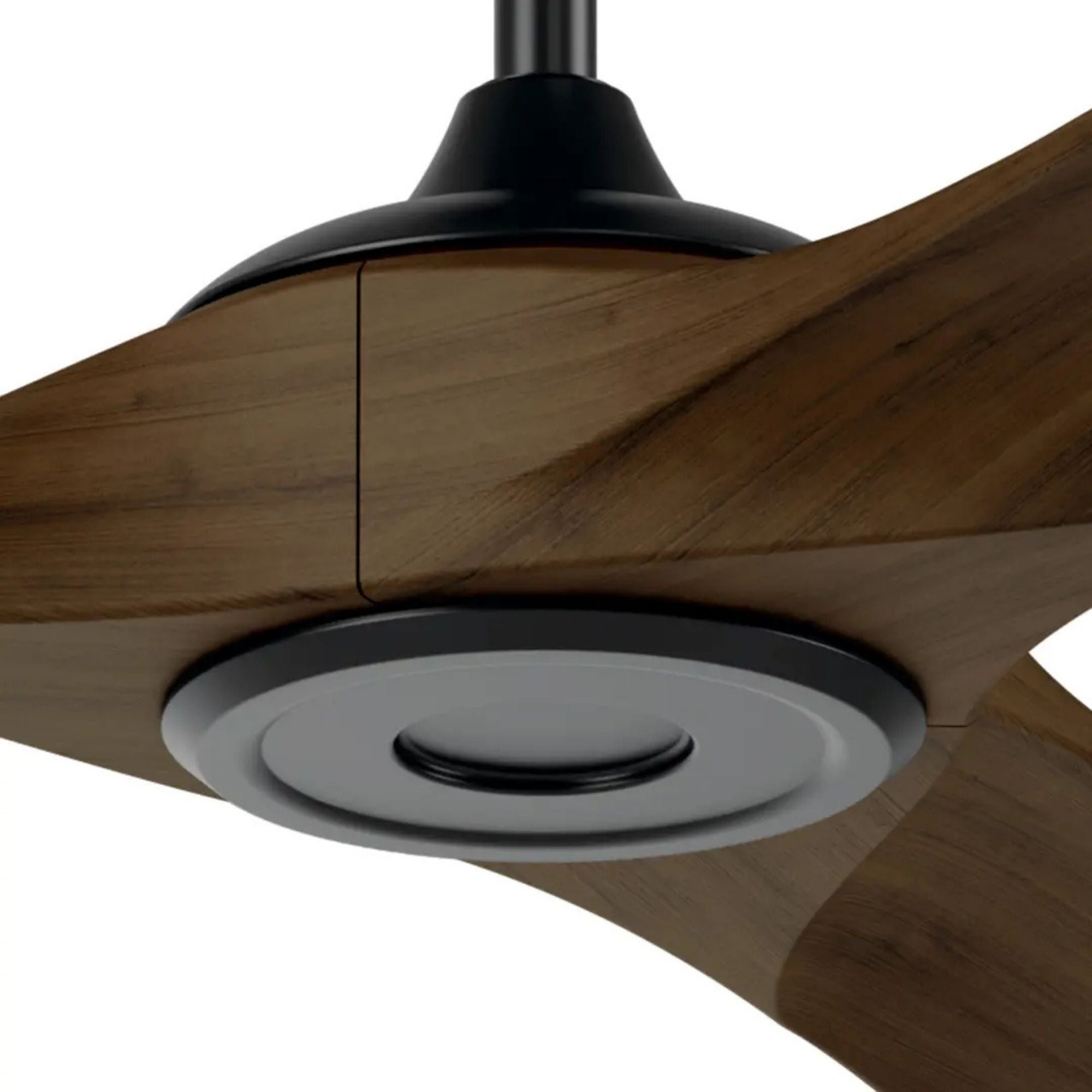

The 26.5W integrated LED delivers 1,600 lumens at 3000K, selectable 3000K or 5000K CCT, 90 CRI, dimming, 40,000-hour rated life, and 74.5 lumens per watt delivered efficacy through satin etched cased opal glass. The fan produces 7,548 CFM at high speed with 308 CFM/W efficiency. An included metal cap allows use of the fan without its light source.

Electrical & Installation

For 120V systems, the DC motor draws 24.5W on high and the integrated LED draws 26.5W, for 51W total. The motor is reversible. A 4.5 in downrod is included; standard sloped-ceiling mounting supports up to 22°. The optional 337005 Kichler 60 Degree Slope Adapter is sold separately for compatible slopes over 20° and up to 60°. The canopy measures 6.25 in wide × 3 in high, and the lead wire is 78 in.

Suggested Downrod by Ceiling Height

Ships with a 4.5 in downrod. For different room size options consider these downrods available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Mylo ceiling fan with Satin Black housing and three Aged Walnut solid wood blades
• Integrated 26.5W LED light with satin etched cased opal glass
• Metal cap for fan-only use
• 65K six-speed DC CoolTouch Full Function handheld remote
• 4.5 in downrod
• Mounting Hardware
