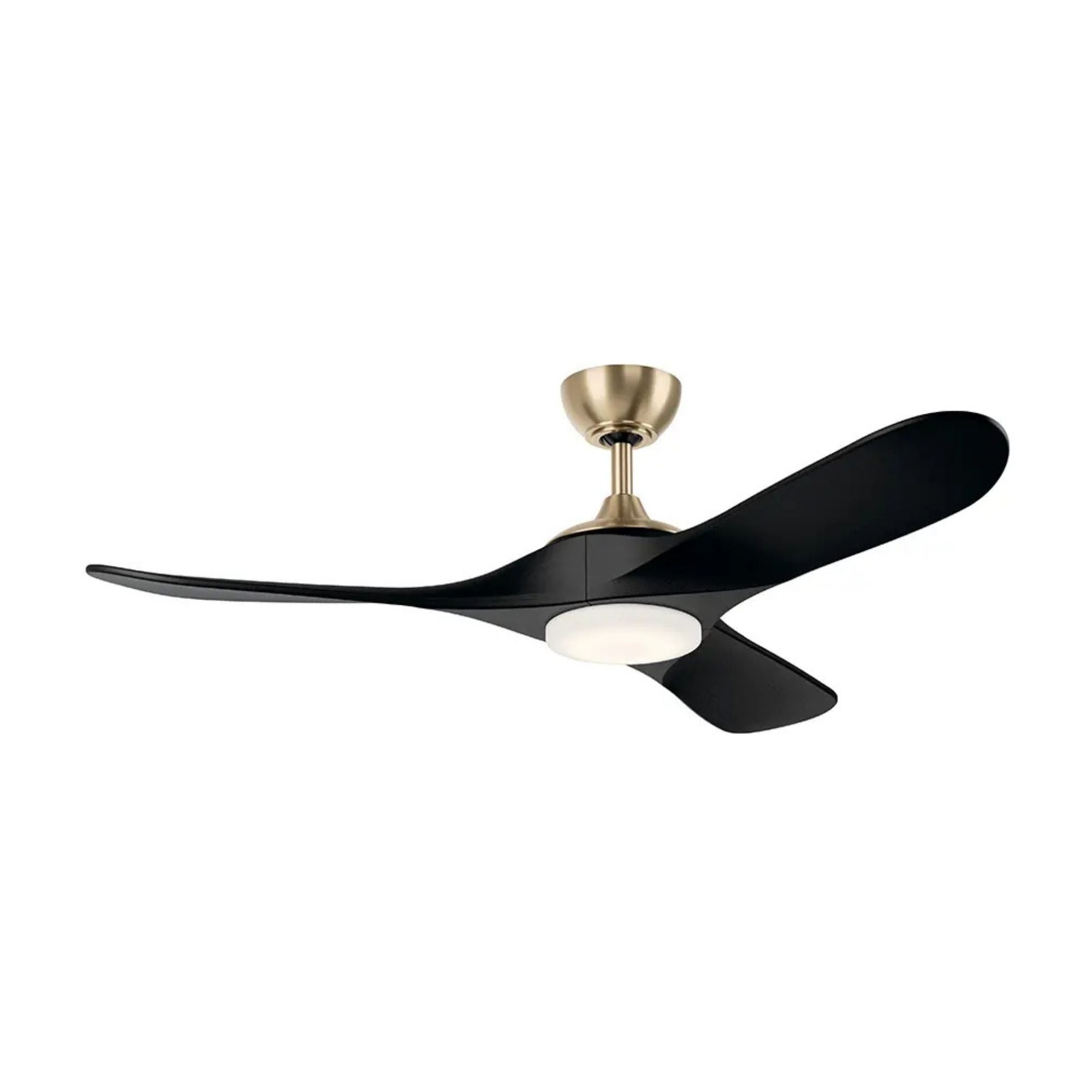

Kichler Mylo 52 in Indoor Outdoor LED Ceiling Fan DC Champagne Bronze Jet Black

The Kichler Mylo, model 310552CPZ, pairs a 52 in blade span with three solid wood blades and a DC brushless motor. It delivers 6,029 CFM at high speed with 340 CFM/W efficiency. Its integrated LED produces 1,600 lumens at 3000K, with selectable 3000K or 5000K CCT. The fan is Damp Rated for indoor and covered outdoor spaces.

Key Features

• Blade Span: 52 in sweep with three solid wood blades.
• Blade Finish: Jet Black solid wood blades are non-reversible.
• Blade Pitch: 13° for the three-blade design.
• DC Motor: 135 mm diameter brushless motor reaches 171 RPM on high and draws 0.27A.
• High-Speed Airflow: Delivers 6,029 CFM on high.
• Airflow Efficiency: Provides 340 CFM/W.
• Motor Power: Uses 17.7W on high, excluding the LED.
• Damp Rating: cETLus Listed Damp for indoor and covered outdoor settings.
• Integrated LED: 18.8W, 1,600 lumens, 90 CRI, selectable 3000K/5000K CCT, dimmable, and rated for 40,000 hours.
• Included Control: Six-speed DC CoolTouch Full Function handheld control with reverse, motor off, and full-range light dimming.
• Slope Compatibility: Standard mounting supports up to 22°. Optional 337005 Kichler 60 Degree Slope Adapter is sold separately for compatible slopes over 20° and up to 60°. Low-ceiling mounting is not supported.
• Included Downrod: 4.5 in downrod, 1 in outside diameter.

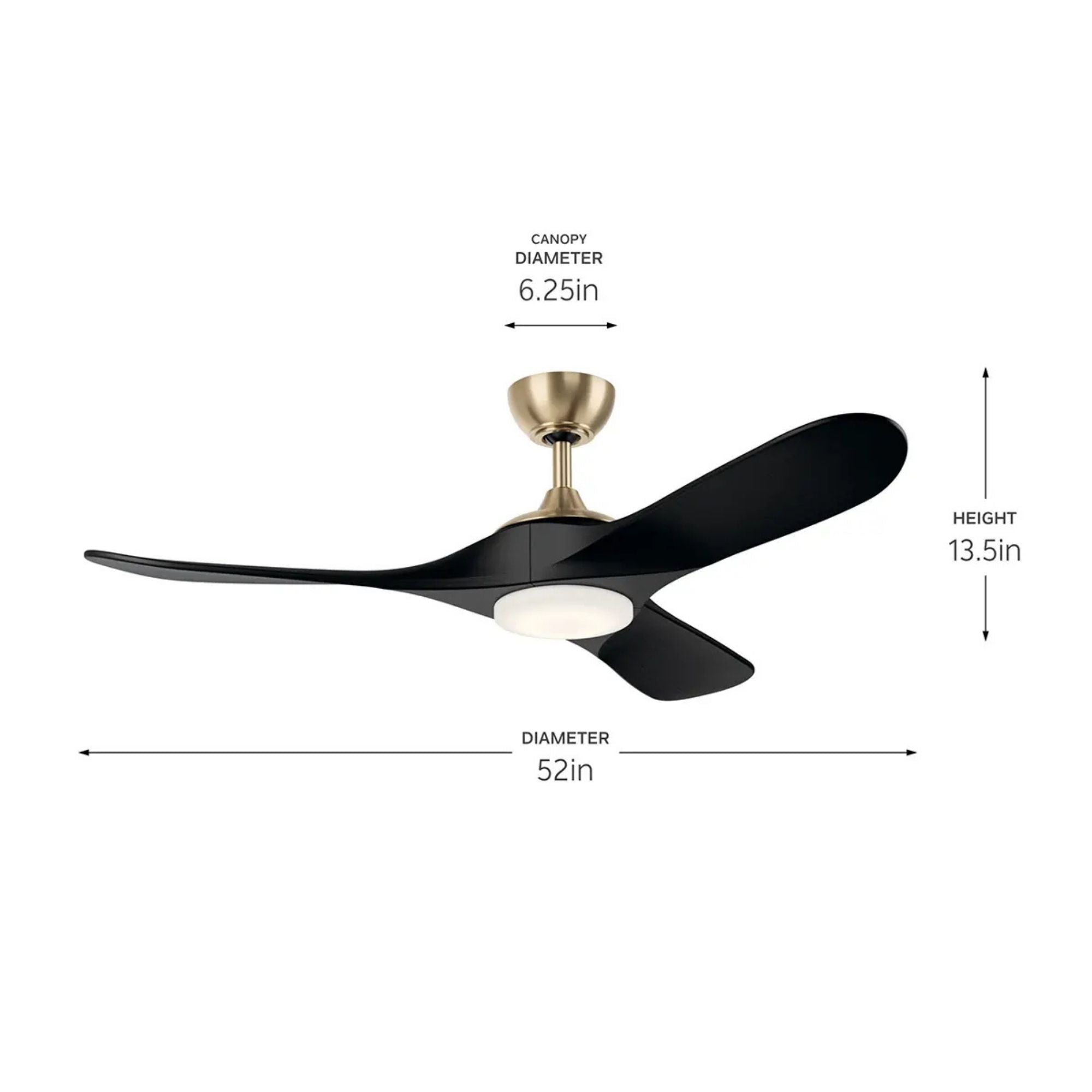

• Installation Dimensions: Fixture drop is 13.5 in and blade drop is 9.75 in. Housing is 7.75 in wide; canopy is 6.25 in wide × 3 in high; lead wire is 78 in. Maintain at least 7 ft from fan to floor.

Advanced Control Features

The included 65K six-speed DC CoolTouch Full Function handheld remote provides six forward speeds, reverse, motor off, light on/off, and full-range light dimming. Do not connect more than two fans on one circuit.

Construction & Design

The steel motor housing is finished in Champagne Bronze and paired with three non-reversible solid wood blades in a distinct Jet Black finish, each with a 13° pitch. The housing is 7.75 in wide, and the canopy measures 6.25 in wide × 3 in high. Satin etched cased opal glass covers the integrated LED, while the sculptural three-blade profile and contrast between the metallic housing and dark wood blades create a contemporary look.

Light Output & Performance

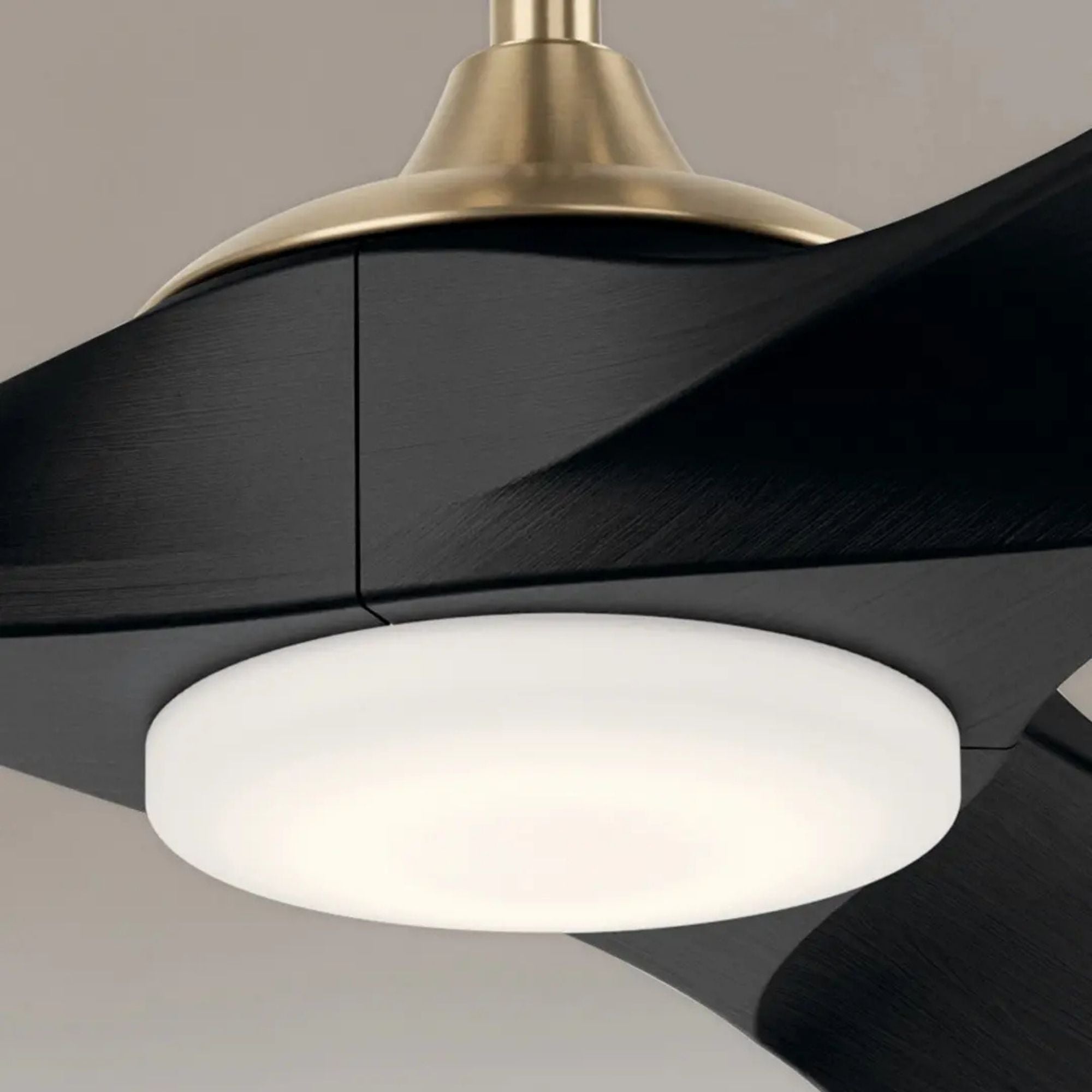

The 18.8W integrated LED delivers 1,600 lumens at 3000K, selectable 3000K or 5000K CCT, 90 CRI, dimming, 40,000-hour rated life, and 74.5 lumens per watt delivered efficacy through satin etched cased opal glass. The fan produces 6,029 CFM at high speed with 340 CFM/W efficiency. An included metal cap allows use of the fan without its light source.

Electrical & Installation

For 120V systems, the DC motor draws 17.7W on high and the integrated LED draws 18.8W, for 36.5W total. The motor is reversible. A 4.5 in downrod is included; standard sloped-ceiling mounting supports up to 22°. The optional 337005 Kichler 60 Degree Slope Adapter is sold separately for compatible slopes over 20° and up to 60°. The canopy measures 6.25 in wide × 3 in high, and the lead wire is 78 in. Maintain at least 7 ft between the fan and floor.

Suggested Downrod by Ceiling Height

Ships with a 4.5 in downrod. For different room size options consider these downrods available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Mylo ceiling fan with Champagne Bronze housing and three Jet Black solid wood blades
• Integrated 18.8W LED light with satin etched cased opal glass

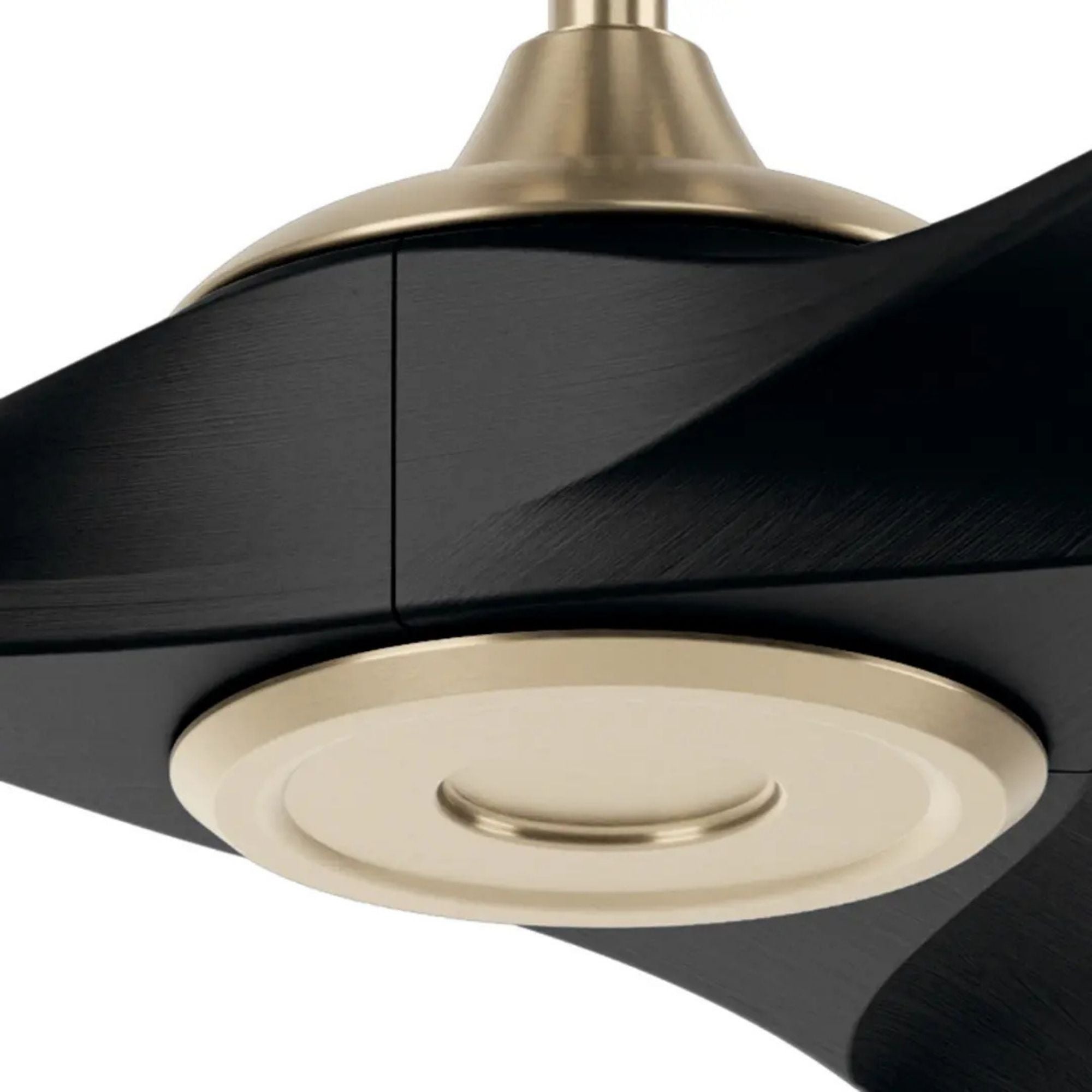

• Metal cap for fan-only use
• 65K six-speed DC CoolTouch Full Function handheld remote
• 4.5 in downrod
• Mounting Hardware
