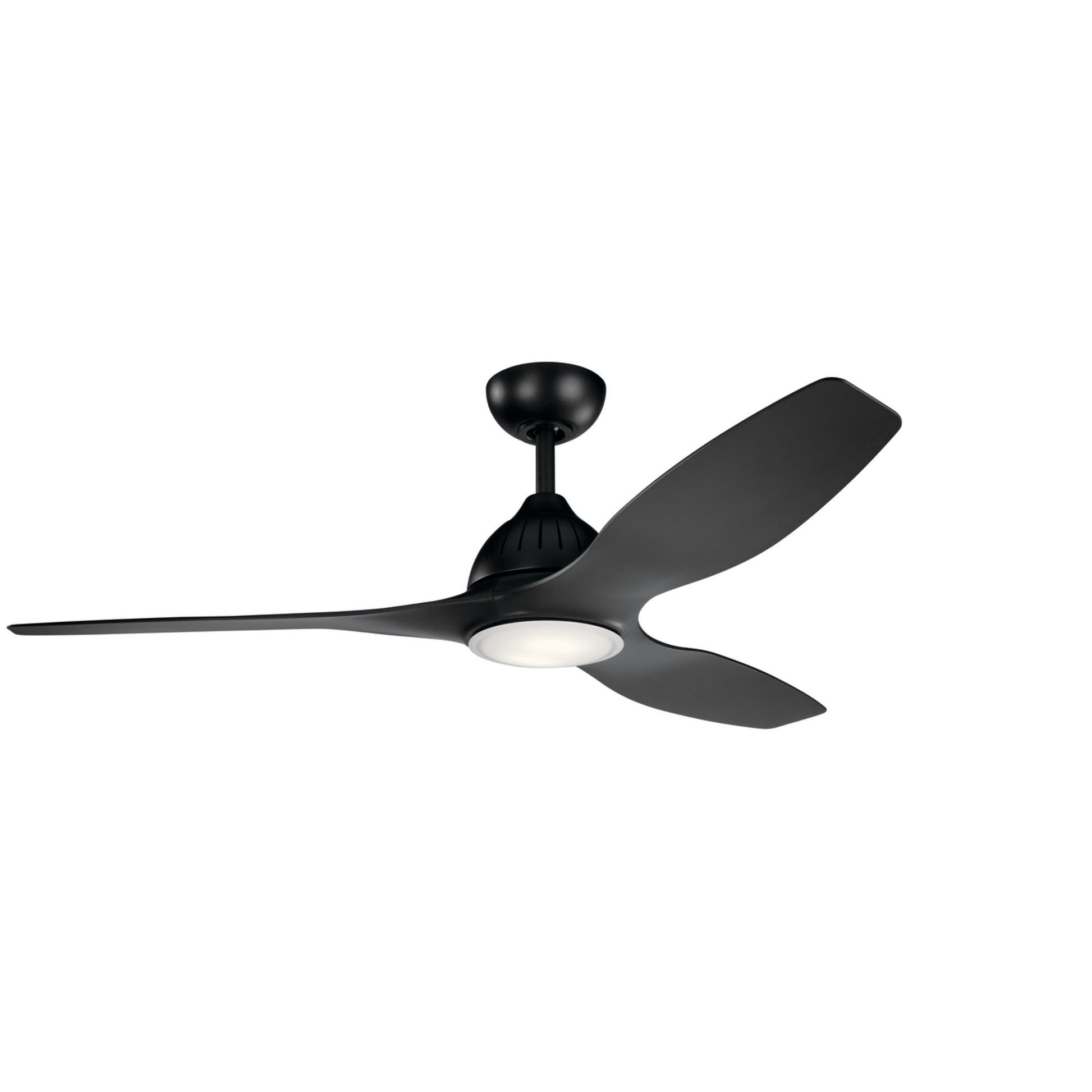

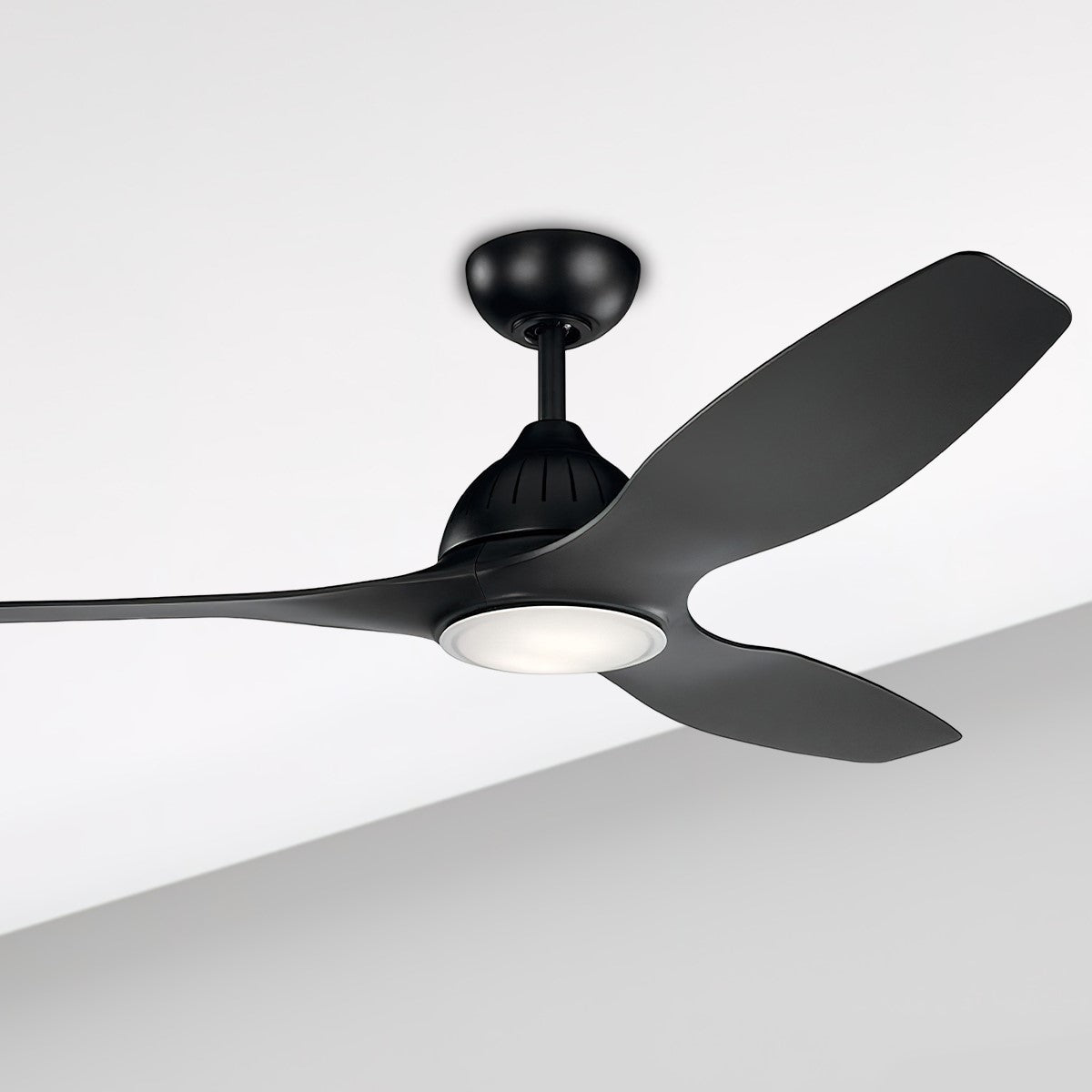

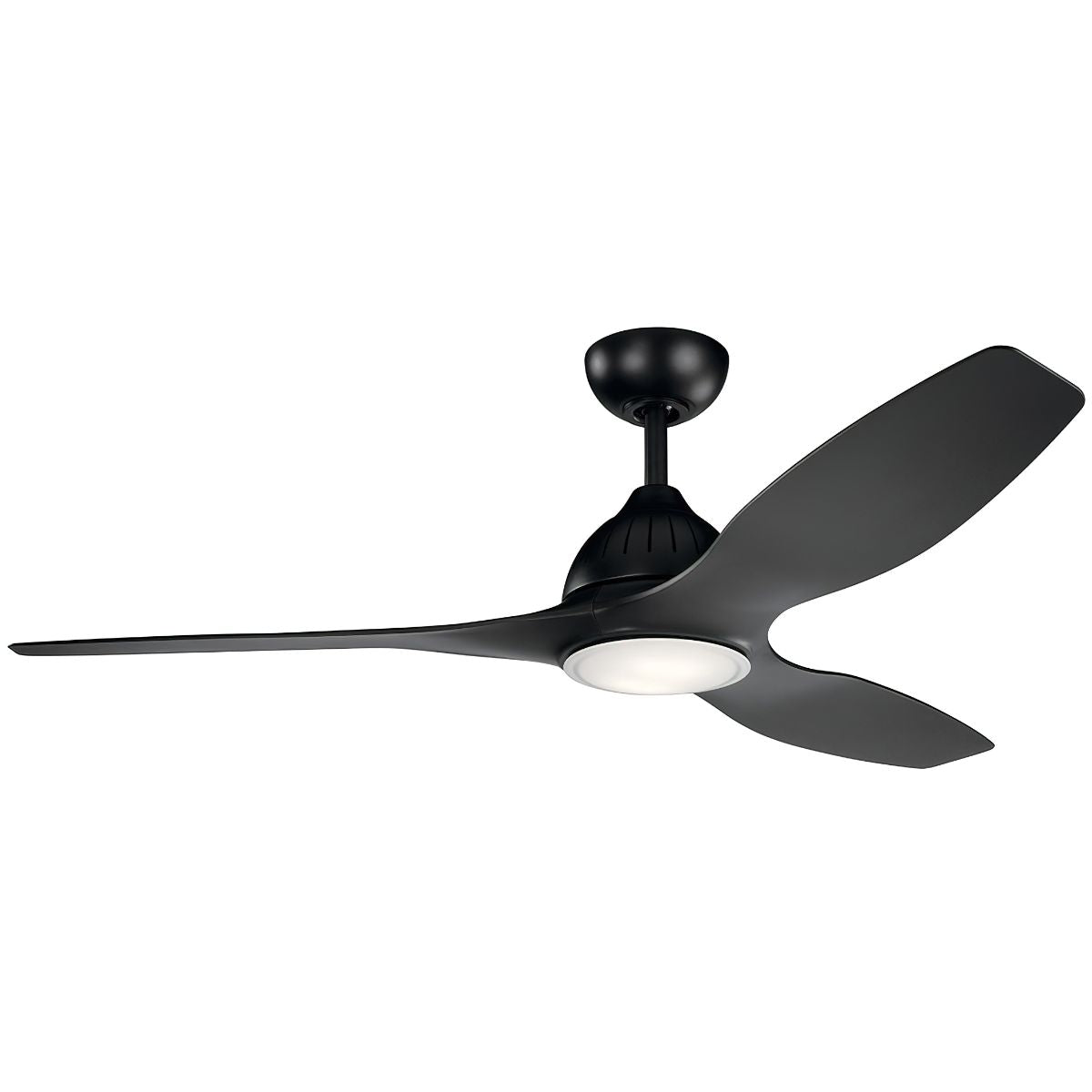

The Kichler Jace, model 310360SBK, has a 60 in sweep with three blades and an AC motor that moves 5,797 CFM at 81 CFM/W. Its integrated LED delivers 1,400 lumens at 3000K, and its Damp Rated construction suits indoor spaces and covered outdoor areas.

Key Features

• Blade Span: 60 in with three blades.
• Blade Design: Three non-reversible ABS blades in Satin Black with a 12° pitch.
• Motor: 188 mm x 15 mm AC induction motor, 156 RPM at high speed and 0.6 amps.
• High-Speed Airflow: 5,797 CFM.
• Airflow Efficiency: 81 CFM/W at high speed.
• Total Wattage: 89W combined, 72W fan and 17W LED.
• Integrated LED: 17W light with 1,400 lumens, 3000K, and 90 CRI.
• Location Rating: Damp rated and cETLus listed for indoor and covered outdoor use.
• Included Control: 65K three-speed wall control with three forward speeds, reverse, motor off, and light on/off.
• Sloped Ceilings: Supports a mounting slope up to 30°.
• Low-Ceiling Mounting: Compatible with the optional 337008 Flush Mount Kit, sold separately.
• Included Downrod: 6 in downrod with 1 in outside diameter.
• Dimensions: 15.75 in overall height, 13 in blade drop, 9 in housing width, and 6.75 in canopy width by 2.6 in height; 78 in lead wire.

Advanced Control Features

The included 65K three-speed wall control system provides three forward speeds, reverse, and motor off, plus light on/off. Optional full-function controls sold separately are the 370135 3-Speed AC Motor Handheld Remote Control Transmitter and the 370155 3-Speed AC Motor Wall Control Transmitter.

Construction & Design

The steel motor housing has a Satin Black finish and measures 9 in wide. Three non-reversible ABS blades in Satin Black have a 12° pitch. The integrated LED has a frosted white polycarbonate diffuser, and the canopy measures 6.75 in wide by 2.6 in high. The curved, sweeping blades create an architectural profile that fits traditional and modern interiors.

Light Output & Performance

The integrated 17W LED provides 1,400 lumens at 3000K with 90 CRI and a frosted white polycarbonate diffuser. High-speed airflow is 5,797 CFM at 81 CFM/W.

Electrical & Installation

Operates on 120V and draws 89W total, combining 72W for the fan and 17W for the LED. The AC motor is reversible. Includes a 6 in downrod; the confirmed mounting slope is up to 30°, and the optional 337005 Kichler 60 Degree Slope Adapter supports installations over 20° and up to 60°. The fan is also low-ceiling adaptable with the optional 337008 Kichler Flush Mount Kit, sold separately. The canopy measures 6.75 in wide by 2.6 in high, and the lead wire is 78 in. Maintain at least 7 ft between the floor and the fan blades.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Ceiling fan with Satin Black finish and three matching ABS blades
• Integrated 17W LED light with frosted white polycarbonate diffuser
• 65K three-speed wall control system
• 6 in downrod
• Metal fixture cap for non-light use
• Mounting Hardware
