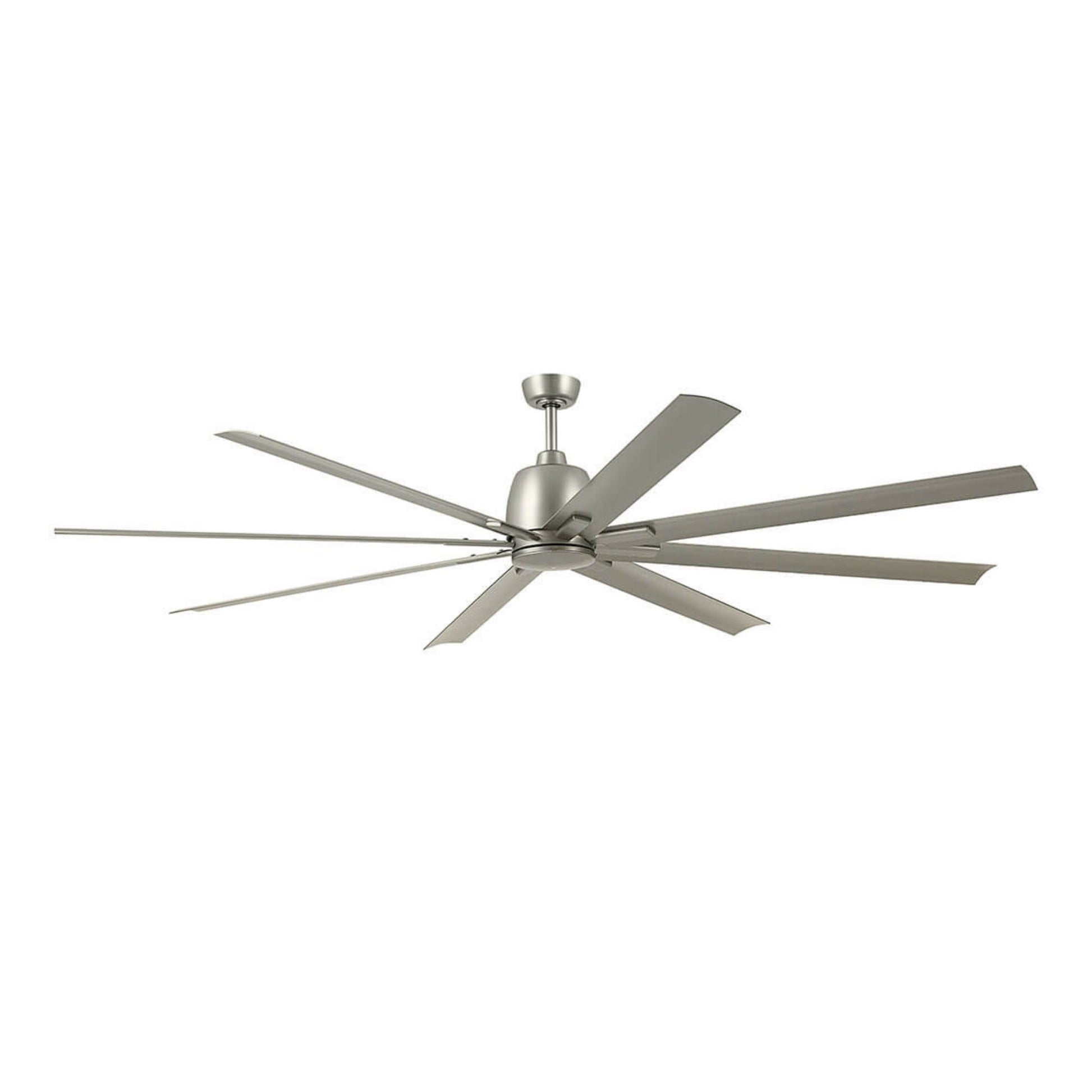

Kichler Lighting Breda 84 in Outdoor Ceiling Fan DC Brushed Nickel

The Kichler Lighting Breda model 310285NI spans 84 in with eight Brushed Nickel aluminum blades, powered by a DC brushless motor. It delivers 9,764 CFM at high speed with 337 CFM/W airflow efficiency. Wet Rated and cETLus Listed for wet locations, this fan brings expansive airflow to outdoor spaces with a polished Brushed Nickel finish.

Key Features

• Blade Design: 84 in sweep with eight aluminum blades and 4.5° pitch for broad, sculptural airflow.
• DC Motor: DC 165L brushless motor with 72 RPM on high and 0.43A draw.
• Airflow Performance: 9,764 CFM on high at 29W, delivering 337 CFM/W efficiency.
• Wet Location: Wet Rated and cETLus Listed for outdoor use, including exposed wet locations.
• Remote Control: Included 6-speed DC CoolTouch-Full handheld control offers six forward speeds, reverse, motor off, and light on/off with full-range dimming.
• Circuit Limit: Do not connect more than two fans on one circuit.
• Mounting: Includes a 6 in downrod with 1 in outside diameter, supports slopes up to 22°, and accepts optional adapter 337005 for installations over 20° up to 60°.
• Ceiling Fit: Not low-ceiling adaptable; 16.4 in overall fixture height and 15.5 in blade drop with the included downrod.

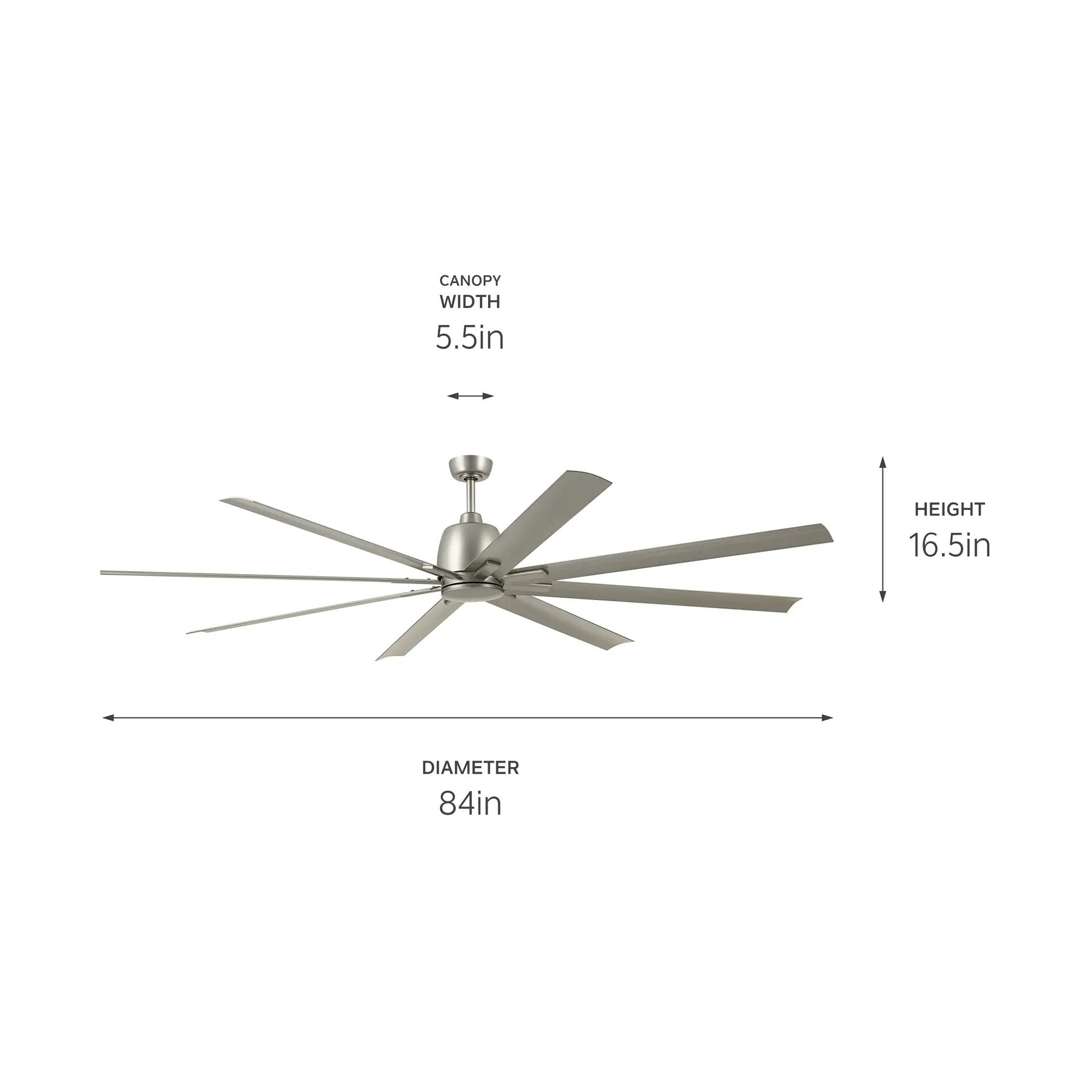

• Dimensions: 8.25 in housing width and 5.5 in canopy width by 2 in height; 78 in lead wire.
• Construction: Steel housing and Brushed Nickel aluminum blades; 30.6 lb hanging weight.
• Compliance and Warranty: Title 20 and Reese's Law compliant, with limited lifetime warranty.

Advanced Control Features

The included 6 Speed DC CoolTouch-Full handheld remote provides six forward speeds, motor reverse, motor off, and light on/off with full-range dimming. The remote reverses the motor direction, making it perfect for summer and winter seasons. Connect no more than two fans on one circuit.

Construction and Design

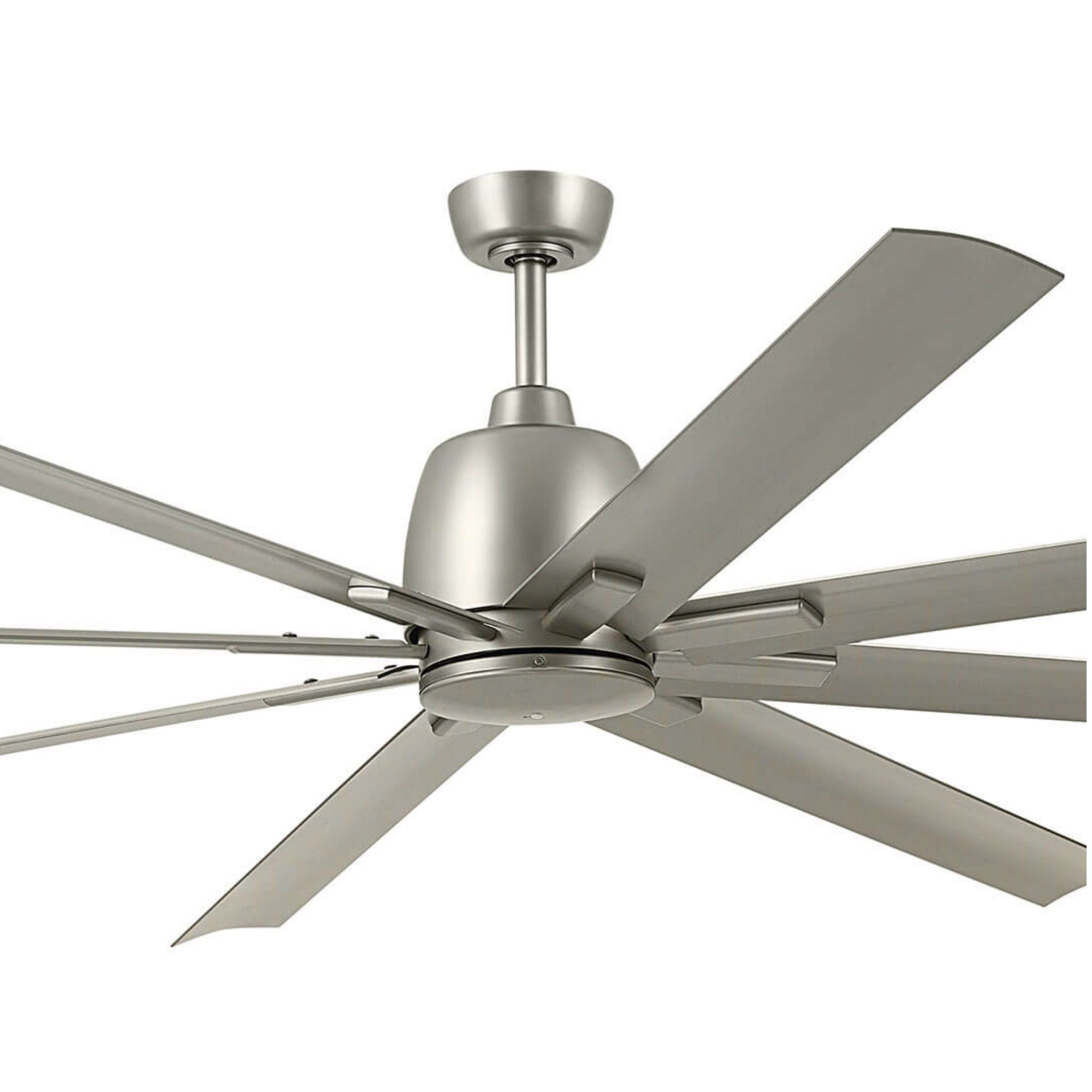

Breda's windmill-inspired profile pairs eight slender aluminum blades finished in Brushed Nickel with a 4.5° pitch and a steel housing finished in Brushed Nickel. Its expansive 84 in sweep adds a striking architectural focal point to outdoor settings.

Fan Performance

The DC 165L brushless motor moves 9,764 CFM at 72 RPM on high, using 29W for 337 CFM/W airflow efficiency.

Electrical & Installation

Operates on 120V and draws 0.43A at high speed. Fan power is 29W total; no lamp source is included. The motor is reversible through the included remote. Includes a 6 in downrod with 1 in outside diameter. Standard slope compatibility is up to 22°; optional 337005 Kichler 60 Degree Slope Adapter supports installations over 20° and up to 60°. Minimum distance from fan to floor is 12 ft. With the included downrod, fixture drop is 16.5 in and blade drop is 15.5 in. The canopy is 5.5 in wide by 2 in high, and the lead wire is 78 in.

Suggested Downrod by Ceiling Height

This downrod-mount fan includes a 6 in downrod. It is not low-ceiling adaptable.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Breda 84 in fan with eight Brushed Nickel aluminum blades
• 6 Speed DC CoolTouch-Full handheld remote
• 6 in downrod
• Mounting Hardware
