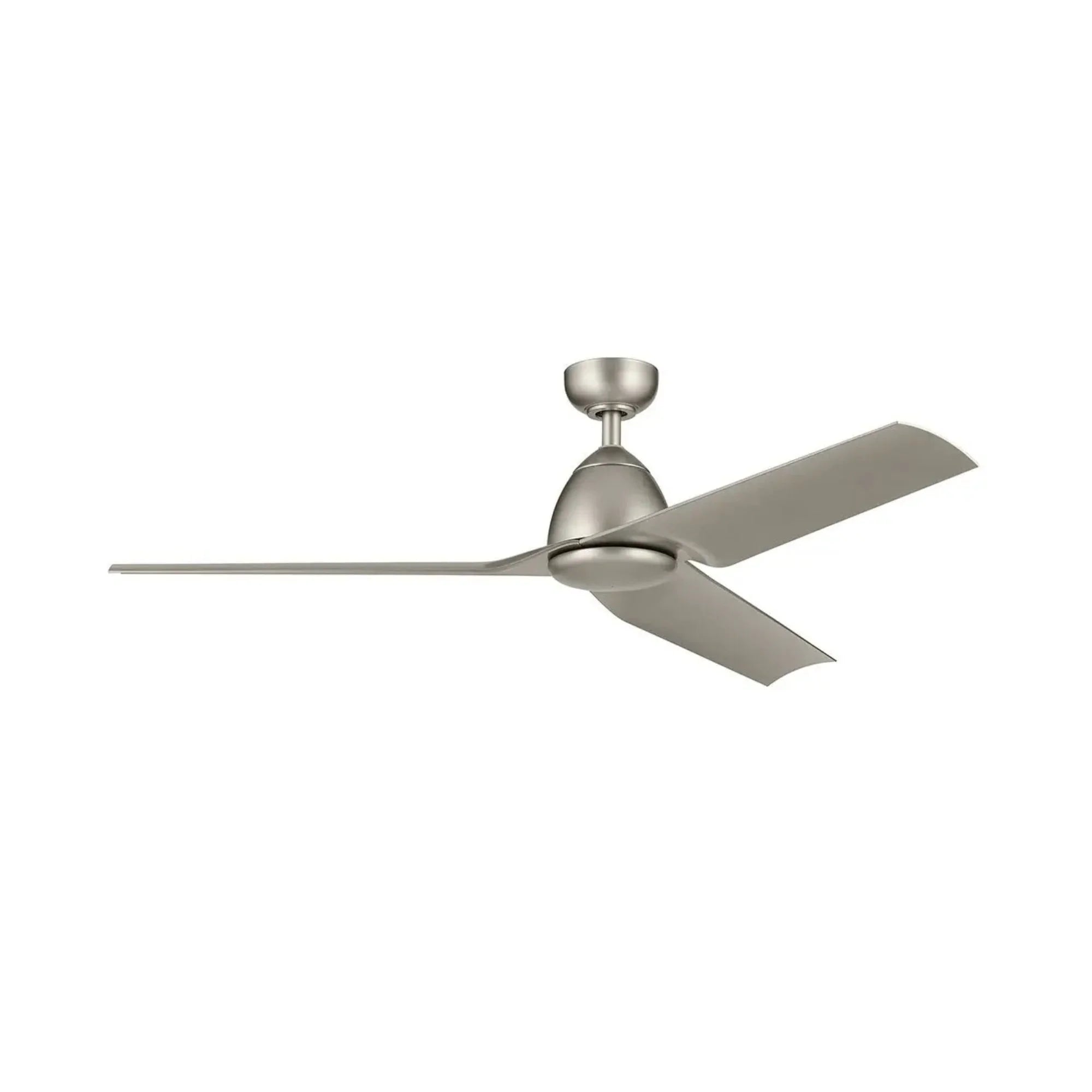

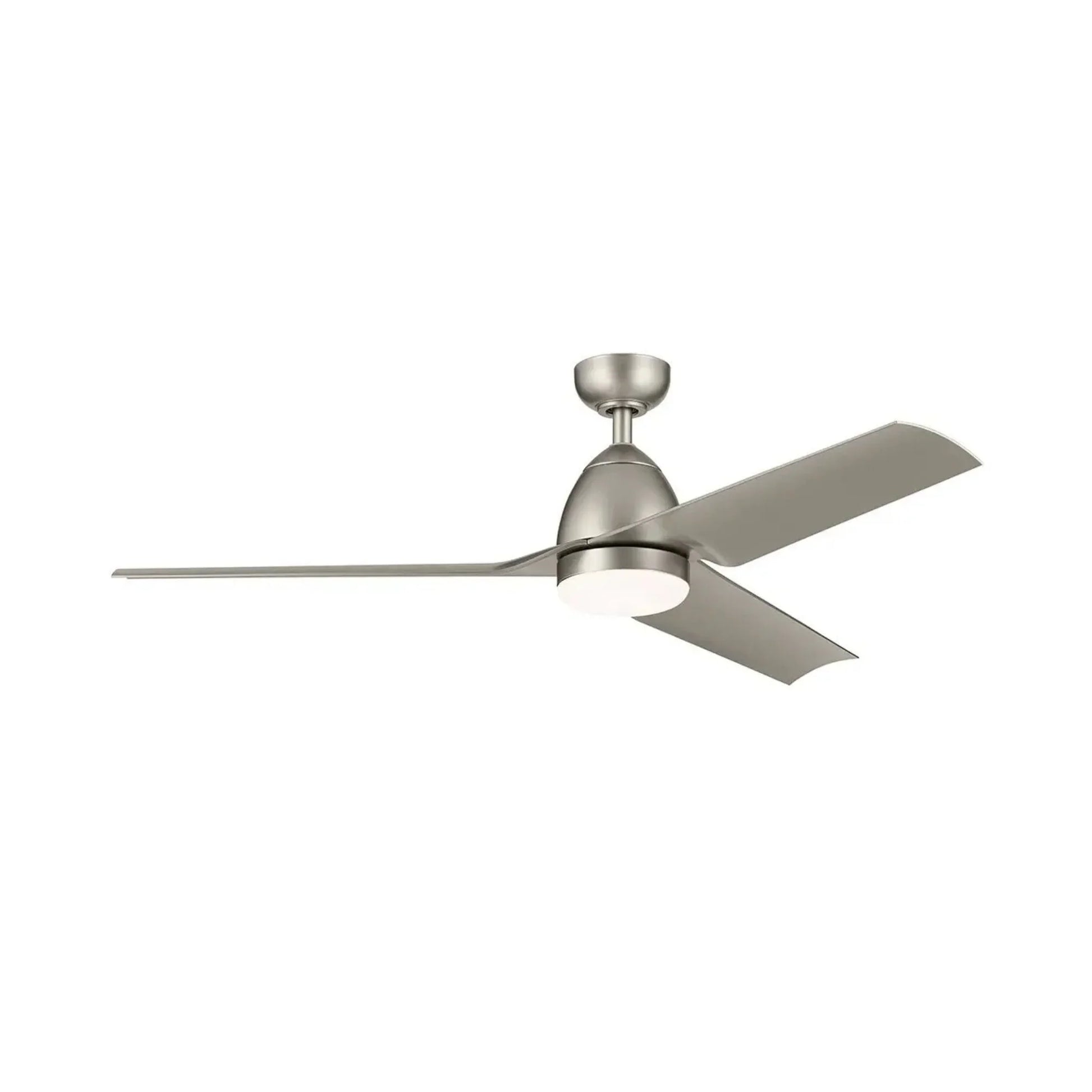

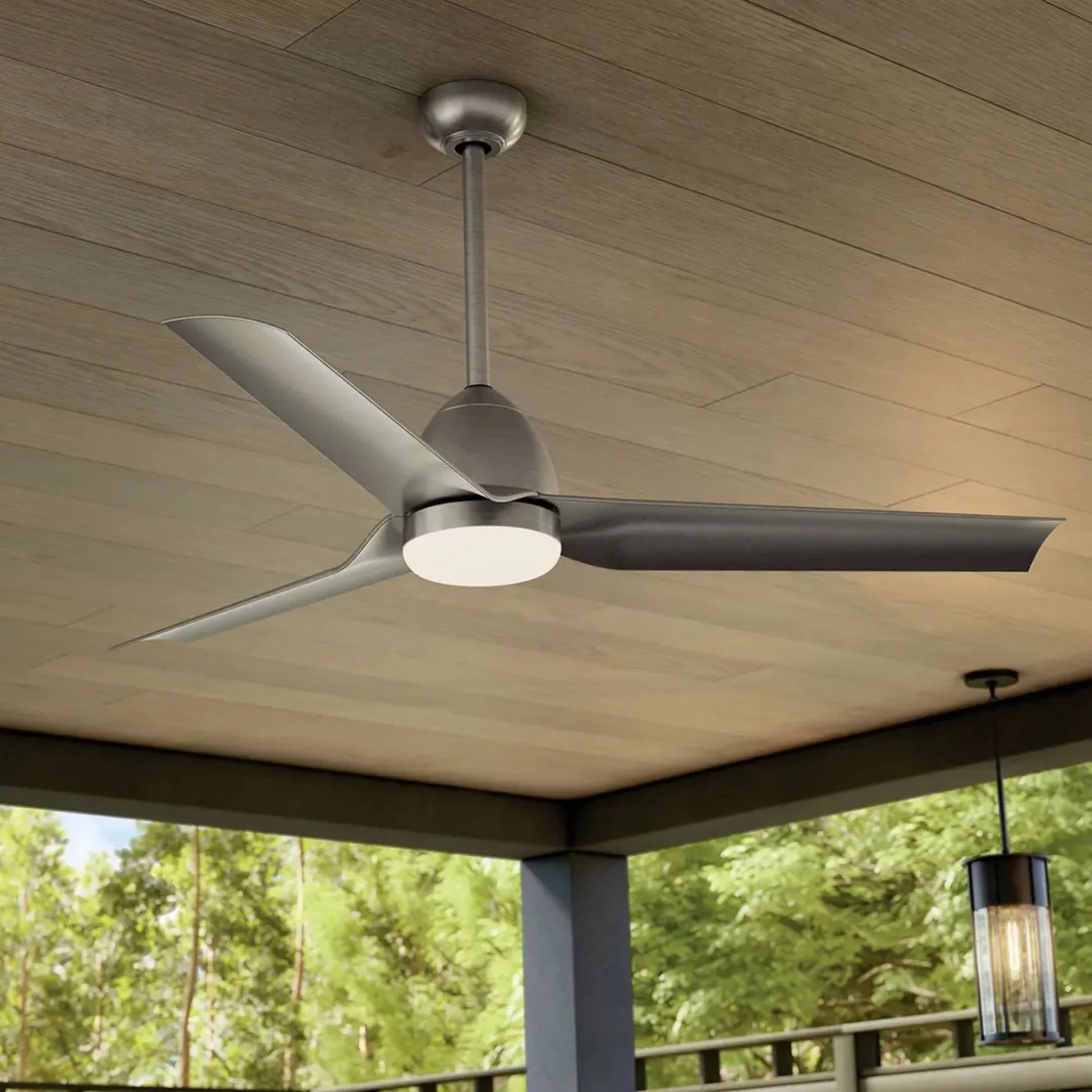

The Kichler Lighting Fit model 310254NI combines a 54 in blade sweep and three ABS blades with a reversible DC motor. It moves 7,080 CFM on high at 225 CFM/W. The integrated LED provides 1,600 source lumens at 3000K, with selectable 3000K or 5000K color temperature. Wet Rated for indoor or outdoor use, this streamlined fan suits contemporary spaces.

Key Features

• Blade Sweep: 54 in with three non-reversible ABS blades, 13° pitch, and Silver finish.
• DC Motor: 100 mm x 30 mm brushless motor reaches 165 RPM on high and draws 0.46A.
• Airflow: Delivers 7,080 CFM on high at 225 CFM/W; motor power is 31.4W excluding the light.
• Integrated LED: 23W light provides 1,600 source lumens at 3000K, with 90 CRI and selectable 3000K or 5000K CCT.
• Dimming: Light dims to 10%; rated life is 40,000 hours.
• Included Control: 65K six-speed DC CoolTouch full-function handheld control provides six forward speeds, reverse, motor off, and full-range light dimming.

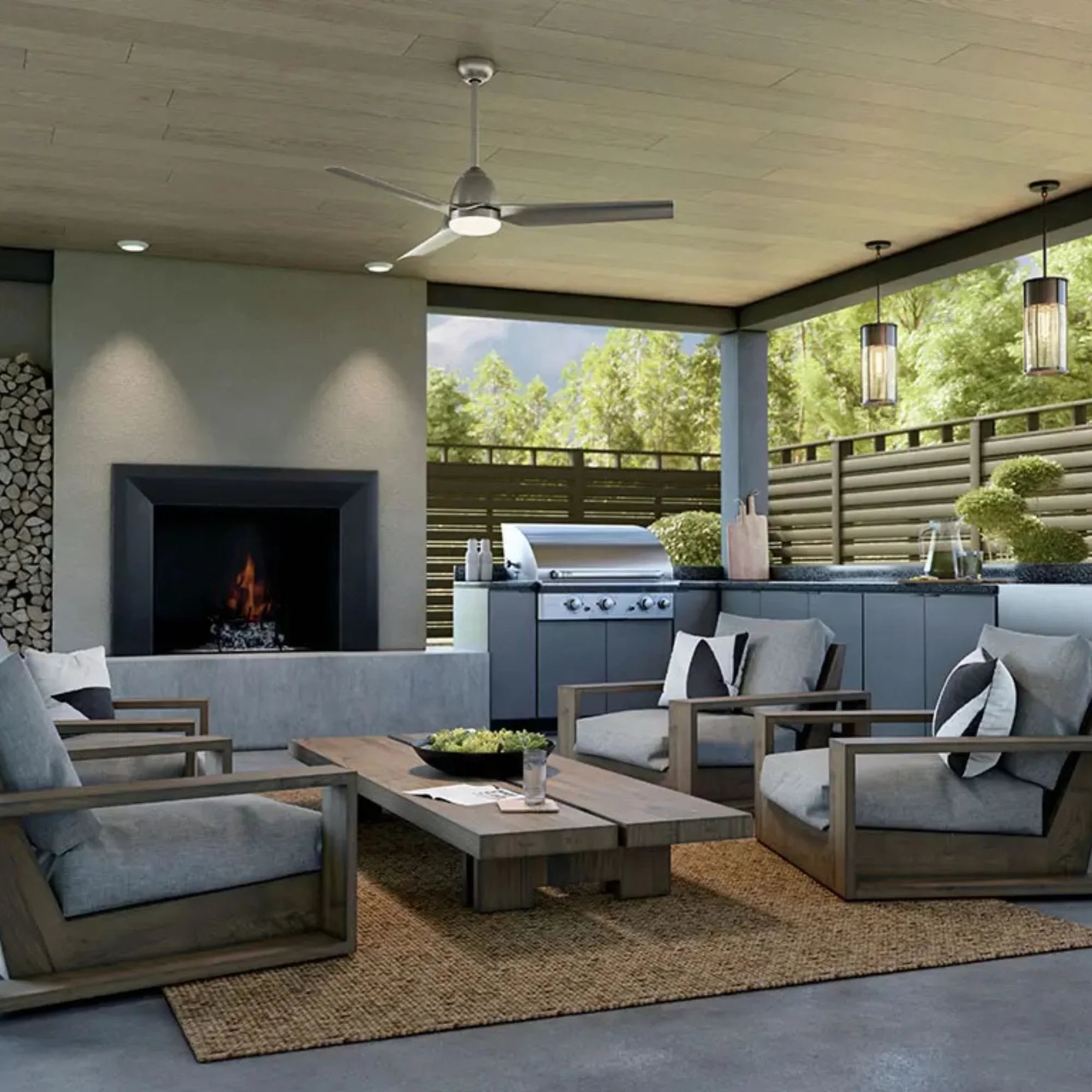

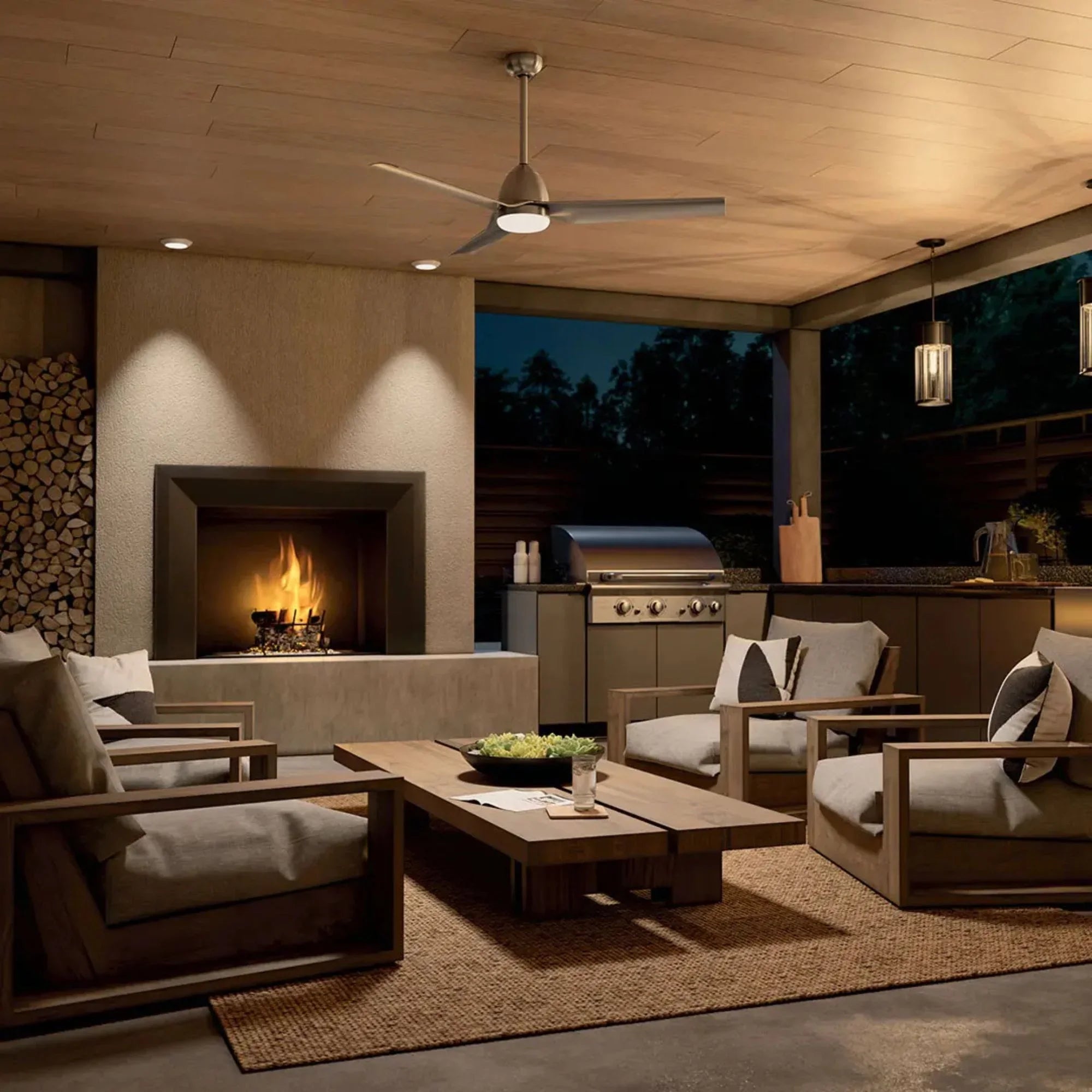

• Wet-Rated Use: cETLus Listed Wet and Energy Star qualified for indoor or outdoor applications.
• Downrod Mount: Includes a 4 in downrod with 1 in outside diameter.

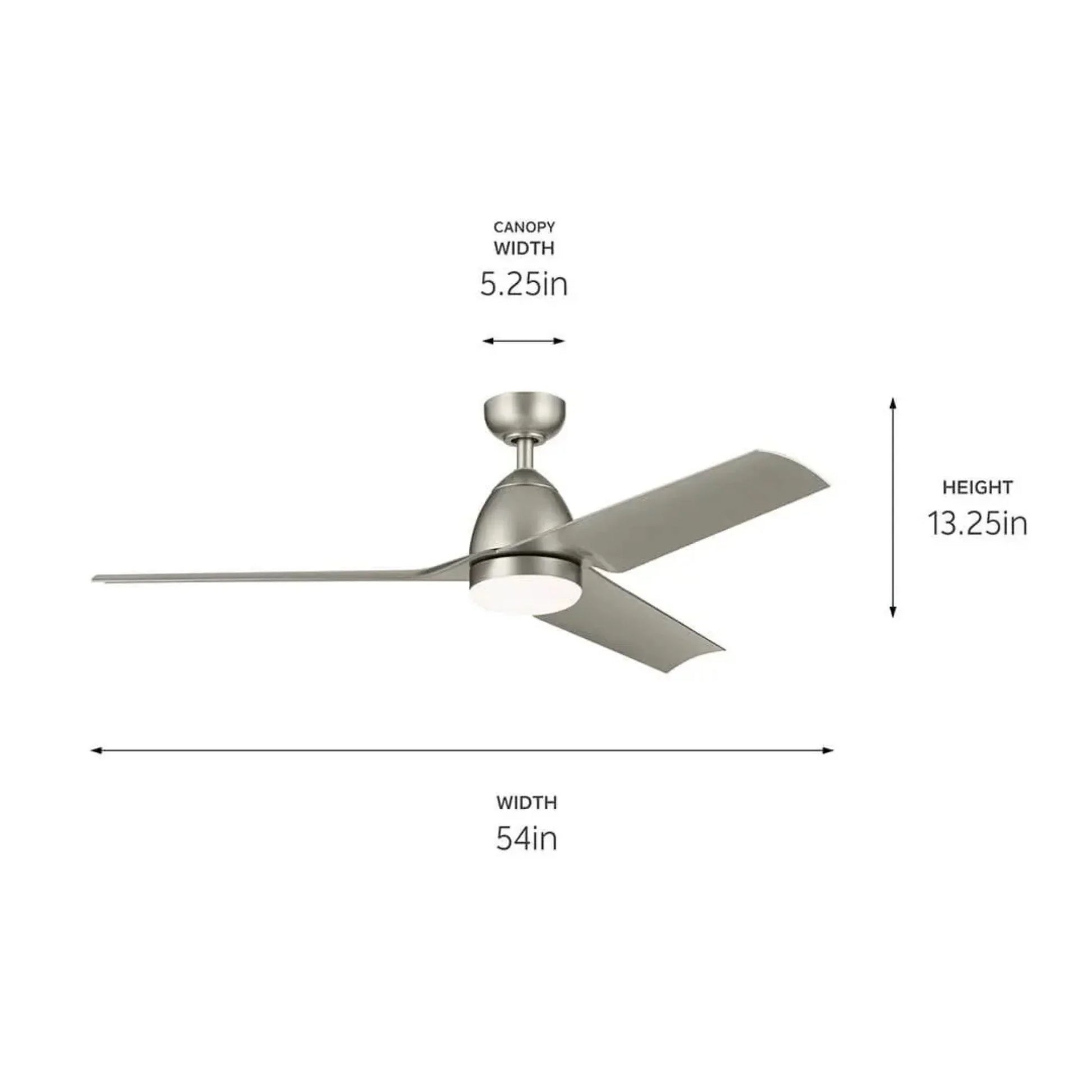

• Mounting Details: Fixture drop is 13.25 in with the light installed; blade drop is 10.25 in. Maintain at least 8 ft between fan and floor.

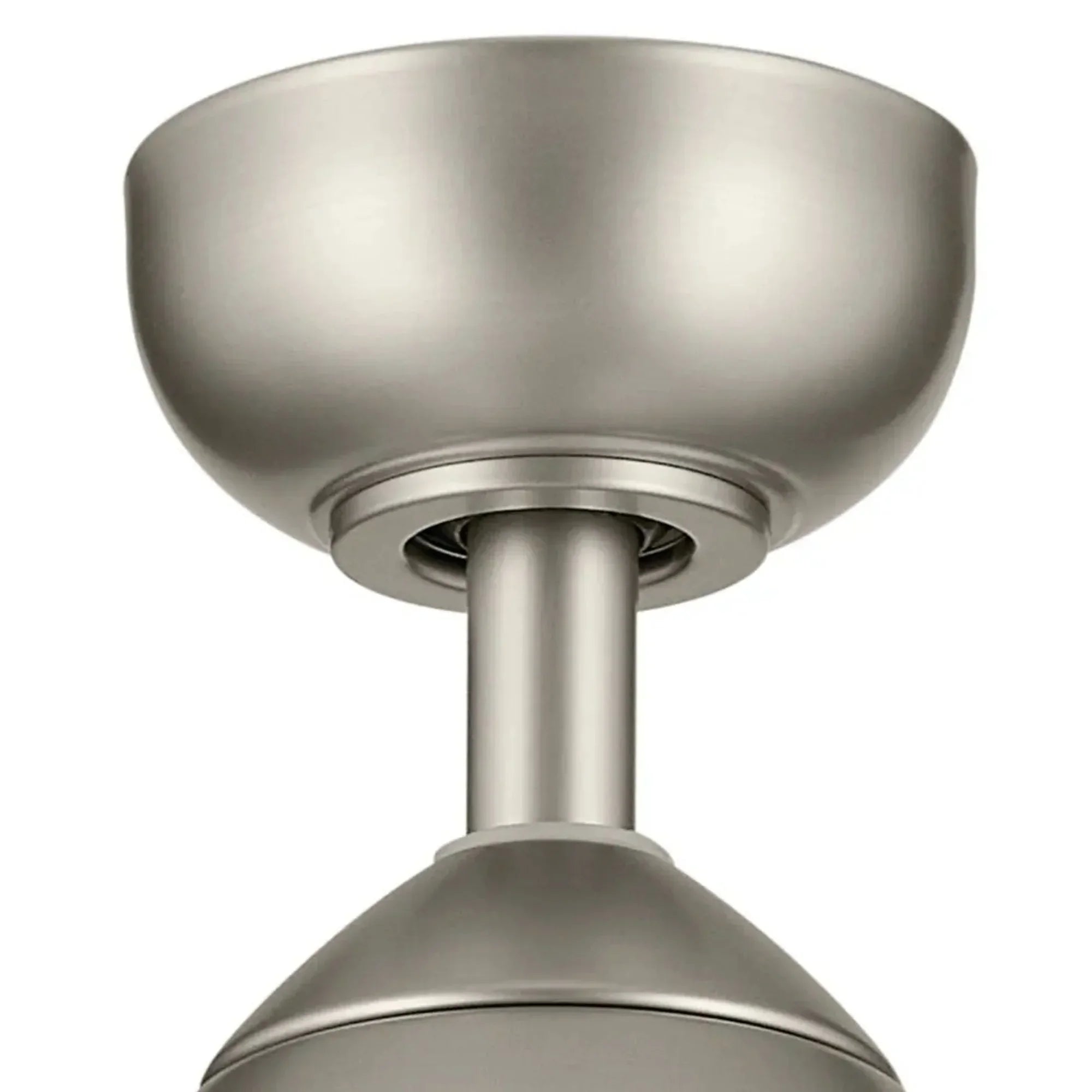

• Dimensions: Housing width is 7.25 in; canopy is 5.25 in wide by 2.5 in high; lead wire is 78 in.
• Construction: Steel housing with ABS blades, etched cased opal glass, and 13.86 lb hanging weight.

Advanced Control Features

The included 65K six-speed DC CoolTouch full-function handheld control provides six forward speeds, reverse, motor off, and light on/off with full-range dimming. The control supports no more than two fans on one circuit.

Construction and Design

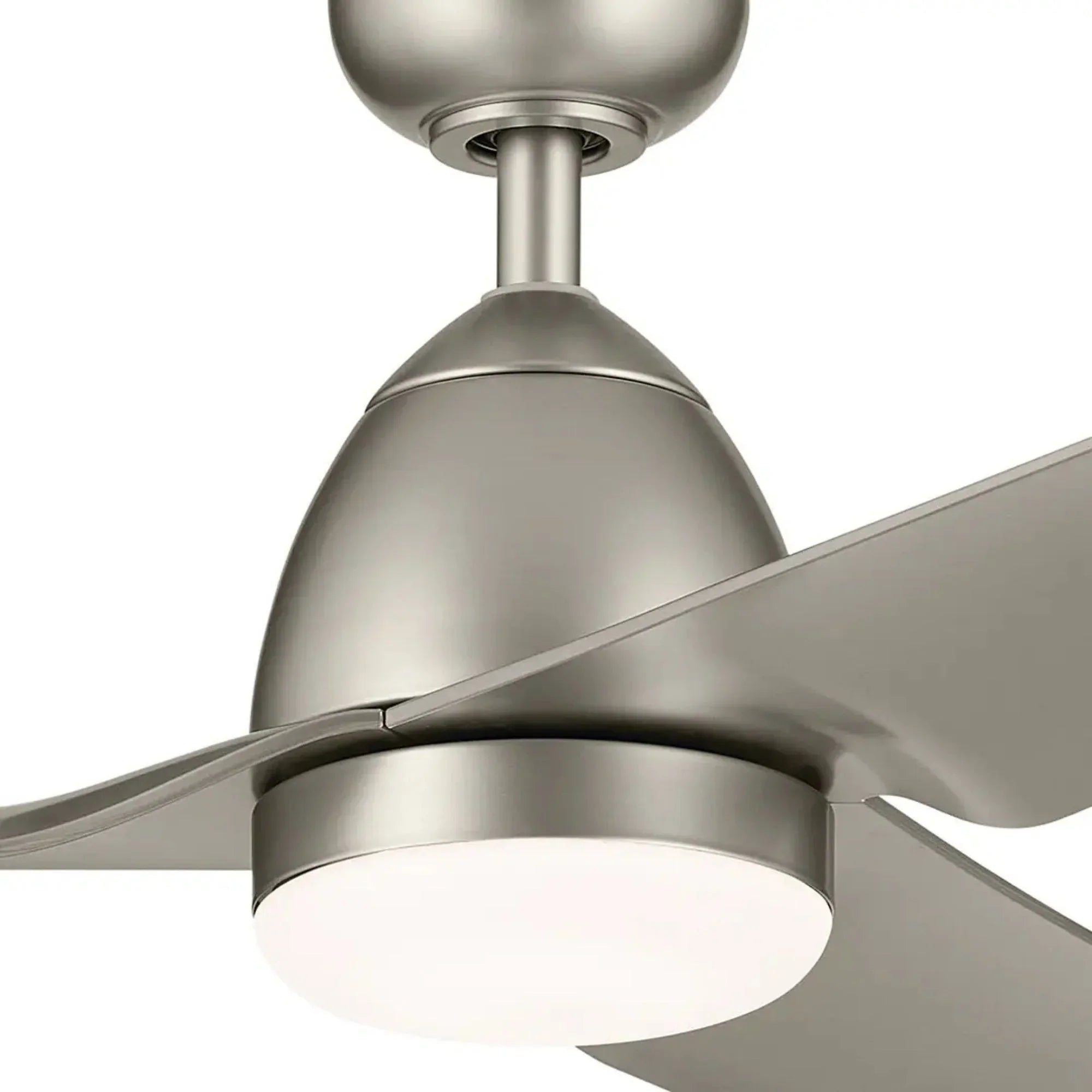

The steel housing in Painted Brushed Nickel is paired with three ABS blades in Silver. A streamlined profile, etched cased opal glass, and integrated light create a clean look for indoor and outdoor settings.

Light Output & Performance

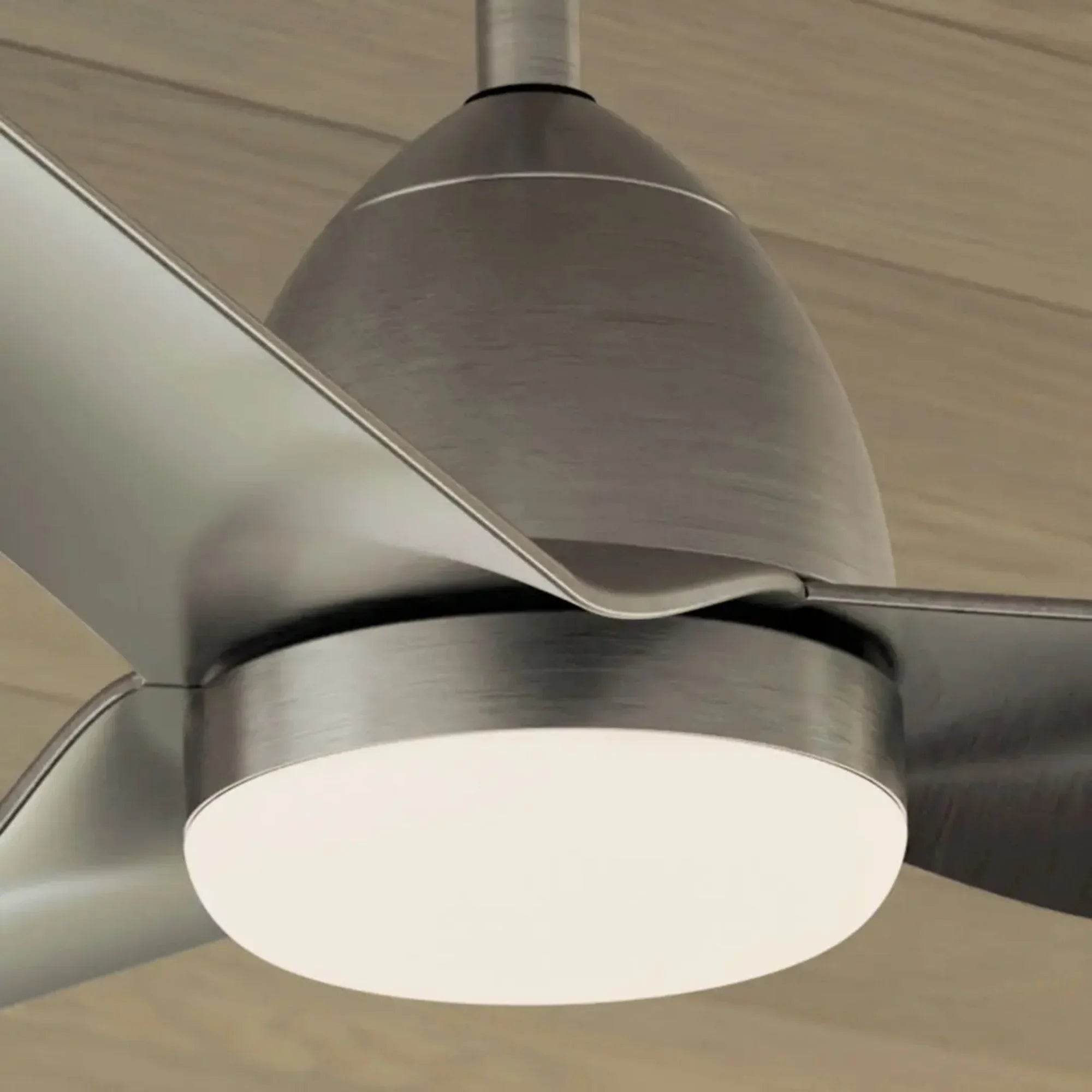

The integrated 23W LED delivers 1,600 source lumens at 3000K, with 90 CRI and CCT selectable between 3000K and 5000K during installation. The light dims to 10% and has a 40,000-hour rated life. On high, the DC motor moves 7,080 CFM at 225 CFM/W.

Electrical & Installation

Operates on 120V. The DC motor uses 31.4W on high excluding the 23W LED, for 54.4W combined fan-and-light power. The motor reverses using the included control. Includes a 4 in downrod with 1 in outside diameter. The supplied specifications list a 22° mounting-slope pitch and 15° maximum stem tilt. Fixture drop is 13.25 in with the light installed; blade drop is 10.25 in. The canopy is 5.25 in wide by 2.5 in high; lead wire length is 78 in.

Suggested Downrod by Ceiling Height

Ships with a 4 in downrod. Maintain at least 8 ft between the fan and floor.

• 9 ft ceiling: 12 in downrod.
• 10 ft ceiling: 18 in downrod.
• 11 ft ceiling: 24 in downrod.
• 12 ft ceiling: 36 in downrod.
• 13 ft ceiling: 48 in downrod.
• 14 ft ceiling: 60 in downrod.
• 15 ft and higher: 72 in downrod.

What's Included

• Fit 54 in ceiling fan with three ABS blades
• Integrated 23W LED and etched cased opal glass
• 65K six-speed DC CoolTouch full-function handheld control
• 4 in downrod with 1 in outside diameter
• Metal fixture cap for non-light use
• Mounting Hardware
