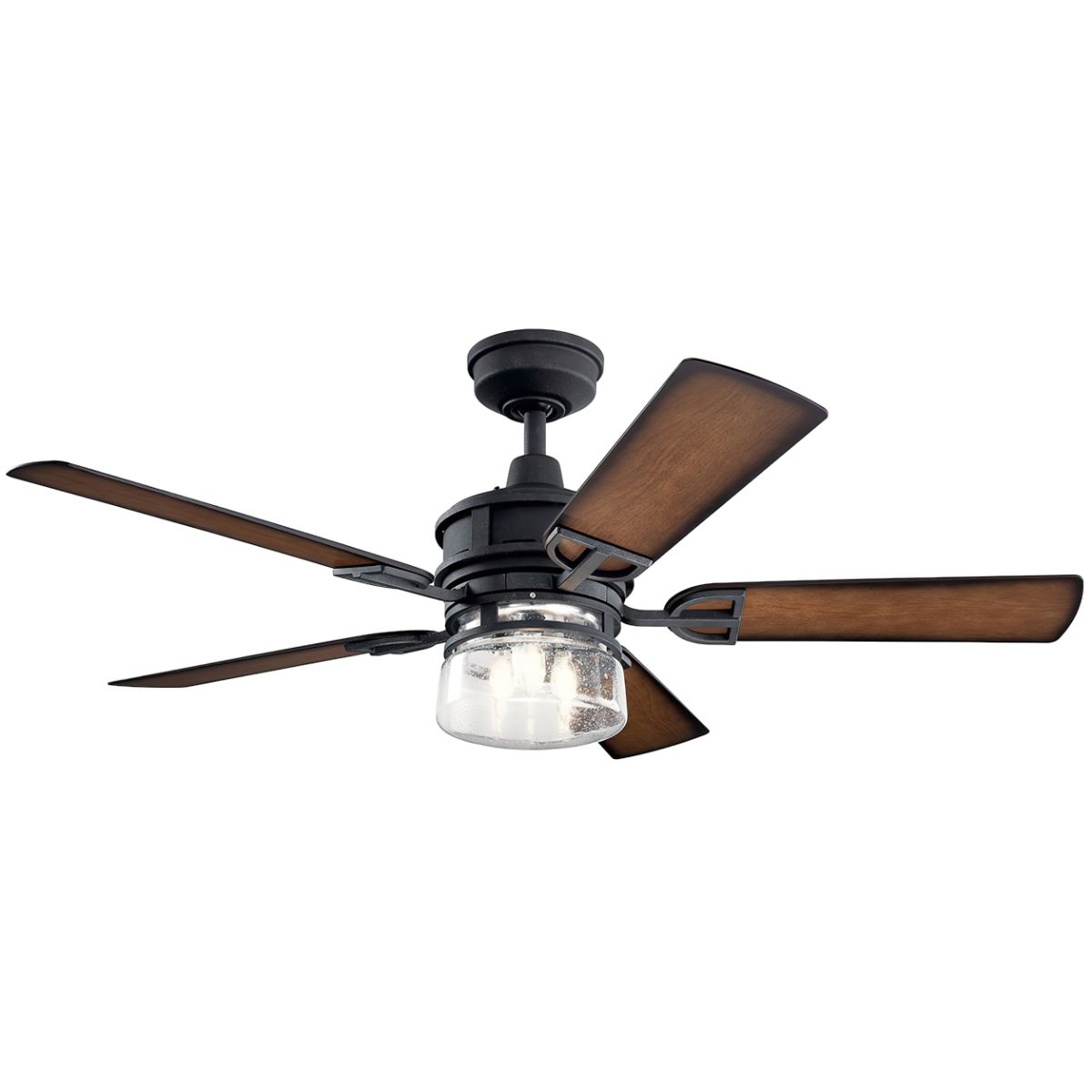

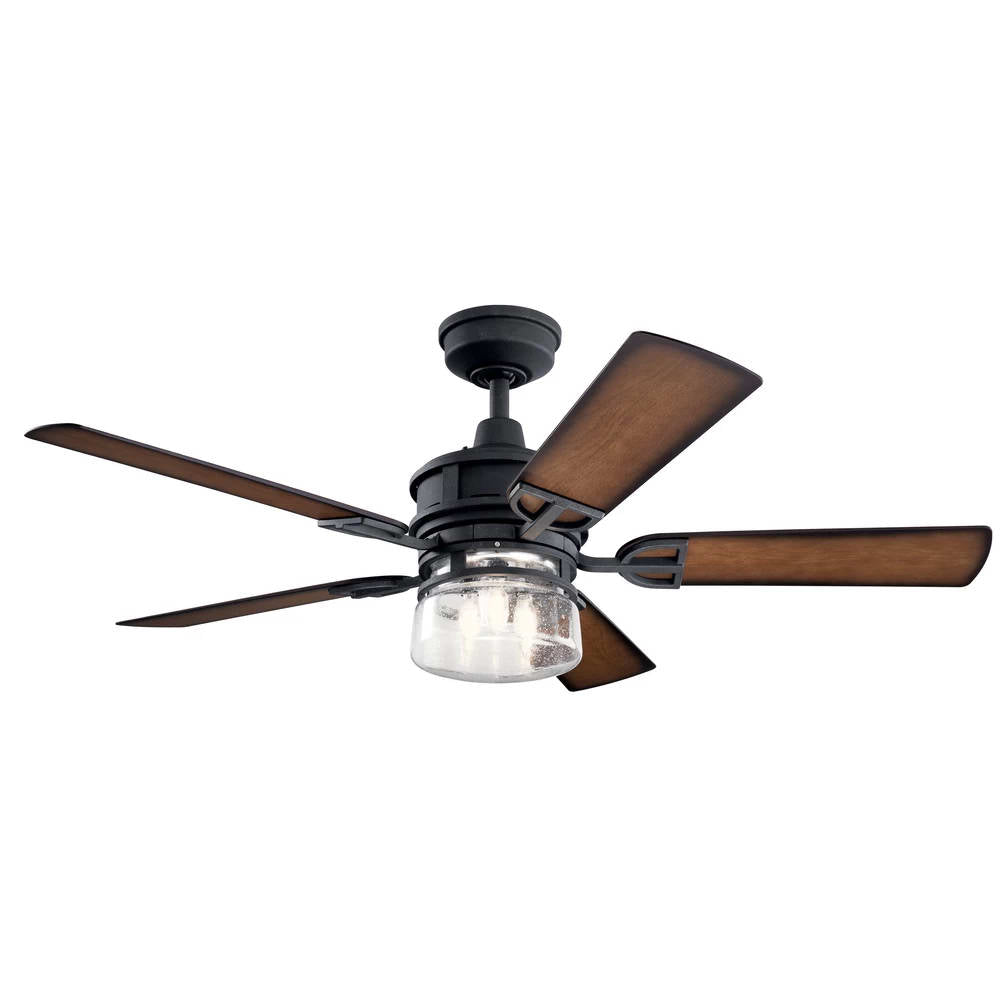

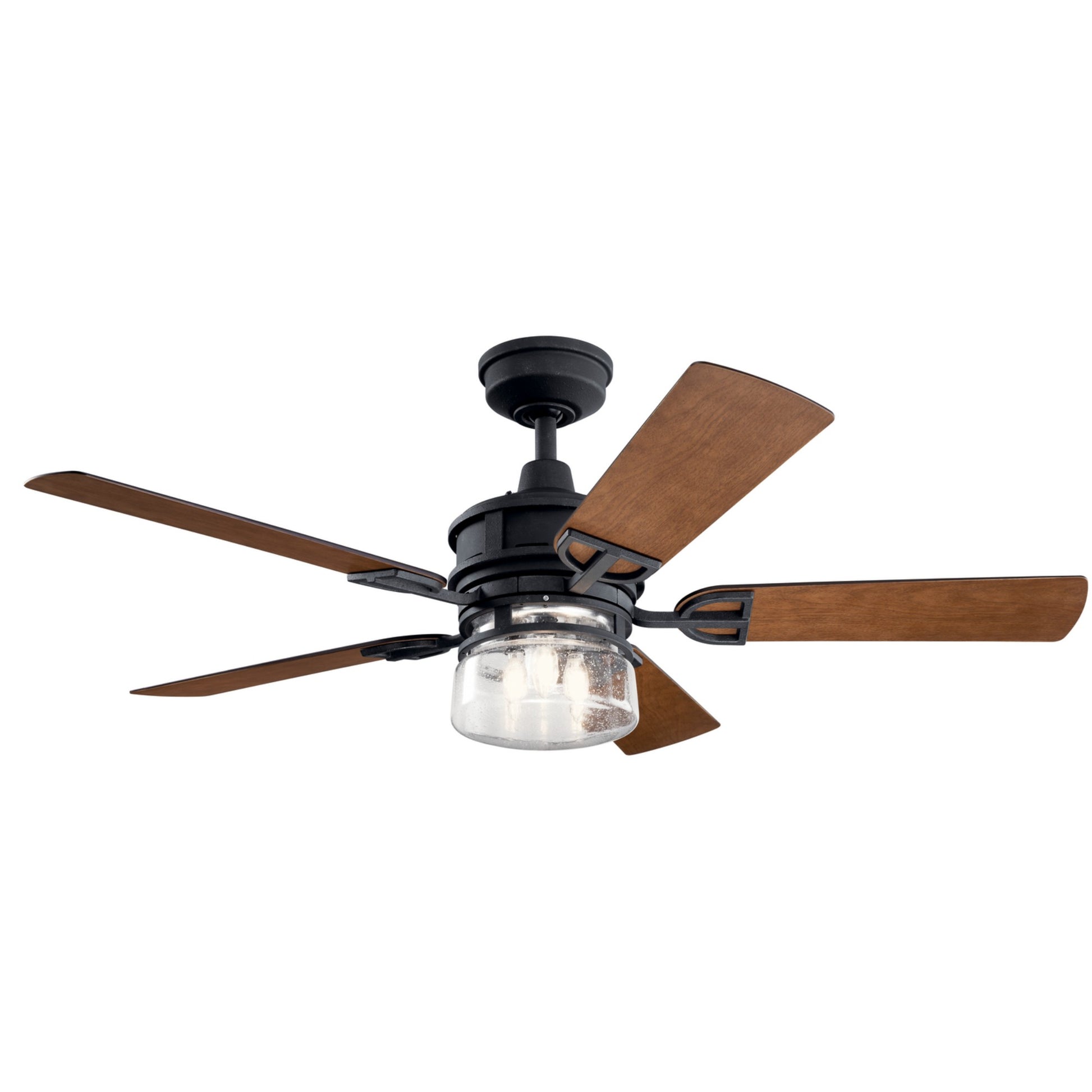

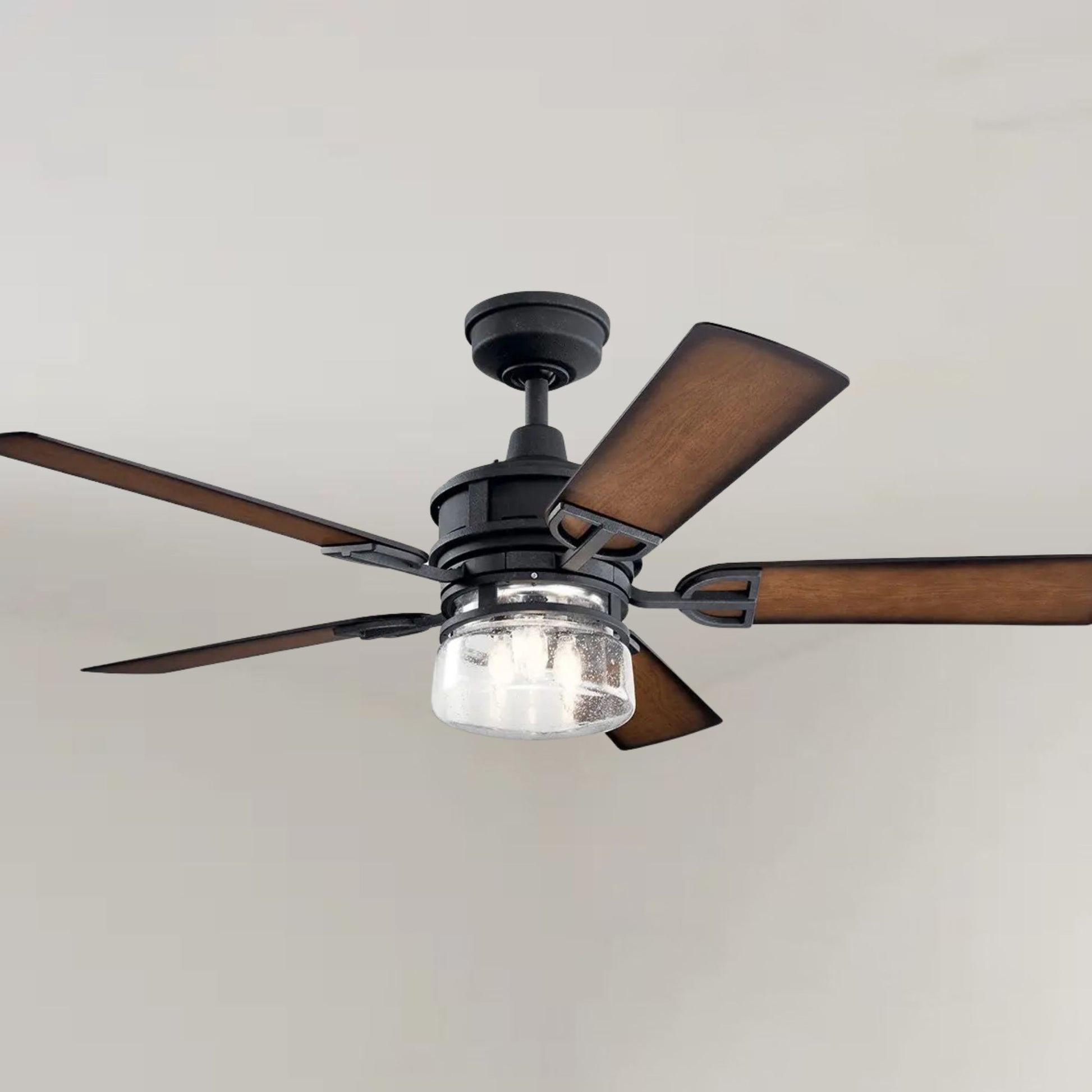

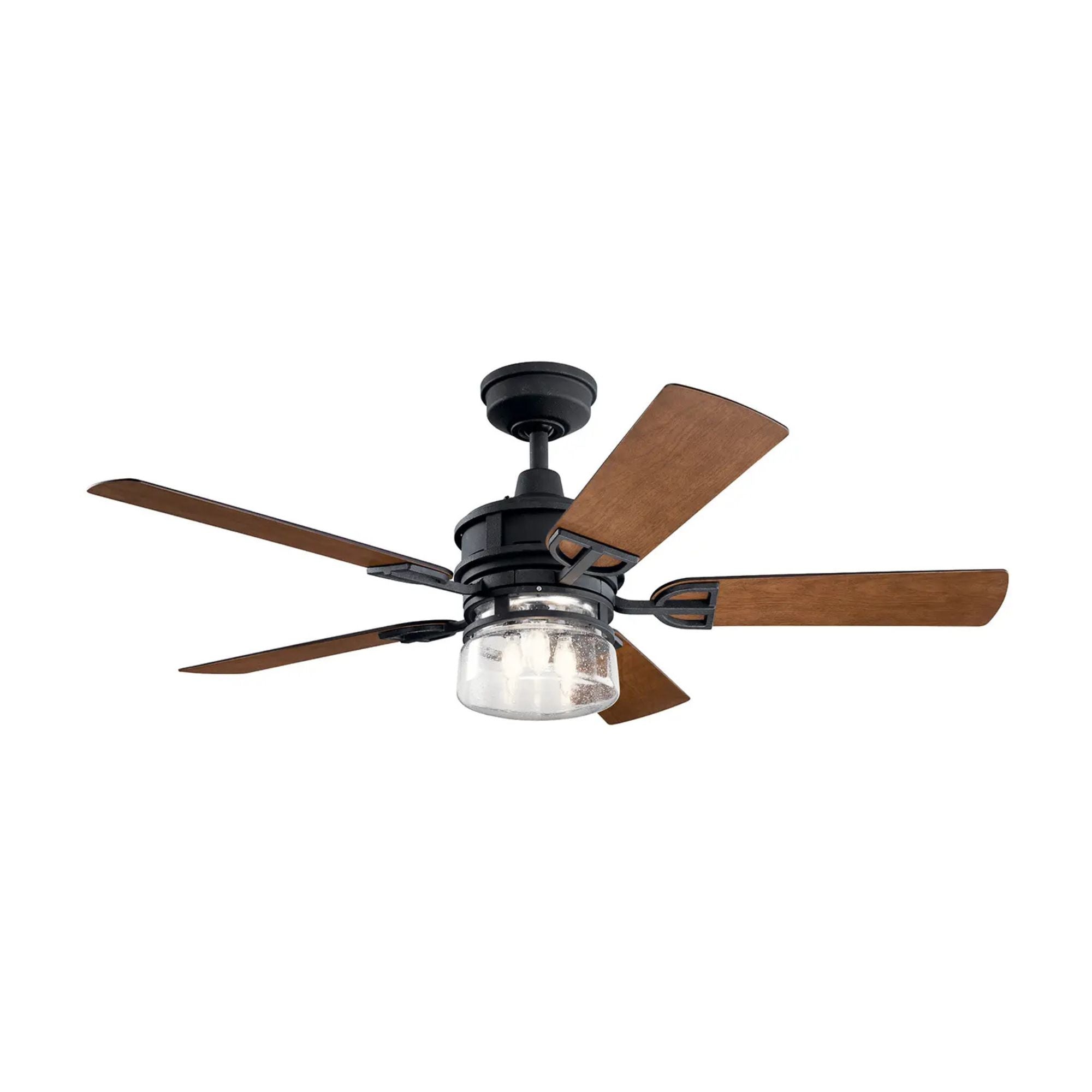

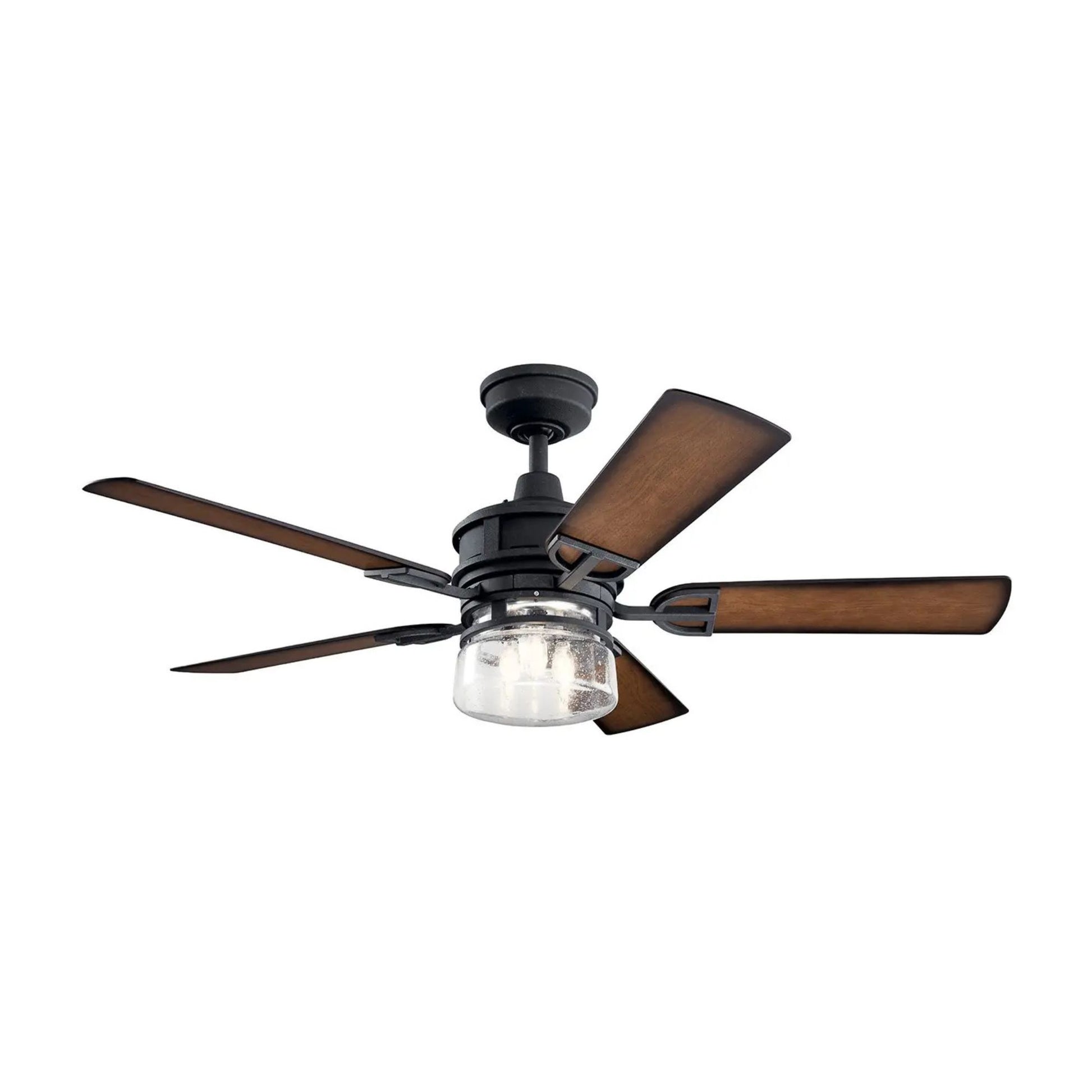

Kichler Lyndon Patio 52 in Outdoor Ceiling Fan with LED Light AC Distressed Black

The Kichler Lyndon Patio ceiling fan, model 310239DBK, pairs a 52 in blade span with five reversible ABS blades, finished in Dark Walnut on one side and Light Walnut on the reverse, and an AC induction motor measuring 172 mm × 15 mm. It delivers 4,946 CFM at high speed with 77 CFM/W efficiency. The included downlight uses three 5W LED B10 bulbs behind clear seeded glass, producing 1,500 initial lumens at 2700K with 90 CRI. Its Wet rating makes it suitable for outdoor locations.

Key Features

• Blade Span: A 52 in sweep pairs with five reversible blades.

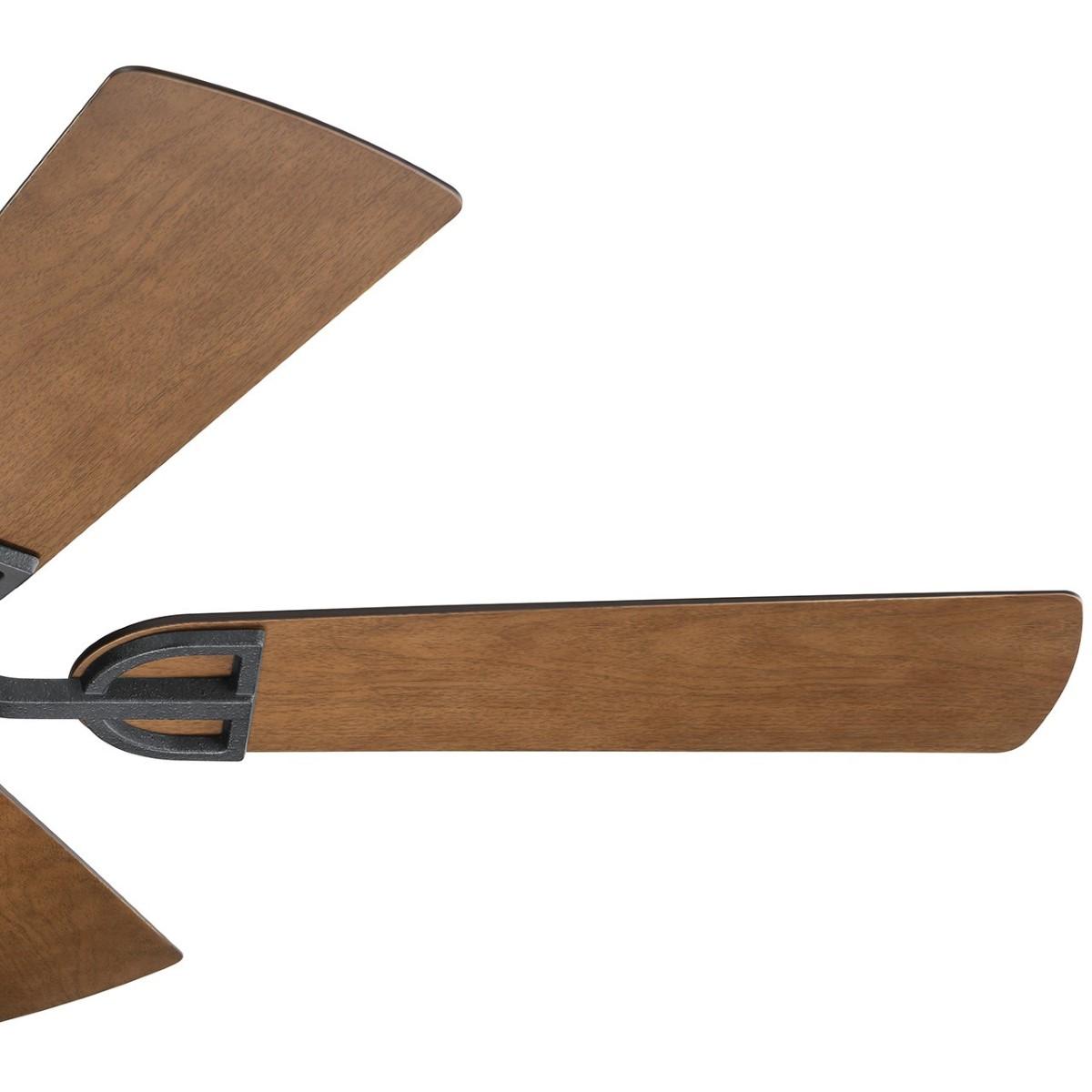

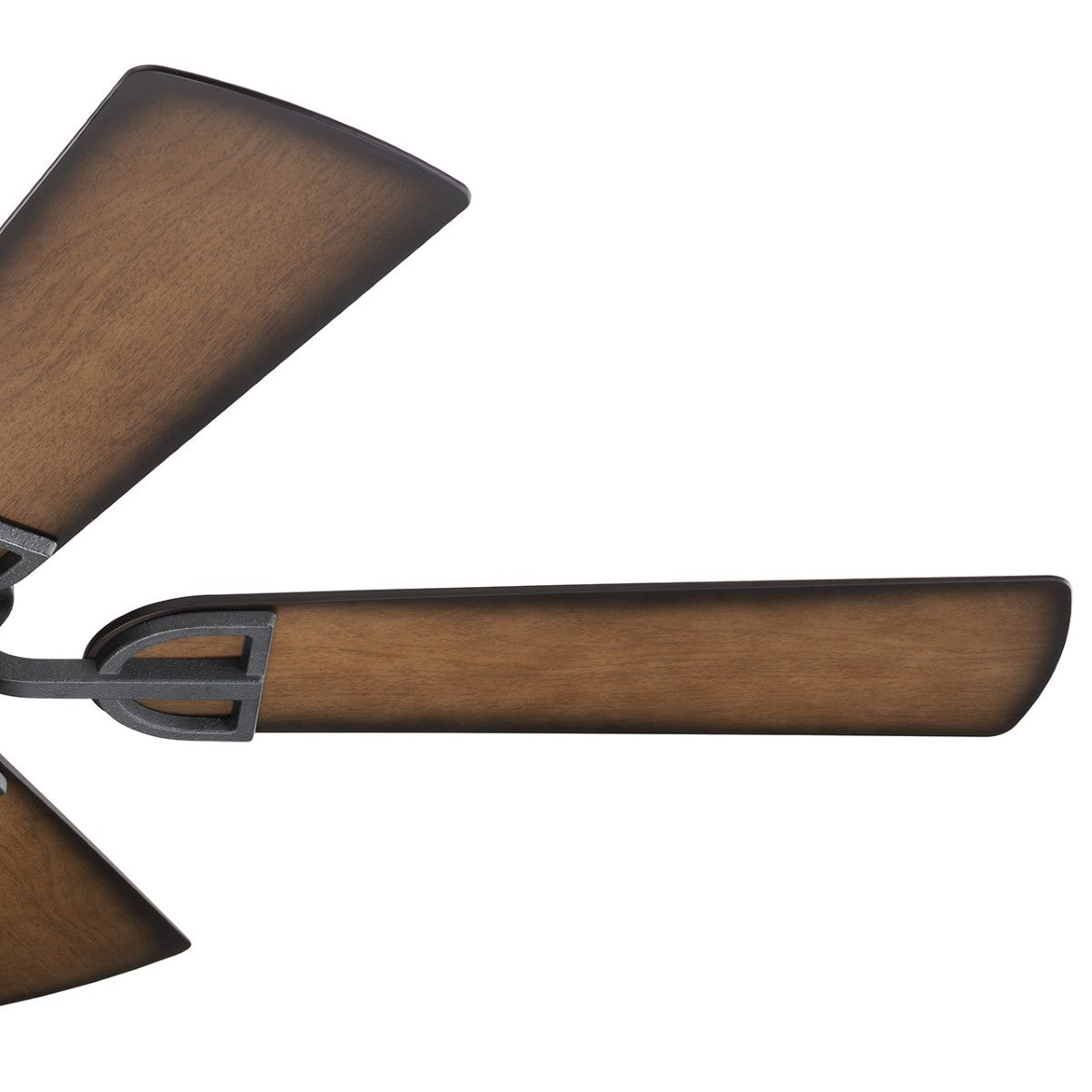

• Blade Material: Five ABS blades reverse between Dark Walnut and Light Walnut finishes.
• Blade Pitch: The blades have a 13° pitch.
• Motor: The 172 mm × 15 mm AC induction motor reaches 161 RPM on high and reverses manually.
• High-Speed Airflow: Delivers 4,946 CFM on high.
• Airflow Efficiency: Provides 77 CFM/W.
• Motor Power: Uses 65W on high, excluding the lighting.
• Wet Rating: cETLus Listed Wet for outdoor locations.

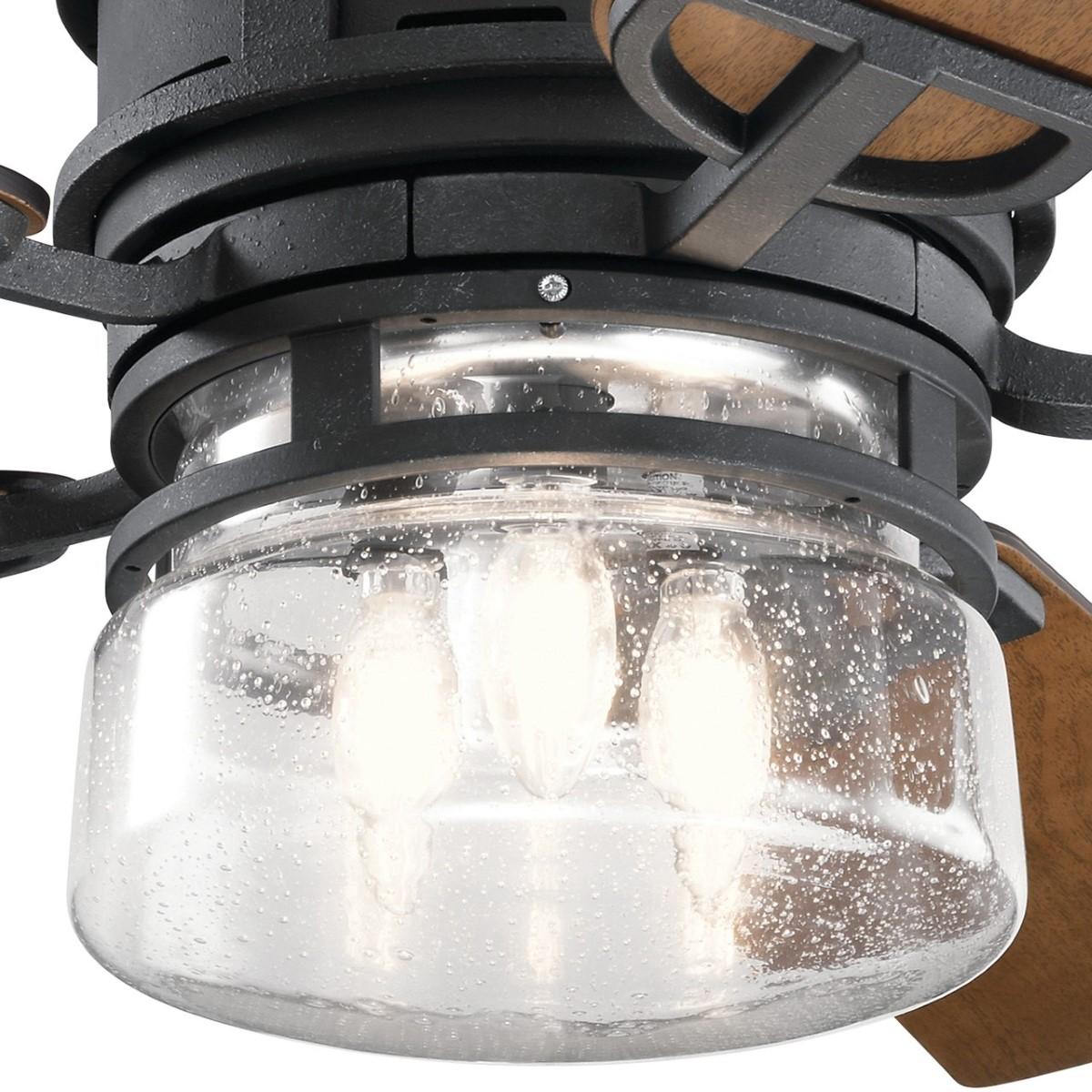

• Downlight: Includes three 5W B10 LED bulbs, 1,500 initial lumens, 90 CRI, 2700K, and clear seeded glass; bulbs are not dimmable.
• Included Control: Limited Function wall control provides three forward speeds, motor off, manual reverse, and light on/off.
• Mounting Options: Standard mounting supports up to 30°; optional Kichler 337005 60 Degree Slope Adapter is sold separately for compatible slopes over 20° and up to 60°. Optional flush-mount kit 337008 adapts the fan for low ceilings.
• Included Downrod: Includes a 4.5 in downrod with 1 in outside diameter.

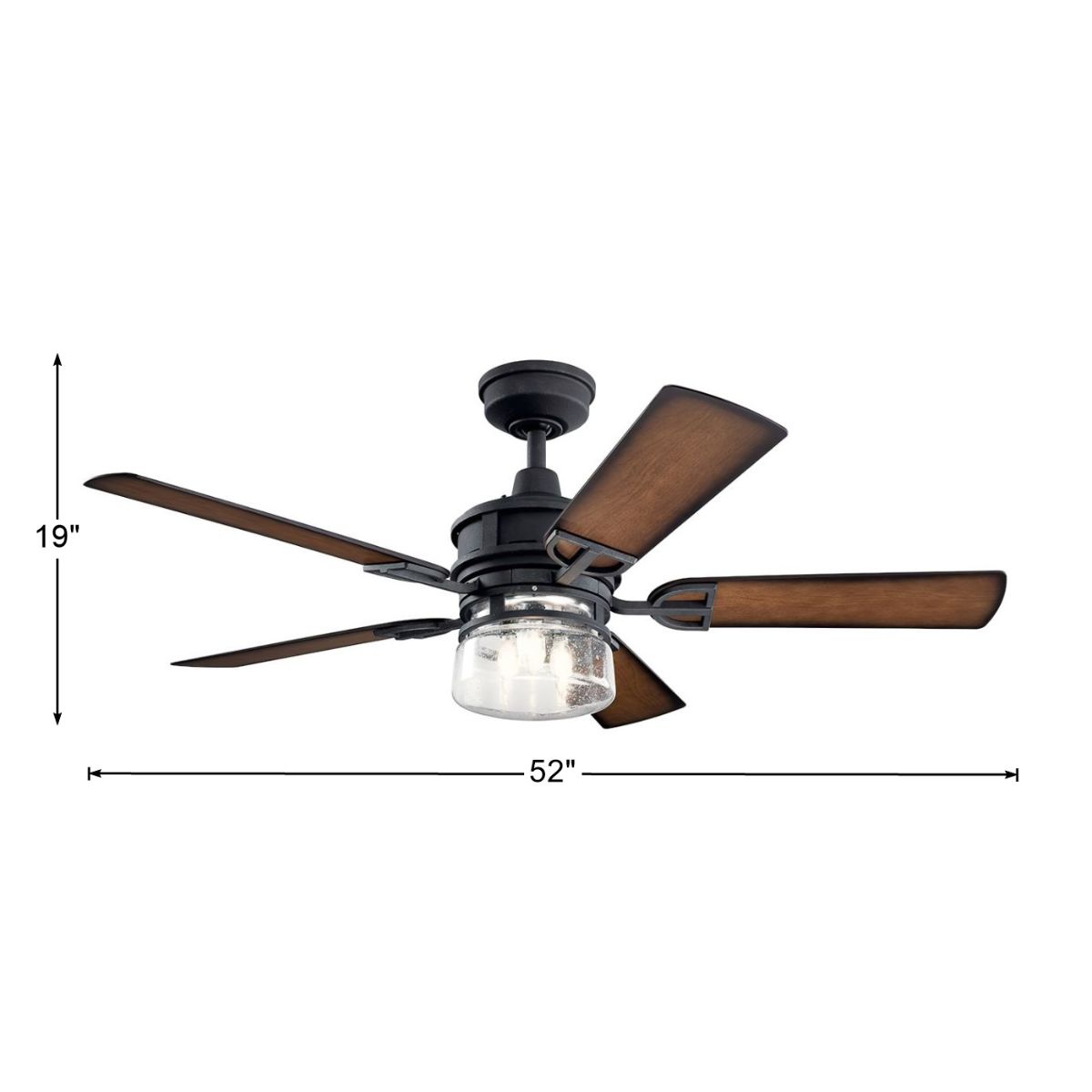

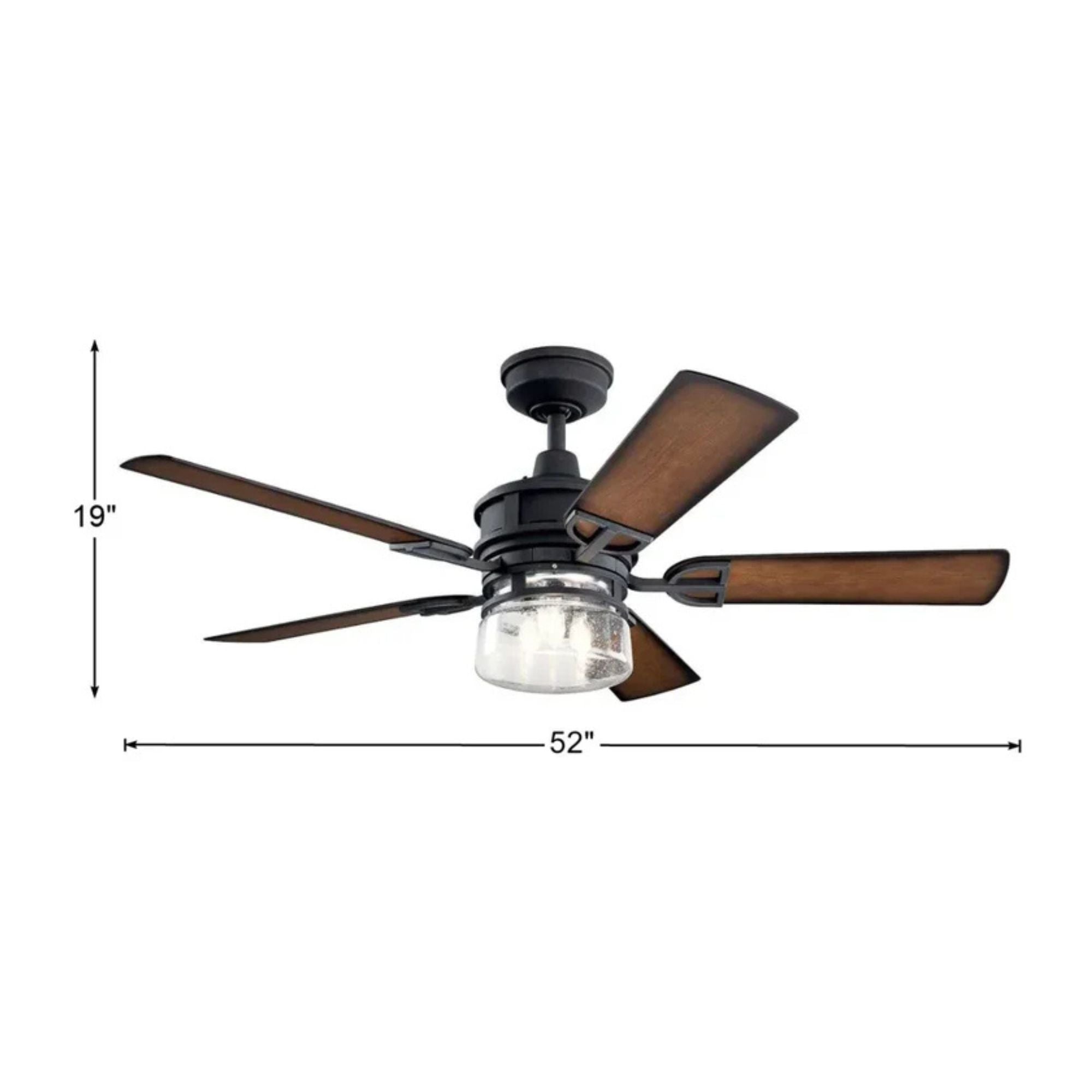

• Installation Dimensions: Overall drop is 19 in with the downrod; blades hang 13 in below the ceiling. Canopy is 6.75 in wide × 2.6 in high, and lead wire is 78 in.

Advanced Control Features

The included Limited Function wall control offers 16 frequency options, three forward speeds, motor off, manual reverse, and light on/off. The optional 370126 AC Standard Handheld Remote System, Limited Function is sold separately.

Construction & Design

The steel motor housing is finished in Distressed Black and paired with reversible ABS blades in Dark Walnut and Light Walnut, set at a 13° pitch. The housing measures 8.75 in wide; the canopy is 6.75 in wide × 2.6 in high. Clear seeded glass covers the downlight, while the reversible walnut tones complement its transitional styling.

Light Output & Performance

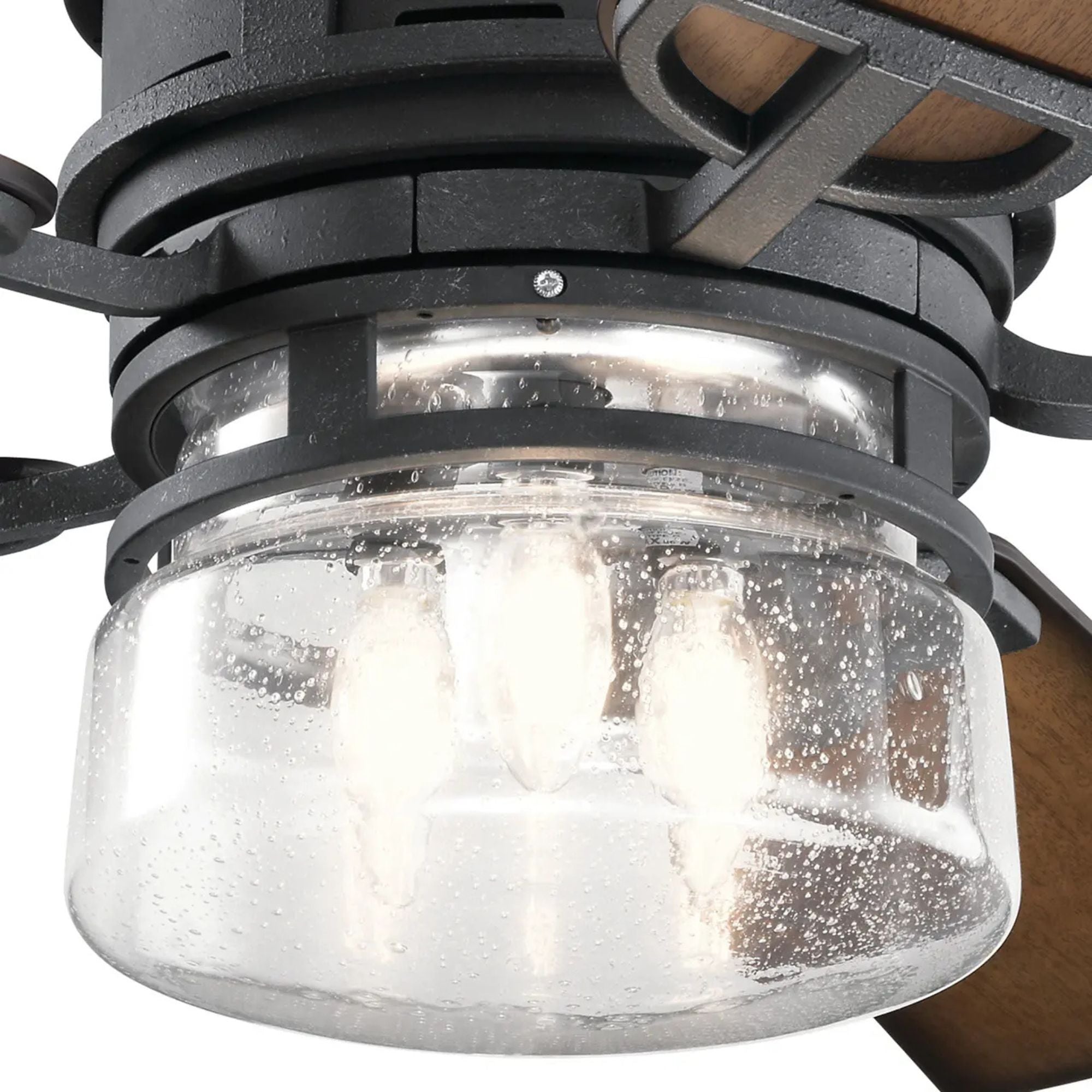

Three included 5W B10 LED bulbs provide 1,500 initial lumens at 90 CRI and 2700K through clear seeded glass; the bulbs are non-dimmable. The fan delivers 4,946 CFM at high speed with 77 CFM/W efficiency across its 52 in sweep.

Electrical & Installation

For 120V systems, the motor uses 65W on high, excluding the three included 5W bulbs, for 80W combined power use. The motor is reversible. A 4.5 in downrod is included, and standard sloped-ceiling mounting supports up to 30°. The optional Kichler 337005 60 Degree Slope Adapter is sold separately for compatible slopes over 20° and up to 60°. Optional flush-mount kit 337008 enables low-ceiling installation. The canopy measures 6.75 in wide × 2.6 in high, and the lead wire is 78 in.

Suggested Downrod by Ceiling Height

Ships with a 4.5 in downrod.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Lyndon Patio fan with Distressed Black housing and five reversible Dark Walnut/Light Walnut ABS blades
• Three 5W B10 LED bulbs
• Clear seeded glass downlight
• Limited Function wall control
• 4.5 in downrod
• Mounting Hardware
