Kichler Rana 60 in Outdoor LED Ceiling Fan AC Brushed Nickel

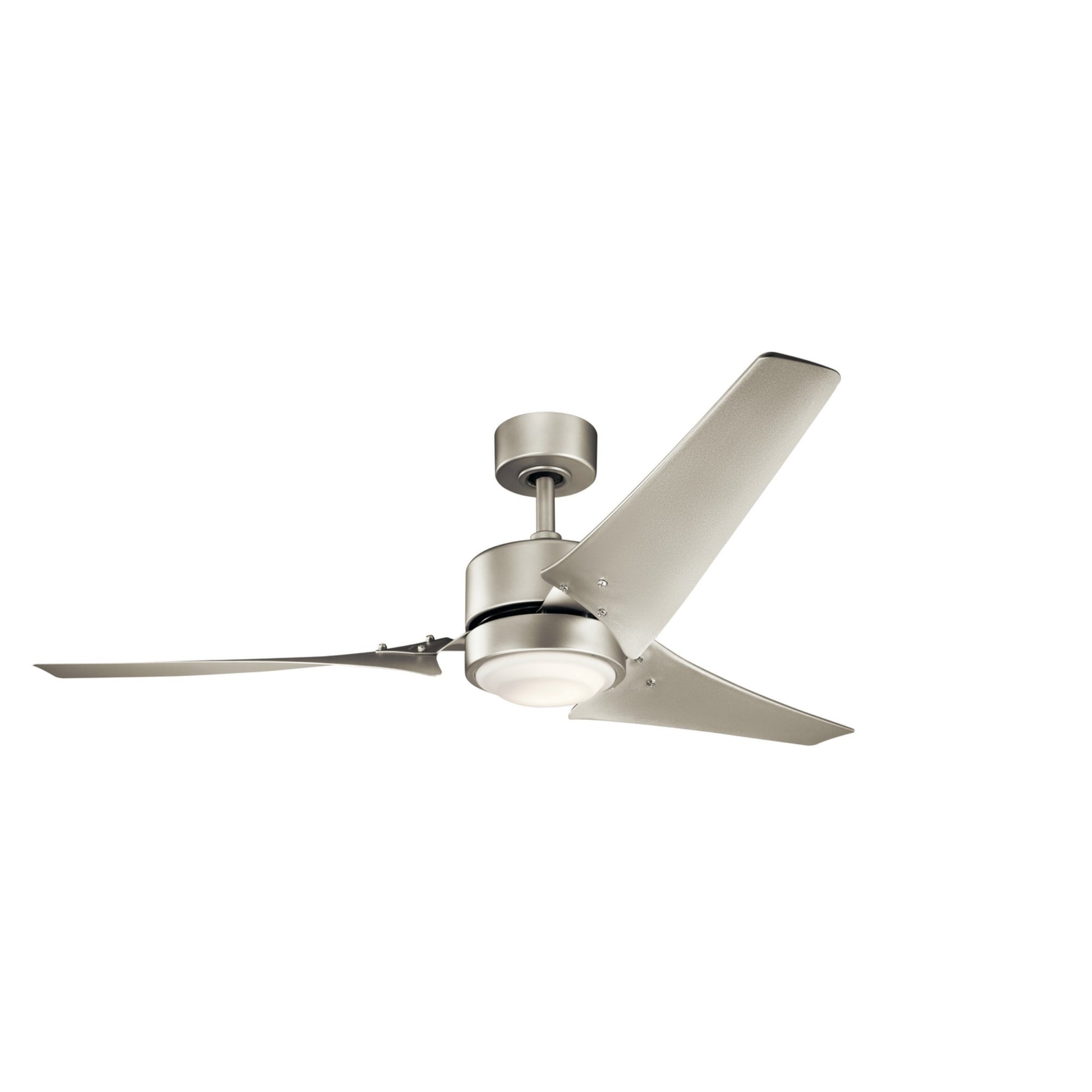

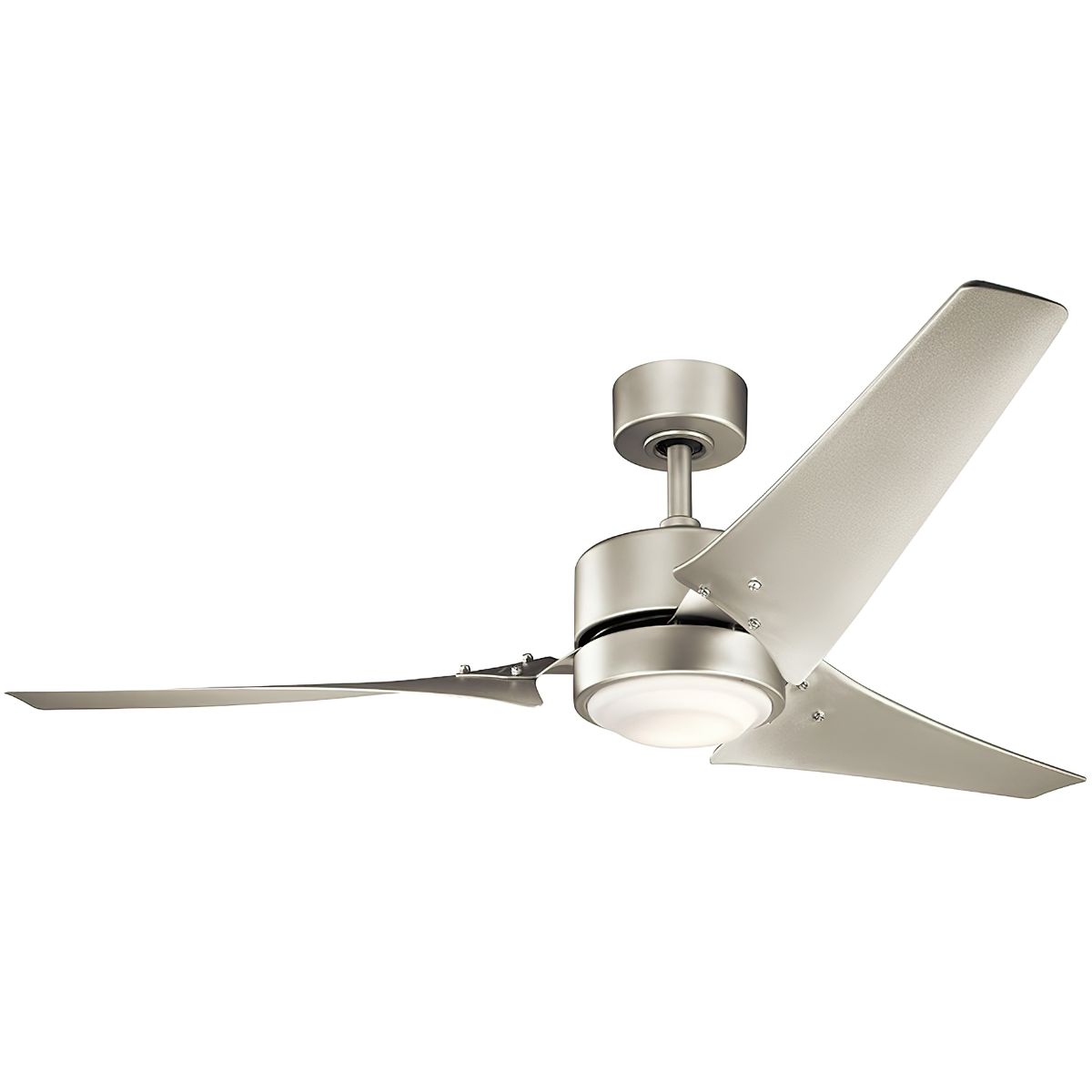

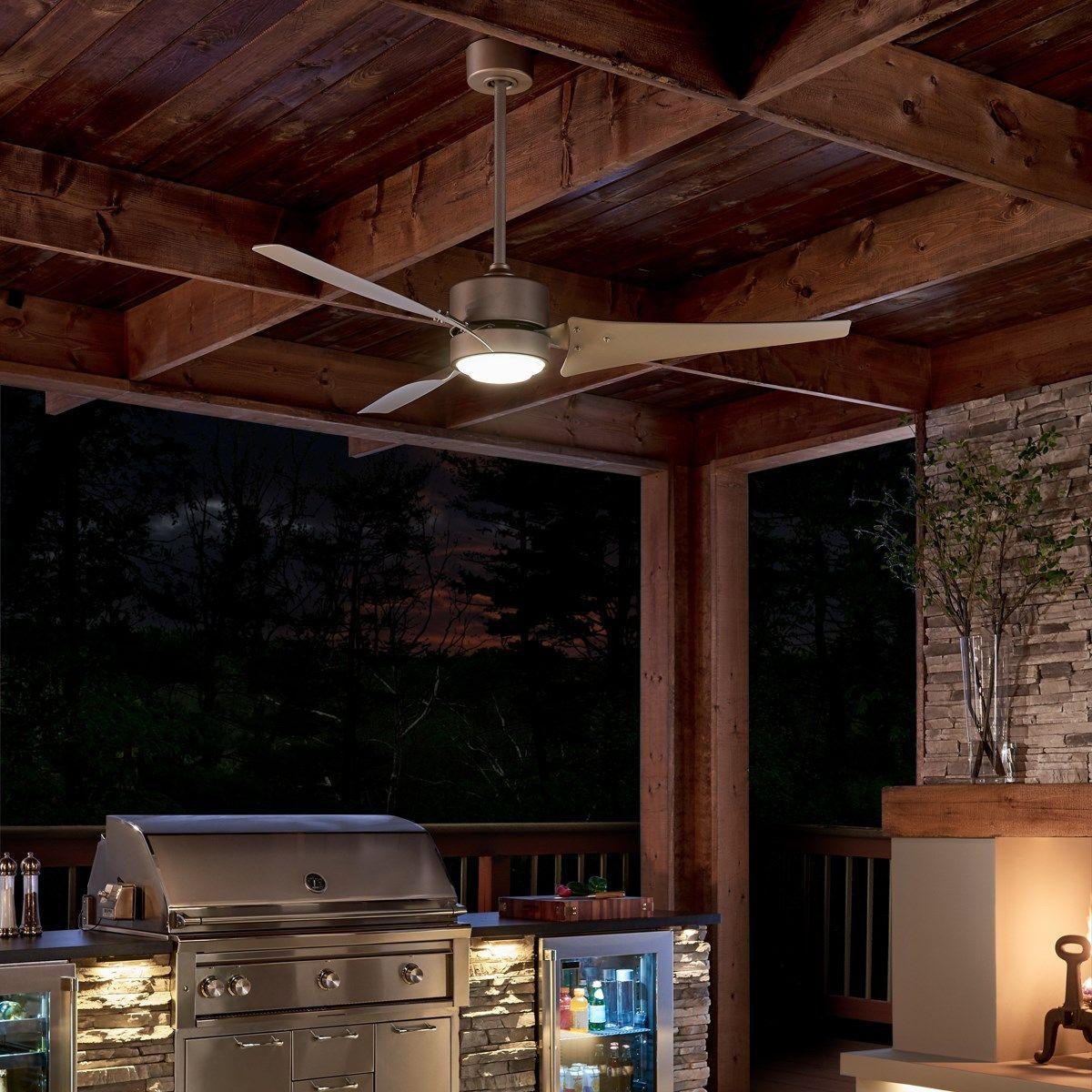

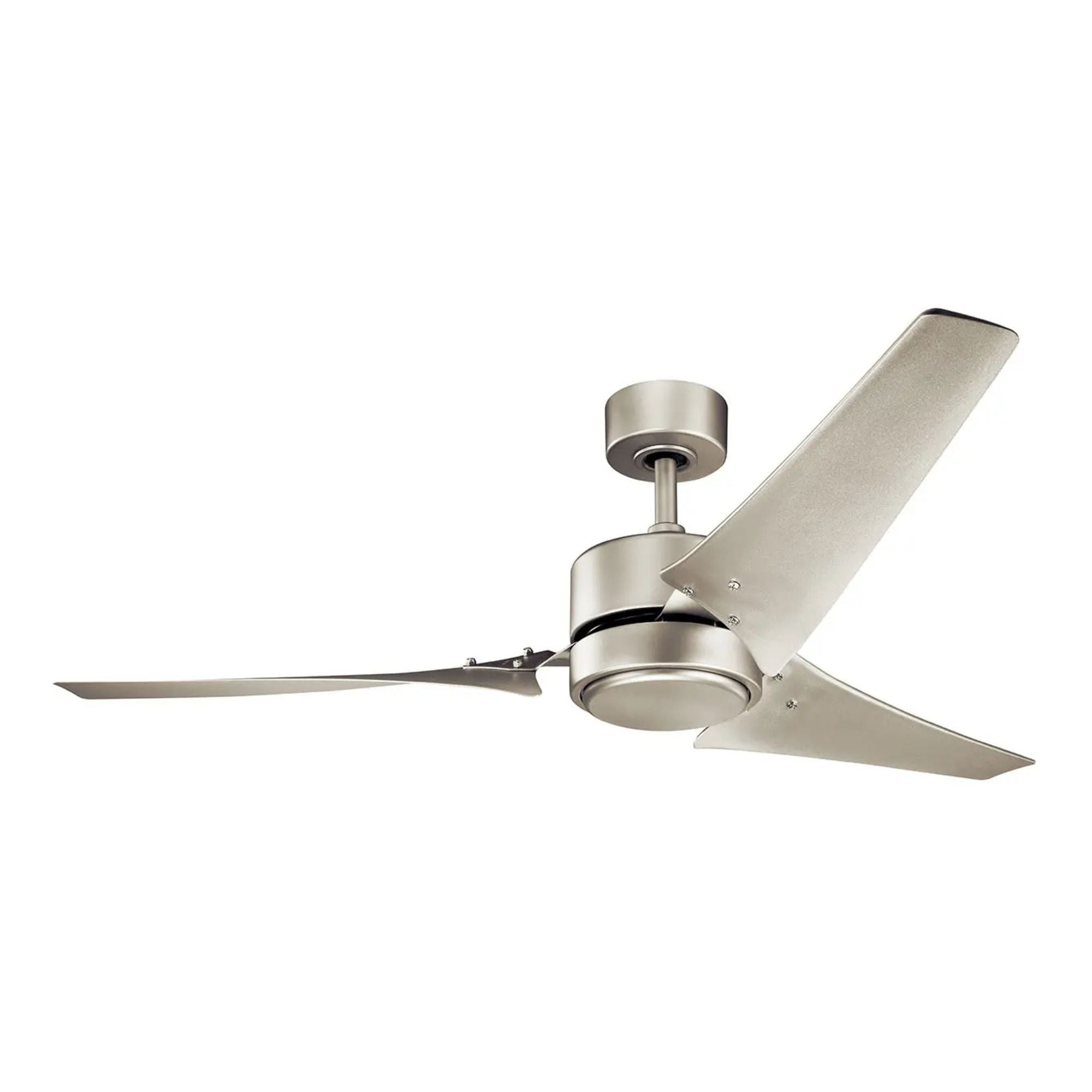

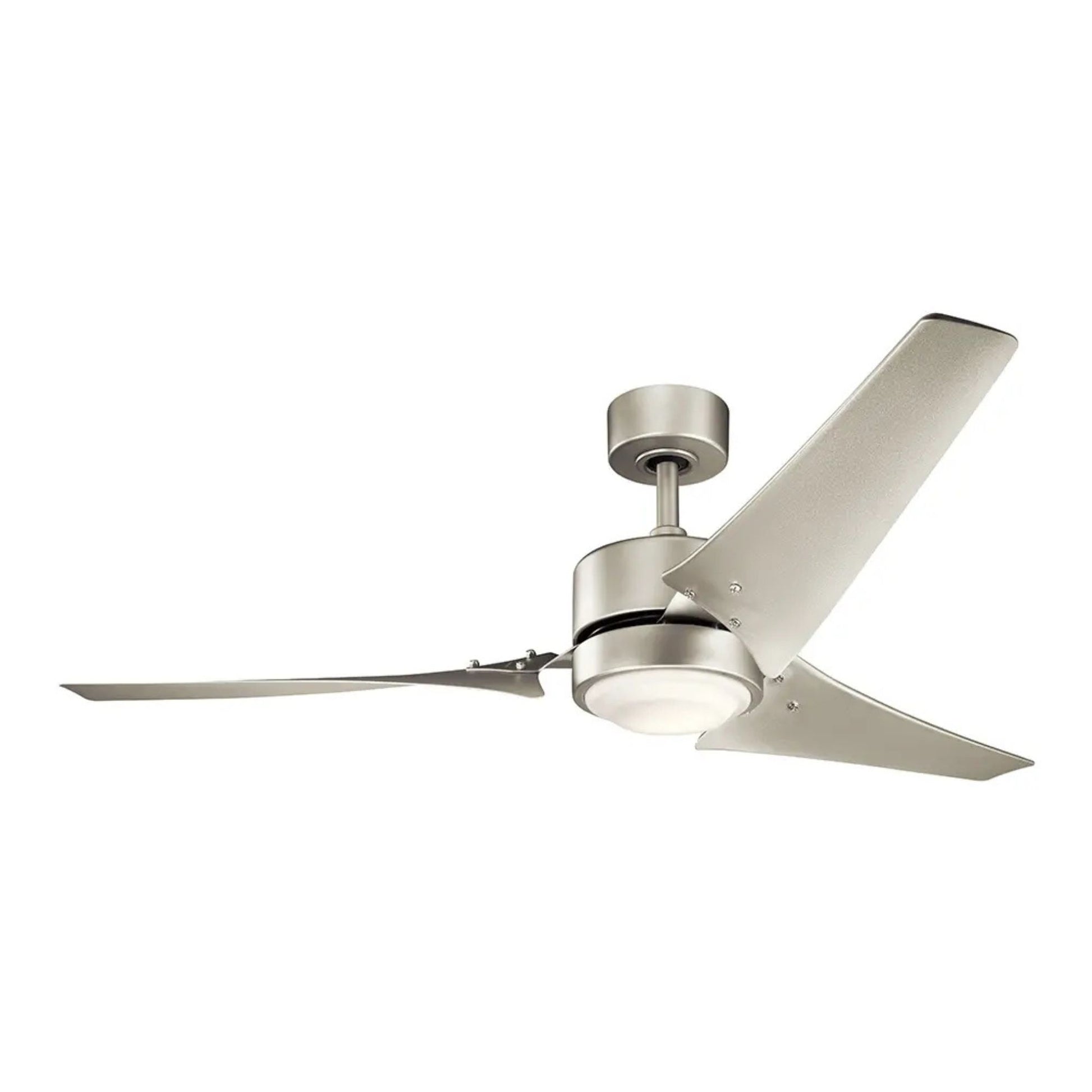

The Kichler Rana 310155NI combines a 60 in blade span with a Brushed Nickel steel housing and three Nickel ABS blades. Its reversible AC induction motor delivers 8,536 CFM with 121 CFM/W efficiency on high, while Wet Rated construction suits outdoor installations. The integrated dimmable 17W LED provides 1,600 lumens of 3000K light with 80 CRI. An included three-speed full-function wall control handles fan speeds and lighting, with manual motor reverse.

Key Features

• Blades: Three non-reversible ABS blades; 60 in sweep and 35° pitch.
• Motor: 188 × 20 mm AC induction motor; 206 RPM and 0.59A on high.
• Airflow: 8,536 CFM with 121 CFM/W efficiency.
• Motor Power: 70W on high, excluding lights.
• Location Rating: cULus Listed Wet.
• Lighting: Integrated 17W LED, 1,600 lumens, 3000K, 80 CRI, and dimmable.
• Controls: Included three-speed full-function wall control; manual reverse.
• Mounting: Included 6 in downrod; standard slope support up to 30°; not low-ceiling adaptable.

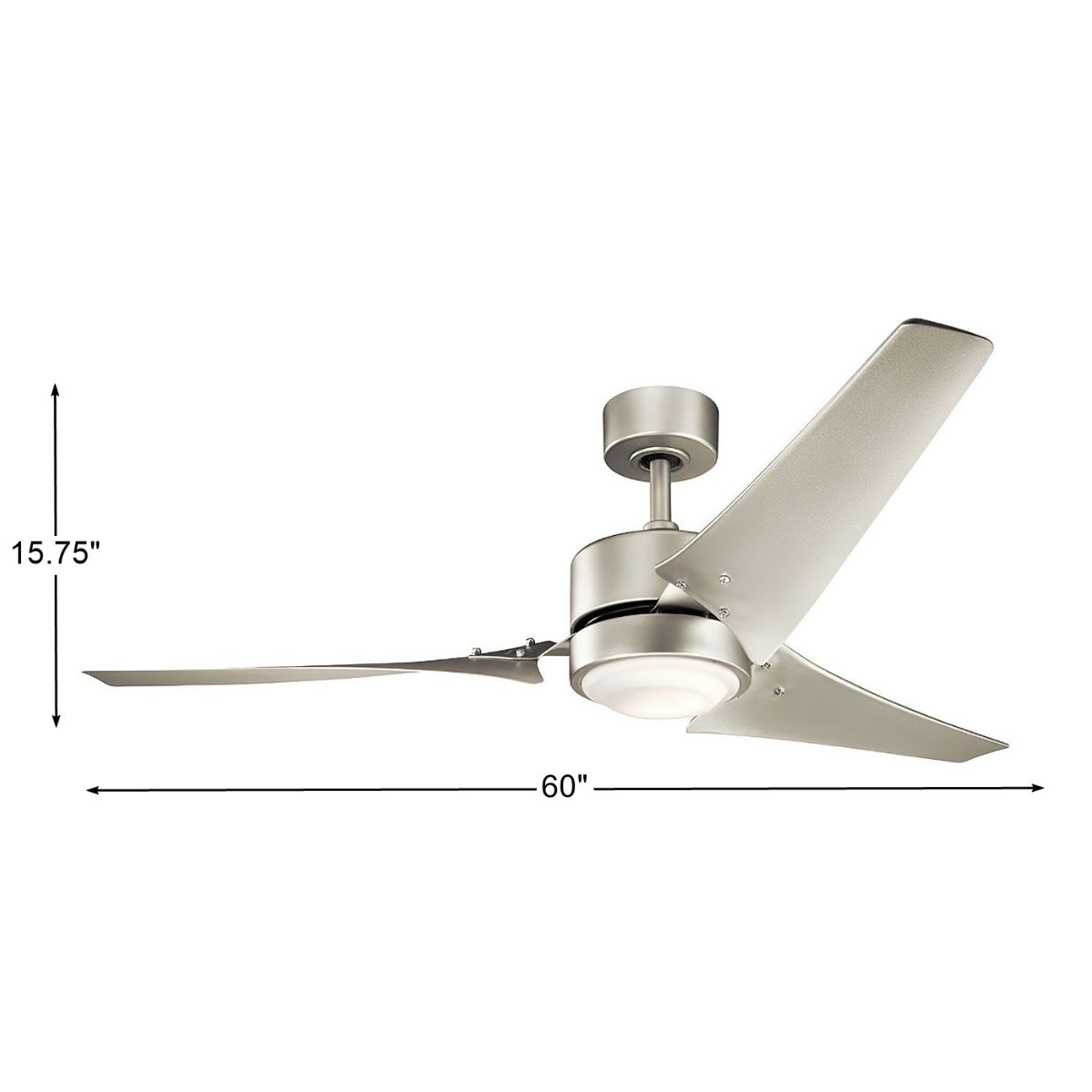

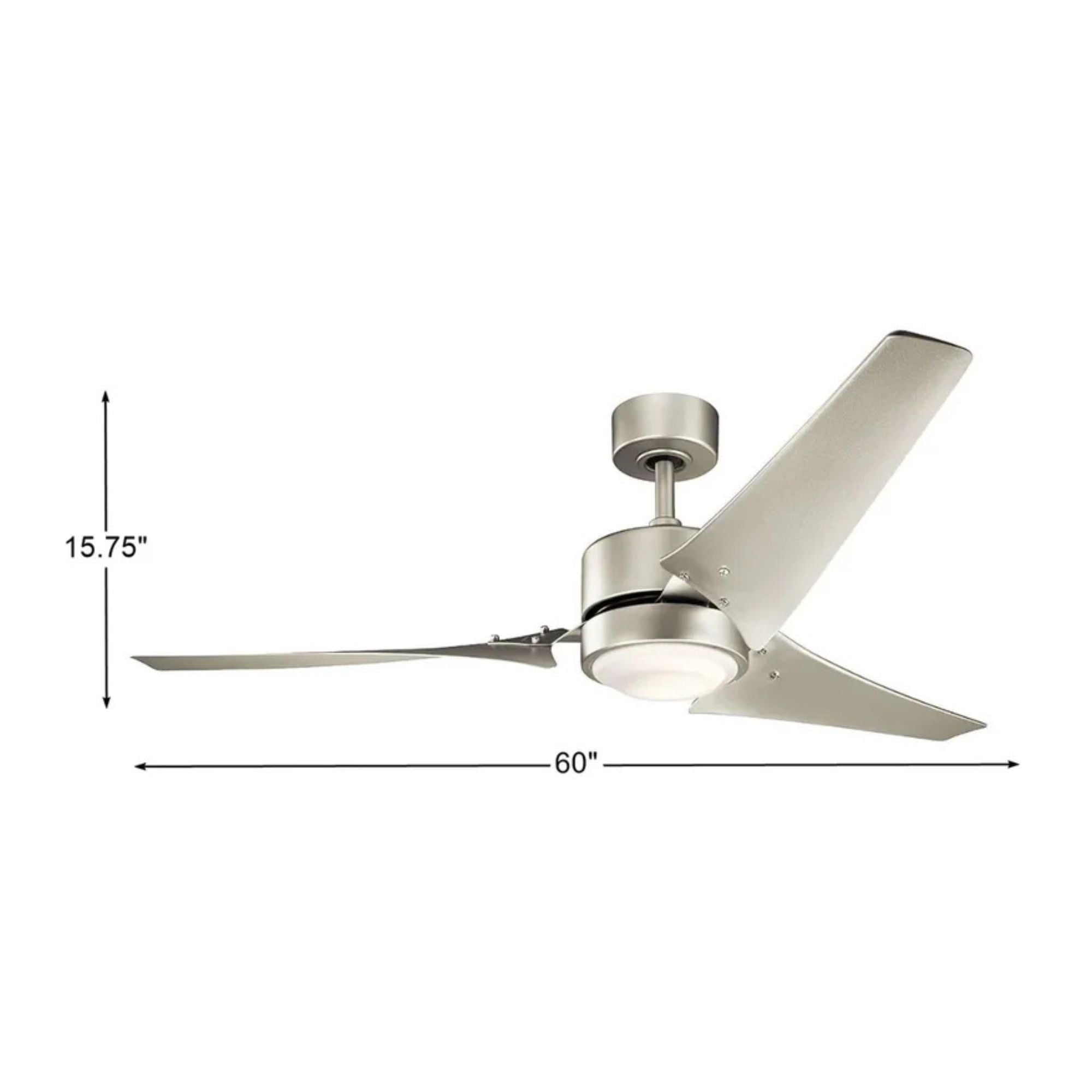

• Dimensions: 15.75 in fixture drop, 14.5 in blade drop, and 8.75 in housing width.

Advanced Control Features

The included full-function wall control system has 16 frequency settings, three forward speeds, motor off, and light on/off with full-range dimming. Motor direction is reversed manually.

Construction & Design

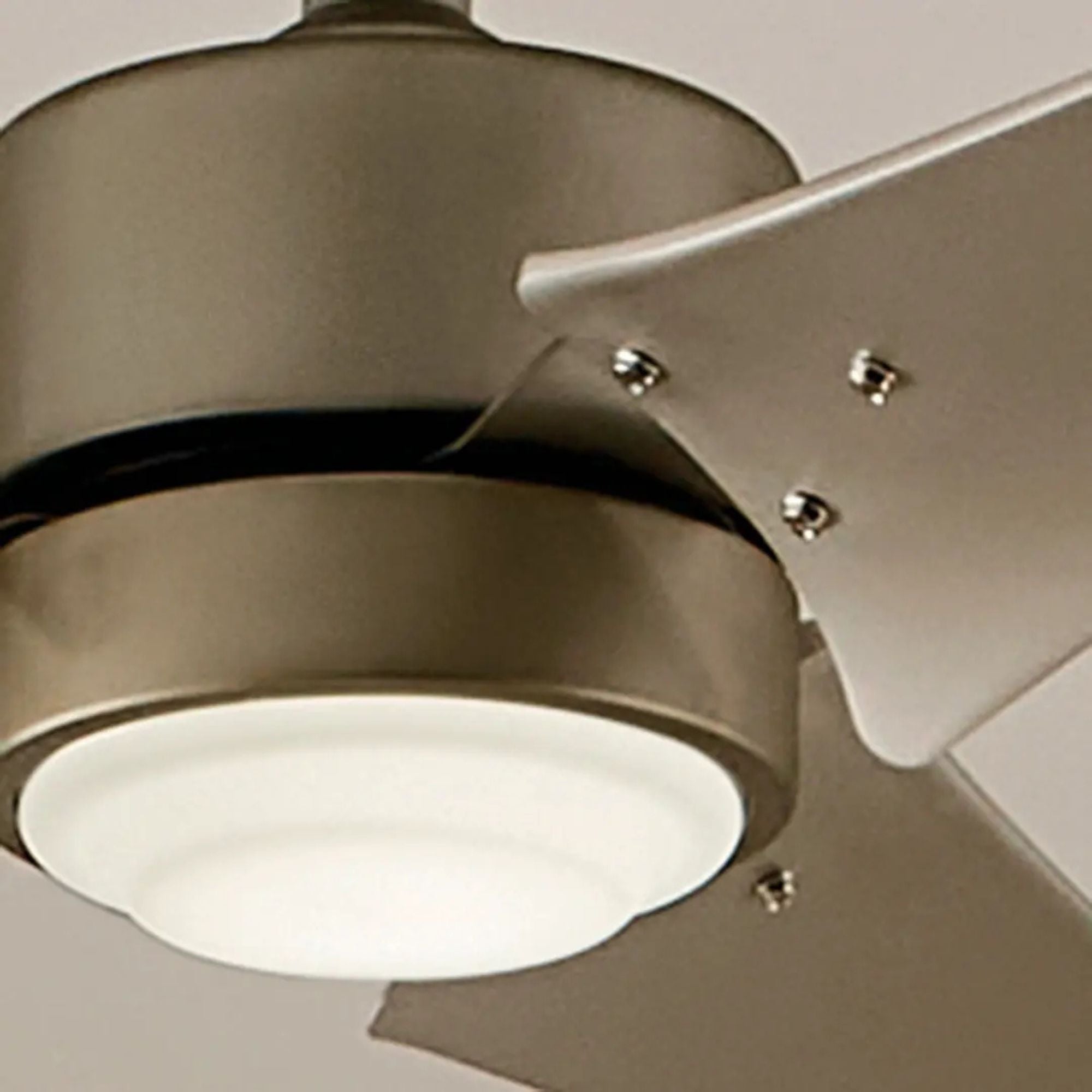

The steel housing is finished in Brushed Nickel and paired with three molded ABS blades finished in Nickel. The non-reversible blades have a 35° pitch. Etched cased opal glass diffuses the integrated LED. Housing width is 8.75 in, and hanging weight is 25.1 lb.

Light Output & Performance

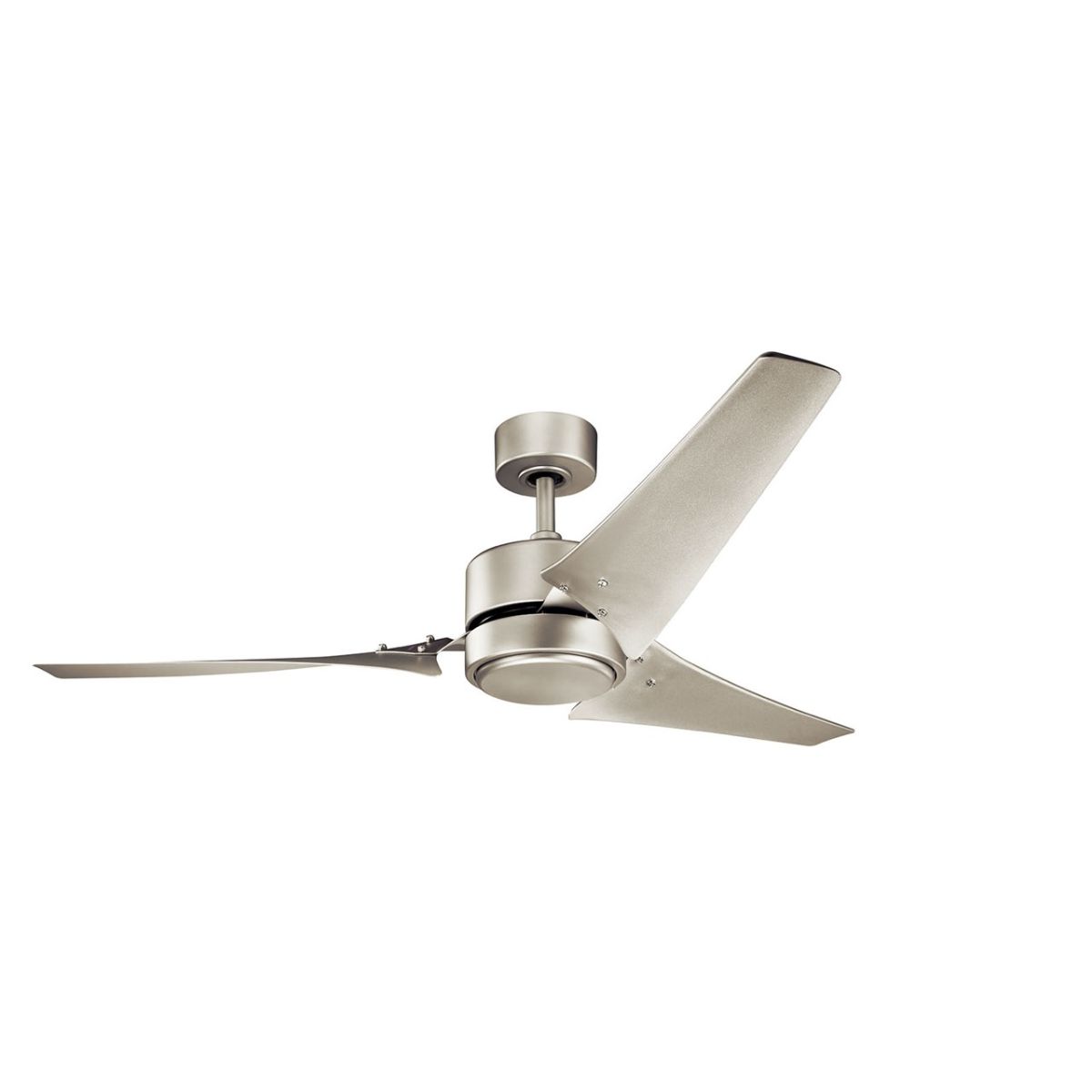

The integrated 17W LED provides 1,600 lumens at 3000K with 80 CRI and full-range dimming. Dimming is recommended with Kichler fan controls. An included metal fixture cap permits non-light use. High-speed airflow is 8,536 CFM with 121 CFM/W motor efficiency.

Electrical & Installation

Operates at 120V with a manually reversible AC motor. Motor power is 70W and LED power is 17W, totaling 87W. Includes a 6 in downrod with 1 in outside diameter. Standard mounting supports slopes up to 30°. The optional 337005CPZ Kichler 60 Degree Slope Adapter is sold separately for compatible slopes over 20° and up to 60°. The canopy measures 5.87 in wide × 2.64 in high, and lead-wire length is 78 in. Fixture drop with the included downrod and light is 15.75 in; blade drop is 14.5 in.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. For different room size options consider these downrods available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Rana fan with Brushed Nickel housing and three Nickel ABS blades
• Integrated LED and etched cased opal glass
• Metal fixture cap for non-light use
• Three-speed full-function wall control
• 6 in downrod
• Mounting Hardware
