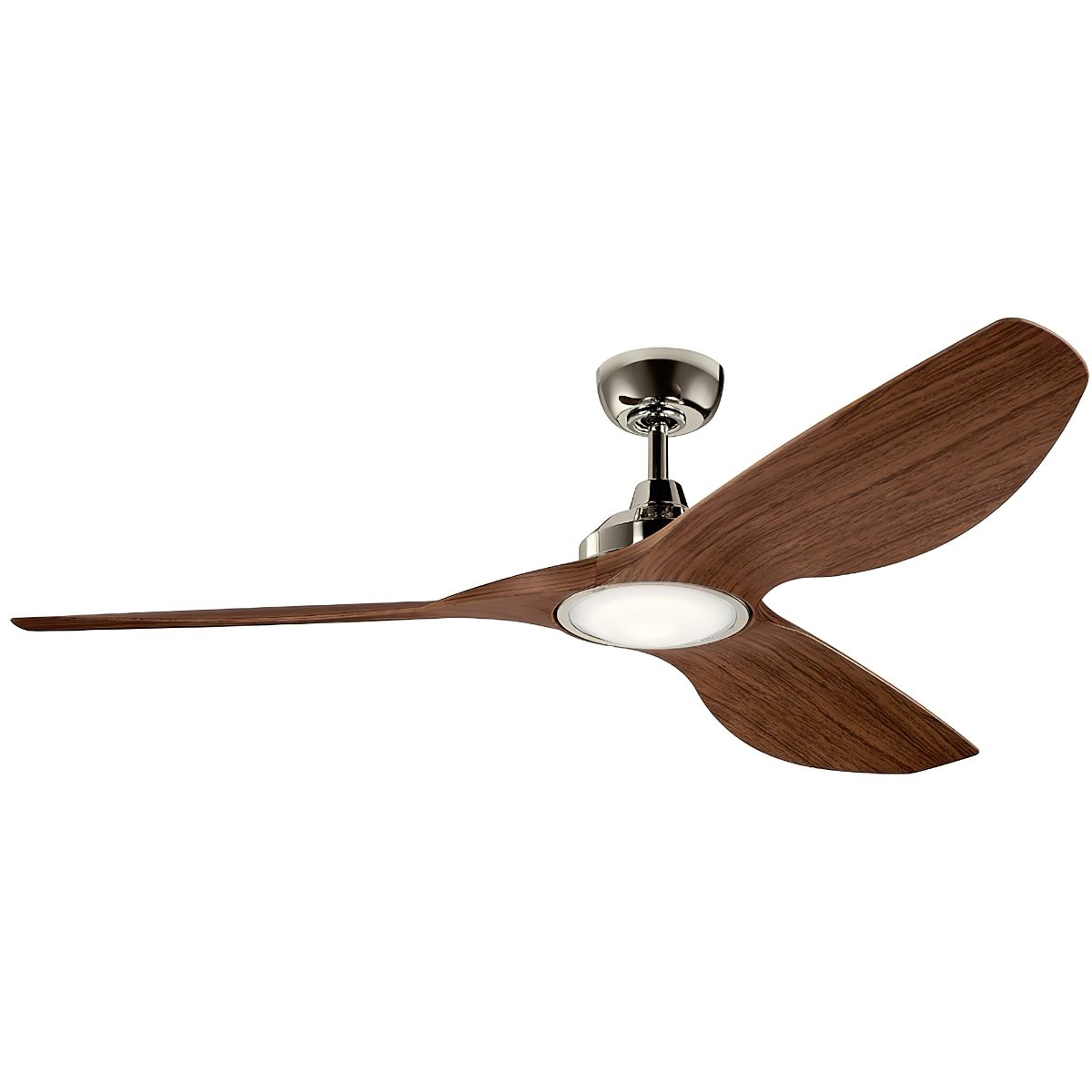

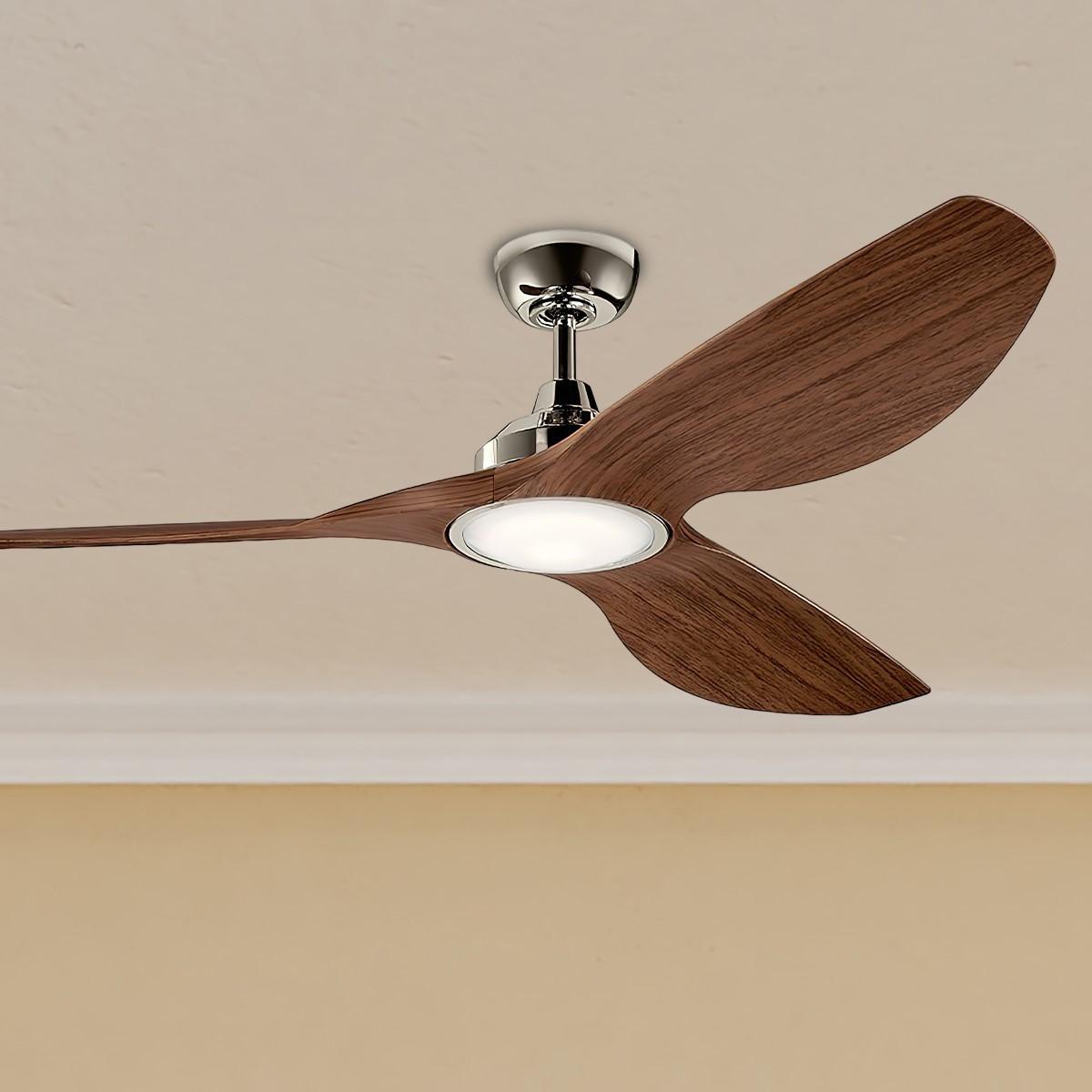

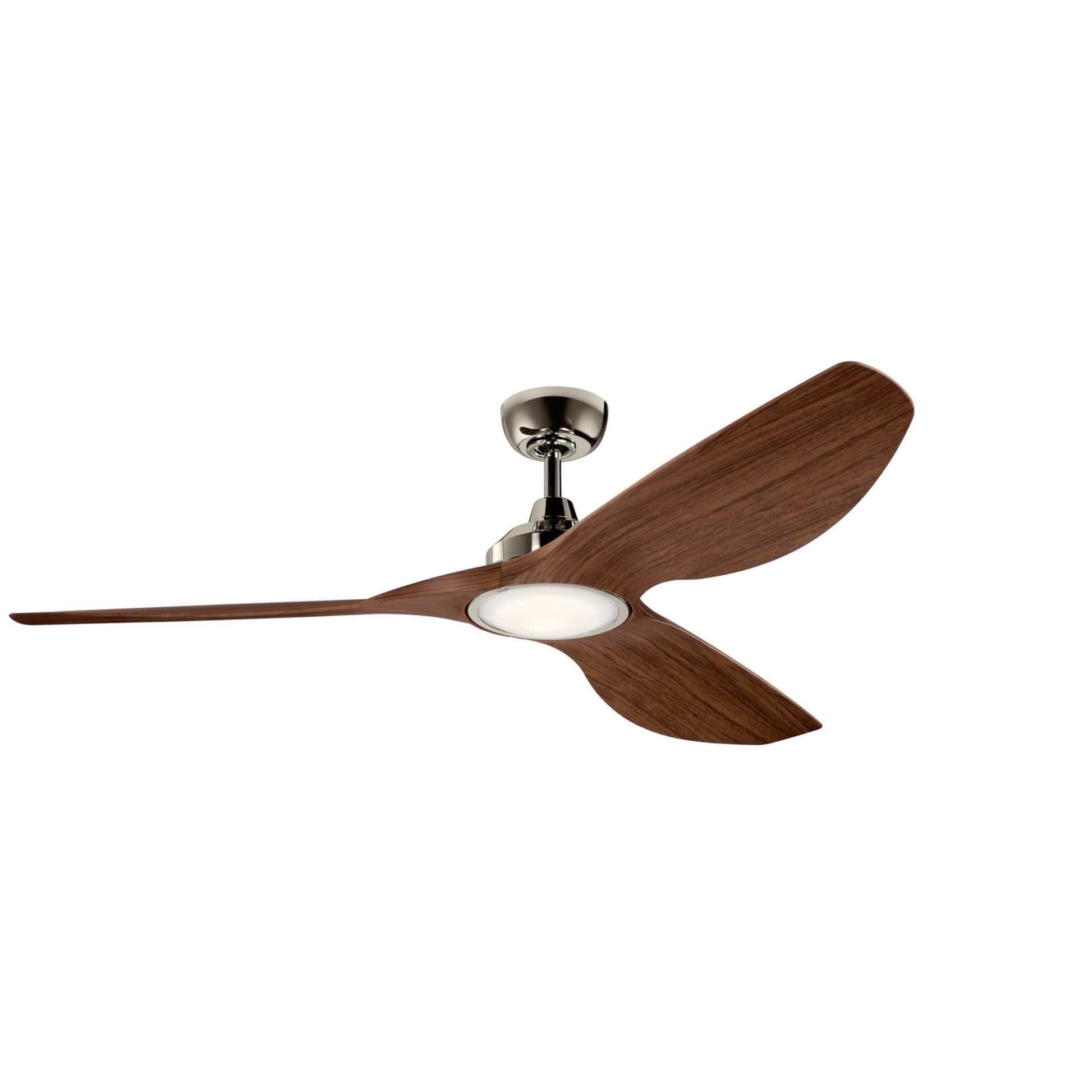

The Kichler Imari, model 300365PN, pairs a 65 in blade span and three blades with a DC motor, delivering 9,548 CFM at 282 CFM/W. Its integrated LED produces 2,200 lumens at 3000K, and its Damp Rated construction suits indoor spaces and covered outdoor areas.

Key Features

• Blade Span: 65 in with three blades.
• Blade Design: ABS blades in Walnut with a 14° pitch.
• Motor: DC-188 DC motor, 126 RPM at high speed.
• High-Speed Airflow: 9,548 CFM.
• Airflow Efficiency: 282 CFM/W at high speed.
• Total Wattage: 57W combined, 34W fan and 23W LED.
• Integrated LED: Dimmable 23W light with 2,200 lumens, 3000K, and 90 CRI.
• Location Rating: Damp rated and cULus listed for indoor and covered outdoor use.
• Included Control: Six-speed DC CoolTouch wall control with fan reversal and light dimming.
• Sloped Ceilings: Supports a mounting slope up to 30°.
• Included Downrod: 6 in downrod for downrod mounting.

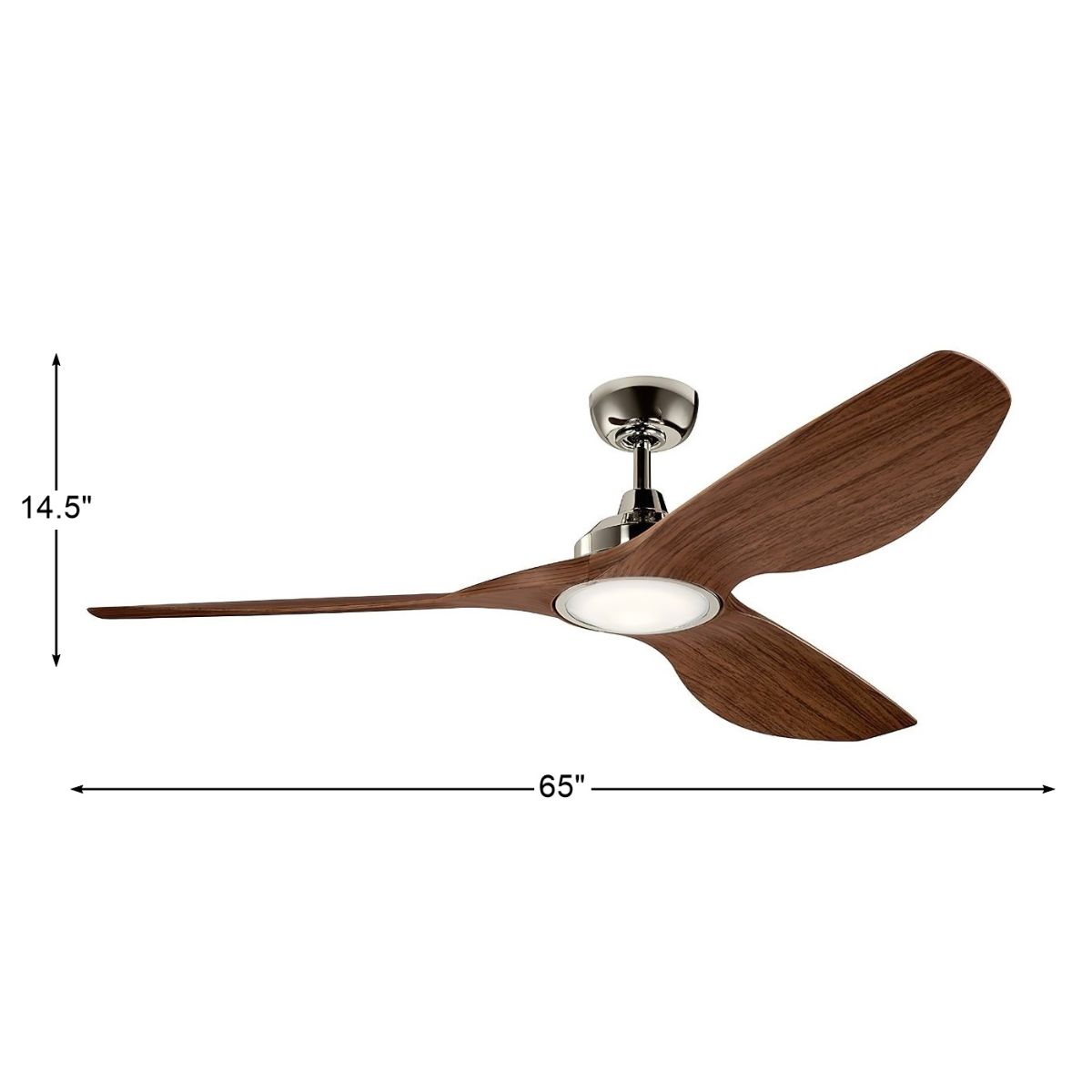

• Dimensions: 14.75 in overall height, 11.75 in blade drop, 10 in housing width, and 6.67 in canopy diameter by 2.6 in height; 78 in lead wire.

Advanced Control Features

The included 6-speed DC CoolTouch wall control operates the fan and light. It provides six fan speeds, forward and reverse direction, motor off, light on/off, and full-range light dimming. The control supports no more than two fans on one circuit.

Construction & Design

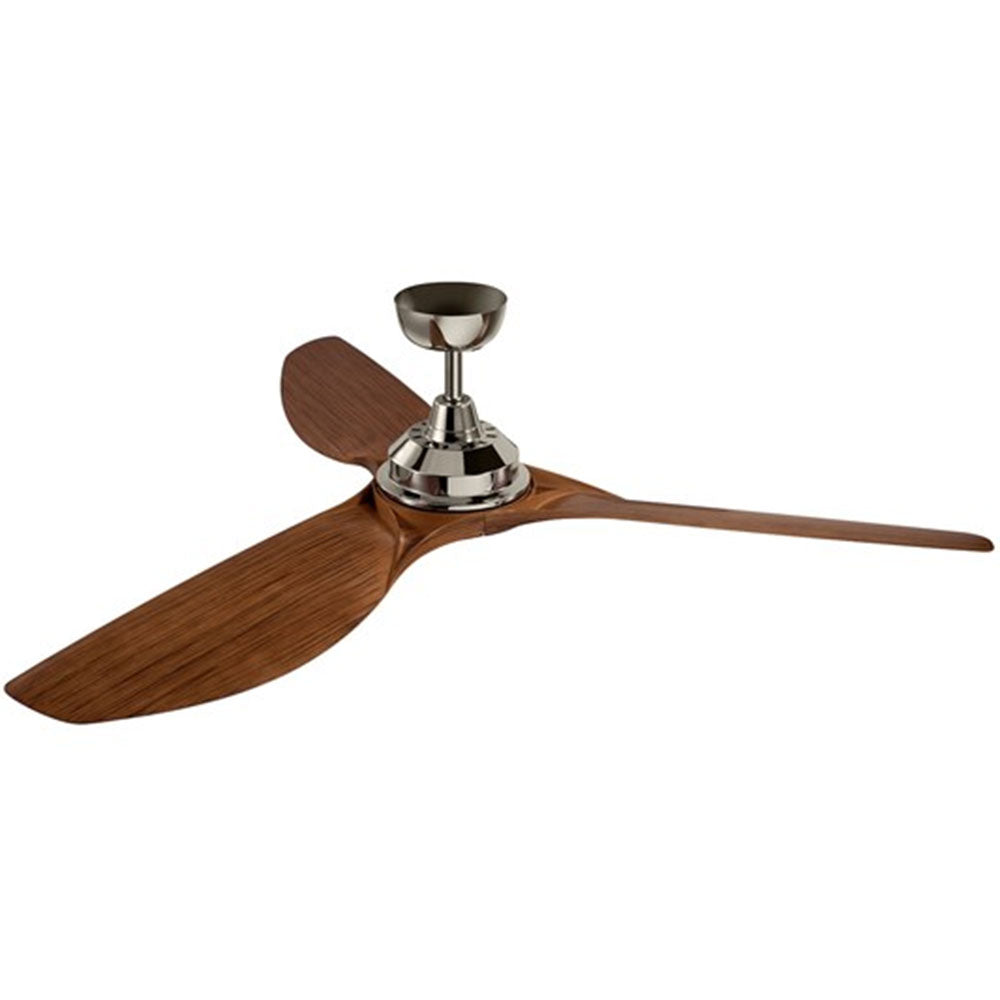

The steel motor housing has a Polished Nickel finish and measures 10 in wide; three ABS blades in Walnut have a 14° pitch. The integrated LED uses a white polycarbonate diffuser, and the canopy measures 6.67 in in diameter by 2.6 in high. Its single-mold, propeller-inspired form has a clean, modern profile suited to minimalist interiors.

Light Output & Performance

The integrated, dimmable 23W LED provides 2,200 lumens at 3000K with 90 CRI and is controlled by the included wall control. The fan delivers 9,548 CFM at high speed with 282 CFM/W efficiency.

Electrical & Installation

Operates on 120V and draws 57W total, combining the 34W fan motor and 23W LED. The motor is reversible and includes a 6 in downrod. The fan supports mounting slopes up to 30°; the optional 337005 Kichler 60 Degree Slope Adapter supports installations over 20° and up to 60°. The canopy measures 6.67 in in diameter by 2.6 in high, and the lead wire is 78 in. Maintain at least 7 ft between the floor and the fan blades.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Ceiling fan in Polished Nickel with three Walnut-finish blades
• Integrated 23W LED light and white polycarbonate diffuser
• 6-speed DC CoolTouch wall control
• 6 in downrod
• Mounting Hardware
• Installation Instructions
