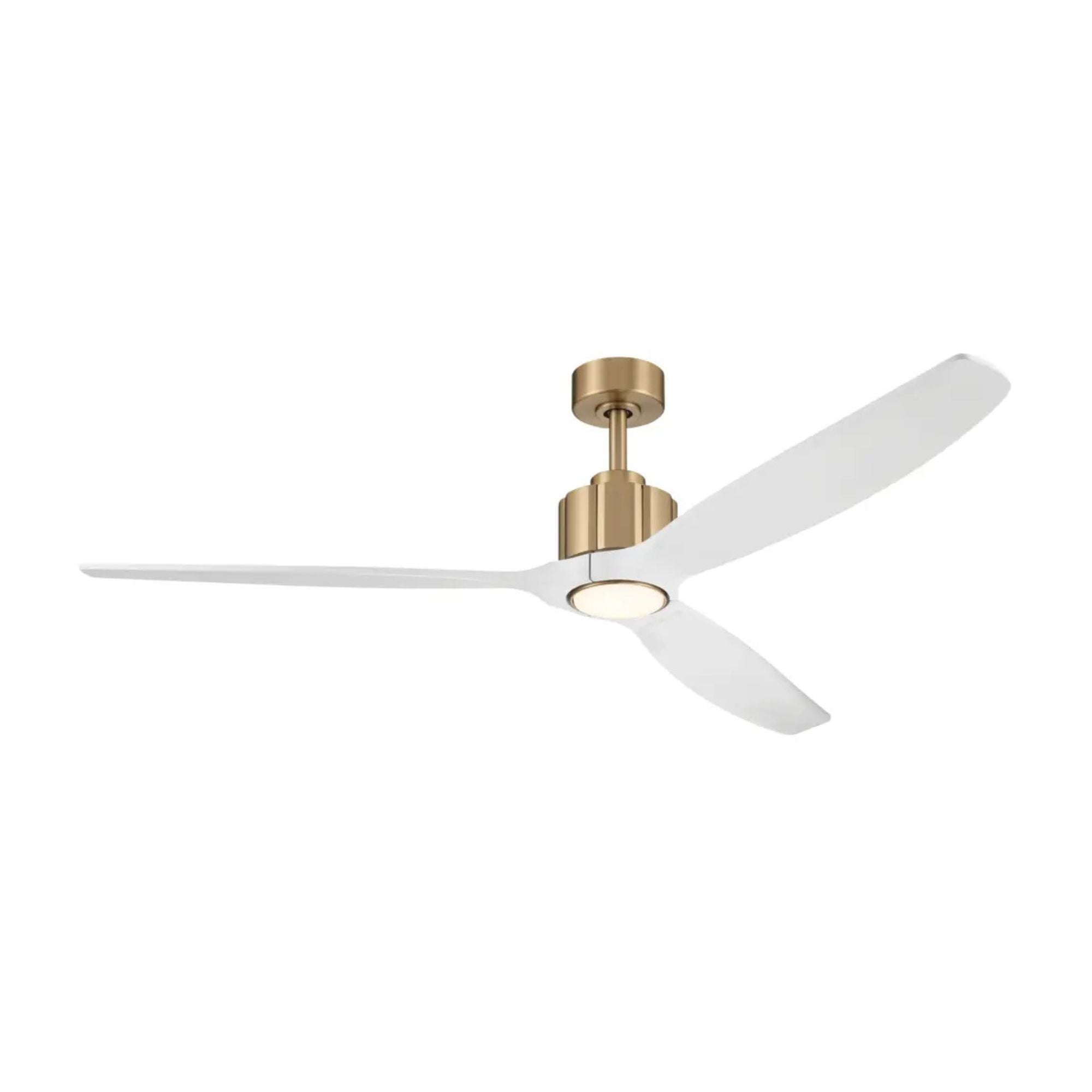

The Kichler Lighting Calyx model 300360-CPZ is a 60 in smart ceiling fan with three hand-carved solid wood blades powered by a DC brushless motor. It delivers 5,790 CFM at high speed with 177 CFM/W airflow efficiency, plus an integrated 500-lumen LED at 3000K with CRI 90. Dry Rated for indoor use, Calyx pairs a Champagne Bronze housing with Matte White blades.

Key Features

• Blade Design: 60 in sweep with three hand-carved solid wood blades, Matte White finish, and 14° pitch.
• DC Motor: DC brushless 126 x 10 motor reaches 160 RPM on high and draws 0.47A.
• Airflow Performance: 5,790 CFM on high at 32.6W fan power, delivering 177 CFM/W.
• Integrated LED: 500 lumens at 3000K with CRI 90, dimmable from the included control.
• Smart Control: Bond technology enables control through the Bond Home app and voice assistants Amazon Alexa and Google Home.

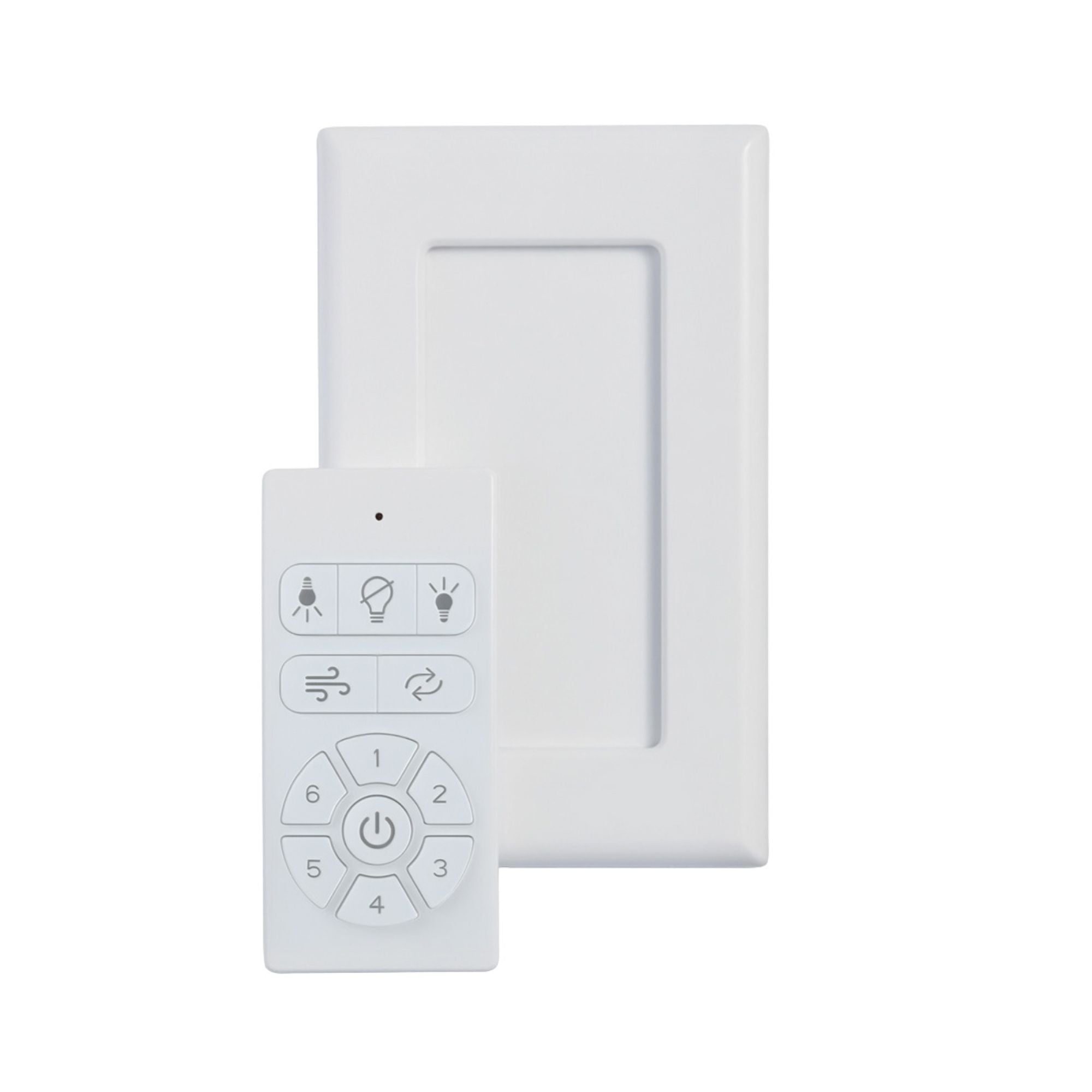

• Remote Control: Included 65K DC full-function remote has six speeds, Breeze mode, reverse, motor off, light on/off, and full-range dimming.
• Indoor Rating: Dry Rated for indoor installation.
• Mounting: Includes a 6 in downrod with 1 in outside diameter; supports ceiling slopes up to 18°.
• Ceiling Fit: Not low-ceiling adaptable; overall fixture height is 14.25 in and ceiling-to-blade distance is 12.5 in.
• Dimensions: 5.5 in canopy diameter by 2 in high, with a 54 in lead wire.
• Room Size: Sized for large rooms from 150 to 300 sq ft.
• Construction and Compliance: Steel body and solid wood blades; 12.6 lb weight; Prop 65 and Reese's Law compliant.

Smart & Control Features

Bond smart technology connects the fan to the Bond Home app and enables voice control with Amazon Alexa and Google Home. The included 65K DC full-function remote provides six fan speeds, Breeze mode, motor reverse and off, plus light on/off and full-range dimming. The remote reverses the motor direction, making it perfect for summer and winter seasons.

Construction and Design

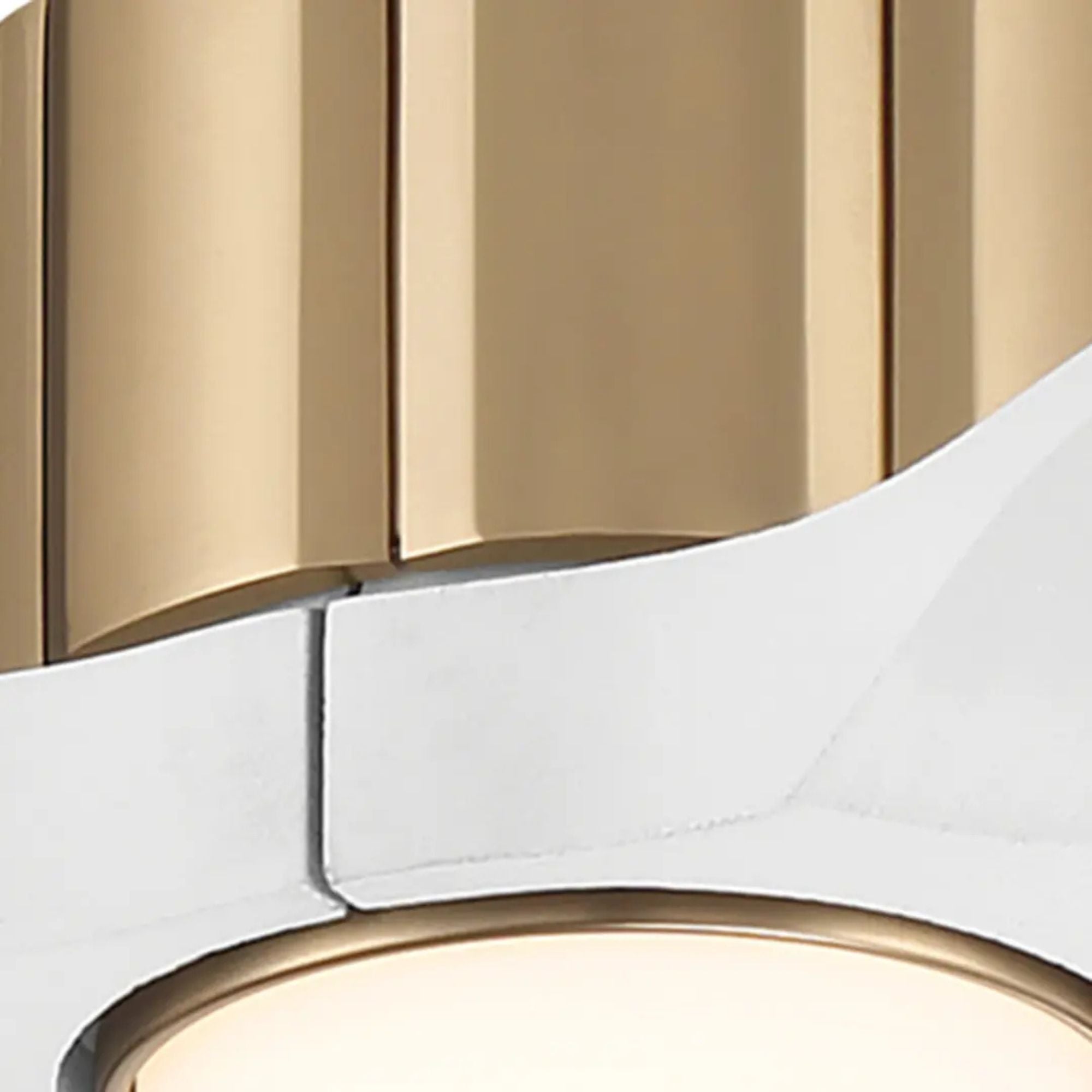

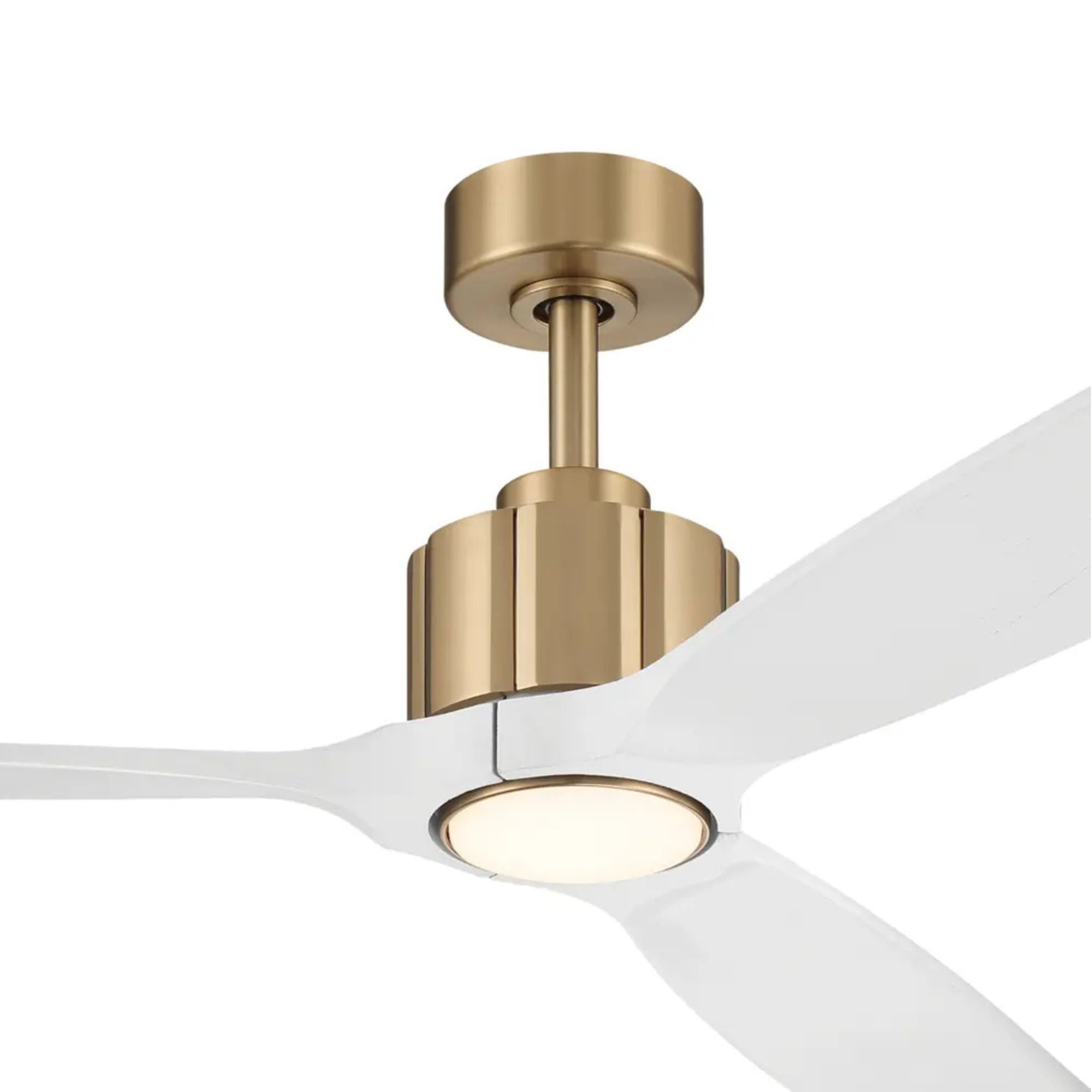

Calyx's streamlined profile combines a steel housing finished in Champagne Bronze with three hand-carved solid wood blades finished in Matte White. The 14° blade pitch and expansive 60 in sweep bring an organic, sculptural look to contemporary indoor spaces.

Light Output & Performance

The integrated LED produces 500 lumens at 3000K with CRI 90 and is dimmable from the included remote. The DC motor delivers 5,790 CFM on high at 32.6W fan power, with 177 CFM/W airflow efficiency.

Electrical & Installation

Operates on 120V and draws 0.47A on high. Fan power is 32.6W, excluding the integrated light. The motor is reversible through the remote. Includes a 6 in downrod with 1 in outside diameter; standard slope compatibility is up to 18°. The manufacturer lists a minimum distance from fan to floor of 14.25 ft. Overall fixture height is 14.25 in and ceiling-to-blade distance is 12.5 in. The canopy is 5.5 in diameter by 2 in high, and the lead wire is 54 in.

Suggested Downrod by Ceiling Height

This downrod-mount fan includes a 6 in downrod and is not low-ceiling adaptable.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Calyx 60 in fan with three solid wood blades
• Integrated LED light module

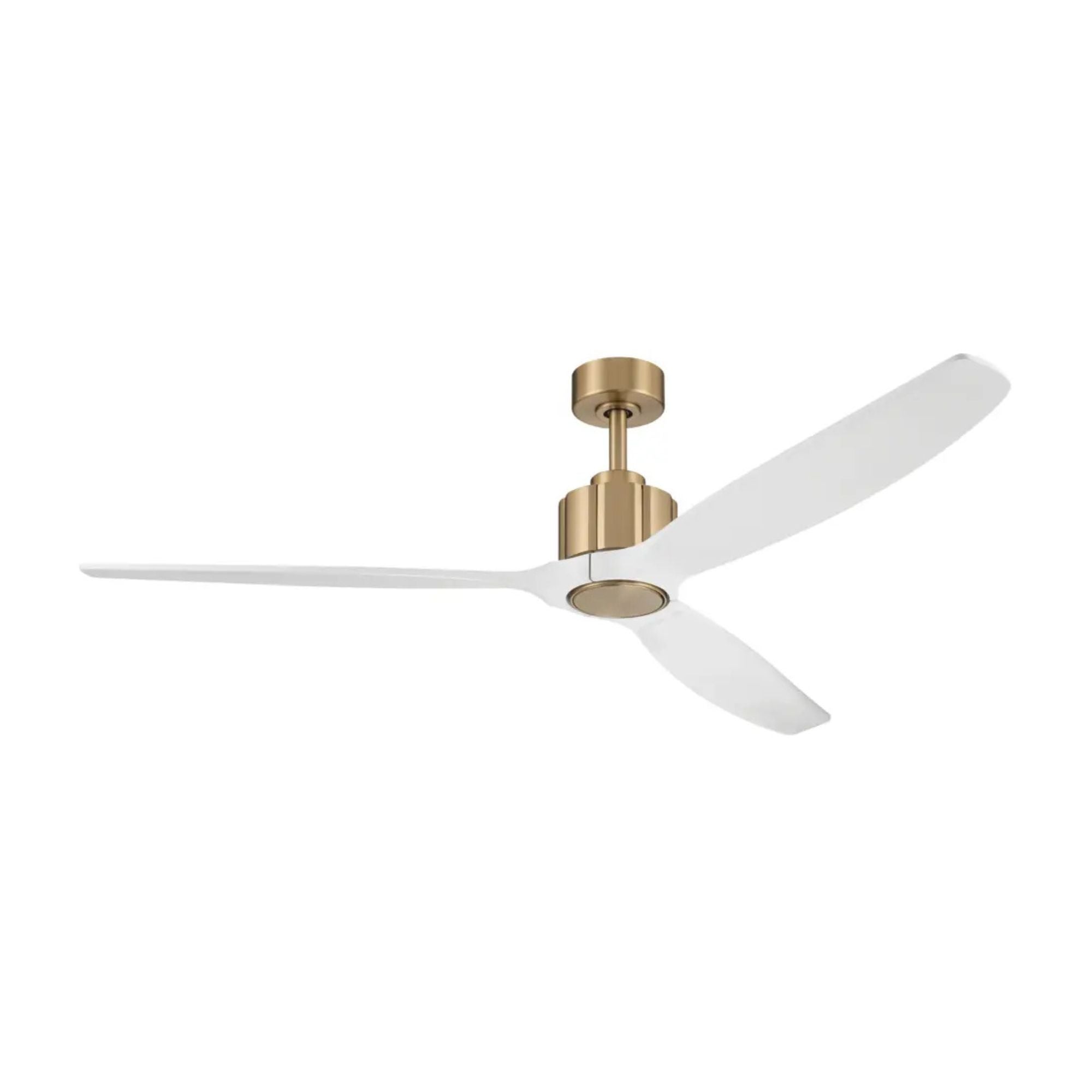

• Metal light cap for non-light use
• 65K DC full-function remote
• 6 in downrod
• Mounting Hardware
