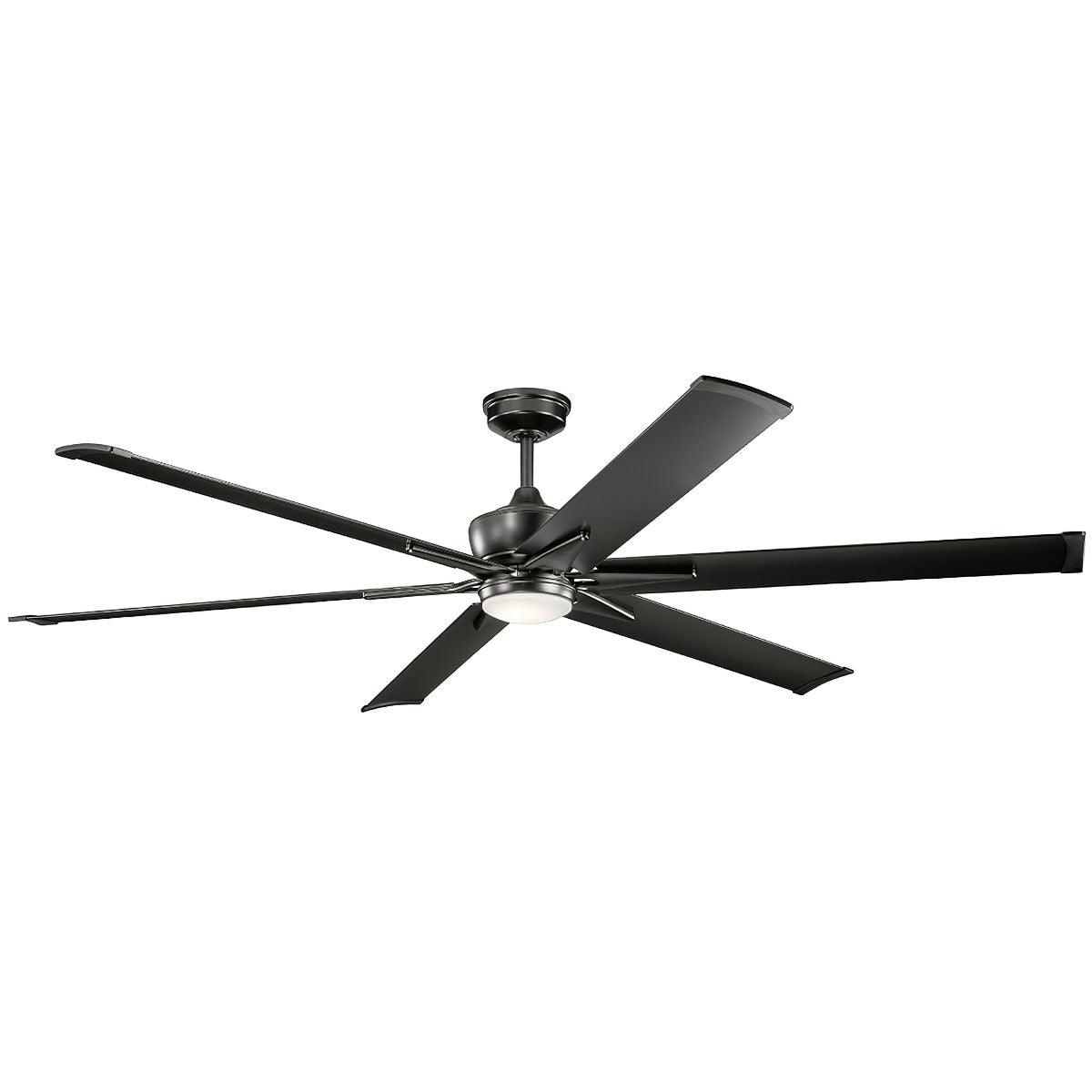

Kichler Szeplo Patio 80 in Outdoor LED Ceiling Fan DC Satin Black

The Kichler Szeplo Patio 300301SBK combines a Satin Black steel housing with six matching aluminum blades across an 80 in span. Its reversible DC brushless motor delivers 9,890 CFM on high with 282 CFM/W efficiency. Wet Rated construction supports outdoor use. The included six-speed full-function wall control offers reverse, motor off and full-range light dimming. A 17W integrated LED provides 1,600 source lumens at 3000K through etched cased opal glass.

Key Features

• Blade Configuration: 80 in span; six non-reversible aluminum blades with 13° pitch.
• Motor: DC-165L brushless motor; reversible; 91 RPM and 0.52A on high.
• Airflow: 9,890 CFM on high.
• Airflow Efficiency: 282 CFM/W on high.
• Wattage: 35W motor on high plus 17W LED; 52W combined.
• Light Output: 1,600 source lumens; 3000K, 80 CRI; full-range dimming.
• Location Rating: Wet Rated; cETLus Listed Wet.
• Mounting: Downrod mount with up to 30° stem tilt; not low-ceiling adaptable. Optional Kichler 60 Degree Slope Adapter 337005, sold separately.
• Included Downrod: 6 in long with 1 in outside diameter.
• Lead Wire: 78 in length.

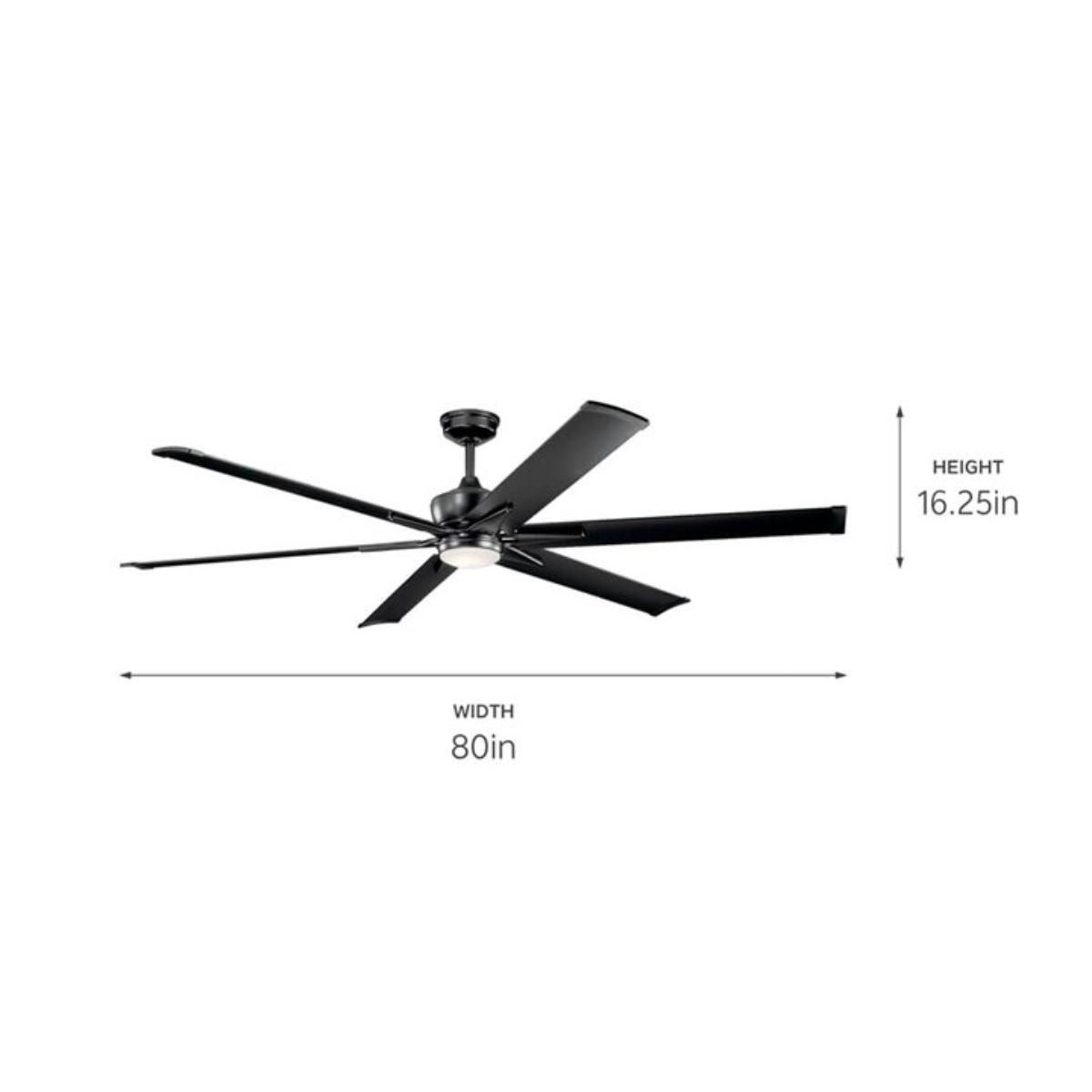

• Overall Dimensions: 80 in DIA × 16.25 in H; 14 in blade drop with included downrod.
• Canopy Dimensions: 6.75 in DIA × 2.6 in H.
• Housing & Weight: 8.75 in housing width; 32.2 lb hanging weight.

Advanced Control Features

The included six-speed DC CoolTouch full-function wall-control system provides six forward speeds, reverse and motor off, plus light on/off with full-range dimming. Faceplates are included in three colors. Install no more than two fans on one circuit.

Construction & Design

The steel housing and six aluminum blades are finished in Satin Black. Non-reversible blades have a 13° pitch. Etched cased opal glass diffuses the downlight, and an included metal fixture cap allows non-light use.

Light Output & Performance

The included 17W integrated LED produces 1,600 source lumens at 3000K with 80 CRI. It is dimmable, with light on/off and full-range dimming through the included wall control. The fan delivers 9,890 CFM on high with 282 CFM/W efficiency.

Electrical & Installation

Operates at 120V with a reversible DC brushless motor. Motor power is 35W on high; the 17W LED brings combined power to 52W. Includes a 6 in downrod with 1 in outside diameter. Standard mounting supports slopes up to 30°. The optional Kichler 60 Degree Slope Adapter 337005 is sold separately. Canopy dimensions are 6.75 in DIA × 2.6 in H, and lead-wire length is 78 in. Overall height is 16.25 in with a 14 in blade drop. Not low-ceiling adaptable; no more than two fans on one circuit.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod. For different room size options consider these downrods available separately.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Szeplo Patio fan with six Satin Black aluminum blades
• Integrated LED light with etched cased opal glass
• Six-speed full-function wall-control system with three-color faceplates
• 6 in downrod
• Metal fixture cap for non-light use
• Mounting Hardware
