The Kichler Gentry XL, model 300285AVI, spans a 85 in sweep and uses nine reversible blades with a DC brushless motor, moving 9,290 CFM at 298 CFM/W. Its integrated LED delivers 1,600 lumens at 3000K, and its Damp Rated design suits indoor spaces and covered outdoor areas.

Key Features

• Blade Span: 85 in for broad air circulation.
• Blade Design: Nine reversible 14°-pitch plywood blades in Distressed Antique Gray and Walnut.
• Motor: DC brushless DC-165NL motor, 72 RPM at high speed and 0.45 amps.
• High-Speed Airflow: 9,290 CFM.
• Airflow Efficiency: 298 CFM/W at high speed.
• Total Wattage: 48W combined, 31W fan and 17W LED.
• Integrated LED: Dimmable 17W light with 1,600 lumens, 3000K, and 80 CRI.
• Location Rating: Damp rated and cULus listed for indoor and covered outdoor use.
• Included Control: Six-speed DC wall control with forward speeds, reverse, motor off, and full-range light dimming.
• Sloped Ceilings: Supports a mounting slope up to 30°.
• Included Downrod: 6 in downrod for downrod mounting.

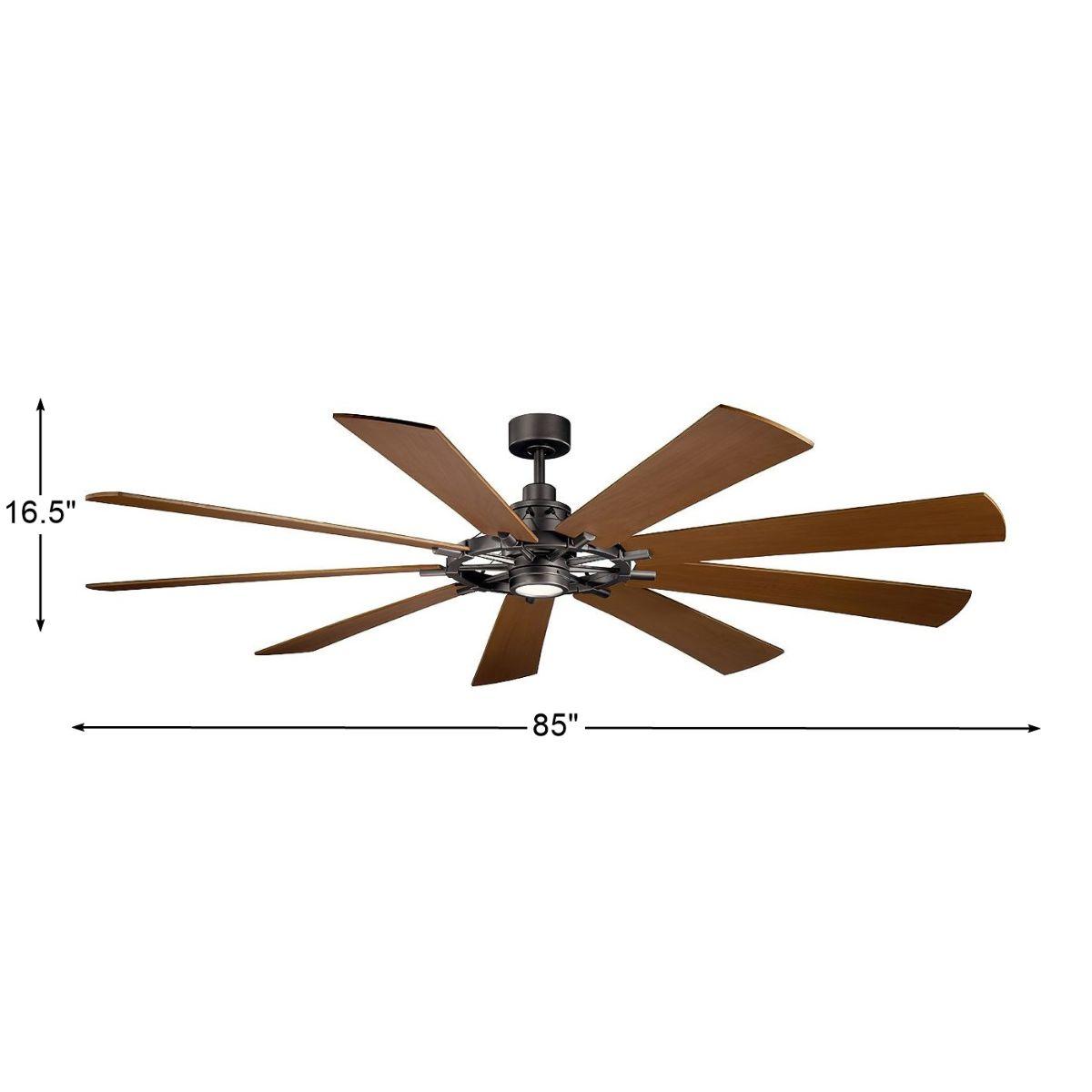

• Dimensions: 16.5 in fixture drop, 14 in blade drop, 7 in housing width, and 6 in canopy width; 78 in lead wire.

Advanced Control Features

The included 6-speed DC wall control provides six forward speeds, motor reversal, and motor off. It also controls the light on/off with full-range dimming. The control supports no more than two fans on one circuit.

Construction and Design

The steel housing in Anvil Iron pairs with nine reversible plywood blades finished in Distressed Antique Gray or Walnut. Each blade has a 14° pitch.

Light Output & Performance

The integrated 17W LED delivers 1,600 lumens at 3000K with 80 CRI and dimming from the included wall control. The fan moves 9,290 CFM at high speed with an efficiency of 298 CFM/W.

Electrical & Installation

Operates on 120V and draws 48W with the 31W fan motor and 17W LED. The motor is reversible. Includes a 6 in downrod; mounting slope is up to 30°, and the optional Kichler 337005 60 Degree Slope Adapter supports installations over 20° and up to 60°. The canopy is 6 in wide, with 78 in lead wire.

Suggested Downrod by Ceiling Height

Ships with a 6 in downrod.

• 9 ft ceiling: 12 in downrod
• 10 ft ceiling: 18 in downrod
• 11 ft ceiling: 24 in downrod
• 12 ft ceiling: 36 in downrod
• 13 ft ceiling: 48 in downrod
• 14 ft ceiling: 60 in downrod
• 15 ft and higher: 72 in downrod

What's Included

• Ceiling fan with nine blades
• Integrated 17W LED light and etched cased opal glass
• 6-speed DC wall control
• 6 in downrod
• Mounting Hardware
