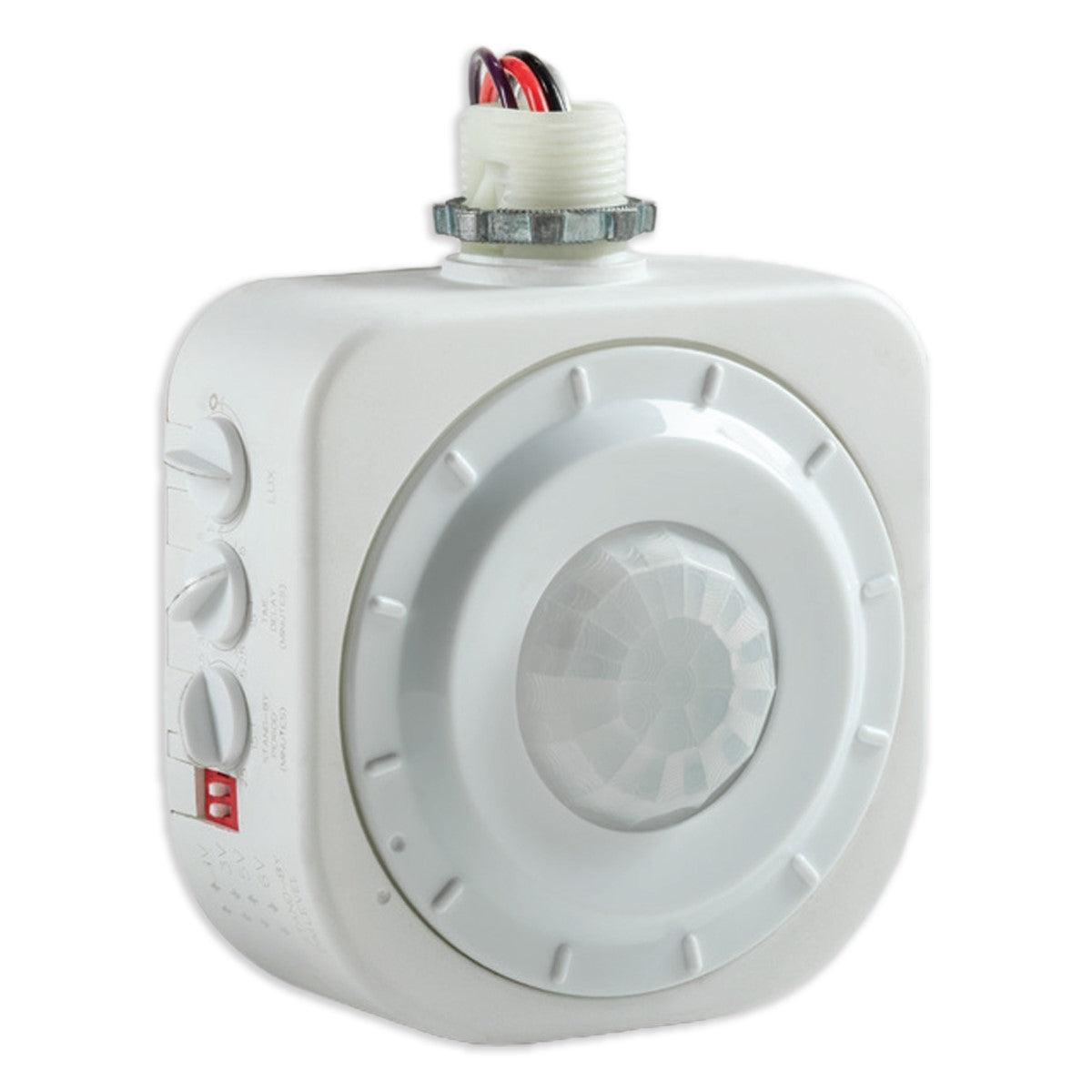

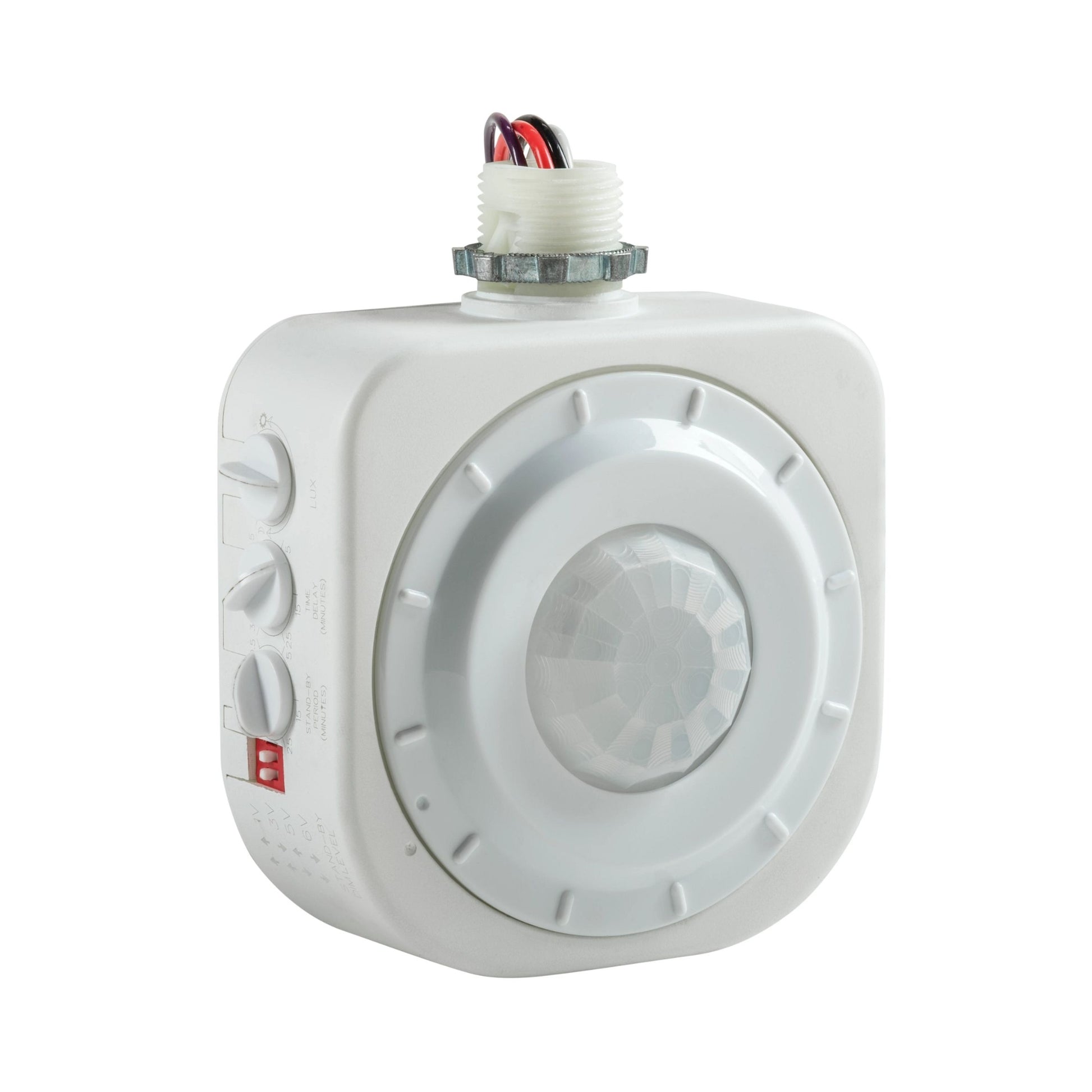

Keystone Passive Infrared Occupancy Sensor — White & 360-Degree High Bay

The Keystone KTS-PIR2-UV-KO is a passive infrared occupancy sensor designed for high bay applications. It features a 360-degree detection area with a high bay lens, operating at 120/277/347Vac ±10%. This sensor supports 0–10V dimming and offers adjustable time delay and stand-by periods.

Key Features

• Voltage Range: Compatible with 120/277/347Vac ±10% for broad application use.
• Load Capacity: Supports up to 800VA @ 120V, 1200VA @ 277V, and 1500VA @ 347V.
• Detection Coverage: 360-degree high bay lens with a 60-foot diameter.
• Dimming Type: 0–10V dimming with adjustable dim levels.
• Time Delay: Adjustable from 30 seconds to 30 minutes.
• Stand-by Period: Adjustable from 30 seconds to 30 minutes.
• Photocell Sensitivity: Adjustable from 1 to ? Lux.
• Mounting: Fixture or electrical box-mounted with interchangeable lens trim rings.
• Environmental Rating: Operates in temperatures from –10ºC/14ºF to 60ºC/140ºF.
• Certification: UL Listed for safety and reliability.

Construction & Interface

This sensor features a durable construction with a threaded housing that mounts into a standard 1/2-inch knock-out hole. It includes interchangeable lens trim rings for different applications. The wallplate is sold separately.

Sensor, Smart & Timer Capabilities

The KTS-PIR2-UV-KO sensor offers advanced occupancy detection with adjustable time delay and stand-by periods. It supports 0–10V dimming, allowing for energy-efficient lighting control in high bay environments.

Wiring & Installation

The sensor requires a neutral wire for operation. It is designed for single-pole installations and includes wire leads for easy connection. Ensure proper installation by following electrical codes and guidelines.
