Keystone Technologies 75W Driver — 20-42V DC

The Keystone Technologies KTLD-75-UV-PS1700-42-VDIM-LM2 is a 75W LED Driver with an input voltage range of 120-277V and an output voltage of 20-42V DC. This Constant Current driver supports 0-10V dimming, making it suitable for a variety of lighting applications. It is a Class 2 rated device, ensuring safety and compliance with industry standards. The driver is designed as a bare module without an integrated junction box.

Key Features

• Power: 75W
• Input Voltage: 120-277V
• Output Voltage: 20-42V DC
• Output Current: 1400-1700mA
• Dimming: 0-10V
• Dimensions: 11.43 in. L x 1.23 in. W x 1.15 in. H
• Enclosure Type: Bare module
• Class 2: Yes
• Certifications: UL/cUL, CE

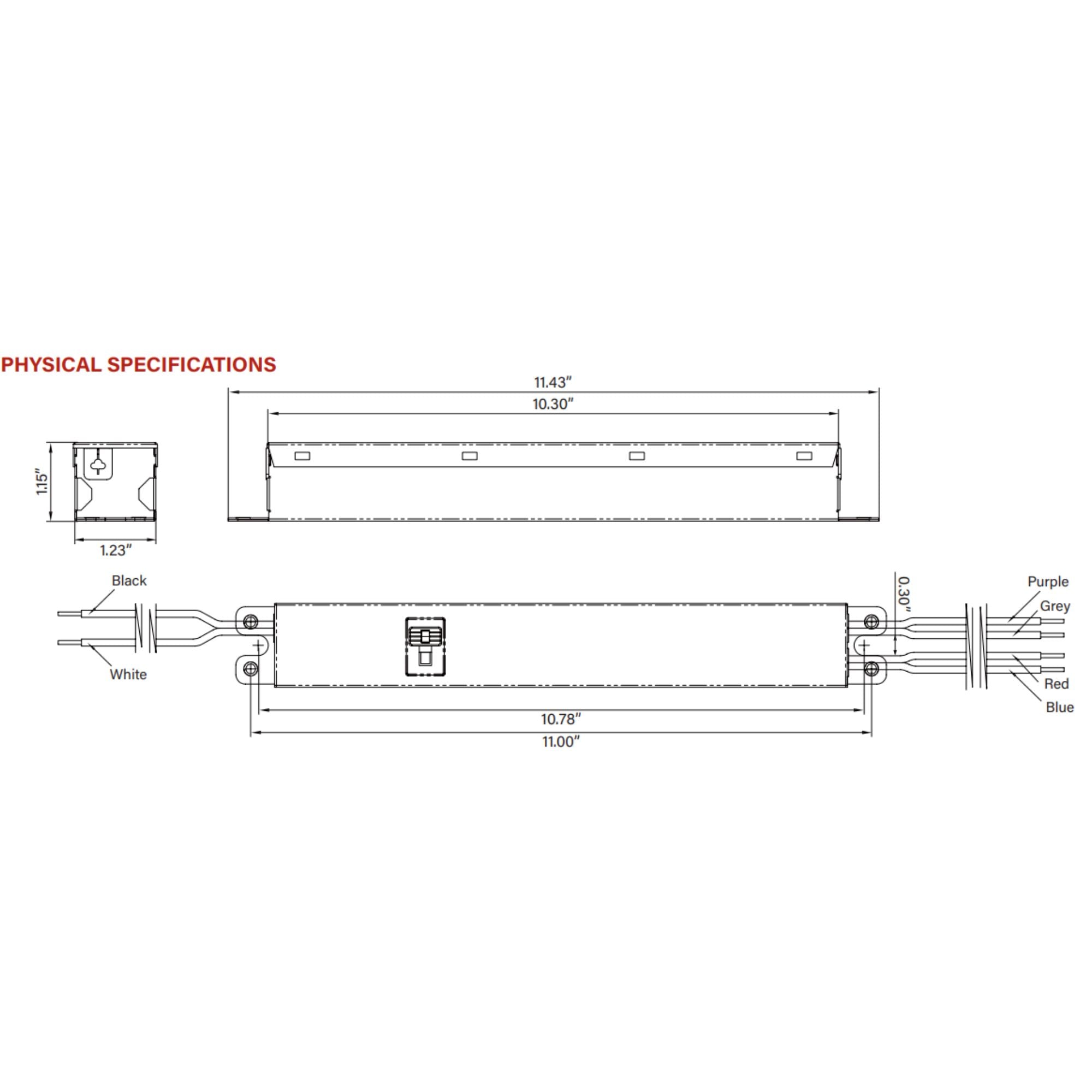

Physical Design & Installation

The driver features a compact design with dimensions of 11.43 in. L x 1.23 in. W x 1.15 in. H, allowing for easy integration into various lighting setups. It does not include an integrated junction box.

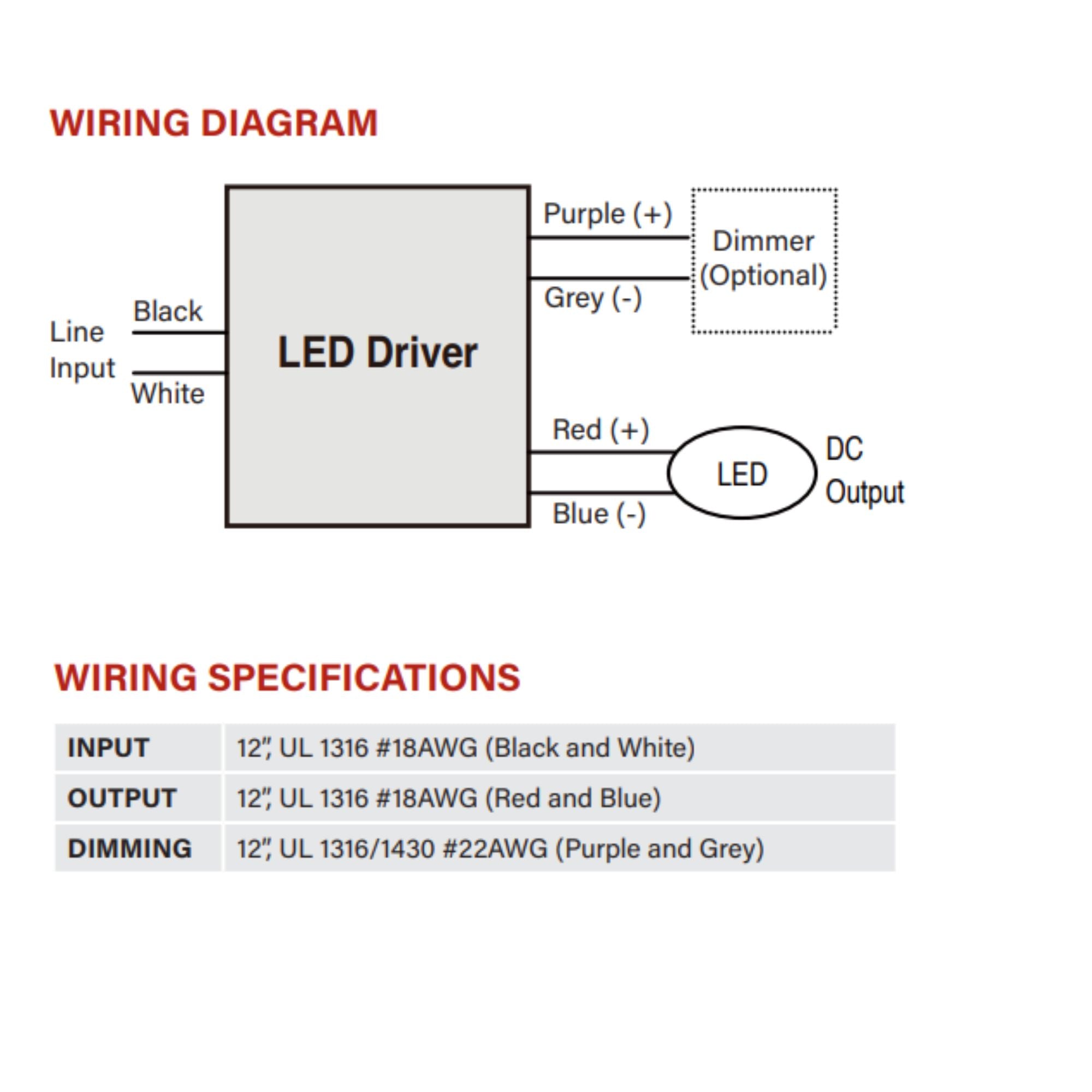

Dimming & Controls

Compatible with 0-10V dimming systems, this driver provides smooth dimming capabilities down to approximately 10%. It operates efficiently across a wide input voltage range of 120-277V.

Performance & Build

Equipped with over-voltage, over-current, and short circuit protection, the driver ensures reliable performance. It is UL/cUL and CE certified, meeting stringent safety and performance standards.

Typical Applications

• Commercial lighting
• Industrial lighting
• Architectural lighting
• Retail lighting
