75 Watts LED Driver, Selectable Current 1100-1400mA, 0-10V Dimming, 120-277V
Available in stock (39)
About this item
About this item
- Output Voltage: 30-54V DC
- Dimming: 0-10V
- Input Voltage: 120-277V
- Enclosure: Bare module
- Protection: Over Voltage, Over Current, Short Circuit
We process payments securely and do not store credit card information.
Description
Description

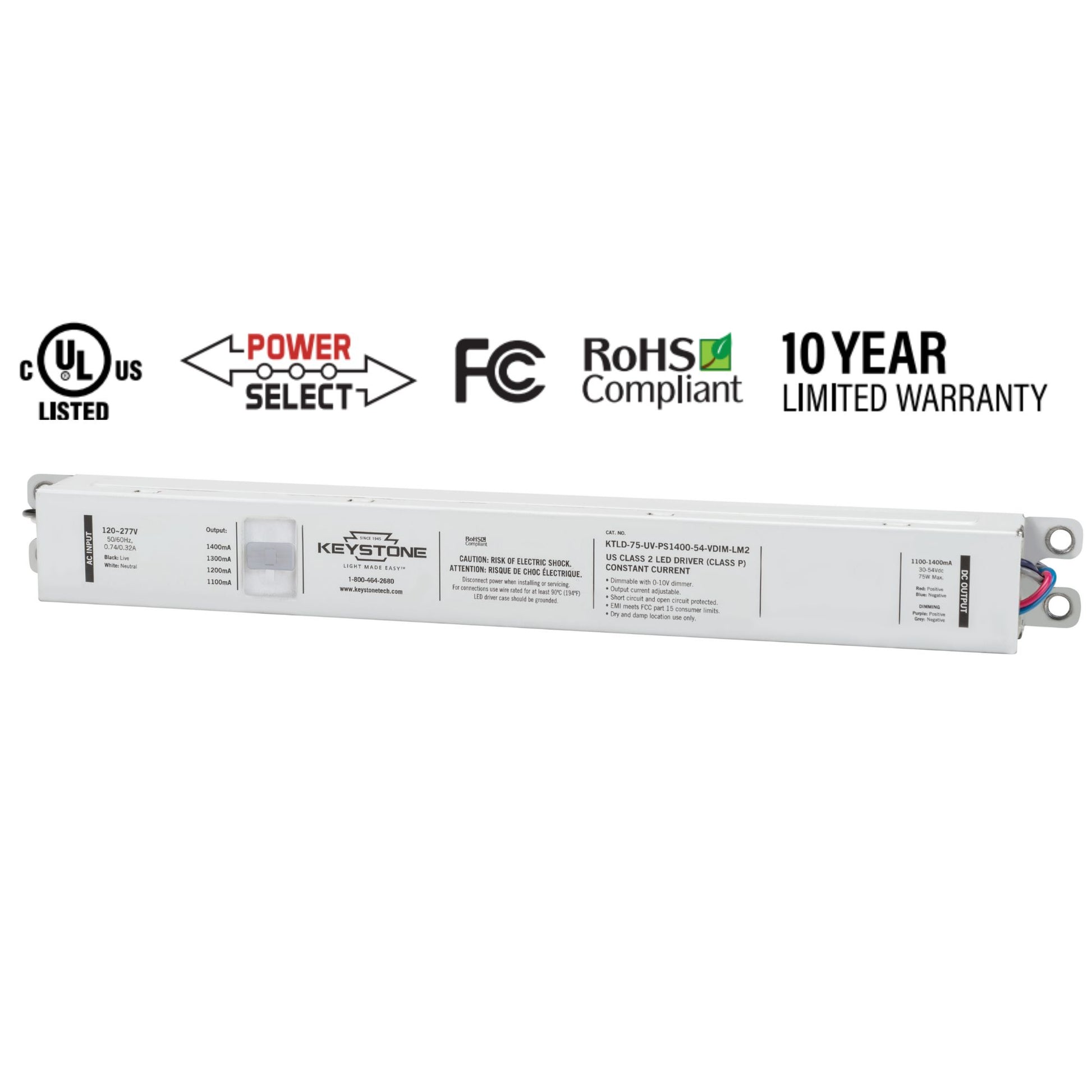

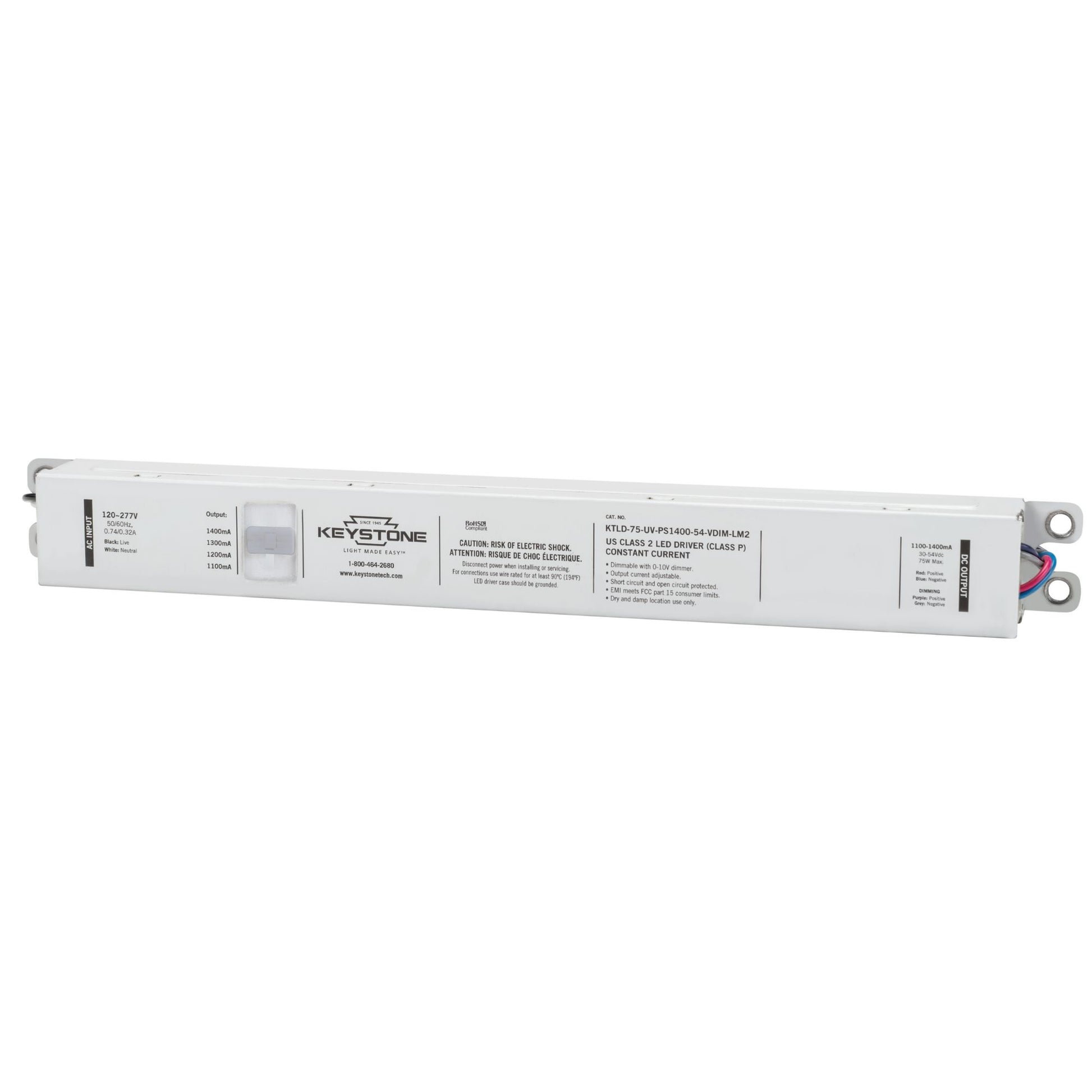

Keystone Technologies 75W Driver — 30-54V
The Keystone Technologies KTLD-75-UV-PS1400-54-VDIM-LM2 is a 75W constant current LED Driver with an output voltage range of 30-54V DC. It operates on a universal input voltage of 120-277V and supports 0-10V dimming. This driver is designed for indoor use and features a bare module enclosure.
Key Features
- Power: 75W
- Input Voltage: 120-277V
- Output Voltage: 30-54V DC
- Dimming: 0-10V

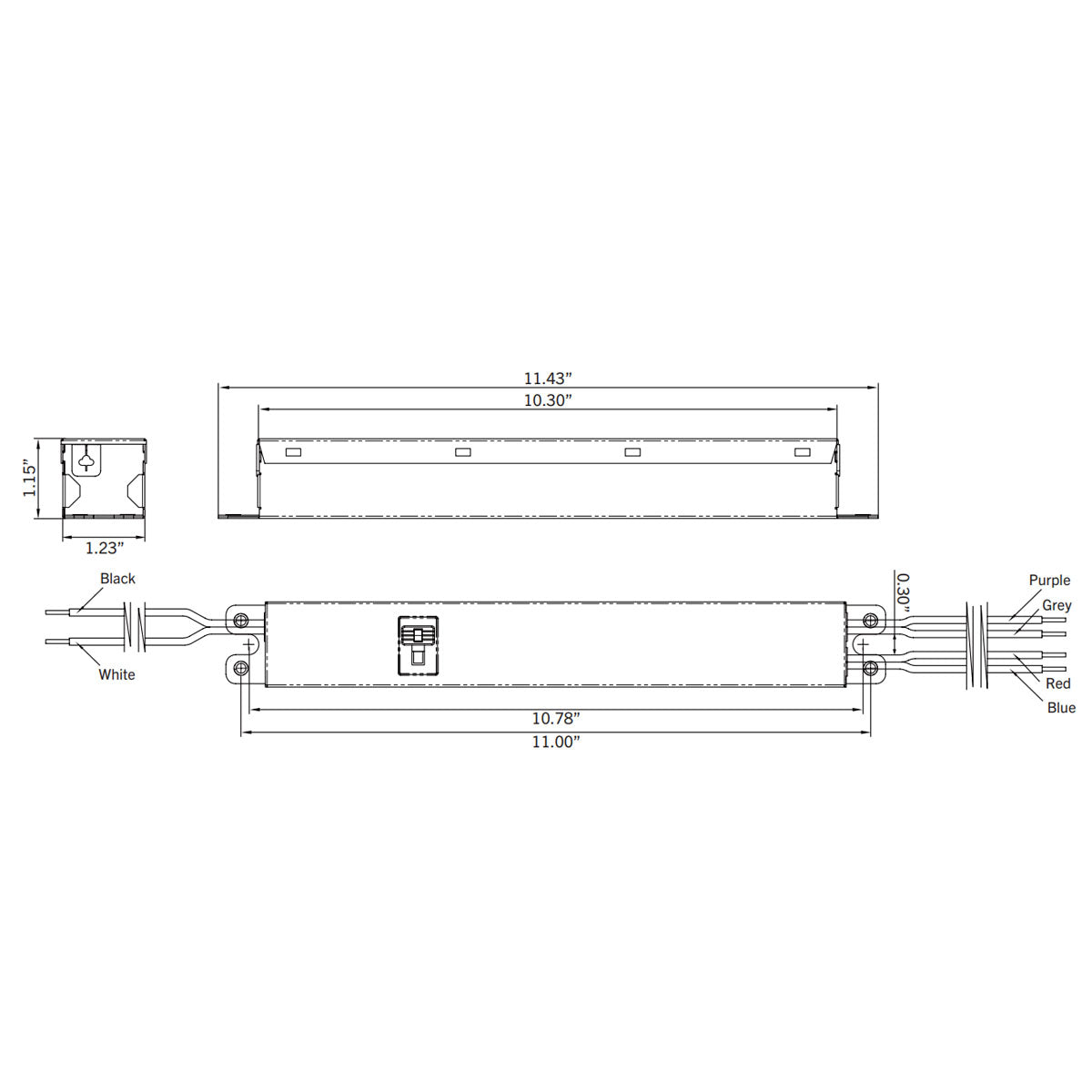

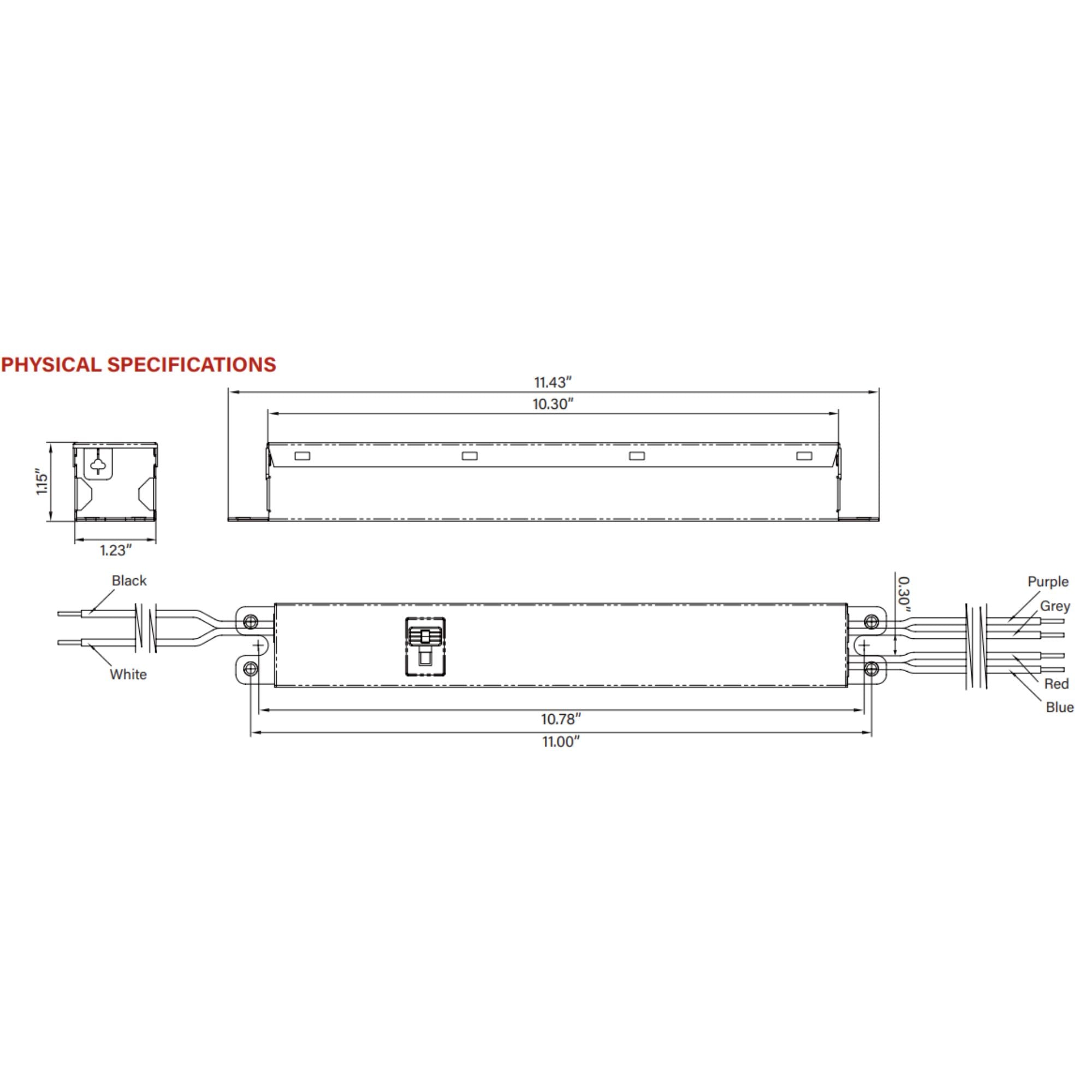

- Dimensions: 11.43 in. L x 1.23 in. W x 1.15 in. H
- Enclosure Type: Bare module
- Class 2: Yes
- Certifications: UL, cUL, CE
Physical Design & Installation
The driver features a compact design with a bare module enclosure, making it suitable for integration into various lighting systems.
Dimming & Controls
Compatible with 0-10V dimming systems, this driver ensures smooth dimming performance. It requires a minimum load of approximately 10% for optimal dimming.
Performance & Build
Equipped with over-voltage, over-current, and short circuit protection, the driver ensures reliable operation. It is UL and CE certified for safety and performance.
Typical Applications
- Commercial Lighting
- Office Lighting
- Retail Lighting
- Industrial Lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the KTLD-75-UV-PS1400-54-VDIM-LM2 support?
What dimming protocol does the KTLD-75-UV-PS1400-54-VDIM-LM2 support?
Is there a minimum load requirement for dimming?
Is there a minimum load requirement for dimming?
Does the driver include an integrated junction box?
Does the driver include an integrated junction box?
What is the input voltage range for this driver?
What is the input voltage range for this driver?
What is the IP rating of the KTLD-75-UV-PS1400-54-VDIM-LM2?
What is the IP rating of the KTLD-75-UV-PS1400-54-VDIM-LM2?
