Keystone KTLD-60-UVN-12V-SC1 | 60W LED Driver | 12VDC Output | Class 2 & Class P | 120-277V
Out of stock
About this item
About this item
- Output Voltage: 12V DC
- Power: 60W
- Dimming: Non-dimmable
- Input Voltage: 120-277V
- Protection: Over Voltage, Over Current, Short Circuit, Over Temperature
We process payments securely and do not store credit card information.
Description
Description
Keystone Technologies 60W Driver — 12V DC
The Keystone Technologies KTLD-60-UVN-12V-SC1 is a 60W constant voltage LED Driver with an output of 12V DC. This driver operates with an input voltage range of 120-277V and is non-dimmable. It is Class 2 rated and features a slim metal case for indoor installations.
Key Features
- Power: 60W
- Input Voltage: 120-277V
- Output Voltage: 12V DC
- Dimming: Non-dimmable

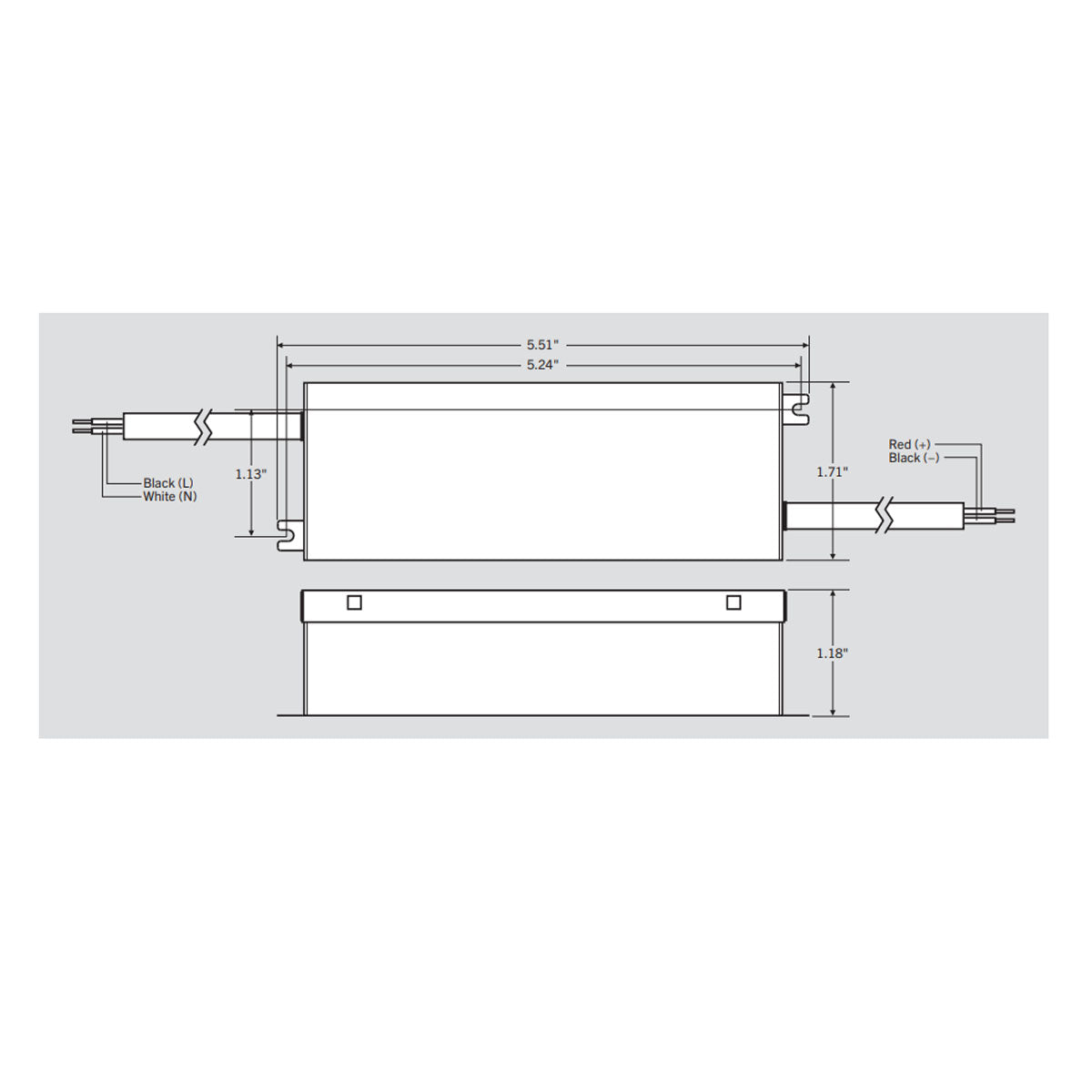

- Dimensions: 5.51 in. L x 1.71 in. W x 1.18 in. H
- Enclosure Type: Slim Metal Case
- IP Rating: IP20
- Class 2: Yes
- Certifications: UL8750, Class P, Type HL
Physical Design & Installation
The driver features a slim metal case, suitable for dry and damp locations, ensuring durability and ease of installation.
Dimming & Controls
This driver is non-dimmable, designed for applications where dimming is not required.
Performance & Build
Equipped with over voltage, over current, short circuit, and over temperature protection, this driver ensures reliable performance. It is Class 2 compliant and IP20 rated.
Typical Applications
- Indoor LED lighting
- Commercial lighting installations
- Residential lighting systems
- Retail lighting environments
Specifications
Specifications
Dimensions
Documents
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the KTLD-60-UVN-12V-SC1 dimmable?
Is the KTLD-60-UVN-12V-SC1 dimmable?
What is the input voltage range for the KTLD-60-UVN-12V-SC1?
What is the input voltage range for the KTLD-60-UVN-12V-SC1?
Does the KTLD-60-UVN-12V-SC1 include an integrated junction box?
Does the KTLD-60-UVN-12V-SC1 include an integrated junction box?
What protection features does the KTLD-60-UVN-12V-SC1 offer?
What protection features does the KTLD-60-UVN-12V-SC1 offer?
What is the IP rating of the KTLD-60-UVN-12V-SC1?
What is the IP rating of the KTLD-60-UVN-12V-SC1?
