45 Watts LED Driver, Selectable Current 700-850mA, 0-10V Dimming, 120-277V
In stock
About this item
About this item
- Output Voltage: 30-54V DC
- Dimming: 0-10V
- Input Voltage: 120-277V
- Enclosure: Bare Module
- Protection: Over Voltage, Over Current, Short Circuit
We process payments securely and do not store credit card information.
Description
Description
Keystone Technologies 45W Driver — 30-54V
The Keystone Technologies KTLD-45-UV-PS850-54-VDIM-LM1 is a 45W constant current LED driver with an input voltage range of 120-277V and an output voltage of 30-54V DC. This driver supports 0-10V dimming and is designed for indoor use. It features a bare module enclosure type.
Key Features
- Power: 45W
- Input Voltage: 120-277V
- Output Voltage: 30-54V DC
- Dimming: 0-10V

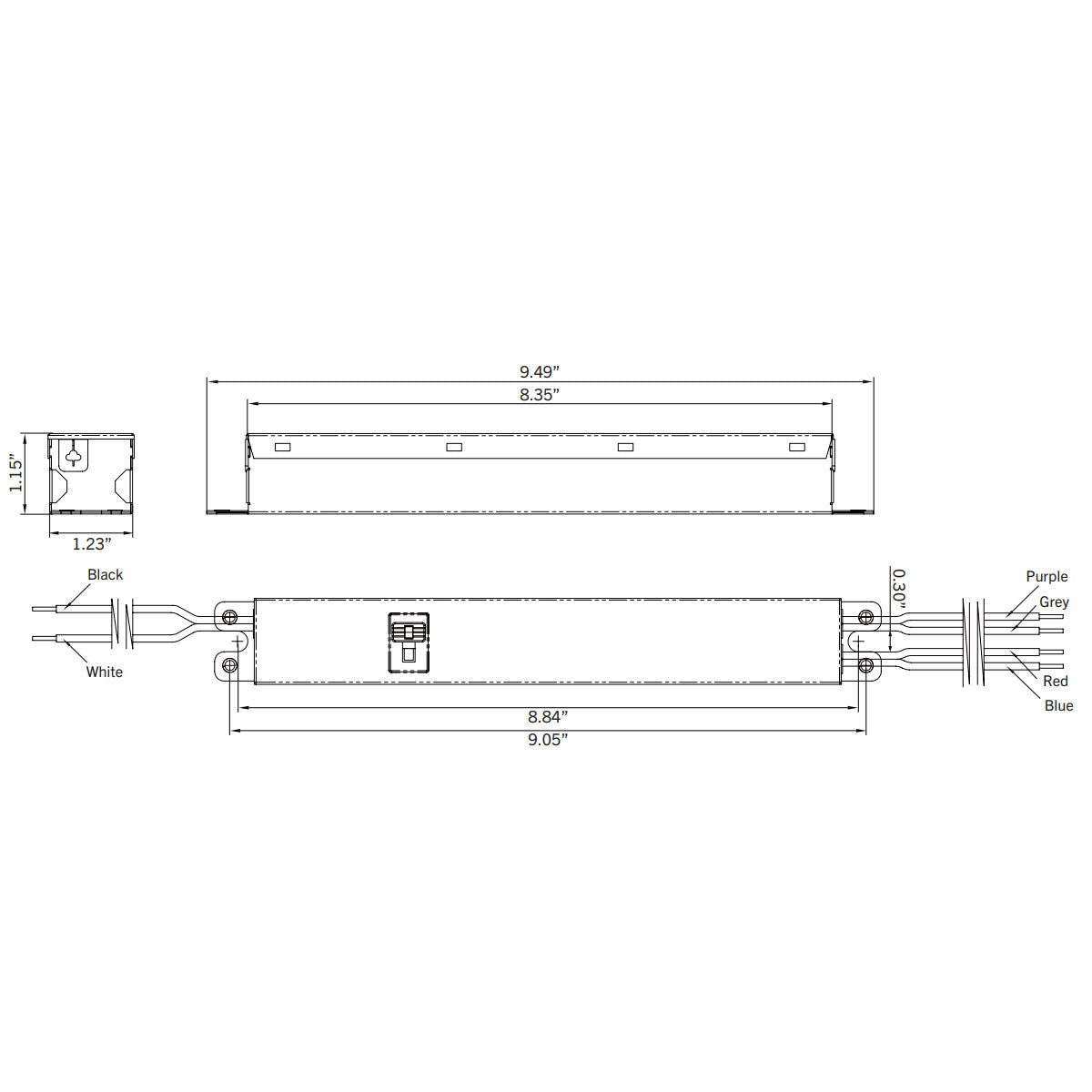

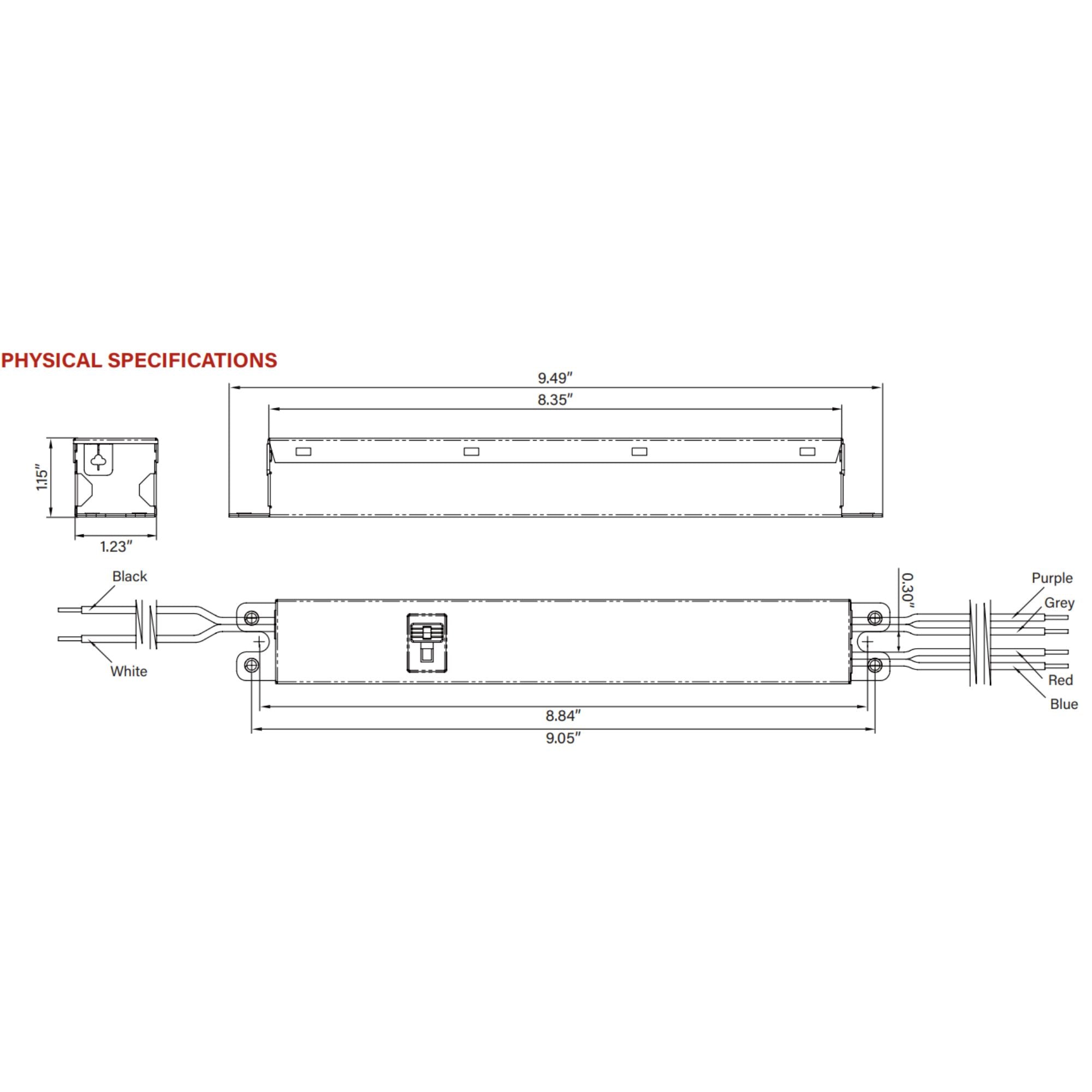

- Dimensions: 9.49 in. L x 1.23 in. W x 1.15 in. H
- Enclosure Type: Bare Module
- Class 2: Yes

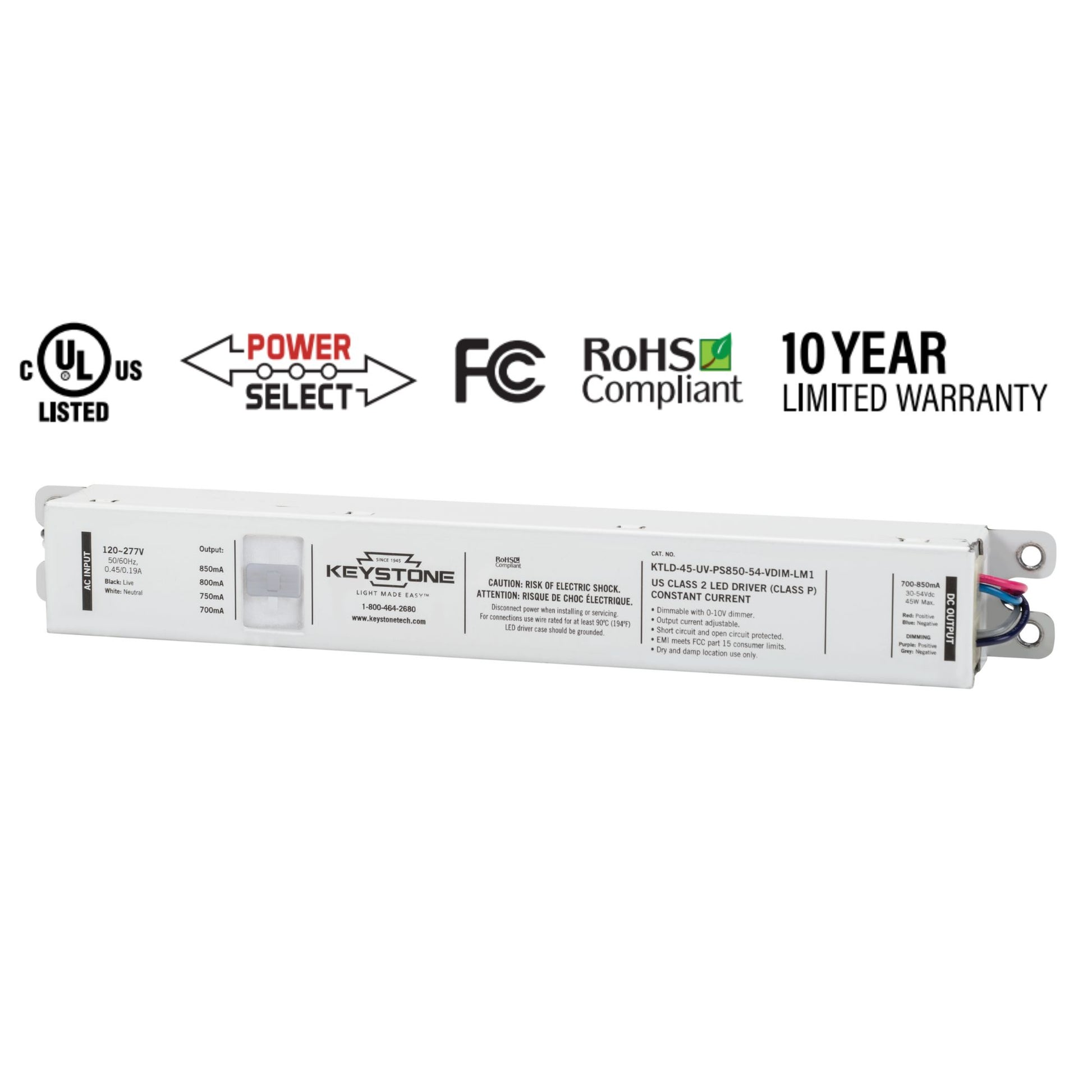

- Certifications: UL/cUL, CE
Physical Design & Installation
The driver is housed in a compact bare module design, making it suitable for integration into various lighting fixtures.
Dimming & Controls
Compatible with 0-10V dimming systems, this driver allows for smooth dimming down to approximately 10% of full light output.
Performance & Build
Equipped with over-voltage, over-current, and short circuit protection, this driver ensures reliable performance. It is UL/cUL and CE certified, meeting stringent safety standards.
Typical Applications
- Commercial Lighting
- Office Lighting
- Retail Lighting
- Indoor Architectural Lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the KTLD-45-UV-PS850-54-VDIM-LM1 support?
What dimming protocol does the KTLD-45-UV-PS850-54-VDIM-LM1 support?
Does the KTLD-45-UV-PS850-54-VDIM-LM1 include an integrated junction box?
Does the KTLD-45-UV-PS850-54-VDIM-LM1 include an integrated junction box?
What is the input voltage range for the KTLD-45-UV-PS850-54-VDIM-LM1?
What is the input voltage range for the KTLD-45-UV-PS850-54-VDIM-LM1?
Is there a minimum load requirement for dimming the KTLD-45-UV-PS850-54-VDIM-LM1?
Is there a minimum load requirement for dimming the KTLD-45-UV-PS850-54-VDIM-LM1?
What is the IP rating of the KTLD-45-UV-PS850-54-VDIM-LM1?
What is the IP rating of the KTLD-45-UV-PS850-54-VDIM-LM1?
