45 Watts LED Driver, Selectable Current 900-1100mA, 0-10V Dimming, 120-277V
Available in stock (39)
About this item
About this item
- Output Voltage: 20-42V DC
- Dimming: 0-10V
- Input Voltage: 120-277V
- Enclosure: Bare Module
- Protection: Over Voltage, Over Current, Short Circuit
We process payments securely and do not store credit card information.
Description
Description

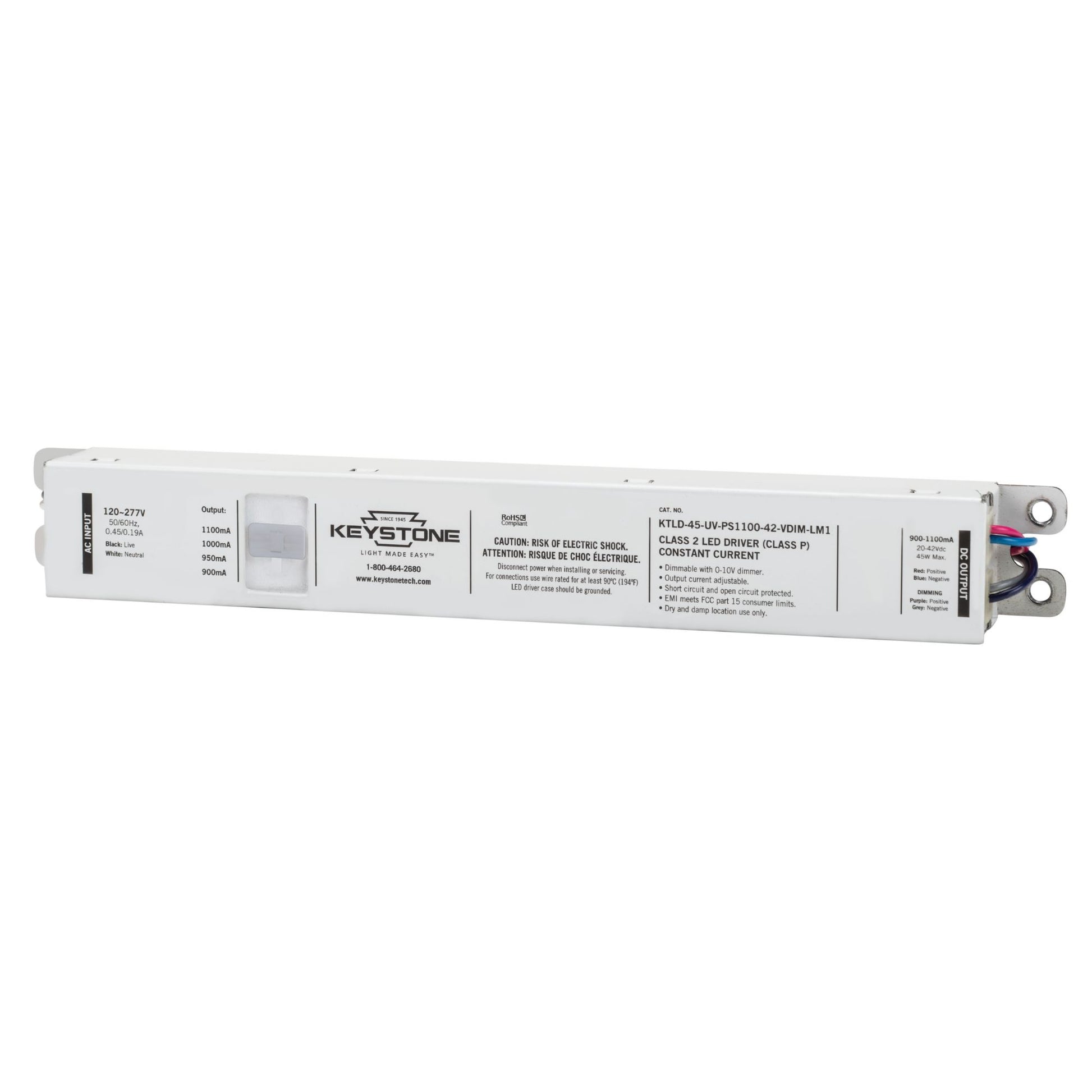

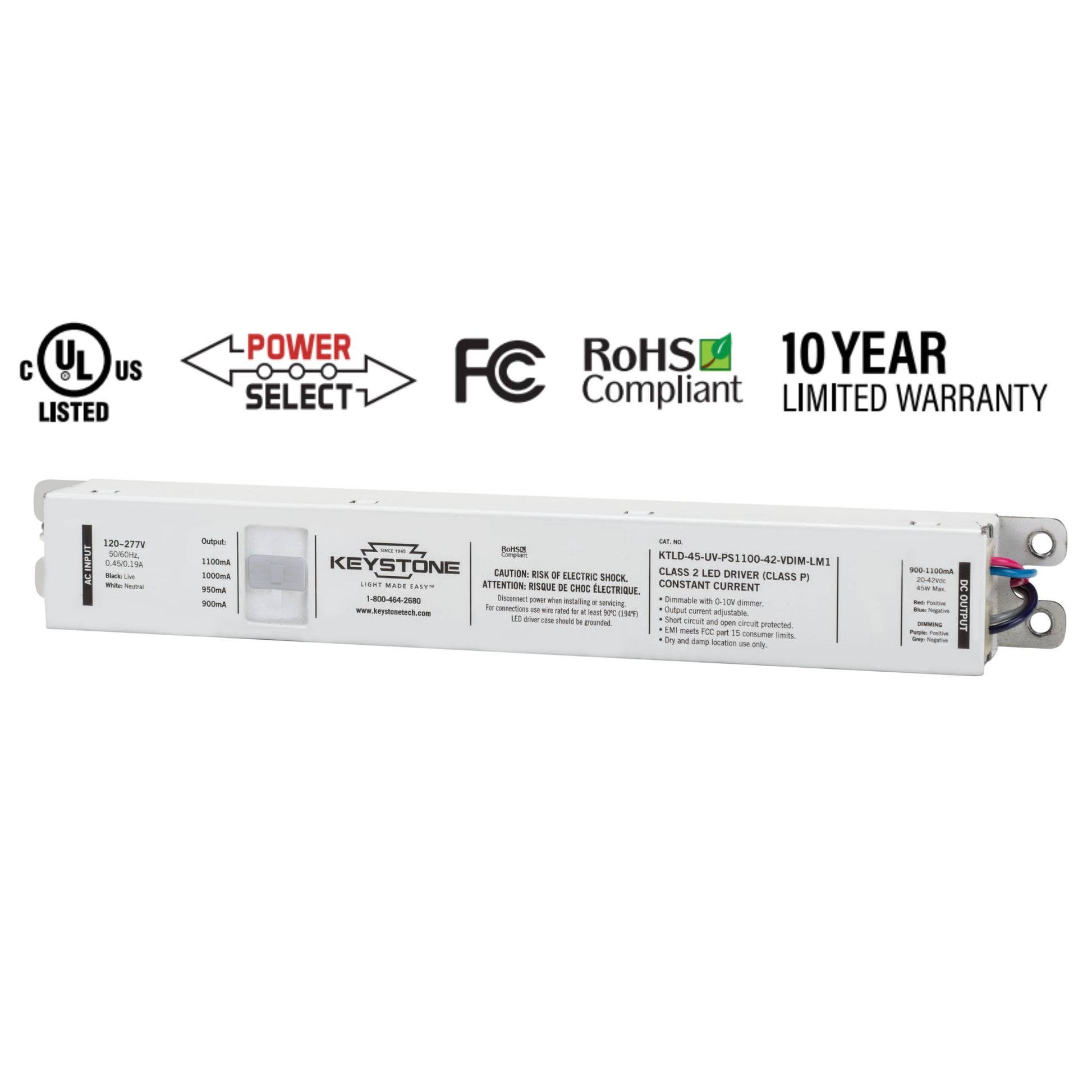

Keystone Technologies 45W Driver — 20-42V DC
The Keystone Technologies KTLD-45-UV-PS1100-42-VDIM-LM1 is a 45W constant current LED driver with an input voltage range of 120-277V and an output voltage of 20-42V DC. This driver supports 0-10V dimming and is designed for indoor use. It features a bare module enclosure and is Class 2 rated for both US and Canada.
Key Features
- Power: 45W
- Input Voltage: 120-277V
- Output Voltage: 20-42V DC
- Dimming: 0-10V
- Minimum Load: ~10% Dimming
- Dimensions: 9.49 in. L x 1.23 in. W x 1.15 in. H
- Enclosure Type: Bare Module
- Class 2: Yes
- Certifications: UL/cUL, CE, FCC
Physical Design & Installation

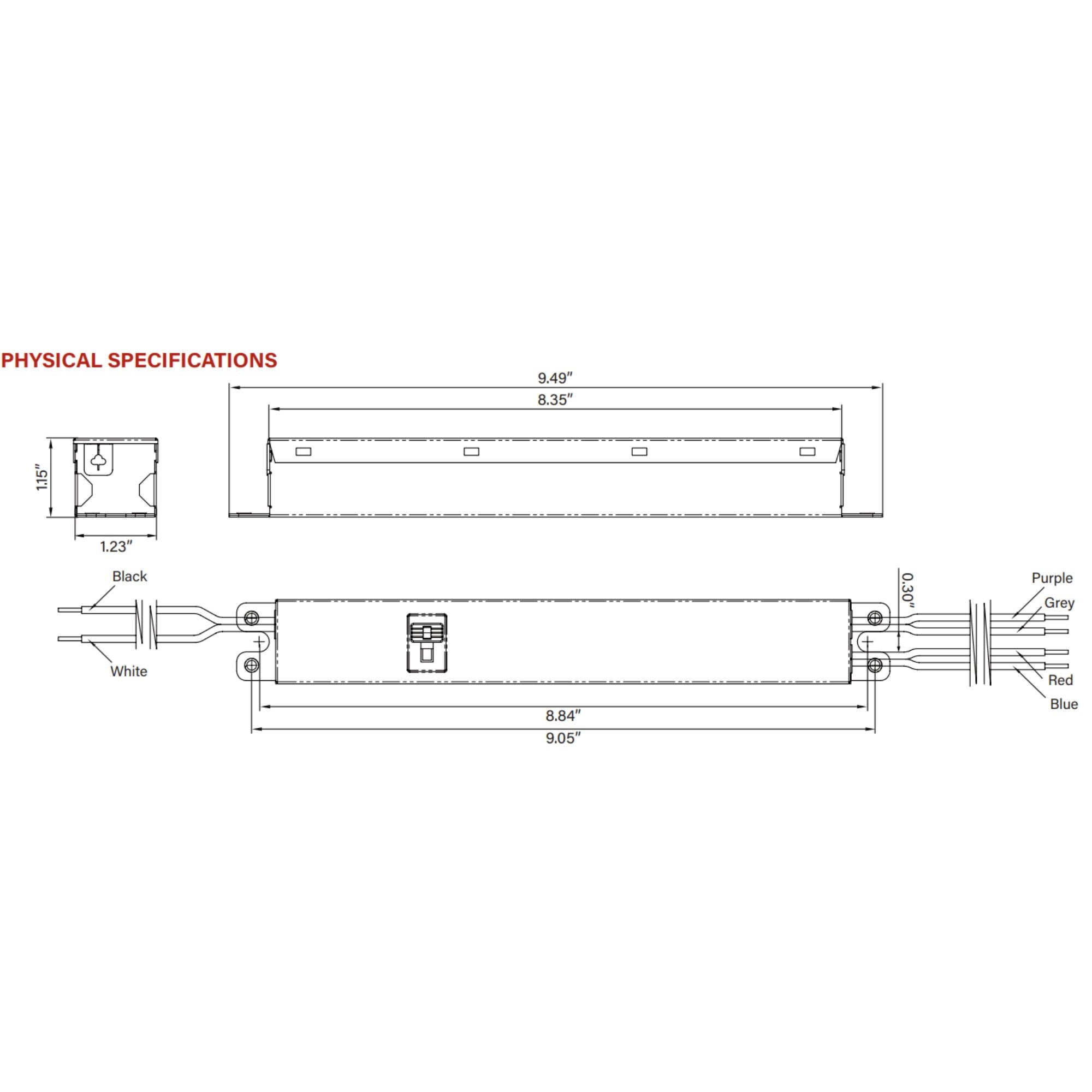

The driver features a compact design with dimensions of 9.49 in. L x 1.23 in. W x 1.15 in. H, making it suitable for tight spaces. It does not include an integrated junction box.
Dimming & Controls
Compatible with 0-10V dimming systems, this driver allows for smooth dimming down to approximately 10% of full light output.
Performance & Build
Equipped with over voltage, over current, and short circuit protection, the driver ensures reliable performance. It is Class 2 compliant and dry rated for indoor use.
Typical Applications
- Commercial Lighting
- Office Lighting
- Retail Lighting
- Architectural Lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the KTLD-45-UV-PS1100-42-VDIM-LM1 support?
What dimming protocol does the KTLD-45-UV-PS1100-42-VDIM-LM1 support?
Is there a minimum load requirement for dimming?
Is there a minimum load requirement for dimming?
Does the driver include an integrated junction box?
Does the driver include an integrated junction box?
What input voltage range does this driver support?
What input voltage range does this driver support?
What is the IP rating of this driver?
What is the IP rating of this driver?
