Keystone Technologies 40W Driver — 10-56V DC

The Keystone Technologies KTLD-40-UV-SC1400-56-VDIM-W1-USB is a 40W LED Driver designed for constant current applications. It operates with an input voltage range of 120-277V and provides an output voltage of 10-56V DC. This driver supports 0-10V dimming down to 1% and features a metal enclosure. It is a versatile solution for various lighting installations.

Key Features

• Total Power: 40W
• Input Voltage: 120-277V
• Output Voltage: 10-56V DC
• Output Current: 470-1400mA
• Dimming: 0-10V, down to 1%

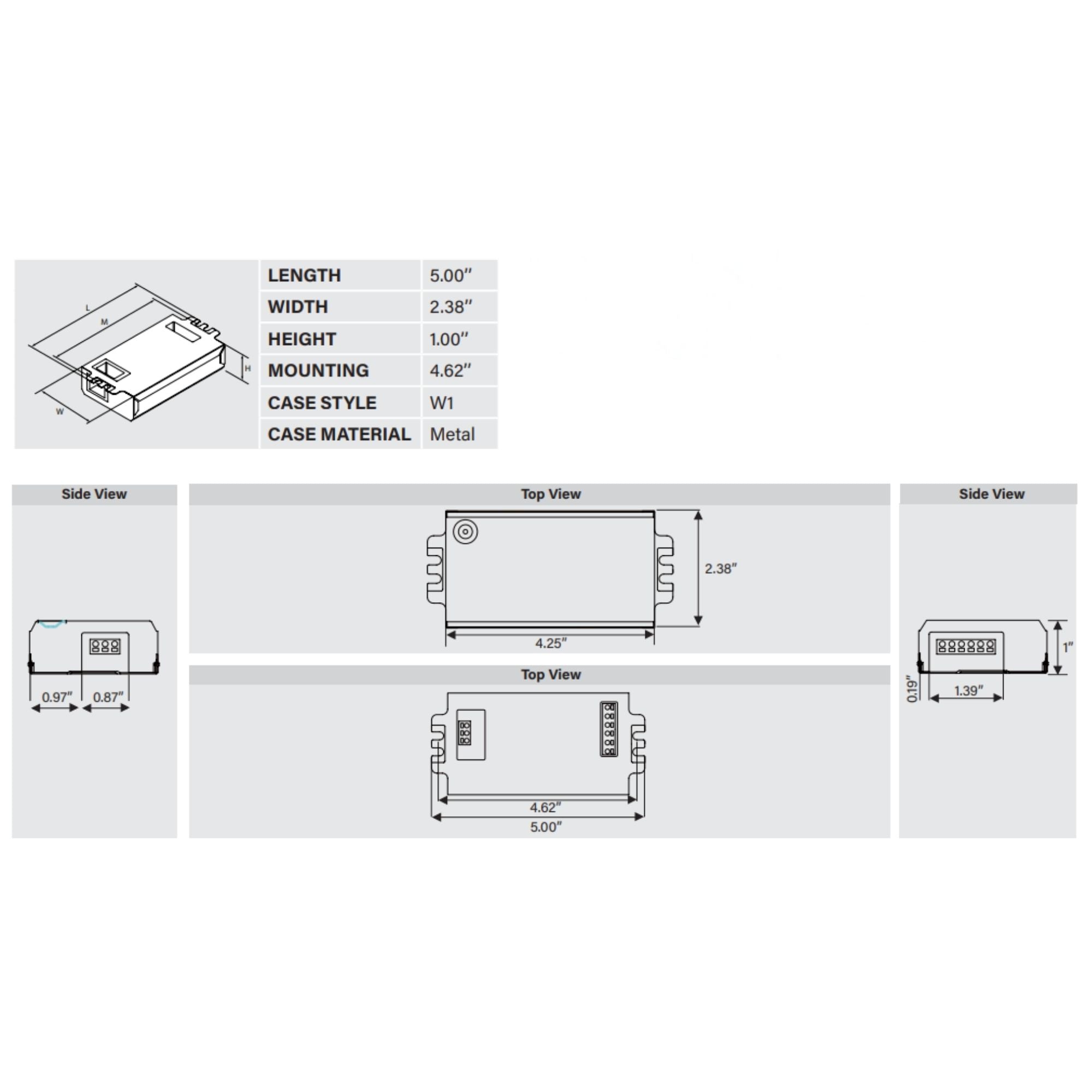

• Dimensions: 5.00 in. L x 2.38 in. W x 1.00 in. H
• Enclosure Type: Metal
• Class 2: Yes
• Certifications: UL, FCC, CE

Physical Design & Installation

The driver features a robust metal enclosure, ensuring durability and protection for indoor installations. It does not include an integrated junction box.

Dimming & Controls

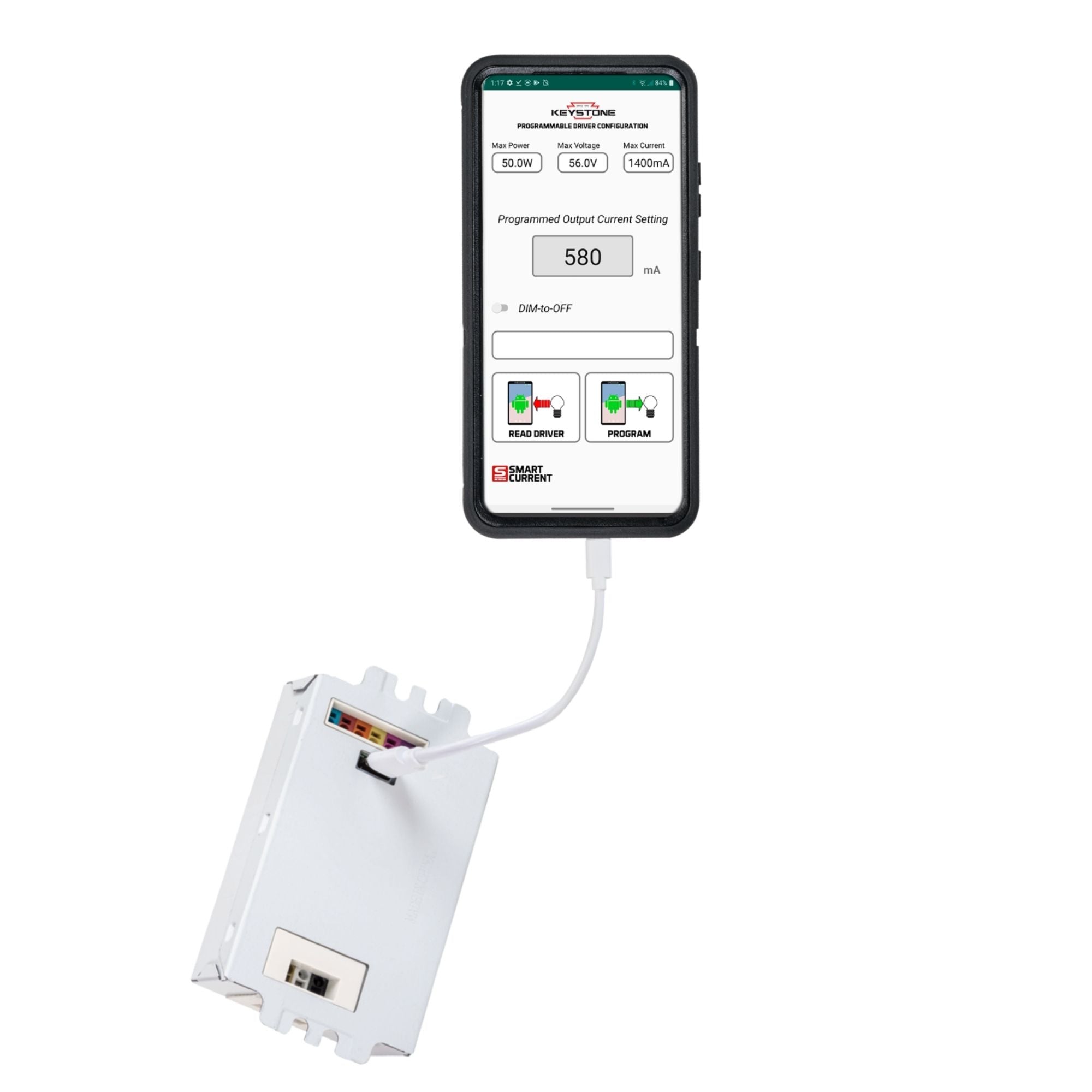

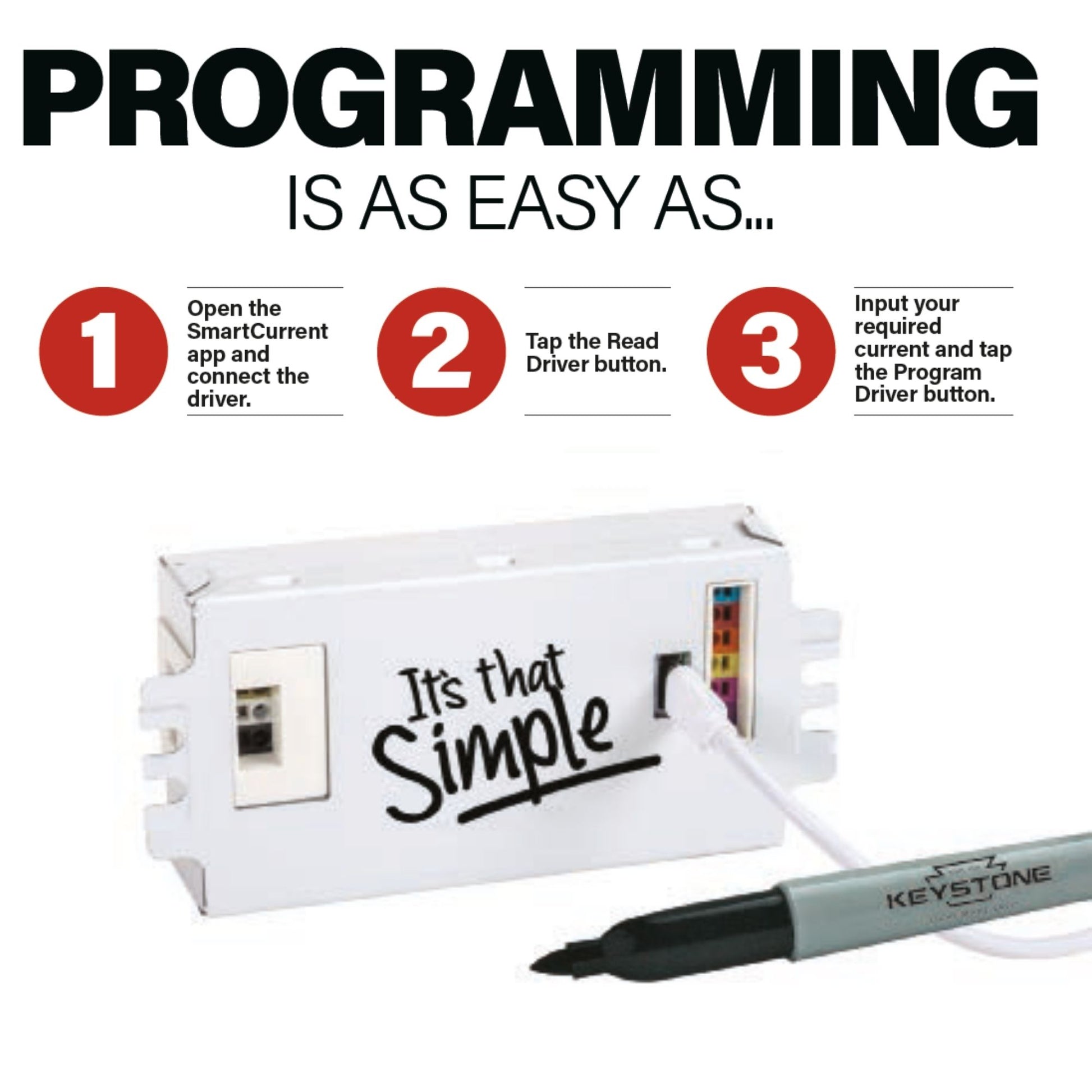

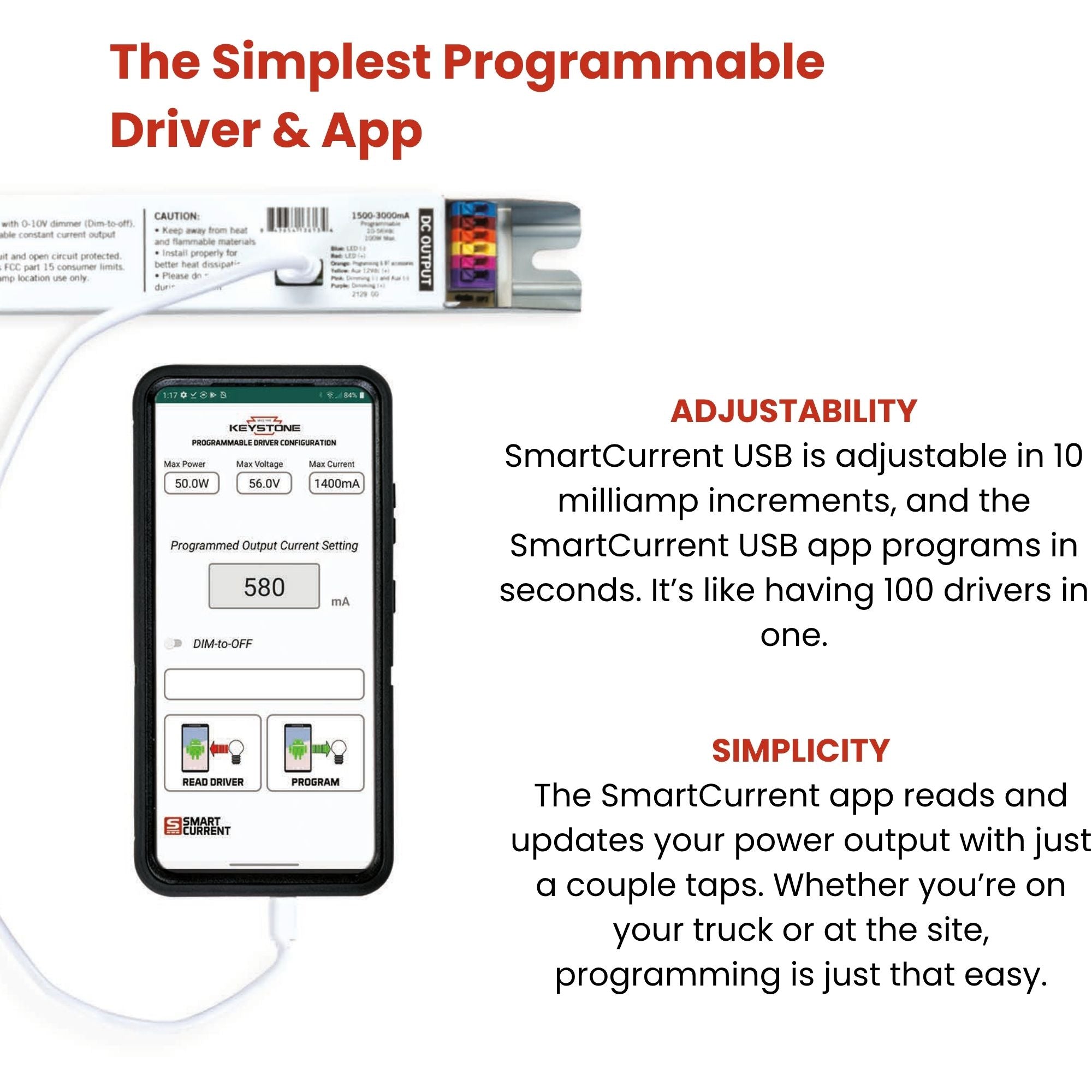

Compatible with 0-10V dimming systems, this driver allows for smooth dimming down to 1%. It is programmable via a USB-C port, offering flexibility in output current settings.

Performance & Build

Equipped with short circuit, over-voltage, and thermal protection, this driver ensures reliable performance. It is compliant with Class 2 standards and features an IP rating suitable for dry locations.

Typical Applications

• Commercial lighting
• Office spaces
• Retail environments
• Indoor architectural lighting
