35 Watts LED Driver, Selectable Current 700-850mA, 0-10V Dimming, 120-277V
In stock
About this item
About this item
- Output Voltage: 20-42V DC
- Dimming: 0-10V
- Input Voltage: 120-277V
- Enclosure: Integrated Junction Box
- Protection: Over Voltage, Over Current, Short Circuit
We process payments securely and do not store credit card information.
Description
Description

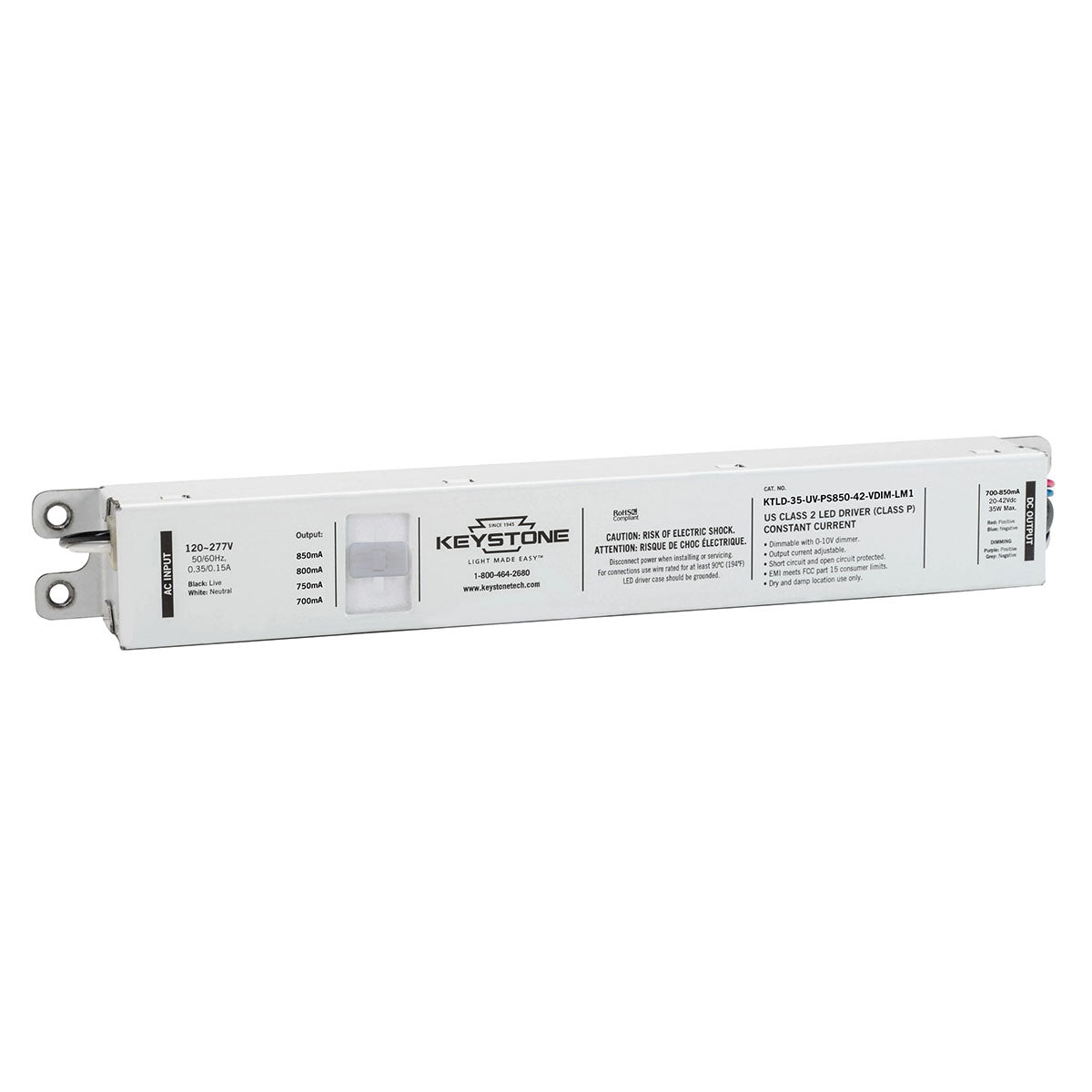

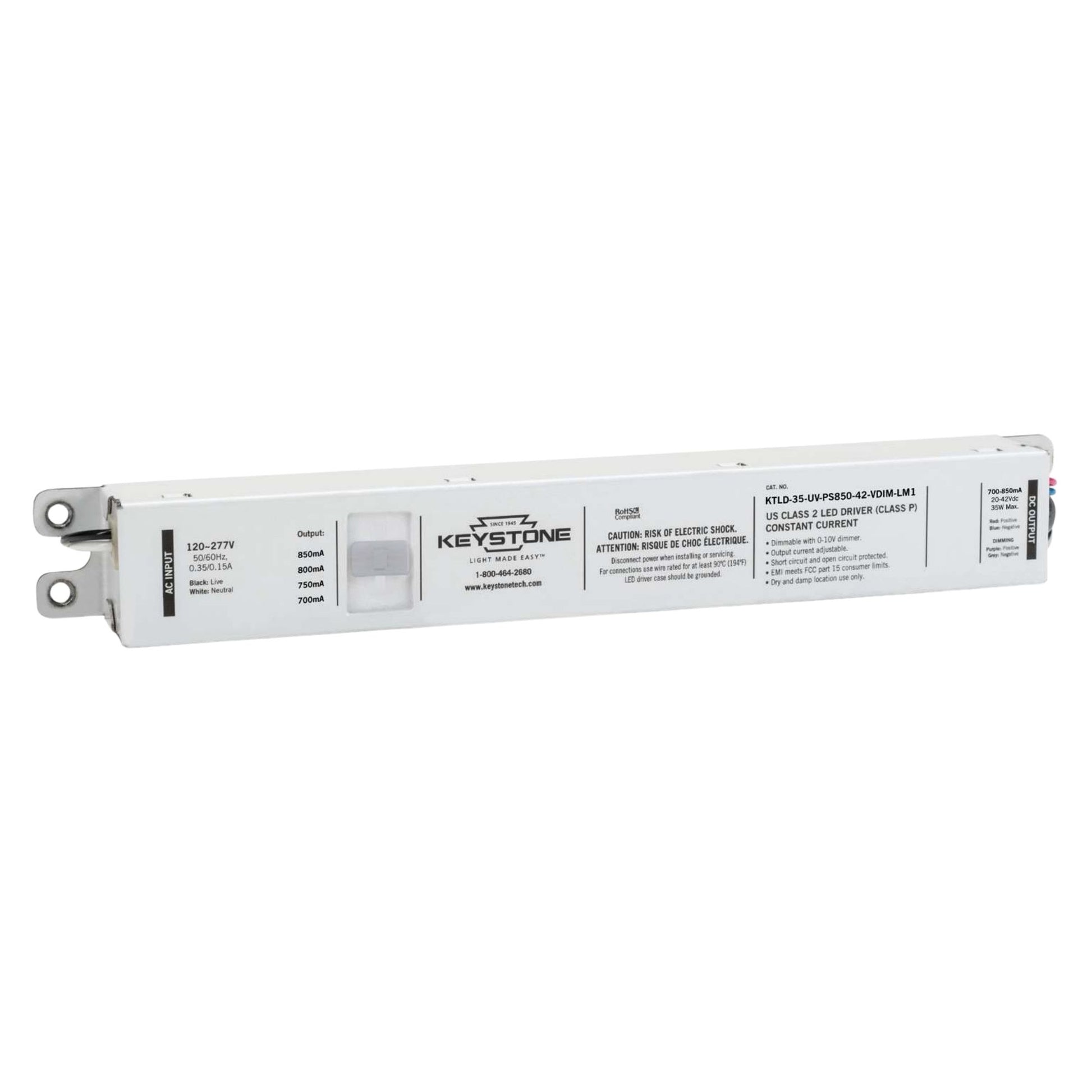

Keystone Technologies 35W Driver — 20-42V DC
The KTLD-35-UV-PS850-42-VDIM-LM1 is a 35W LED driver from Keystone Technologies designed for constant current applications. It operates with an input voltage of 120-277V and provides an output voltage range of 20-42V DC. This driver supports 0-10V dimming and is classified as a Class 2 device, ensuring safe operation. The driver features an Integrated Junction Box for easy installation.
Key Features
- Power: 35W
- Input Voltage: 120-277V
- Output Voltage: 20-42V DC
- Dimming: 0-10V
- Minimum Load: ~10% Dimming

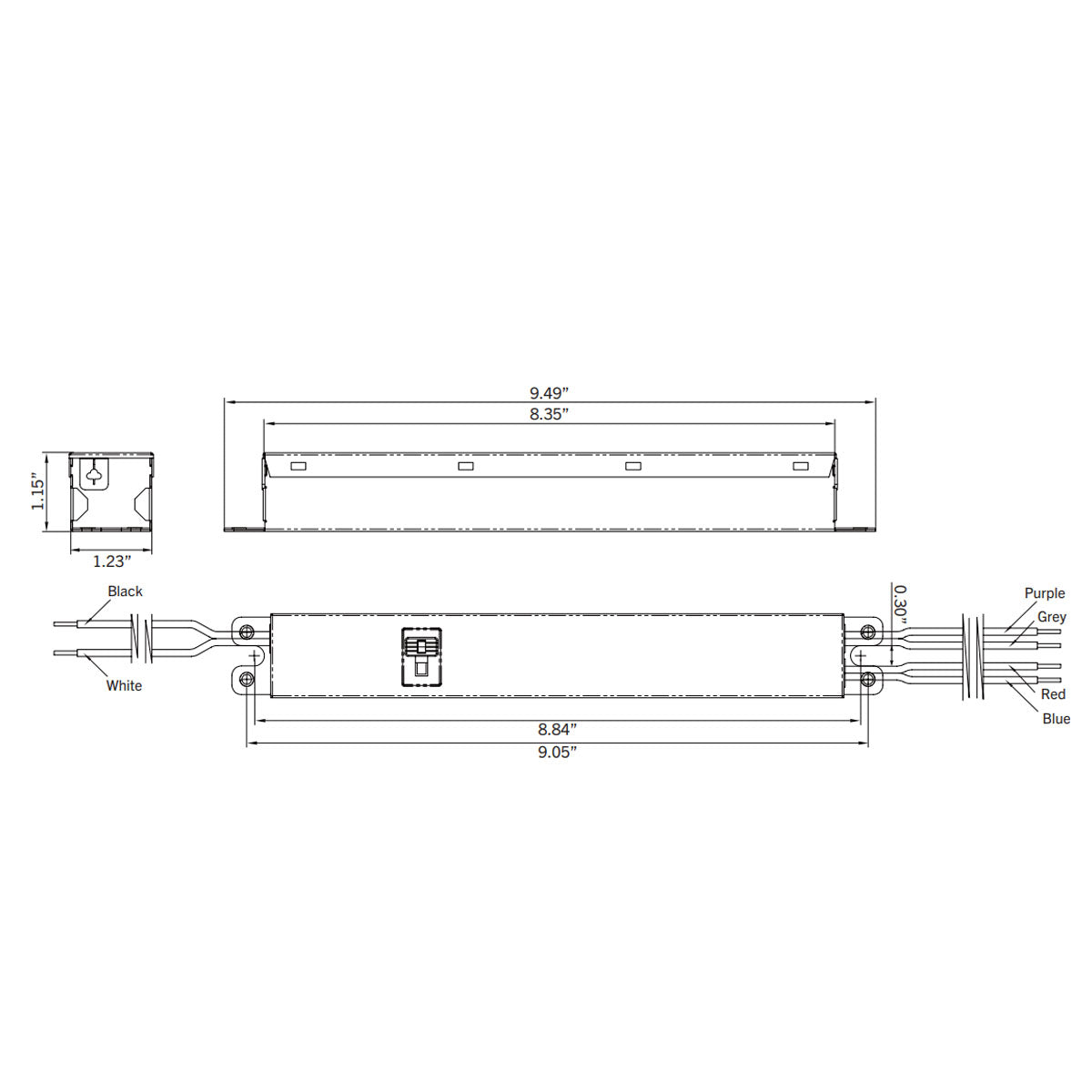

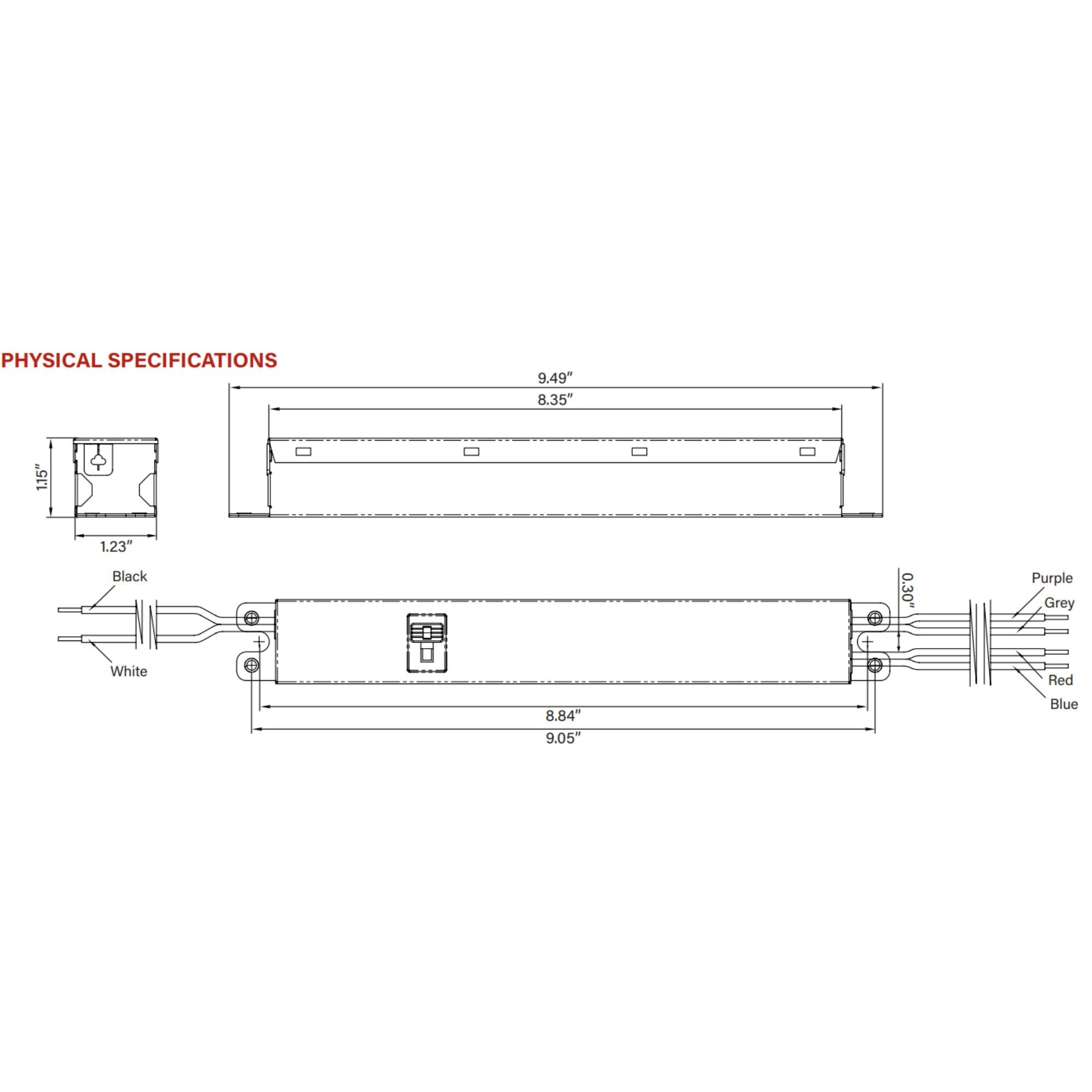

- Dimensions: 9.49 in. L x 1.23 in. W x 1.15 in. H
- Enclosure Type: Integrated Junction Box
- IP Rating: Dry Rated
- Class 2: Yes

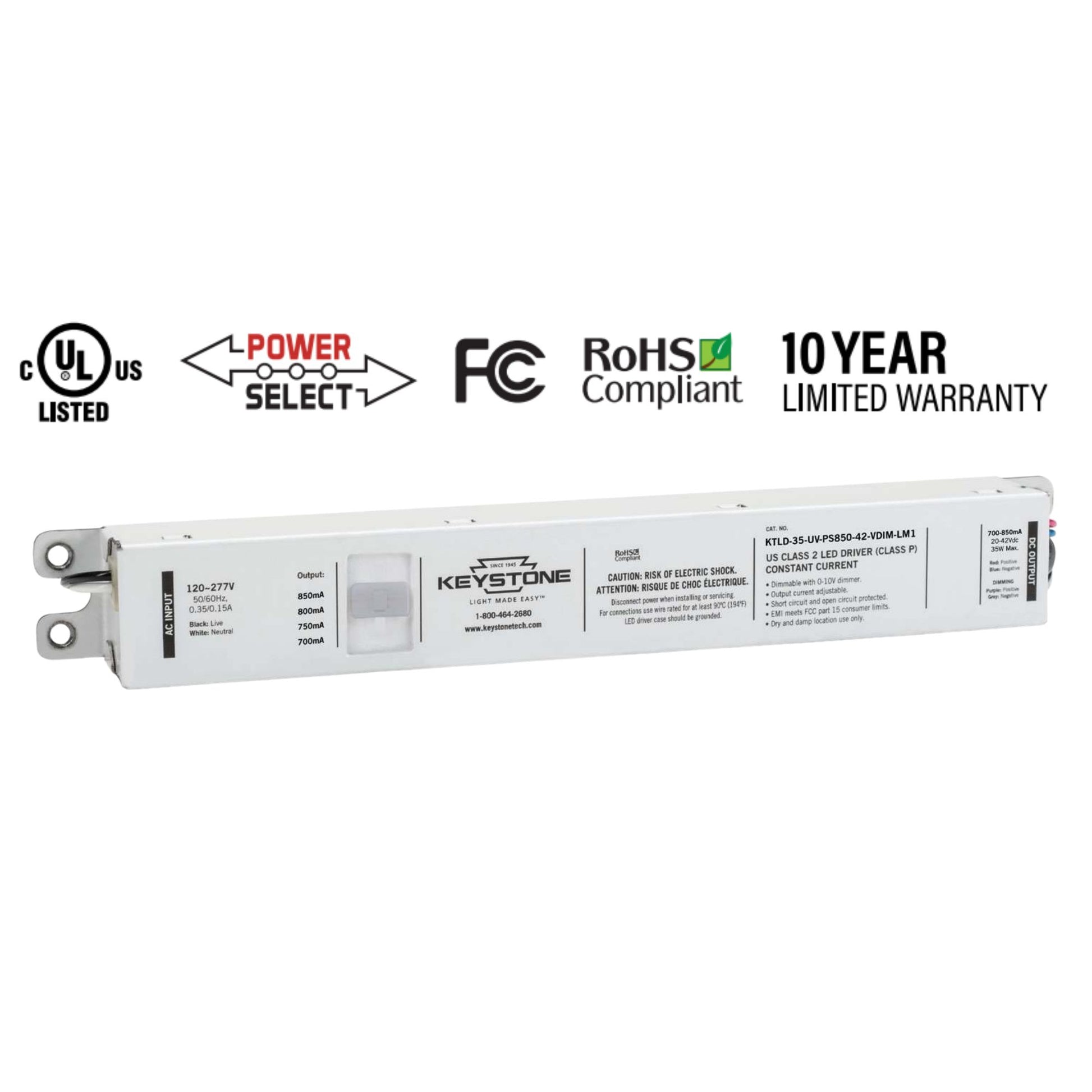

- Certifications: UL/cUL, CE
Physical Design & Installation
The driver is housed in a durable enclosure with an integrated junction box, facilitating straightforward installation and wiring.
Dimming & Controls
Compatible with 0-10V dimming systems, this driver allows for smooth dimming down to approximately 10% of full light output.
Performance & Build
Equipped with over-voltage, over-current, and short circuit protection, this Class 2 driver ensures reliable performance. It is dry rated for indoor use.
Typical Applications
- Commercial Lighting
- Office Lighting
- Retail Lighting
- Architectural Lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the KTLD-35-UV-PS850-42-VDIM-LM1 support?
What dimming protocol does the KTLD-35-UV-PS850-42-VDIM-LM1 support?
Is there a minimum load requirement for dimming?
Is there a minimum load requirement for dimming?
Does the driver include an integrated junction box?
Does the driver include an integrated junction box?
What input voltage range does this driver support?
What input voltage range does this driver support?
What is the IP rating of the KTLD-35-UV-PS850-42-VDIM-LM1?
What is the IP rating of the KTLD-35-UV-PS850-42-VDIM-LM1?
