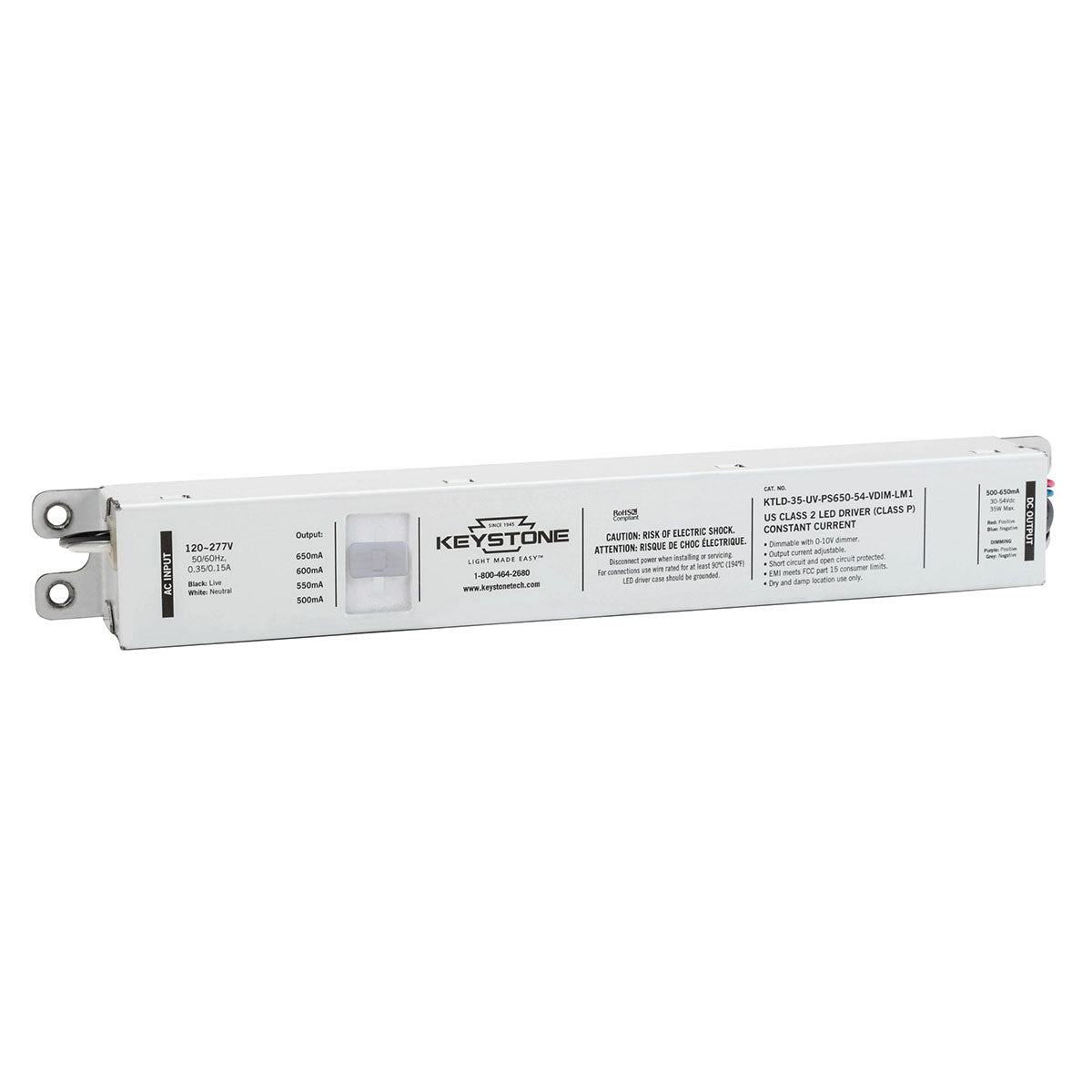

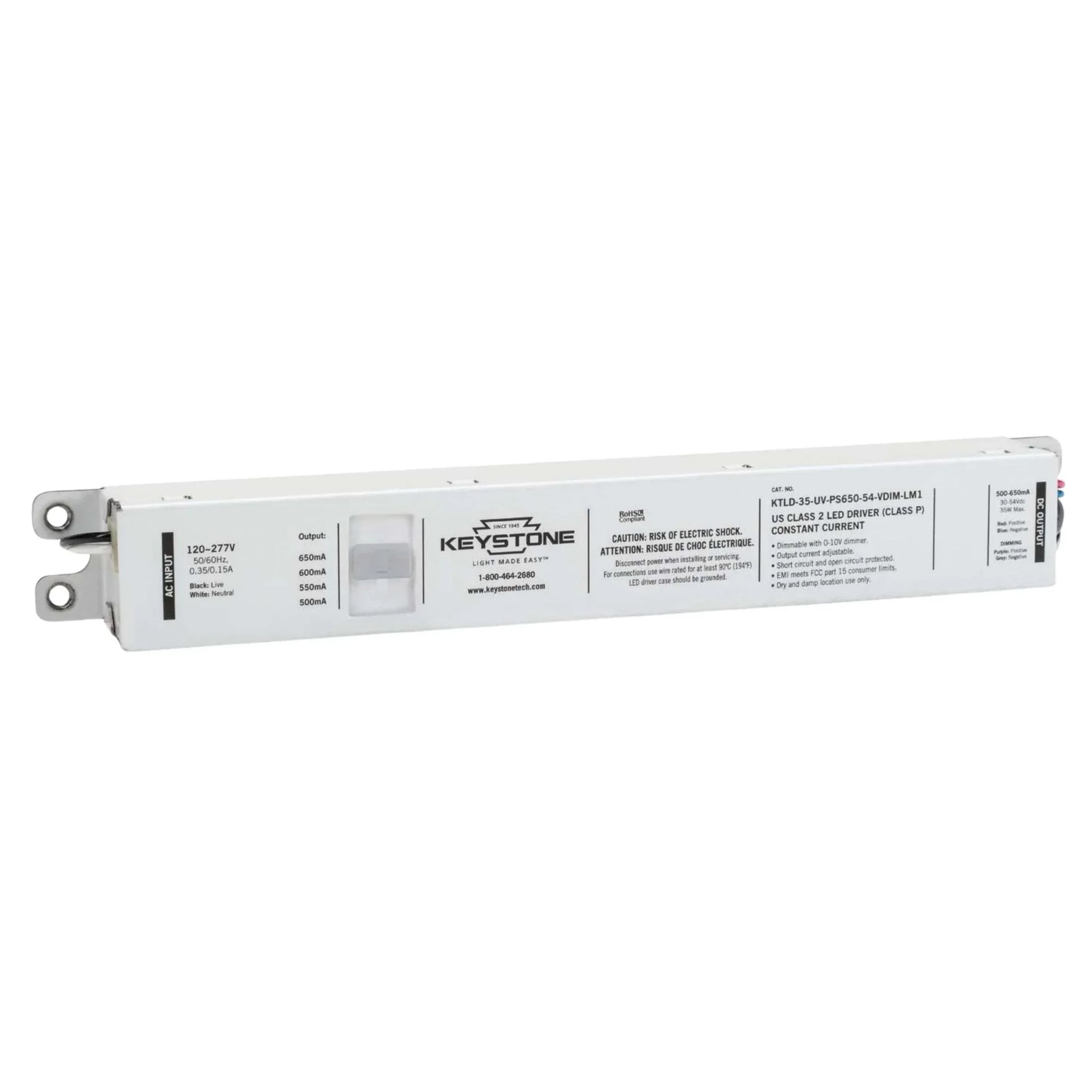

Keystone Technologies 35W Driver — 30-54V DC

The Keystone Technologies KTLD-35-UV-PS650-54-VDIM-LM1 is a 35W LED Driver designed for optimal performance with an output voltage of 30-54V DC. It features a universal input voltage range of 120-277V and supports 0-10V dimming for versatile lighting control. This driver is a Constant Current type, ensuring consistent power delivery to your LED fixtures. It does not include an integrated junction box, making it a bare module suitable for various installations.

Key Features

• Total Power: 35W
• Input Voltage: 120-277V
• Output Voltage: 30-54V DC
• Output Current: 500, 550, 600, or 650mA
• Dimming: 0-10V
• Dimensions: 9.49 in. L x 1.23 in. W x 1.15 in. H
• Enclosure Type: Bare module
• Class 2: Yes
• Certifications: UL/cUL, CE, FCC

Physical Design & Installation

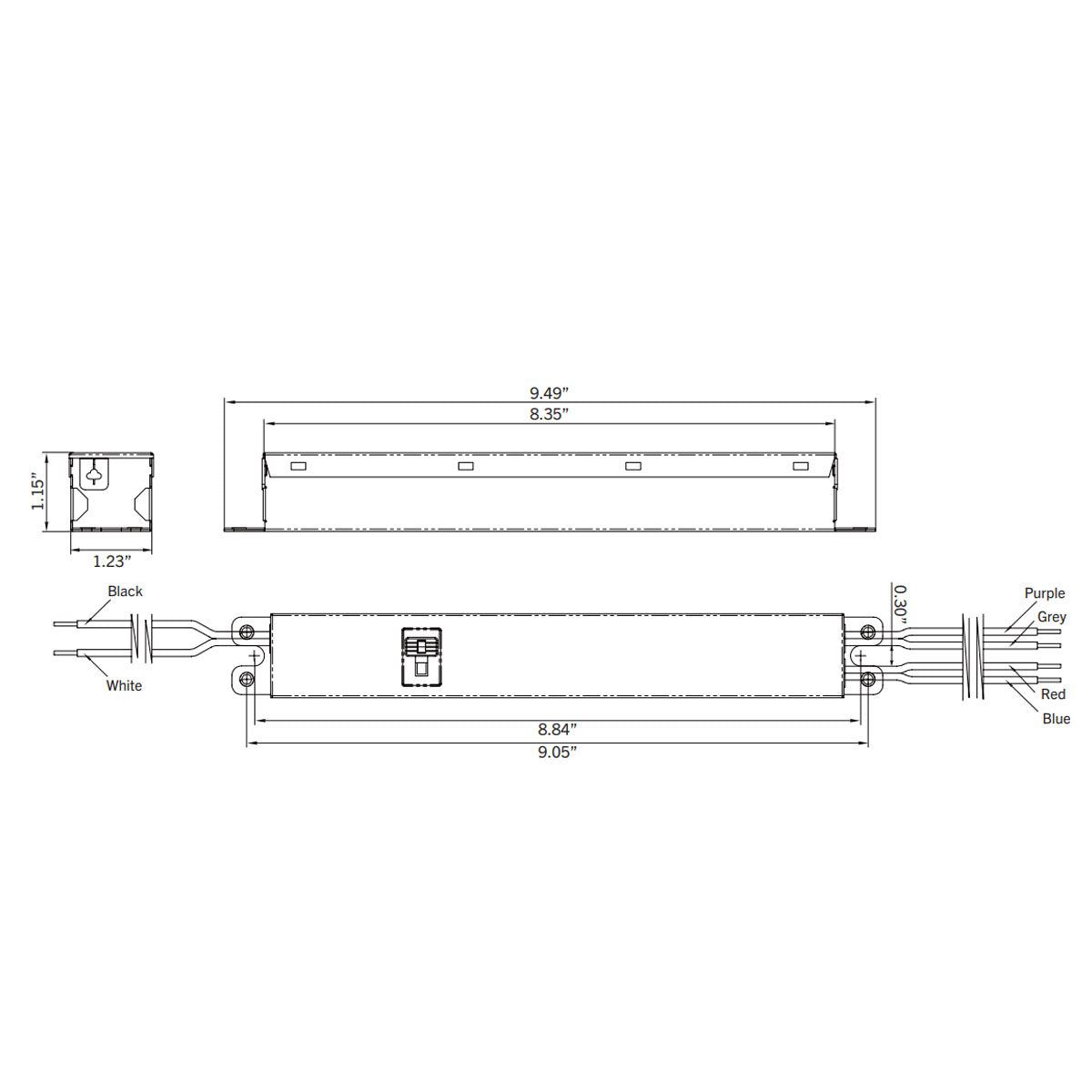

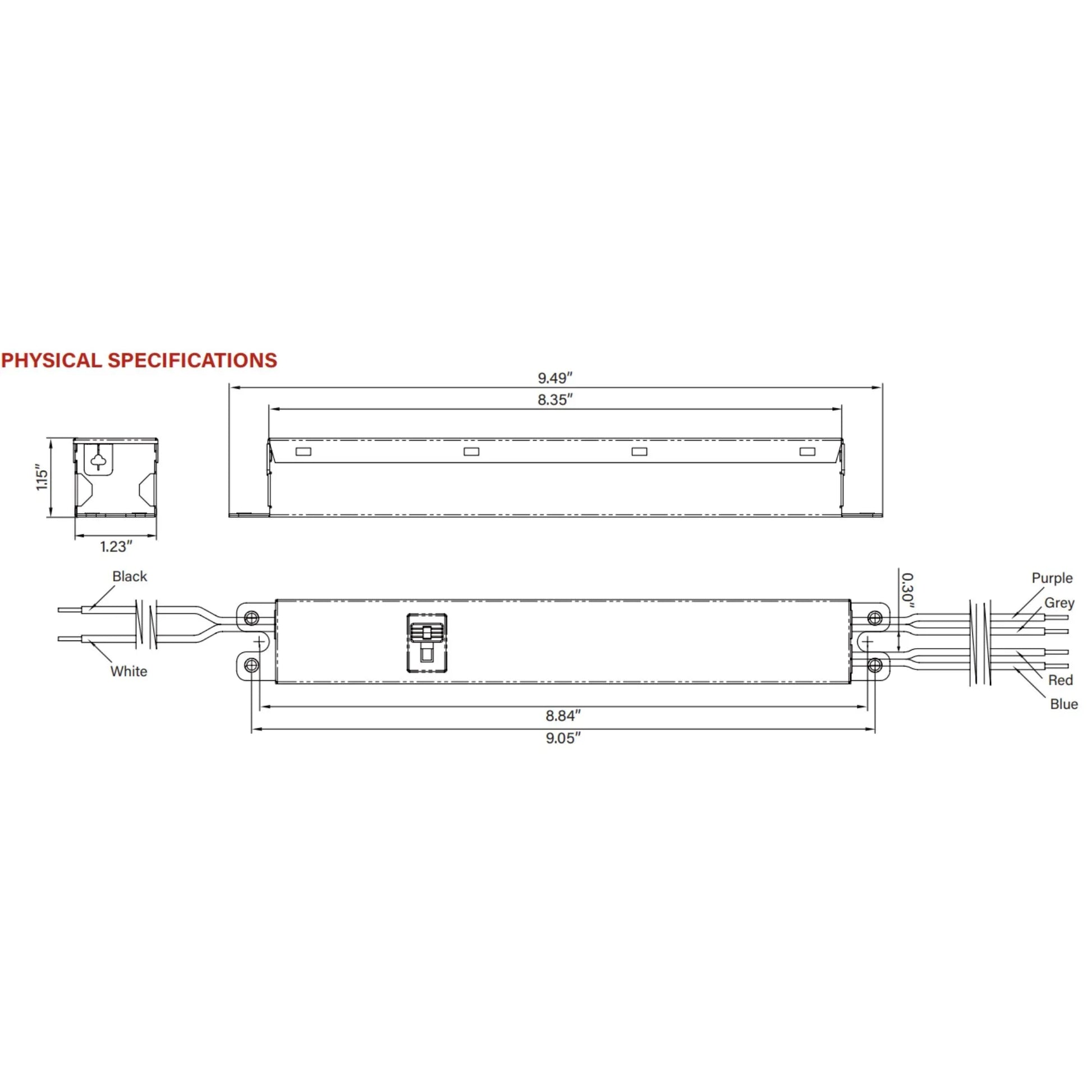

The driver features a compact design with dimensions of 9.49 in. L x 1.23 in. W x 1.15 in. H. It is a bare module without an integrated junction box, allowing for flexible installation options.

Dimming & Controls

Compatible with 0-10V dimming systems, this driver allows for smooth dimming down to 10%. It operates within an input voltage range of 120-277V, providing flexibility for various applications.

Performance & Build

Equipped with over-voltage, over-current, and short circuit protection, this driver ensures reliable performance. It is rated as Class 2 and complies with UL/cUL, CE, and FCC standards.

Typical Applications

• Commercial lighting
• Office lighting
• Retail lighting
• Industrial lighting
