Keystone Technologies 30W Driver — 10-56V

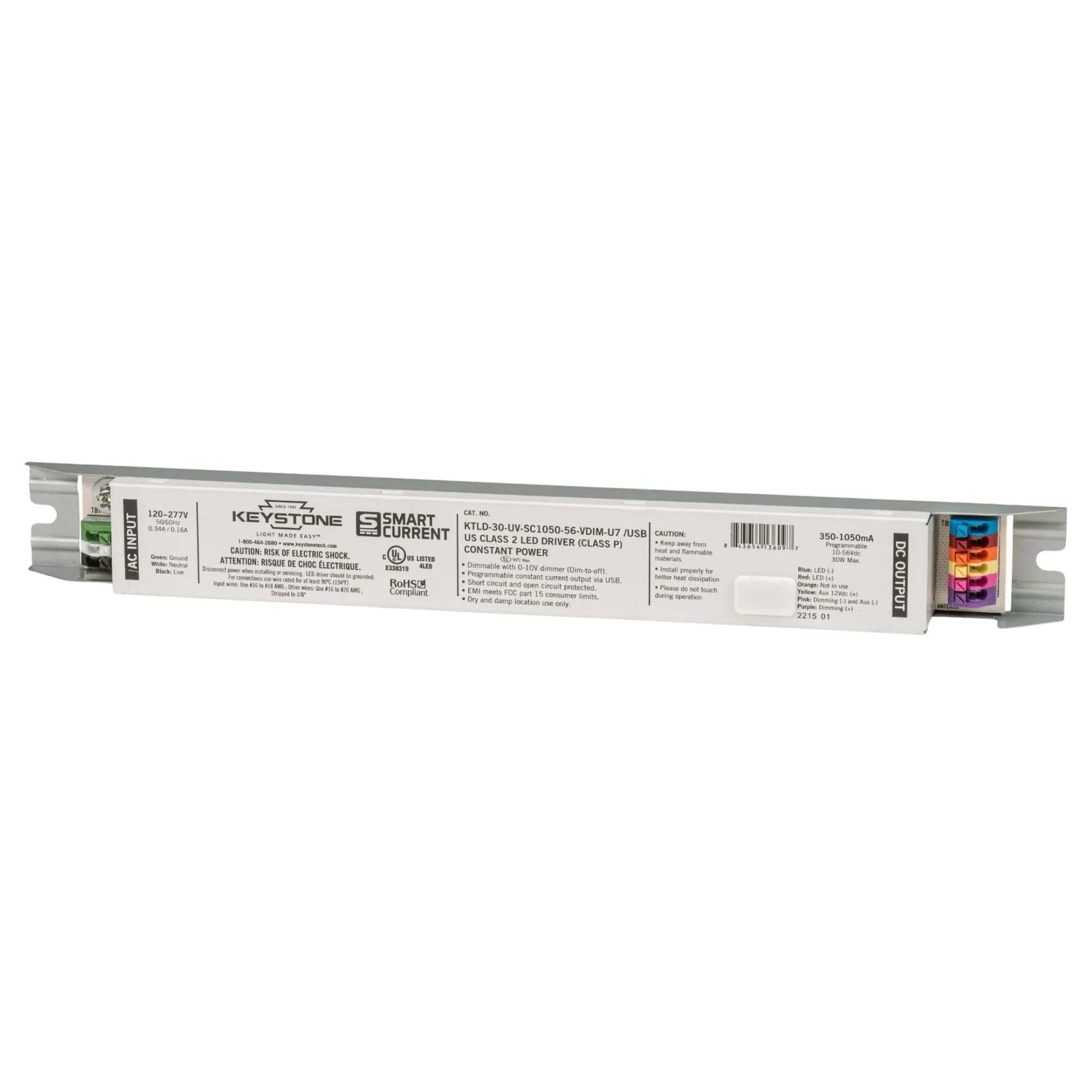

The KTLD-30-UV-SC1050-56-VDIM-U7-USB is a 30W constant current programmable LED driver with an input voltage range of 120-277V and an output voltage of 10-56V DC. It features 0-10V dimming capability, allowing for smooth dimming down to 1%. This driver is housed in a durable metal case and is designed for indoor use.

Key Features

• Power: 30W
• Input Voltage: 120-277V
• Output Voltage: 10-56V DC
• Dimming: 0-10V
• Minimum Load: Not specified

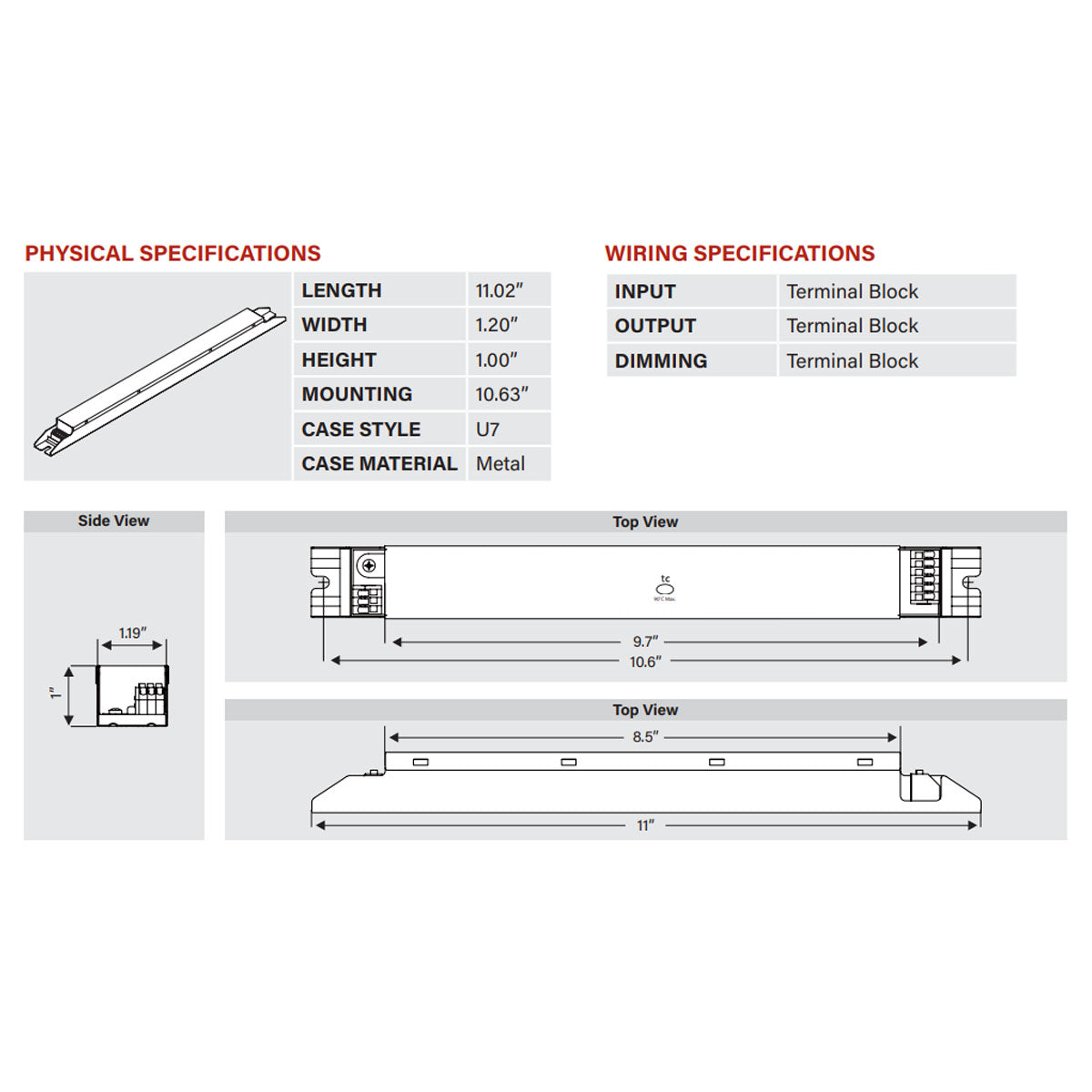

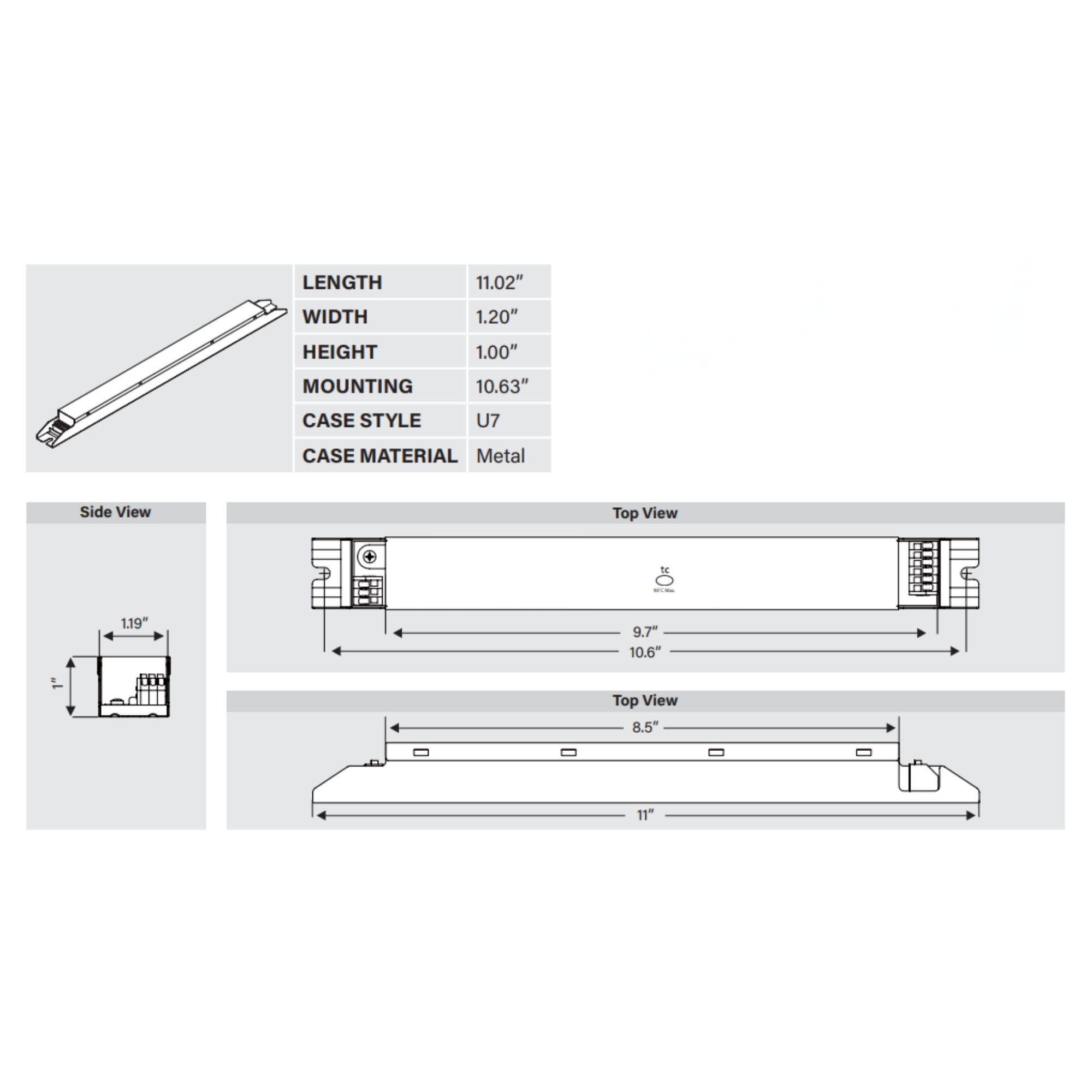

• Dimensions: 11.02 in. L x 1.20 in. W x 1.00 in. H
• Enclosure Type: Metal
• IP Rating: Dry Rated
• Class 2: Yes
• Certifications: UL, CE, FCC

Physical Design & Installation

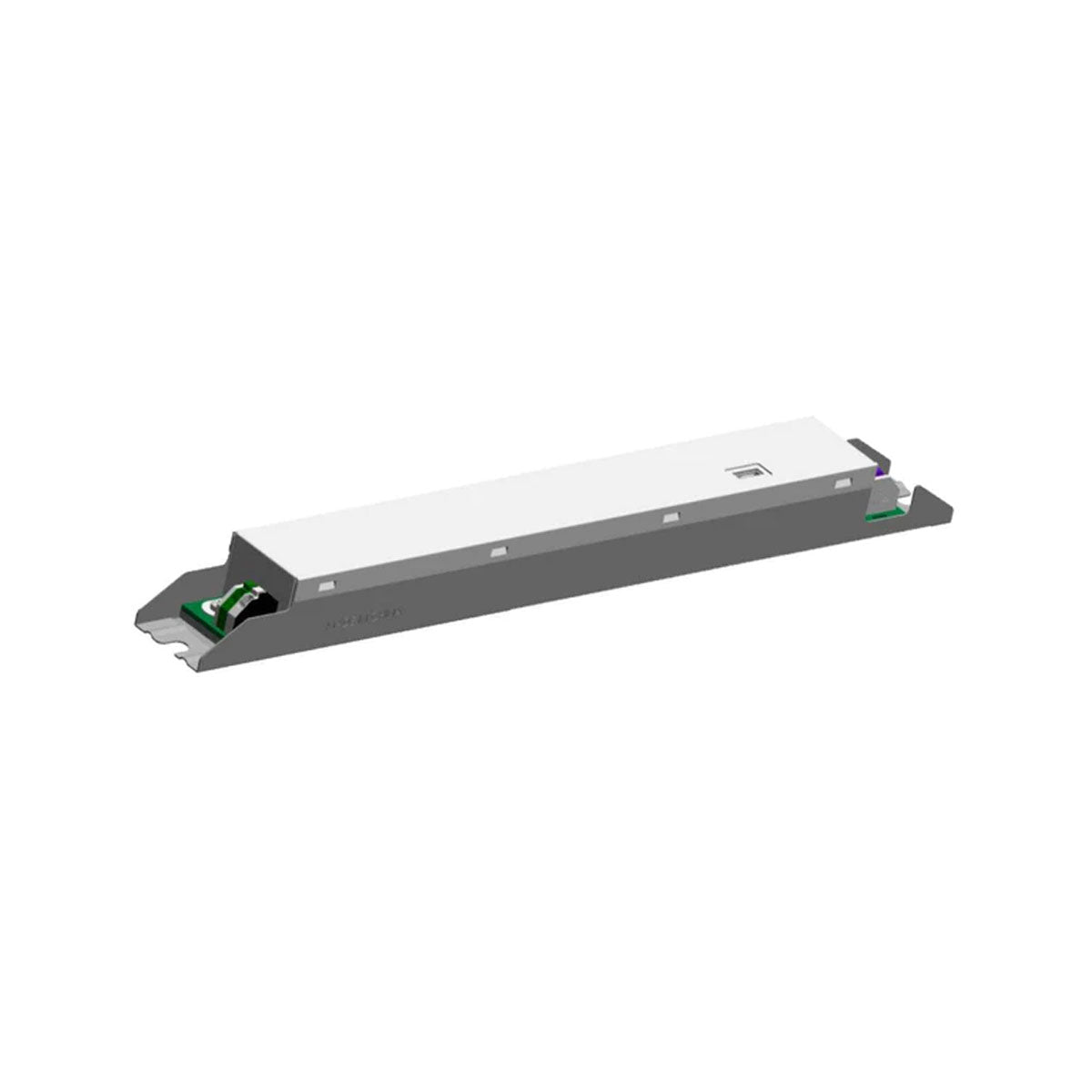

The driver features a robust metal enclosure, ensuring durability and protection in dry indoor environments. It does not include an integrated junction box.

Dimming & Controls

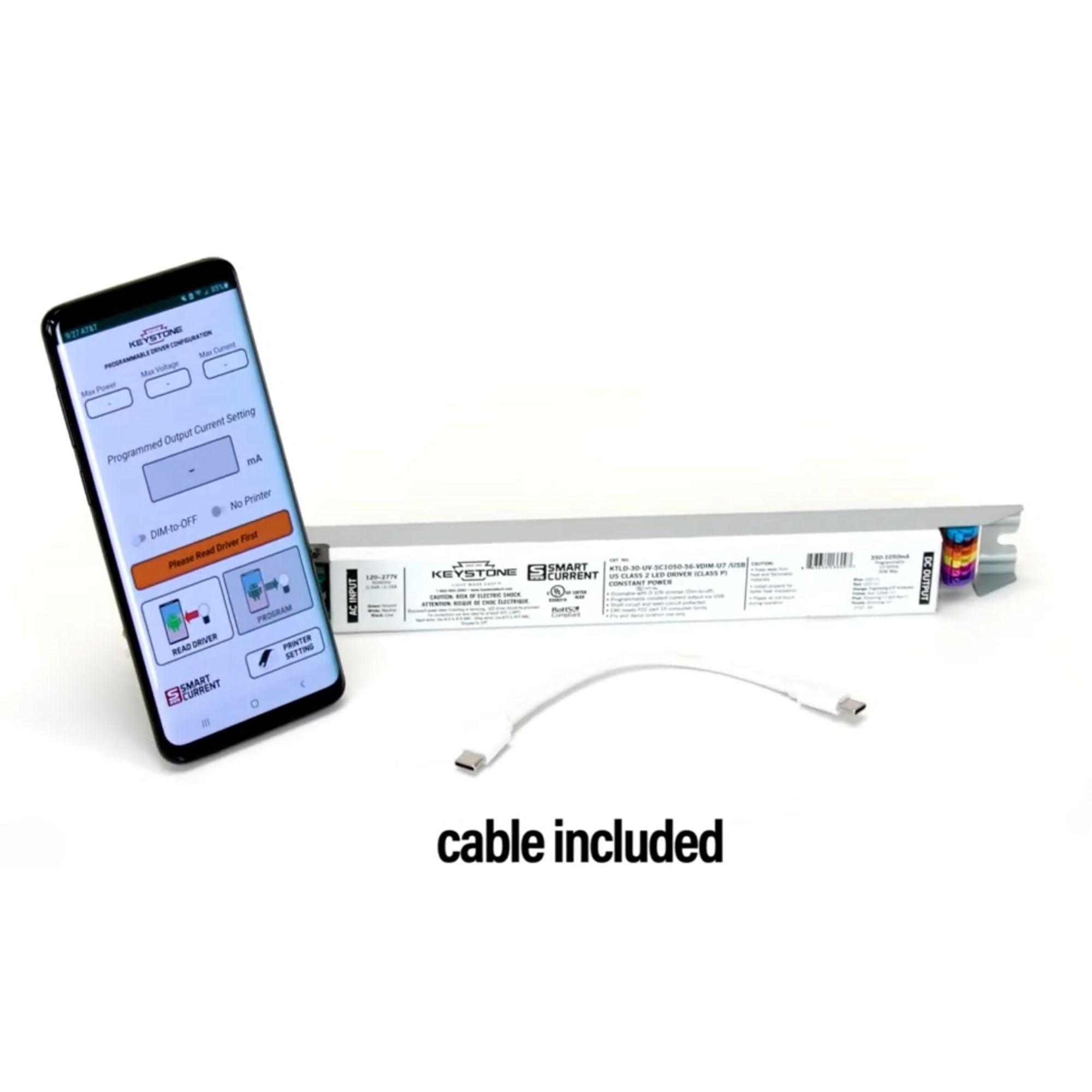

Compatible with 0-10V dimming systems, this driver supports dimming down to 1% at maximum output current. It requires a USB-C cable and an Android device for programming.

Performance & Build

Equipped with short circuit, over-voltage, and thermal protection, the driver ensures reliable performance. It is Class 2 compliant and meets UL, CE, and FCC standards.

Typical Applications

• Commercial lighting
• Office lighting
• Retail lighting
• Indoor architectural lighting
