25 Watts LED Driver, Selectable Current 300-450mA, 0-10V Dimming, 120-277V
Available in stock (43)
About this item
About this item
- Output Voltage: 30-54V DC
- Dimming: 0-10V
- Input Voltage: 120-277V
- Enclosure: Compact design
- Protection: Over Voltage, Over Current, Short Circuit
We process payments securely and do not store credit card information.
Description
Description

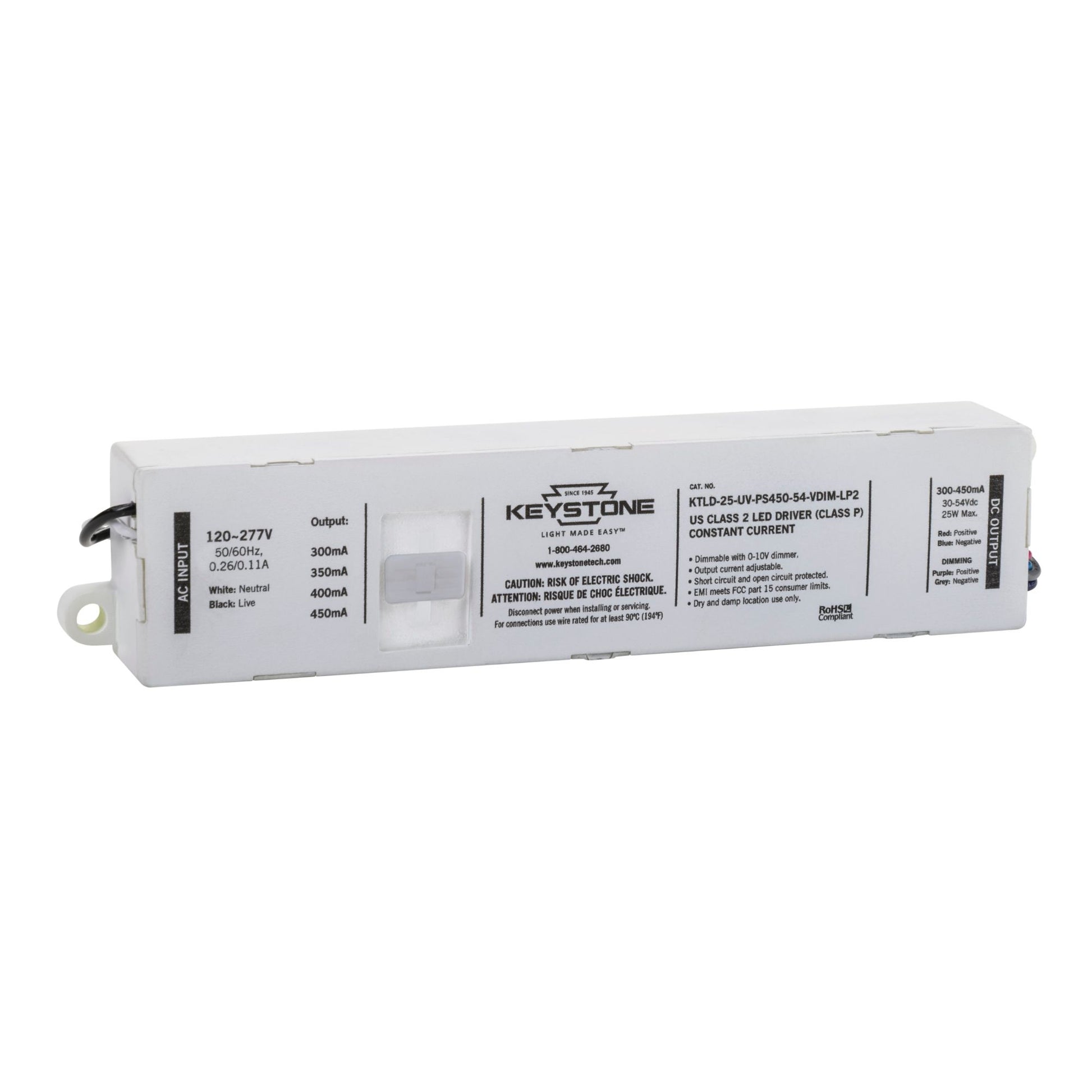

Keystone Technologies 25W Driver — 30-54V
The KTLD-25-UV-PS450-54-VDIM-LP2 is a 25W constant current LED driver from Keystone Technologies. It operates with an input voltage of 120-277V and provides an output voltage range of 30-54V DC. This driver supports 0-10V dimming and is classified as a Class 2 device, ensuring safe operation. The compact design allows for versatile installation options.
Key Features
- Power: 25W
- Input Voltage: 120-277V
- Output Voltage: 30-54V DC
- Dimming: 0-10V
- Minimum Load: ~10% Dimming

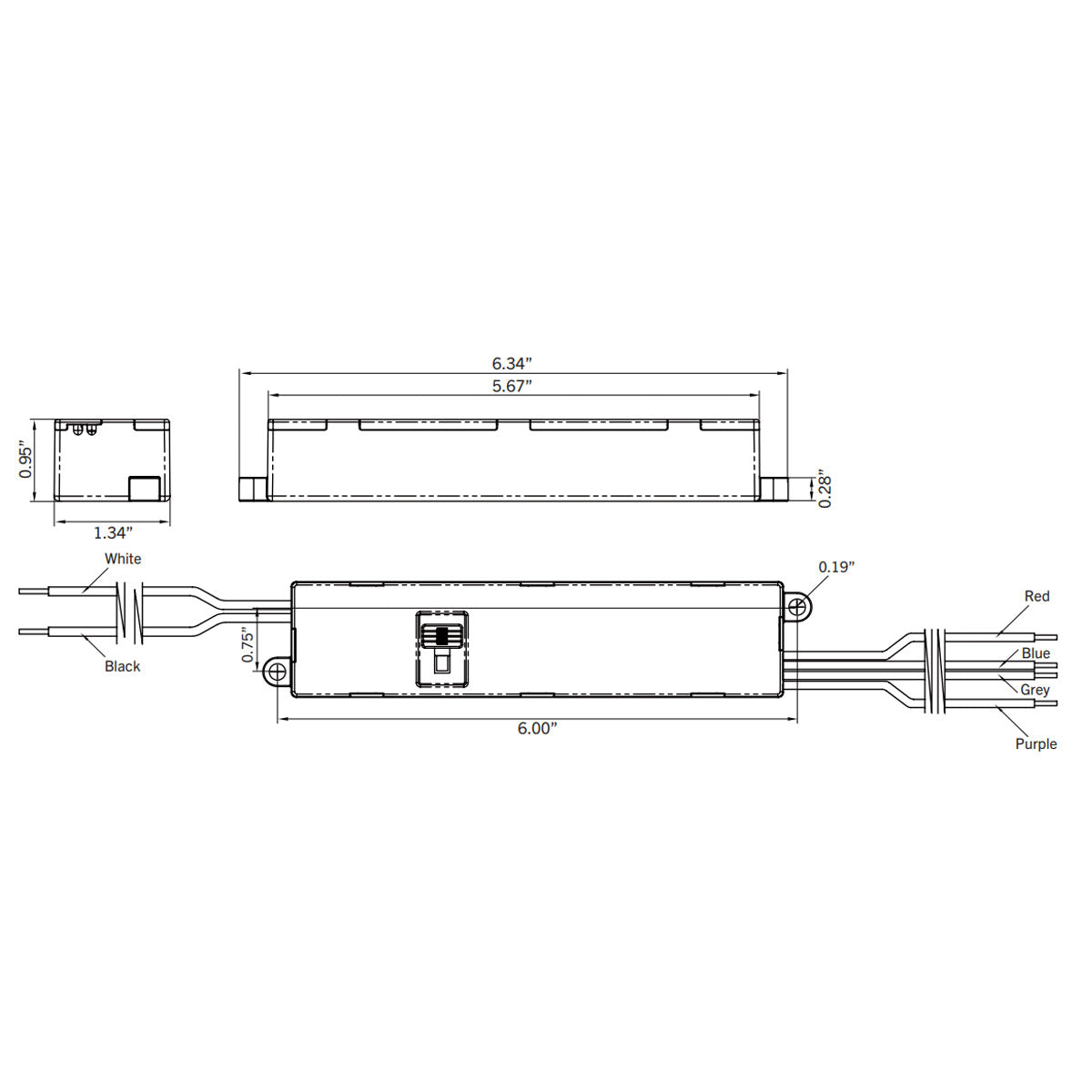

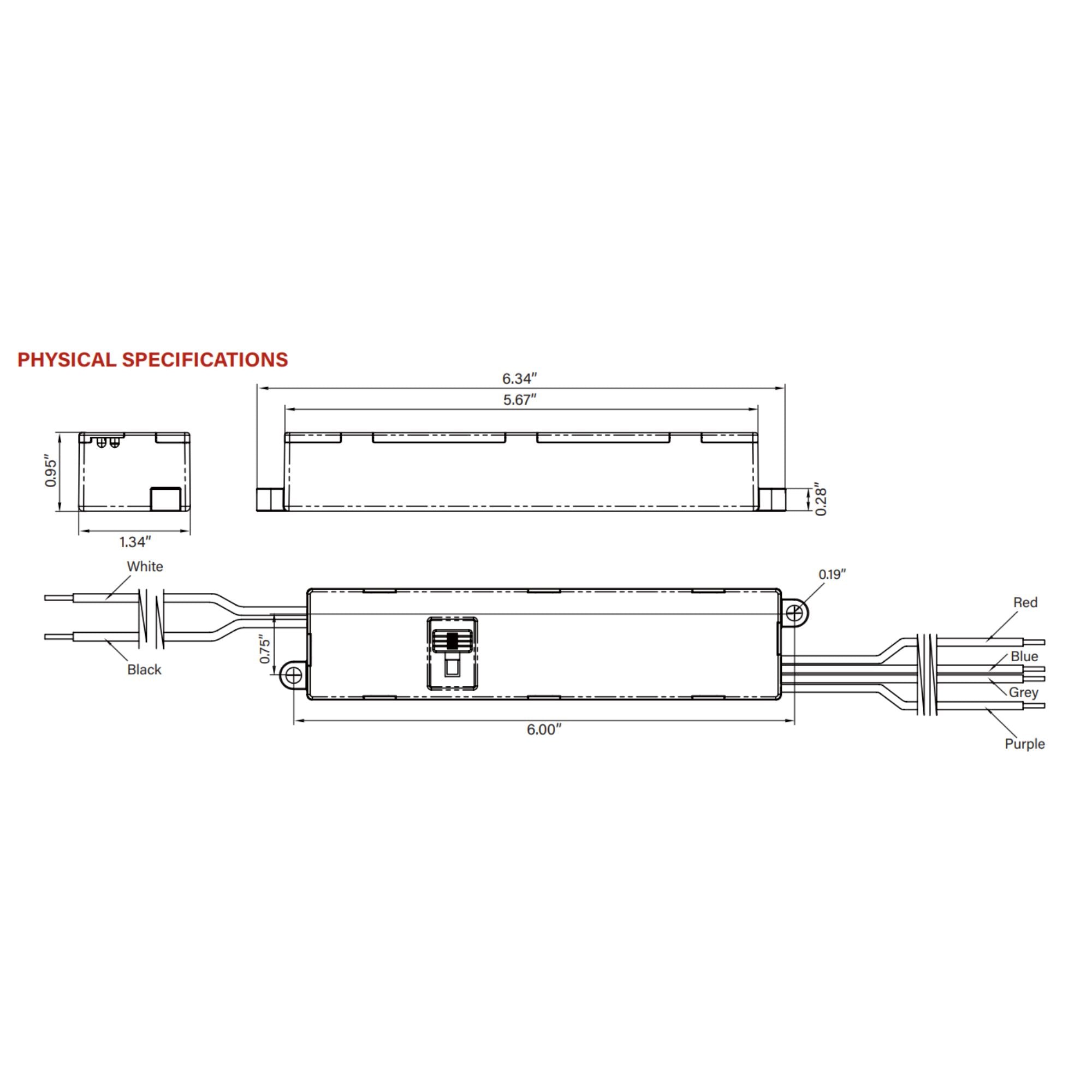

- Dimensions: 6.34 in. L x 1.34 in. W x 0.95 in. H
- Enclosure Type: Compact design
- Class 2: Yes

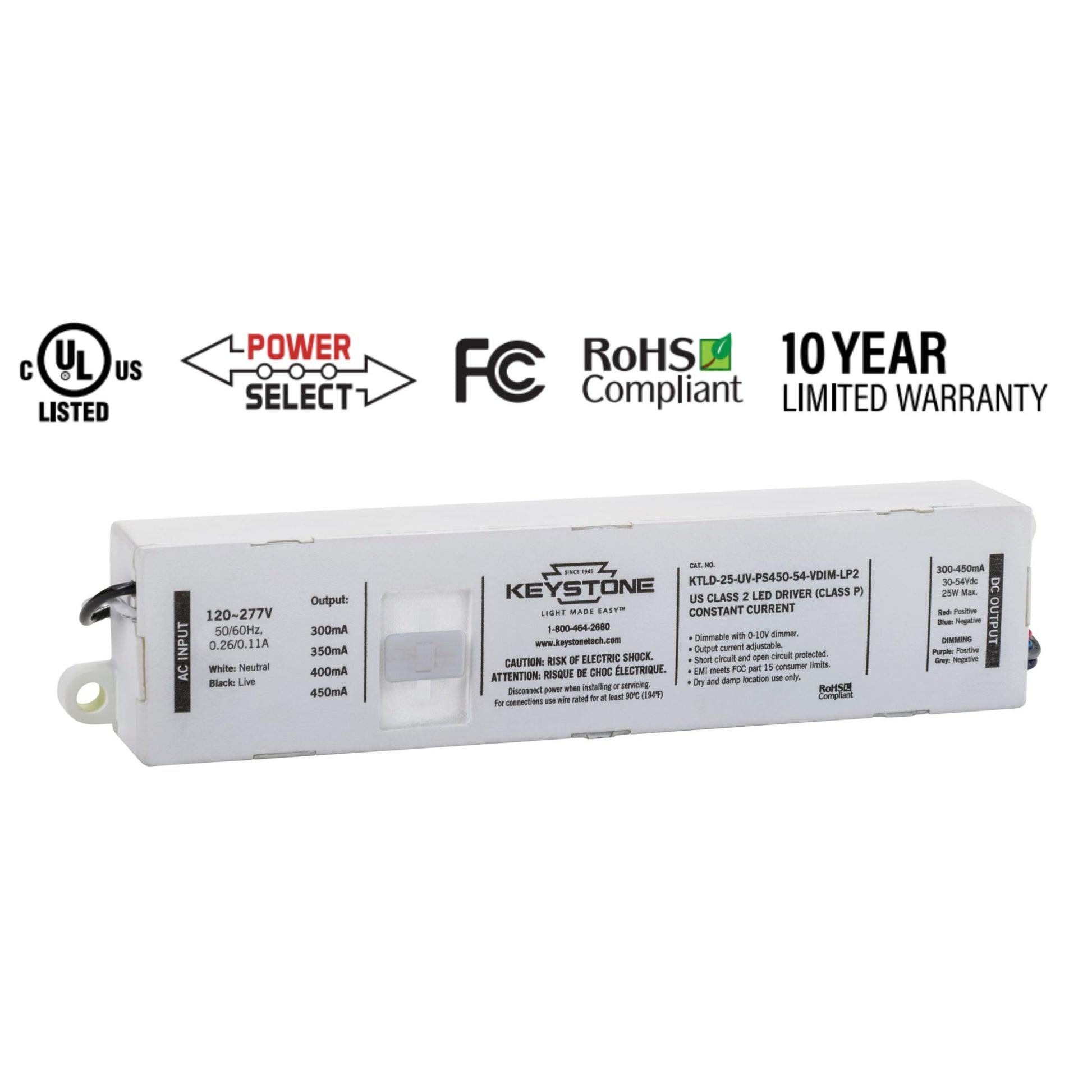

- Certifications: UL/cUL, CE
Physical Design & Installation
The driver features a compact design suitable for various installations. It does not include an integrated junction box, allowing for flexible mounting options.

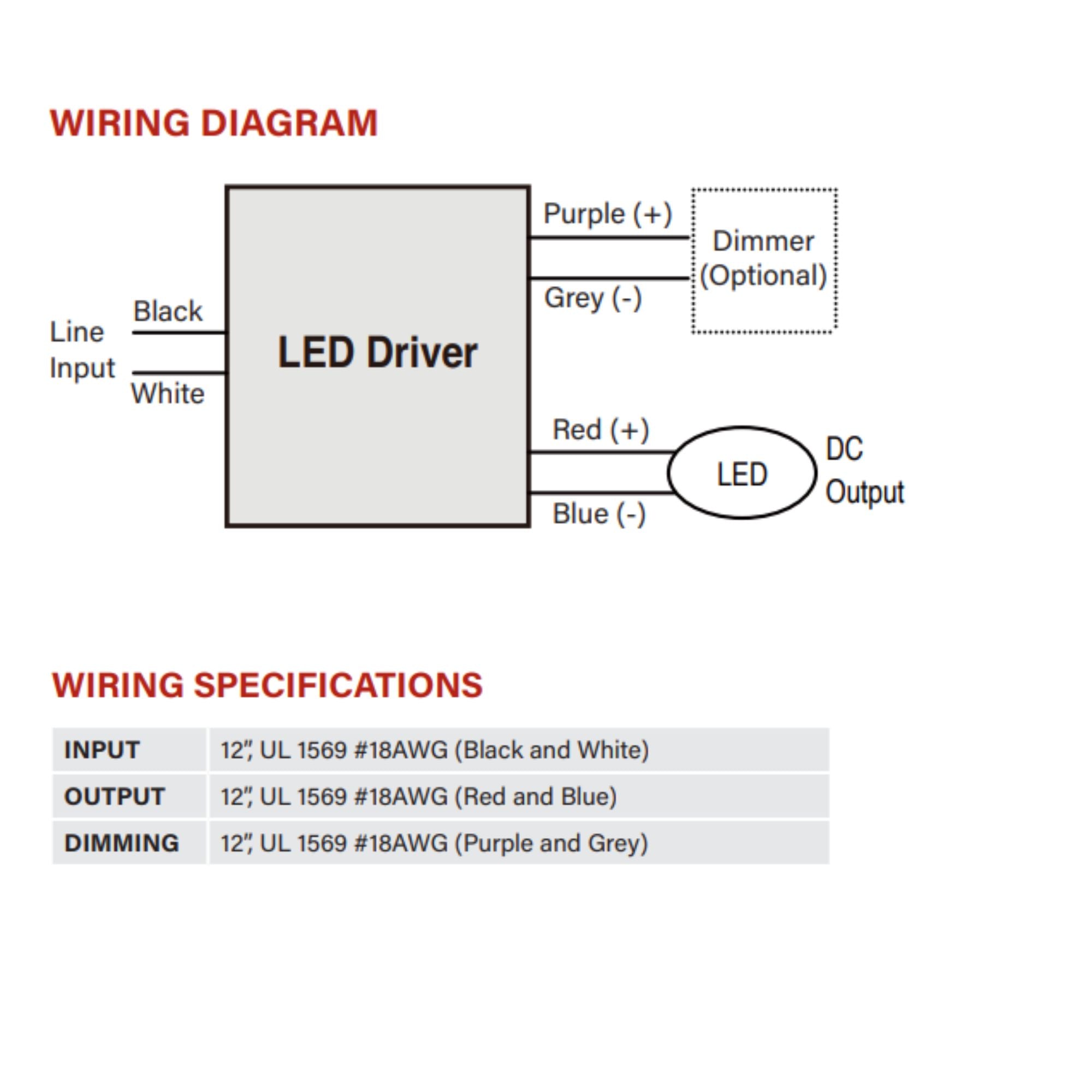

Dimming & Controls
Compatible with 0-10V dimming systems, the driver operates efficiently across a wide input range of 120-277V. It requires a minimum load of approximately 10% for optimal dimming performance.
Performance & Build
Equipped with over-voltage, over-current, and short circuit protection, this driver ensures reliable performance. It is UL/cUL certified and meets Class 2 standards.
Typical Applications
- Commercial lighting
- Residential lighting
- Office lighting
- Retail lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the KTLD-25-UV-PS450-54-VDIM-LP2 support?
What dimming protocol does the KTLD-25-UV-PS450-54-VDIM-LP2 support?
Is there a minimum load requirement for dimming?
Is there a minimum load requirement for dimming?
Does this driver include an integrated junction box?
Does this driver include an integrated junction box?
What input voltage range does the driver support?
What input voltage range does the driver support?
What is the IP rating of the KTLD-25-UV-PS450-54-VDIM-LP2?
What is the IP rating of the KTLD-25-UV-PS450-54-VDIM-LP2?
